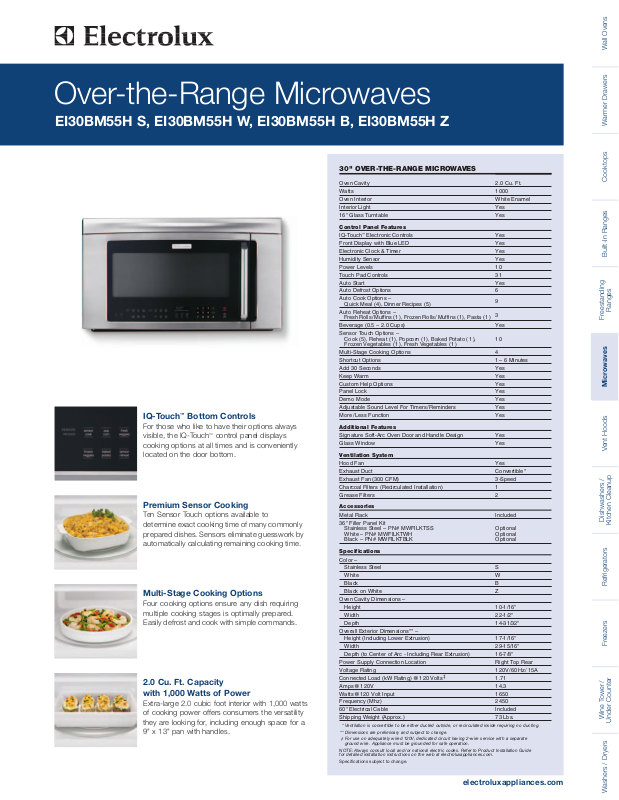

Electrolux EI30BM55HS, EI30BM55HB, EI30BM55HZ, EI30BM55HW User Manual
Over-the-Range Microwaves
EI30BM55H S, EI30BM55H W, EI30BM55H B, EI30BM55H Z
30" OVER-THE-RANGE MICROWAVES
Oven Cavity
Watts
Oven Interior
Interior Light
16" Glass Turntable
Control Panel Features
IQ-Touch™Electronic Controls
Front Display with Blue LED
Electronic Clock & Timer
Humidity Sensor
Power Levels
Touch Pad Controls
Auto Start
Auto Defrost Options
Auto Cook Options –
Quick Meal (4), Dinner Recipes (5)
Auto Reheat Options –
Fresh Rolls/ Muffins (1), Frozen Rolls /Muffins (1), Pasta (1)
Beverage (0.5 – 2.0 Cups)
Sensor Touch Options –
Cook (5), Reheat (1), Popcorn (1), Baked Potato (1 ),
Frozen Vegetables (1 ), Fresh Vegetables (1 )
Multi-Stage Cooking Options
Shortcut Options
Add 30 Seconds
Keep Warm
Custom Help Options
Panel Lock
Demo Mode
Adjustable Sound Level For Timers/ Reminders
More/ Less Function
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Glass Window
Ventilation System
Hood Fan
Exhaust Duct
Exhaust Fan (300 CFM)
Charcoal Filters (Recirculated Installation)
Grease Filters
Accessories
Metal Rack
36" Filler Panel Kit
Stainless Steel – PN# MWFILKTSS
White – PN# MWFILKTWH
Black – PN# MWFILKTBLK
Specifications
Color –
Stainless Steel
White
Black
Black on White
Oven Cavity Dimensions –
Height
Width
Depth
Overall Exterior Dimensions** –
Height (Including Lower Extrusion)
Width
Depth (to Center of Arc - Including Rear Extrusion)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @120 Volts
‡
Amps@ 120V
Watts@ 120 Volt Input
Frequency (Mhz)
60" Electrical Cable
Shipping Weight (Approx.)
* Ventilation is convertible to be either ducted outside, or recirculated inside requiring no ducting.
** Dimensions are preliminary and subject to change.
‡ For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and/ or national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
2.0 Cu. Ft.
1000
White Enamel
Yes
Yes
Yes
Yes
Yes
Yes
10
31
Yes
6
9
3
Yes
10
4
1– 6 Minutes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Convertible*
3-Speed
1
2
Included
Optional
Optional
Optional
S
W
B
Z
10-1/16"
22-1/2"
14-31/32"
17-1/16"
29-15/16"
16-7/8"
Right Top Rear
120V/ 60Hz /15A
1.71
14.3
1650
2450
Included
73 Lbs.
electroluxappliances.com
IQ-Touch™Bottom Controls
For those who like to have their options always
visible, the IQ-Touch
™
control panel displays
cooking options at all times and is conveniently
located on the door bottom.
Premium Sensor Cooking
Ten Sensor Touch options available to
determine exact cooking time of many commonly
prepared dishes. Sensors eliminate guesswork by
automatically calculating remaining cooking time.
Multi-Stage Cooking Options
Four cooking options ensure any dish requiring
multiple cooking stages is optimally prepared.
Easily defrost and cook with simple commands.
2.0 Cu. Ft. Capacity
with 1,000 Watts of Power
Extra-large 2.0 cubic foot interior with 1,000 watts
of cooking power offers consumers the versatility
they are looking for, including enough space for a
9" x 13" pan with handles.
Wall OvensRefrigerators Warmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsFreezers
Wine Tower/
Under Counter
Washers / Dryers
Dishwashers /
Kitchen Cleanup
Over-the-Range Microwaves
EI30BM55H S, EI30BM55H W, EI30BM55H B, EI30BM55H Z
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
EI30BM55H 11/08 © 2008 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Over-the-Range Microwave Specifications
•
Product Weight – 61 Lbs.
•
Voltage Rating –120V / 60 Hz /15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.71kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =14.3 Amps
•
Always consult local and/or national electric codes.
•
Grounded outlet should be located in cabinet above, with hole in base
to route power cord. Carefully follow top template instructions for power
cord clearance when installing beneath smooth, flat cabinets.
•
Microwave’s ventilation system is convertible, designed for two types
of exhaust – outside, using either vertical or horizontal ducting; or
recirculating, requiring no ducting.
•
For safe and proper installation, microwave MUST be mounted to
BOTH a top cabinet AND a wall, and connected to at least one wall stud.
Can NOT be installed in island or peninsula cabinet arrangements.
•
Cabinet bottom MUST be level to insure proper installation.
•
Cabinet MUST be capable of supporting a total load of 110 lbs.
•
Filler blocks recommended for installation when cabinet front hangs
below recessed bottom shelf.
•
Minimum distance of 30" required from cooking surface to bottom edge
of top cabinet.
•
Minimum distance of 66" required from floor to top of microwave.
•
Opening between cabinets MUST be 30" wide and free of obstructions.
For openings up to 36" wide, order optional 36" Filler Panel Kit to fill in
gap between unit and cabinets.
•
Allow 26" minimum clearance for 90° door swing.
Ducted Option Specifications
•
For outside ventilation only.
•
Exhaust duct adapter will be needed for outside ventilation, to mate
with standard 3-1/4" x 10" rectangular duct. If round duct required,
rectangular-to-round transition adapter will be needed with no less than
6" diameter.
•
For most efficient airflow exhaust, use a straight run or as few elbows
as possible with a maximum duct length of 3-1/4" x 10" rectangular or
6" diameter round duct, not to exceed 140 equivalent feet.
•
For horizontal installation, be sure to allow enough space between wall
studs to accommodate exhaust.
•
Refer to web for detailed duct preparation instructions.
Ductless (Recirculated) Option Specifications
•
If ducting to outside is not an option, ventilation system can be converted
to ductless to recirculate air inside.
•
Refer to web for detailed convertible ventilation installation instructions.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
36" Filler Panel Kit: S – (PN# MWFILKTSS), W – (PN# MWFILKTWH),
B – (PN# MWFILKTBLK).
Rear Wall
151/2"
min.
30"min.
66"min.
from floor
to top of
microwave
Bottom edge of
cabinet MUST be
30"min. from
cooking surface
Cabinet MUST
be capable of
supporting a total
load of 110 lbs.
12"
min.
14"
max.
30"
min.
Microwave MUST
be mounted to
BOTH a top cabinet
AND a wall*
Locate 120V/60Hz grounded outlet inside upper cabinet
2"min.
Backsplash
*Can NOT be installed
in island or peninsula
cabinet arrangements
29
15
/16"
16
1
/2"
15
3
/4"
C
L
Overall depth at center of arc
including rear extrusion – 16
7
/8"
171/16"
Power cord
location
Allow at least 26" clearance
for door depth when open
lower
extrusion
rear
extrusion
Blower plate allows for vertical
or horizontal ducting
