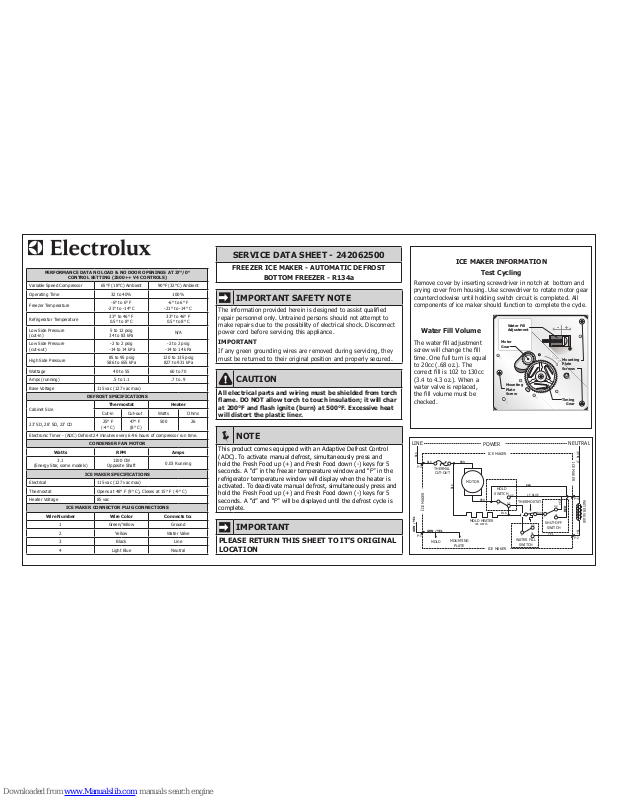

Electrolux E23BC68JPS, E23BC68JSS, EI23BC51IS - 23"" IQ-TouchTM Control, EI27BS16JS, EI28BS36IS Service Data Sheet
...Page 1
ICE MAKER INFORMATION
Test Cycling
Remove cover by inserting screwdriver in notch at bottom and
prying cover from housing. Use screwdriver to rotate motor gear
counterclockwise until holding switch circuit is completed. All
components of ice maker should function to complete the cycle.
Water Fill Volume
The water ll adjustment
screw will change the ll
time. One full turn is equal
to 20cc (.68 oz.). The
correct ll is 102 to 130cc
(3.4 to 4.3 oz.). When a
water valve is replaced,
the ll volume must be
checked.
T
U
R
N
Mounting
Plate
Screws
Mounting
Plate
Screw
Motor
Gear
Timing
Gear
Water Fill
Adjustment
PERFORMANCE DATA NO LOAD & NO DOOR OPENINGS AT 37°/0°
CONTROL SETTING (2500++ V4 CONTROLS)
Variable Speed Compressor 65°F (18°C) Ambient 90°F (32°C) Ambient
Operating Time 32 to 40% 100%
Freezer Temperature
-6° to 6° F
-21° to -14° C
-6° to 6° F
-21° to -14° C
Refrigerator Temperature
33° to 46° F
0.5° to 8° C
33° to 46° F
0.5° to 8° C
Low Side Pressure
(cut-in)
5 to 12 psig
34 to 83 kPa
N/A
Low Side Pressure
(cut-out)
-2 to 2 psig
-14 to 14 kPa
-2 to 2 psig
-14 to 14 kPa
High Side Pressure
85 to 95 psig
586 to 655 kPa
120 to 135 psig
827 to 931 kPa
Wattage 40 to 55 60 to 70
Amps (running) .5 to 1.1 .7 to .9
Base Voltage 115 vac (127 vac max)
DEFROST SPECIFICATIONS
Cabinet Size
Thermostat Heater
Cut-in Cut-out Watts Ohms
23’ SD, 28’ SD, 23’ CD
25° F
(-4° C)
47° F
(8° C)
500 26
Electronic Timer - (ADC) Defrost 24 minutes every 6-96 hours of compressor run time.
CONDENSER FAN MOTOR
Watts RPM Amps
3.1
(Energy Star, some models)
1100 CW
Opposite Shaft
0.03 Running
ICE MAKER SPECIFICATIONS
Electrical 115 vac (127 vac max)
Thermostat Opens at 48° F (9° C), Closes at 15° F (-9° C)
Heater Voltage 85 vac
ICE MAKER CONNECTOR PLUG CONNECTIONS
Wire Number Wire Color Connects to:
1 Green/Yellow Ground
2 Yellow Water Valve
3 Black Line
4 Light Blue Neutral
NOTE
This product comes equipped with an Adaptive Defrost Control
(ADC). To activate manual defrost, simultaneously press and
hold the Fresh Food up (+) and Fresh Food down (-) keys for 5
seconds. A “d” in the freezer temperature window and “F” in the
refrigerator temperature window will display when the heater is
activated. To deactivate manual defrost, simultaneously press and
hold the Fresh Food up (+) and Fresh Food down (-) keys for 5
seconds. A “d” and “F” will be displayed until the defrost cycle is
complete.

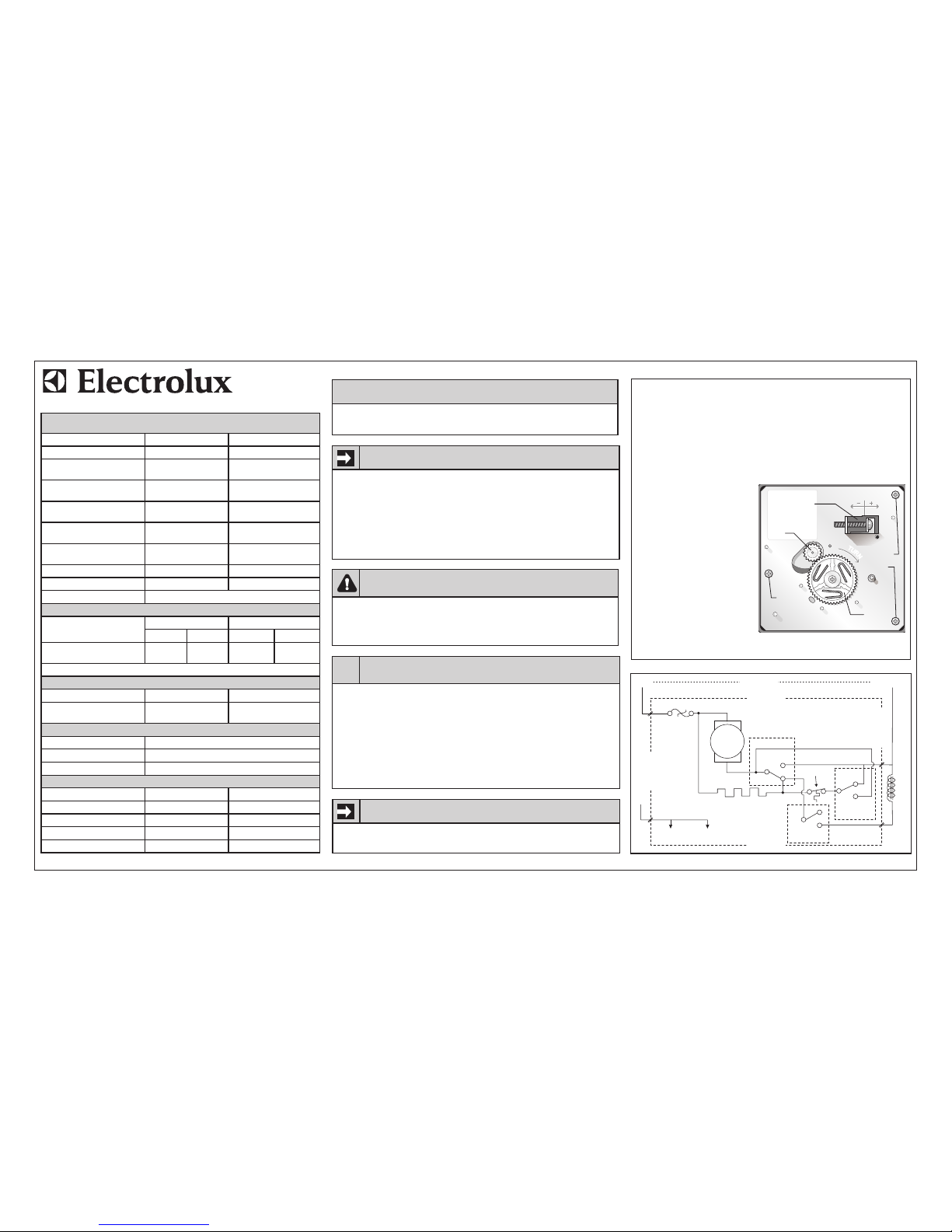

SERVICE DATA SHEET - 242062500
FREEZER ICE MAKER - AUTOMATIC DEFROST
BOTTOM FREEZER - R134a
IMPORTANT SAFETY NOTE
The information provided herein is designed to assist qualied
repair personnel only. Untrained persons should not attempt to
make repairs due to the possibility of electrical shock. Disconnect
power cord before servicing this appliance.
IMPORTANT
If any green grounding wires are removed during servicing, they
must be returned to their original position and properly secured.
CAUTION
All electrical parts and wiring must be shielded from torch
ame. DO NOT allow torch to touch insulation; it will char
at 200°F and ash ignite (burn) at 500°F. Excessive heat
will distort the plastic liner.
IMPORTANT
PLEASE RETURN THIS SHEET TO IT’S ORIGINAL
LOCATION
POWER
ICE MAKER
ICE MAKER
ICE MAKER
WATER VALVE
LINE
THERMAL
CUT-OUT
HOLD
SWITCH
THERMOSTAT
SHUT-OFF
SWITCH
WATER FILL
SWITCH
MOLD HEATER
MOLD
MOUNTING
PLATE
165 WATTS
MOTOR
NEUTRAL
BLK
BLK
BLK
BLK
BLU
C
C
C
NO
NO
NO
NC
NC
NC
YEL
YEL
BRN
RED
GRN/YEL
GRN /YEL
RED
RED
LT. BLUE
LT.BLUE
YEL
P-3
P-1
P-2
P-4
ICE MAKER
Page 2

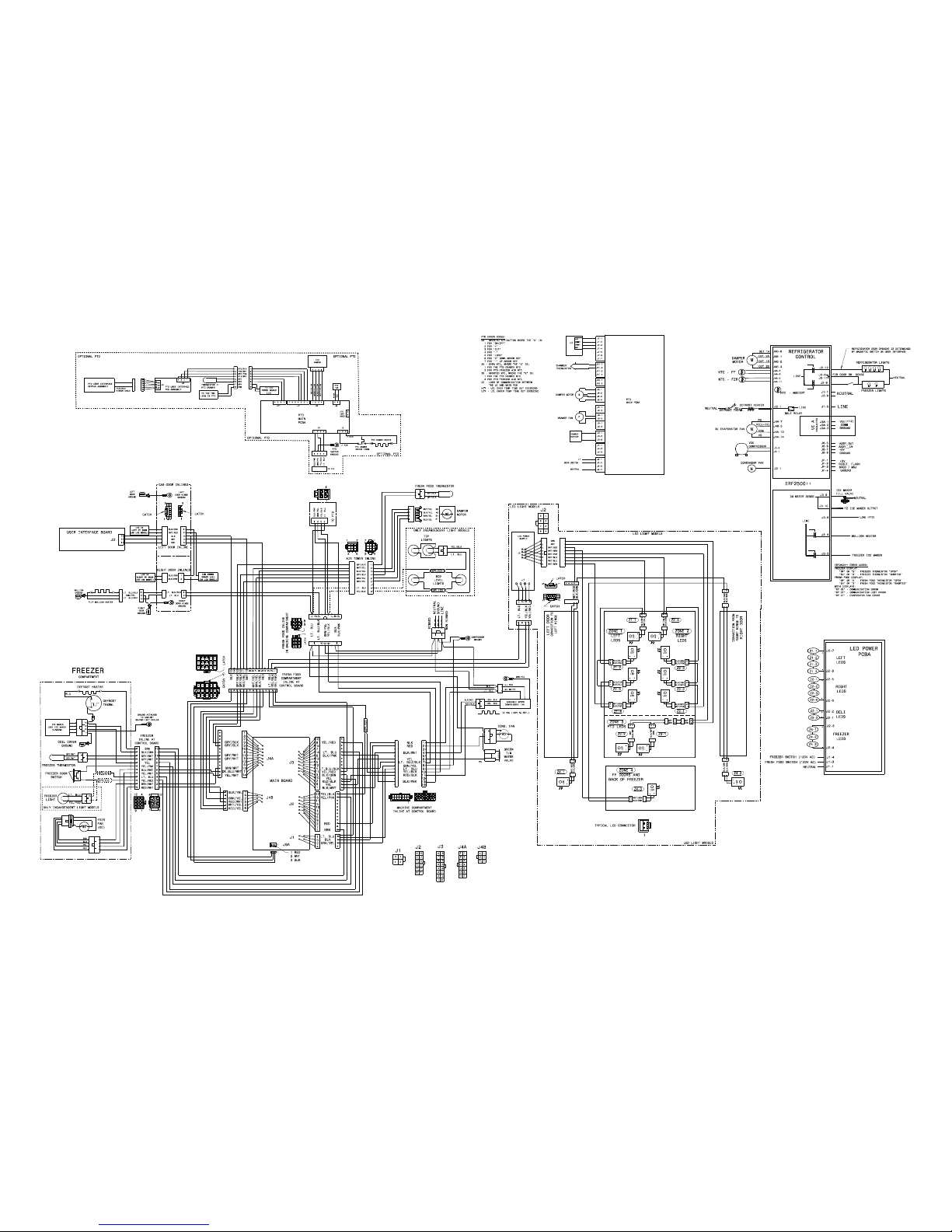

WD - 242046101
