Electrolux EI27MO45GSA, EI30MO45GSA Installation Guide
iNSTALLATiONANDSERVICEMUSTBEPERFORMEDBYA QUALIFIEDiNSTALLER.
IMPORTANT:SAVEFORLOCALELECTRICALINSPECTOR'SUSE.
READAND SAVETHESEINSTRUCTIONSFORFUTUREREFERENCE.
Theelectrical requirementsfor this oven are 115-120 voltsAC, 15 arnpsor larger.
iMPORTANT-PLEASEREADANDFOLLOW
Before beginning, please read these instructions completely and carefully.
Be sure to DISCONNECT THE PLUG of the microwave oven from the electrical outlet before installing the built-in trim kit.
Remove the turntable from the oven cavity.
Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
Please observe all local and national codes and ordinances.
The installer should leave these instructions with the consumer who should retain for local inspector's use and for
future reference.

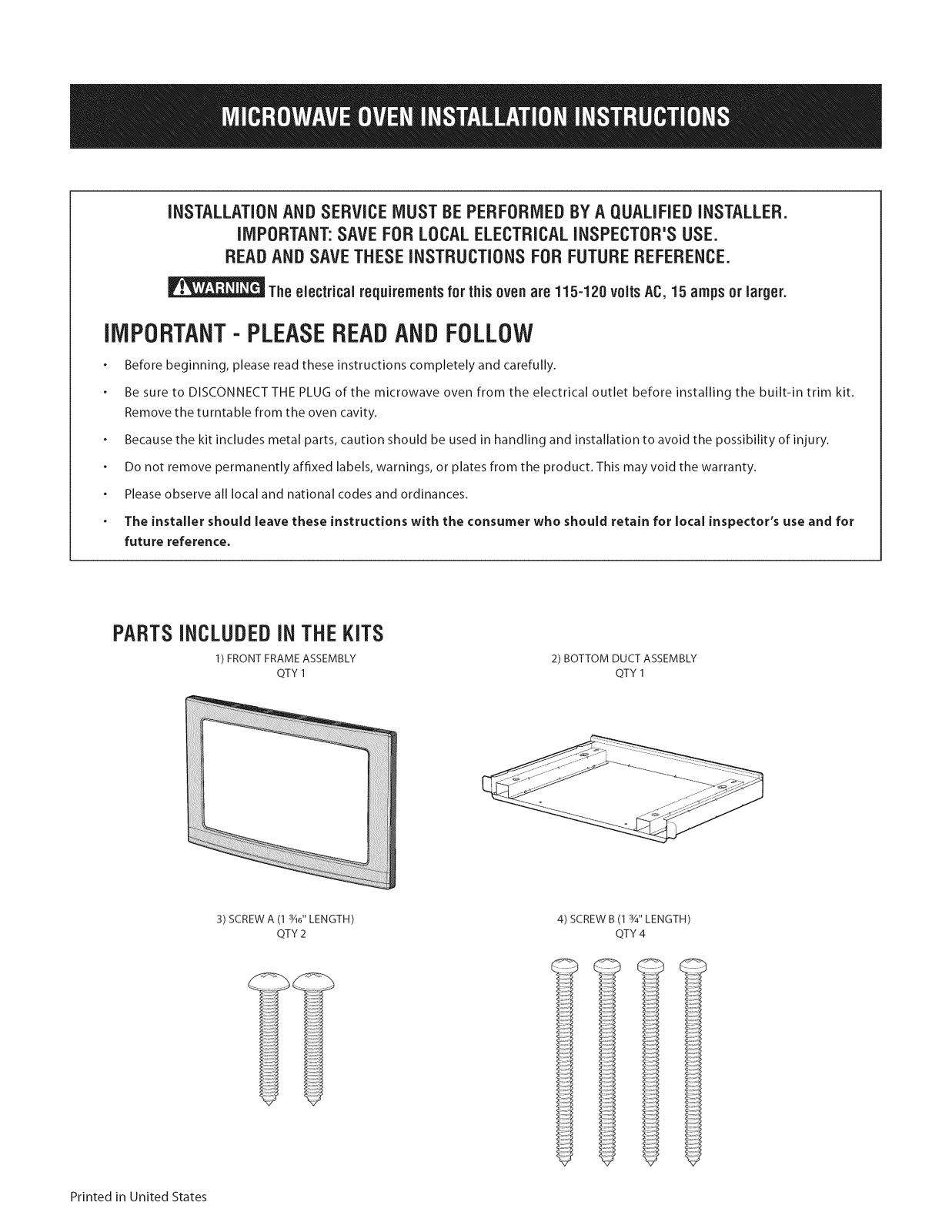

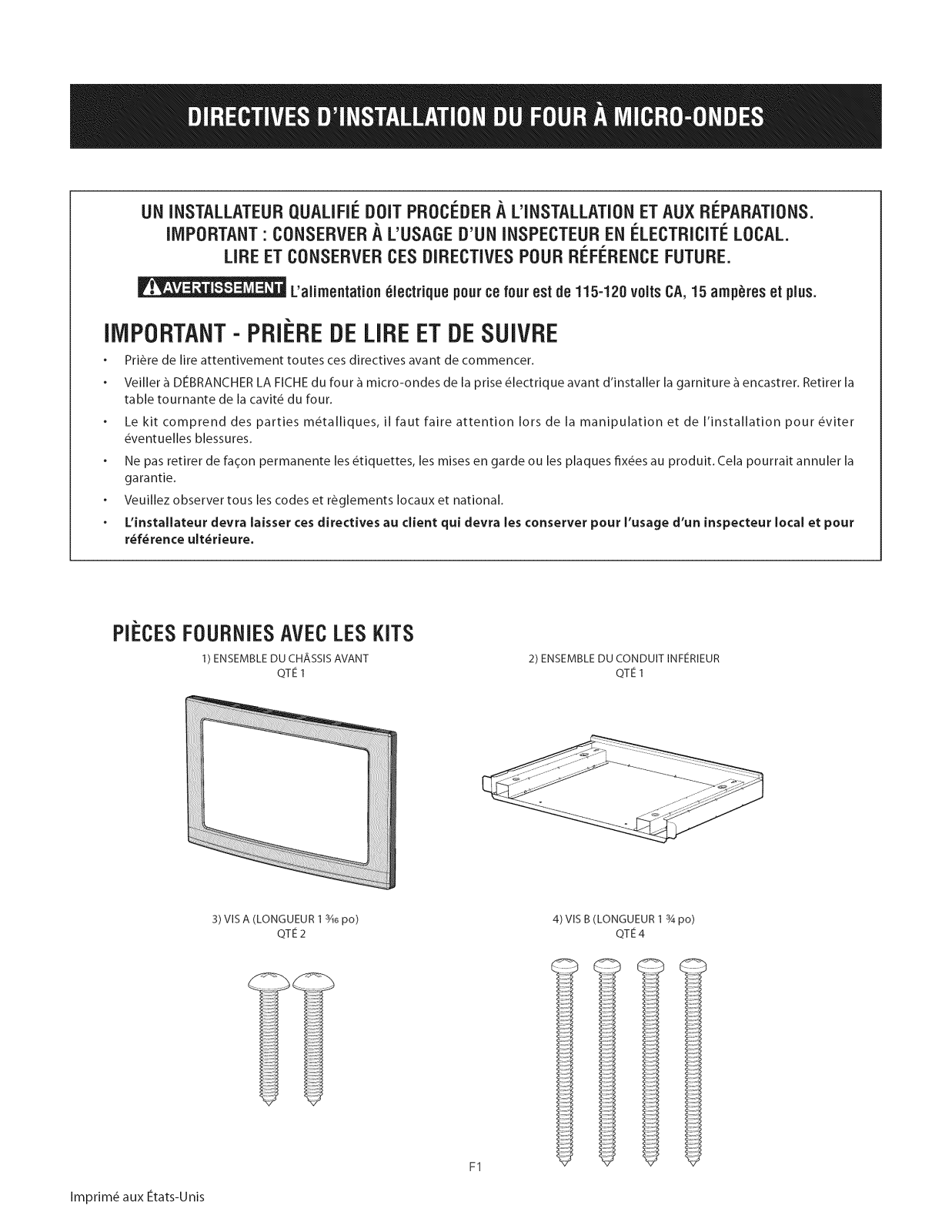

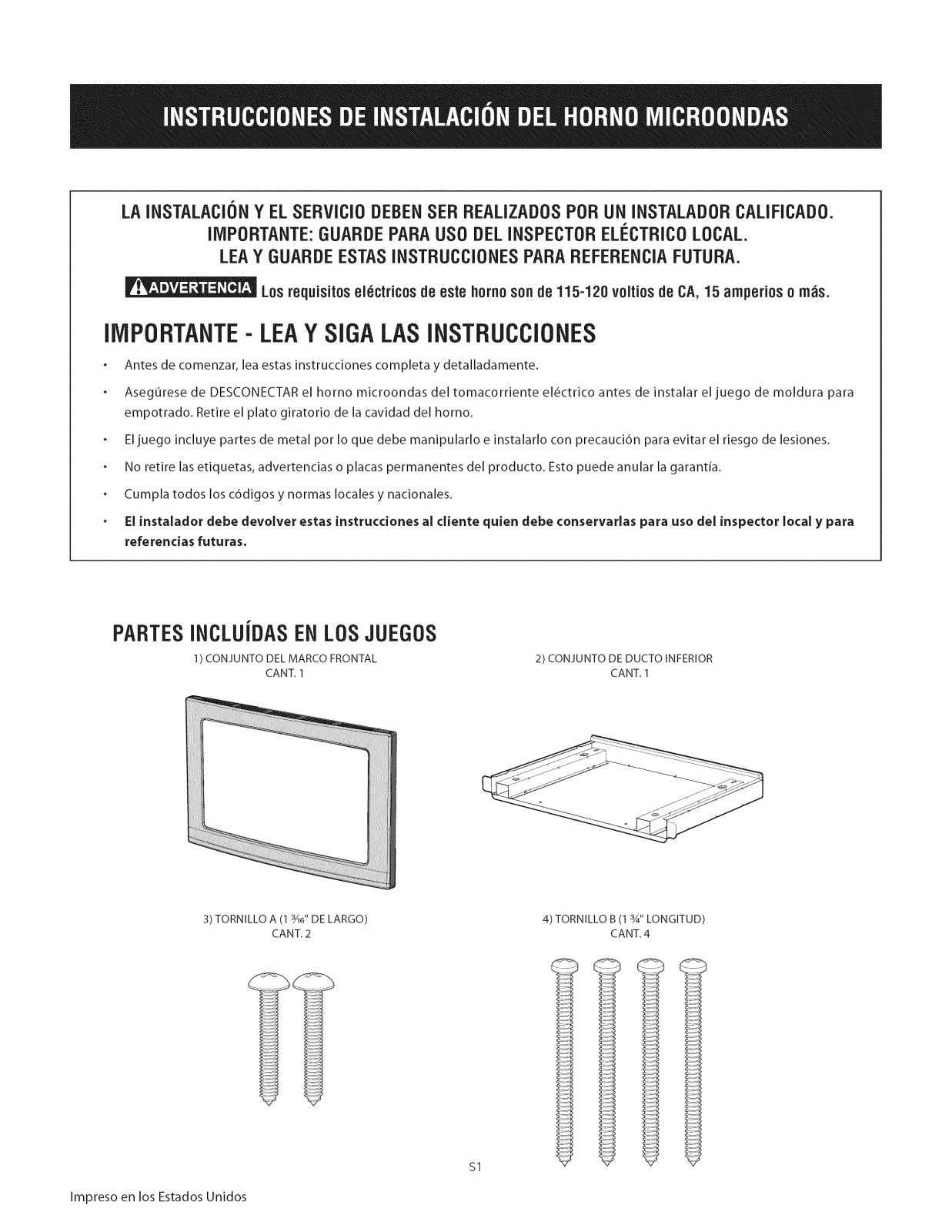

PARTSINCLUDEDINTHEKITS
1) FRONTFRAMEASSEMBLY
QTY1
2) BOTTOM DUCT ASSEMBLY
QTY 1
Printed in United States
3) SCREW A (1 3A6"LENGTH)
QTY 2
4) SCREW B (1 3A" LENGTH)
QTY 4

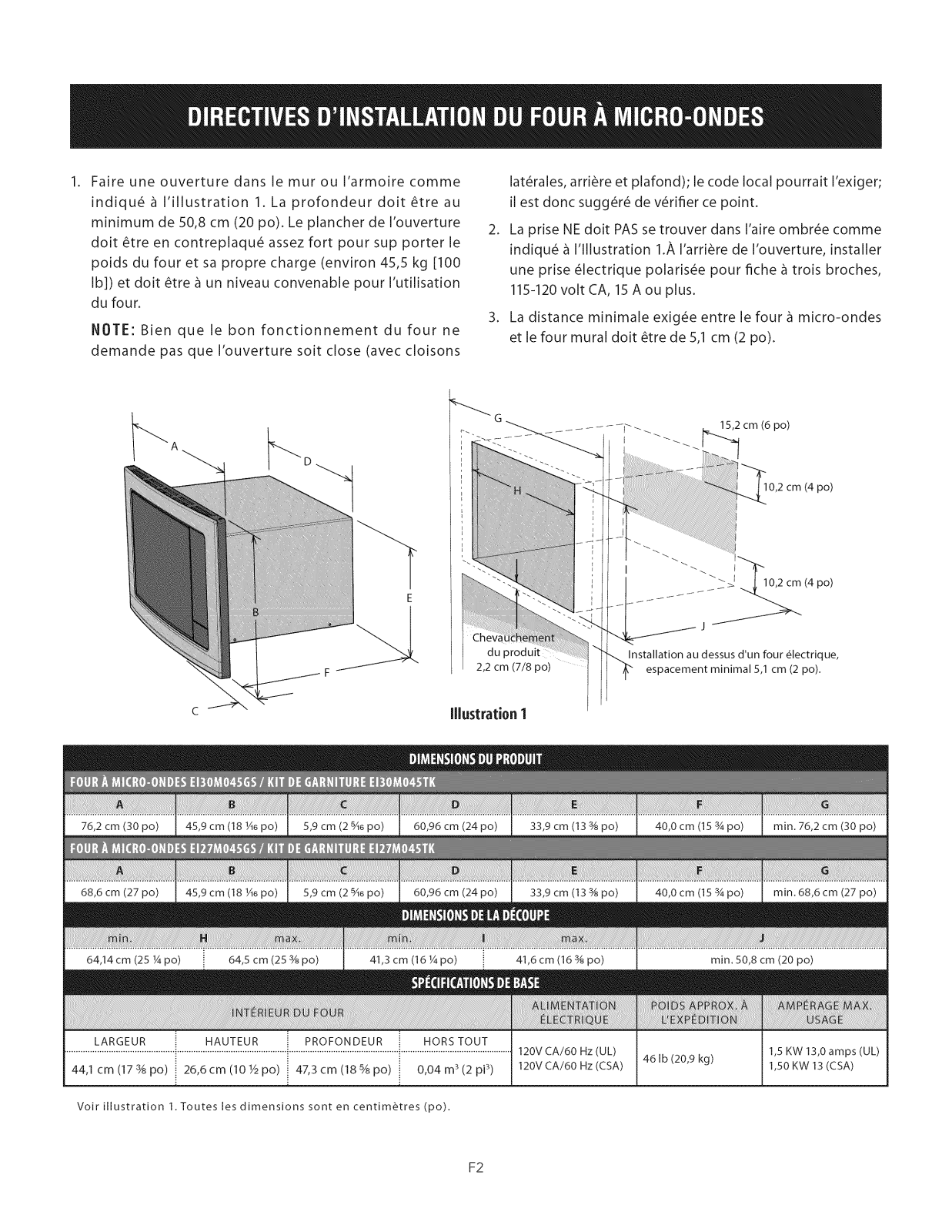

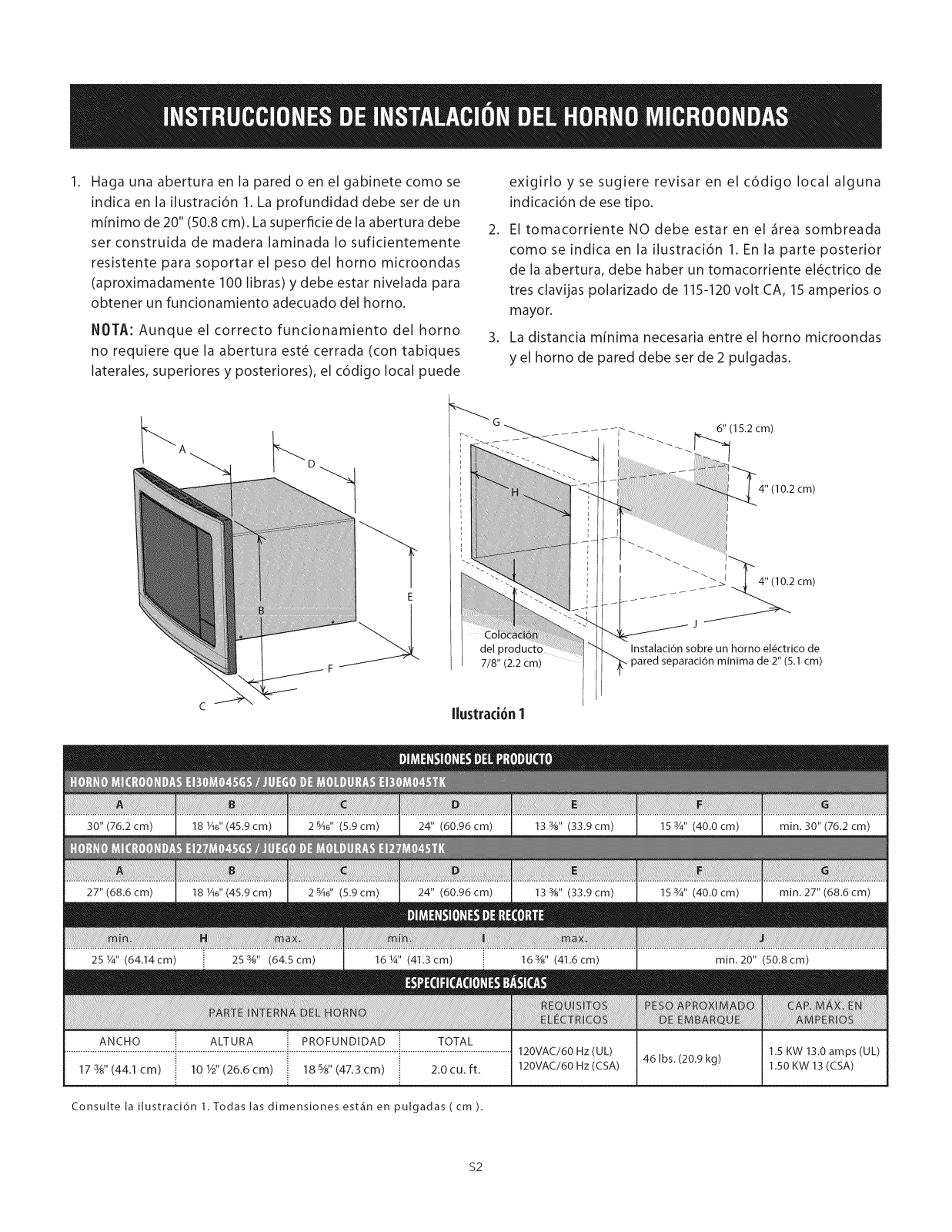

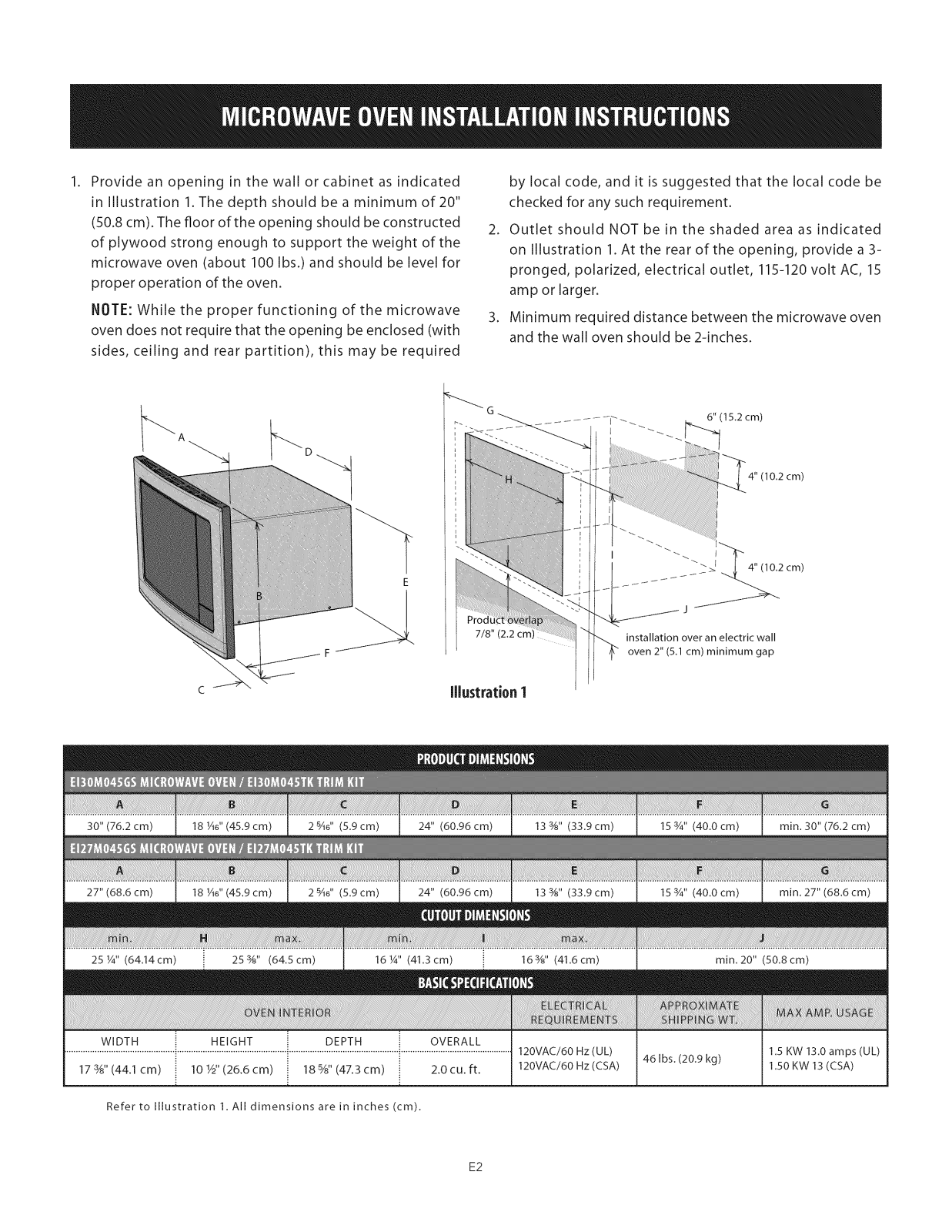

Provide an opening in the wall or cabinet as indicated
in Illustration 1.The depth should be a minimum of 20"
(50.8 cm). The floor of the opening should be constructed
of plywood strong enough to support the weight of the
microwave oven (about 100 Ibs.) and should be level for
proper operation of the oven.
NOTE: While the proper functioning of the microwave
oven does not require that the opening be enclosed (with
sides, ceiling and rear partition), this may be required
by local code, and it is suggested that the local code be
checked for any such requirement.
2. Outlet should NOT be in the shaded area as indicated
on Illustration 1. At the rear of the opening, provide a 3-
pronged, polarized, electrical outlet, 115-120 volt AC, 15
amp or larger.
3. Minimum required distance between the microwave oven
and the wall oven should be 2-inches.
(10.2 cm)
4" (10.2 cm)
J
installation over an electric wall
oven 2" (5.1 cm) minimum gap
Illustration 1

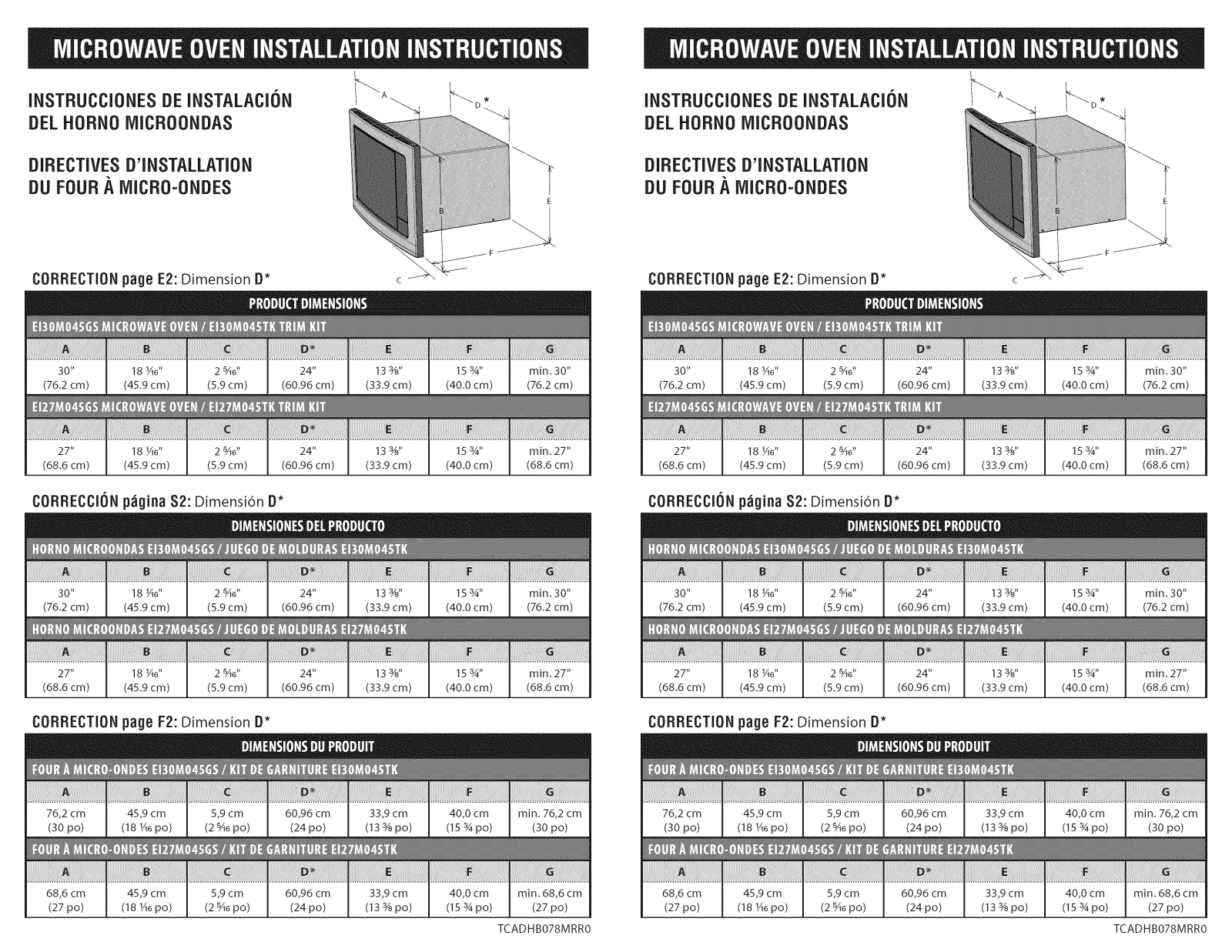

18 ¼6" (45.9 cm)
120VAC/60 Hz (UL) 1.5 KW 13.0 amps (UL)
17 %" (44.1 cm) 10 1/2"(26.6 cm) 18 %" (47.3 cm) 2.0cu. ft. 120VAC/60 Hz (CSA) 46 Ibs. (20.9 kg) 1.50 KW 13 (CSA)
Refer to Illustration 1. All dimensions are in inches (cm).
E2

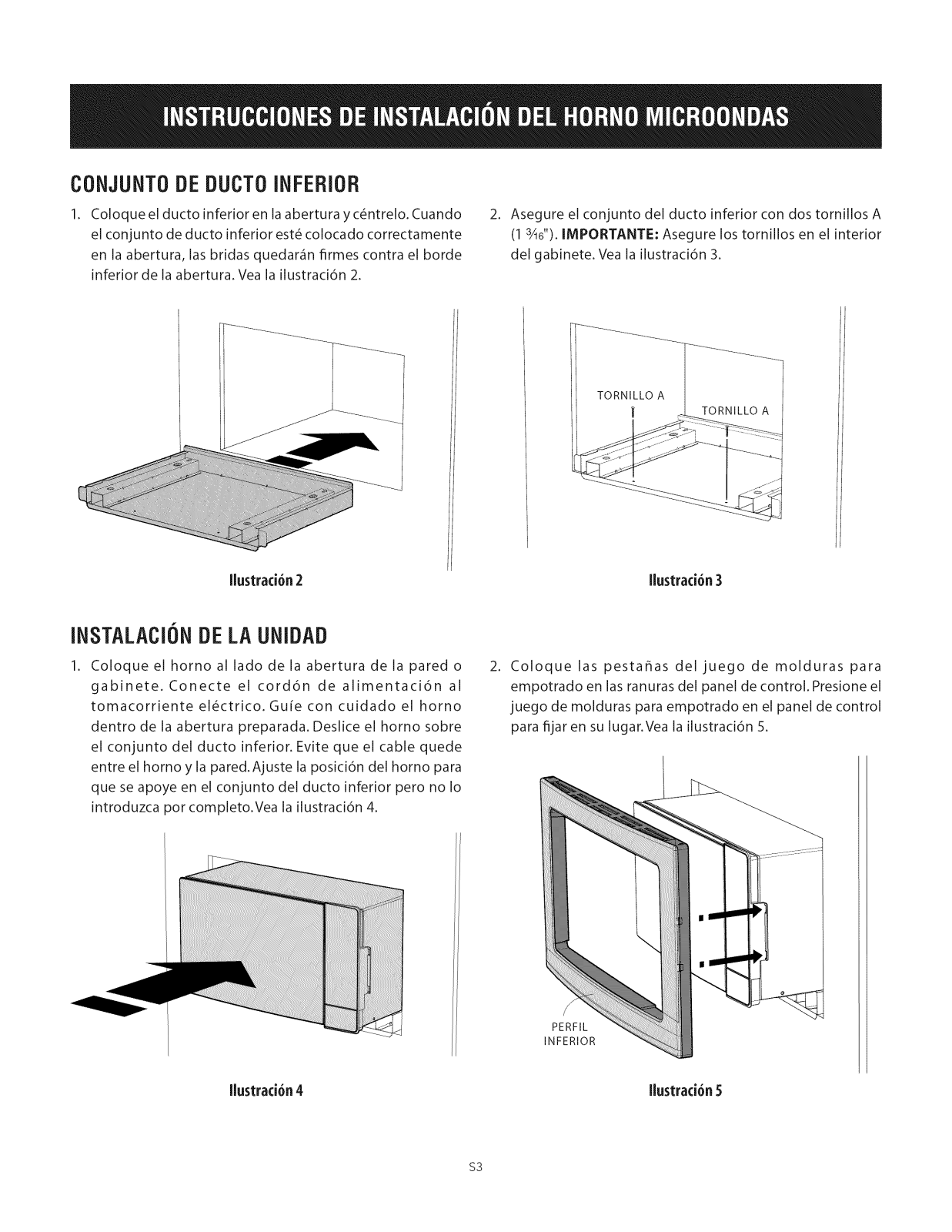

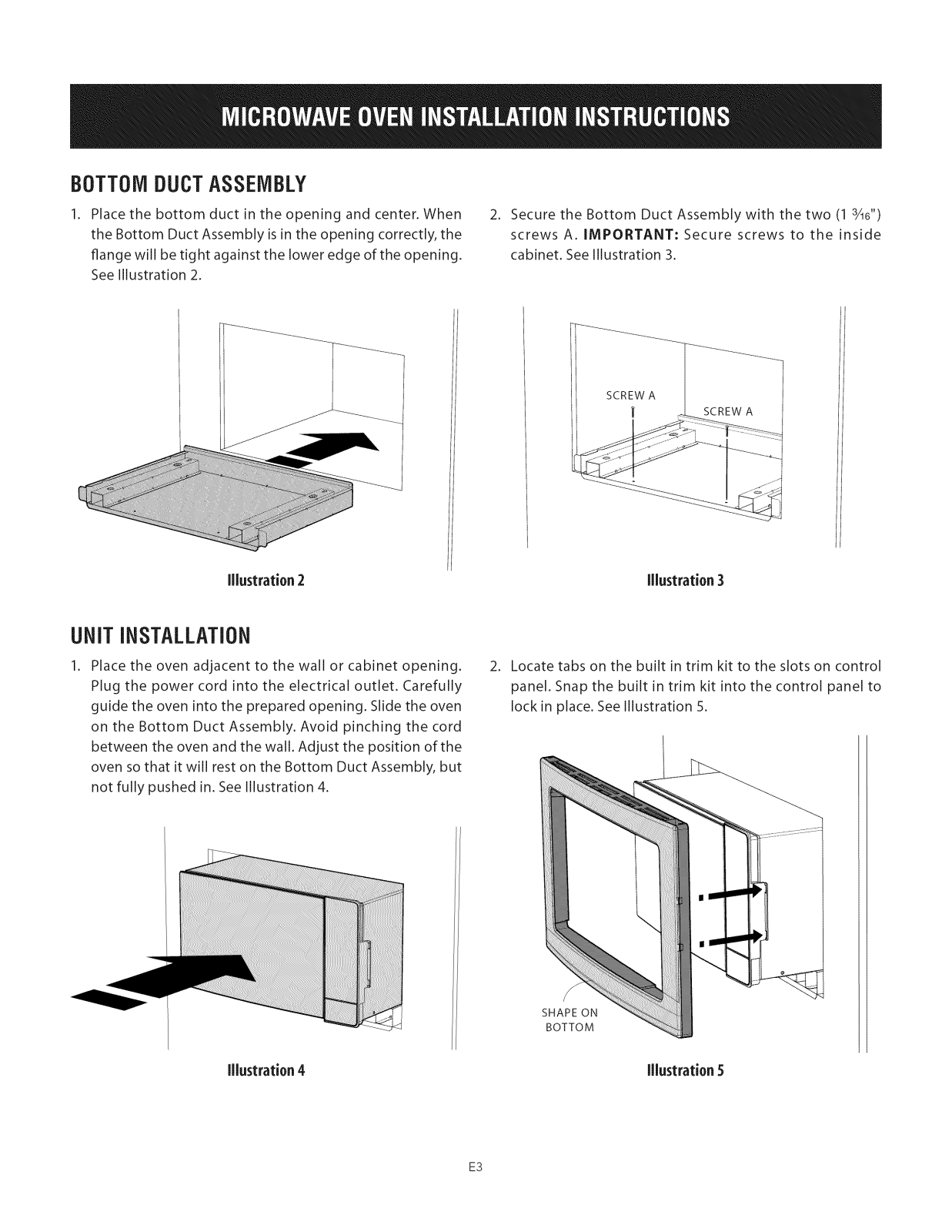

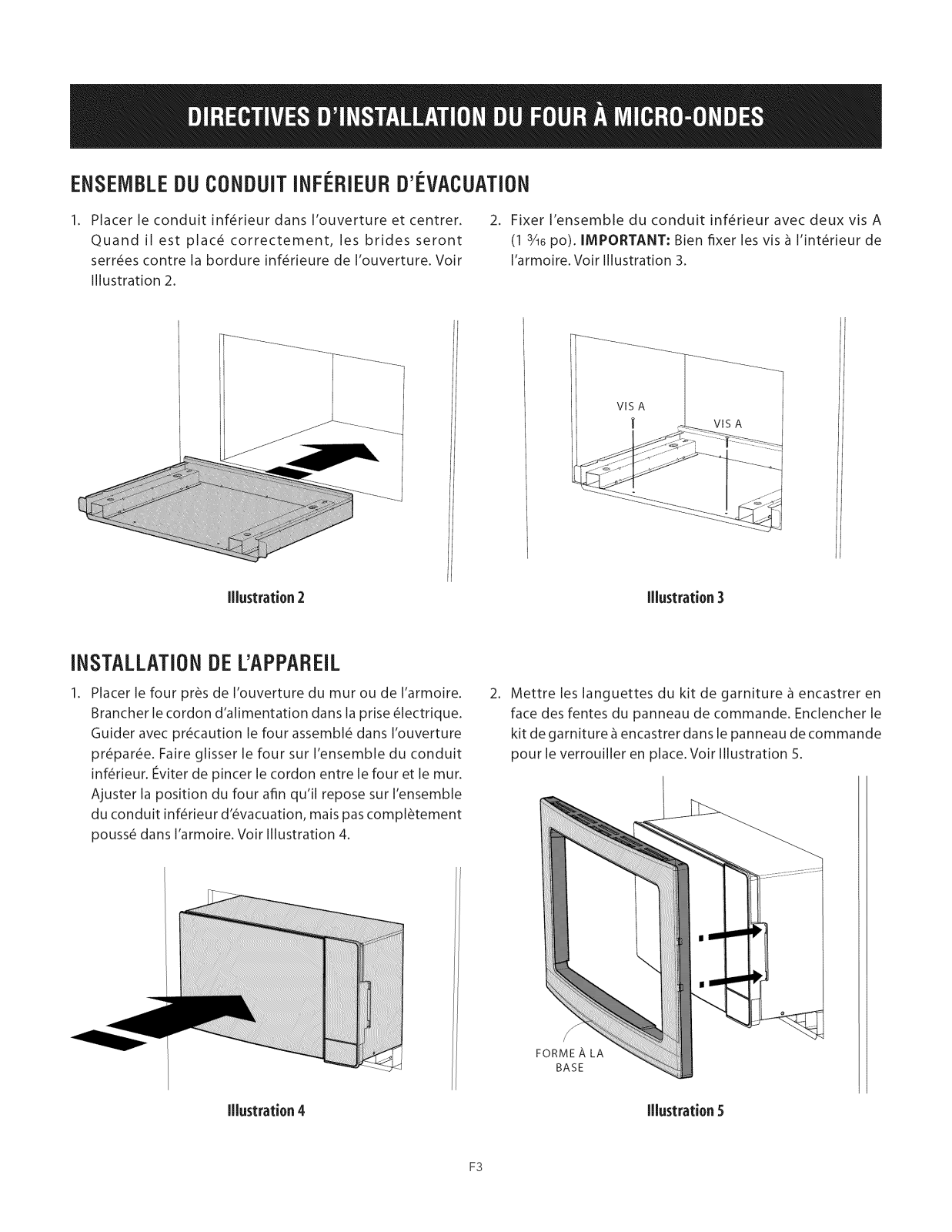

BOTTOM DUCTASSEMBLY
Place the bottom duct in the opening and center. When
the Bottom Duct Assembly isin the opening correctly, the
flange will be tight against the lower edge of the opening.
See Illustration 2.
Illustration 2 Illustration 3
UNITINSTALLATION
1. Place the oven adjacent to the wall or cabinet opening.
Plug the power cord into the electrical outlet. Carefully
guide the oven into the prepared opening. Slide the oven
on the Bottom Duct Assembly. Avoid pinching the cord
between the oven and the wall. Adjust the position of the
oven so that it will rest on the Bottom Duct Assembly, but
not fully pushed in. See Illustration 4.
2.
Secure the Bottom Duct Assembly with the two (1 3A6")
screwsA. IMPORTANT: Secure screws to the nside
cabinet. See Illustration 3.
SCREW A
|
2. Locate tabs on the built in trim kit to the slots on control
SCREW A
panel. Snap the built in trim kit into the control panel to
lock in place. See Illustration S.
Illustration 4
SHAPE ON
BOTTOM
Illustration 5
E3

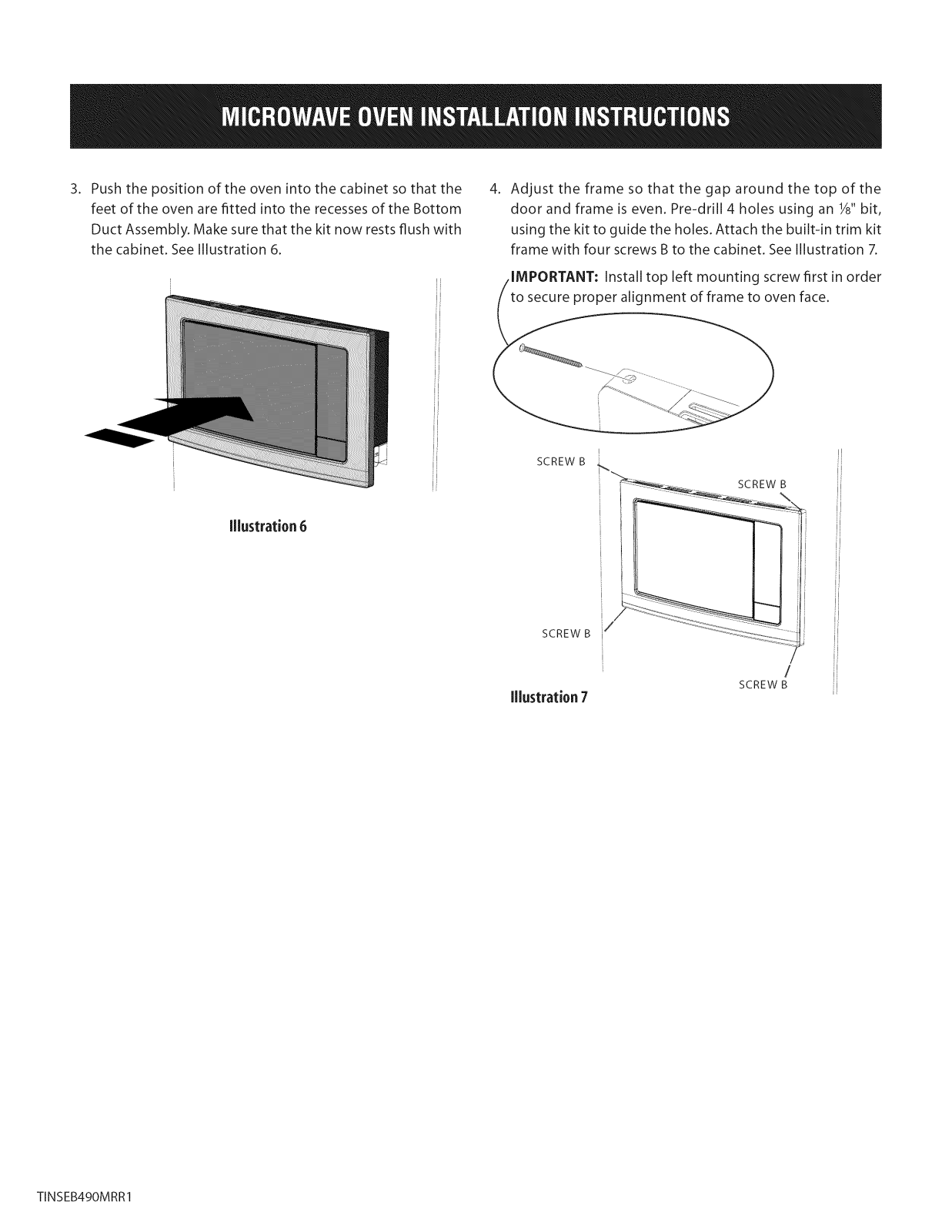

3. Push the position of the oven into the cabinet so that the 4.
feet of the oven are fitted into the recesses of the Bottom
Duct Assembly. Make sure that the kit now rests flush with
the cabinet. See Illustration 6.
Illustration 6
Adjust the frame so that the gap around the top of the
door and frame is even. Pre-drill 4 holes using an Ys" bit,
using the kit to guide the holes. Attach the built-in trim kit
frame with four screws Bto the cabinet. See Illustration 7.
v/IIVlPORTANT: Install top left mounting sCr:nWffiarcSet.in order
SCREW g
SCREW g /
!
/
SCREW g
Illustration 7
TINSEB490MRR1
