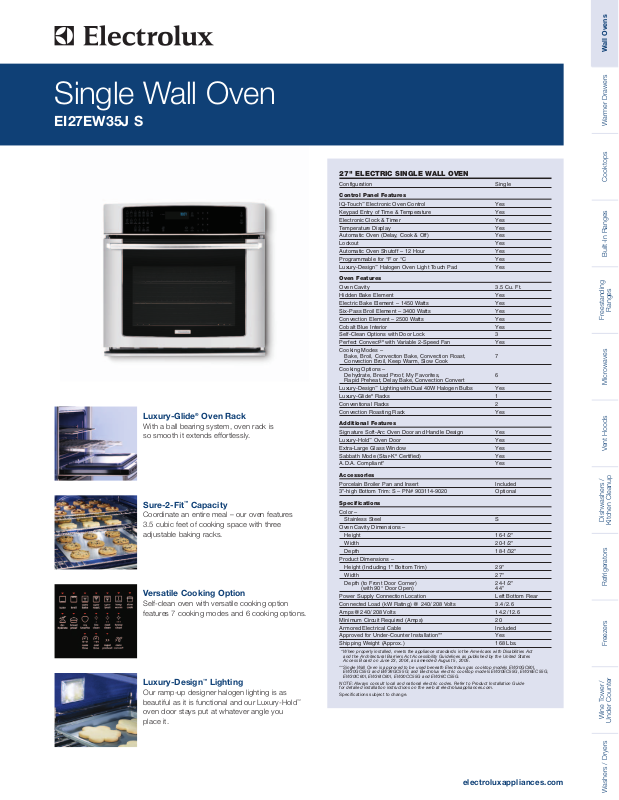

Electrolux EI27EW35J S User Manual

Luxury-Glide®Oven Rack

With a ball bearing system, oven rack is
so smooth it extends effortlessly.

Sure-2-Fit™Capacity

Coordinate an entire meal – our oven features

3.5 cubic feet of cooking space with three
adjustable baking racks.

Versatile Cooking Option

Self-clean oven with versatile cooking option
features 7 cooking modes and 6 cooking options.

Luxury-Design™Lighting

Our ramp-up designer halogen lighting is as
beautiful as it is functional and our Luxury-Hold

™

oven door stays put at whatever angle you
place it.

Single Wall Oven

EI27EW35J S

27" ELECTRIC SINGLE WALL OVEN

Configuration

Control Panel Features

IQ-Touch™Electronic Oven Control
Keypad Entry of Time & Temperature
Electronic Clock & Timer
Temperature Display
Automatic Oven (Delay, Cook & Off)
Lockout
Automatic Oven Shutoff – 12 Hour
Programmable for °F or °C
Luxury-Design™Halogen Oven Light Touch Pad

Oven Features

Oven Cavity
Hidden Bake Element
Electric Bake Element – 1450 Watts
Six-Pass Broil Element – 3400 Watts
Convection Element – 2500 Watts
Cobalt Blue Interior
Self-Clean Options with Door Lock
Perfect Convect

3

®

with Variable 2-Speed Fan

Cooking Modes –

Bake, Broil, Convection Bake, Convection Roast,
Convection Broil, Keep Warm, Slow Cook

Cooking Options –

Dehydrate, Bread Proof, My Favorites,

Rapid Preheat, Delay Bake, Convection Convert
Luxury-Design™Lighting with Dual 40W Halogen Bulbs
Luxury-Glide®Racks
Conventional Racks
Convection Roasting Rack

Additional Features

Signature Soft-Arc Oven Door and Handle Design
Luxury-Hold™Oven Door
Extra-Large Glass Window
Sabbath Mode (Star-K®Certified)
A.D.A. Compliant*

Accessories

Porcelain Broiler Pan and Insert
3"-high Bottom Trim: S – PN# 903114-9020

Specifications

Color –

Stainless Steel
Oven Cavity Dimensions –

Height

Width

Depth
Product Dimensions –

Height (Including 1" Bottom Trim)

Width

Depth (to Front Door Corner)

(with 90° Door Open)
Power Supply Connection Location
Connected Load (kW Rating) @ 240/ 208 Volts
Amps@ 240/208 Volts
Minimum Circuit Required (Amps)
Armored Electrical Cable
Approved for Under-Counter Installation**
Shipping Weight (Approx.)

*When properly installed, meets the appliance standards in the Americans with Disabilities Act

and the Architectural Barriers Act Accessibility Guidelines as published by the United States
Access Board on June 23, 2004, as amended August 5, 2005.

**Single Wall Oven is approved to be used beneath Electrolux gas cooktop models EW30GC60I,

EW30GC55G and EW36GC55G; and Electrolux electric cooktop models EW30EC55G, EW36EC55G,
EW30IC60I, EW36IC60I, EW30CC55G and EW36CC55G.

NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

Single

Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

3.5 Cu. Ft.
Yes
Yes
Yes
Yes
Yes
3
Yes

7

6

Yes
1
2
Yes

Yes
Yes
Yes
Yes
Yes

Included
Optional

S

16-1/2"
20-1/2"
18-1/32"

29"
27"
24-1/2"

44"
Left Bottom Rear

3.4/ 2.6

14.2/ 12.6
20
Included
Yes
168 Lbs.

electroluxappliances.com

Wall OvensRefrigerators Warmer DrawersCooktopsBuilt-In Ranges

Freestanding

Ranges

MicrowavesVent HoodsFreezers

Wine Tower/

Under Counter

Washers / Dryers

Dishwashers /

Kitchen Cleanup

Single Wall Oven

EI27EW35J S

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

EI27EW35J 01/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

27" Electric Single Wall Oven Specifications

•

Product Weight – 150 Lbs.

•

Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.

•

Connected Load (kW Rating) @ 240/208 Volts = 3.4/ 2.6 kW

•

Amps @ 240/208 Volts =14.2 / 12.6 Amps

•

Recommended Circuit Breaker – 20 Amps

•

Always consult local and national electric codes.

•

Minimum 21" clearance for oven door depth when open.

•

Suggested distance from floor is 31". Minimum required distance is 4-1/2".

•

Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.

•

To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.

(Standard 1"-High Bottom Trim included.)

•

To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.

•

Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.

•

Base must be level and cabinet front must be square.

•

Single Wall Ovens are NOT approved to be used in stackable or
side-by-side installation.

•

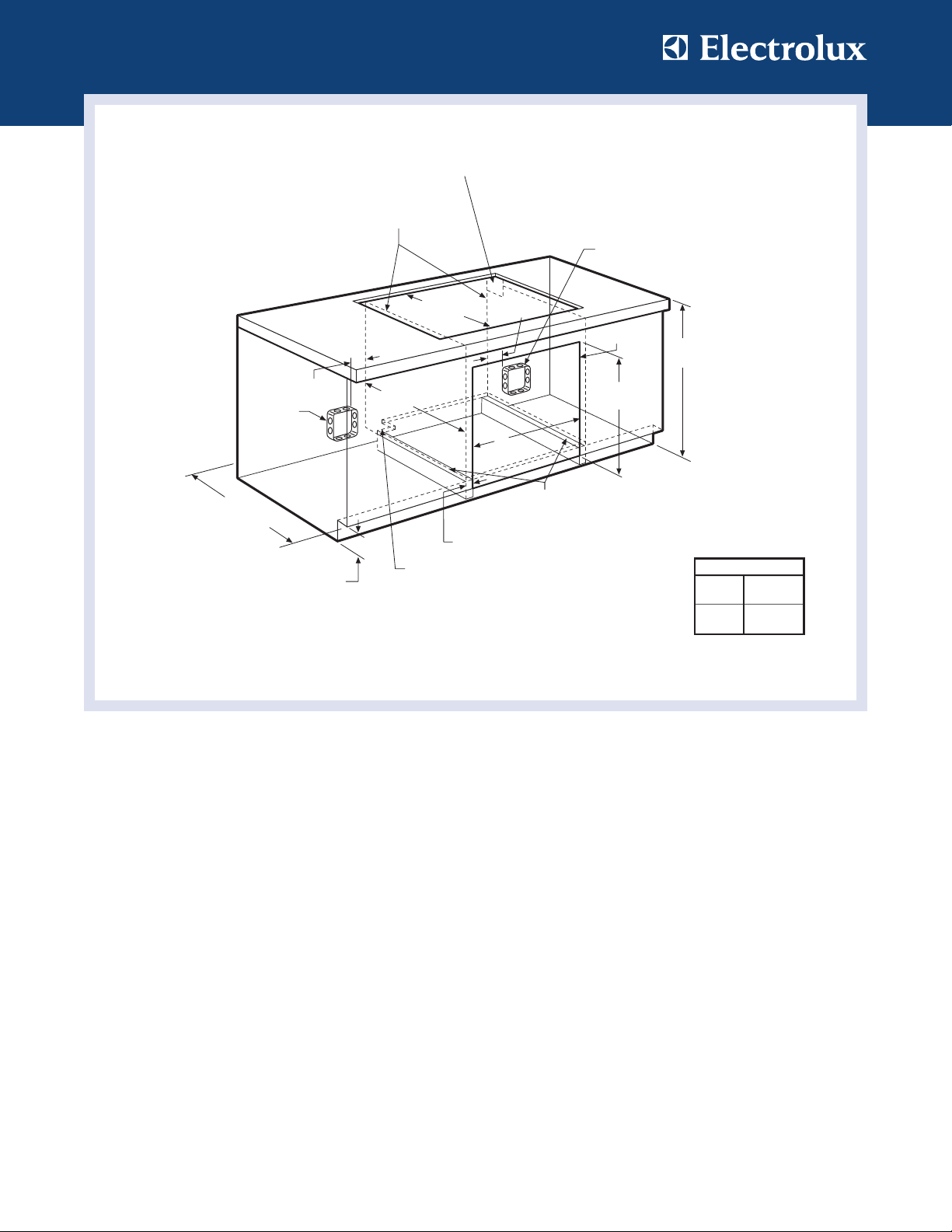

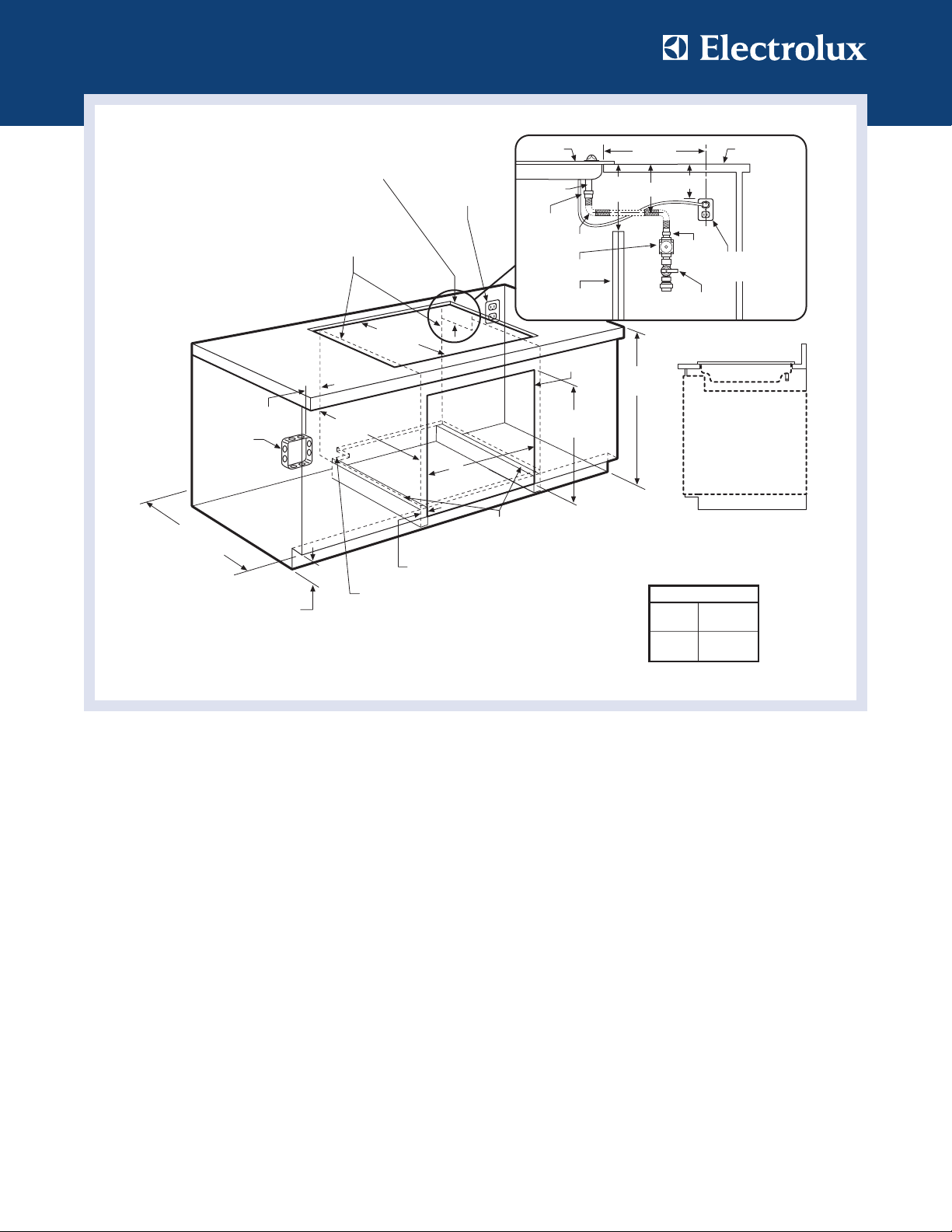

Single Wall Ovens are approved to be used alone in under-counter
installation or beneath Electrolux gas cooktop models EW30GC60I,
EW30GC55G and EW36GC55G; and electric cooktop models
EW30EC55G, EW36EC55G, EW30IC60I, EW36IC60I, EW30CC55G
and EW36CC55G. (Refer to Gas or Electric Cooktop Installation Over

30"/27" Electric Single Wall Oven Specifications pages on web.)

•

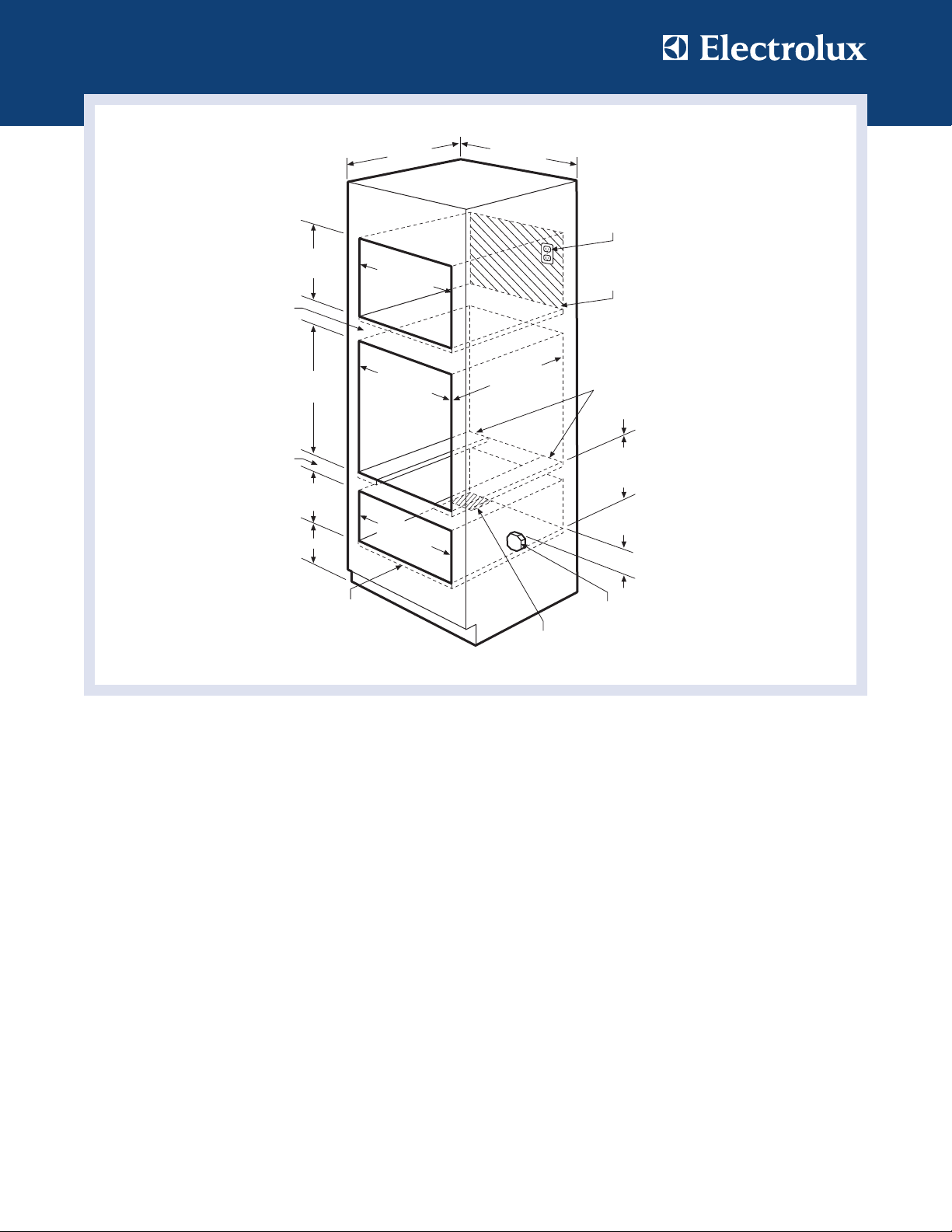

Single Wall Ovens are approved to be used in combination with any
Electrolux Warmer Drawer. (Refer to model-specific Warmer Drawer

product page for Combination Installation Specifications.)

•

Single Wall Ovens are approved to be used in combination with any
Electrolux Built-In Microwave Oven. (Refer to model-specific Combination

Installation Specifications pages on web.)

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

•

3"-High Bottom Trim: S – (PN# 903114-9020).

* Critical dimension – MUST be applied
**For cutout height between 27

5

/8" and 28

1

/4", add one
2"-wide wood shim of appropriate height to each side
of opening under oven side rails. Lifting oven will hide
larger cutout opening at top and oven’s 1"-high bottom
trim will hide shims at bottom.

(Optional 3"-high bottom

trim available for cutout height between 28

1

/4" and 30".)

3"

Electrical
junction
box location

2" min.

11/2"

min.

31"

suggested

distance

4

1

/2"

min.

required

27

1

/4"

min.

27

5

/8"

max.

Full base
required
to support
150 lbs.

271/8"

min.

4" x 4"
opening
to route
armoured
cable

247/8" min.

25

1

/4" max.

231/2" min.*

(critical

dimension)

2"-wide
wood spacers
(if needed)**

Allow at least
21" clearance

for door depth

when open

245/8"

29"

(includes

1"bottom

trim)

Spacer

115/16"

241/2"

27"

273/16"

Power
supply
location
(left
bottom
rear)

27" Combination Installation Specifications

•

Always consult local and national electric codes.

(Refer to product-specific electrical specifications on this page.)

•

Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.

•

Bases must be level and cabinet front must be square.

•

Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.

•

Respect critical dimensions as noted for proper installation of built-In
products.

•

Minimum 21" clearance needed for Wall Oven door depth when open.

27" Built-In Microwave Specifications

•

Product Weight – 79 Lbs.

•

Voltage Rating –120V / 60 Hz / 15 Amps

•

Connected Load (kW Rating) @120 Volts = 1.6kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)

•

Amps @120 Volts =13.7 Amps

•

Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.

•

Minimum 2-1/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.

27" Electric Single Wall Oven Specifications

•

Product Weight – 150 Lbs.

•

Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.

•

Connected Load (kW Rating) @ 240/208 Volts = 3.4/ 2.6 kW

•

Amps @ 240/208 Volts =14.2 / 12.6 Amps

•

Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.

•

To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.

(Standard 1"-High Bottom Trim included.)

•

To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

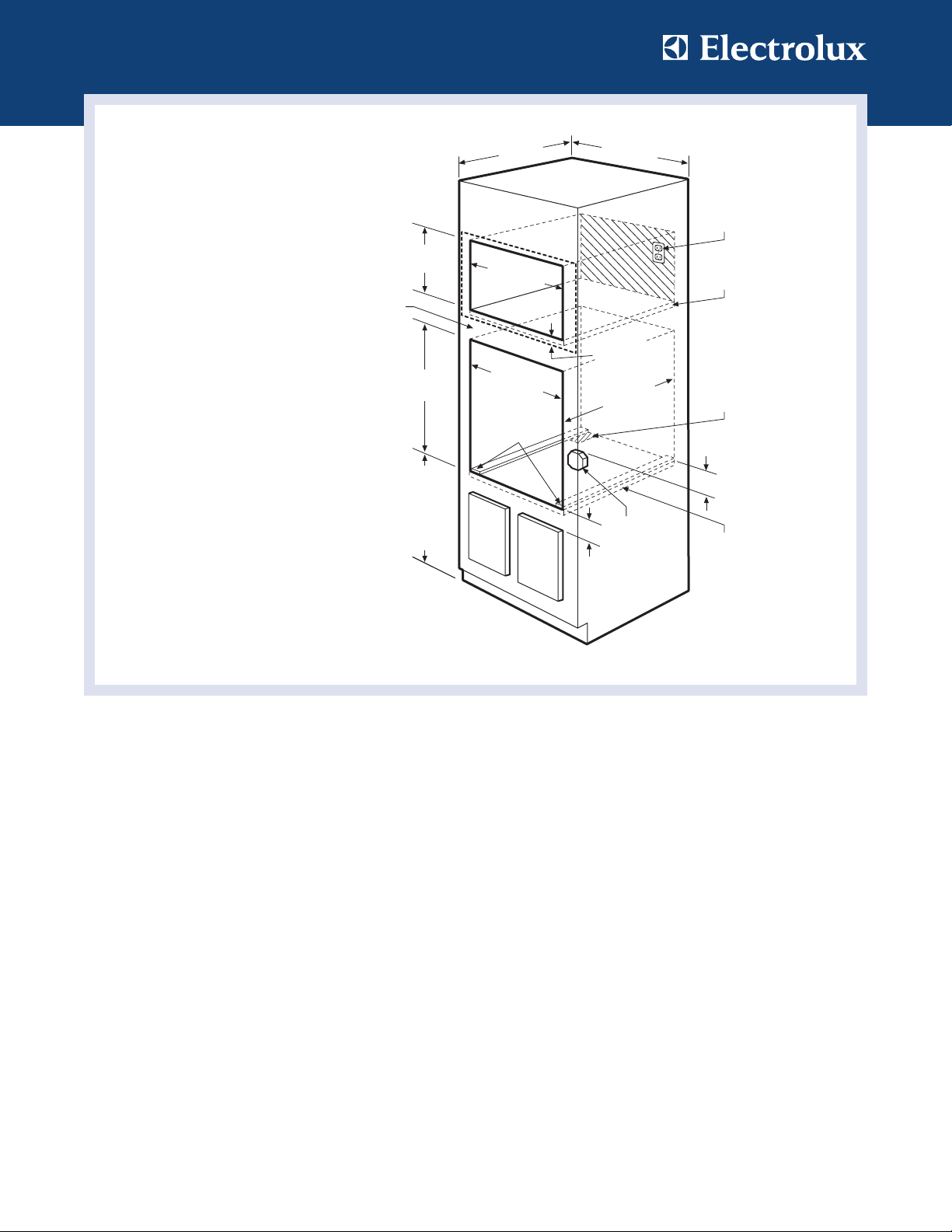

27" Combination Installation –

Built-In Microwave/Single Wall Oven

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

MODD_EW 27INST EL 01/10 © 2010 Electrolux Major Appliances, NA Printed in the U.S.A.

* Minimum 21/8" clearance required from bottom

of Built-In Microwave cutout to top edge of
Wall Oven’s faceplate, leaving a 2"visible gap
between both product faceplates.

** Critical dimension – MUST be applied

†

For cutout height between 275/8" and 281/4"
add one 2"-wide wood shim of appropriate
height to each side of opening under oven
side rails. Lifting oven will hide larger cutout
opening at top and oven’s 1"-high bottom trim
will hide shims at bottom.

(Optional 3"-high
bottom trim available for cutout height
between 281/4" and 30".)

For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web

27" Electric Single
Wall Oven Cutout

For models:
EW27EW55G
EI27EW35J

27" Built-In
Microwave Cutout

For model:
EW27MO55H

Full plywood base
required to support
150 lbs.

120V/60Hz
grounded electrical
MUST be located
within shaded area

21"min.

211/2"max.

251/8"min.

255/8"max.

24"min.

3"

271/4"min.
275/8"max.

4"x 4" opening
to route armored
cable

231/2" min.**

(critical

dimension)

2" min.

31"

suggested

distance

4

1

/2"

min.

required

Full base required
to support 150 lbs.

Electrical junction
box location

2"

(visible

gap)*

271/8" min.

247/8" min.

25

1

/4" max.

2"-wide

wood spacers

(if needed)

†

27" Combination Installation Specifications

•

Always consult local and national electric codes.

(Refer to product-specific electrical specifications on this page.)

•

Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.

•

Bases must be level and cabinet front must be square.

•

Minimum 4-1/2"required distance from bottom of Warmer Drawer cutout
to floor.

•

Respect critical dimensions as noted for proper installation of built-In
products.

•

Minimum 21" clearance needed for Wall Oven door depth when open.

27" Built-In Microwave Specifications

•

Product Weight – 79 Lbs.

•

Voltage Rating –120V / 60 Hz / 15 Amps

•

Connected Load (kW Rating) @120 Volts = 1.6kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)

•

Amps @120 Volts =13.7 Amps

•

Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.

•

Minimum 2-1/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.

27" Electric Single Wall Oven Specifications

•

Product Weight – 150 Lbs.

•

Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.

•

Connected Load (kW Rating) @ 240/208 Volts = 3.4/ 2.6 kW

•

Amps @ 240/208 Volts =14.2 / 12.6 Amps

•

To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 150 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.

27" Warmer Drawer Specifications

•

Product Weight – 55 Lbs.

•

Voltage Rating –120V / 450W / 60 Hz/15 Amps

•

Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)

•

Amps @120V = 3.75 Amps

•

Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

27" Combination Installation –

Built-In Microwave/Single Wall Oven/Warmer Drawer

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

MODD_EW_WD 27INST EL 01/10 © 2010 Electrolux Major Appliances, NA Printed in the U.S.A.

For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web

24"min.

3"max.

††

271/8" min.

97/8"min.

101/4"max.

2"

min.

†

Full plywood base
required to support
100 lbs.

271/4"min.

275/8"max.

247/8"min.

25

1

/4"max.

Two 3" wide
by 3/4" thick
planks must be
installed, capable
of supporting
150 lbs.

4"x 4" opening to route
armored cable

251/2" min.

253/4" max.

41/2" min.
required

235/8" min.**

(critical

dimension)

Electrical junction
box location

Bottom of

oven cutout

117/8"min.**

(critical

dimension)

* Minimum 21/8"

clearance required
from bottom of
Built-In Microwave
cutout to top edge of
Wall Oven’s faceplate,
leaving a 2"visible
gap between both
product faceplates.

** Critical dimension –

MUST be applied

†

Maximum height
depends on critical
dimension (117/8")

††

Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout

27" Warmer
Drawer Cutout

For model:
EW27WD55G

2"

(visible

gap)*

27" Electric Single
Wall Oven Cutout

For models:
EW27EW55G
EI27EW35J

27" Built-In
Microwave Cutout

For model:
EW27MO55H

21"min.

21

1

/2"max.

251/8"min.

255/8"max.

Full plywood base
required to support
150 lbs.

120V/60Hz
grounded electrical
MUST be located
within shaded area

27" Combination Installation Specifications

•

Always consult local and national electric codes.

(Refer to product-specific electrical specifications on this page.)

•

Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.

•

Bases must be level and cabinet front must be square.

•

Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.

•

Respect critical dimensions as noted for proper installation of built-In
products.

•

Minimum 21" clearance needed for Wall Oven door depth when open.

27" Built-In Microwave Specifications

•

Product Weight – 48 Lbs.

•

Voltage Rating –120V / 60 Hz / 15 or 20 Amps

•

Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)

•

Amps @120 Volts =13 Amps

•

Full oven base of solid plywood or similar material required, capable of
supporting 100 Lbs.

•

Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.

27" Electric Single Wall Oven Specifications

•

Product Weight – 150 Lbs.

•

Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.

•

Connected Load (kW Rating) @ 240/208 Volts = 3.4/ 2.6 kW

•

Amps @ 240/208 Volts =14.2 / 12.6 Amps

•

Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.

•

To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.

(Standard 1"-High Bottom Trim included.)

•

To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

27" Combination Installation –

Built-In Microwave/Single Wall Oven

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

MOSS_EW 27INST EL 01/10 © 2010 Electrolux Major Appliances, NA Printed in the U.S.A.

* Minimum 27/8" clearance required from bottom

of Built-In Microwave cutout to top edge of
Wall Oven’s faceplate, leaving a 2"visible gap
between both product faceplates.

** Critical dimension – MUST be applied

†

For cutout height between 275/8" and 281/4"
add one 2"-wide wood shim of appropriate
height to each side of opening under oven
side rails. Lifting oven will hide larger cutout
opening at top and oven’s 1"-high bottom trim
will hide shims at bottom.

(Optional 3"-high
bottom trim available for cutout height
between 281/4" and 30".)

For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web

27" Electric Single
Wall Oven Cutout

For models:
EW27EW55G
EI27EW35J

27" Built-In
Microwave Cutout

For model:
EI24MO45I

(with 27" Trim Kit)

24"min.

3"

271/4"min.
275/8"max.

4"x 4" opening
to route armored
cable

231/2" min.**

(critical

dimension)

2"

min.

31"

suggested

distance

4

1

/2"

min.

required

Full base required
to support 150 lbs.

Electrical
junction
box location

2"

(visible

gap)*

271/8" min.

247/8" min.

25

1

/4" max.

161/4"min.
163/8"max.

251/4"min.

25

3

/8"max.

Trim Kit –

7

/8" faceplate

overlap

2"-wide

wood spacers

(if needed)

†

Full plywood base
required to support
100 lbs.

120V/60Hz
grounded electrical
MUST be located
within shaded area

27" Combination Installation Specifications

•

Always consult local and national electric codes.

(Refer to product-specific electrical specifications on this page.)

•

Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.

•

Bases must be level and cabinet front must be square.

•

Minimum 4-1/2"required distance from bottom of Warmer Drawer cutout
to floor.

•

Respect critical dimensions as noted for proper installation of built-In
products.

•

Minimum 21" clearance needed for Wall Oven door depth when open.

27" Built-In Microwave Specifications

•

Product Weight – 48 Lbs.

•

Voltage Rating –120V / 60 Hz / 15 or 20 Amps

•

Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)

•

Amps @120 Volts =13 Amps

•

Full oven base of solid plywood or similar material required, capable of
supporting 100 Lbs.

•

Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.

27" Electric Single Wall Oven Specifications

•

Product Weight – 150 Lbs.

•

Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.

•

Connected Load (kW Rating) @ 240/208 Volts = 3.4/ 2.6 kW

•

Amps @ 240/208 Volts =14.2 / 12.6 Amps

•

To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 150 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.

27" Warmer Drawer Specifications

•

Product Weight – 55 Lbs.

•

Voltage Rating –120V / 450W / 60 Hz/15 Amps

•

Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)

•

Amps @120V = 3.75 Amps

•

Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

27" Combination Installation –

Built-In Microwave/Single Wall Oven/Warmer Drawer

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

MOSS_EW_WD 27INST EL 01/10 © 2010 Electrolux Major Appliances, NA Printed in the U.S.A.

3"max.

††

97/8"min.

101/4"max.

Full plywood base
required to support
100 lbs.

271/4"min.
275/8"max.

247/8" min.

25

1

/4" max.

Two 3" wide
by

3

/4" thick
planks must be
installed, capable
of supporting
150 lbs.

27" Warmer
Drawer Cutout

For model:
EW27WD55G

4"x 4" opening to route
armored cable

251/2" min.

253/4" max.

41/2" min.
required

235/8" min.**

(critical dimension)

Electrical junction
box location

Bottom of

oven cutout

117/8"min.**

(critical

dimension)

For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web

27" Electric Single
Wall Oven Cutout

For models:
EW27EW55G
EI27EW35J

27" Built-In
Microwave Cutout

For model:
EI24MO45I

(with 27" Trim Kit)

* Minimum 27/8"

clearance required
from bottom of
Built-In Microwave
cutout to top edge of
Wall Oven’s faceplate,
leaving a 2"visible
gap between both
product faceplates.

** Critical dimension –

MUST be applied

†

Maximum height
depends on critical
dimension (11

7

/8")

††

Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout

24"min. 271/8" min.

2"

(visible

gap)*

2"

min.

†

161/4"min.

16

3

/8"max.

251/4"min.

253/8"max.

Trim Kit –

7

/8" faceplate

overlap

Full plywood base
required to support
100 lbs.

120V/60Hz
grounded electrical
MUST be located
within shaded area

30" & 27" Electric Single Wall Ovens
Under-Counter Installation Specifications

•

Product Weights – (EW30EW55G and EI30EW35J) 200 Lbs. /
(EW27EW55G and EI27EW35J) 150 Lbs.

•

Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.

•

Connected Load (kW Rating) @ 240/208 Volts =
(30") 4.0/3.0kW / (27") 3.4/2.6kW

•

Amps @ 240/208 Volts = (30") 17.0 / 14.5 Amps / (27")14.2/12.6 Amps

•

Recommended Circuit Breaker – 20 Amps

•

Always consult local and national electric codes.

•

Minimum 21" clearance for oven door depth when open.

•

Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.

•

Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. (30" models) or 150 Lbs. (27" models). Install
over two runners and flush with toe plate.

•

Base must be level and cabinet front must be square.

•

Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.

Electric Cooktop Installation Over
30"/27" Electric Single Wall Oven Specifications

Electrolux Single Wall Oven models EW30EW55G, EI30EW35J,
EW27EW55G and EI27EW35J are approved to be used beneath
Electrolux cooktop models EW36EC55G, EW30EC55G, EW36IC60I,
EW30IC60I, EW36CC55G and EW30CC55G.

For detailed Electric or Induction Hybrid Cooktop installation, refer to
model-specific product page and installation guide on web.

•

Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth of
approved electric cooktop models.

•

To route armored cable to junction box, cut minimum 4" x 4" opening
in right cabinet side panel.

•

Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

EC_EW INST EL 01/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

Oven cutout

271/4" min.
28

1

/4" max.

4-1/2" maximum height allowed
from oven base to floor if cooktop
is installed directly over wall oven.
(5" maximum height allowed
with no cooktop.)

240/208V
Junction box
for wall oven

Approx. 3"

*Critical dimension – MUST be applied
**For cooktop cutout dimensions refer to model-specific

product page or installation guide on web

240/208V
Junction box
for electric
cooktop

Approx. 3"

36"

min.

Cooktop
cutout**

To route armored cable to junction box through left
cabinet side panel and/or filler panel, cut minimum
4" x 4" opening in wood base and runner

Cutout Width (A

)

30" Wall

281/2"min.

Oven 29"max.

27" Wall 247/8"min.

Oven 251/4"max.

For all approved electric cooktop models, cut minimum
4" x 4" opening in right cabinet side panel and/or filler
panel, to route armoured cable to junction box

Electric Single Wall Oven Cutout

For models: EW30EW55G, EI30EW35J,
EW27EW55G & EI27EW35J

24" min.

cutout depth

231/2 min.*

A

Unit will overlap cutout (minimum) edges by 1"

Install 3/4" full plywood base on 2 runners,
flush with toe plate, capable of supporting
200 lbs. (30" models) and 150 lbs. (27" models)

Side filler panels necessary to isolate oven from
adjoining cabinets. Panel height may need to
be modified to accommodate the depth of approved
electric cooktop models

30" & 27" Electric Single Wall Ovens
Under-Counter Installation Specifications

•

Product Weights – (EW30EW55G and EI30EW35J) 200 Lbs. /
(EW27EW55G and EI27EW35J) 150 Lbs.

•

Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.

•

Connected Load (kW Rating) @ 240/208 Volts =
(30") 4.0/3.0kW / (27") 3.4/2.6kW

•

Amps @ 240/208 Volts = (30") 17.0 / 14.5 Amps / (27")14.2/12.6 Amps

•

Recommended Circuit Breaker – 20 Amps

•

Always consult local and national electric codes.

•

Minimum 21" clearance for oven door depth when open.

•

Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.

•

Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. (30" models) or 150 Lbs. (27" models). Install
over two runners and flush with toe plate.

•

Base must be level and cabinet front must be square.

•

Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.

Gas Cooktop Installation Over
30"/27" Electric Single Wall Oven Specifications

Electrolux Single Wall Oven models EW30EW55G, EI30EW35J,
EW27EW55G and EI27EW35J are approved to be used beneath
Electrolux cooktop models EW36GC55G, EW30GC55G and EW30GC60I.

For detailed Gas Cooktop installation, refer to model-specific
product page and installation guide on web.

•

Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth of
approved gas cooktop models.

•

Minimum height opening of 6-1/2" (from top of counter) required in right
cabinet side panel and/or filler panel, to route gas and electric hookups.

•

Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Gas Cooktop Installation
Over 30"/27" Electric Single Wall Oven

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

GC_EW INST EL 01/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

Oven cutout

120V/60Hz
grounded
outlet, for
gas cooktop

Cooktop
cutout**

271/4" min.

28

1

/4" max.

240/208V
Junction box
for wall oven

Approx. 3"

To route armored cable to junction box through left
cabinet side panel and/or filler panel, cut minimum
4" x 4" opening in wood base and runner

*Critical dimension – MUST be applied
**For cooktop cutout dimensions refer to model-specific

product page or installation guide on web

5"

61/2"

min.

Pressure regulator

Manual shutoff valve

(Must be accessible)

Cabinet sides
and/or filler panel

Flare union

Manifold
pipe

Flexible connector

Flare
union

4"

Countertop

18"max.

120V/60Hz
grounded outlet

Cooktop

Gas
Cooktop
Utility
Hookup

4-1/2" maximum height allowed
from oven base to floor if cooktop
is installed directly over wall oven.
(5" maximum height allowed
with no cooktop.)

Side View

Cooktop

Wall Oven

36"

min.

Cutout Width (A

)

30" Wall

281/2"min.

Oven 29"max.

27" Wall 247/8"min.

Oven 251/4"max.

24" min.

cutout depth

Electric Single Wall Oven Cutout

For models: EW30EW55G, EI30EW35J,
EW27EW55G & EI27EW35J

Unit will overlap cutout (minimum) edges by 1"

231/2 min.*

Install 3/4" full plywood base on 2 runners,
flush with toe plate, capable of supporting
200 lbs. (30" models) and 150 lbs. (27" models)

A

For all approved gas cooktop models, a minimum
height opening of 6-1/2" (from top of counter) required
in right cabinet side panel and/or filler panel, to route
gas and electric hookups. (Refer to Gas Cooktop
Utility Hookup Diagram)

Side filler panels necessary to isolate oven from
adjoining cabinets. Panel height may need to
be modified to accommodate the depth of approved
gas cooktop models
