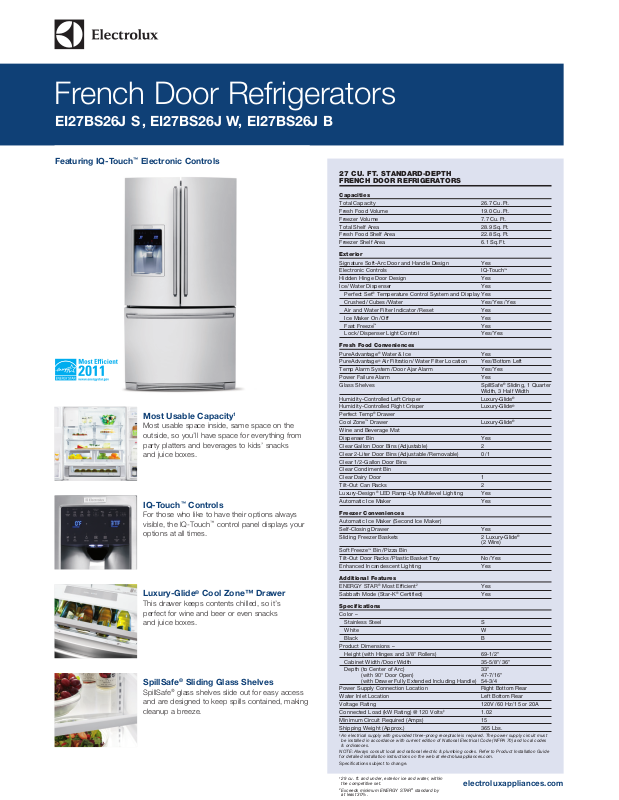

Electrolux EI27BS26JB, EI27BS26JS, EI27BS26JW Specification

French Door Refrigerators

EI27BS26J S , EI27BS26J W, EI27BS26J B

Featuring IQ-Touch™ Electronic Controls

27 CU. FT. STANDARD-DEPTH FRENCH DOOR REFRIGERATORS

Capacities

Total Capacity Fresh Food Volume Freezer Volume Total Shelf Area Fresh Food Shelf Area Freezer Shelf Area

Exterior

Signature Soft-Arc Door and Handle Design Electronic Controls Hidden Hinge Door Design

Most Usable Capacity

Most usable space inside, same space on the outside, so you’ll have space for everything from party platters and beverages to kids’ snacks and juice boxes.

IQ-Touch™ Controls

For those who like to have their options always visible, the IQ-Touch options at all times.

™

control panel displays your

Luxury-Glide® Cool Zone™ Drawer

This drawer keeps contents chilled, so it’s perfect for wine and beer or even snacks and juice boxes.

SpillSafe® Sliding Glass Shelves

SpillSafe® glass shelves slide out for easy access and are designed to keep spills contained, making cleanup a breeze.

Ice / Water Dispenser Perfect Set Crushed / Cubes / Water Air and Water Filter Indicator / Reset Ice Maker On / Off Fast Freeze Lock / Dispenser Light Control

Fresh Food Conveniences

PureAdvantage PureAdvantage Temp Alarm System / Door Ajar Alarm Power Failure Alarm Glass Shelves

Humidity-Controlled Left Crisper Humidity-Controlled Right Crisper Perfect Temp Cool Zone Wine and Beverage Mat Dispenser Bin Clear Gallon Door Bins (Adjustable) Clear 2-Liter Door Bins (Adjustable / Removable) Clear 1/2-Gallon Door Bins Clear Condiment Bin Clear Dairy Door Tilt-Out Can Racks Luxury-Design Automatic Ice Maker

Freezer Conveniences

Automatic Ice Maker (Second Ice Maker) Self-Closing Drawer Sliding Freezer Baskets

Soft Freeze Tilt-Out Door Racks / Plastic Basket Tray Enhanced Incandescent Lighting

Additional Features

ENERGY STAR Sabbath Mode (Star-K® Certified)

Specifications

Color – Stainless Steel White Black Product Dimensions – Height (with Hinges and 3/8" Rollers) Cabinet Width / Door Width Depth (to Center of Arc)

Power Supply Connection Location Water Inlet Location Voltage Rating Connected Load (kW Rating) @ 120 Volts Minimum Circuit Required (Amps) Shipping Weight (Approx.)

‡

An electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed in accordance with current edition of National Electrical Code (NFPA 70) and local codes & ordinances.

NOTE: Always consult local and national electric & plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

29 cu. ft. and under, exterior ice and water, within the competitive set.

Exceeds minimum ENERGY STAR® standard by at least 30%.

Temperature Control System and Display

™

Water & Ice

Air Filtration / Water Filter Location

Drawer

™

Drawer

LED Ramp-Up Multilevel Lighting

™

Bin / Pizza Bin

Most Efficient

(with 90° Door Open) (with Drawer Fully Extended Including Handle)

26.7 Cu. Ft.

19.0 Cu. Ft.

7.7 Cu. Ft.

28.9 Sq. Ft.

22.8 Sq. Ft.

6.1 Sq. Ft.

Yes

™

IQ-Touch Yes Yes Yes Yes / Yes / Yes Yes Yes Yes Yes / Yes

Yes Yes / Bottom Left Yes / Yes Yes

Sliding, 1 Quarter

SpillSafe Width, 3 Half Width

Luxury-Glide Luxury-Glide

Luxury-Glide

Yes 2 0 / 1

1 2 Yes Yes

Yes 2 Luxury-Glide

(2 Wire)

No / Yes Yes

‡

Yes Yes

S W B

69-1/2" 35-5/8" / 36" 33"

47-7/16" 54-3/4

Right Bottom Rear Left Bottom Rear 120V / 60 Hz / 15 or 20A

1.02 15 365 Lbs.

electroluxappliances.com

French Door Refrigerators

EI27BS26J S , EI27BS26J W, EI27BS26J B

Standard-Depth French Door Refrigerator Specifications

•

Product Weight – 360 Lbs.

•

Voltage Rating – 120V / 60 Hz / 15 or 20 Amps

•

Connected Load (kW Rating) @ 120 Volts = 1.02 kW

•

Amps @ 120 Volts = 8.5 Amps

•

Always consult local and national electric & plumbing codes.

•

Floor should be level surface of hard material, capable of supporting fully loaded refrigerator.

•

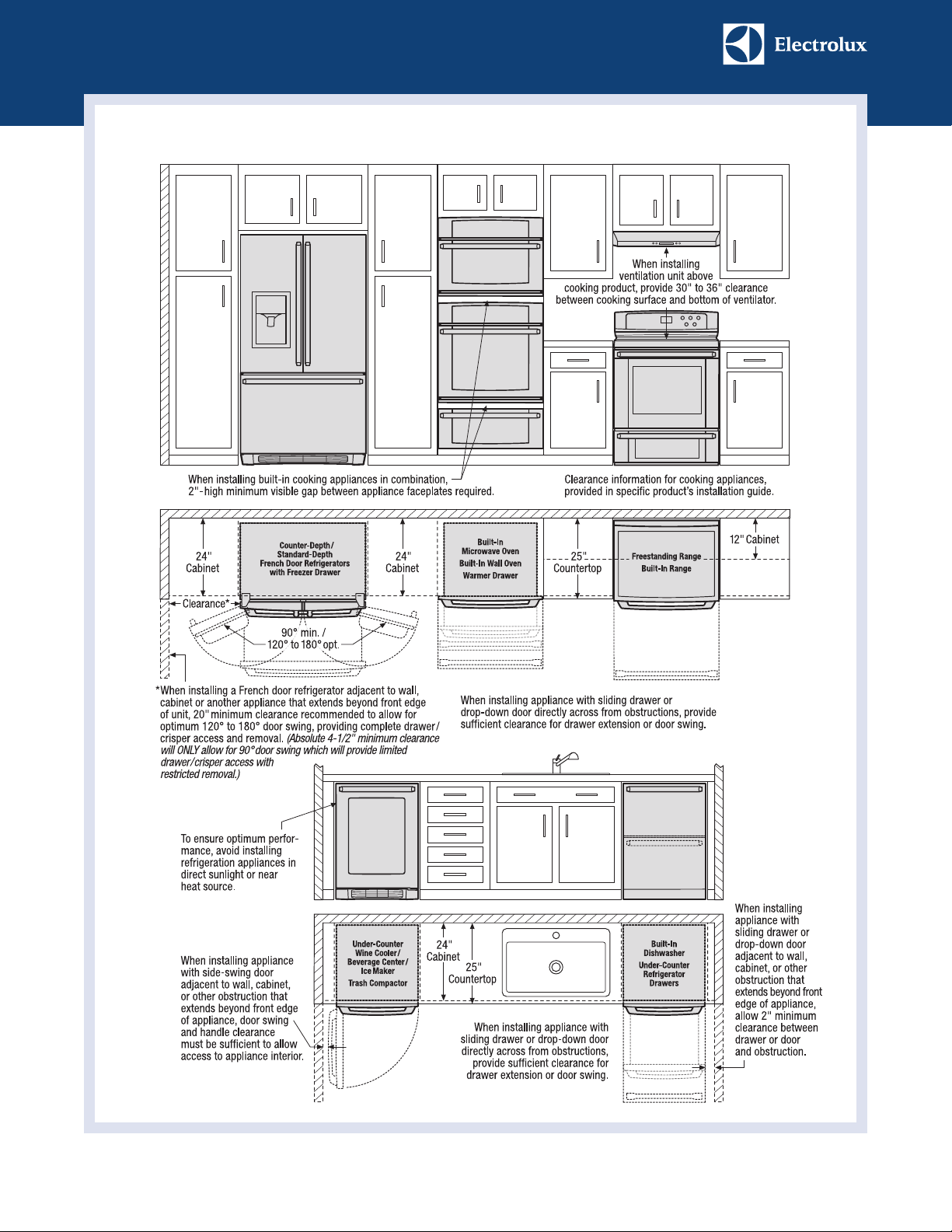

When installing refrigerator adjacent to wall, cabinet or other appliance that extends beyond front edge of unit, 20" minimum clearance recommended to allow for optimum 120° to 180° door swing, providing complete drawer / crisper access and removal. (Absolute 4-1/2"

minimum clearance will ONLY allow for 90° door swing which will provide drawer / crisper access with restricted removal.)

•

To ensure optimum performance, avoid installing in direct sunlight or close proximity to range, dishwasher or other heat source.

•

For proper ventilation, front grille MUST remain unobstructed.

•

Recess electrical outlet when possible.

•

Water recess on rear wall recommended to prevent water line damage.

•

Water Pressure – Cold water line must provide between 30 and 100 pounds per square inch (psi).

•

Copper tubing with 1/4" O.D. recommended for water supply line with length equal to distance from rear of unit to household water supply line plus 7 additional feet. Optional Water Supply Installation Kits available.

•

Adjustable front rollers to assist with door alignment.

“Built-In Look” Specifications

•

Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow for ease of installation, proper air circulation, and plumbing / electrical connections.

•

Remove all wall / floor molding prior to installation.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Electrolux Major Appliances, N.A.

•

USA

10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com

•

CANADA

5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.
