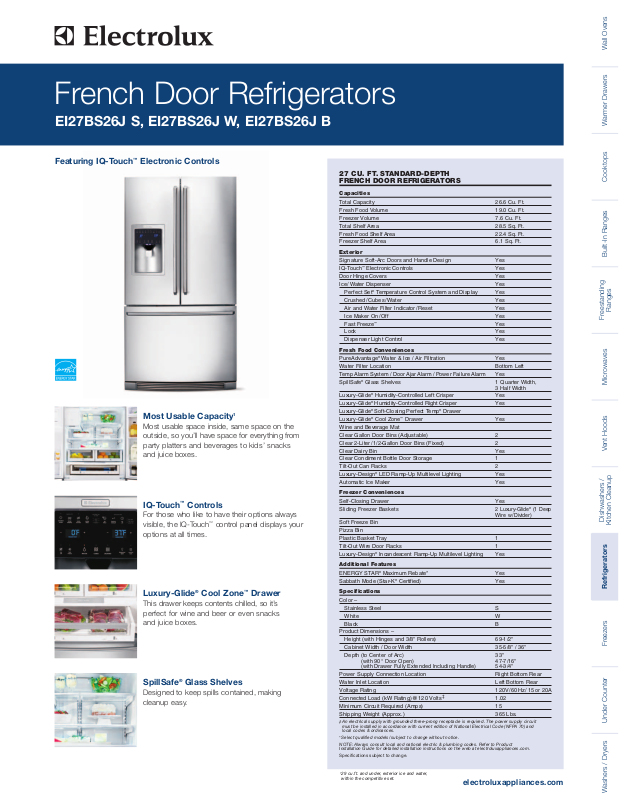

Electrolux EI27BS26J User Manual
French Door Refrigerators
EI27BS26J S, EI27BS26J W, EI27BS26J B
Featuring IQ-Touch™Electronic Controls
27 CU. FT. STANDARD-DEPTH
FRENCH DOOR REFRIGERATORS
Capacities
Total Capacity
Fresh Food Volume
Freezer Volume
Total Shelf Area
Fresh Food Shelf Area
Freezer Shelf Area
Exterior
Signature Soft-Arc Doors and Handle Design
IQ-Touch™Electronic Controls
Door Hinge Covers
Ice/ Water Dispenser
Perfect Set®Temperature Control System and Display
Crushed/ Cubes/ Water
Air and Water Filter Indicator/ Reset
Ice Maker On/ Off
Fast Freeze
™
Lock
Dispenser Light Control
Fresh Food Conveniences
PureAdvantage®Water & Ice / Air Filtration
Water Filter Location
TempAlarm System / Door AjarAlarm / Power Failure Alarm
SpillSafe
®
Glass Shelves
Luxury-Glide®Humidity-Controlled Left Crisper
Luxury-Glide®Humidity-Controlled Right Crisper
Luxury-Glide®Soft-Closing Perfect Temp®Drawer
Luxury-Glide®Cool Zone™Drawer
Wine and Beverage Mat
Clear Gallon Door Bins (Adjustable)
Clear 2-Liter/ 1/2-Gallon Door Bins (Fixed)
Clear Dairy Bin
Clear Condiment Bottle Door Storage
Tilt-Out Can Racks
Luxury-Design®LED Ramp-Up Multilevel Lighting
Automatic Ice Maker
Freezer Conveniences
Self-Closing Drawer
Sliding Freezer Baskets
Soft Freeze Bin
Pizza Bin
Plastic Basket Tray
Tilt-Out Wire Door Racks
Luxury-Design®Incandescent Ramp-Up Multilevel Lighting
Additional Features
ENERGY STAR®Maximum Rebate*
Sabbath Mode (Star-K®Certified)
Specifications
Color –
Stainless Steel
White
Black
Product Dimensions –
Height (with Hinges and 3/8" Rollers)
Cabinet Width / Door Width
Depth (to Center of Arc)
(with 90° Door Open)
(with Drawer Fully Extended Including Handle)
Power Supply Connection Location
Water Inlet Location
Voltage Rating
Connected Load (kW Rating)@ 120 Volts
‡
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
‡An electrical supply with grounded three-prong receptacle is required. The power supply circuit
must be installed in accordance with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
*Select qualified models /subject to change without notice.
NOTE: Always consult local and national electric & plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
26.6 Cu. Ft.
19.0 Cu. Ft.
7.6 Cu. Ft.
28.5 Sq. Ft.
22.4 Sq. Ft.
6.1 Sq. Ft.
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Bottom Left
Yes
1 Quarter Width,
3 Half Width
Yes
Yes
Yes
2
2
Yes
1
2
Yes
Yes
Yes
2 Luxury-Glide®(1 Deep
Wire w/ Divider)
1
1
Yes
Yes
Yes
S
W
B
69-1/2"
35-5/8" / 36"
33"
47-7/16"
54-3/4"
Right Bottom Rear
Left Bottom Rear
120V/ 60Hz /15 or 20A
1.02
15
365 Lbs.
electroluxappliances.com
Most Usable Capacity
1
Most usable space inside, same space on the
outside, so you’ll have space for everything from
party platters and beverages to kids’ snacks
and juice boxes.
IQ-Touch™Controls
For those who like to have their options always
visible, the IQ-Touch
™
control panel displays your
options at all times.
Luxury-Glide®Cool Zone™Drawer
This drawer keeps contents chilled, so it’s
perfect for wine and beer or even snacks
and juice boxes.
SpillSafe®Glass Shelves
Designed to keep spills contained, making
cleanup easy.
Wall OvensRefrigerators Warmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsFreezersUnder CounterWashers / Dryers
Dishwashers /
Kitchen Cleanup
1
29 cu.ft. and under, exterior ice and water,
within the competitive set.
Standard-Depth French Door Refrigerator Specifications
•
Product Weight – 360 Lbs.
•
An electrical supply with grounded three-prong receptacle is required.The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.
•
Voltage Rating –120V /60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.02kW
•
Amps @120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•

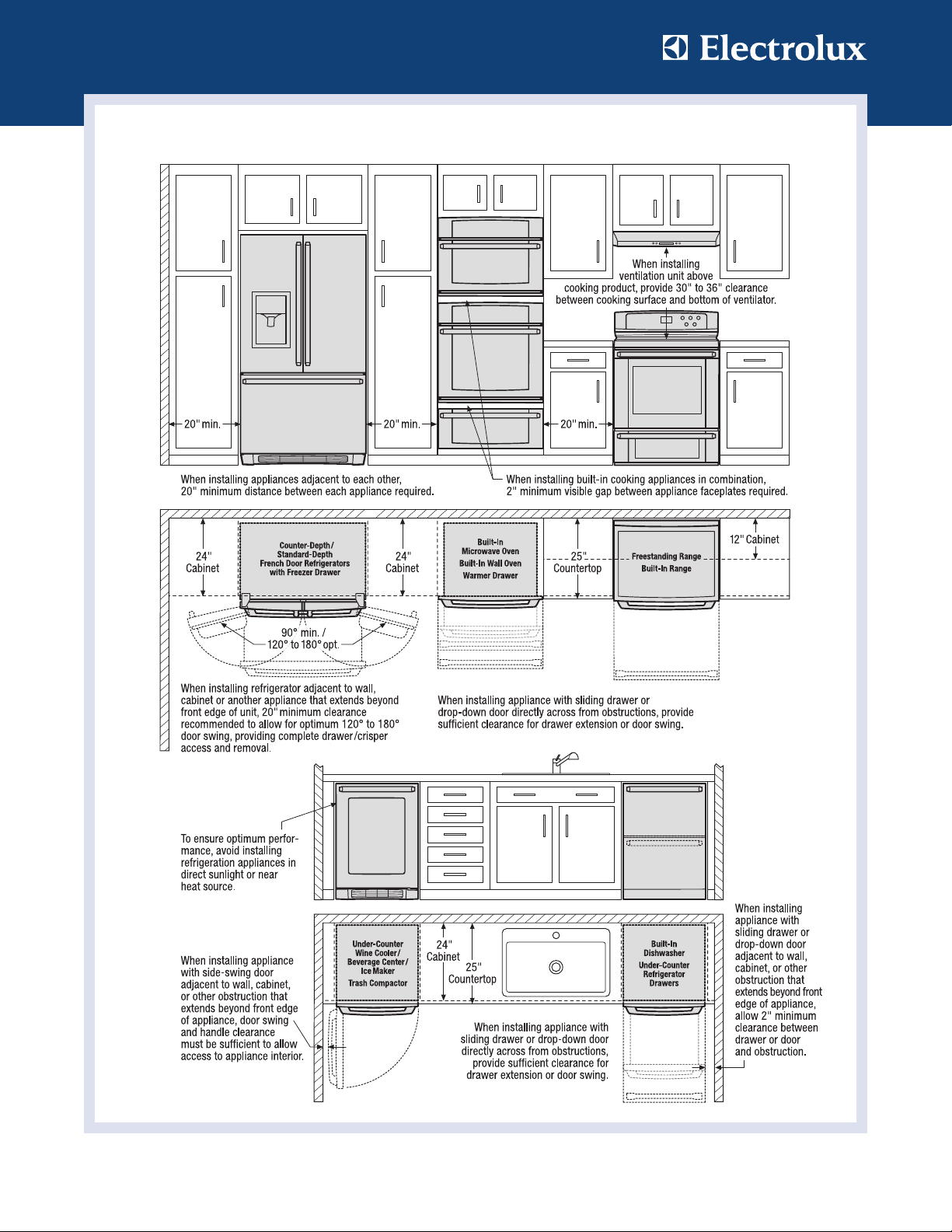

Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer/crisper access and removal. (Absolute 4-1/2" minimum
clearance will ONLY allow for 90° door swing which will provide
drawer/crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line with
length equal to distance from rear of unit to household water supply line
plus 7 additional feet. Optional Water Supply Installation Kits available.
•
Adjustable front rollers to assist with door alignment.
“Built-In Look” Specifications
•
Minimum opening of 70-1/4"H x 36"W x 28-7/8"D required to allow for
ease of installation, proper air circulation, and plumbing/ electrical
connections.
•
Remove all wall/floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
French Door Refrigerators
EI27BS26J S, EI27BS26J W, EI27BS26J B
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
EI27BS26J 01/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
