Luxury-Glide™System

Drawers smoothly open and fully extend
at the touch of a finger.

Perfect Set™Controls

These integrated electronic controls offer precise
temperature control and their top-of-drawer
location makes them easy to program.

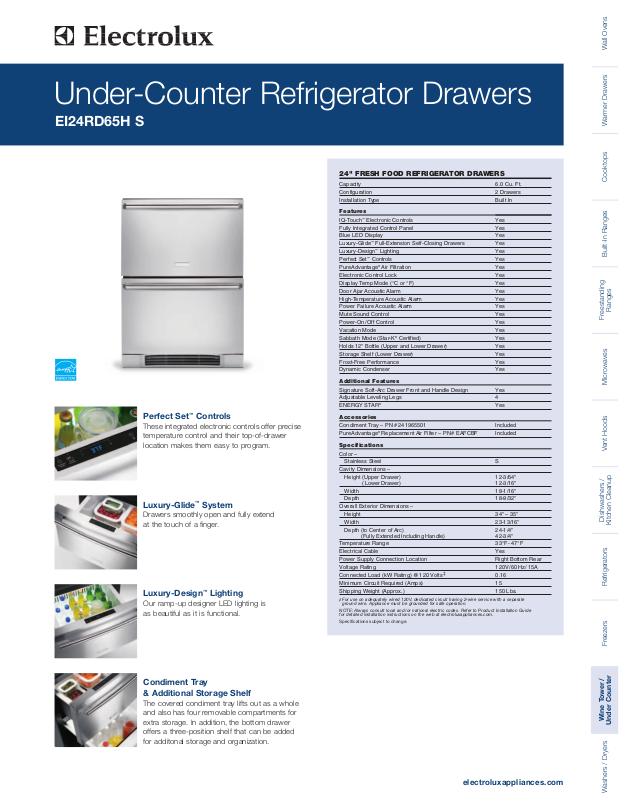

Under-Counter Refrigerator Drawers

EI24RD65H S

24" FRESH FOOD REFRIGERATOR DRAWERS

Capacity
Configuration
Installation Type

Features

IQ-Touch™Electronic Controls
Fully Integrated Control Panel
Blue LED Display
Luxury-Glide™Full-Extension Self-Closing Drawers
Luxury-Design™Lighting
Perfect Set™Controls
PureAdvantage®Air Filtration
Electronic Control Lock
Display Temp Mode (°C or °F)
Door Ajar Acoustic Alarm
High-Temperature Acoustic Alarm
Power Failure Acoustic Alarm
Mute Sound Control
Power-On/ Off Control
Vacation Mode
Sabbath Mode (Star-K®Certified)
Holds 12" Bottle (Upper and Lower Drawer)
Storage Shelf (Lower Drawer)
Frost-Free Performance
Dynamic Condenser

Additional Features

Signature Soft-Arc Drawer Front and Handle Design
Adjustable Leveling Legs
ENERGY STAR

®

Accessories

Condiment Tray – PN# 241965501
PureAdvantage®Replacement Air Filter – PN# EAFCBF

Specifications

Color –

Stainless Steel

Cavity Dimensions –

Height (Upper Drawer)

(Lower Drawer)
Width
Depth

Overall Exterior Dimensions –

Height
Width
Depth (to Center of Arc)

(Fully Extended Including Handle)
Temperature Range
Electrical Cable
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @120 Volts

‡

Minimum Circuit Required (Amps)
Shipping Weight (Approx.)

‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate

ground wire. Appliance must be grounded for safe operation.

NOTE: Always consult local and/ or national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

6.0 Cu. Ft.
2 Drawers
Built In

Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

Yes
4
Yes

Included
Included

S

12-3/64"
12-3/16"

18-1/16"
18-9/32"

34" – 35"
23-13/16"
24-1/4"

42-3/4"
33°F -47° F
Yes
Right Bottom Rear
120V/ 60Hz /15A

0.16
15
150 Lbs.

electroluxappliances.com

Luxury-Design™Lighting

Our ramp-up designer LED lighting is
as beautiful as it is functional.

Condiment Tray
& Additional Storage Shelf

The covered condiment tray lifts out as a whole
and also has four removable compartments for
extra storage. In addition, the bottom drawer
offers a three-position shelf that can be added
for additonal storage and organization.

Wall OvensRefrigerators Warmer DrawersCooktopsBuilt-In Ranges

Freestanding

Ranges

MicrowavesVent HoodsFreezers

Wine Tower/

Under Counter

Washers / Dryers

Dishwashers /

Kitchen Cleanup

Under-Counter Refrigerator Drawers

EI24RD65H S

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

EI24RD65H 12/08 © 2008 Electrolux Home Products, Inc. Printed in the U.S.A.

Under-Counter Refrigerator Drawers Specifications

•

Product Weight –140 Lbs.

•

Voltage Rating – 120V /60 Hz/ 15 Amps

•

Connected Load (kW Rating) @120 Volts = 0.16kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)

•

Amps @120 Volts = 1.33 Amps

•

Electrical cable supplied.

•

Always consult local and/or national electric codes.

•

Unit is designed for built-in, under-counter installation only with use of
Anti-Tip Kit and can NOT be used in freestanding installation.

•

Built-in, under-counter installation does not require additional airspace for
top, sides or rear of unit.

•

Proper built-in, under-counter installation requires that both electrical
outlet and plug be completely recessed to ensure unit will fit flush against
rear wall.

•

To allow for ease of installation and removal, it is recommended that
cabinet rough opening dimensions be increased by at least 1/4" over
product’s dimensions.

•

For proper ventilation, unit can NOT be installed behind closed doors;
front grille MUST remain unobstructed.

•

Must be positioned on flat, level surface, capable of supporting entire
weight when fully loaded.

•

Leveling legs supplied to adjust height and level unit.

•

Do not position unit near any heat source to ensure optimum
performance.

•

Allow 17" minimum for handle clearance with drawers fully extended.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

241/8"

24"
min.

90°

90°

Recessed
electrical
outlet*

*Proper built-in,

under-counter

installation requires that

both electrical outlet & plug
be completely recessed to ensure
unit will fit flush against rear wall

343/8"

min.

Top

263/4"

235/8"

Front

35/16"

2313/16"

Power
cord
location
(right
bottom
rear)

23/4"

Left

263/4"

34"

Adjustable

to 35"

241/4"

219/16"

423/4"

Drawers fully
extended
