Page 1
EN REFRIGERATED DRAWERS
FR TIROIRS RÉFRIGÉRÉS
ES CAJONES REFRIGERADOS
USE AND CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
GUIA DE USO Y CUIDADO
242332900 July 2014
Page 2
2
Finding Information
Please Read and Save
This Guide
Thank you for choosing Electrolux, the
new premium brand in home appliances.
This Use & Care Guide is part of our
commitment to customer satisfaction and
product quality throughout the service life
of your new Refrigerated Drawers.
We view your purchase as the beginning
of a relationship. To ensure our ability to
continue serving you, please use this page
to record key product information.
IMPORTANT
PLEASE READ all instructions
completely before attempting to install
or operate the unit.
All Refrigerated Drawers require a
connection to an electrical power source.
Improper hook-up can result in a safety
hazard and potential damage to the
product or contents! Proper installation,
in accordance with the manufacturer’s
specifications and all local codes, is
the sole responsibility of the consumer.
The manufacturer is not responsible for
any installation expenses or damages
incurred due to improper installation.
If you are unsure of your ability to
safely connect electric power to the
unit, consult a licensed and insured
professional to perform all electrical work.
Once you have your unit installed,
we suggest you keep this manual
in a safe place for future reference.
Should any problems occur, refer to the
“Troubleshooting” section of this manual.
This information will help you quickly
identify a problem and get it remedied. In
the event you require assistance, please
contact the dealer where you purchased
your unit.
Make a Record for
Quick Reference
Whenever you call to request information
or service, you will need to know your
model number and serial number. You
can find this information on the serial plate
located on the bottom left hand corner of
your unit and on the product registration
card.
Product Registration
Card
The package containing this manual
also includes your product registration
information. Warranty coverage begins
at the time your Electrolux Refrigerated
Drawers was purchased.
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You
can register online at
www.electroluxappliances.com or by
dropping your Product Registration
Card in the mail. Complete and mail the
Product Registration Card as soon as
possible to validate the registration date.
Please record the purchase date of your
Electrolux unit and your dealer’s name,
address and telephone number.
____________________________________
Purchase Date
____________________________________
Electrolux Model Number
____________________________________
Electrolux Serial Number
____________________________________
Dealer Name
____________________________________
Dealer Address
____________________________________
Dealer Telephone
Keep this manual and the sales receipt
together in a safe place for further
reference.
Questions?
For toll-free telephone support in the U.S.
and Canada:1-877- 4ELECTROLUX
(1-877-435-3287)
For online support and Internet product
information: www.electroluxappliances.com
Page 3
Finding Information
Table of Contents
Finding Information ......................................................................2
Please Read and Save This Guide ............................................................2
Make a Record for Quick Reference .........................................................2
Product Registration Card .......................................................................2
Questions? ............................................................................................2
Safety ............................................................................................4
Important Safety Instructions ....................................................................4
Safety Precautions ........................................................................ 4
Definitions ................................................................................... 4
General Precautions ...................................................................... 4
Installation ...................................................................................5
Installing the Refrigerated Drawers ............................................................5
Site Preparation .....................................................................................6
Installing the Anti-Tip Device ....................................................................6

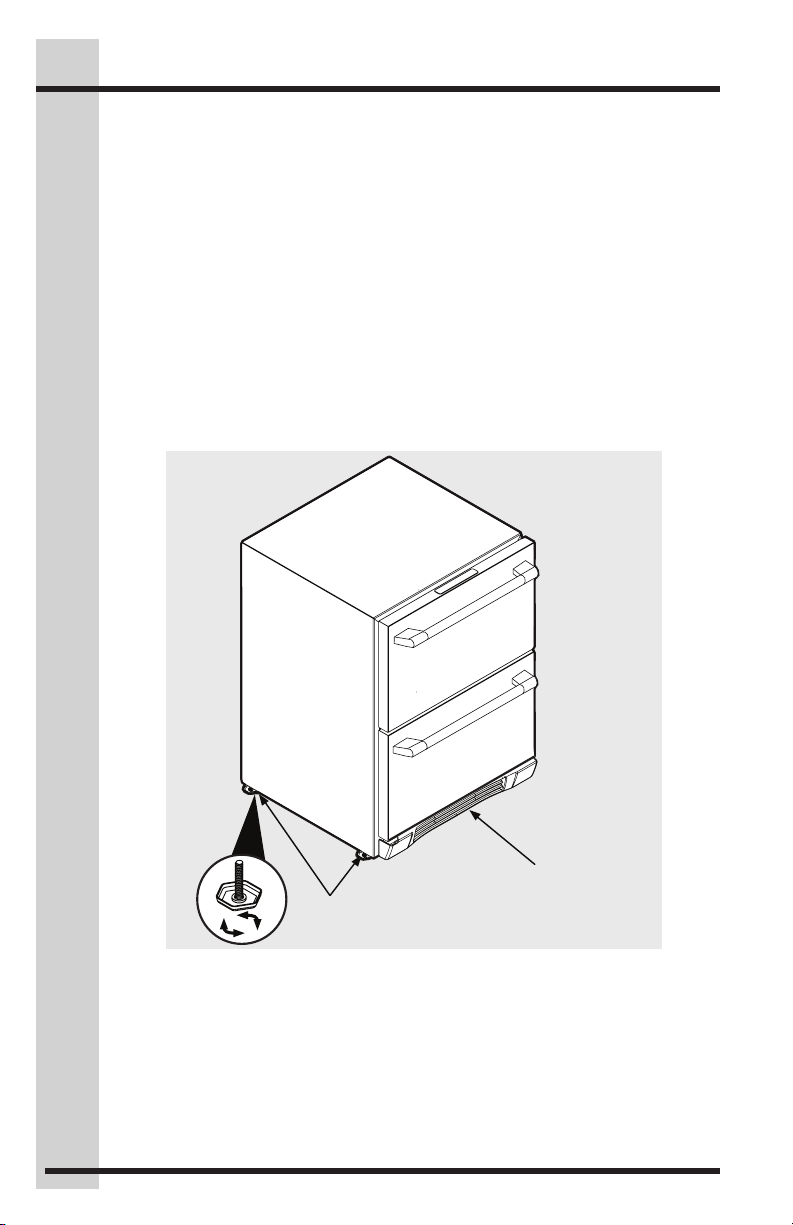

Leveling .........................................................................................8
Leveling the Unit ....................................................................................8
Operation ......................................................................................9

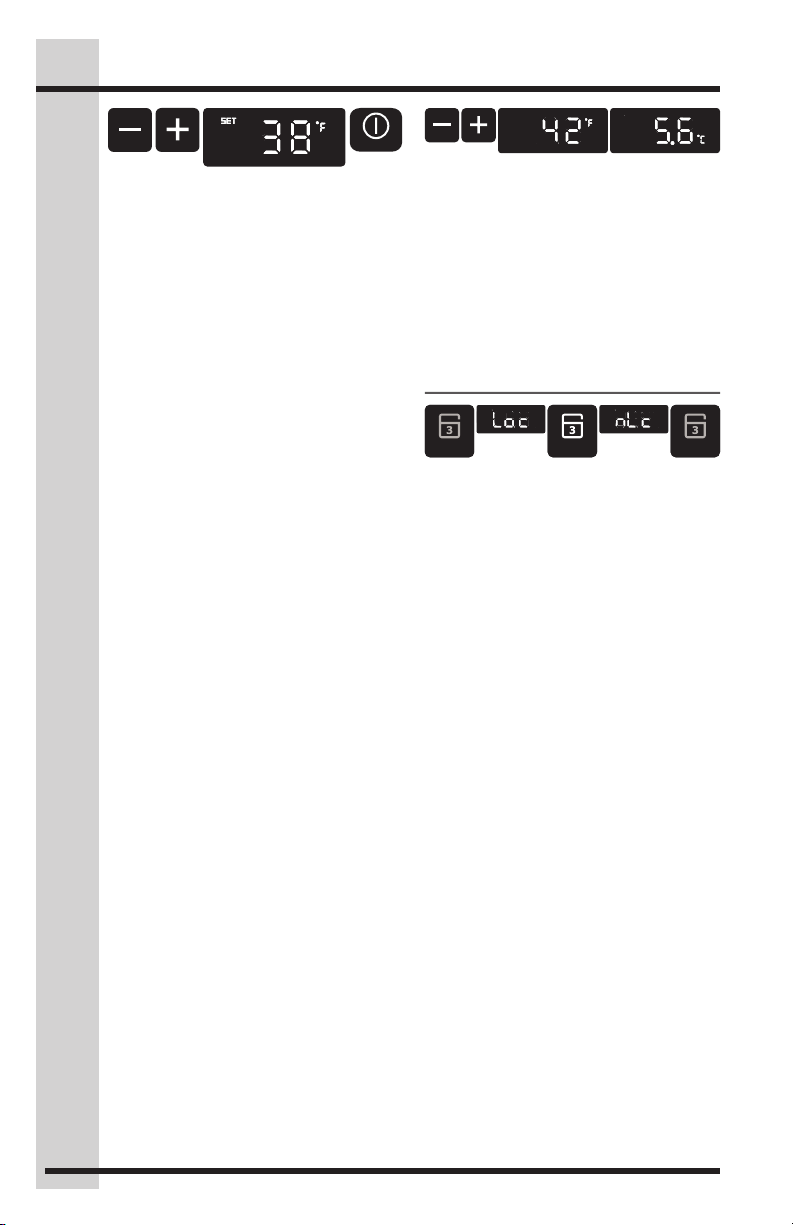

Temperature Mode.............................................................................. 10
Alarms .............................................................................................. 11

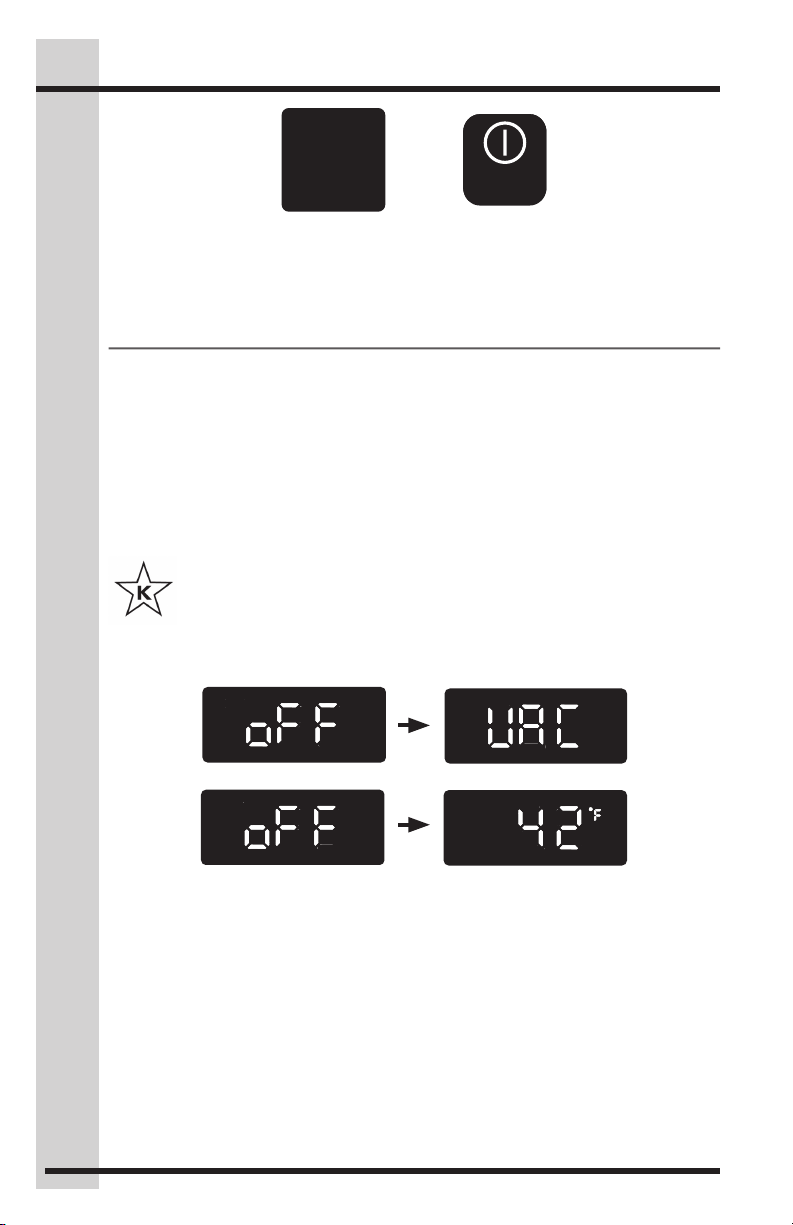

Vacation/Sabbath Mode ....................................................................... 12

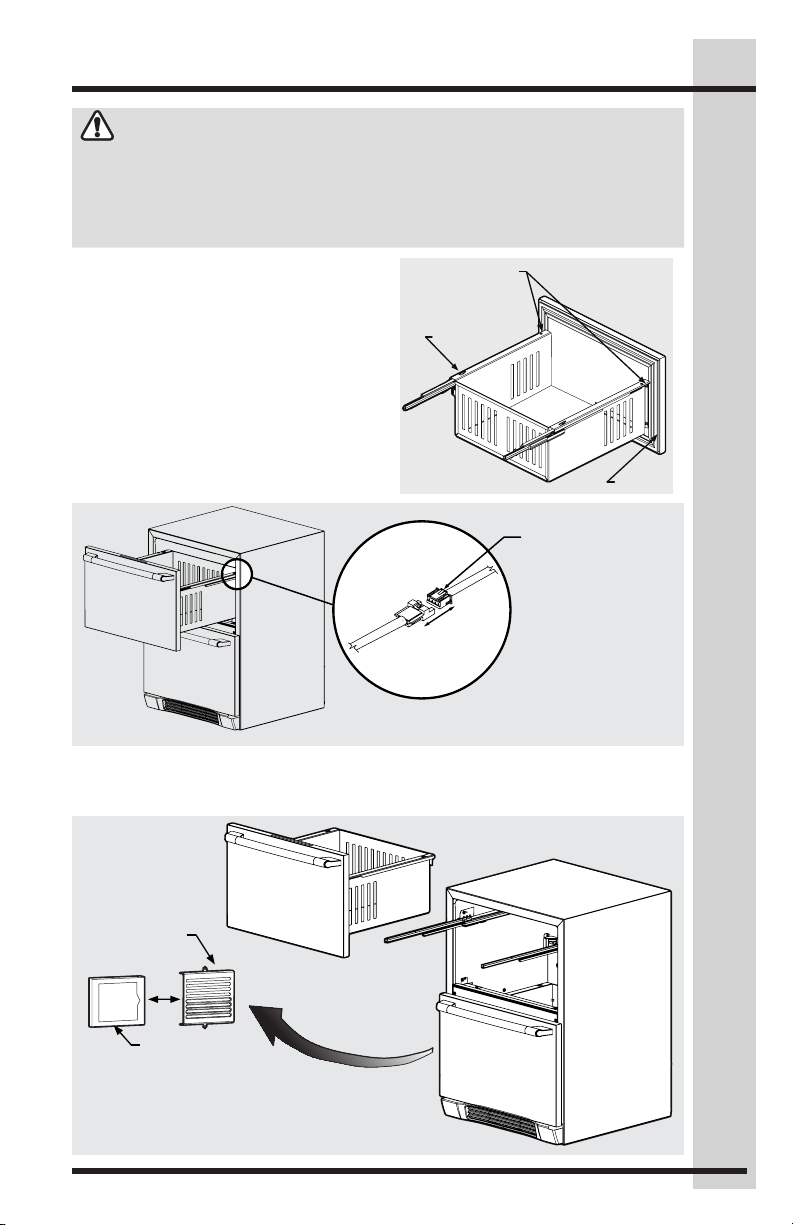

Removing the Drawer .................................................................13
Care and Cleaning and Energy Saving Tips ..............................14
Maintenance ...............................................................................15
Maintaining Your Refrigerated Drawers .................................................. 15
Exterior Cleaning for Your Stainless Steel Model .............................. 15
Interior Cleaning ......................................................................... 15
Troubleshooting ..........................................................................16
Before You Call for Service ................................................................... 17
If Service is Required ........................................................................... 17
Warranty Information ..................................................................18
3
Page 4
4
Safety
Important Safety
Instructions
Safety Precautions
Do not attempt to install or operate
your unit until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
Danger, Warning or Caution based on the
risk type.
Definitions
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messages
that follow this symbol to avoid possible
injury or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
WARNING
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard-related.
General Precautions
WARNING
RISK OF CHILD ENTRAPMENT.
Before you throw away your old
appliance, take off the drawers
and leave shelves in place so that
children may not easily climb inside.
WARNING
• Never attempt to repair or
perform maintenance on the
unit until the electricity has been
disconnected.
• Altering, cutting of power cord,
removal of power cord, removal
of power plug, or direct wiring
can cause serious injury, fire
and/or loss of property and/or
life and will void the warranty.
• Do not lift unit by drawer handle.
CAUTION
• Use care when moving the
unit. Some edges are sharp
and may cause personal injury.
Wear gloves when moving or
repositioning the unit.
• Never install the unit behind
closed drawers. Be sure front
grille is free of obstruction.
Obstructing air flow can cause
the unit to malfunction, and may
void the warranty.
• Allow unit temperature to
stabilize for 24 hours before use.
CAUTION
• Use only genuine Electrolux
replacement parts. Imitation
parts can damage the unit and
may void the warranty.
Page 5
Installation
Installing the Refrigerated Drawers
Your Electrolux Refrigerated Drawer unit has been designed for either free-standing or
built-in installation. When built-in, your Refrigerated Drawers does not require additional
air space for top, sides or rear. In either case, the front grille must NOT be obstructed.
NOTE
To ease unit installation and removal, it is recommended that the cabinet rough
opening dimensions be increased by at least ¼ inch over the dimensions given for
your unit.
NOTE
All units require zero clearance when installed flush with a cabinet or wall. Electrolux
stainless steel models require a minimum 2 7⁄8 inch handle clearance when installed
against a wall or cabinet that extends beyond the front edge of the unit.
Unit Dimensions
Width Height Depth
23 7/8 inch 33 3/4 - 34 3/4 inches 26 3/8 inch
5
23⅞"
33¾"
adjustable to
34¾"
11
⁄
32
3
"
Product Dimensions
39
2¾"
26⅜"
23
23
⁄ 32 "
21½"
5
"
⁄
32
Page 6
6
Installation
Site Preparation
1 Position the unit on a flat, level
surface capable of supporting the
entire weight of the unit. Remember
the unit will be significantly heavier
once it is fully loaded.
2 This unit requires a grounded and
polarized 115 VAC, 60Hz, 15A circuit
(normal household current).
3 Avoid connecting the unit to a Ground
Fault Interrupter (GFI). GFIs are prone
to nuisance tripping which will cause
the unit to shut down. GFIs are
generally not used on circuits which
power equipment that must run
unattended for long periods of time.
4 The unit must be installed according to
your state and local laws and regulations.
WARNING
ELECTROCUTION HAZARD!
Electrical Grounding Required. This
appliance is equipped with a three
prong (grounding) polarized plug
for your protection against possible
shock hazards.
• NEVER remove the round
grounding prong from the plug.
• NEVER use a two-prong
grounding adapter.
• NEVER use an extension cord to
connect power to the unit.
Where a two-prong wall receptacle is
encountered or a longer power cord is
required, contact a qualified electrician
to have it replaced in accordance with
applicable electrical codes.
5 Position the unit to allow free air flow
through the front grille.

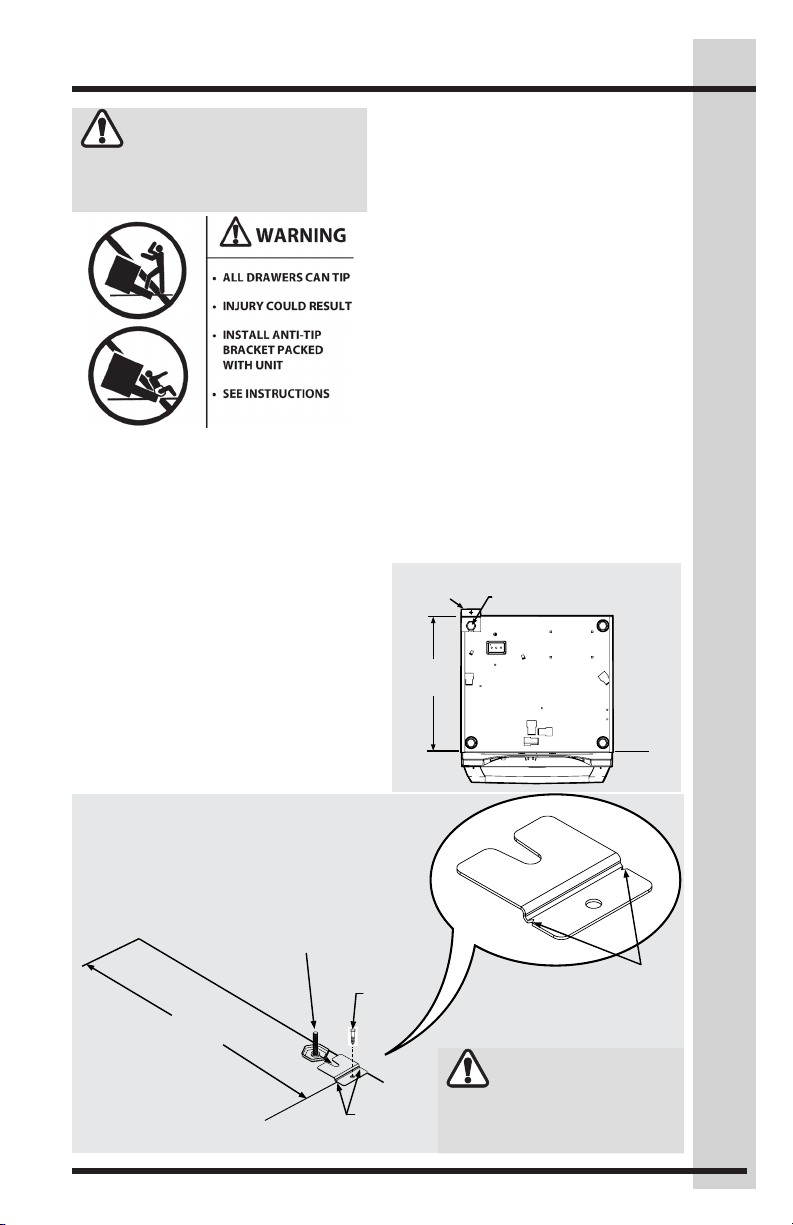

Installing the Anti-Tip
Device
WARNING
Do not double stack two units
as shown below. This may cause
serious personal injury.
CAUTION
If your Refrigerated Drawers are not
located under a counter top (free
standing), you must use an antitip device installed as per these
instructions. If the Refrigerated
Drawers are removed from their
location for any reason, make sure
that the device is properly engaged
when you push the Refrigerated
Drawers back into the original
location. If the device is not properly
engaged, there is a risk of the
Refrigerated Drawers tipping over,
causing property or personal injury if
you or a child stand, sit, or lean on an
open drawer.
6 Wipe out inside of unit with a damp
cloth.
7 Be sure to install the Anti-Tip bracket.
Follow the instructions provided with
the Anti-Tip bracket kit.
NOTE
If installing on a concrete floor, concrete
fasteners are required, (not included with
the anti-tip kit).
Page 7
Front of cabinet line
cabinet line
Installation
7
CAUTION
Any finished flooring should be
protected with appropriate material to
avoid damage when moving the unit.
Floor Mount Installation
The anti-tip bracket is to be located on the
floor in the left or right rear corner of the
Refrigerated Drawers as shown in Figure 6.
Step by step instructions for locating
the position of the bracket:
1 Decide where you want to place the
Refrigerated Drawers. Slide them into
place, being careful not to damage
the floor, leaving 1" (2.5 cm) of
clearance from the rear wall to allow
room for the anti-tip bracket.
2 Raise the rear leveling legs
approximately ¼" (6 mm) to allow
engagement with the anti-tip bracket.
Level the unit by adjusting all the leveling
legs as required. Turning the leveling leg
counterclockwise will raise the unit and
clockwise will lower the unit.
3 Make sure the Refrigerated Drawers
are in the desired location, then mark
on the floor the rear and side corner of
the cabinet where the anti-tip bracket
will be installed. If the installation does
not allow marking the rear corner of
the cabinet, then make temporary
lines on the floor marking the front
corner of the cabinet, excluding the
drawer. Slide the Refrigerated Drawers
out of the way. From the temporary
line extend the sidewall line back
21½" (54.6cm) as shown in Figure 7.
4 Align the anti-tip bracket to the marks
on the floor so the side of the bracket
lines up with the side of the cabinet
mark, and the "V" notches on the antitip bracket line up with the end of the
21½" (54.6cm) line (Rear of cabinet line).
5 Fasten the anti-tip bracket to the floor
using the supplied screw. (See Figure 7).
6 Slide the cabinet back into position,
making sure the rear cabinet leveling
leg slides under the anti-tip bracket
engaging the slot.
Anti-Tip
Bracket
21 1/2"
(54.6cm)
Leveling Leg
Bottom View of
Refrigerated
Drawer Unit
Figure 6
Front of
cabinet
Side of cabinet line
21 1/2"
(54.6cm)
Rear Leveling leg
Rear of
Screw
"V" notches
in bracket
"V" notches
in bracket
WARNING
TIP OVER HAZARD: One of the
rear cabinet leveling legs must be
engaged under an anti-tip bracket.
Page 8
8
in the rear.
Leveling
Leveling the Unit
Position the unit on a flat, level surface capable of supporting the entire weight of the unit
when full.
Leveling Legs
Adjustable legs at the front and rear corners of the appliance should be set so the unit
is firmly positioned on the floor and level from side to side and front to back. The overall
height of your Electrolux appliance may be adjusted between the minimum, 33 ¾”
(85.7cm),by turning the leveling leg in and the maximum, 34 ¾” (88.3cm), by turning the
leveling leg out. See Figure 2 and 2a.
To adjust the leveling legs, place the appliance on a solid surface and protect the floor
beneath the legs to avoid scratching the floor. With the assistance of another person,
lean the appliance back to access the front leveling legs. Raise or lower the legs to the
required dimension by turning the legs. Repeat this process for the rear by tilting the
appliance forward using caution. On a level surface check the appliance for levelness
and adjust accordingly.
Figure 2
Figure 2a
Leveling legs, 2
at the front and 2
Front Grille,
keep this area
open.
Page 9
Operation
lock
alarm reset
Based on EGD/Larger Carrier
alarm reset
on-off
lock
temp
power failure
air filter
door ajar
Temp
Temp
System
9
Minus
keypad
Plus
On/Off
keypad
keypad Display Area

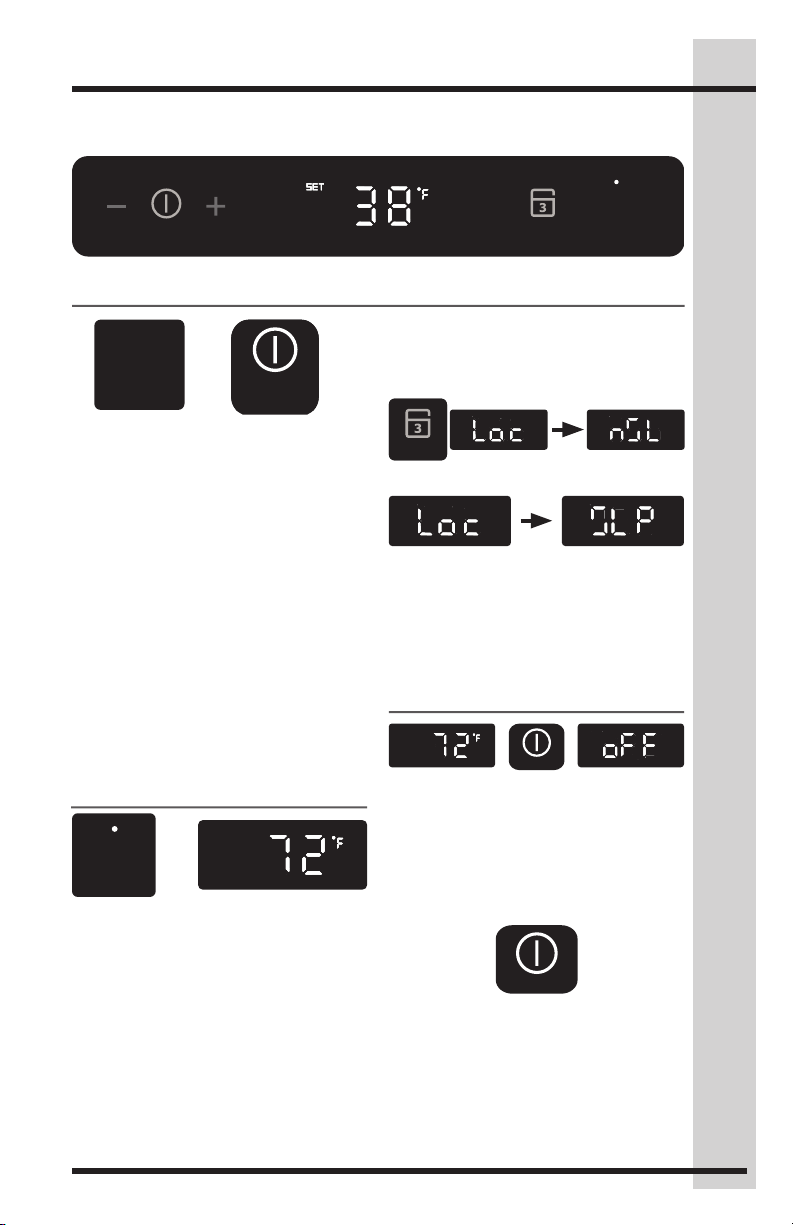

Electronic Control Display
Power Failure
on-off
Starting your appliance:
Plug the appliance power cord into a 115
volt wall outlet. Your appliance is shipped
from the factory in the "On" position and
will begin start-up of cooling as soon as
power is supplied. If the appliance does
not start, confirm that the wall outlet has
power, and that the control is in the "On"
position, (See "Turning your appliance On
and Off" below).
The control display is covered with a clear
plastic film. This film may be removed by
carefully lifting the film at a corner.
On initial power up, the control display will
indicate a "Power Failure" alarm. This is
a normal condition as the appliance was
powered-up at the factory for quality inspection
and then removed from power. A momentary
press of the "On/Off" keypad will reset this
alarm condition. (See Alarms section).
Sleep mode:
If no keypads are pressed for 60 seconds,
the display will enter sleep mode to
conserve power. The control panel will
go dark with the exception of the system
status "OK" indicator which will remain
enabled. Alarm conditions will wake the
display, (See Alarms section).
To make the following changes to the
control settings (turning the appliance ON/
OFF, adjusting the temperature, changing
the interior lights, and activating vacation
mode), the control must be awake.
Lock
keypad
Status
indicators
To wake the display press any keypad. A
confirm tone will sound, and the current
storage compartment temperature will be
displayed.
The sleep mode can be disabled if you
prefer to have the display on continuously.
Press and hold the "Lock" keypad until the
display goes past "Loc" and reads "nSL".
To enable the sleep mode, repeat the
instruction, again going past "Loc" until the
display reads "SLP".
on-off
Turning your appliance ON and OFF:
If the appliance is "On", (and out of sleep
mode) the temperature will be shown in
the display area of the control. To turn the
appliance "Off", press and hold the "On/
Off" keypad for four seconds. "OFF" will
now be displayed on the control.
on-off
To turn the appliance "On", press and hold
the "On/Off" keypad for four seconds.
Page 10
10
lock
lock
lock
on-off
Operation
Adjusting the temperature:
To set or check the set-point temperature
(with the control out of sleep mode),
press the "-" or "+" keypads. "SET" will
be indicated on the user interface panel
and the current set-point temperature will
display and flash. Subsequent presses
of the "-" or "+" keypads will adjust the
temperature colder or warmer respectively.
When you have reached your desired
set-point temperature, press the "On/Off"
keypad to accept, or do nothing and the
"Set" mode will time-out in 10 seconds
accepting the displayed temperature as
the new set-point.
The available set-point temperature range
for your appliance is 34°F (1.1°C) to
42°F (5.6°C). If you attempt to adjust the
temperature outside of this range you will
receive an audible notification.
When initially loading your product with
warm contents, it may take up to 48 hours
for the storage compartment temperature
to stabilize.
When making temperature set-point
changes, it may take up to 24 hours for
the stored contents to stabilize at your
new set-point temperature.
Factors that affect the storage
compartment stabilized temperature:
• Changes to temperature setting.
• Room temperature changes.
• Temperature of stored contents.
- Loading warm contents.
- Cold content load will delay the
change to a warmer set-point
temperature.
- Warm content load will delay
the change to a colder set-point
temperature.
• Usage, (number and duration of the
drawer openings).
• Use of the storage compartment
display lighting.
• Installation of the appliance in direct
sunlight or next to a heat source.
Temperature mode:
The temperature mode is preset from the
factory in Fahrenheit (°F) but you have the
option to change it to Centigrade (°C). To
change the mode, press and hold the "-"
keypad, while pressing the "+" keypad,
then release the "-" keypad.
The temperature will now be displayed in
Centigrade (°C).
Repeat the procedure to change the
temperature mode back to Fahrenheit (°F).
lock
Control lock:
The control panel can be locked to avoid
unintentional changes. To lock the control,
press and hold the "Lock" keypad until
the display reads "Loc". The lock icon will
flash three times and then continuously
illuminate. When the control panel is
locked, only the Lock keypad, System
Status OK indicator, and the Alarm
indicator are active. To unlock the control
panel, repeat this instruction until the
display reads "nLc".
Page 11
Alarms
alarm reset
alarm reset
alarm reset
The control will alert you to conditions that
could adversely affect the performance of
the appliance.
Temp
Operation
on-off
11
Door Ajar
on-off
Door ajar - If the drawer is open, or
not closed properly, for more than five
minutes the System Status OK indicator
will turn-off, the "Door Ajar" indicator will
flash, and a tone will sound every 60
seconds. Additionally, an "ALARM RESET"
indicator will be displayed below the "On/
Off" keypad. This alarm condition can be
reset by closing the drawer or momentarily
pressing the "On/Off" keypad, (i.e. if you
are cleaning the storage compartment,
etc.). The alarm will recur in five minutes if
the alarm condition persists.
Power Failure
Power failure - If power to the appliance
is interrupted the System Status indicator
will turn-off and the "Power Failure"
indicator will flash. Additionally, an "ALARM
RESET" indicator will be displayed below
the "On/Off" keypad. No audible tone
will sound. This alarm condition can
be reset by momentarily pressing the
"On/Off" keypad. If this alarm occurs,
it is recommended that you check the
condition of any perishables, even if the
appliance is operating normally and the
temperature has recovered. Prolonged
power outages could result in excessive
temperature excursions which may spoil
perishables.
on-off
Temperature alarm - If the storage
compartment temperature exceeds 10°F
from set-point for more than a one hour
duration, the System Status indicator will
turn off, the "Temp" indicator will flash,
and an audible tone will sound every 60
seconds. Additionally, an "ALARM RESET"
indicator will be displayed below the "On/
Off" keypad. This alarm condition can
be reset by momentarily pressing the
"On/Off" keypad. If this alarm occurs,
it is recommended that you check the
condition of your stored contents. Even
though the appliance is operating normally
and the temperature has recovered,
prolonged temperature excursions could
spoil perishables.
NOTE
Multiple alarms are possible. For
instance, “Door Ajar” alarming for a
prolonged period may trigger a “Temp”
alarm, in which case both “Door Ajar”
and “Temp” indicators will activate.
Door Ajar
Temp
NOTE
The system status “OK” indicator
(blue dot at top of alarm window) will
remain lit whenever the unit is operating
properly.
Page 12
12
alarm reset
Operation
Air Filter

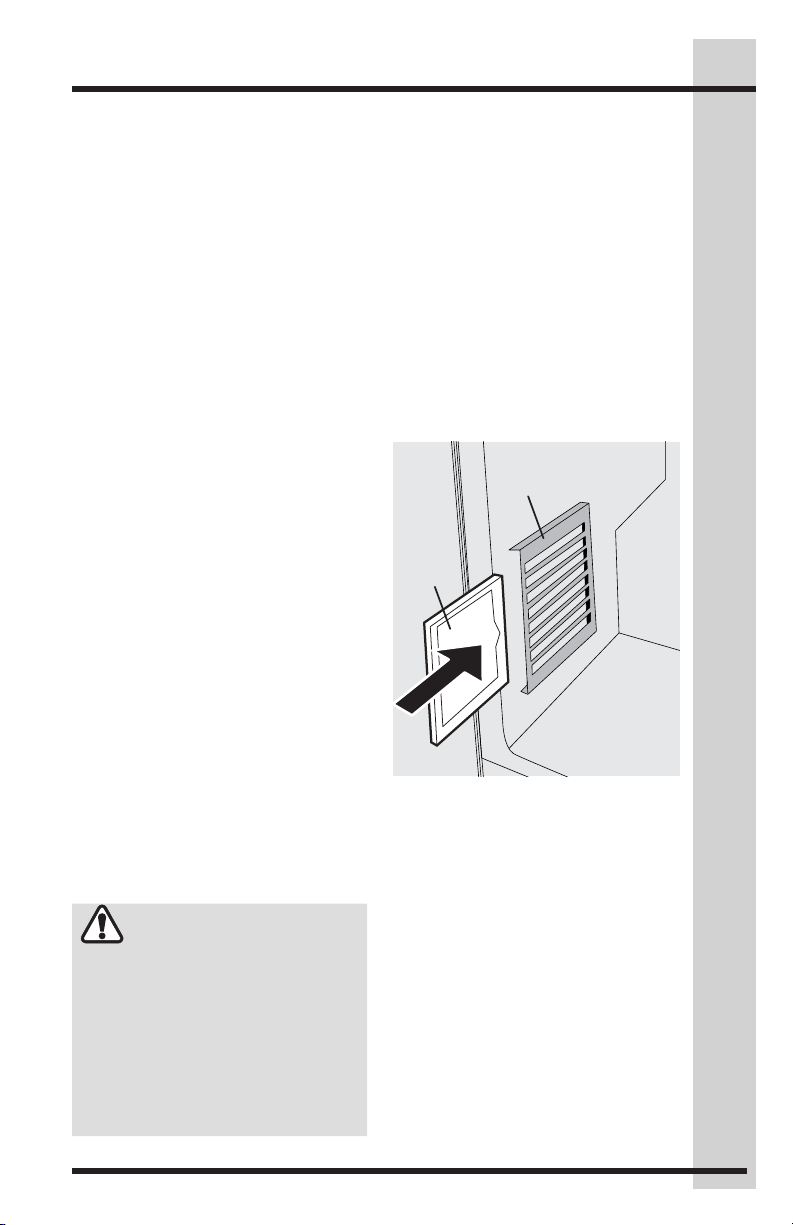

Air Filter - The control will notify you as to when it is time to replace the air filter (every
six months). The System Status indicator will turn off and the "Air Filter" indicator will
flash. Additionally an "ALARM RESET" indicator will be displayed below the "ON/OFF"
keypad. No audible tone will sound. The air filter condition can be reset by momentarily
pressing the "ON/OFF" keypad and the alarm will then display after another six months.
Vacation/Sabbath mode:
This operating mode can be used to save energy during high cost energy periods, or
when you won't be using your appliance for an extended period of time. Vacation mode
also serves as a Sabbath mode, disabling functions and its controls in accordance
with the weekly Sabbath and religious holidays observed within the Orthodox Jewish
community. When used as Sabbath mode, you may open or close the door at any
time to access contents without concern of directly turning on or off any lights, digital
readouts, solenoids, fans, valves, compressor, icons, tones, or alarms.
When activated, the display, alarm indicators and tones, keypad touch tones,
interior lights, and all options are disabled. All keypad functions are disabled,
with the exception of the "On/Off" keypad which is required to exit Vacation/
Sabbath mode. Storage compartment temperatures are monitored and
controlled at the settings prior to entering Vacation/Sabbath mode. For further
assistance, guidelines for proper usage and a complete list of models with the
Sabbath feature, please visit the web at http:\\www.star-k.org.
on-off
To enter Vacation/Sabbath Mode (with the control out of sleep mode), press and hold the
"On/Off" keypad until the display goes past "OFF" and reads "VAC". The display will flash
"VAC" three times to acknowledge your request, then will display "VAC" continuously
until Vacation/Sabbath mode is exited. A power outage will not exit Vacation/Sabbath
mode, exiting can only be accomplished manually. To exit Vacation/Sabbath mode and
return to normal operation, press and hold the "On/Off" keypad until the control displays
the temperature.
Page 13
Removing the Drawer
Gasket
WARNING
ELECTROCUTION HAZARD
• Never attempt to repair or perform maintenance on the appliance until the
main electrical power has been disconnected. Turning the appliance control
“OFF” does not remove electrical power from the units wiring.
• Replace all parts and panels before operating.
Remove Drawers from unit
Begin by pulling out the top drawer. (See
Figure 9). Remove screws securing drawer
to slides (See Figure 10). Pull drawer
forward, lift up and out to clear clips in rear of
drawer. Move drawer forward about 1" (2.5
cm) and set down on slides. At the right rear
corner of the drawer disconnect the display
wire harness (See Figure 9a). Remove
the drawer from the unit by lifting up off of
the slides. Repeat for bottom drawer but
disregard the harness instructions as there is
no wiring to the bottom drawer.
Remove screws
Clips
Press and hold
down this tab on
the wire connector
and pull the
connector apart.
Figure 9a
Figure 10
Figure 9
13
To replace the air filter:
Fully extend the bottom drawer. The air filter is located on the left lower wall of the cabinet.
Remove the old air filter and replace with a new air filter. See Figure 11.
Figure 11
Filter
housing
Air Filter
Page 14
14
Latches
Care & Cleaning and
Energy Saving Tips

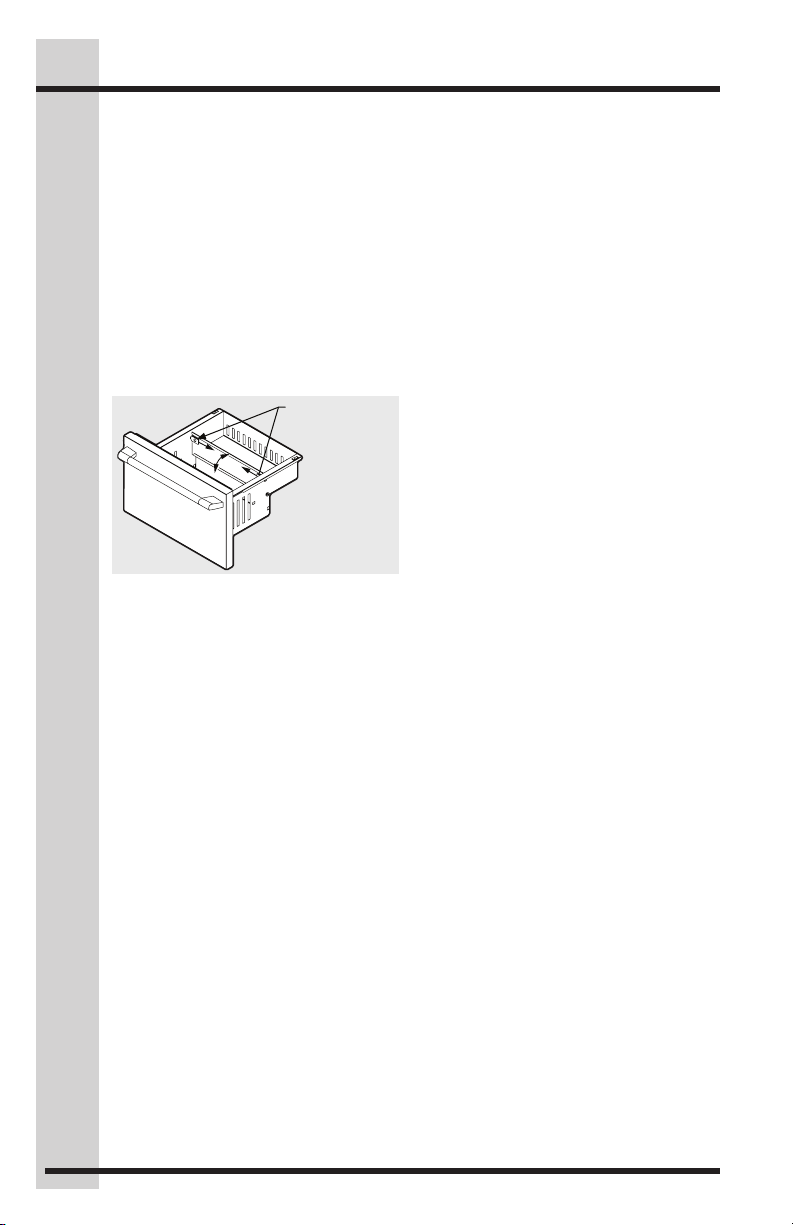

Bottom drawer divider
The bottom drawer has a divider that can
be flipped up or down depending on your
preference. There are three positions for
the divider.
UP- Use to create a partition between the
front and rear of the drawer.
FLAT- Use to extend the rear of the drawer
bottom.
DOWN- Use to combine the front and rear
areas of the drawer.
Move the spring loaded outside latches
toward the center of the drawer and
release into a new position.
Figure 12
Bottom drawer
divider shown
in "UP" position
Care and cleaning
Front Grille
Be sure that nothing obstructs the required
air flow openings in front of the cabinet. At
least once or twice a year, brush or vacuum
lint and dirt from the front grille area.
Cabinet
The painted cabinet can be washed
with either a mild soap and water and
thoroughly rinsed with clear water. NEVER
use abrasive scouring cleaners.
Interior
Wash interior compartment with mild soap
and water. Do NOT use an abrasive cleaner,
solvent, polish cleaner or undiluted detergent.
Care of Appliance
1. Avoid leaning on the drawer, you
may bend the drawer slides or tip the
appliance.
2. Exercise caution when sweeping,
vacuuming or mopping near the front
of the appliance. Damage to the grille
can occur.
3. Periodically clean the interior of the
appliance as needed.
4. Periodically check and/or clean the
front grille as needed.
In the Event of a Power Failure
If a power failure occurs, try to correct it as soon
as possible. Minimize the number of drawer
openings while the power is off so as not to
adversely affect the appliance's temperature.
Light assembly replacement
All models use an LED to illuminate the interior
of the appliance. This component is very
reliable, but should it fail, contact a qualified
service technician for replacement of the LED.
The following suggestions will
minimize the cost of operating
your refrigeration appliance.
1. Do not install your appliance next to a
hot appliance (cooker, dishwasher, etc.),
heating air duct, or other heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front
of appliance beneath drawer are not
obstructed and kept clean to allow
ventilation for the refrigeration system
to expel heat.
4. Plug your appliance into a dedicated
power circuit. (Not shared with other
appliances).
5. When initially loading your new product,
or whenever large quantities of warm
contents are placed within refrigerated
storage compartment, minimize drawer
openings for the next 12 hours to allow
contents to pull down to compartment
set temperature.
6. Maintaining a relatively full storage
compartment will require less appliance
run time than an empty compartment.
7. Ensure drawer closing is not obstructed
by contents stored in your appliance.
8. Allow hot items to reach room
temperature before placing in product.
9. Minimize drawer openings and
duration of drawer openings.
10. Use the warmest temperature control
set temperature that meets your
personal preference and provides the
proper storage for your stored contents.
11. When on vacation or away from
home for extended periods, set the
appliance to warmest acceptable
temperature for the stored contents.
12. Set the control to the “off” position if
cleaning the appliance requires the drawer
to be open for an extended period of time.
Page 15
Maintenance
15
Maintaining Your Refrigerated Drawers
Periodic cleaning and proper maintenance
will ensure efficiency, top performance,
and long life. The maintenance intervals
listed are based on normal conditions. You
may want to shorten the intervals if you
have pets or other special considerations.
Exterior Cleaning for Your
Stainless Steel Model
• Your stainless steel model may
discolor when exposed to chlorine
gas, pool chemicals, salt water, or
cleaners with bleach.
• Keep your stainless unit looking new
by cleaning with a high quality, all-inone stainless steel cleaner/polish on a
monthly basis. Frequent cleaning will
remove surface contamination that
could lead to rust. Some installations
will require cleaning on a weekly basis.
• DO NOT CLEAN WITH STEEL WOOL
PADS.
• DO NOT USE CLEANERS THAT ARE
NOT SPECIFICALLY INTENDED FOR
STAINLESS STEEL (this includes
glass, tile and counter cleansers).
• If any surface discolors or rusting
appears, clean it quickly with Bon-Ami
or Barkeepers Friend Cleanser and
a non-abrasive cloth. Always clean
in the direction of the grain. Always
finish this process with a high quality,
all-in-one stainless steel cleaner/polish
to prevent further problems.
• USE OF ABRASIVE PADS SUCH AS
SCOTCHBRITE WILL CAUSE THE
GRAINING IN THE STAINLESS TO
BECOME BLURRED.
• Rust that is allowed to linger
can penetrate into the surface of
the stainless steel and become
impossible to remove.
CAUTION
• Stainless steel models exposed to
chlorine gas and moisture such as
areas with spas or swimming pools,
may have some discoloration of
the stainless steel. Discoloration
from chlorine gas is normal. Follow
exterior cleaning instructions.
• NEVER USE CHLORIDE OR
CLEANERS CONTAINING BLEACH
TO CLEAN STAINLESS STEEL.
Interior Cleaning - as Required
1 Disconnect power to the Refrigerated
Drawers.
2 Remove racks if desired, see “WINE
RACK REMOVAL/INSTALLATION”
below.
3 Wipe down the interior with a solution
of non-abrasive mild detergent and
warm water.
4 Rinse with clear water.
5 Reconnect power to the unit.
Air Filter
Install the static air filter, located in the
literature pack, in the proper housing.
Filter
Housing
Air
filter
Ordering replacement filters
Order new filters by calling
toll-free 1-877-808-4195, visiting
www.electroluxappliances.com, or
seeing the dealer where you bought
your Refrigerated Drawers. Electrolux
recommends that you order extra filters
when you first install your Refrigerated
Drawers, and that you replace your filters
at least once every six months.
Here is the product number to request
when ordering:
PureAdvantage
Part # EAFCBF
TM
Air Filter,
Page 16
16
Maintenance

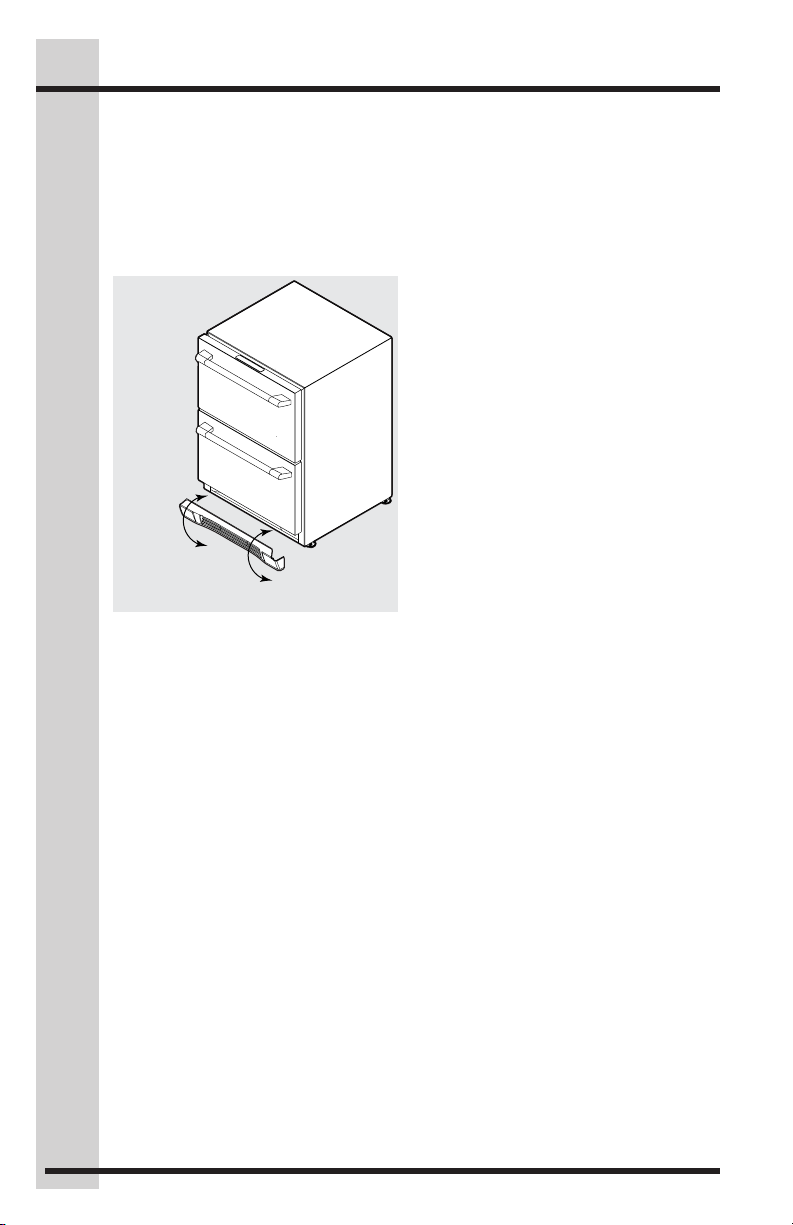

Removing and installing the
grille:
Open the drawer, squeeze the grille (top
and bottom) which will release the tabs on
the grille and pull it toward you to remove
from the cabinet. Reverse the procedure
for installing the grille.
Squeeze
grille and
remove
Remove
Toe Grille
Service data sheet location:
The service data sheet is included in a
clear pouch taped to the back of the
cabinet.
If Service is Required:
• If the product is within the first year
warranty period please contact your
dealer or call Electrolux Customer
Service at 877.435.3287 for
directions on how to obtain warranty
coverage in your area.
• If the product is outside the first
year warranty period, Electrolux
Customer Service can provide
recommendations of service centers
in your area.
• In all correspondence regarding
service, be sure to give the model
number, serial number, and proof of
purchase.
• Try to have information or description
of nature of the problem, how long
the appliance has been running, the
room temperature, and any additional
information that may be helpful in
quickly solving the problem.
Page 17
Troubleshooting
17
Before You Call for Service
If the unit appears to be malfunctioning,
read through this manual first. If the problem
persists, check the Troubleshooting Guide
below. Locate the problem in the guide and
refer to the cause and its remedy before calling
for service. The problem may be something
very simple that can be solved without a
service call. Consulting or contracting a
qualified service technician may be necessary.
If Service is Required
Contact the dealer where you purchased the
unit if service is required. State the model
and serial number and explain the problem.
The model and serial number plate is located
on the ceiling of your unit. If you do not know
the name of the selling dealer or a local
service company, you can check online at
www.electroluxappliances.com or call
1-877-435-3287.
WARNING
ELECTROCUTION HAZARD
NEVER attempt to repair or perform maintenance on the unit until the main
electrical power has been disconnected.
Problem Possible Cause Remedy
Unit not cold
enough.
Adjust
temperatures
(see “Adjusting
the Temperature”
in the “Start-Up
and Temperature
Control” section).
Unit too cold.
Contents of unit
too cold/frozen.
Adjust temperatures
(see “Adjusting
the Temperature”
in the “Start-Up
and Temperature
Control” section).
No interior light. • Failed LED assembly. • Contact a qualified Electrolux
Light will not go
out when drawer is
closed.
Alarm(s) will not
shut off.
Power is not
restored after
power failure.
• Control set too warm.
• Light staying on.
• Airflow to front grille
blocked.
• Drawer gasket not
sealing properly.
• Control set too cold.
• Drawer gasket not
sealing properly.
• Manual light control
is ON.
• Drawer switch not
making contact.
• Drawer is ajar.
• Power has failed.
• Internal temperature is
too high.
• Circuit breaker has
tripped.
• Adjust temperature colder. Allow 24
hours for temperature to stabilize.
• Turn off manual light control.
See “Operation” section.
• Airflow must not be
obstructed to front grille. See
“Installation” section.
• Adjust drawer gasket.
• Adjust temperature warmer.
Allow 24 hours for temperature
to stabilize.
Service Technician.
• Turn off manual light control.
See “Operation” section.
• Check for proper drawer
alignment.
• Press “Power” key to
acknowledge alarm.
• Ensure drawer is closed firmly.
• Allow 24 hours for temperature
to stabilize.
• Verify electrical supply. See
“Installation” section.
Page 18
18
Warranty Information
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or
workmanship when such appliance is installed, used, and maintained in accordance with the provided
instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,
evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During
the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace any parts in the
cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship when
such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily
determined.
2. Product that has been transferred from its original owner to another party or removed
outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or
for appliances not in ordinary household use or used other than in accordance with the
provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your
appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Pickup and delivery costs; your appliance is designed to be repaired in the home.
12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls,
tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the
state of Alaska.
13. Damages to the finish of appliance or home incurred during transportation or installation,
including but not limited to floors, cabinets, walls, etc.
14. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL
BE REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD
ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND
INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED
WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico,
your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux
Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service
and parts under this warranty must be performed by Electrolux or an authorized service company.
Product features or specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
10200 David Taylor Drive
Charlotte, NC 28262
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario,
Canada L5V 3E4
Canada
1-800-265-8352
Loading...
