Page 1
GRAIN DIRECTION
(ALL PARTS)
Product No. EI24MO45IBB
Market North America
Color black
Volts 120
Watts 1100
Wiring Diagram 5995567723
Owner's Guide TINSEB263WRRZ
Installation Instructions TINS-B003MRR1
EI27MO45GS cover.eps EI24MO45IBA cabinet.eps EI27MO45GSA controls.eps
EI27MO45GSA wiring.eps
Electrolux Major Appliances
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995567723
10/06/03
(EN/SERVICE/KC)
099
BUILT-IN MICROWAVE
Model No.
EI24MO45I
Page 2
Publication No: 5995567723 EI24MO45IBB
OVEN,CABINET
EI24MO45IBA cabinet
06/10 2
Page 3
EI24MO45IBB Publication No: 5995567723
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
1 # 5304462258 Capacitor/Rectifier Assy, HV
2 # 5303319561 Receptacle, lamp socket, oven
3 5304464198 Lamp, oven light
4 # 5304448490 Motor, cooling fan
5 # 5304440027 Switch Kit, monitor, with CT fuse
6 # 5304440026 Switch, interlock, door sensor
7 # 5304440780 Fuse, cavity temp, 20 Amp, 250 V
8 # 5304472253 Magnetron
9 # 5304440021 Motor, turntable
10 # 5304473321 Transformer, power
11 # 5304478937 Power Cord, electric
12 # 5304440785 Sensor, humidity, cook control
13 # 5303322968 Filter, noise, electronic
14 5304478938 Base, unit chassis
15 5304478939 Foot, cabinet support
16 5304478940 Cabinet, outer casing, black
24 5304478941 Retainer, capacitor strap
25 5304478942 Bracket, chassis support
26 5304478943 Latch Hook
27 5304478944 Lever, door release
28 5304464197 Duct, magnetron
29 # 5304467720 Fan Blade, mag cooling fan
30 5304478945 Duct, cooling fan
31 5304478946 Filler Strip, base plate, bottom
32 5304478947 Cover, waveguide
33 5304467718 Bushing, motor shaft, turntable
34 5304478948 Duct, humidity sensor
35 5304478949 Cushion, magnetron pad
46 5304478951 Support Assy, turntable, roller
47 5304440868 Tray, turntable, glass
48 5304467771 Label, Caution-monitor
49 5304467770 Label, Caution-DHHS
52 5304468230 Label, HWC Caution
53 5303319636 Screw
54 5303319641 Screw
55 5304462315 Screw, 4 mm x 12 mm, ground
56 5304451553 Screw, 4 mm x 12 mm
57 5304453725 Screw, 3mm x 8mm
58 5304450253 Screw, 4 mm x 8 mm
59 5304440873 Screw, Torx, tamper proof
60 5304462316 Screw
61 5304452261 Screw, black, outer casing
62 5304453941 Label, caution, UL screw
63 5304451535 Label, height caution
64 5304472255 Label, menu
# Functional Parts
3 06/10
* Non-Illustrated Parts
Page 4
Publication No: 5995567723 EI24MO45IBB
CONTROL PANEL,DOOR,MISC.
06/10 4
Page 5
EI24MO45IBB Publication No: 5995567723
CONTROL PANEL,DOOR,MISC.
POS. NO PART NO. DESCRIPTION
17 # 5304464192 Control Board, printed circuit
18 # 5304464194 Control Panel Assy, frame, black
19 # 5304464898 Touch Control, key pad, black
20 5304464196 Push Button, door, black
21 5303319583 Spring, door button
22 5304456930 Screw, 3 mm x 10 mm
23 5304468232 Label, User Caution
36 5304472254 Door Assy, complete, black
38 5304440856 Latch, door
39 5304440316 Spring, door latch
40 5304440857 Panel, inner door, black
41 5304440860 Seal, door, film
42 5304440861 Choke Cover, inner door
43 5304442145 Door Stop
45 # 5304478950 Wiring Harness, main
51 # 5304440870 Wire, high voltage-A
# Functional Parts
5 06/10
* Non-Illustrated Parts
Page 6
Publication No: 5995567723 EI24MO45IBB

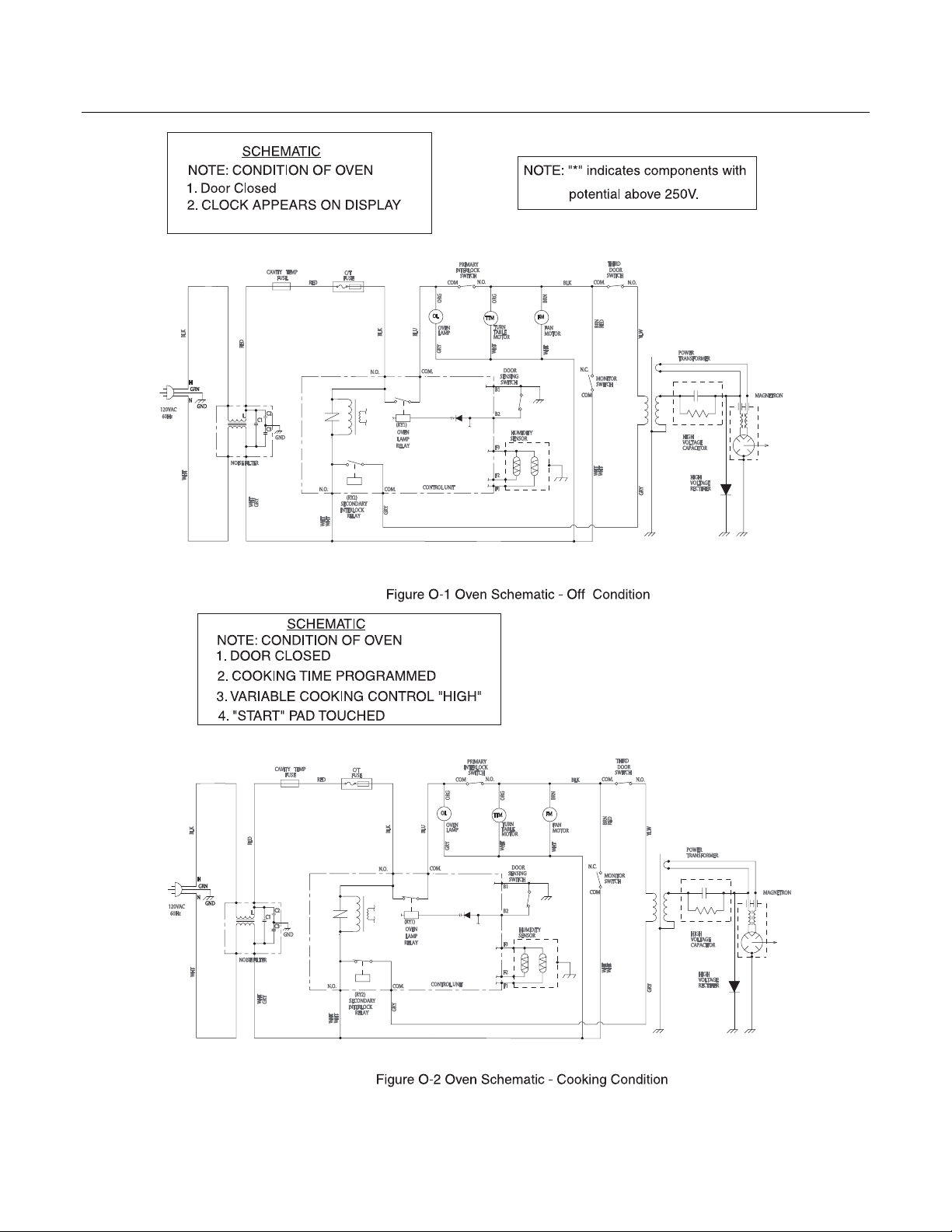

WIRING DIAGRAM
06/10 6
