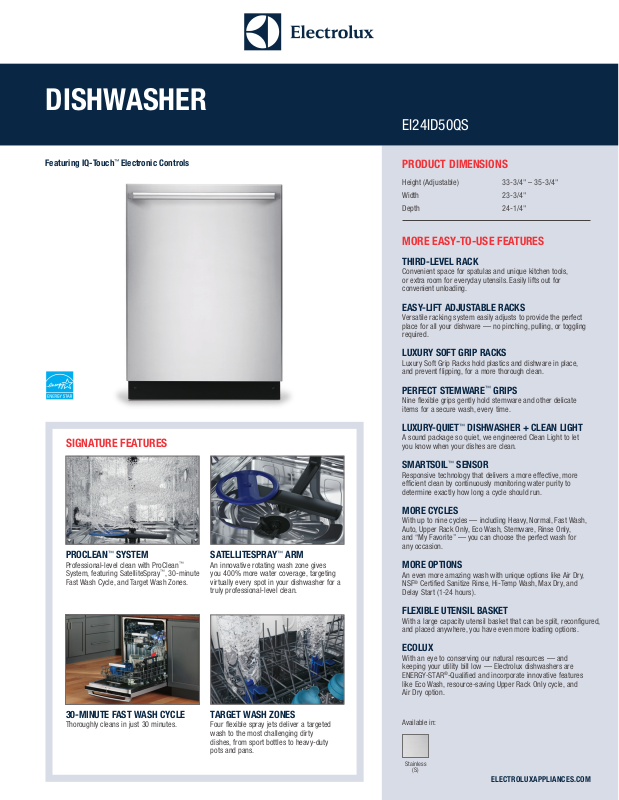

Page 1
DISHWASHER
EI24ID50QS
Featuring IQ-Touch™ Electronic Controls
FPO
SIGNATURE FEATURES
PRODUCT DIMENSIONS
Height (Adjustable) 33-3/4" – 35-3/4"
Width 23-3/4"
Depth 24-1/4"
MORE EASY-TO-USE FEATURES
THIRD-LEVEL RACK
Convenient space for spatulas and unique kitchen tools,
or extra room for everyday utensils. Easily lifts out for
convenient unloading.
EASY-LIFT ADJUSTABLE RACKS
Versatile racking system easily adjusts to provide the perfect
place for all your dishware — no pinching, pulling, or toggling
required.
LUXURY SOFT GRIP RACKS
Luxury Soft Grip Racks hold plastics and dishware in place,
and prevent flipping, for a more thorough clean.
PERFECT STEMWARE™ GRIPS
Nine flexible grips gently hold stemware and other delicate
items for a secure wash, every time.
LUXURY-QUIET™ DISHWASHER + CLEAN LIGHT
A sound package so quiet, we engineered Clean Light to let
you know when your dishes are clean.
PROCLEAN™ SYSTEM
Professional-level clean with ProClean™
System, featuring SatelliteSpray
Fast Wash Cycle, and Target Wash Zones.
™
, 30-minute
30-MINUTE FAST WASH CYCLE
Thoroughly cleans in just 30 minutes.
SATELLITESPRAY™ ARM
An innovative rotating wash zone gives
you 400% more water coverage, targeting
virtually every spot in your dishwasher for a
truly professional-level clean.
TARGET WASH ZONES
Four flexible spray jets deliver a targeted
wash to the most challenging dirty
dishes, from sport bottles to heavy-duty
pots and pans.
SMARTSOIL™ SENSOR
Responsive technology that delivers a more effective, more
efficient clean by continuously monitoring water purity to
determine exactly how long a cycle should run.
MORE CYCLES
With up to nine cycles — including Heavy, Normal, Fast Wash,
Auto, Upper Rack Only, Eco Wash, Stemware, Rinse Only,
and “My Favorite” — you can choose the perfect wash for
any occasion.
MORE OPTIONS
An even more amazing wash with unique options like Air Dry,
®
NSF
Certified Sanitize Rinse, Hi-Temp Wash, Max Dry, and
Delay Start (1-24 hours).
FLEXIBLE UTENSIL BASKET
With a large capacity utensil basket that can be split, reconfigured,
and placed anywhere, you have even more loading options.
ECOLUX
With an eye to conserving our natural resources — and
keeping your utility bill low — Electrolux dishwashers are
ENERGY-STAR
like Eco Wash, resource-saving Upper Rack Only cycle, and
Air Dry option.
Available in:
Stainless
(S)
®
-Qualified and incorporate innovative features
ELECTROLUXAPPLIANCES.COM
Page 2
DISHWASHER
EI24ID50QS
24" BUILT-IN DISHWASHER
FEATURES
Stainless Steel Interior
Signature Soft-Arc Handle Design
™
Luxury-Hold
IQ-Touch
Fully Integrated Control Panel
Tall-Tub Design
ProClean
SatelliteSpray
Target Wash Zones
Wash Levels
AquaLux
Luxury-Quiet
Sound Level
SmartSoil
Luxury-Dry
Adjustable Rinse Aid Dispenser with Indicator
ENERGY STAR
Reclaimable
CYCLES
Auto Wash
Heavy
Normal
Fast Wash (30-Min.)
Delicate
Perfect Stemware
Favorite
Eco Wash
Upper Rack Only
Rinse Only
OPTIONS
Hi-Temp. Wash
Heat / No Heat Dry
Max Dry
NSF
Delay Start (Hours)
RACK SYSTEM
Nylon Rack System
Luxury-Glide
Adjustable Height
Cup Shelf / Perfect Stemware
Fold-Down Tines
Rack Handle
Luxury-Glide
Fold-Down Tines
Stemware / Champagne Glass Holders
Silverware Basket
Rack Handle
Third-Level Rack (Single Tray)
SPECIFICATIONS
Color –
Stainless Steel
Power Supply Location
Water Inlet Location
Water Usage (Gallons) – Normal Cycle
Water Pressure (PSI)
Integral Air Gap on Supply
Voltage Rating
Connected Load (kW Rating) @120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
‡
NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
Door
™
Electronic Controls
™
Wash System
™
Arm
™
Wash System
™
Sound Package
™
Sensor
™
System
®
™
Cycle
®
Certified Sanitize Option
®
Nylon Upper Rack –
™
Holders
®
Nylon Lower Rack –
‡
For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
4
5
Yes
Yes
47 dB
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1-24
®
Sure-2-Fit
Yes
2 / 9
2 Rows
Yes
4 Rows
2
2-Piece Split
Yes
Yes
S
Right Bottom Front
Left Bottom Front
4.0 – 8.0
15 – 120
Yes
120V / 60 Hz / 15A
1.44
15
115 Lbs.
PRODUCT DIMENSIONS
Height (Adjustable*)
Width
Depth
Depth with 90° Door Open
* Height only adjustable to 34-11/16" max. when installed in 35" max. standard cabinetry
cutout to allow for 5/16" min. clearance.
33-3/4" – 35-3/4"
23-3/4"
24-1/4"
50-1/4"
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EI24ID50Q 03/14 © 2014 Electrolux Home Products, Inc.
Meets
requirements of
ASSE 1006
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Page 3
DISHWASHER
EI24ID50QS
34"
Left
24
1/4"
3
/4" max.
90°
3/4"
**
24"
min.
3
"
11/4"
underside of countertop.)
Front
3
23
/4"
3
33
/4"
Adjustable
*
3/4"
to 35
*Height only adjustable to 35
standard cabinetry cutout. (Dimensions do NOT include insulation –
insulation blanket may be compressed during installation.)
3
/4" max. when installed in 35
FPO
3
1/2" min. to
4
1/2" max.
min. to
35
max.
Electrical, water,
lines
and drain
must be confined
**
NOTE: 35
height for standard
cabinetry cutout.
(5/16" min. clearance
required from unit to
to shaded
Preferred
drain areas
3
24"
area
"
3/4"
max.
18"
3"
1"
1
/4"21/4"
2
Door in 90°
open position
27
90°
Right
1/4"
50
3/4"
Power supply & water inlet location
(bottom rear)
22
1/2"
Built-In Dishwasher Specifications
•
Product Weight – 98 Lbs.
•
Voltage Rating – 120V/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @ 120V = 15A
•
Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
•
Water Pressure – Hot water line to dishwasher must provide between 20 and
90 pounds per square inch (psi) with at least 120° F hot water temperature.
•
Make sure location has correct drain, water and electrical outlets to make
connections.
•
Electrical and water supplies should enter cabinet opening on floor, or
through back or side walls, as shown in shaded areas.
•
Keep back free of drain, water & electrical supply.
•
Connections preferably located toward left side of dishwasher. Do not cross
drain, water or electrical lines in front of motor, blower or frame.
•
If connecting drain hose to sink trap, local code may require installation of
Air Gap Kit (not included).
•
Leveling legs supplied to adjust height. (Note: Height only adjustable to
35-3/4" max. when installed in 35-3/4" max. standard cabinetry cutout.
5/16" min. clearance required from top of unit to underside of countertop.
Dimensions do NOT include insulation — insulation blanket may be
compressed during installation.)
•
When installing adjacent to wall, cabinet or other obstruction that extends
beyond front edge of unit, allow 2" minimum clearance between opened door
and obstruction.
•
Floor should be flat and free of obstructions.
•
When installing at end of cabinet line, sides and back must be fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
•
Recommended to seal cabinets, enclosing all sides of dishwasher, including
underside of countertop, with oil-based paint or moisture-proof polyurethane
to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
EI24ID50Q 03/14 © 2014 Electrolux Home Products, Inc.
Meets
requirements of
ASSE 1006
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
