Electrolux EI23BC82SS, EW23BC87SS User Manual

EN FRENCH DOOR BOTTOM

FREEZER/REFRIGERATOR
FR RÉFRIGÉRATEUR À PORTES

FRANÇAISES/CONGÉLATEUR EN BAS
ES REFRIGERADOR CON CONGELA-

DOR INFERIOR DE PUERTA DOBLE

USE AND CARE GUIDE

GUIDE D’UTILISATION ET D’ENTRETIEN

GUIA DE USO Y CUIDADO

A05947701 August 2016

2

Finding Information

Please read and save this
guide

Thank you for choosing Electrolux, our
new premium brand in home appliances.
This Use & Care Guide is part of our
commitment to customer satisfaction and
product quality throughout the service life
of your new appliance.

Keep a record for quick
reference

Purchase date

Electrolux model number

Electrolux serial number

NOTE

Registering your product with Electrolux
enhances our ability to serve you. You can
register online at
www.electroluxappliances.com or by sending
your Product Registration Card in the mail.

Questions?

For toll-free telephone support in the U.S.
and Canada: 1-877-4ELECTROLUX
(1-877-435-3287)

For online support and product information
visit http://www.electroluxappliances.com

Table of contents

Finding Information ................................. 2

Safety ..................................................... 3

Feature Overview .................................... 5

Installation .............................................. 6

Removing the Doors ............................. 10

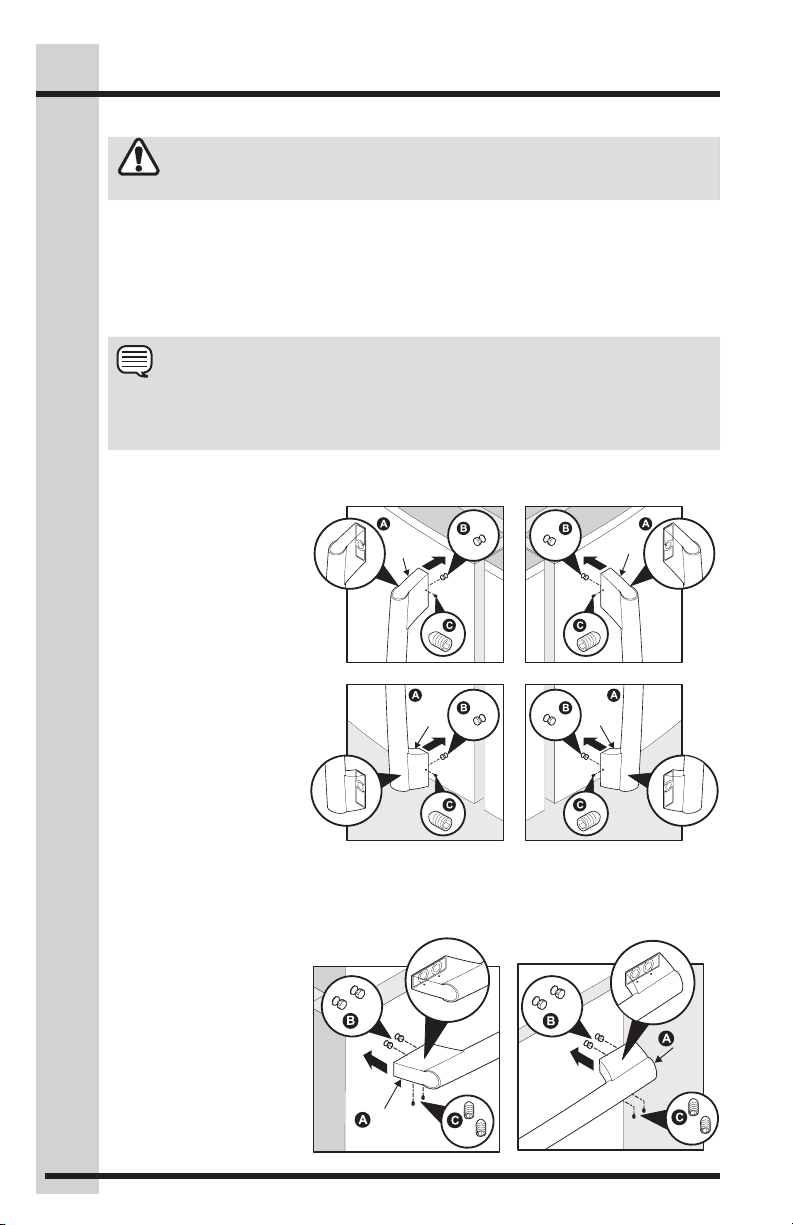

Installing Door Handles ......................... 13

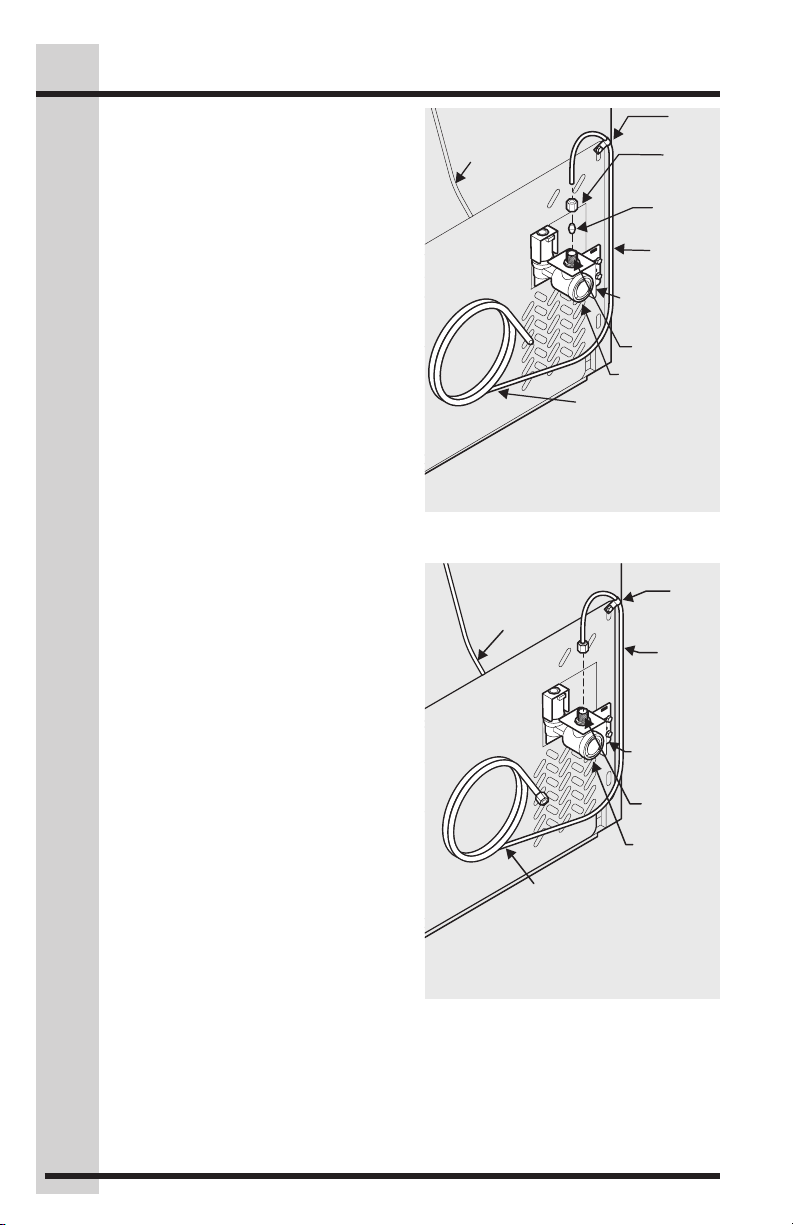

Connecting the Water Supply ............... 14

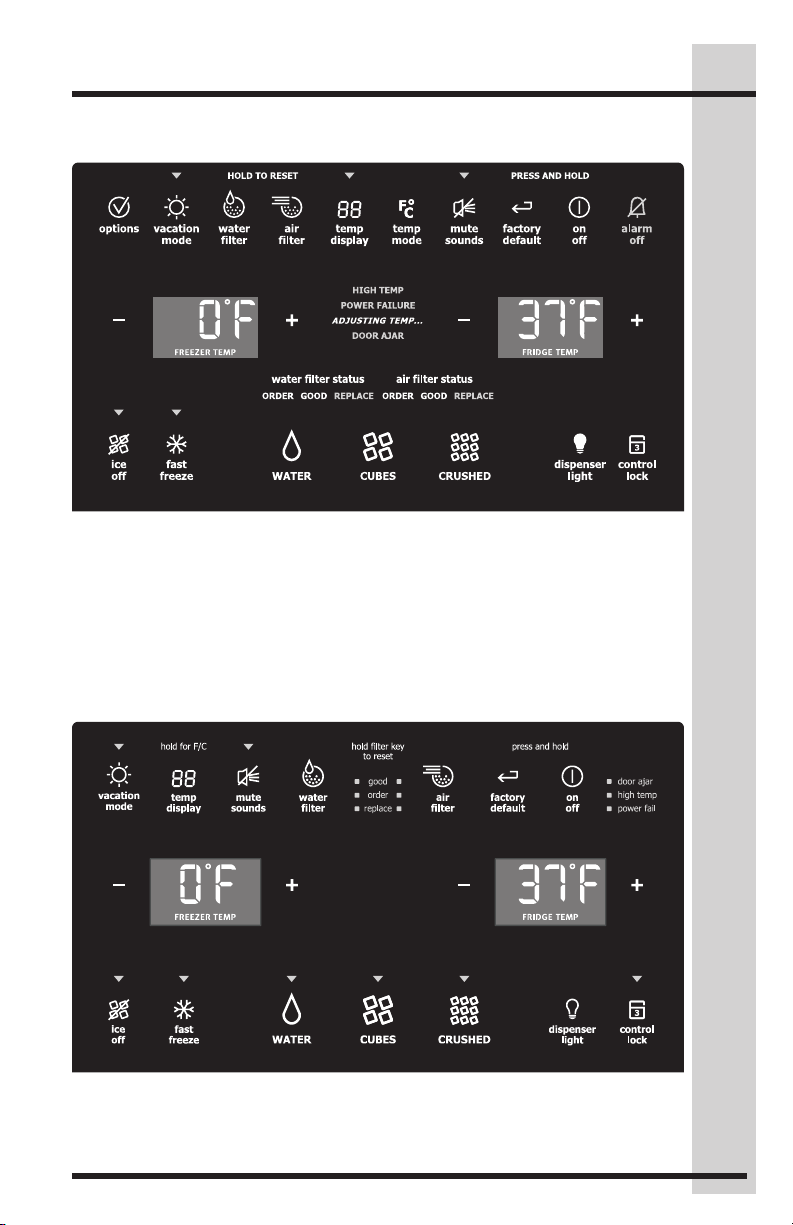

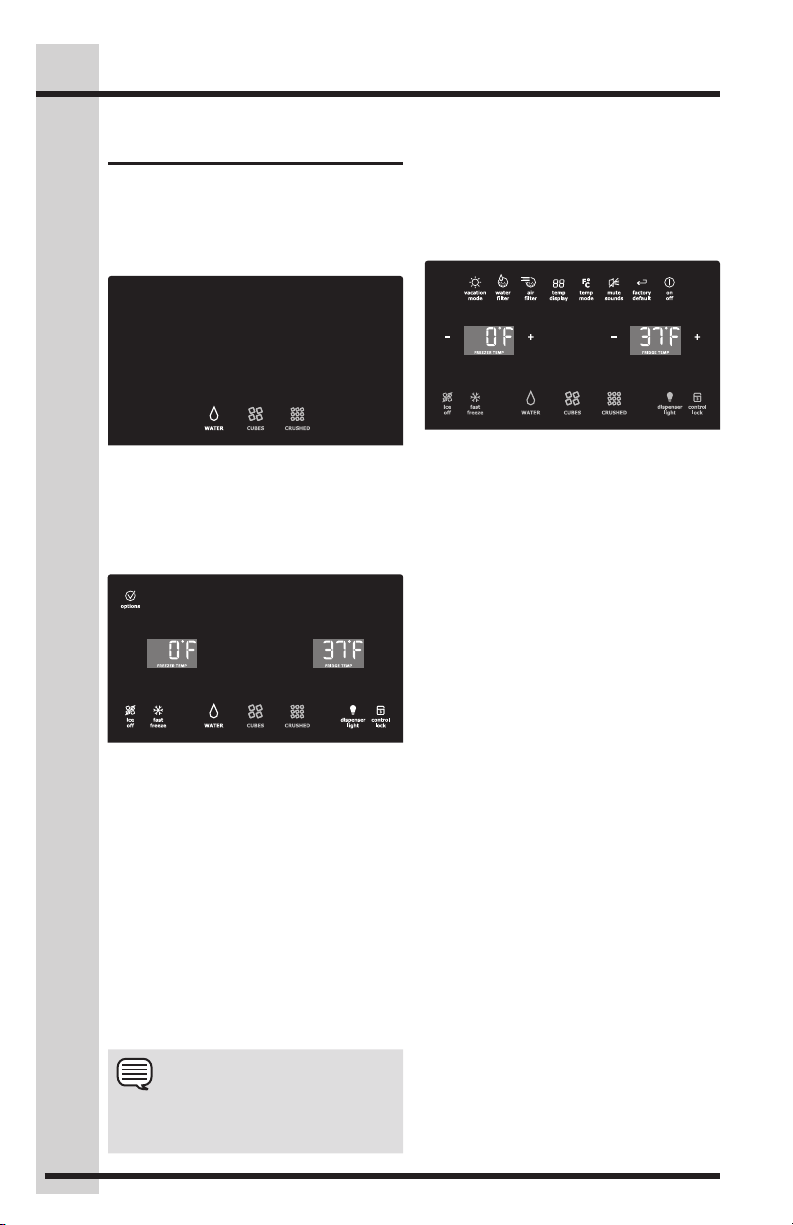

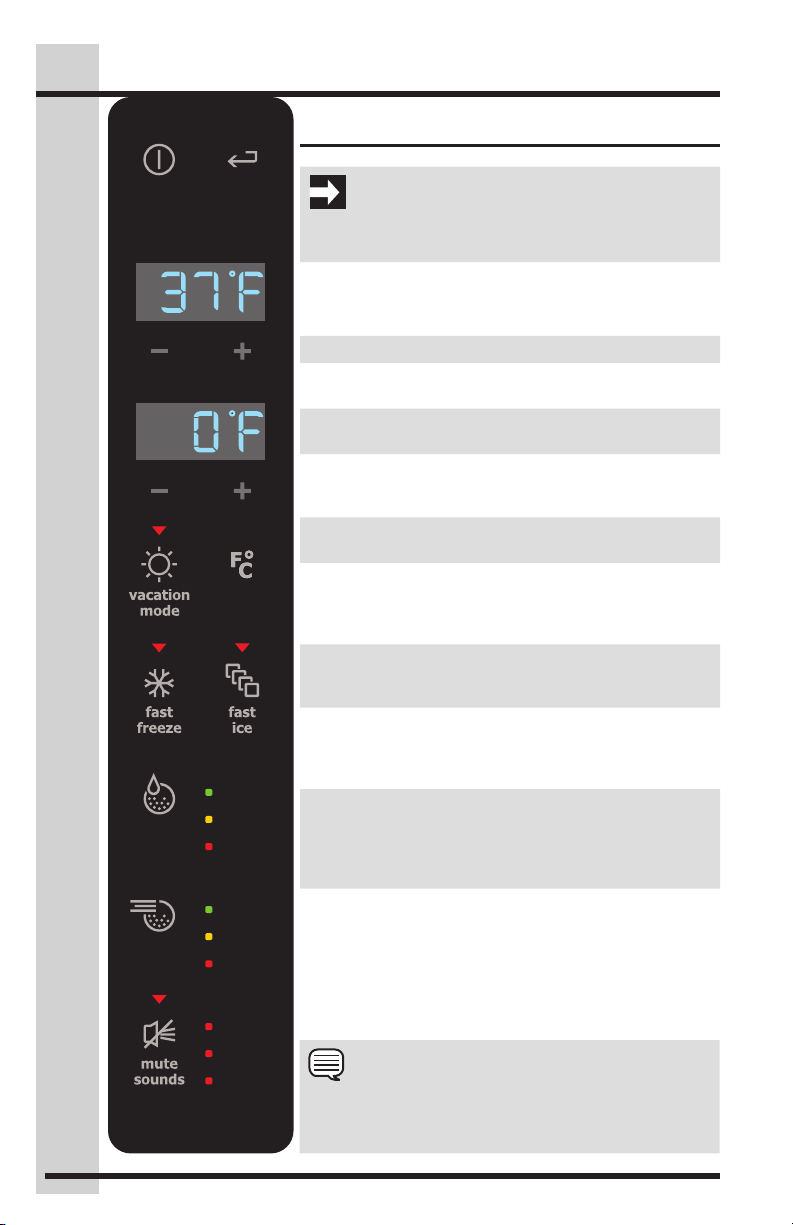

Controls ................................................ 16

Dispenser Model -

Automatic Ice Maker/Water Dispenser ..... 23

Automatic Ice Maker - Freezer .............. 25

Storage Features .................................. 27

Storing Food and Saving Energy .......... 31

Normal Operating Sounds .................... 32

Changing the Water and Air Filters ........ 33

Care and Cleaning ................................ 35

Solutions to Common Problems ........... 37

Warranty ............................................... 42

Installation Checklist

Doors

 Handles are secure and tight
 Door seals completely to cabinet on

all sides

Leveling

 Refrigerator is level side-to-side and

slightly elevated in front to assist
with door and drawer closing (front
should be higher than back)

 Toe grille is properly attached to

refrigerator

 Cabinet is setting solid on all corners

Electrical Power

 House power turned on

 Refrigerator plugged in

Ice Maker

 House water supply connected to

refrigerator

 No water leaks present at all

connections - recheck in 24 hours
 Ice maker is turned ON
 Ice & water dispenser operates correctly

Final Checks

 Shipping material removed
 Fresh food and freezer temperatures set
 Crisper humidity controls set
 Registration card sent in

Important safety instructions

Safety

3

Safety Precautions

Do not attempt to install or operate your unit
until you have read the safety precautions
in this manual. Safety items throughout this
manual are labeled with a Danger, Warning,
or Caution based on the risk type.

Definitions

This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messages
that follow this symbol to avoid possible
injury or death.

DANGER

DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.

WARNING

WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or serious
injury.

CAUTION

CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.

IMPORTANT

Indicates installation, operation, or
maintenance information which is
important but not hazard-related.

General Safety

WARNING

• Do not operate the refrigerator in the
presence of explosive fumes.

• Avoid contact with any moving parts
of the automatic ice maker.

• Remove all staples from the carton to
avoid injury. Staples can also damage
finishes if they come in contact with
other appliances or furniture.

Child Safety

Packing Materials:

• Packing cartons covered with rugs,
bedspreads, plastic sheets, or stretch
wrap may become airtight chambers
and can quickly cause suffocation.

• Destroy or recycle the product’s carton,
plastic bags, and any other exterior
wrapping material immediately after
the refrigerator is unpacked. Children
should never play with these items.

Child Entrapment and Suffocation:

• These problems are not limited to the
past. Whether junked, abandoned,
or temporarily stored (even for a few
hours), unattended refrigerators and
freezers are dangerous. Please take
the precautions listed below.

Proper Disposal of Refrigerators/
Freezers

We strongly encourage responsible
appliance recycling/disposal methods.
Check with your utility company or visit
www.energystar.gov/recycle for more
information on recycling your old refrigerator.

Before you recycle or dispose of your
old refrigerator/freezer:

• Remove the doors.

• Leave the shelves and baskets in place
so children may not easily climb inside.

• Have refrigerant and compressor oil
removed by a qualified service technician.

Please read all safety instructions before
using your new refrigerator.

• Do not store or use gasoline or other
flammable liquids near this or any
other appliance. Read product labels
for warnings regarding flammability
and other hazards.

4

Grounding type wall receptacle

Power cord with 3-prong
grounded plug

Do not, under any
circumstances,
cut, remove, or
bypass the
grounding prong.

Safety

Electrical information

WARNING

You must follow these guidelines to
ensure that your refrigerator’s safety
mechanisms are operating correctly.

• The refrigerator must be plugged into
its own dedicated 115 Volt, 60 Hz,
AC-only non-GFCI electric outlet.
The power cord of the appliance
is equipped with a three-prong
grounding plug for your protection
against electrical shock hazards.
It must be plugged directly into
a properly grounded three-prong
receptacle. The receptacle must be
installed in accordance with local
codes and ordinances. Consult a
qualified electrician. Do not use an
extension cord or adapter plug.

• If the power cord is damaged,
it should be replaced by the
manufacturer, service technician, or a
qualified person.

• Never unplug the refrigerator by pulling
on the power cord. Always grip the
plug firmly and pull straight out from
the receptacle to prevent damaging
the power cord.

• To avoid electrical shock, unplug the
refrigerator before cleaning and before
replacing a LED light.

• Performance may be affected if
the voltage varies by 10% or more.
Operating the refrigerator with
insufficient power can damage the
compressor. Such damage is not
covered under your warranty.

• Do not plug the unit into an outlet
controlled by a wall switch or pull cord
to prevent the refrigerator from being
turned off accidentally.

IMPORTANT

To turn off power to your refrigerator,
unplug the power cord from the wall
outlet.

Feature Overview

*Luxury-Design

LED LightFlipper Guide*Ice Maker*Ice Bin

Crisper Drawers

Crisper Drawers

®

Understanding features and terms

Your Electrolux refrigerator is designed for optimal convenience and storage flexibility.
The illustration below is provided to assist you with familiarizing yourself with product
features and terminology.

NOTE

*Features may vary according to model. Dispenser model shown. Model is shown
without freezer drawer cover.

5

Glass Shelves

Luxury-Glide®

*Wine Rack

(Inside PTD)

®

*Perfect TempTM

(PTD)

Drawer

or Deli Drawer

*Freezer Ice

Maker

*Removable

Ice Bin

Water Filter

Freezer Baskets
with organizers

Toe Grille

IMPORTANT

Features not included with your
refrigerator can be purchased at
www.electroluxappliances.com or by
calling 1-877-435-3287.

Air Filter

Flipper
Mullion

*Luxury-Design
Glass Shelves

Luxury-Glide

Tilt
Can Bin

®

*Wire Shelf

(inside freezer drawer)

6

Top Hinge
Cover Front
Screw

Top Hinge
Cover Rear
Screw

Lower

Hinge

Screw

Top

Hinge

Screw

Components Provided:

Tools Necessary:

Screwdriver

Wrench

Wrench

Fixed

Wrench

Allen Wrench

Installation

Required Tools

You will need the following tools:

Phillips Head

Quadrex Head

This Use & Care Guide provides general
installation and operating instructions
for your model. We recommend using a
service or kitchen contracting professional
to install your refrigerator. Use the
refrigerator only as instructed in this Use &
Care Guide. Before starting the refrigerator,
follow these important first steps.

Location

• Choose a place that is near a
grounded, non-GFCI, electrical outlet.
Do Not use an extension cord or an
adapter plug.

• If possible, place the refrigerator out
of direct sunlight and away from the
range, dishwasher, or other heat
sources.

• The refrigerator must be installed on a
floor that is level and strong enough to
support a fully loaded refrigerator.

• Consider water supply availability for
models equipped with an automatic
ice maker.

or

(OR)

6mm

ANDAND

⅜" and ¼"

Socket

OR

OR

Adjustable

⅜"

CAUTION

DO NOT install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside the
refrigerator.

DO NOT block the toe grille on the lower
front of your refrigerator. Sufficient air
circulation is essential for the proper
operation of your refrigerator.

Installation

• Allow the following clearances for ease
of installation, proper air circulation,
and plumbing and electrical
connections:

Sides & Top 3/8 inch (9.5 mm)
Back 1 inch (25.4 mm)

NOTE

If your refrigerator is placed with the
door hinge against a wall, you may have
to allow additional space so the door
can be opened wider.

Door opening

NOTE

The refrigerator doors are designed to
shut by themselves within a 45 degree
opening.

Your refrigerator should be positioned
to allow easy access to a counter when
removing food. For best use of refrigerator
drawers and freezer baskets, the
refrigerator should be in a position where
both can be fully opened.

Installation

Toe Grille Must

7

CAUTION

Do Not loosen or remove these 3 hex
screws.

DO NOT

Loosen

or

Remove

These 3

Hex

Screws

Cabinet Leveling & Re­frigerator Door Alignment
(if necessary)

Guidelines for final positioning of your
refrigerator:

• All four corners of the cabinet must
rest firmly on the floor.

• The front should be slightly elevated
to ensure that doors close and seal
properly.

• Doors should align with each other
and be level.

Most of these conditions can be met by
raising or lowering the adjustable front rollers.

To level the cabinet using the front rollers:
1 Slightly open freezer drawer if the toe

grill is installed. Lift the toe grille and
gently pull forward.

2 Make initial cabinet adjustments by using

the front roller height adjusting screws.
Use a 3/8 inch socket wrench to turn the
adjustment screws (1 per side).

To raise: turn adjustment screw

clockwise.

To lower: turn adjustment screw

counterclockwise.

3 Ensure both doors are bind-free with

their seals touching the cabinet on all
four sides and that cabinet is stable.

4 After unit is leveled, lower anti-tip leg

using a 3/8 inch socket wrench until
it firmly contacts the floor.

Door

Anti-tip
Leg

5 Install the toe grille by fitting into place.

Fit in Slot on

Anti-tip Bracket

Screw/Washer

Assembly

(3) Retaining Clips

To make final door height adjustments:

1. Open freezer drawer to make lower
hinge visible.

2. Insert 6mm Allen wrench into the
shaft of the lower hinge.

3. Adjust the height by turning clockwise
or counterclockwise. Turning
clockwise will lower the door. Turning
counterclockwise will raise the door.
Default setting is to the lowest height
when you receive your appliance.

Door

Raise

Lower

Raise

8

Installation

To adjust the flipper mullion:

1 Loosen the screw located on the

flipper mullion hinge.

Flipper
Mullion

Screw

Flipper
Mullion
Hinge

Adjusting Flipper Mullion Screw

2 Adjust flipper mullion height. For

proper connection with the flipper
mullion guide, there should be a
separation about the thickness of
a coin (0.060 inches, or 1.5 mm)
between the guide and flipper
mullion.

Mullion

Guide

Flipper

Mullion

Installing Shelves (select models)

Your refrigerator was shipped with the
shelf hanger and glass shelves in a
shipping pack. Below are the instructions
to install and remove the shelves in your
desired locations.

1 Place top hooks of the hanger into

the desired slot, and lower straight
down until lower hooks rest on the
ladder.

2 Relock shelf by pushing the slide

mechanism away from you.

3 While holding shelf at a 45-degree angle

with the gray handle facing you, push
the shelf into the back of the hanger.

Adjusting Flipper Mullion Height

3 Re-tighten screw.

Thickness

of a Coin

CAUTION

Shelves must be removed prior to
moving the refrigerator.

Installation

9

4 Gently set the shelf onto the hanger

once the back is secured by the hanger.

5 Remove shelf from its locked position

by pulling the slide mechanism
toward you.

Reposition the Air Seal
(select models)

1 Remove air seal by pushing seal

straight back.

2 Position the air seal towards the outside

edge of the shelf to avoid the air tower
when shelf is pushed back into place.

3 Install seal by sliding the open

channel end of the seal onto back
edge of shelf until seal sits snug on
back of shelf and flap sits at about a
10 degree angle from shelf surface.

Air Seal

Air Seal

6 Lift the hanger directly upwards and

pull toward you to remove it from the
ladder.

10

Installation

Shelf features (select models)

CAUTION

To avoid injury from breakage, handle
tempered glass shelves carefully.

NOTE

Features may vary according to model.

Your refrigerator includes glass shelves that are
designed to catch and hold accidental spills.

You can easily adjust shelf positions in
the fresh food compartments to suit
your needs. The shelves have mounting
brackets that attach to slotted supports at
the rear of each compartment.

To change the position of a shelf:

1 Before adjusting a shelf, remove all food.
2 Lift the front edge up and pull the shelf out.
3 Replace by inserting the mounting bracket

hooks into the desired support slots.

4 Lower the shelf and lock into position.

Reposition the Air Seal (select models)

For slide-out shelves:

1 Remove air seal by pushing down on

the flap with a downward rotation.

2 Position the air seal towards the outside

end of the shelf to avoid the air tower
when shelf is pushed back into place.

3 Install seal by sliding lower tab of seal

up into bottom rear slot of shelf with
seal at a downward angle then pulling
up on seal flap until seal sits snug on
back of shelf and flap sits at about a
10 degree angle from shelf surface.

Full Luxury-DesignTM Shelf (varies by model)

Removing the Doors

Hinge

Front

Front

11

Getting through narrow
spaces

If your refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.

To prepare for removing the doors:

1 Make sure the electrical power cord

is unplugged from the wall outlet.

2 Open the freezer drawer and remove

the toe grille (see Installation section).

3 Remove any food from the door

shelves and close the doors.

To remove the top hinge covers:

1 Remove the two screws from each

cover over the top door hinges.

2 Lift inside edge of hinge cover and tilt back.

Rear
Cover
Screw

Ground
Screw

Top

Water
Line

Top Hinge
Cover

Hinge
Screws

Multi-wire
Cables

Leave
Hinge
With
Door

Cover Screw

To remove the refrigerator doors

1 Trace lightly around the door’s top

hinges with a pencil. This makes
reinstallation easier.

2 Disconnect the harness by grasping

both sides of the connector firmly,
depress the latch, and pull apart.
Remove the two screws from the top
hinge. Lift the door off of the bottom
hinge and set it aside.

Rear
Cover
Screw

Top
Hinge

Ground
Screw

Cover Screw

Top Hinge
Cover

Hinge
Screws

Leave
Hinge
With
Door

NOTE

DO NOT remove the ground screw from hinge.

3 Detach the water tube from the

connector located behind the
refrigerator and pull the tube back out
to the front of the unit. The connector
releases when you press inward on
the outer sleeve while pushing the
tube toward the connector then while
continuing to hold in the sleeve, pull
the tube away.

NOTE

Use care while pulling the water tube from the
unit to be sure that you do not kink the tube.

12

Removing the Doors

Press

To reinstall the refrigerator doors:

Reverse the above steps.

Press

Water

Line

Approximately
5 feet

NOTE

You will be pulling approximately five
feet of water tube from the back of the
refrigerator.

4 Unscrew the three lower hinge

screws and slide the hinge inwards.

NOTE

Upon replacement, the tube needs to be
fully inserted up to the marking line.

Insert tube
up to the
marking
line

Water

Line

Press

Press

Approximately
5 feet

NOTE

When reinserting the water tube and
replacing the top hinge cover, use care
to be sure you do not kink the tube.

Once both doors are in place, ensure they
are aligned with each other and level (Please
see the Installation section for more
details), and replace the top hinge cover.

Lower Hinge Removal

CAUTION

Be sure doors are set aside in a secure
position where they cannot fall and
cause personal injury, or damage to the
doors or handles.

Removing Freezer Drawer

CAUTION

Drawer is heavy. Use caution when
lifting.

1 Remove 4 hex head drawer screws.
2 Lift up drawer to remove.

DO NOT
Remove

Other

Screws

Remove

Hex Head

Drawer Screw

Removing the Doors

13

Replacing Freezer Drawer

1 Lower drawer back into place.
2 Replace 4 hex head drawer screws

and tighten.

DO NOT

Loosen

or

Remove

These 3

Hex

Screws

14

Installing Door Handles

Door Handle Mounting Instructions

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

1. Remove handles from protective packaging.

2. Position fresh food handle end caps (A) over upper and lower pre-installed shoulder
bolts (B) that are fastened into door, ensuring the holes for the set screws are facing
towards the opposite door.

3. While holding handle firmly against door, fasten upper and lower Allen set screws
(C) with supplied Allen wrench.

NOTE

An Allen wrench is supplied in the handle packaging. When using the Allen wrench to tighten the
Allen set screws (C), it is imperative that force be applied to the longer arm of the Allen wrench to
ensure that the set screws are completely tightened so that handles are flush with doors/drawer.

4. Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws
are facing towards the first door.

End
Cap

End
Cap

Mounting

Refrigerator

Handles

5. Position freezer handle end caps over left and right pre-installed shoulder bolts (B) that
are fastened to the drawer, ensuring the holes for the set screws are facing down.

6. While holding handle firmly against drawer, fasten left and right Allen set screws (C)
with supplied Allen wrench.

End

Cap

End
Cap

Mounting

Freezer

End
Cap

Handle

End
Cap

Connecting the Water Supply

WARNING

To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.

CAUTION

To Avoid Property Damage:

• Copper or Stainless Steel braided
tubing is recommended for the
water supply line. Water supply
tubing made of ¼ inch plastic is
not recommended to be used.
Plastic tubing greatly increases the
potential for water leaks, and the
manufacturer will not be responsible
for any damage if plastic tubing is
used for the supply line.

• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.

• Chemicals from a malfunctioning
softener can damage the ice maker.
If the ice maker is connected to soft
water, ensure that the softener is
maintained and working properly.

15

Before installing the water supply line,
you will need:

1. Basic Tools: adjustable wrench,
flat-blade screwdriver, and PhillipsTM
screwdriver

2. Access to a household cold water
line with water pressure between 30
and 100 psi.

3. A water supply line made of ¼ inch
(6.4 mm) OD, copper or stainless
steel tubing. To determine the length
of tubing needed, measure the
distance from the ice maker inlet
valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so
the refrigerator can be moved out for
cleaning.

4. A shutoff valve to connect the water
supply line to your household water
system.

5. Do NOT reuse compression fitting or
use thread seal tape.

6. A compression nut and ferrule
(sleeve) for connecting a copper
water supply line to the ice maker
inlet valve.

NOTE

IMPORTANT

Ensure that your water supply line
connections comply with all local
plumbing codes.

Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator. Depending
on your local/state building codes,
Electrolux recommends for homes
with existing valves its Smart Choice®
water line kit 5305513409 with a 6
ft. (1.8 meters) Stainless Steel Water
Line and for homes without an existing
valve, Electrolux recommends its Smart
Choice® water line kit 5305510264 with
a 20 ft. (6 meters) Copper Water Line
with self-tapping saddle valve). Please
refer to www.electroluxappliances.com
for more information.

16

Plastic Water Tubing

Steel

moving refrigerator out for cleaning)

Connecting the Water Supply

To connect water supply line to ice
maker inlet valve:

1. Disconnect refrigerator from electric
power source.

2. Place end of water supply line into
sink or bucket. Turn ON water supply
and flush supply line until water
is clear. Turn OFF water supply at
shutoff valve.

3. Remove plastic cap from water valve
inlet and discard cap.

4. If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water
supply line into water valve inlet as far
as it will go (¼ inch / 6.4 mm). Slide
ferrule (sleeve) into valve inlet and
finger tighten compression nut onto
valve. Tighten another half turn with
a wrench; DO NOT over tighten. See
Figure 1.

If you use braided flexible stainless

steel tubing - The nut is already
assembled on the tubing. Slide nut
onto valve inlet and finger tighten nut
onto valve. Tighten another half turn
with a wrench; DO NOT over tighten.
See Figure 2.

5. With steel clamp and screw, secure
water supply line (copper tubing only)
to rear panel of refrigerator as shown.

6. Coil excess water supply line (copper
tubing only), about 2½ turns, behind
refrigerator as shown and arrange
coils so they do not vibrate or wear
against any other surface.

7. Turn ON water supply at shutoff valve
and tighten any connections that
leak.

8. Reconnect refrigerator to electrical
power source.

9. To turn ice maker on, lower wire
signal arm (freezer ice maker) or use
the digital control setting to turn the
ice maker’s On/Off switch to the On
position (fresh food ice maker).

to Ice Maker
Fill Tube

Copper water line

from household

(Include enough tubing in loop to allow

Figure 1

Plastic Water Tubing

to Ice Maker

Fill Tube

6 ft (1.8 Meters) Braided flexible

stainless steel water line from

household water supply.

(Include enough tubing in loop to allow

moving refrigerator out for cleaning.)

Clamp

Brass

Compression

Water Valve

Water Valve

water supply

Nut

Ferrule

(Sleeve)

Copper

water line

Bracket

Valve Inlet

Steel

Clamp

Braided
Flexible

Stainless

Steel

Water Line

Water Valve

Bracket

Valve Inlet

Water Valve

Figure 2

Controls - Dispenser Models

17

Wave-Touch

IQ-Touch

TM

TM

18

Controls - Dispenser Models

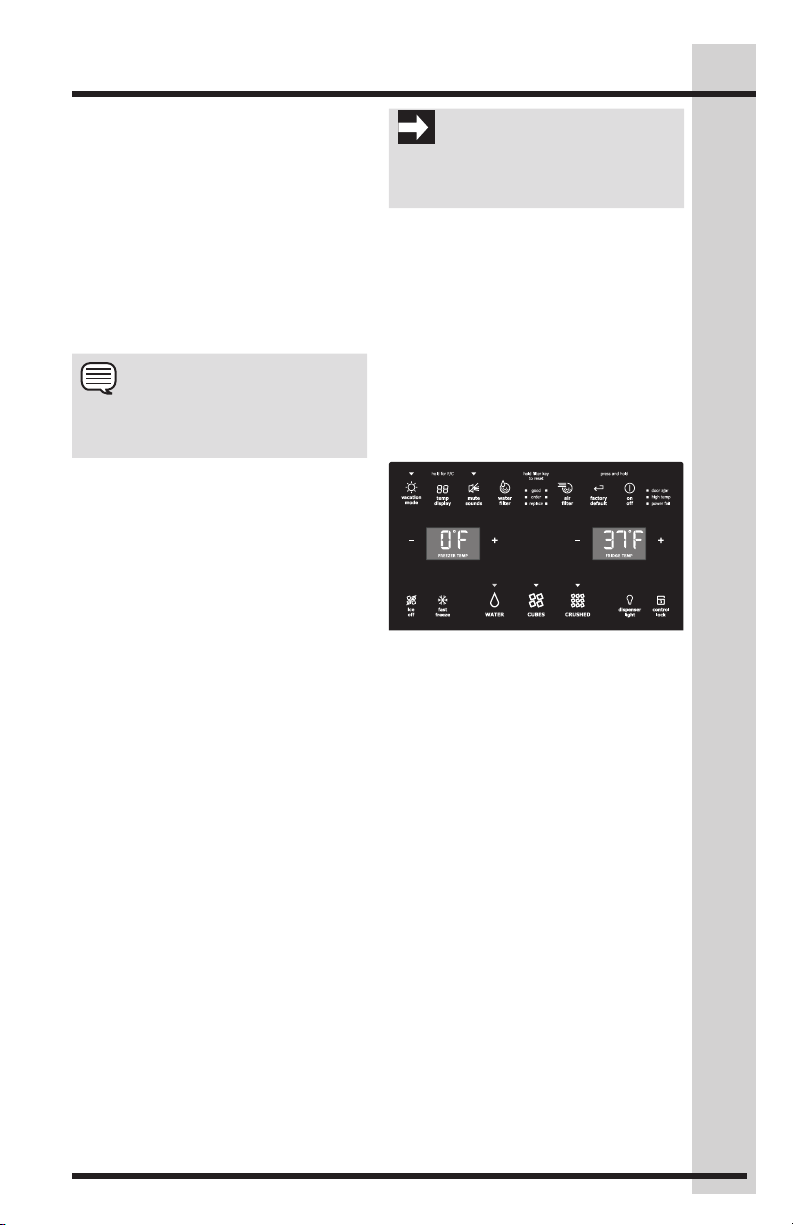

Wave-TouchTM (select
models)

Your refrigerator is equipped with a Wave­TouchTM control panel display. It is only
necessary to gently touch the glass. There
are three levels of display.

1st Level: Sleep Mode

Sleep Mode displays only the water, cubes
and crushed options. Touch an icon to
activate the desired dispenser mode. The
active dispenser mode is more brightly
illuminated.

2nd Level: Awakened Display Mode

The control panel is awakened by touching
anywhere on the glass where there is an
indicator. Black space will not awaken the
display. After 10 seconds of inactivity, the
control panel will return to the Sleep mode.

The following dispenser options are
illuminated:

ice off Press and hold for three seconds
(Fresh Food

Ice Maker)

fast freeze Activates a faster rate for freezing food

to turn the ice maker ON or OFF.
The ice maker is OFF when the
LED above the Ice Off icon is
illuminated. If there is no indicator,
then the ice maker is ON.

and increased freezer ice production.

NOTE

Refer to Automatic Ice Maker-Freezer
section for freezer ice maker controls.

dispenser light On / Off

control lock Press and hold for three seconds

to activate and deactivate. This
restricts undesired changes to the
refrigerator’s settings and prevents
use of the ice and water dispenser.

3rd Level: User Variable Options

Touching the options icon displays the
following options:

vacation mode Conserves energy by increas-

ing the time between automatic
defrost. This feature is automati­cally activated during long periods
between door openings. Vacation
mode is manually activated when
the indicator is lit.

water filter Touch to display filter condition

status. Press and hold for three
seconds to reset after filter change.

air filter Touch to display filter status. Press

and hold for three seconds to reset
after filter change.

temp display When active, it allows the display of

the freezer and fridge setting during
Sleep Mode. The setting is displayed
when the indicator is lit.

temp mode Touch to toggle display from

Fahrenheit to Celsius.

mute sounds Tones emitted by each keypress

can be turned off based on user
preference. The sounds are muted
when the indicator is lit. Warning
signals will stay active.

factory default Resets all refrigerator settings such

as temp, temp display, and alarm
tones to their factory default settings.

on off Press and hold for three seconds

to turn off the cooling system to
clean the refrigerator. It also turns
off the Fresh Food ice maker, all
dispenser functions, and the Perfect
TempTM drawer (select models). The
temperature display will read OFF.

Controls - Dispenser Models

19

IMPORTANT

Pressing the system on/off icon does not
turn off power to your refrigerator. You must
unplug the power cord from the wall outlet.

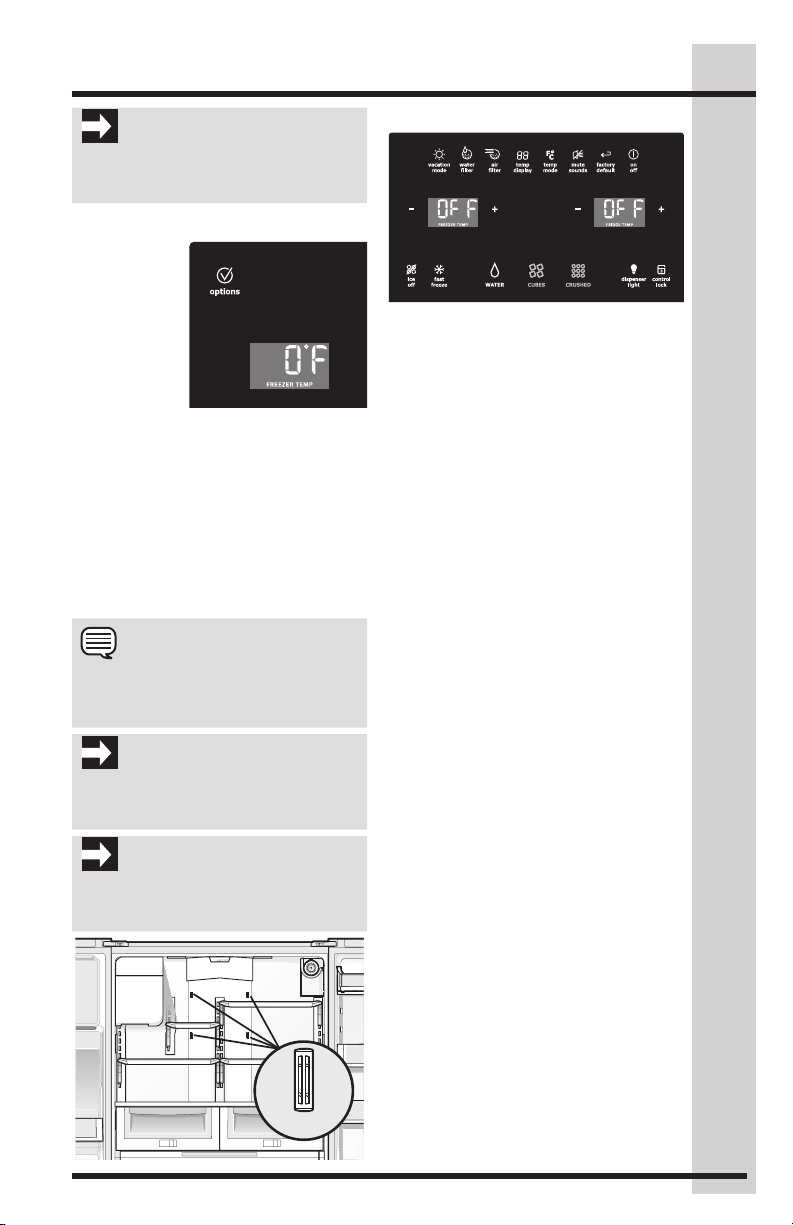

Setting cooling temperatures

1 Touch

the glass
panel to
illuminate
the 2nd
level of
display.

2 Select the

options
icon. Plus
(+) and
minus (-)
indicators will appear on either side of
the displayed temperatures.

3 Press the + or – indicator to adjust

the temperature to the desired
temperature settings.

The temperature setting display will

begin to blink with the first touch. After
five seconds of inactivity, the display will
beep to accept the new temperature.
After 10 seconds, the display times out
and returns to the basic display.

NOTE

The recommended settings for a product
installed in a kitchen is 37˚F for the fresh
food compartment and 0˚F for the freezer.

IMPORTANT

If your product has food freezing in the
fresh food compartment, increase the
temperature setting 1 or 2 degrees.

IMPORTANT

If you place food within 1 inch in front of
the air ports, there may be the chance
of freezing food.

Alarms

Door Ajar If the door has been left open for

an extended period of time, an
alarm will sound and the door ajar
indicator will display on the center of
the display. The alarm is turned off
by closing the door. The alarm off
key will blink to prompt the reset of
any pending alarms. Press this key
to reset any system alarms.

High Temp In the event of a high temperature

condition, the temperature display
will blink and display HI. After 20
minutes, the high temp alert will
be displayed and the alarm off
icon will illuminate until pressed,
acknowledging the alarm, at which
time the highest temperature
reached will be displayed and the
refrigerator will resume normal op­eration. All other modes are turned
off until the alarm is acknowledged.

Power Fail In the event of a power failure, the

power fail alert will be displayed
and the alarm off key will blink
until the alarm off icon is pressed,
acknowledging the alarm. Other
modes may be turned off until the
alarm is acknowledged. When the
power fail alert is turned off, the
refrigerator will resume normal
operation. The high temp alarm
may also be illuminated until a safe
operating range temperature has
been reached.

Air Port

20

Controls - Dispenser Models

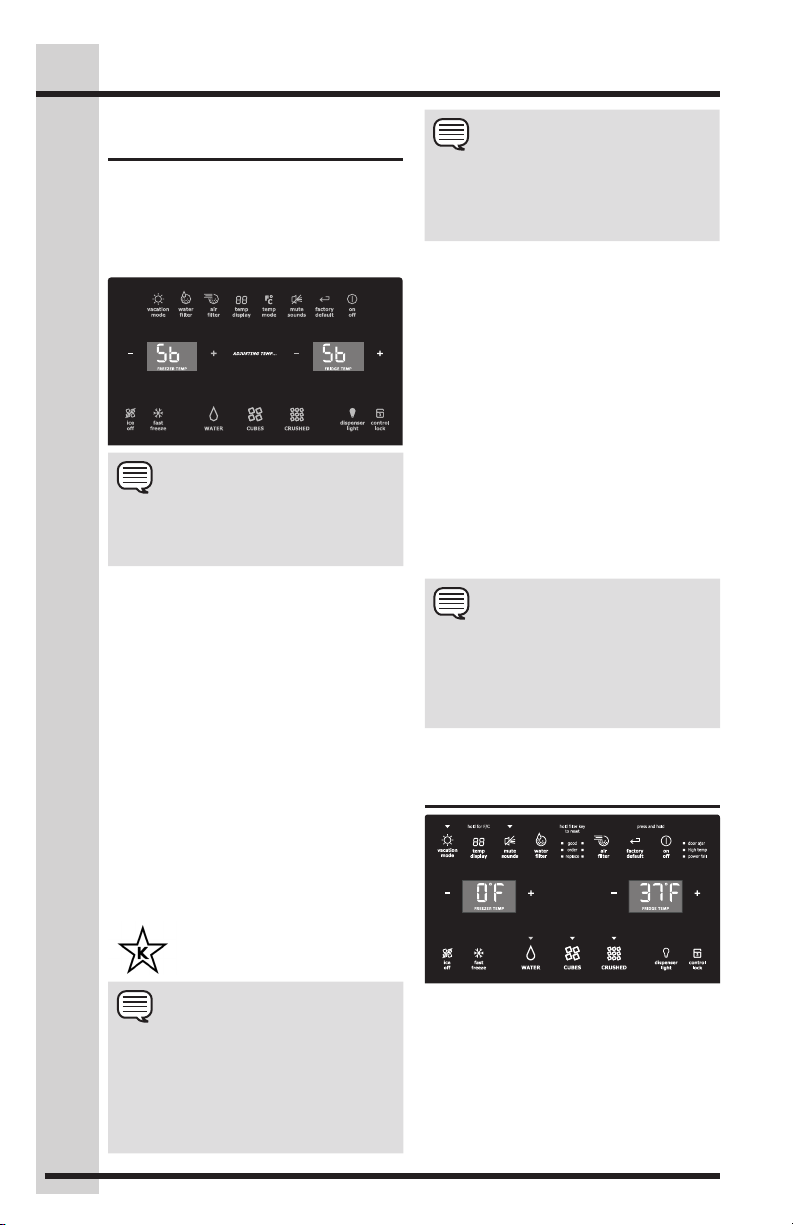

Wave-TouchTM / IQ­TouchTM Sabbath Mode

The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
for both Wave-TouchTM and IQ-TouchTM, in
accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.

NOTE

While in Sabbath Mode, the Wave­TouchTM model will only illuminate the –/+
keys used to turn the Sabbath Mode Off.

Sabbath Mode is turned on and off by
simultaneously pressing and holding the freezer
temperature – and the refrigerator temperature
+ indicators for five seconds for both the
Wave-TouchTM and IQ-TouchTM modes. The
display shows Sb while in Sabbath mode.

In the Sabbath Mode, the High Temp alarm
is active for health reasons. For example,
if the door is left ajar the High Temp alarm
is activated. The refrigerator will function
normally once the door is closed, without
any violation of the Sabbath/Holidays. The
High Temp alarm is permitted when cabinet
temperature is outside the safe zone for 20
minutes. The alarm silences itself after 10
minutes while the High Temp icon stays lit
until the Sabbath mode is exited.

For further assistance, guidelines for
proper usage and a complete list of

models with the Sabbath
feature, please visit the web at
http:\\www.star-k.org.

NOTE

While in Sabbath Mode, neither the
lights, dispenser, nor the control panel will
work until Sabbath Mode is deactivated.

Refrigerator stays in Sabbath Mode after
power failure recovery. It must be deactivated
with the buttons on the control panel.

NOTE

During Sabbath Mode, the freezer ice
maker will continue to work and must be
manually turned off to be compliant with
the Sabbath observances.

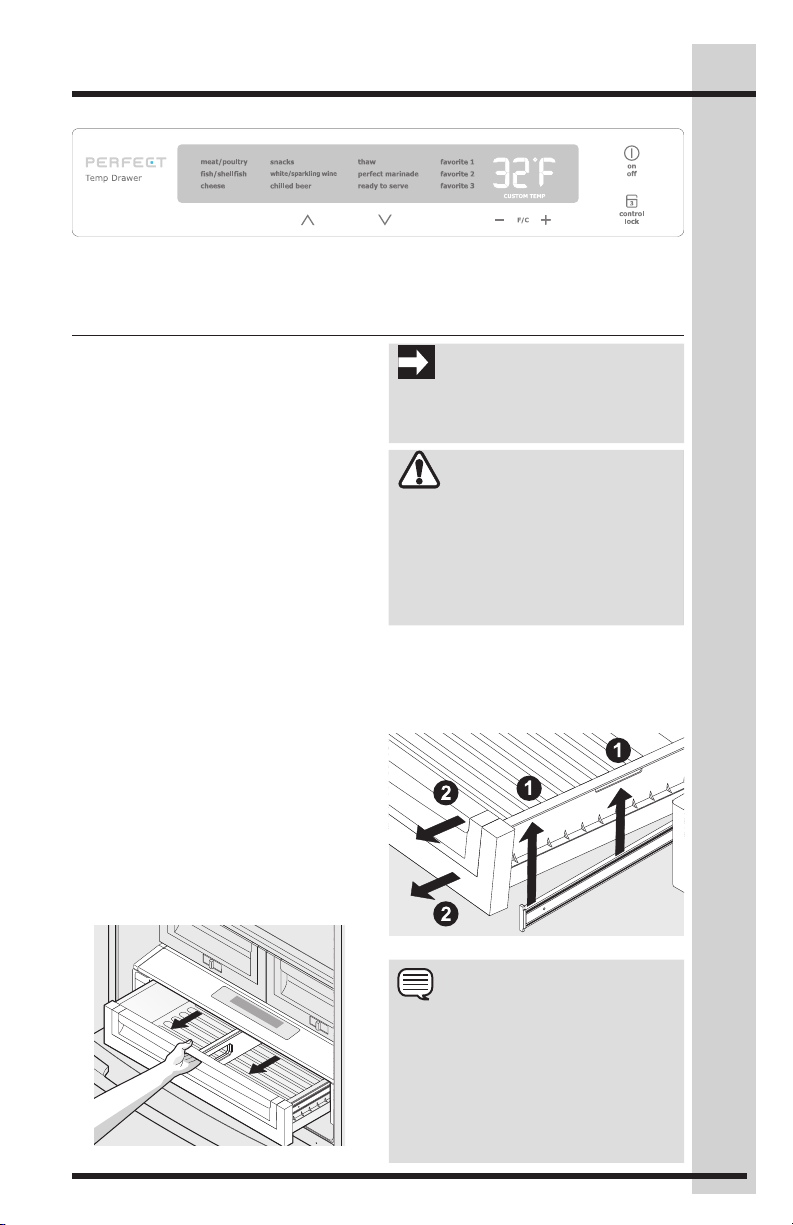

Sabbath Mode and the Perfect TempTM
Drawer

The Perfect TempTM Drawer should be turned
off for the Sabbath/Holidays. Before putting
the refrigerator into the Sabbath mode, turn
the Perfect TempTM Drawer off by pressing
the drawer on/off button. The display will
show OFF and the drawer will turn off. Then
enter the Sabbath mode function on the main
refrigerator display. (See Wave-Touch/IQ-Touch
Sabbath Mode section.) When in Sabbath
mode, the display will not illuminate and the
drawer will remain off. The drawer can still be
used as a non-temp controlled drawer in this
mode. When the refrigerator is taken out of
Sabbath mode, the Perfect TempTM Drawer will
have to be turned back on.

NOTE

If the Perfect TempTM Drawer is not turned
off prior to putting the unit into Sabbath
Mode, it will continue to adjust itself to
maintain the set point even if the display
does not illuminate to show that it is still on.

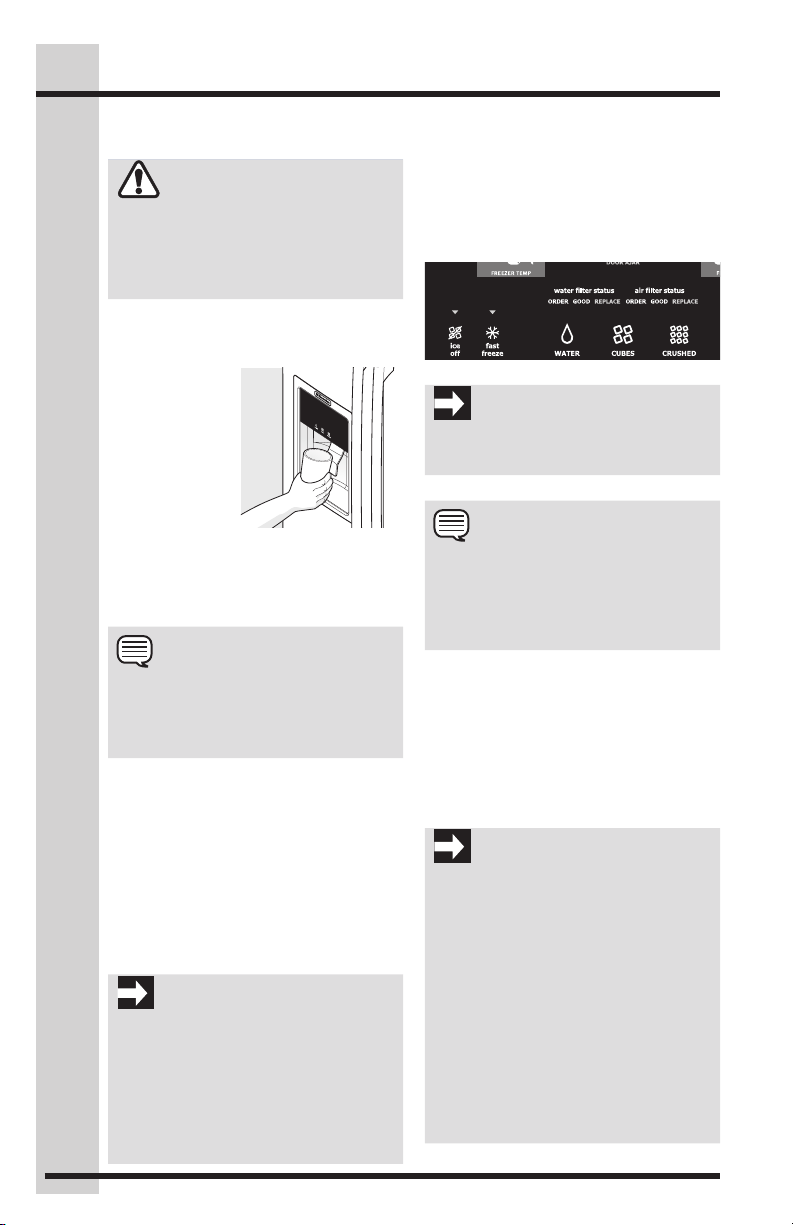

IQ-TouchTM (select models)

Your refrigerator is equipped with a glass touch
control panel. It is only necessary to gently touch
the glass. There are three dispenser modes:

1 Water
2 Ice Cubes
3 Crushed Ice

Controls - Dispenser Models

21

An indicator light will be illuminated above
the active feature.

Touch the icon to activate the options below.

ice off Press and hold for three seconds
(Fresh Food
Ice Maker)

fast freeze Activates a faster rate for freezing

to turn the ice maker ON or OFF.
The ice maker is OFF when the LED
above the Ice Off icon is illuminated.
If there is no indicator, then the ice
maker is ON.

food and increased freezer ice
production.

NOTE

Refer to Automatic Ice Maker-Freezer
section for freezer ice maker controls.

dispenser light On / Off

control lock Press and hold for three seconds

vacation mode Conserves energy by increasing the

water filter Touch to display filter condition

air filter Touch to display filter status. Press

temp display Touch to toggle the freezer and

Touch and hold temp setting to toggle

mute sounds Tones emitted by each key press can be

factory default Resets all refrigerator settings such

on off Press and hold for three seconds to

to activate and deactivate. This
restricts undesired changes to the
refrigerators settings and prevents
use of the ice and water dispenser.

time between automatic defrost.
This feature is automatically activated
during long periods between door
openings. Vacation mode is manually
activated when the indicator is lit.

status. Press and hold for three
seconds to reset after filter change.

and hold for three seconds to reset
after filter change.

fridge temp setting on and off.

display from Fahrenheit to Celsius.

turned off based on user preference. The
sounds are muted when the indicator is
lit. Warning signals will stay active.

as temp, temp display, and ring
tones to their factory default settings.

turn off the cooling system to clean
the refrigerator. It also turns off the ice
maker and all dispenser functions. The
temperature display will read OFF.

IMPORTANT

Pressing the system on/off icon does not
turn off power to your refrigerator. You must
unplug the power cord from the wall outlet.

Setting cooling temperatures

1 Touch the control panel to illuminate

plus (+) and minus (–) indicators on
either side of the digital displays.

2 Press the + or – indicator to adjust the

temperature to the desired setting.

The temperature setting display will

begin to blink with the first touch. The
display will time out after a minute
and returns to the basic display.

Alarms

Door Ajar If the door has been left open for an

extended period of time, an alarm will sound
and the door ajar indicator will display on
the right side of the control panel. The alarm
is turned off by closing the door. The mute
sounds key will blink to prompt the reset of
any pending alarms. Press this key to reset
any system alarms.

High Temp In the event of a high temperature

condition, the temperature display will
blink and display HI. After 20 minutes,
the high temp alert will be displayed and
the mute sounds indicator will illuminate
until pressed, acknowledging the alarm,
at which time the highest temperature
reached will be displayed and the refrig­erator will resume normal operation. All
other modes are turned off until the alarm
is acknowledged.

Power Fail In the event of a power failure, the power fail

alert will be displayed and the digital display will
blink until the mute sounds icon is pressed,
acknowledging the alarm. Other modes may be
turned off until the alarm is acknowledged. The
power fail alert is turned off and the refrigerator
will resume normal operation. The high temp
alarm may also be illuminated until a safe operat­ing range temperature has been reached.

22

Controls - Non-Dispenser Models

press & hold

on
off

refrigerator temp

freezer temp

hold to reset

water

filter

hold to reset

air

filter

default

settings

temp

mode

good

order

replace

good

order

replace

door ajar

high temp

power fail

IQ-Touch

TM

IMPORTANT

Pressing the system on/off icon does not turn off power to your
refrigerator. You must unplug the power cord from the wall outlet.

A red indicator light will be illuminated above most active features.
Touch the icon to activate the options below.

fast freeze Activates a faster rate for freezing food.
fast ice Temporarily increases cooling for freezer to

increase the production of ice

water filter Press and hold for three seconds to reset

after filter change.

air filter Filter condition status is always displayed

when door is open. Press and hold for
three seconds to reset after filter change.

temp mode Touch to toggle display from Fahrenheit to

Celsius.

mute
sounds

Tones emitted by each key press can be
turned off based on user preference. The
sounds are muted when the red indicator is
lit. Warning signals will stay active.

default
settings

Resets all refrigerator settings such as
temp, temp display and tones to their
factory default settings.

on off Press and hold for three seconds to turn off

the cooling system to clean the refrigerator.
It also turns off the ice maker. The digital
displays will read OFF.

vacation
mode

Conserves energy by increasing the time
between automatic defrost. This feature is
automatically activated during long periods
between door openings. Vacation mode is
manually activated when the red indicator is lit.

Setting cooling temperatures

Press the + or – indicator to adjust the temperature to the
desired setting.

The temperature setting will begin to blink with the first
touch. The display will time out after 10 seconds and return
to the basic display.

NOTE

The recommended settings for a product installed in a
kitchen is 37˚F for the fresh food compartment and 0˚F for
the freezer.

Controls - Non-Dispenser Models

23

Alarms

Door

If the door has been left open for

Ajar

an extended period of time, an
alarm will sound and the door ajar
indicator will display on the bottom
display of the control panel. The
alarm is turned off by closing the
door. The mute sounds key will
blink to prompt the reset of any
active alarms. Press this key to
reset any system alarms.

High

In the event of a high temperature

Temp

condition, the temperature display
will blink and display “HI”. After
20 minutes, the alarm will sound
and the high temp indicator will
be red on the bottom of the
control panel. The mute sounds
icon will illuminate until pressed,
acknowledging the alarm, at which
time the highest temperature
reached will be displayed and the
refrigerator will resume normal
operation. In case the high temp
alarm is not acknowledged at the
first alarm sound time out, when
the door is first opened, the alarm
sound will be repeated.

Power

In the event of a power failure, the

Fail

power fail alert will be displayed
and the temperature display will
blink until the mute sounds icon is
pressed, acknowledging the alarm.
Other modes may be turned off
until the alarm is acknowledged.
The power fail alert is turned off
and the refrigerator will resume
normal operation. The high temp
alarm may also be illuminated until
a safe operating range temperature
has been reached.

IQ-TouchTM
“Sabbath Mode”

The Sabbath Mode is a feature that
disables portions of the refrigerator and its
controls for IQ-TouchTM, in accordance
with observance of the weekly Sabbath
and religious holidays within the Orthodox
Jewish community.

Sabbath Mode is turned ON and OFF by
simultaneously pressing and holding the
freezer temp “-” and the refrigerator temp
“+” indicators for five seconds. The display
shows “Sb” while in Sabbath mode.

In the Sabbath Mode, the High Temp
alarm is active for health reasons. For

example, if the door is left ajar the High
Temp alarm is activated. The refrigerator
will function normally once the door
is closed, without any violation of the
Sabbath/Holidays. The High Temp alarm
is permitted when cabinet temperature
is outside the safe zone for 20 minutes.
The alarm silences itself after 10 minutes
while the High Temp icon stays lit until the
Sabbath mode is exited.

For further assistance, guidelines for

proper usage and a complete
list of models with the Sabbath
feature, please visit the web at
http:\\www.star-k.org.

NOTE

While in Sabbath Mode, neither the
lights nor the control panel will work until
Sabbath Mode is deactivated.

Refrigerator stays in Sabbath Mode after
power failure recovery. It must be deactivated
with the buttons on the control panel.

NOTE

During Sabbath Mode, the freezer ice
maker will continue to work and must be
manually turned off to be compliant with
the Sabbath observances.

Sabbath Mode and the Perfect TempTM
Drawer

The Perfect TempTM Drawer should be
turned off for the Sabbath/Holidays. Before
putting the refrigerator into the Sabbath mode,
turn the Perfect TempTM Drawer off by
pressing the drawer on/off button. The display
will show “OFF” and the drawer will turn off.
Then enter the Sabbath mode function on the
main refrigerator display. See the IQ-Touch
“Sabbath Mode” section. When in Sabbath
mode, the display will not illuminate and the
drawer will remain off. The drawer can still be
used as a non-temp controlled drawer in this
mode. When the refrigerator is taken out of
Sabbath mode, the Perfect TempTM Drawer
will have to be turned back on.

NOTE

If the Perfect TempTM Drawer is not turned
off prior to putting the unit into Sabbath
Mode, it will continue to adjust itself to
maintain the set point even if the display
does not illuminate to show that it is still on.

24

Dispenser Model
Automatic Ice Maker/Water Dispenser

Priming the water supply
system

CAUTION

For proper dispenser operation,
recommended water supply pressure
should fall between 30 psi and 100 psi.
Excessive pressure may cause water
filter to malfunction.

1 Begin filling the filter by pressing and

holding a drinking glass against the
water dispenser paddle.

2 Keep the

glass in this
position
until water
comes
out of the
dispenser.
It may take
about 1½
minutes.

3 Continue dispensing water for about three

minutes to flush the system and plumbing
connections of any impurities (stopping to
empty the glass as necessary).

NOTE

The water dispenser has a built-in device that
shuts off the water flow after two minutes of
continuous use. To reset this shutoff device,
simply release the dispenser paddle.

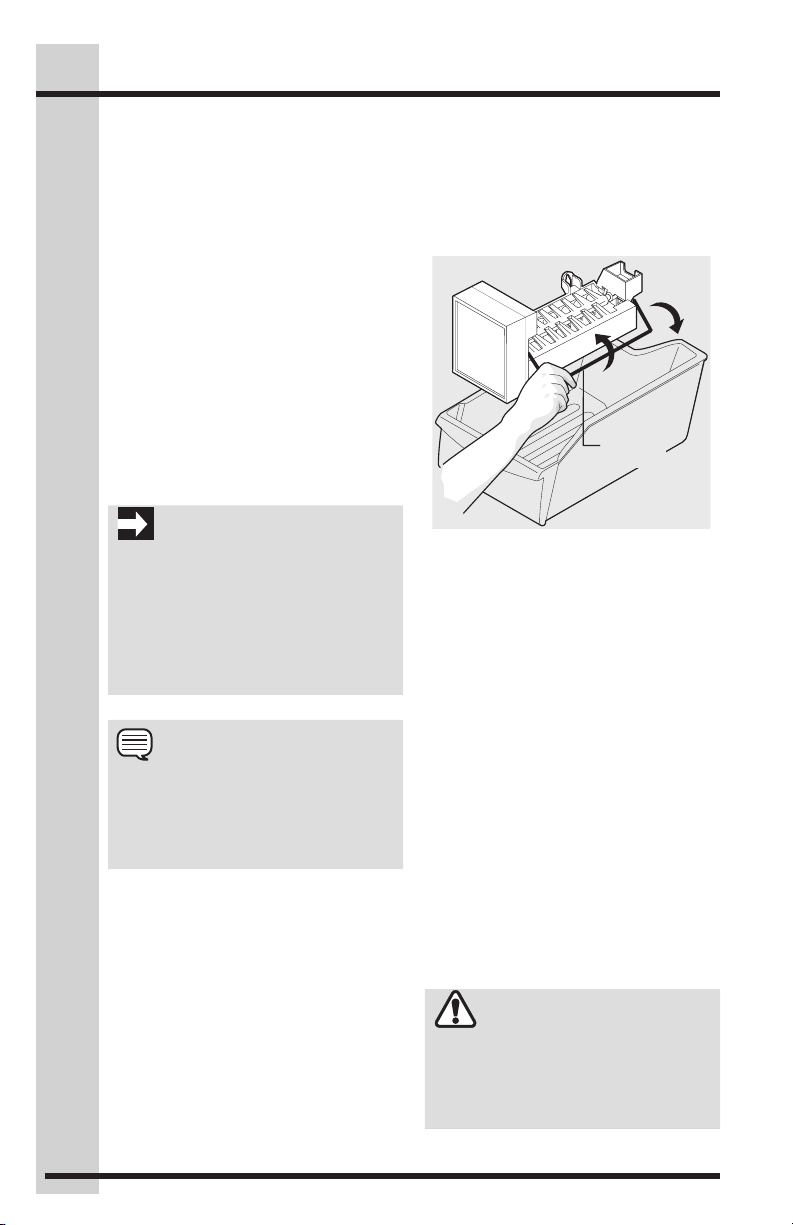

Ice maker operation & care

After the refrigerator is installed properly and
has cooled for several hours, the ice maker
can start producing ice within 24 hours. The
ice maker will fill the ice bin from the rear.
You must dispense some ice to force the ice
forward in the bin. Full bin should be expected
after 48 to 60 hours with no ice usage. Ice
rate is 2.3 lbs. per day. For extra capacity you
can add an ice maker kit for the freezer.

IMPORTANT

Your ice maker is turned on at the factory
so it can work as soon as you install
your refrigerator. If you cannot connect a
water supply, set the ice maker’s On/Off
icon to Off and turn off the water supply
valve; otherwise, the ice maker’s fill valve
may make a loud chattering noise when
it attempts to operate without water.

Turning the fresh food ice maker
on and off

Ice production is controlled by the ice maker’s
On/Off icon on the control panel. Press and
hold the Ice Off icon for three seconds to
turn the ice maker ON or OFF. If there is no
indicator, then the ice maker is ON.

IMPORTANT

Turning off the ice maker stops ice
production only.

NOTE

The ice maker also has a built-in signal
bale arm that automatically stops ice
production when the ice bin is full.
This signal arm should not be used to
manually stop the ice maker.

Using the ice maker after installation

Before making ice for the first time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three
empty ice maker cycles. Furthermore, if the
system is not flushed, the first ice cubes may
be discolored or have an odd flavor.

IMPORTANT

On occasion, unusually small ice cubes may
be noticed in the bucket or in dispensed
ice. This could occur in normal operation
of the ice maker. If you start seeing these
more frequently, it may be an indication of
low water pressure or the water filter needs
to be replaced. As the water filter nears the
end of its useful life and becomes clogged
with particles, less water is delivered to the
ice maker during each cycle. Remember, if
it’s been six months or longer since you last
changed your water filter, replace the water
filter with a new one. Poor quality household
water may require the filter to be changed
more frequently.

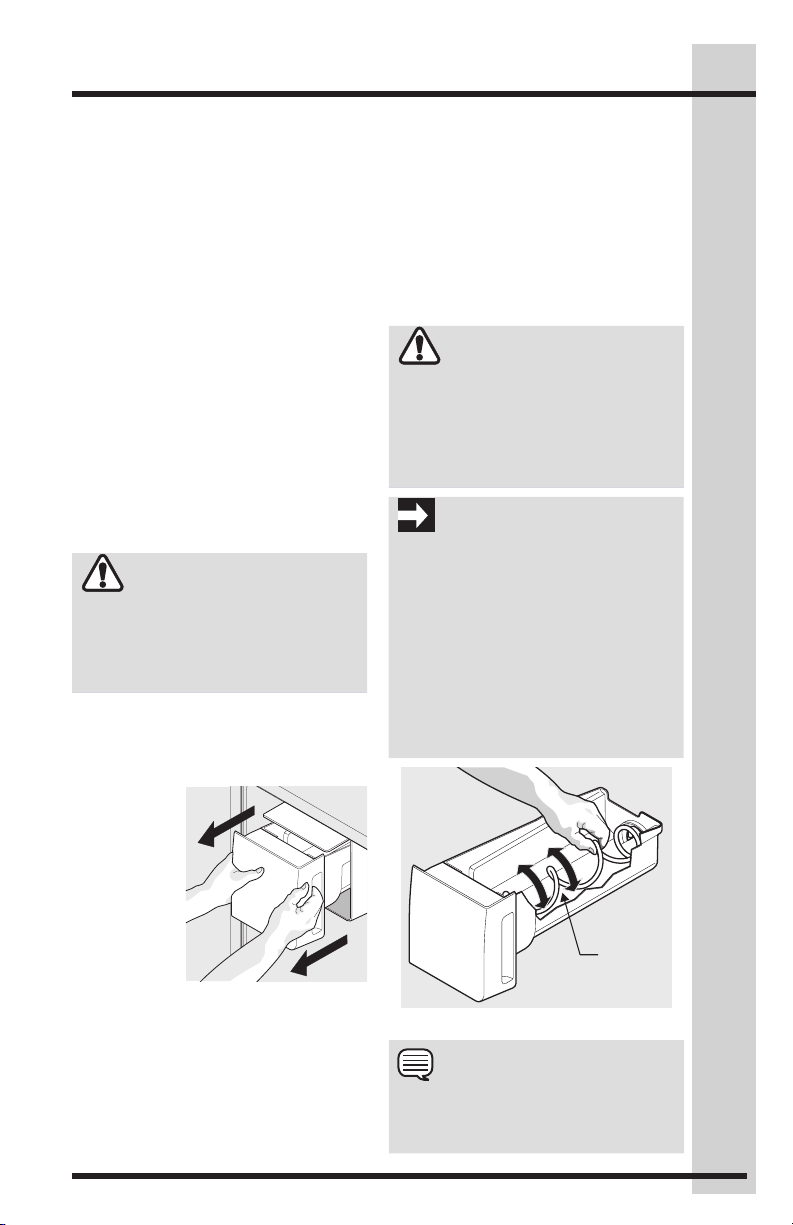

Dispenser Model

Automatic Ice Maker/Water Dispenser

Ice maker/dispenser tips

• If your refrigerator is not connected to
a water supply or the water supply is
turned off, turn off the ice maker by
holding the On/Off soft-touch icon for
three seconds.

• The following sounds are normal when
the ice maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Running water

• If you need a large quantity of ice
at one time, it is best to get cubes
directly from the ice bin.

• Ice cubes stored too long may
develop an odd flavor. Empty the ice
bin as explained below.

• When dispensing cubed ice, it is
normal to have a small quantity of little
pieces along with the whole cubes.

CAUTION

If the water supply to your refrigerator
is softened, be sure the softener is
properly maintained. Chemicals from
a water softener can damage the ice
maker.

Cleaning the ice maker

Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.

1 Turn off

the ice
maker.

2 Remove

the ice
bin by
pulling
straight
out.

3 Empty

and
carefully
clean the ice bin with mild detergent.
Do not use harsh or abrasive
cleaners. Rinse with clear water.

4 Allow the ice bin to dry completely

before replacing.

5 Replace the ice bin. Turn the ice

maker on.

Removing Ice Bin

Remove and empty the ice bin if:

• An extended power failure (one hour
or longer) causes ice cubes in the
ice bin to melt and freeze together,
jamming the dispenser mechanism.

• You do not use the ice dispenser
frequently. Ice cubes will freeze
together in the bin, jamming the
dispenser mechanism.

Remove the ice bin and shake to loosen
the cubes or clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin.

To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.

IMPORTANT

When removing or replacing the ice bin,
DO NOT rotate the auger in the ice bin.
If the auger is accidentally rotated, you
must realign the auger by turning it in 45
degree turns (see below) until the ice bin
fits into place with the drive mechanism.
If the auger is not properly aligned when
replacing the ice bin, the refrigerator will
not dispense ice. The fresh food door
also may not close properly causing
warm air to leak into the fresh food
compartment.

Auger

Adjusting Ice Bin Auger

NOTE

Dispenser models allow for an additional
freezer ice maker to be installed. Call
1-877-435-3287 for more information.

25

26

Automatic Ice Maker - Freezer

Ice maker operation &
care (select models)

After the refrigerator is installed properly,
the ice maker can produce ice within 24
hours. It can completely fill an ice bin in
about three days.

When using the ice maker for the first
time and in order for the ice maker to
work properly, it is necessary to clear air
from water filter tubing. Once ice maker
begins making ice, allow the bucket to
fill completely, then discard the first TWO
FULL buckets of ice. It will take at least
two days to completely fill the bucket on
regular ice making mode or 1½ days on
fast ice mode.

The ice maker produces approximately
four pounds of ice every 24 hours
depending on usage conditions.

IMPORTANT

Your ice maker is turned on at the
factory so it can work as soon as you
install your refrigerator. If you cannot
connect a water supply, lift the ice
maker’s wire signal arm to turn it off.
Otherwise, the ice maker’s fill valve may
make a loud chattering noise when it
attempts to operate without water.

NOTE

During the Sabbath Mode, the
automatic ice maker will continue to
work and must be manually turned
off to be compliant with the Sabbath
observance.

Turning the ice maker on and off

Ice production is controlled by lifting/
lowering the ice maker’s wire signal arm.
To gain access to the ice maker, pull the
freezer drawer out. Lift the wire signal arm
to turn the ice maker OFF and lower the
wire signal arm to turn it ON.

ON

OFF

Wire

Signal Arm

Ice maker tips

• If your refrigerator is not connected to
a water supply or the water supply is
turned off, turn off the ice maker by
lifting wire signal arm.

• The following sounds are normal when
the ice maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Running water

• Ice cubes stored too long may
develop an odd flavor. Empty the ice
bin as explained below.

Fast Ice Function

Your refrigerator is equipped with a
“Smart” Fast Ice Function that will, if
activated, allow an increase in freezer ice
production. After time the refrigerator will
return to normal ice production.

CAUTION

If the water supply to your refrigerator
is softened, be sure the softener is
properly maintained. Chemicals from
a water softener can damage the ice
maker.

Automatic Ice Maker - Freezer

Cleaning the ice maker

Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.

1 Turn off the ice maker.
2 Remove the ice bin.
3 Empty and carefully clean the ice bin

with mild detergent. Do not use harsh
or abrasive cleaners. Rinse with clean
water.

4 Allow the ice bin to dry completely

before replacing in the freezer.

5 Replace the ice bin. Turn the ice

maker on.

Remove and empty the ice bin if:

• An extended power failure (one hour
or longer) causes ice cubes in the ice
bin to melt and freeze together.

Remove the ice bin and shake to loosen
the cubes or clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin.

To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.

27

28

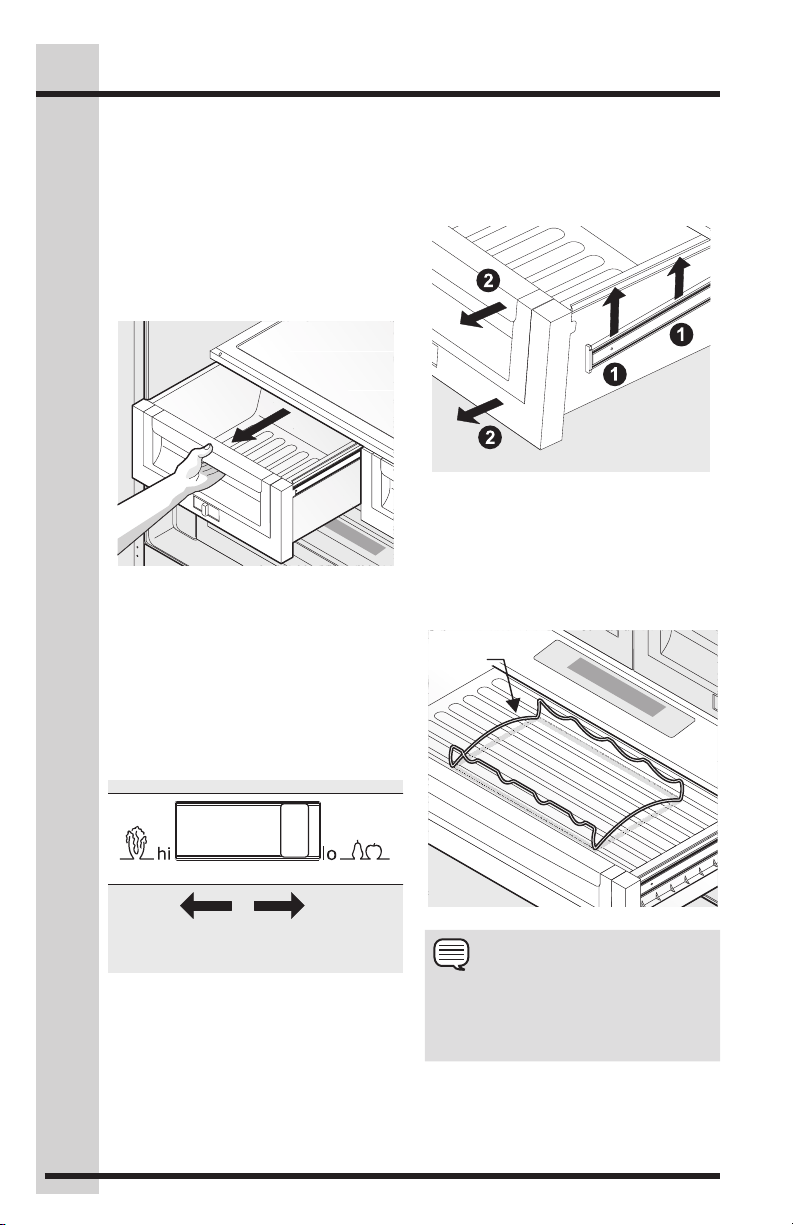

Special Items

Storage Features

Drawers

Your refrigerator includes a variety of
storage drawers.

Crispers

Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
They feature a smooth-glide, ball-bearing
system and soft-close functionality so as
not to bruise your fruits and vegetables.

Opening Crisper Drawer

Crisper humidity control

Crisper drawers include a sliding control
for adjusting the humidity inside the
crisper. Leafy vegetables keep best when
stored with the Humidity Control set on
Higher Humidity. Fresh fruits keep best
when stored with the Humidity Control set
on Lower Humidity.

To remove the Crisper Drawer for
cleaning:

1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the

drawer.

Removing Crisper Drawer

Cool Zone Drawer (select models)

Some models are equipped with a drawer
for short-term storage of bulk items.
This drawer includes sliding controls for
adjusting the humidity inside.

Rack

Humidity Control

Higher

Humidity

Adjusting Crisper Humidity

Lower
Humidity

(varies by model)

NOTE

Any meat to be kept longer than two
days should be frozen. If you store fruits
or vegetables in this drawer, set it to a
higher humidity.

Storage Features

Perfect TempTM Drawer (select models)

The Perfect TempTM Drawer is designed to keep food items at a precise temperature whether
cooler, warmer, or the same as the fresh food section of the refrigerator. This drawer features
a smooth-glide, ball-bearing system and soft-close functionality so as not to bruise your fruits
and vegetables. The thaw setting holds a temperature for thawing frozen foods for 12 hours.
At the end of that time, it then switches to the snacks setting to store the thawed food.

To operate:

1 To turn on and off, press the drawer’s

On/Off button. The numeric display will
show a temperature between 28°F
and 38°F when on and OFF when off.

2 Press F/C if you prefer to display

Fahrenheit (F), or Celsius (C).

3 Press either the up ^ or down v scroll

buttons to illuminate the desired item.

4 Once an option is selected, the

drawer will adjust and maintain the
temperature for the setting selected.

5 When turned off, the Perfect TempTM

Drawer functions as a standard meat
pan. The Perfect TempTM Drawer is best
used for packaged food products. Leafy
vegetables and unpackaged fruits are
best kept in one of the crisper drawers.

6 The three favorite selections

provide flexibility to set and store
personal temperature selections.
The temperature is adjusted up
by pressing the + or – buttons.
The drawer will store the selected
temperature setting until it is changed.

7 The control buttons can be locked

to prevent accidental changes by
pressing the control lock button
for three seconds. Deactivate by
pressing for three seconds again.

To remove the Perfect TempTM Drawer
for cleaning:

1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the

IMPORTANT

DO NOT clean the display area of the Perfect
TempTM Drawer with abrasive or caustic
cleaners. Wipe clean with a moist sponge.

CAUTION

The Perfect TempTM Drawer and cover can
be removed for cleaning but the control
unit, attached to the right side of the fridge,
cannot be removed. Do not immerse the
Perfect TempTM Drawer cover in water or
put it in a dishwasher. Clean with a damp
cloth or sponge.

drawer.

29

Opening the Drawer

Removing the Drawer

NOTE

When the refrigerator is turned off by
pressing the main Wave-TouchTM or
IQ-TouchTM on/off button, the Perfect
TempTM Drawer will also be turned off.
When the refrigerator is turned back on,
the Perfect TempTM Drawer will resume
operations at the temp setting that was
set before the refrigerator was turned off.

30

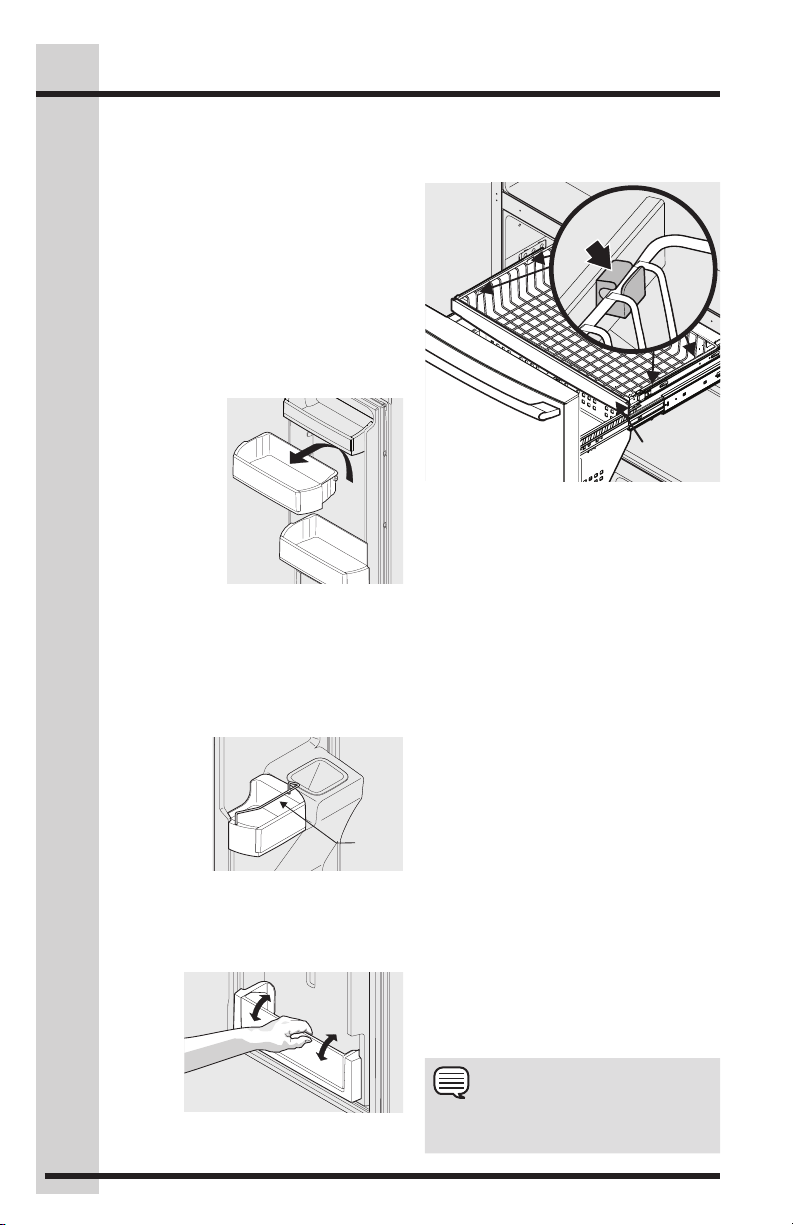

Storage Features

Doors

Storage bins

The doors to your fresh food compartment
use a system of modular storage bins.
All of these bins are removable for easy
cleaning. Some of them have fixed
positions, while others can be adjusted to
your needs.

Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used
items.

To change the position of an
adjustable door bin:

1 Remove all

food from
bin.

2 Grip the bin

firmly with
both hands
and lift it
upward.

3 Remove

the bin.

4 Place the

bin just above desired position.

5 Lower the bin onto supports until

locked in place.

Adjustable Door Bin

Accessories (varies by
model)

Tall bottle
retainer

The tall bottle
retainer
keeps tall
containers in
the bin from
falling forward when opening or closing the
refrigerator door. To install, insert the ends
of the retainer into the holes.

Tilt can bins

The can
bins allow
you to
efficiently
and
securely
store up
to eight
12-ounce
canned beverages.

Tilt Can Bin

Tall
Bottle
Retainer

Freezer Features (varies
by model)

Clip

Stabilizer

Bar

Freezer Baskets

To Remove Upper Freezer Basket

1 Find the side where the basket frame

is aligned to the clip opening. The
basket frame should be aligned to
both front and rear clips on the same
side (either left or right side).

2 If the basket frame is not aligned to

the left or right side, push the basket
sideways (to either side) until it is aligned.

3 By grabbing the basket wire frame

close to the frontal clip, pull up to
take the basket frame out.

4 Grab the basket frame close to the

rear clip and pull up until it comes out
of the clip.

5 Once one side of the basket is off

the clips or retainers, slide the basket
sideways until the other side of the
frame is aligned with the clip openings
on the opposite side of the freezer.

6 In the same way, pull up the basket

frame from the frontal and rear clips

until it is out of the clips.
7 Remove the basket.
Reverse the steps to reinstall the basket.

NOTE

If basket is not resting on stabilizer bar retainer
clips, the drawer will not close properly.

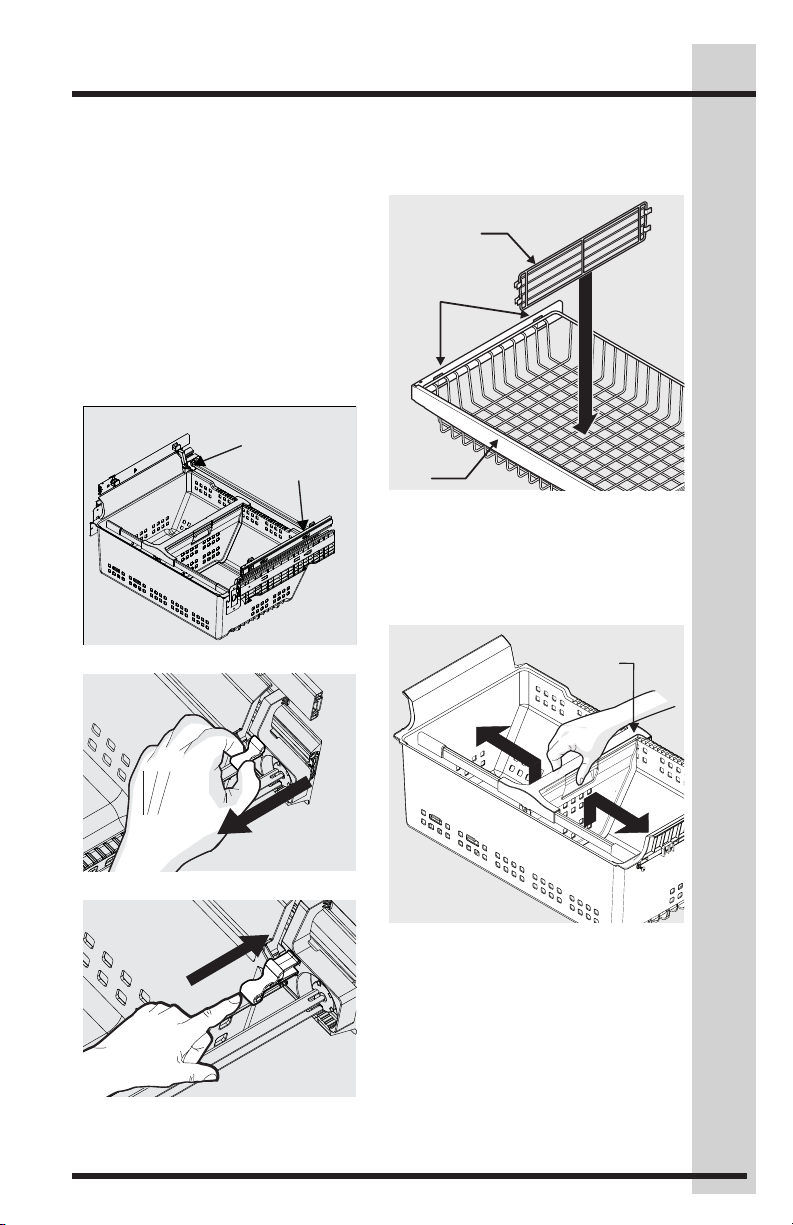

Storage Features

31

Removing Freezer Basket
Instructions

1 Locate the basket clips in the rear

corners of the basket and pull them

out to remove.
2 Open fresh food doors completely.
3 Lift the basket up and remove.

Replacing Freezer Basket
Instructions

1 Place freezer basket back inside the

freezer drawer.
2 Replace clips by sliding them back

into the slots.

Location of
basket clip.

One each side.

Dividers Removal

Lift up on the front of the upper divider and
pull out.

Upper Basket
Divider

Retainers

Stabilizer
Bar

Upper Basket Divider

Squeeze handle and lift up in the center
of the divider to move it side-to-side. (The
divider cannot be removed.)

Lower Basket
Divider

Pull to Remove

Push to Replace

Plastic Lower Basket Divider

Tilt Wire Shelf

The freezer tilt wire shelf (located on
the inside of the freezer drawer) is not
designed to be removed.

32

Storing Food and Saving Energy

Ideas for storing foods

Fresh food storage

• Keep the fresh food compartment
between 37°F and 40°F with an
optimum temperature of 37°F.

• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.

• Avoid placing food in front of air ports.
(See Controls Section for illustration.)

Fruits and vegetables

• Store fruits and vegetables in crisper
drawers, where trapped moisture
helps preserve food quality for longer
time periods.

• Wash items and remove excess water.

• Wrap any items that have strong
odors or high moisture content.

Meat

• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or
surfaces.

• Use the Cool Zone drawer or Perfect
TempTM drawer and set to meat/
poultry setting for short-term storage.
Any meat to be kept longer than two
days should be frozen.

Frozen food storage

• Keep the freezer compartment at 0°F
or lower.

• A freezer operates most efficiently
when it is at least 2/3 full.

Packaging foods for freezing

• To minimize food dehydration and
quality deterioration, use aluminum foil,
freezer wrap, freezer bags, or airtight
containers. Force as much air out of
the packages as possible and seal
them tightly. Trapped air can cause
food to dry out, change color, and
develop an off-flavor (freezer burn).

• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.

• Do not refreeze meat that has
completely thawed.

Loading the freezer

• Prior to grocery shopping, activate
fast freeze so that on your return you
can ensure your newly purchased

food designated for the freezer will be
preserved as quickly as possible.

• Activating fast freeze also will help
your freezer more efficiently maintain
the selected temperature after placing
new purchases with pre-existing
frozen foods.

• Avoid adding too much warm food to
the freezer at one time. This overloads
the freezer, slows the rate of freezing,
and can raise the temperature of
frozen foods.

• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.

Ideas for saving energy

Installation

• Locate the refrigerator in the coolest
part of the room, out of direct sunlight,
and away from heating ducts or
registers.

• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is
not possible, a section of cabinetry or
an added layer of insulation between
the two appliances will help the
refrigerator operate more efficiently.

• Level the refrigerator so that the doors
close tightly.

Temperature settings

• Refer to the Controls section for
procedures on temperature settings.

Food storage

• Avoid overcrowding the refrigerator
or blocking cold air vents. Doing so
causes the refrigerator to run longer
using more energy and freezing food.

• Cover foods and wipe containers dry
before placing them in the refrigerator.
This cuts down on moisture build-up
inside the unit.

• Organize the refrigerator to reduce
door openings. Remove as many
items as needed at one time and close
the door as soon as possible.

• Do not place a hot container directly
on a cold shelf. Remember, such an
extreme temperature change may
damage the glass.

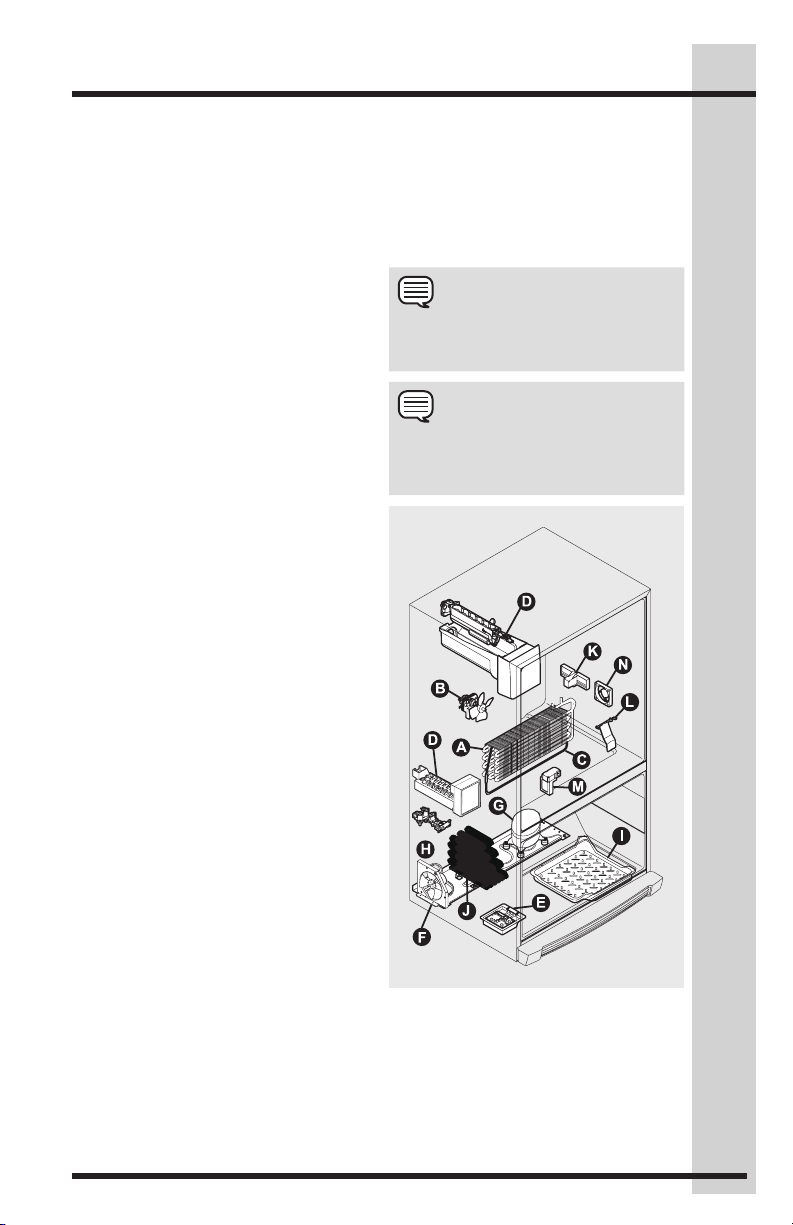

Normal Operating Sounds

33

Understanding the
sounds you may hear

Your new, high-efficiency refrigerator
may introduce unfamiliar sounds. These
sounds normally indicate your refrigerator
is operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may
make these sounds more noticeable.

The following is a list of major components
in your refrigerator and the sounds they
can cause:

A Evaporator Refrigerant through the

evaporator may create a boiling or
gurgling sound.

B Evaporator fan You may hear air

being forced through the refrigerator
by the evaporator fan.

C Defrost heater During defrost

cycles, water dripping onto the
defrost heater may cause a hissing
or sizzling sound. After defrosting, a
popping sound may occur.

D Automatic ice maker When ice

has been produced, you will hear
ice cubes falling into the ice bin. Ice
maker fan, water valve activation,
and refrigerant gas fluid may create
sounds from its operation.

E Electronic control & automatic

defrost control These parts can
produce a snapping or clicking sound
when turning the cooling system on
and off.

F Condenser fan You may hear air

being forced through the condenser.

G Compressor Modern, high-efficiency

compressors run much faster than
older models. The compressor may
have a high-pitched hum or pulsating
sound.

H Water valve Makes a buzzing sound

each time it opens to fill the ice
maker.

I Drain pan (not removable) You may

hear water dripping into the drain pan
during the defrost cycle.

J Condenser May create minimal

sounds from forced air.

K Motorized Perfect TempTM drawer

damper May produce a light
humming during operation.

L Ice dispensing paddle When

dispensing ice, you will hear a
snapping, clicking, or popping sound.

M Motorized damper May produce a

light humming during operation.

N Perfect TempTM drawer fan Turns

off when door opens or Perfect

TempTM drawer is turned off.

NOTE

Energy efficient foam in your refrigerator
is not a sound insulator.

NOTE

During automatic defrost cycle, a red
glow in the back wall vents of your
freezer compartment is normal.

Features vary by model

34

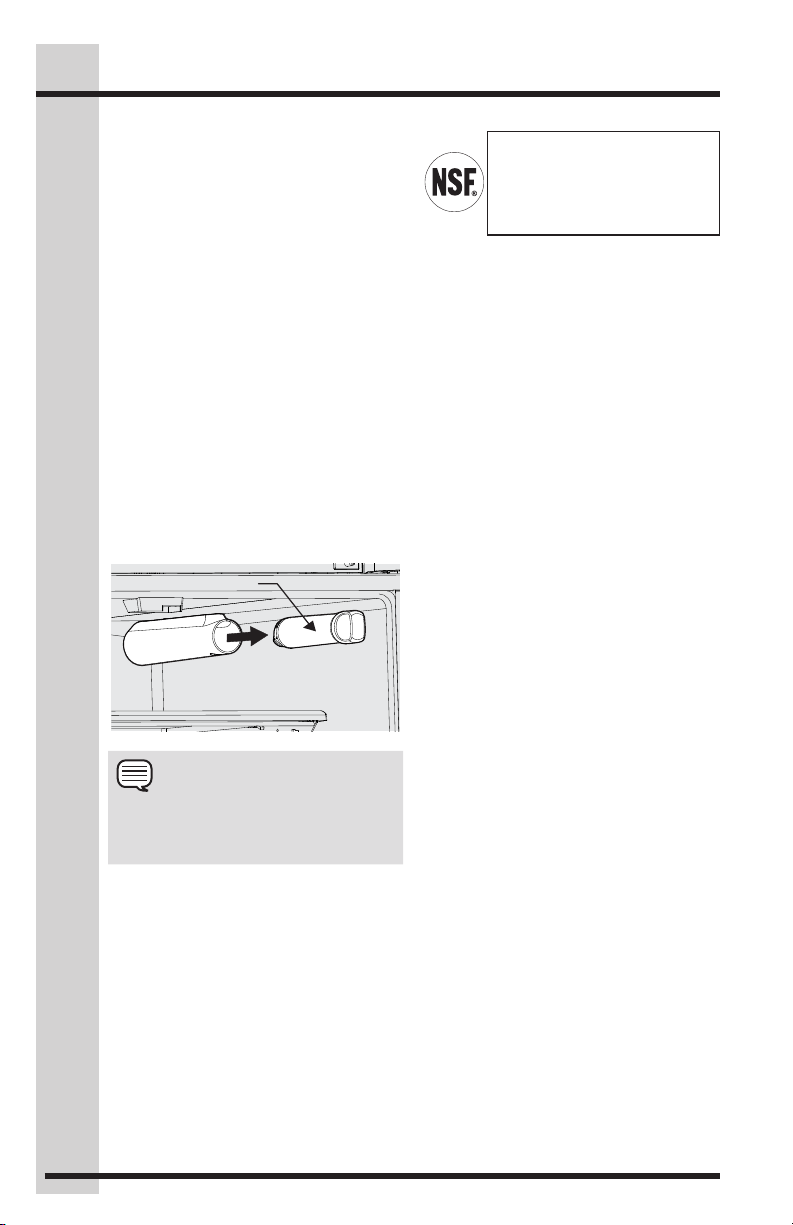

Changing The Water and Air Filters

Locating the Filters

Your refrigerator is equipped with water
filtering system. The water filter system
filters all dispensed drinking water, as well
as the water used to produce ice.

Water Filter

The water filter is located at the top right
side of the fresh food compartment.

Replacing the Water Filter

In general, you should change the water
filter every six months to ensure the
highest possible water quality. Water Filter
Status on the user interface prompts
you to replace the filter after a standard
amount of water (125 gallons/473 liters for
PureAdvantage UltraTM) has flowed through
the system.

If your refrigerator has not been used for a
period of time (during moving for example),
change the filter before reinstalling the
refrigerator.

Filter Cartridge

NOTE

When ordering your replacement filter,
please reorder the same filter type that is
currently in your refrigerator.

More about your Advanced Water Filter

The PureAdvantage UltraTM
ice and water filter system is
tested and certified to NSF/ANSI
Standards 43, 53 and 401 for
the reduction of claims specified
on the performance data sheet.

Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection before
or after the system. Systems certified for
cyst reduction may be used on disinfected
waters that may contain filterable cysts.

Test & certification results:

• Rated Capacity - 125 gallons/473 liters for
PureAdvantage UltraTM ice and water filter

• Rated service flow - .65 gallons per minute

• Operating Temp: Min. 33°F, Max. 100°F

• Maximum Rated Pressure ­100pounds per square inch

• Recommended Minimum Operating
Pressure: 30pounds per square inch

To replace your PureAdvantage UltraTM water filter:
It is not necessary to turn the water supply

off to change the filter. Be ready to wipe
up any small amounts of water released
during the filter replacement.

1 Turn Off the ice maker power switch.
2 Remove the old filter by rotating it

counter-clockwise (to the left) 90
degrees to release it.

3 Slide the old filter cartridge straight

out of the housing and discard it.

4 Unpackage the new filter cartridge.

Slide it into the filter housing as far as
it will go with the grip end horizontal.

5 Push lightly inward on the filter while

rotating it clockwise (to the right). The
filter will then pull itself inward as it is
rotated. Rotate the filter 90 degrees
until it stops and the grip end is
vertical. You may be able to feel a very
light click as the filter locks into place.

6 Press a drinking glass against the

water dispenser while checking for
any leaks at the filter housing. Any
spurts and sputters that occur as
the system purges air out of the
dispenser system are normal.

7 Continue dispensing water for 3-4

minutes or until 1.5 gallons of water
has flowed through the system. You
will likely need to empty and refill your

glass several times.
8 Turn On the ice maker.
9 Press and hold the Water Filter reset

button on the control panel for three

seconds. When the display changes from

Red to Green, the status has been reset.

Changing The Water and Air Filters

35

Air filter

The air filter is located under the utility bin
and/or on the inside of the left door above
the ice maker chute.

Replacing your PureAdvantage
air filter

To ensure optimal filtering of refrigerator
odors, you should change the air filter
every six months (the filter status light on
the Touch Panel prompts you to replace
the filter after six months).

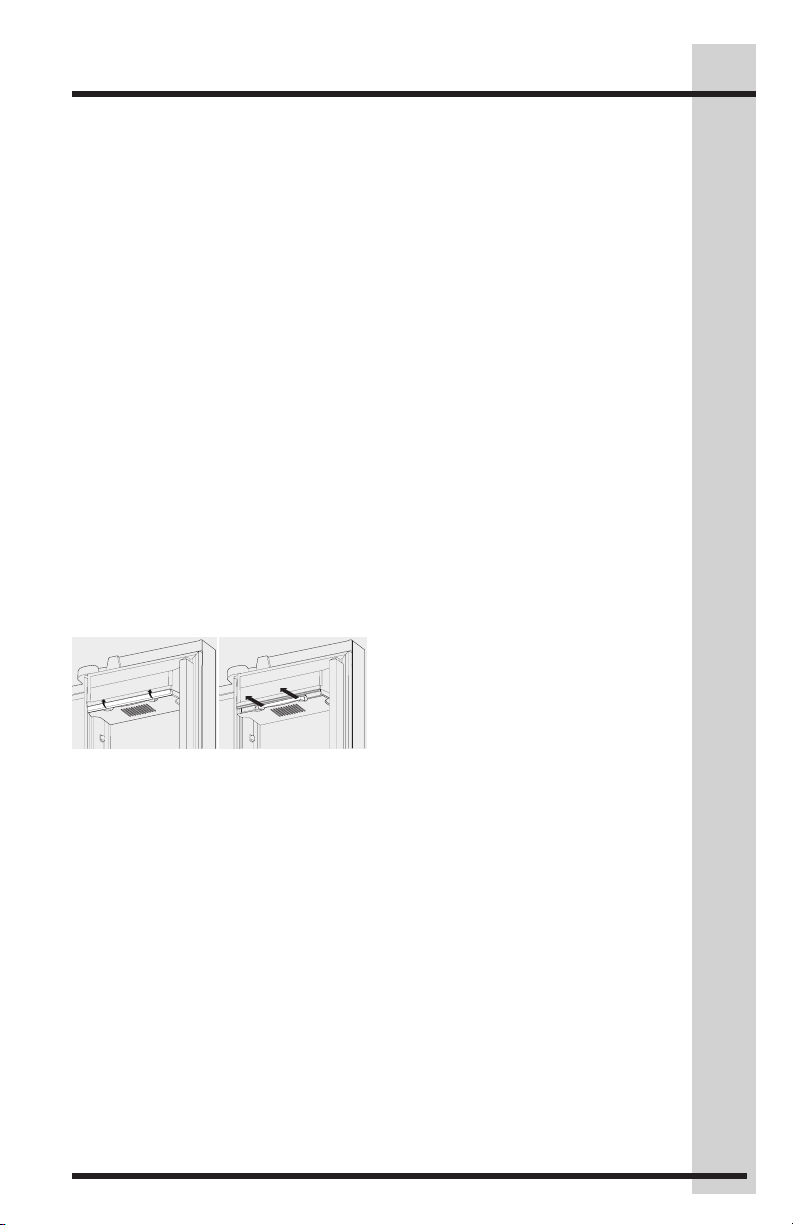

1 Open the air filter door.
2 Remove the old filter and discard it.
3 Unpack the new filter and slide it into

the housing.

4 To close the air filter door, push the

top and bottom to lock the door
closed.

5 Press and hold the Air Filter Reset

button on the control panel for three
seconds. When the display changes
from Replace to Good, the status has
been reset.

Filter located under the utility bin

TM

Ordering replacement
filters

To order your replacement filters, please
visit our online store at
www.electroluxappliances.com, by calling
toll-free at 800-599-7569, or by visiting
the dealer where you purchased your
refrigerator. Electrolux recommends that
you order extra filters when you first install
your refrigerator, and that you replace your
filters at least once every six months.

Here is the product number to request
when ordering:

Water Filter

PureAdvantage UltraTM Replacement
Cartridge #EWF02

Air Filter

Replacement cartridge, part #EAFCBF

36

Care and Cleaning

Protecting your investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up.
Wipe up any spills immediately and clean the freezer and fresh food compartments at
least twice a year.

NOTE

Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable
fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not
use paper towels, scouring pads, or other abrasive cleaning materials.

• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline
solutions on any surface.

• Never use CHLORIDE or cleaners with bleach to clean stainless steel.

• Do not wash any removable parts in a dishwasher.

• Always unplug the electrical power cord from the wall outlet before cleaning.

NOTE

If you set your temperature controls to turn off cooling, power to lights and other
electrical components will continue until you unplug the power cord from the wall outlet.

• Remove adhesive labels by hand. Do not use razor blades or other sharp
instruments which can scratch the appliance surface.

• Do not remove the serial plate. Removal of your serial plate voids your warranty.

• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work
correctly. This will prevent the floor from being damaged.

CAUTION

• Pull the refrigerator straight out to move it. Shifting it from side to side may
damage flooring. Be careful not to move the refrigerator beyond the plumbing
connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with
wet or damp hands.

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain
the water supply system. Failure to do so could result in water leaks when the refrigerator
is put back into service. Contact a service representative to perform this operation.

Refer to the guide on the next page for details on caring and cleaning specific areas of
your refrigerator.

Care and Cleaning

Care and cleaning tips

Part Cleaning Agents Tips and Precautions

Interior & Door
Liners

Door Gaskets • Soap and water • Wipe gaskets with a clean soft cloth.
Drawers & Bins • Soap and water • Use a soft cloth to clean drawer runners

Glass Shelves • Soap and water

Toe Grille • Soap and water

Exterior &
Handles
(Stainless Steel
Models Only)

• Soap and water

• Baking soda
and water

• Glass cleaner

• Mild liquid sprays

• Mild liquid sprays

• Vacuum

• Soap and water

• Stainless steel
cleaners

• Use two tablespoons of baking soda in
one quart of warm water.

• Be sure to wring excess water out of
sponge or cloth before cleaning around
controls, light bulb or any electrical part.

and tracks.

• Do not wash any removable items (bins,
drawers, etc.) in dishwasher.

• Allow glass to warm to room
temperature before immersing in warm
water.

• Remove toe grille (see Installation Instructions).

• Vacuum both sides and wipe with sudsy
cloth or sponge. Rinse and dry.

• Never use CHLORIDE or cleaners with
bleach to clean stainless steel.

• Clean stainless steel front and handles with
non-abrasive soapy water and a dishcloth.
Rinse with clean water and a soft cloth.

• Use a non-abrasive stainless steel cleaner.
These cleaners can be purchased at most
home improvement or major department
stores. Always follow manufacturer’s
instruction. Do not use household
cleaners containing ammonia or bleach.

• NOTE: Always clean, wipe and dry with
grain to prevent scratching.

• Wash the rest of the cabinet with warm
water and mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth.

37

Vacation and moving tips

Occasion Tips

Short
Vacations

Long
Vacations

Moving • Remove all food and ice.

• Leave refrigerator operating during vacations of three weeks or less.

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off and empty ice bucket, even if you will
only be gone a few days.

• Remove all food and ice if you will be gone one month or more.

• Turn the cooling system off (see Controls section for location of On/
Off button) and disconnect power cord.

• Turn water supply valve to closed position.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block
doors open if necessary.

• If using a handcart, load from the side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

38

Solutions to Common Problems

Before you call...

If you experience a problem with your refrigerator or notice a product behavior or
condition that you do not understand, you can usually avoid a call to your service
representative by referring to this section for an answer. Beginning with the following
table, this information includes common concerns, causes, and suggested solutions.

Concern Potential Cause Common Solution
Automatic Ice Maker

Ice maker is
not making
any ice.

• Ice maker is turned off.

• Refrigerator is not
connected to water line or
water valve is not open.

• The water supply line is
kinked.

• The water filter is not
seated properly.

• The water filter may be
clogged with foreign
material.

• Freezer ice maker wire
signal arm is being held
up by an item not allowing
it to go in the on or down
position.

• Turn on ice maker. For the fresh food
ice maker, press ice maker on-off
once. For the freezer ice maker,
lower the arm to turn the ice maker
on, or raise it and snap it in its upper
position to turn the ice maker off.

• Connect the unit to the household
water supply and ensure the water
valve is open.

• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.

• Remove and re-install the water
filter. Be sure to rotate it fully into the
locked position position.

• If water dispenses slowly or not at
all, or if the filter is six months old or
older, it should be replaced.

• Move any item or frozen ice cubes
that may block the signal arm from
being in the on or down position.
Additionally, the ice bin itself may be
out of position so that it prevents the
signal arm from dropping all the way
down. Be sure the bin is pushed all
the way to the rear of the shelf. See
Automatic Ice Maker-Freezer section
in manual.

Solutions to Common Problems

Concern Potential Cause Common Solution
Automatic Ice Maker (Cont’d)

Ice maker is
not making
enough ice.

Freezer ice
maker will
not stop
making
ice (select
models).

Ice cubes
are freezing
together.

• Ice maker is producing
less ice than you expect.

• The water filter may be
clogged with foreign
material.

• The water supply line is
kinked.

• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.

• Heavy traffic, opening
or closing of the doors
excessively.

• Freezer control is set too
warm (freezer ice maker).

• Water pressure is
extremely low. Cut-off and
cut-on pressures are too
low (well systems only).

• Reverse osmosis system
is in regenerative phase.

• Ice maker wire signal arm
is being held down by a
package in the freezer
that has fallen against ice
maker.

• Ice cubes are not being
used frequently enough or
interruption of power for
prolonged time.

• Ice cubes are hollow
(shells of ice with water
inside). The hollow cubes
break open in the bin
and leak their water onto
existing ice, which causes
it to freeze together.

• The ice maker will produce
approximately 2.3 pounds of ice (fresh
food ice maker) and 2.5 pounds of
ice (freezer ice maker) every 24 hours
depending on usage conditions.

• If water dispenses slower than
normal, or if the filter is six months
old or older, it should be replaced.

• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.

• Turn off household water line
valve. Remove valve. Ensure that
valve is not a self-piercing saddle
valve. Clean valve. Replace valve if
necessary.

• Press Fast Freeze to temporarily
increase ice production rate. (Freezer
ice maker only.)

• Set freezer control to colder setting
to improve performance of the ice
maker (freezer ice maker). Allow 24
hours for temperature to stabilize.

• Have someone turn up the cut-off
and cut-on pressure on the water
pump system (well systems only).

• It is normal for a reverse osmosis
system to be below 20 psi during the
regenerative phase.

• Move any item or frozen ice cubes
that may block the signal arm from
being in the off or upward position.
See Automatic Ice Maker-Freezer
section in manual.

• Remove ice container and discard
ice. The ice maker will produce fresh
supply. Ice should be used at least
twice weekly to keep the cubes
separated.

• This generally occurs when the ice
maker does not get enough water.
This is usually the result of a clogged
water filter or restricted water supply.
Replace the water filter and if the
condition still occurs check for a
Saddle Valve, water valve not turned
on all the way or kinked water supply
line.

39

40

Solutions to Common Problems

Concern Potential Cause Common Solution
Dispenser (Ice & Water)

Dispenser
will not
dispense
ice.

Ice
dispenser is
jammed.

Dispenser
will not
dispense
water.

Water
not cold
enough.

Water has
an odd
taste and/or
odor.

• There is no ice in the bin to
be dispensed.

• The refrigerator doors are
not completely closed.

• Dispenser paddle has
been pressed too long and
the dispenser motor has
overheated.

• Ice has melted and
frozen around auger
due to infrequent use,
temperature fluctuations,
and/or power outages.

• Ice cubes are jammed
between ice maker and
back of ice container.

• Water filter not seated
properly.

• Water filter is clogged.

• Household water line valve
is not open.

• The water dispensing
system is not designed to
chill water.

• Water has not been
dispensed for an extended
period of time.

• Unit not properly
connected to cold water
line.

• See the “Ice maker is not making any
ice” section above.

• Be sure the refrigerator doors are
completely closed.

• The motor overload protector will
reset in about three minutes and then
ice can be dispensed.

• Remove ice container, thaw, and
empty the contents. Clean container,
wipe dry, and replace in proper
position. When new ice is made,
dispenser should operate.

• Remove ice cubes that are jamming
the dispenser.

• Remove and reinstall the water filter.
For PureAdvantage Ultra, be sure to
rotate it to the right until it stops and
the grip end is vertical.

• Replace filter cartridge. Be sure to
rotate it to the right until it stops and
the grip end is vertical.

• Open household water line valve.
See CONCERN column AUTOMATIC
ICE MAKER.

• Add ice to cup or container before
dispensing water.

• Draw and discard 10-12 glasses of
water to freshen the supply.

• Connect unit to cold water line that
supplies water to the kitchen faucet.

Solutions to Common Problems

Concern Potential Cause Common Solution
Opening/Closing Of Doors/Drawers

Door(s) will
not close.

Drawers are
difficult to
move.

Running of Refrigerator

Compressor
does not
run.

Refrigerator
seems to
run too
much or too
long.

Digital Temperature Setting Display

Digital
temperature
displays an
error.

• Door was closed too hard,
causing other door to
open slightly.

• Refrigerator is not level. It
rocks on the floor when
moved slightly.

• Refrigerator is touching a
wall or cabinet.

• Food is touching shelf on
top of drawer.

• Track that drawers slide on
is dirty.

• Freezer control is set to
“OF”.

• Refrigerator is in defrost
cycle.

• Plug at electrical outlet is
disconnected.

• House fuse blown or
tripped circuit breaker.

• Power outage.

• Your variable speed
compressor is designed
to run 100% of the time
except during the defrost
cycle. At times it will run
faster, such as after a
defrost cycle.

• Electronic control
system has detected a
performance problem.

• Close both doors gently.

• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.

• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.

• Remove top layer of items in drawer.

• Ensure drawer is properly installed
on track.

• Clean drawer, rollers, and track. See
Care & Cleaning.

• Set freezer control.

• This is normal for a fully automatic
defrost refrigerator. The defrost cycle
occurs periodically, lasting about 30
minutes.

• Ensure plug is tightly pushed into
outlet.

• Check/replace fuse with a 15 amp
time-delay fuse. Reset circuit breaker.

• Check house lights. Call local electric
company.

• It is normal for the compressor to run
continuously except during defrost
mode.

• Call your Electrolux service
representative, who can interpret any
messages or number codes flashing
on the digital displays.

41

42

Solutions to Common Problems

Concern Potential Cause Common Solution
Water/Moisture/Frost Inside Refrigerator

Moisture
collects on
inside of
refrigerator
walls.

Water
collects on
bottom side
of drawer
cover.

Water
collects in
bottom of
drawer.

Water/Moisture/Frost Outside Refrigerator

Moisture
collects on
outside of
refrigerator
or between
doors.

Food in Fresh Food Compartment

Food is
freezing.

• Weather is hot and humid.

• Flipper mullion

• Vegetables contain and
give off moisture.

• Washed vegetables and
fruit drain while in the
drawer.

• Weather is humid. • This is normal in humid weather.

• Temperature setting is too
low.

• Temperature sensor is
covered by food (right side
of fresh food area).

• Food is covering the air
ports.

• The rate of frost buildup and internal
sweating increases.

• Adjust flipper mullion. (See “To adjust
the flipper mullion” in the Installaion
section.)

• It is not unusual to have moisture on
the bottom side of the cover.

• Move humidity control (some models)
to lower setting.

• Dry items before putting them in the
drawer. Water collecting in bottom of
drawer is normal.

When humidity is lower, the moisture
should disappear.

• Move the setting to a higher degree.

• Allow space for air flow to the sensor.

• Allow space between the air ports
and the food.

Warranty

Major Appliance Warranty Information

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or
workmanship when such appliance is installed, used, and maintained in accordance with the provided
instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,
evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During
the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace any parts in
the cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship
when such appliance is installed, used, and maintained in accordance with the provided instructions.

Exclusions
This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside
the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.

11. Pickup and delivery costs; your appliance is designed to be repaired in the home.

12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

13. Damages to the finish of appliance or home incurred during transportation or installation,
including but not limited to floors, cabinets, walls, etc.

14. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES
SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF
THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service
under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico,
your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux
Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service
and parts under this warranty must be performed by Electrolux or an authorized service company.
Product features or specifications as described or illustrated are subject to change without notice.

USA
1-877-435-3287
Electrolux Major Appliances North America
10200 David Taylor Drive
Charlotte, NC 28262

Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario,
Canada L5V 3E4

43
