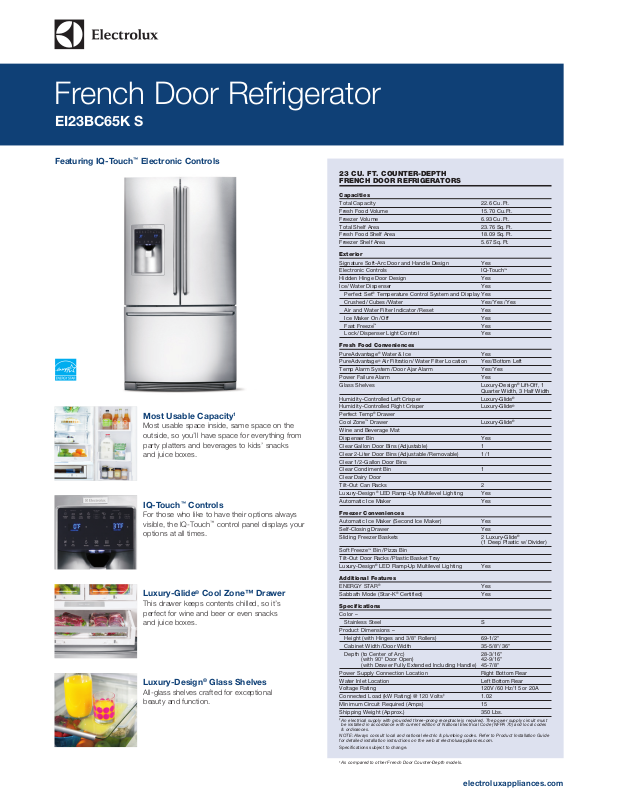

Electrolux EI23BC65K S User Manual

French Door Refrigerator

EI23BC65K S

Featuring IQ-Touch™ Electronic Controls

23 CU. FT. COUNTER-DEPTH FRENCH DOOR REFRIGERATORS

Capacities

Total Capacity Fresh Food Volume Freezer Volume Total Shelf Area Fresh Food Shelf Area Freezer Shelf Area

Exterior

Signature Soft-Arc Door and Handle Design Electronic Controls Hidden Hinge Door Design

Most Usable Capacity

Most usable space inside, same space on the outside, so you’ll have space for everything from party platters and beverages to kids’ snacks and juice boxes.

IQ-Touch™ Controls

For those who like to have their options always visible, the IQ-Touch options at all times.

™

control panel displays your

Luxury-Glide® Cool Zone™ Drawer

This drawer keeps contents chilled, so it’s perfect for wine and beer or even snacks and juice boxes.

Luxury-Design® Glass Shelves

All-glass shelves crafted for exceptional beauty and function.

Ice / Water Dispenser Perfect Set Crushed / Cubes / Water Air and Water Filter Indicator / Reset Ice Maker On / Off Fast Freeze Lock / Dispenser Light Control

Fresh Food Conveniences

PureAdvantage PureAdvantage Temp Alarm System / Door Ajar Alarm Power Failure Alarm Glass Shelves

Humidity-Controlled Left Crisper Humidity-Controlled Right Crisper Perfect Temp Cool Zone Wine and Beverage Mat Dispenser Bin Clear Gallon Door Bins (Adjustable) Clear 2-Liter Door Bins (Adjustable / Removable) Clear 1/2-Gallon Door Bins Clear Condiment Bin Clear Dairy Door Tilt-Out Can Racks Luxury-Design Automatic Ice Maker

Freezer Conveniences

Automatic Ice Maker (Second Ice Maker) Self-Closing Drawer Sliding Freezer Baskets

Soft Freeze Tilt-Out Door Racks / Plastic Basket Tray

Luxury-Design

Additional Features

ENERGY STAR Sabbath Mode (Star-K® Certified)

Specifications

Color – Stainless Steel Product Dimensions – Height (with Hinges and 3/8" Rollers) Cabinet Width / Door Width Depth (to Center of Arc)

Power Supply Connection Location Water Inlet Location Voltage Rating Connected Load (kW Rating) @ 120 Volts Minimum Circuit Required (Amps) Shipping Weight (Approx.)

‡

An electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed in accordance with current edition of National Electrical Code (NFPA 70) and local codes & ordinances.

NOTE: Always consult local and national electric & plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

As compared to other French Door Counter-Depth models.

™

Drawer

™

Bin / Pizza Bin

(with 90° Door Open) (with Drawer Fully Extended Including Handle)

Temperature Control System and Display

™

Water & Ice

Air Filtration / Water Filter Location

Drawer

LED Ramp-Up Multilevel Lighting

‡

22.6 Cu. Ft.

15.70 Cu. Ft.

6.93 Cu. Ft.

23.76 Sq. Ft.

18.09 Sq. Ft.

5.67 Sq. Ft.

Yes

™

IQ-Touch Yes Yes Yes Yes / Yes / Yes Yes Yes Yes Yes

Yes Yes / Bottom Left Yes / Yes Yes Luxury-Design

Quarter Width, 3 Half Width Luxury-Glide Luxury-Glide

Luxury-Glide

Yes 1 1 / 1

2 Yes Yes

Yes Yes 2 Luxury-Glide

(1 Deep Plastic w / Divider)

Yes

Yes Yes

69-1/2" 35-5/8" / 36" 28-3/16"

42-9/16" 45-7/8"

Right Bottom Rear Left Bottom Rear 120V / 60 Hz / 15 or 20A

1.02 15 350 Lbs.

Lift-Off, 1

electroluxappliances.com

French Door Refrigerator

EI23BC65K S

Counter-Depth French Door Refrigerator Specifications

•

Product Weight – 345 Lbs.

•

Voltage Rating – 120V / 60 Hz / 15 or 20 Amps

•

Connected Load (kW Rating) @ 120 Volts = 1.02 kW

•

Amps @ 120 Volts = 8.5 Amps

•

Always consult local and national electric & plumbing codes.

•

Floor should be level surface of hard material, capable of supporting fully loaded refrigerator.

•

When installing refrigerator adjacent to wall, cabinet or other appliance that extends beyond front edge of unit, 20" minimum clearance recommended to allow for optimum 120° to 180° door swing, providing complete drawer / crisper access and removal. (Absolute 4-1/2"

minimum clearance will ONLY allow for 90° door swing which will provide drawer / crisper access with restricted removal.)

•

To ensure optimum performance, avoid installing in direct sunlight or

•

For proper ventilation, front grille MUST remain unobstructed.

•

Recess electrical outlet when possible.

•

Water recess on rear wall recommended to prevent water line damage.

•

Water Pressure – Cold water line must provide between 30 and 100 pounds per square inch (psi).

•

Copper tubing with 1/4" O.D. recommended for water supply line with length equal to distance from rear of unit to household water supply line plus 7 additional feet. Optional Water Supply Installation Kits available.

•

Adjustable front rollers to assist with door alignment.

“Built-In Look” Specifications

•

Minimum opening of 70-1/4" H x 36" W x 25" D required to allow for ease of installation, proper air circulation, and plumbing / electrical connections.

•

Remove all wall / floor molding prior to installation.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

close proximity to range, dishwasher or other heat source.

Electrolux Major Appliances, N.A.

•

USA

10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com

•

CANADA

5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.
