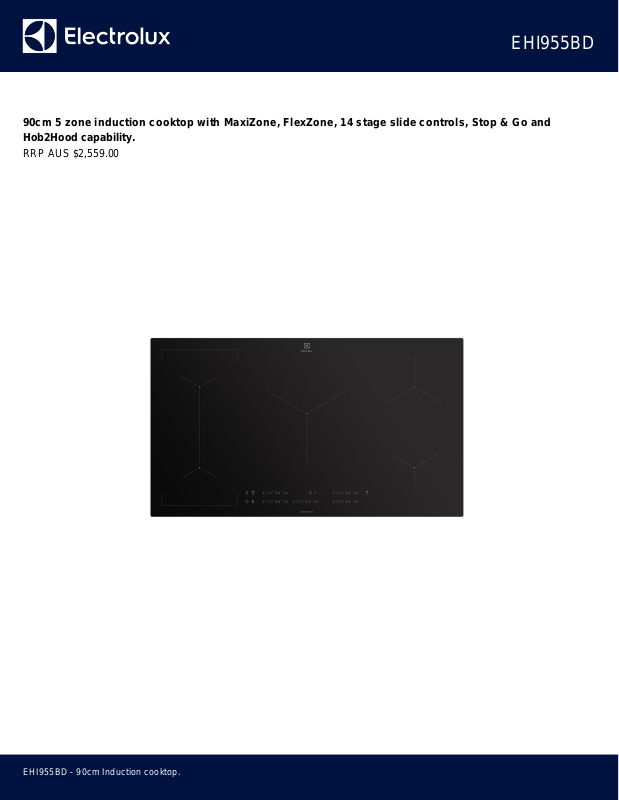

Page 1
90cm 5 zone induction cooktop with MaxiZone, FlexZone, 14 stage slide controls, Stop & Go and
Hob2Hood capability.
RRP AUS $2,559.00
EHI955BD
EHI955BD - 90cm Induction cooktop.
Page 2
Product Details
FEATURES
MaxiZone FlexZone Hob2Hood technology Touch and slide controls
Touch the control bar at the
necessary heat setting
STOP & GO function Timer and minute minder Auto warm-up function Auto pot detection
BENEFITS
Enjoy the space and freedom to cook what you want
Use large pots and pans like a professional chef. The extra
large MaxiZone on this hob gives you the freedom to
effortlessly prepare all kinds of dishes that need a large pan
with consistent heat, like that delicious paella youve been
wanting to cook.
When two become one
FlexZone allows you to combine your cooking zones for
ultimate flexibility.
The hands free hood
While you concentrate on the flavours, the innovative
Hob2Hood feature will take care of keeping your kitchen fresh.
The rangehood automatically turns on as soon as you start
cooking, and intuitively adjusts the fan speed with your
cooking.
Control at your fingertips
The touch controls on this hob lets you heat up, down or switch
off immediately. Just gently slide your finger across the
control to the temperature you need and you can be confident
it will respond right away, so you can create delicious meals
effortlessly. The Stop & Go feature offers a useful keep warm
setting if youre unexpectedly interrupted.
EHI955BD
EHI955BD - 90cm Induction cooktop.
Page 3
Specifications
PRODUCT PROFILE
Domestic warranty details
(yrs)
2
Cooktop type Induction
Materials/Colour black ceramic glass
DIMENSIONS
Total product height (mm) 55
Total product width (mm) 910
Total product depth (mm) 520
Cut out width (mm) 880
Cut out depth (mm) 490
CONTROLS
Controls of Cooktops Touch and Slide controls
Position of controls front
Functions of Cooktops stop and go,automatic warm
up,timer,Keep warm
function,cooking timer with
acoustic signal,automatic
switch off,power
booster,Hob2Hood
Indicators/display fault indicator,3 level residual
heat indicator
ELEMENTS/BURNERS
LEFT FRONT ZONE
Left front zone induction extended
Left front Watts 2300
Left front boost watts 3200
Left front diameter 210
EHI955BD
EHI955BD - 90cm Induction cooktop.
Page 4
CONTROLS
Features of Cooktop safety cut off,overheating
protection,electronic
timer,minute minder,hot
surface indicator,function
lock,auto pot sensors,child
safety device lock,flex zone
on 2 zones ,Hob2Hood
Connectivity
Timer of Cooktop programmable 99min,auto
off,countdown,Minute minder
LEFT REAR ZONE
Left rear zone induction extended
Left rear watts 2300
Left rear diameter 210
CENTRE FRONT ZONE
Centre front zone induction maxi
Centre front Watts 3500
Centre front diameter 280
RIGHT FRONT ZONE
Right front zone induction
Right front Watts 1400
Right front diameter 145
RIGHT REAR ZONE
Right rear zone induction
Right rear watts 1800
Right rear diameter 180
ELECTRICAL SPECIFICATIONS SHIPPING
EHI955BD
EHI955BD - 90cm Induction cooktop.
Page 5
ELECTRICAL SPECIFICATIONS
Connected load KW 11
Maximum current rating
(amps)
45
Type of connection hardwired
SHIPPING
Shipping Volume (m3) 0.93
Shipping Weight (Kg) 18.8
Pack Dimensions Height
(mm)
125
Pack Dimension Width
(mm)
635
Pack Dimension Depth
(mm)
1170
Total shelf area (m^2) 74.30
STUFFING QUANTITIES
20ft 128
40ft 288
40ft HC 342
EHI955BD
EHI955BD - 90cm Induction cooktop.
Page 6
ELECTROLUX HOME PRODUCTS AUSTRALIA
telephone: 1300 363 640
fax: 1800 350 067
email: [email protected]
web: www.electrolux.com.au
ELECTROLUX HOME PRODUCTS NEW ZEALAND
telephone: 09 573 2230
fax: 09 573 2221
email: [email protected]
web: www.electrolux.co.nz
Terms and Conditions
IMPORTANT
This is a guide of product dimensions only. For complete installation instructions, refer to the manual provided with product.
PRODUCT INFORMATION
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy of
continuous productdevelopment, product specifications may change without notice. Prospective purchasers should therefore check with their retailer to
ensure this publication correctly describes theproducts that are being offered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Electrolux Home Products PtyLtd (Australia) and Electrolux (NZ) Ltd (New Zealand) will not be liable for
any loss, liability or damage of whatever kind arising as a result of reliance on such information. Colours ofproducts illustrated are as close as printing
limitations allow. Electrolux will at all times comply with its obligations pursuant to law including Trade Practices (Australian Consumer Law) Act and
Regulations.
WARRANTY
This warranty only applies to Appliances purchased and used in Australia or New Zealand and used in normal domestic applications and is in addition to
(and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand. All warranties are subject to the
conditions set out in the warranty card accompanying the product when purchased.
EHI955BD
