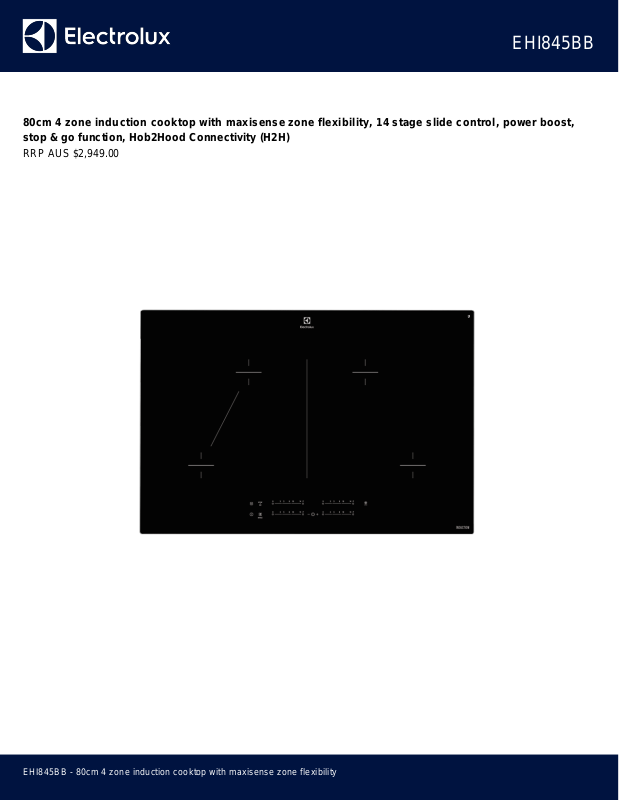

Page 1
80cm 4 zone induction cooktop with maxisense zone flexibility, 14 stage slide control, power boost,
stop & go function, Hob2Hood Connectivity (H2H)
RRP AUS $2,949.00
EHI845BB
EHI845BB - 80cm 4 zone induction cooktop with maxisense zone flexibility
Page 2
Product Details
FEATURES
Hob2Hood technology High performance induction
technology
Residual heat indicators all
zones
Indicates which area is too
hot to comfortably touch.
Timer
Minute minder Auto warm-up function STOP & GO function Touch and slide controls
Touch the control bar at the
necessary heat setting
Child safety device Acoustic signal
Confirms use of the control
panel
BENEFITS
Hob2Hood
With our innovative Hob2Hood technology you can
effortlessly control your kitchen environment as you cook.
This smart technology allows a compatible rangehood and hob
to seamlessly work together to instantly get rid of unpleasant
cooking odours. As you increase the heat, the temperature
sensors automatically adjust your hood to your cooking
intensity.
High performance induction technology
Have complete control with precise cooking. Cook from
simmer to a boil instantly while using induction technology.
Providing the ultimate in safety induction cooking generates
heat in the cookware, so surfaces around the pot are cool to
touch. The cooking environment remains cooler and is
therefore safer too. The surface is also easy to clean, as spills
can be simply wiped away.
Maximum flexibility
Maxisense induction cooktops are developed with three or four
extra large zones, which detect pan presence and location and
are not restricted to traditional circular zones
Professional results
Maxisense Induction combines the speed of gas with the
addition of precise control. A range of cooking zones allow the
cook to prepare any sized meal faster with a more consistently
high quality
EHI845BB
EHI845BB - 80cm 4 zone induction cooktop with maxisense zone flexibility
Page 3
Ultimate in safety and comfort
Induction cooking generates heat in the cookware, so surfaces
around the pot are cool to touch, and the cooking environment
remains cooler. The surface is also easy to clean, as spills are
simply wiped away
EHI845BB
EHI845BB - 80cm 4 zone induction cooktop with maxisense zone flexibility
Page 4
Specifications
PRODUCT PROFILE
Domestic warranty details
(yrs)
2
Cooktop type Induction
Materials/Colour black
Removable trim (for
cleaning)
No
Wok included designed to fit
cooktop
No
DIMENSIONS
Total product height (mm) 55
Total product width (mm) 780
Total product depth (mm) 520
Cut out width (mm) 750
Cut out depth (mm) 490
CONTROLS
Controls of Cooktops slide touch pad
Position of controls front
Functions of Cooktops stop and go,automatic warm
up,timer,Keep warm
function,auto heat up,cooking
timer with acoustic
signal,acoustic
signal,booster,automatic switch
off,power booster
Indicators/display fault indicator,residual heat
warning lamps,3 level residual
heat indicator
ELEMENTS/BURNERS
LEFT FRONT ZONE
Left front zone induction extended
Left front Watts 2300
Left front boost watts 3200
Left front diameter 210
EHI845BB
EHI845BB - 80cm 4 zone induction cooktop with maxisense zone flexibility
Page 5
CONTROLS
Features of Cooktop safety cut off,overheating
protection,electronic
timer,minute minder,function
lock,auto pot
sensors,automatic pan
sensing,safety child lock,hot
surface indicator
Timer of Cooktop programmable 99min,auto
off,countdown,CountUp
Readable temperature
setting
No
LEFT REAR ZONE
Left rear zone induction extended
Left rear watts 2300
Left rear diameter 210
RIGHT FRONT ZONE
Right front zone induction extended
Right front Watts 2300
Right front diameter 210
RIGHT REAR ZONE
Right rear zone induction extended
Right rear watts 2300
Right rear diameter 210
ELECTRICAL SPECIFICATIONS
Connected load KW 7.4
Type of connection hardwired
EHI845BB
EHI845BB - 80cm 4 zone induction cooktop with maxisense zone flexibility
Page 6
Dimensions
EHI845BB
EHI845BB - 80cm 4 zone induction cooktop with maxisense zone flexibility
Page 7
ELECTROLUX HOME PRODUCTS AUSTRALIA
telephone: 1300 363 640
fax: 1800 350 067
email: [email protected]
web: www.electrolux.com.au
ELECTROLUX HOME PRODUCTS NEW ZEALAND
telephone: 09 573 2230
fax: 09 573 2221
email: [email protected]
web: www.electrolux.co.nz
Terms and Conditions
IMPORTANT
This is a guide of product dimensions only. For complete installation instructions, refer to the manual provided with product.
PRODUCT INFORMATION
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy of
continuous productdevelopment, product specifications may change without notice. Prospective purchasers should therefore check with their retailer to
ensure this publication correctly describes theproducts that are being offered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Electrolux Home Products PtyLtd (Australia) and Electrolux (NZ) Ltd (New Zealand) will not be liable for
any loss, liability or damage of whatever kind arising as a result of reliance on such information. Colours ofproducts illustrated are as close as printing
limitations allow. Electrolux will at all times comply with its obligations pursuant to law including Trade Practices (Australian Consumer Law) Act and
Regulations.
WARRANTY
This warranty only applies to Appliances purchased and used in Australia or New Zealand and used in normal domestic applications and is in addition to
(and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand. All warranties are subject to the
conditions set out in the warranty card accompanying the product when purchased.
