ELECTROLUX EHG7822X User Manual

user manual

IE GB

Gas hob

EHG7822

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2
Installation 4
Product description 8
Operation 8
Helpful hints and tips 9

SAFETY INFORMATION

Warning! These instructions are only
valid in the countries whose symbols
appear on this booklet's cover.

For your safety and correct operation
of the appliance, read this manual
carefully before installation and use. Al­ways keep these instructions with the
appliance even if you move or sell it.
Users must fully know the operation
and safety features of the appliance.

General safety

Warning! Persons (including children)

with reduced physical sensory, mental
capabilities or lack of experience and
knowledge must not use the appliance.
They must have supervision or
instruction for the operation of the
appliance by a person responsible for
their safety.

Child safety

• Only adults can use this appliance. Chil­dren must get supervision to make sure
that they do not play with the appliance.

• Keep all packaging away from children.
There is a risk of suffocation and physical
injury.

• Keep children away from the appliance
during and after the operation, until the
appliance is cold.

Use

• Remove all packaging, stickers and the
protective layer of the stainless steel hob
panel (if present) from the appliance be­fore first use. Do not remove the rating
plate. It can invalidate the guarantee.

Care and cleaning 10
What to do if… 11
Technical data 12
Environment concerns 12

Subject to change without notice

• Set the cooking zones to the "off" posi­tion after each use.

• Burners and accessible part become hot
during and after use. Do not put cutlery
or saucepan lids on the cooking surface.
Cookware and its contents can tip over.
There is the risk of burns.

• Too hot fats and oils can ignite very
quickly. There is the risk of fire.

• Do not leave the appliance unattended
during operation.

• Always monitor the appliance during op­eration.

• Do not let the liquids overflow into the
holes of the top of the hob

• Do not use the hob without cookware.

• The appliance is only for domestic use.
Do not use the appliance for commercial
and industrial use.

• Only use the appliance for domestic
cooking tasks. This is to prevent physical
injury to persons or prevent damage to
property.

• Use only cookware with diameter appli­cable to the dimensions of burners. There
is a risk of overheating and rupture of the
glass plate (if applicable).

• Do not use a pan with diameter smaller
than burner dimension - flames will heat
up the pan handle.

• Pots must not enter the control zone.

• Do not use not stable cookware to pre­vent from tilt and accident.

• Do not put flammable products or items
that are wet with flammable products,
and/or fusible objects (made of plastic or
aluminium) and/or fabrics in, near or on
the appliance. There is the risk of explo­sion or fire.

electrolux 3

• Use only the accessories supplied with
appliance.

• Be careful when you connect the appli­ance to the near sockets. Do not let elec­tricity bonds touch the appliance or hot
cookware. Do not let electricity bonds
tangle.

Installation

• You must read these instructions.
The manufacturer is not responsible
for any injury to persons and pets or
damage to property caused by failure
to obey these requirements.

• To prevent the risks of structural
damage or physical injury, installa­tion, connection of the appliance to
the power supply and gas system,
setting up and maintenance must on­ly be done by qualified personnel in
compliance with standards and local
regulation force.

• Make sure that the appliance is not dam­aged because of transport. Do not con­nect a damaged appliance. If it is neces­sary, speak to the supplier.

• Only use built-in appliances after you as­semble the appliance into correct built-in
units and work surfaces that obey the
standards.

• Do not install the hob over a domestic
appliances if the installation instructions
do not allow it.

• Install the appliance only on a worktop
with flat surface.

• Do not change the specifications or mod­ify this product. There is the risk of injury
and damage to the appliance.

• Fully obey the laws, ordinances, direc­tives and standards in force in the coun­try where you use the appliance (safety
regulations, recycling regulations, electri­cal safety rules etc.)

• Keep the minimum distances to other ap­pliances and units.

• Install anti-shock protection, for example
install the drawers only with a protective
panel directly below the appliance.

• Prevent damage of the cut surfaces of
the worktop against moisture with a cor­rect sealant.

• Seal the appliance to the worktop with no
space left with a correct sealant.

• Prevent damage to the bottom of the ap­pliance from steam and moisture, e.g.
from a dishwasher or oven.

• Do not install the appliance adjacent to
doors and below windows. Hot cook­ware can be hit off the hob when you
open the doors or windows.

• Before installation, make sure that the lo­cal supply conditions (gas type and pres­sure) agree with the adjustment of appli­ance. The adjustment conditions for the
appliance are on the rating plate, which
you can find near the gas supply pipe.

• This appliance is not connected to a
combustion products evacuation device.
It must be installed and connected in ac­cordance with current installation regula­tions. Particular attention must be given
to the relevant requirements regarding
ventilation.

• The use of a gas cooking appliance

cause heat and moisture in the room
in which it is installed. Make sure
that the ventilation in the kitchen is
good: keep natural ventilation holes
open or install a mechanical ventila­tion device (mechanical extractor
hood).
More ventilation (for example open-

•

ing of a window or increasing the lev­el of mechanical ventilation where
present) is necessary when you oper­ate the appliance with intensity for a
long time.

• Carefully obey the instructions for electri­cal connections. There is the risk of injury
from electrical current.

• Disconnect the appliance from the

electrical supply, before you do the
maintenance work or you clean it.

• The electrical mains terminal is live.

• Make electrical mains terminal free of
voltage.

• Install correctly to give anti-shock protec­tion.

• A loose and incorrect mains plug and
socket connections can make the termi­nal become too hot.

• A qualified electrician must install the
clamping connections correctly.

• Use a strain relief clamp on cable.

• Use the correct mains connection cable
and replace the damaged mains cable

4 electrolux

with applicable cable. Speak to your local
Service Force Centre.

• The appliance must have the electrical in­stallation which lets you disconnect the
appliance from the mains at all poles with
a contact opening width of minimum 3
mm.

• If the fixing bracket is near to the terminal
block, always make sure the connection
cable does not come in contact with the
edge of the bracket.

• You must have correct isolation devices:
line protecting cut-outs, fuses (screw
type fuses removed from the holder),
ground leakage trips and contactors.

INSTALLATION

Warning! The following instructions
about installation, connection and
maintenance must be carried out by
qualified personnel in compliance with
standards and local regulations in
force.

Important safety requirements

This hob must be installed in accordance
with the Gas Safety (Installation and Use)
Regulations (Current Edition) and the IEE
Wiring Regulations (Current Edition).
For appliances installed in the Republic of
Ireland please refer to NSAI- Domestic Gas
Installation I.S. 813 Current Editions and the
ETCI Rules for Electrical Installations.

Provision for ventilation

Detailed recommendations are contained in
the following British Standards Codes Of
Practice: B.S. 6172/ B.S. 5440, Par. 2 and
B.S. 6891 Current Editions.
The hob should not be installed in a bed sit­ting room with a volume of less than 20 m³.
If it is installed in a room of volume less than
5 m³ an air vent of effective area of 100 cm²
is required. If it is installed in a room of vol­ume between 5 m³ and 10 m³ an air vent of
effective area of 50 cm² is required, while if
the volume exceeds 11 m³ no air vent is re­quired.
However, if the room has a door which
opens directly to the outside no air vent is
required even if the volume is between 5 m³
and 11 m³.
If there are other fuel burning appliances in
the same room, B.S. 5440 Part 2 Current

Disposal of the appliance

• To prevent the risk of physical injury or
damage
– Disconnect the appliance from the

power supply.

– Cut off the mains cable where it con-

nects with the appliance and discard it.

– Flat the external gas pipes if there are

fitted.

– Speak to your local authorised facilities

for disposal of your appliance.

Edition, should be consulted to determine
the requisite air vent requirements.
For appliances installed in the Republic of
Ireland please refer to the NSAI- Domestic
Gas Installation I.S. 813 Current Editions
Table Four.

Location

The hob may be located in a kitchen, a
kitchen/diner or bed sitting room (with a
volume greater than 20 m³), but not in a
bathroom or shower room.
The minimum distance combustible materi­al can be fitted above the hob in line with
the edges of the hob is 400 mm. If it is fit­ted below 400 mm a space of 50 mm must
be allowed from the edges of the hob.
For appliances installed in the Republic of
Ireland please refer to NSAI- Domestic Gas
Installation I.S 813 Current Edition Section
7- Permitted Locations of Appliance.

Gas Connection

Warning! Any gas installation must be

carried out by a GAS SAFE REGISTER
installer.

Make sure that, once the hob is installed, it
is easily accessible for the engineer in the
event of a breakdown.
The manufacturer will not accept liability,
should the above instructions or any of the
other safety instructions incorporated in this
instruction booklet be ignored.
On the end of the shaft, which includes the
G 1/2" threaded elbow, adjustment is fixed
so that the washer is fitted between the

electrolux 5

components as shown in the diagram.
Screw the parts together without using ex­cessive force.

1

2

3

1 End of shaft with nut
2 Washer

3 Elbow

Connection to the gas supply should be
with either rigid or semi-rigid pipe, i.e. steel
or copper.
The connection should be suitable for con­necting to R 1/2 (1/2 BSP male thread).
When the final connection has been made,
it is essential that a thorough leak test is
carried out on the hob and installation.
Make sure that the main connection pipe
does not exert any strain on the hob.
If you use flexible metal pipes make sure
that they agree to ISO 10380 and ISO
10807 standards. Be careful they do not
come in touch with mobile parts or they are
not squeezed. Also be careful when the
hob is put together with an oven.

Important! It is important to install the
elbow correctly, with the shoulder on the
end of the thread, fitted to the hob
connecting pipe.

Important! Failure to ensure the correct
assembly will cause leakage of gas.

Important! Make sure that the gas supply
pressure of the appliance obeys the
recommended values.

Rigid connection:

Carry out connection by using metal rigid
pipes (copper with mechanical end).

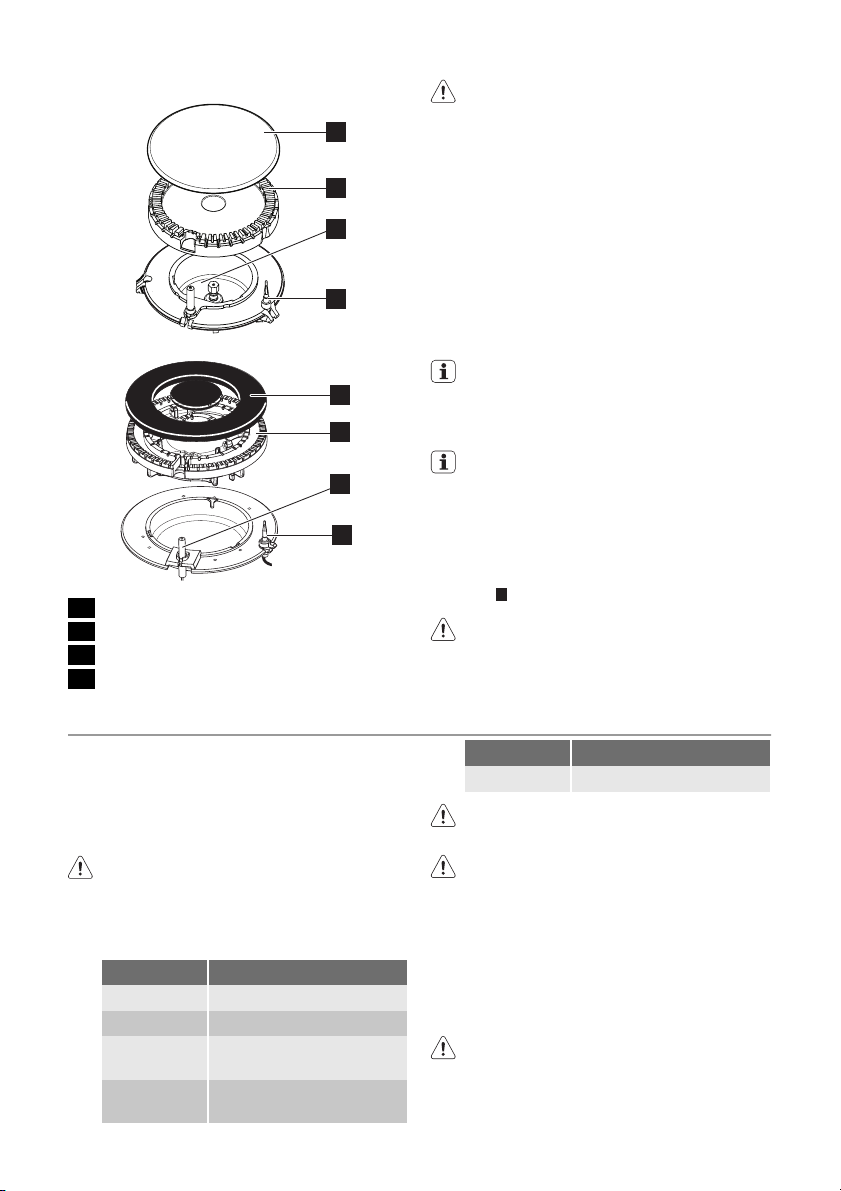

Injectors replacement

1. Remove the pan supports.

2. Remove the caps and crowns of the
burner.

3. With a socket spanner 7 remove the in­jectors and replace them with the ones
which are necessary for the type of gas
you use (see table in Technical Data
section).

4. Assemble the parts, follow the same
procedure backwards.

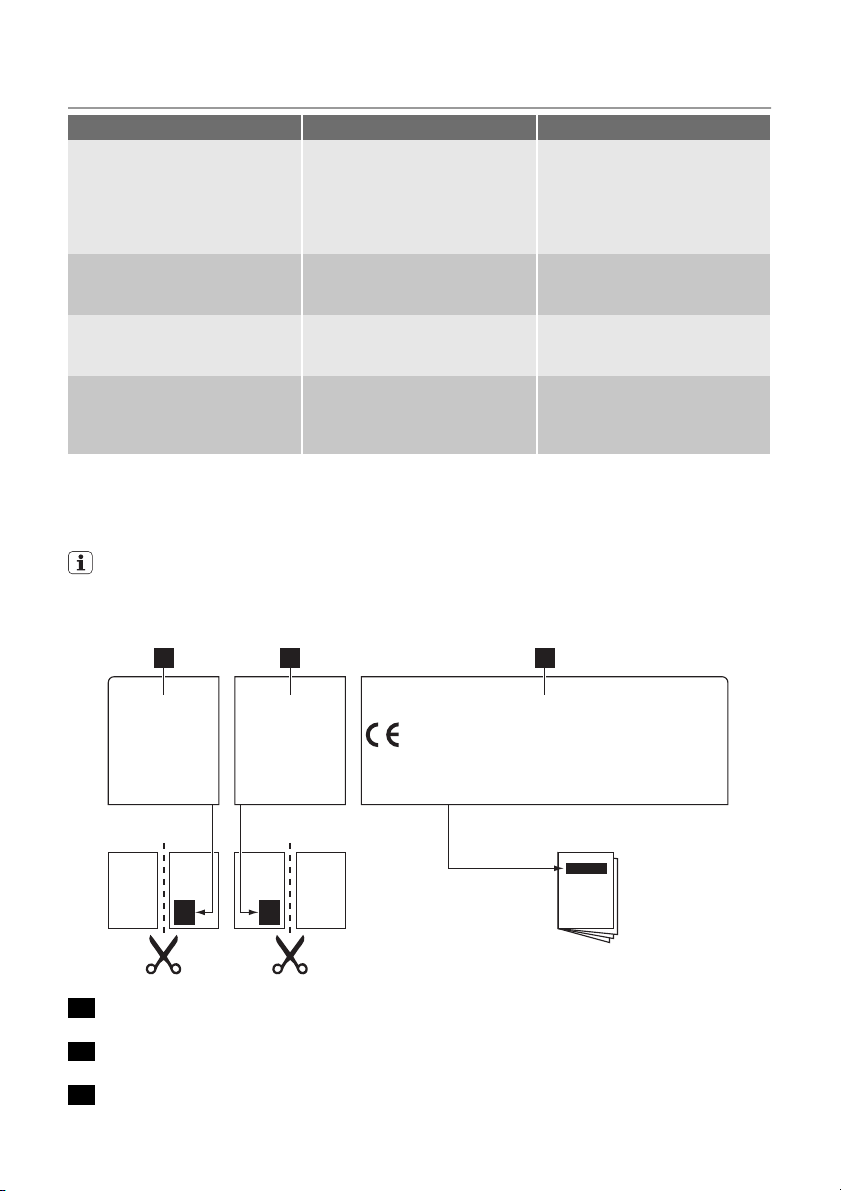

5. Replace the rating plate (it is near the
gas supply pipe) with the one for the
new type of gas supply. You can find
this plate in the package supplied with
the appliance.

If the supply gas pressure is changeable or
different from the necessary pressure, you
must fit an applicable pressure adjuster on
the gas supply pipe.

Adjustment of minimum level

To adjust the minimum level of the burners:

1. Light the burner.

2. Turn the knob on the minimum posi­tion.

3. Remove the knob.

4. With a thin screwdriver, adjust the by­pass screw position.

1

1 The by-pass screw

– If you change from natural gas 20

mbar to liquid gas, fully tighten the
by-pass screw in.

– If you change from liquid gas to natu-

ral gas 20 mbar, undo the by-pass
screw approximately 1/4 of a turn
(1/2 of a turn for Triple Crown burn­er).

Warning! Make sure the flame does
not go out when you quickly turn the
knob from the maximum position to the
minimum position.
