Electrolux EHG770X, EHG770W, EHG770B User Manual
Gas hobs
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
35675-7402
Mod. EHG 770
GB
Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If you need
assistance, contact our Customer Care Department on 08705 950950
Installation
l This hob must be installed by qualified personnel,
according to the manufacturers instructions and to
the relevant British Standards.
l Any gas installation must be carried out by a
registered CORGI installer.
l Remove all packaging before using the hob.
l Ensure that the gas and electrical supply complies
with the type stated on the rating plate, located near
the gas supply pipe.
l Do not attempt to modify the hob in any way.
Child Safety
l This hob is designed to be operated by adults. Do
not allow children to play near or with the hob.
l The hob gets hot when it is in use.
l Children should be kept away until it has cooled.
l Children can also injure themselves by pulling pans
or pots off the hob.
During Use
l This hob is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.
l When in use a gas cooking appliance will produce
heat and moisture in the room in which it has been
installed. Ensure there is a continuous air supply,
keeping air vents in good condition or installing a
cooker hood with a venting hose.
l When using the hob for a long period time, the
ventilation should be improved, by opening a window
or increasing the extractor speed.
l Do not use this hob if it is in contact with water.
Do not operate the hob with wet hands.
l Ensure the control knobs are in the OFF position
when not in use.
l When using other electrical appliances, ensure the
cable does not come into contact with the hot surfaces
of the cooking appliance.
l Unstable or misshapen pans should not be used on
the hob as unstable pans can cause an accident by
tipping or spillage.
l Never leave the hob unattended when cooking with
oil and fats.
l Never use plastic or aluminium foil dishes on the hob.
l Perishable food, plastic items and areosols may be
affected by heat and should not be stored above or
below the hob unit.
Service
l This hob should only be repaired or serviced by an
authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
l After installation, please dispose of the packaging with
due regard to safety and the environment.
l When disposing of an old appliance, make it unusable,
by cutting off the cable.
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
Guide to Use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
F
Hints and Tips
Environmental Information
This appliance complies with the following
E.E.C. Directives:
* 73/23 - 90/683
(Low VoltageDirective);
* 93/68 (General Directives);
* 89/336 (Electromagnetical
Compatibility Directive);
* 90/396 (Gas Appliances),
and subsequent modifications
2
Contents
For the User
Important Safety Information 2
Description of the Hob 3
Operation 4
Maintenance and Cleaning 4
Something Not Working? 5
Service and Sparte Parts 6
Customer Care Department 6
Guarantee Conditions 7
For the Installer
Instructions for the Installer 8
Important safety requirements 9
Installation 9
Building In 10
Electrical connections 11

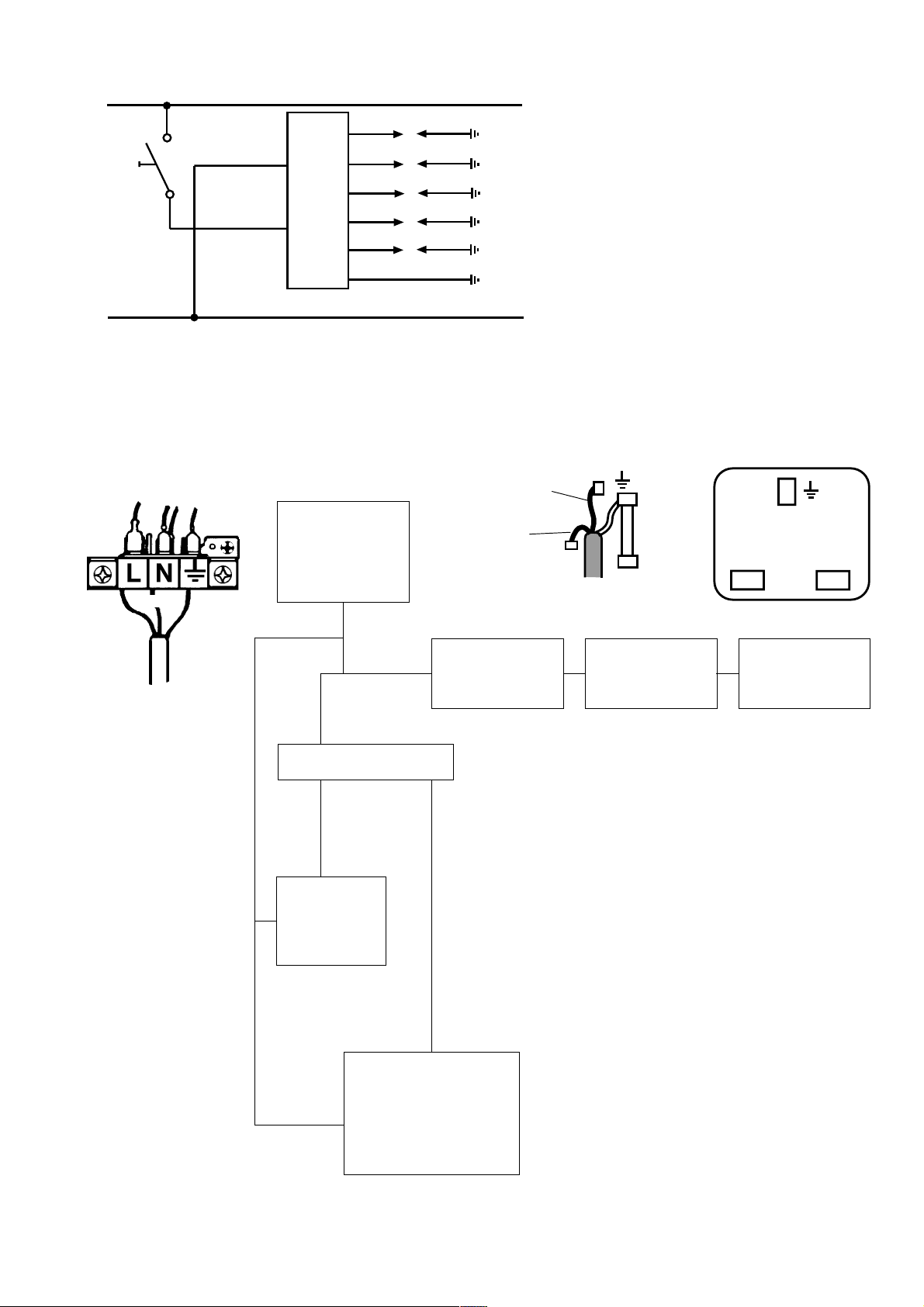

Wiring Diagram 12
Fault Finding 12
Commissioning 14
Conversion from Natural Gas to LPG 15
Description of the Hob
2
5
1. Auxiliary Burner
2. Semi-rapid Burners
3. Ultra-rapid Triple-crown Burner
6
1
3
4
2
4. Rapid Burner
5. Ignition push-button
6. Control knobs
3
Operation
Hob burners
To light a burner:
F
l push the electric ignition push-button which is marked
by a little spark symbol ( );
l at the same time turn the relevant control knob
anticlockwise to maximum position;
l then adjust the flame as required.
If the burner does not ignite, turn the control knob to
zero, and try again.
To ensure maximum burner efficiency, you should only
use pots and pans with a flat bottom fitting the size of
the burner used (see table).
If you use a saucepan which is smaller than
the recommended size, the flame will spread
beyond the bottom of the vessel, causing the
handle to overheat.
As soon as a liquid starts boiling, turn down the
flame so that it will barely keep the liquid
simmering.
Take care when frying food in hot oil or fat,
as the overheated splashes could easily
ignite.
If the control knobs become difficult to turn, please
contact your local Electrolux Service Force Centre.
Burner minimum maximum
diameter diameter
Ultra-rapid
(Triple-crown) 180 mm. 260 mm.
Large (rapid) 180 mm. 260 mm.
Medium (semi-rapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.
Using the Wok Stand
A wok stand is provided to enable you to use a round
bottomed wok on the hob. The wok stand must only be
used on the central burner, and should not be used with
any other type of wok or pan.
When fitting the wok stand, ensure the recesses in the
frame fit securely onto the bars of the pan supports, as
shown in the diagram.
Maintenance and Cleaning
Before any maintenance or cleaning can be carried
out, you must DISCONNECT the hob from the
electricity supply.
The hob is best cleaned whilst it is still warm, as
spillage can be removed more easily than if it is
left to cool.
The Hob Top
Regularly wipe over the hob top using a soft cloth well
wrung out in warm water to which a little washing up liquid
has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a cleaning product such as Hob Brite
or Bar Keepers Friend is used.
4
Pan Supports and Wok Stand
To keep the pan supports in the correct position, they
are hooked into hinges at the back of the hob.
The pan supports can be lifted for easier cleaning, as
shown in Fig. 1.
To remove the pan supports completely, proceed as
shown in Fig. 2.
The pan supports and the Wok Stand are dishwasher
proof. If washing them by hand, take care when drying
them as the enamelling process occasionally leaves
rough edges. If necessay, remove stubborn stains using
a paste cleaner.
The Burners
The burner caps and crowns can be removed for cleaning.
Wash the burner caps and crowns using hot soapy water,
and remove marks with a mild paste cleaner. A well
moistened soap impregnated steel wool pad can be used
with caution, if the marks are particularly difficult to
remove.
After cleaning, be sure to wipe dry with a soft cloth.
FO 2030
Fig. 1
FO 2238
Fig. 2
Something Not Working?
If the hob is not working correctly, please carry out the following checks before contacting your local Electrolux
Service Force Centre.
SYMPTOM
n There is no spark when lighting the gas
n The gas ring burns unevenly
SOLUTION
u Check that the unit is plugged in and the electrical
supply is switched on
u Check that the RCCB has not tripped (if fitted)
u Check the mains fuse has not blown
u Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
u Check the main jet is not blocked and the burner
crown is clear of food particles.
u Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
If after all these checks, your hob still does not operate
correctly, contact your local Electrolux Service Force
Centre.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the
above checks have been made as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown.
5
Service and Spare Parts
In the event of your appliance requiring service, or if you
wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre and
further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have
read the details under the heading Something Not
Working.
When you contact the Service Force Centre you will need
to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found
on the rating plate)
5. The purchase date
Customer Care Department
For general enquiries concerning your Electrolux
appliance or for further information on Electrolux
products, please contact our Customer Care Department
by letter or telephone at the address below or visit our
website at www.electrolux.co.uk
Customer Care Department
ELECTROLUX
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel. 08705 950950 (*)
* calls to this number may be recorded for training purposes.
6
