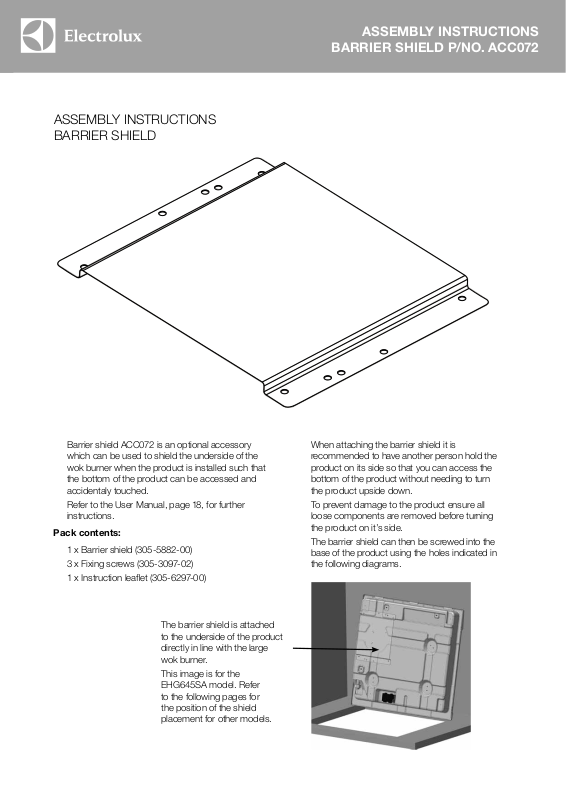

Page 1
ASSEMBLY INSTRUCTIONS
BARRIER SHIELD
ASSEMBLY INSTRUCTIONS
BARRIER SHIELD P/NO. ACC072
Barrier shield ACC072 is an optional accessory
which can be used to shield the underside of the
wok burner when the product is installed such that
the bottom of the product can be accessed and
accidentaly touched.
Refer to the User Manual, page 18, for further
instructions.
Pack contents:
1 x Barrier shield (305-5882-00)
3 x Fixing screws (305-3097-02)
1 x Instruction leaflet (305-6297-00)
The barrier shield is attached
to the underside of the product
directly in line with the large
wok burner.
This image is for the
EHG645SA model. Refer
to the following pages for
the position of the shield
placement for other models.
When attaching the barrier shield it is
recommended to have another person hold the
product on its side so that you can access the
bottom of the product without needing to turn
the product upside down.
To prevent damage to the product ensure all
loose components are removed before turning
the product on it’s side.
The barrier shield can then be screwed into the
base of the product using the holes indicated in
the following diagrams.
Page 2
MODEL EHG645SA
ASSEMBLY INSTRUCTIONS
BARRIER SHIELD P/NO. ACC072
Fixing screw locations
MODELS EHG953BA & EHG953SA
Fixing screw locations (2 only on these models)
Page 3

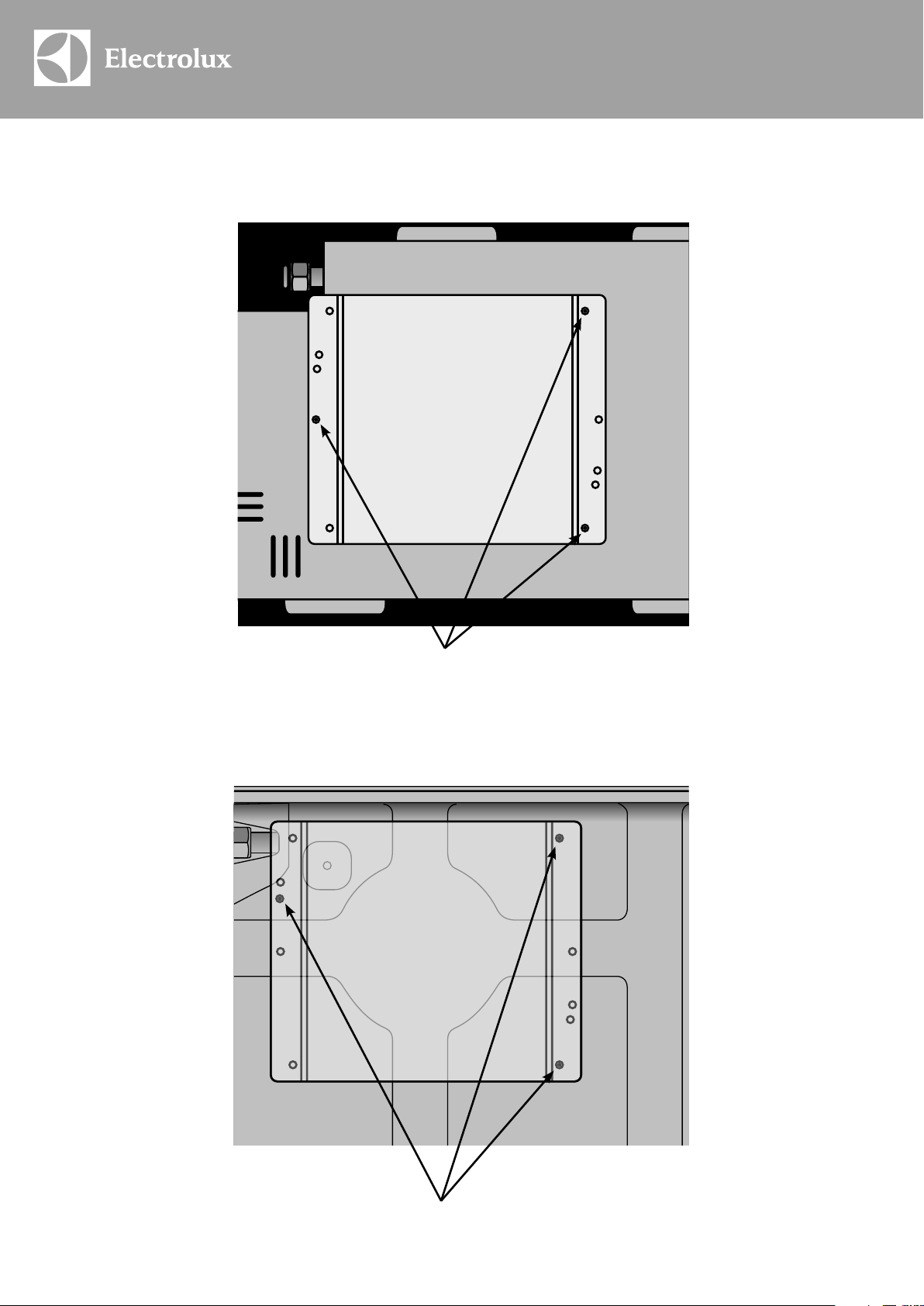

MODEL EHG313BA
ASSEMBLY INSTRUCTIONS
BARRIER SHIELD P/NO. ACC072
Fixing screw locations
MODELS EHG755SA & EHG955SA
Fixing screw locations
Page 4

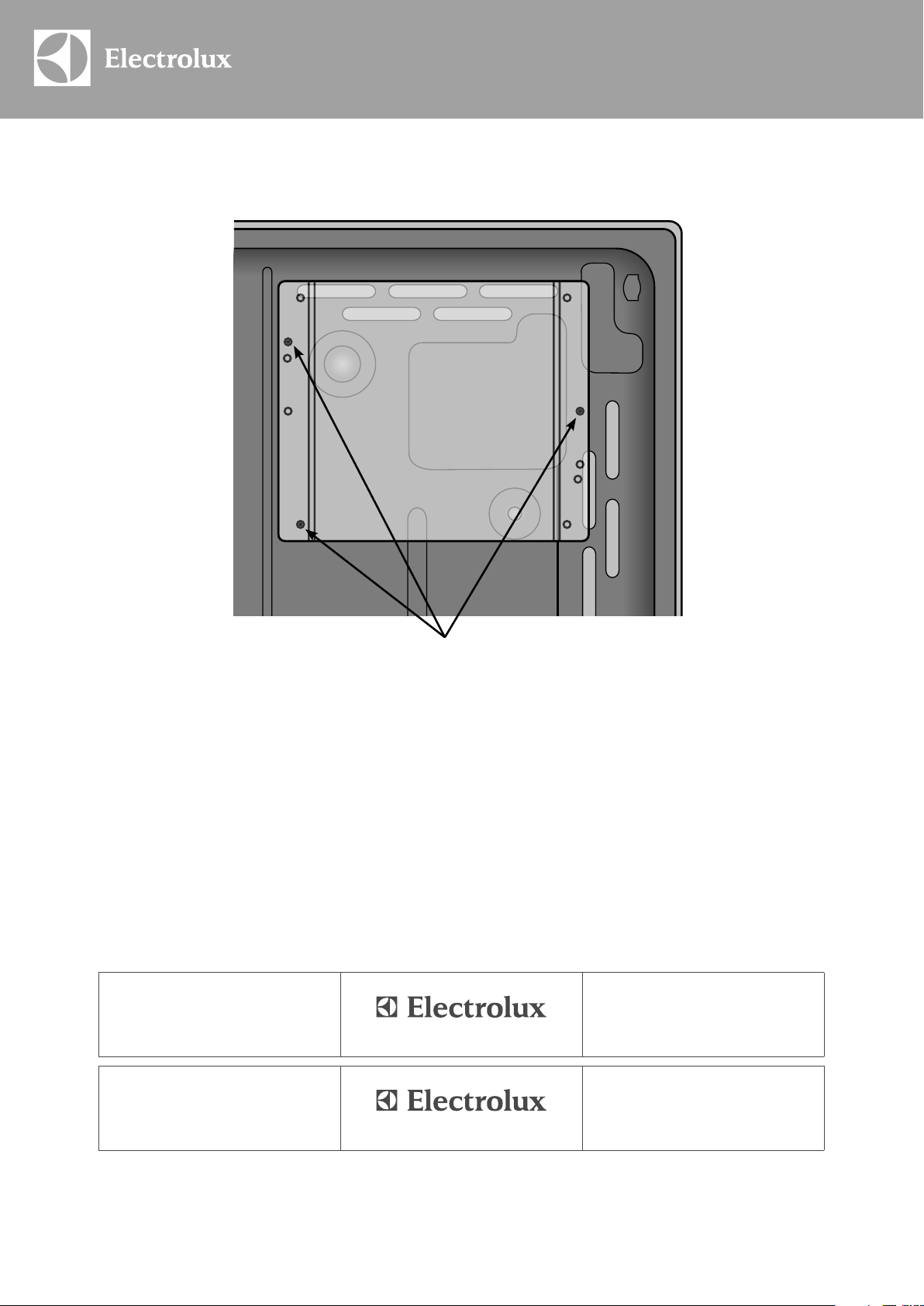

BARRIER SHIELD P/NO. ACC072
MODEL EHG643BA & EHG643SA
ASSEMBLY INSTRUCTIONS
Before calling a Service Technician please check carefully the operating instructions,
service booklet and the warranty terms and conditions.
FOR SERVICE
or to find the address of your nearest
state service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call (Australia only)
FOR SERVICE
or to find the address of your nearest
authorised service centre in New Zealand
FREE CALL 0800 10 66 10
(New Zealand only)
Fixing screw locations
Important Notice
SERVICE AUSTRALIA
ELECTROLUX HOME PRODUCTS
www.electrolux.com.au
SERVICE NEW ZEALAND
ELECTROLUX HOME PRODUCTS
www.electrolux.co.nz
FOR SPARE PARTS
or to find the address of your nearest
state spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call (Australia only)
FOR SPARE PARTS
or to find the address of your nearest
state spare parts centre in New Zealand
FREE CALL 0800 10 66 20
(New Zealand only)
© 2013 Electrolux Home Products Pty Ltd. ABN 51 004 762 341
EMAN_RUBYBARRIER_INSTALL_June13
Part Number: ACC072
