Electrolux EHG679B User Manual

Gas Hob

INSTRUCTION BOOKLET

35670-3001

Models EHG 679 B - EHG 679 W

Important Safety Information

Installation

You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 01635 522799

● This appliance must be installed by qualified

personnel, according to the manufacturer’s instructions and to the relevant British Standards.

● Any gas installation must be carried out by a

registered CORGI installer.

● Remove all packaging before using the appliance.

● Ensure that the gas and electrical supply complies

with the type stated on the rating plate, located near the gas supply pipe.

● Do not attempt to modify the appliance in any way.

Child Safety

● This appliance is designed to be operated by adults.

Do not allow children to play near or with the appliance.

● The appliance gets hot when it is in use. Children

should be kept away until it has cooled.

● Children can also injure themselves by pulling pans

or pots off the hob.

● Ensure the control knobs are in the ‘OFF’ position

when not in use.

● When using other electrical appliances, ensure the

cable does not come into contact with the hot surfaces of the cooking appliance.

● Unstable or misshapen pans should not be used on

the hob as unstable pans can cause an accident by tipping or spillage.

● Never leave the hob unattended when cooking with

oil and fats.

● Never use plastic or aluminium foil dishes on the

hob.

● Perishable food, plastic items and areosols may be

affected by heat and should not be stored above or below the hob unit.

Service

● This appliance should only be repaired or serviced

by an authorised Service Engineer and only genuine approved spare parts should be used.

During Use

● This appliance is intended for domestic cooking only.

It is not designed for commercial or industrial purposes.

● When in use a gas cooking appliance will produce

heat and moisture in the room in which it has been installed. Ensure there is a continuous air supply, keeping air vents in good condition or installing a cooker hood with a venting hose.

● When using the hob for a long period time, the

ventilation should be improved, by opening a window or increasing the extractor speed.

● Do not use this appliance if it is in contact with water.

Do not operate the appliance with wet hands.

Environmental Information

● After installation, please dispose of the packaging

with due regard to safety and the environment.

● When disposing of an old appliance, make it

unusable, by cutting off the cable.

Keep this instruction book for future

reference and ensure it is passed on

to any new owner.

Contents

For the User

Description of the Appliance Page 5

Operation Page 6 Maintenance

and Cleaning Page 7 Something Not

Working? Page 8 Service and Spare Parts Page 8 Electrolux Service Force

Centre Addresses Page 9 Guarantee Conditions Page 11

For the Installer

Technical Data Page 12 Important Safety

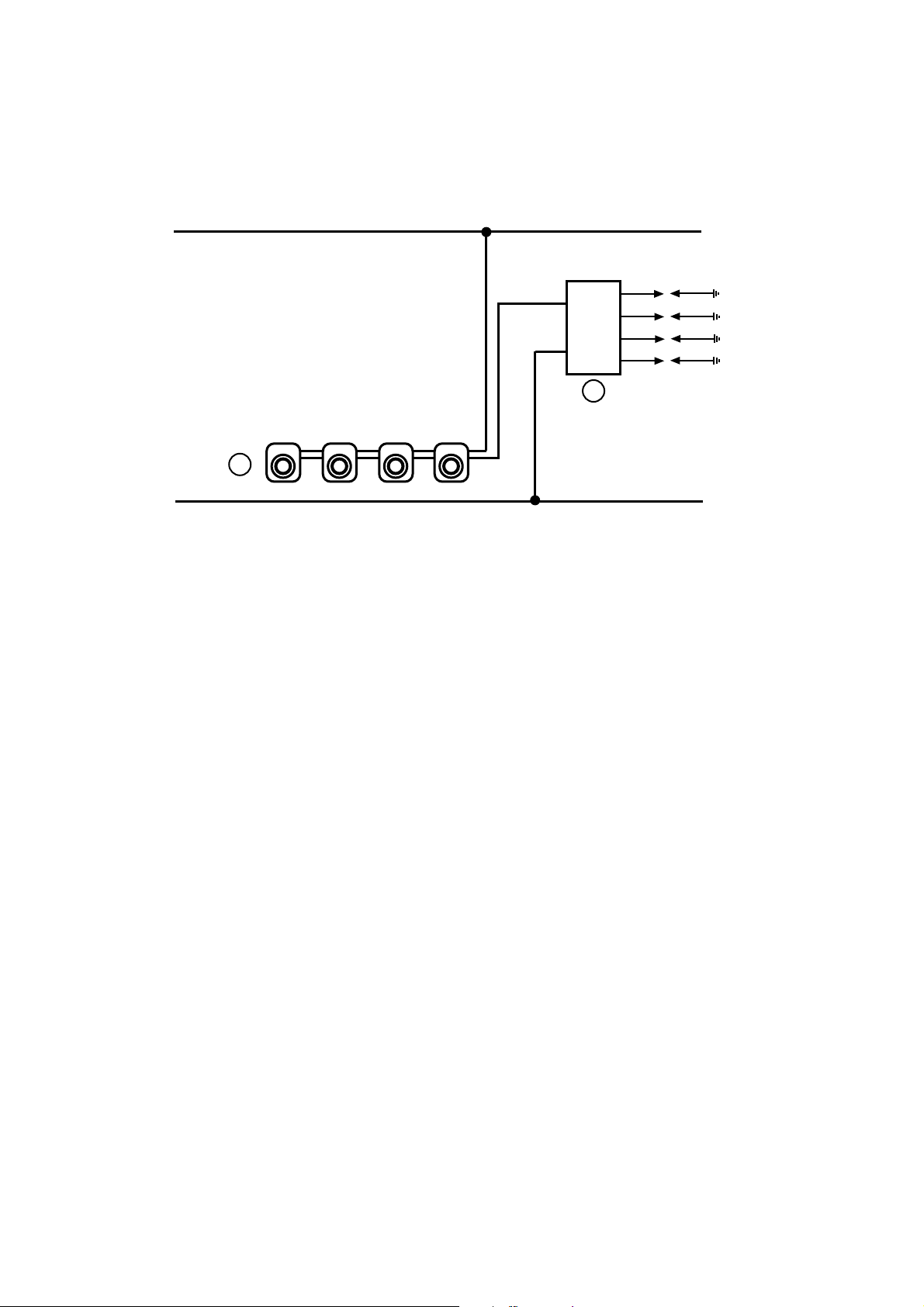

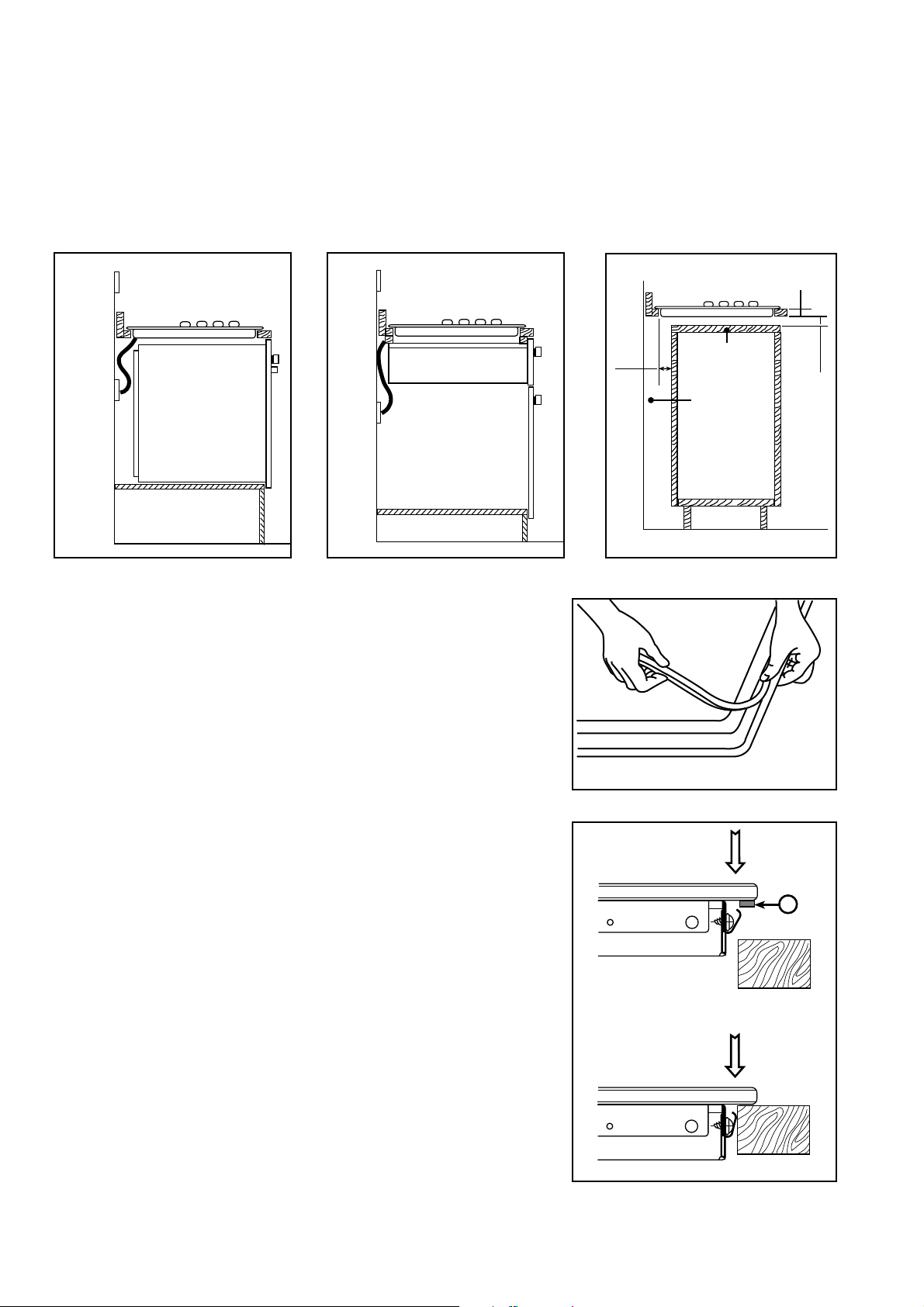

Requirements Page 13 Installation Page 14 Gas Connection Page 14 Building In Page 15 Electrical Connection Page 16 Wiring Diagram Page 17 Fault Finding Page 18 Commissioning Page 20 Servicing Page 21 Conversion from

natural gas to LPG Page 21

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an

☞

operation

Hints and Tips

This appliance is manufactured according to the following EEC directives: 73/23 EEC - 90/683 EEC - 93/68 EEC 89/336 EEC - 90/396 EEC, current edition.

Description of the Appliance

1. Hob Top

2. Rapid Burner

3. Semi-rapid Burners

4. Auxiliary Burner

5. Control knob for back right burner (semi-rapid)

6. Control knob for back left burner (semi-rapid)

7. Control knob for front left burner (rapid)

8. Control knob for front right burner (auxiliary)

INSTALLATION

Any gas installation must be carried out by a registered CORGI installer, and in accordance with existing rules and

regulations. The relevant instructions are to be found in the second section of this manual.

Please, ensure that, once the appliance is

installed, it is easily accessible for the

engineer in the event of a breakdown.

WHEN THE HOB IS FIRST INSTALLED

Once the hob has been installed, it is important to remove any protective materials, which were put on in the factory.

Operation

HOB BURNERS

To light a burner, turn the relevant control knob anticlockwise to maximum position and push it down to ignite. Then adjust the flame as required. If the burner does not ignite, turn the control knob to zero, and try again.

When switching on the mains, after

installation or a power cut, it is quite normal for the spark generator to be activated automatically.

To ensure maximum burner efficiency, you should only use pots and pans with a flat bottom fitting the size of the burner used (see table).

Burner minimum maximum

diameter diameter

Large (rapid) 160 mm. 240 mm. Medium (semi-rapid) 120 mm. 220 mm. Small (Auxiliary) 80 mm. 160 mm.

If you use a saucepan which is smaller than the recommended size, the flame will spread beyond the bottom of the vessel, causing the handle to overheat.

As soon as a liquid starts boiling, turn down the flame so that it will barely keep the

liquid simmering.

FO 0252

Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite.

If the control knobs become difficult to turn, please contact your local Electrolux Service Centre.

Maintenance and Cleaning

Before any maintenance or cleaning can be

carried out, you must DISCONNECT the

appliance from the electricity supply.

The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool.

The Hob Top

Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which a little wasing up liquid has been added. Avoid the use of the following:

- household detergent and bleaches;

- impregnated pads unsuitable for non-stick saucepans;

- steel wool pads;

- bath/sink stain removers. Should the hob top become heavily soiled, it is

recommended that a cleaning product such as Hob Brite or Bar Keepers Friend is used.

Pan Supports

The pan supports are dishwasher proof. If washing them by hand, take care when drying them as the enamelling process occasionally leaves rough edges. If necessay, remove stubborn stains using a paste cleaner.

The Burners

The burner caps and crowns can be removed for cleaning.

Wash the burners taps and crowns using hot soapy water, and remove marks with a mild paste cleaner. A well moistened soap impregnated steel wool pad can be used with caution, if the marks are particularly difficult to remove.

After cleaning, be sure to wipe dry with a soft cloth.

Something Not Working?

If the appliance is not working correctly, please carry out the following checks before contacting your local Electrolux Service Force Centre.

SYMPTOM

■ There is no spark when lighting the gas

■ The gas ring burns unevenly

If after all these checks, your appliance still does not operate correctly, contact your local Electrolux Service Force Centre.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

SOLUTION

◆ Check that the unit is plugged in and the electrical supply is switched on

◆ Check that the RCCB has not tripped (if fitted)

◆ Check the mains fuse has not blown

◆ Check the burner cap and crown have been

replaced correctly, e.g. after cleaning.

◆ Check the main jet is not blocked and the burner crown is clear of food particles.

◆ Check the burner cap and crown have been replaced correctly, e.g. after cleaning.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Service and Spare Parts

If you require spare parts or an engineer contact your local Service Force Centre by telephoning:

0990-929929

Your call will be routed to the Service Centre covering your post code area. The addresses of Electrolux Service Force Centres are detailed on the following pages.

When you contact the Service Centre, they will need the following information:

1. Your name, address and post code.

2. Your telephone number

3. Clear and concise details of the fault

4. The model and the serial number (see rating label on the back of this instruction booklet)

5. Date of purchase

CUSTOMER CARE

For general enquiries concerning your Electrolux appliance and for further information on Electrolux products, contact our Customer Care Department by letter or telephone as follows:

Customer Care Department

Electrolux PO Box 47 Newbury RG14 5XL Tel : 01635 52 27 99
