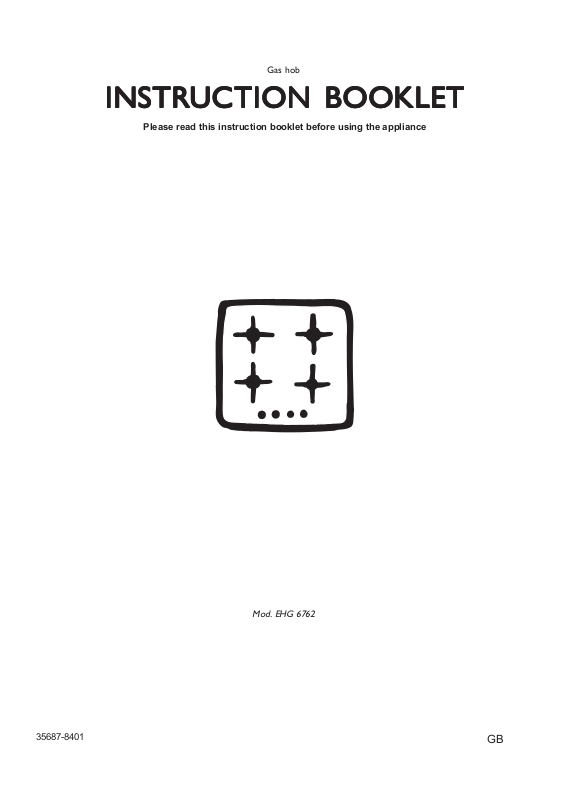

Electrolux EHG6762X, EHG6762K User Manual
Gas hob
INSTRINSTR
INSTR
INSTRINSTR
Please read this instruction booklet before using the appliance
UCTION BOOKLETUCTION BOOKLET
UCTION BOOKLET
UCTION BOOKLETUCTION BOOKLET
35687-8401
Mod. EHG 6762
GB
Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If you need
assistance, contact our Customer Care Department on 08705 950 950
Installation
z This appliance must be installed and serviced by a
competent person as stated in the Gas Safety (
Installation and Use) Regulations Current Editions
and the IEE Wiring Regulations.
z For appliances installed in the Republic of Ireland
please refer to NSAI-Domestic Gas Installations
I.S.813 Current Editions and the ETCI Rules for
Electrical Installations.
z Remove all packaging before using the hob.
z Ensure that the gas and electrical supply complies
with the type stated on the rating plate, located near
the gas supply pipe.
z Do not attempt to modify the hob in any way.
Child Safety
z This hob is designed to be operated by adults. Do
not allow children to play near or with the hob.
z The hob gets hot when it is in use.
z Children should be kept away until it has cooled.
z Children can also injure themselves by pulling pans
or pots off the hob.
z Perishable food, plastic items and aerosols may be
affected by heat and should not be stored above or
below the hob unit.
Service
z This hob should only be repaired or serviced by an
authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
z After installation, please dispose of the packaging with
due regard to safety and the environment.
z When disposing of an old appliance, make it unusable,
by cutting off the cable.
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
During Use
z This hob is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.
z When in use a gas cooking appliance will produce
heat and moisture in the room in which it has been
installed. Ensure there is a continuous air supply,
keeping air vents in good condition or installing a
cooker hood with a venting hose.
z When using the hob for a long period of time, the
ventilation should be improved, by opening a window
or increasing the extractor speed.
z Do not use this hob if it is in contact with water.
Do not operate the hob with wet hands.
z Ensure the control knobs are in the ‘OFF’ position
when not in use.
z When using other electrical appliances, ensure the
cable does not come into contact with the hot surfaces
of the cooking appliance.
z Unstable or misshapen pans should not be used on
the hob as unstable pans can cause an accident by
tipping or spillage.
z Never leave the hob unattended when cooking with
oil and fats.
z Never use plastic or aluminium foil dishes on the hob.
Guide to Use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
)
Hints and Tips
Environmental Information
This appliance complies with the following
E.E.C. Directives:
* 73/23 - 90/683
(Low VoltageDirective);
* 93/68 (General Directives);
* 89/336 (Electromagnetical Compatibility Directive);
* 90/396 (Gas Appliances),
and subsequent modifications
Contents
For the User
Important Safety Information 2
Description of the Hob 3
Operation 4
Maintenance and Cleaning 5
Something Not Working? 6
Service and Spare Parts 6
Customer Care 7
Guarantee Conditions 7
For the Installer
Instructions for the Installer 8
Important safety requirements 9

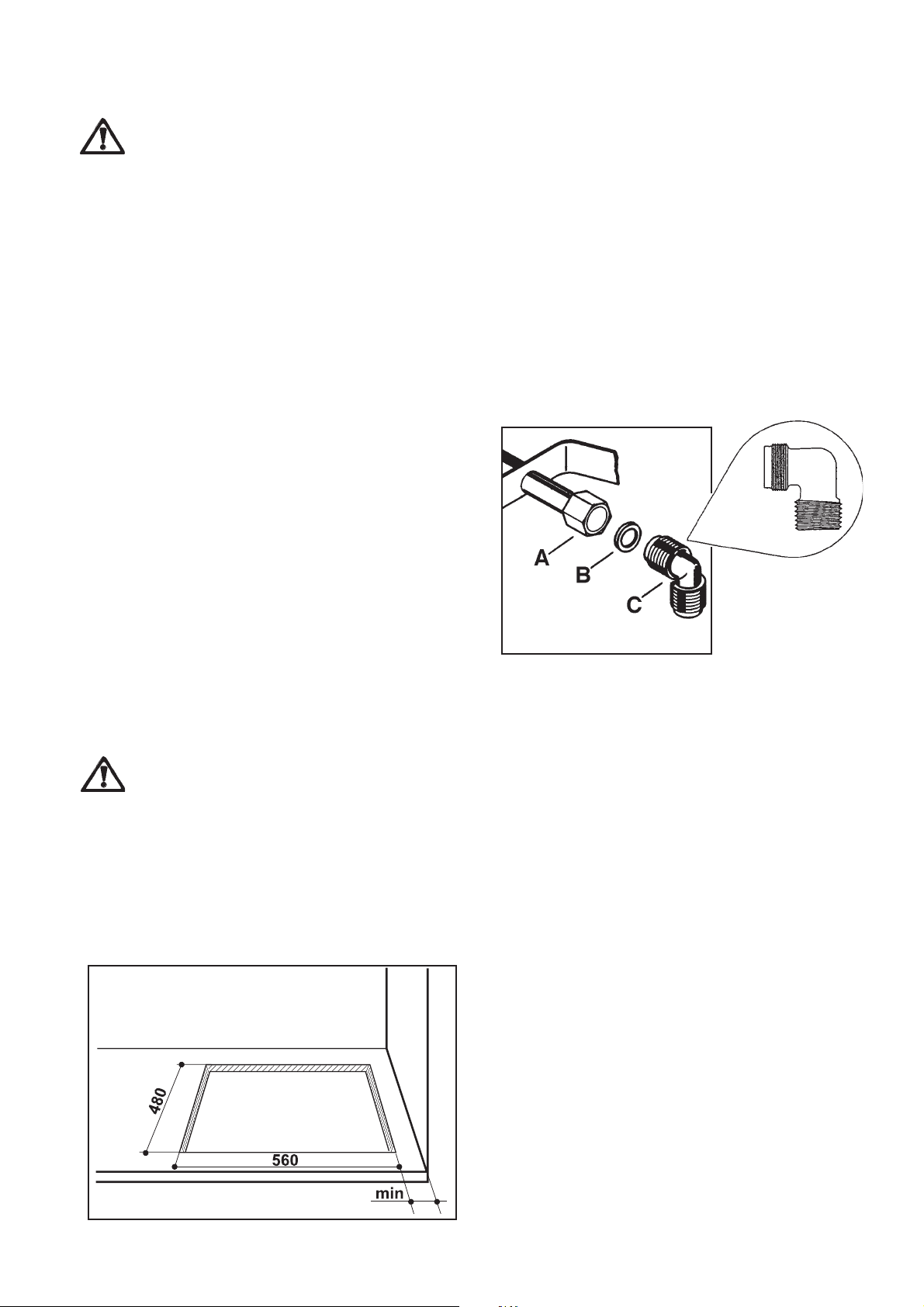

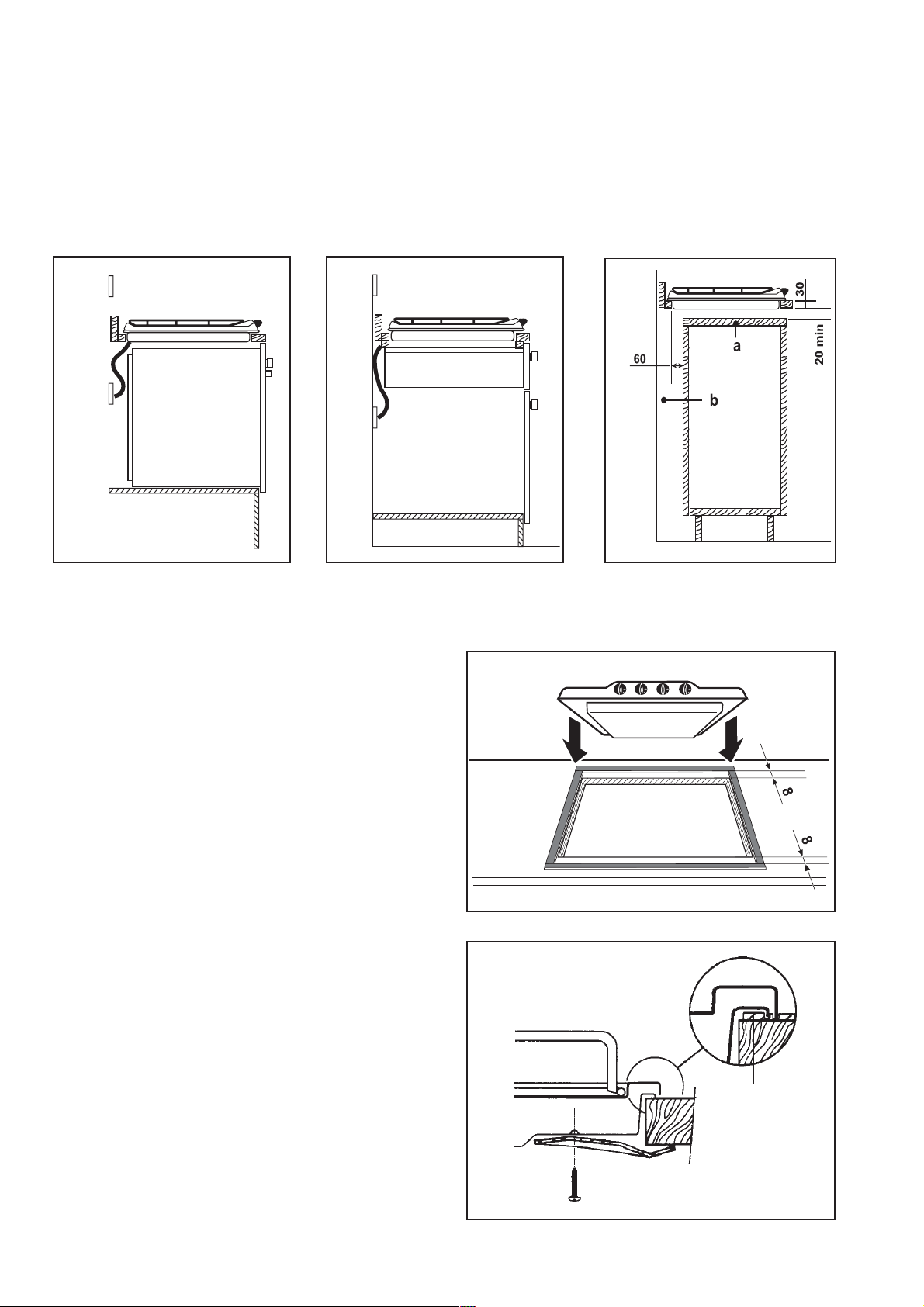

Installation 10

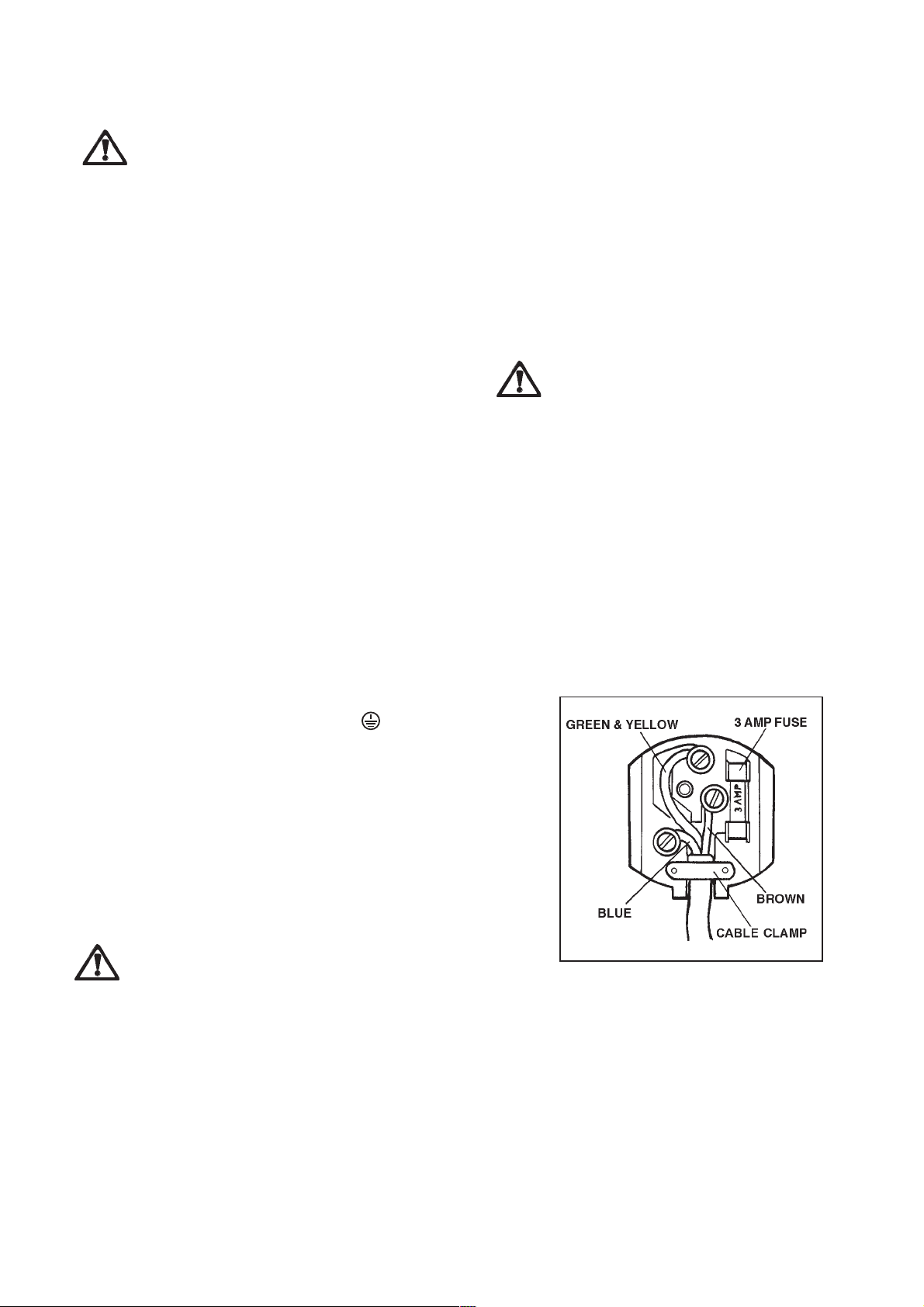

Electrical connections 12

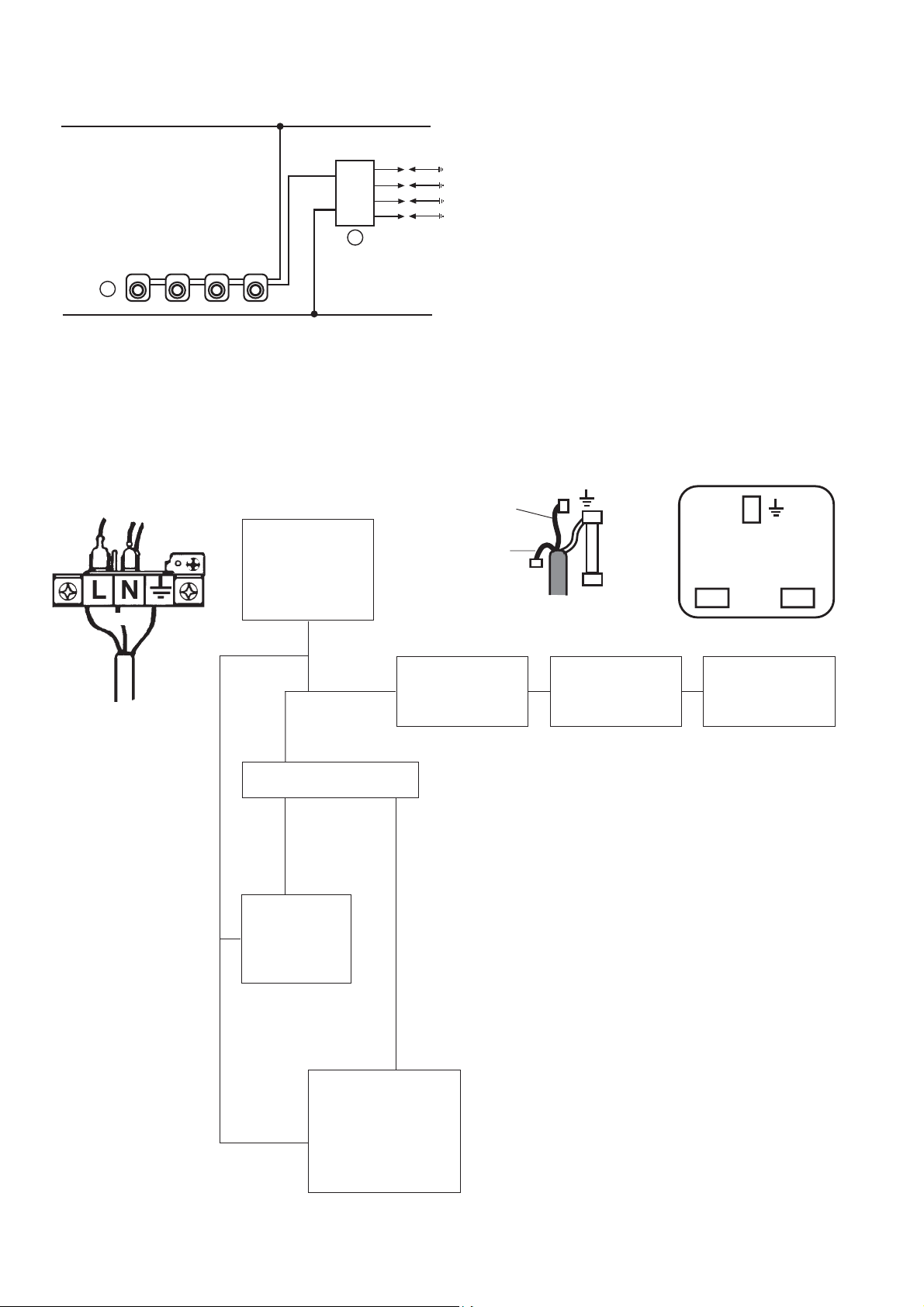

Wiring Diagram 13
Fault Finding 13
Commissioning 15
Conversion from Natural Gas to LPG 15
Description of the Hob
3
1
1. Hob Top
2. Auxiliary Burner
3. Semi-rapid Burners
4. Rapid Burner
5. Control knobs
2
3
4
5
Operation
Hob burners
To light a burner:
))
)
))
z turn the relevant control knob anticlockwise to the
maximum position, then push it down to ignite the
burner;
z upon ignition, keep the knob pushed down about 5
seconds. This will allow the "thermocouple" (Fig. 1,
lett. D) to be heated and the safety device to be
switched off, otherwise the gas supply would be
interrupted.
z then, check the flame is regular and adjust it as
required.
If you cannot light the flame even after several attempts,
check the "cap" and “crown” (Fig. 1, lett. A, B) are in the
correct position.
To put the flame out, turn the knob to the symbol z.
When switching on the mains, after
installation or a power cut, it is quite normal
for the spark generator to be activated
automatically.
To ensure maximum burner efficiency, you should only
use pots and pans with a flat bottom fitting the size of
the burner used (see table).
Fig. 1
A - Burner cap
B - Burner crown
C - Ignition electrode
D - Thermocouple
Burner minimum maximum
diameter diameter
Large (rapid) 180 mm 260 mm
Medium (semi-rapid) 120 mm 220 mm
Small (auxiliary) 80 mm 160 mm
If you use a saucepan which is smaller than
the recommended size, the flame will spread
beyond the bottom of the vessel, causing the
handle to overheat.
Take care when frying food in hot oil or fat,
as the overheated splashes could easily
ignite.
As soon as a liquid starts boiling, turn down the
flame so that it will barely keep the liquid simmering.
If the control knobs become difficult to turn, please
contact your local Electrolux Service Force Centre.
4
Maintenance and Cleaning
Before any maintenance or cleaning can be
carried out, you must DISCONNECT the hob
from the electricity supply.
The hob is best cleaned whilst it is still warm, as spillage
can be removed more easily than if it is left to cool.
The Hob Top
Regularly wipe over the hob top using a soft cloth well
wrung out in warm water to which a little washing up
liquid has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick
saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a cleaning product such as Hob Brite
or Bar Keepers Friend is used.
Cast Iron Pan Supports
The hob has cast iron pan supports.
Take care when removing them. They are very heavy and
could damage the hob or your kitchen furniture if you let
them fall down.
To keep the pan supports in the correct position, they
are hooked into hinges at the back of the hob. When
removing the pan supports, lift them up as shown in the
diagram. Never turn the pan supports on the hinges, this
could damage them.
Wash the pan supports using hot soapy water. If
necessary, a paste cleaner or a soap impregnated steel
wool pad can be used with caution.
After cleaning, be sure to wipe dry with a soft cloth.
NO
YES
The Burners
The burner caps and crowns (Fig. 1) can be removed for
cleaning. Wash the burner caps and crowns using hot
soapy water, and remove marks with a mild paste cleaner.
A well moistened soap impregnated steel wool pad can
be used with caution, if the marks are particularly difficult
to remove. After cleaning, be sure to wipe dry with a soft
cloth.
Ignition electrode
The electric ignition is obtained through a ceramic and
metal electrode (Fig. 1 - letter C). Keep these
components very clean, to avoid lighting difficulties, and
check that the burner crown holes are not obstructed.
5
Something Not Working?
If the hob is not working correctly, please carry out the following checks before contacting your local Electrolux
Service Force Centre.
IMPORTANT:
installation, a charge will be made even if the appliance is under guarantee.
If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
SYMPTOM
There is no spark when lighting the gas
The gas ring burns unevenly
SOLUTION
Check that the unit is plugged in and the electrical
supply is switched on
Check that the RCCB has not tripped (if fitted)
Check the mains fuse has not blown
Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
Check the main jet is not blocked and the burner
crown is clear of food particles.
Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
Service and Spare Parts
In the event of your appliance requiring service, or if you
wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre and
further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have
read the details under the heading “Something Not Working.”
When you contact the Service Force Centre you will need
to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found
on the rating plate)
5. The purchase date
6
