Page 1
EGG7253
EGG7353
................................................ .............................................
EN HOB USER MANUAL
Page 2
CONTENTS
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8.
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2
www.electrolux.com
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
• The appliance and its accessible parts become hot
during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external
timer or separate remote-control system.
• Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
ENGLISH 3
Page 4
• Never try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a
fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
2.
SAFETY INSTRUCTIONS
This appliance is suitable for the following
markets: IT
2.1 Installation
WARNING!
Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance adjacent to
a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is
opened.
• If the appliance is installed above draw-
ers make sure that the space, between
the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• The bottom of the appliance can get
hot. We recommend to install a noncombustile separation panel under the
appliance to prevent access to the bottom.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections must be made
by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure the mains cable or plug (if
applicable) does not touch the hot appliance or hot cookware, when you
connect the appliance to the near sockets
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on cable.
• Make sure not to cause damage to the
mains plug (if applicable) or to the
mains cable. Contact the Service or an
electrician to change a damaged mains
cable.
• The electrical installation must have an
isolation device which lets you discon-
4
www.electrolux.com
Page 5
nect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
Gas connection
• All gas connections should be made by
a qualified person.
• Make sure that there is air circulation
around the appliance.
• The information about the gas supply is
on the rating plate.
• This appliance is not connected to a
device, which evacuates the products
of combustion. Make sure to connect
the appliance according to current installation regulations. Pay attention to
requirements regarding adequate ventilation.
2.2 Use
WARNING!
Risk of injury, burns or electric
shock.
• Use this appliance in a household environment.
• Do not change the specification of this
appliance.
• Do not let the appliance stay unattended during operation.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not put cutlery or saucepan lids on
the cooking zones. They become hot.
• Set the cooking zone to “off” after use.
WARNING!
Risk of fire or explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Be careful not to let objects or cookware fall on the appliance. The surface
can be damaged.
• Do not put aluminium foil on the appliance.
• Do not let acid liquids, for example vinegar, lemon juice or limescale remover
touch the hob. This can cause matt
patches.
• Provide good ventilation in the room
where the appliance is installed.
• Make sure that the ventilation openings
are not blocked.
• Use only stable cookware with the correct shape and diameter larger than the
dimensions of the burners. There is a
risk of overheating and rupture of the
glass plate (if applicable).
• Make sure the flame does not go out
when you quickly turn the knob from
the maximum to the minimum position.
• Make sure pots are centrally positioned
on the rings and do not stick out over
edges of the cooking surface.
• Use only the accessories supplied with
the appliance.
• Do not install a flame diffuser on the
burner.
2.3 Care and Cleaning
WARNING!
Risk of damage to the appliance.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Do not use water spray and steam to
clean the appliance.
ENGLISH 5
Page 6
• Do not clean the burners in the dishwasher.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
2.4 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Flat the external gas pipes.

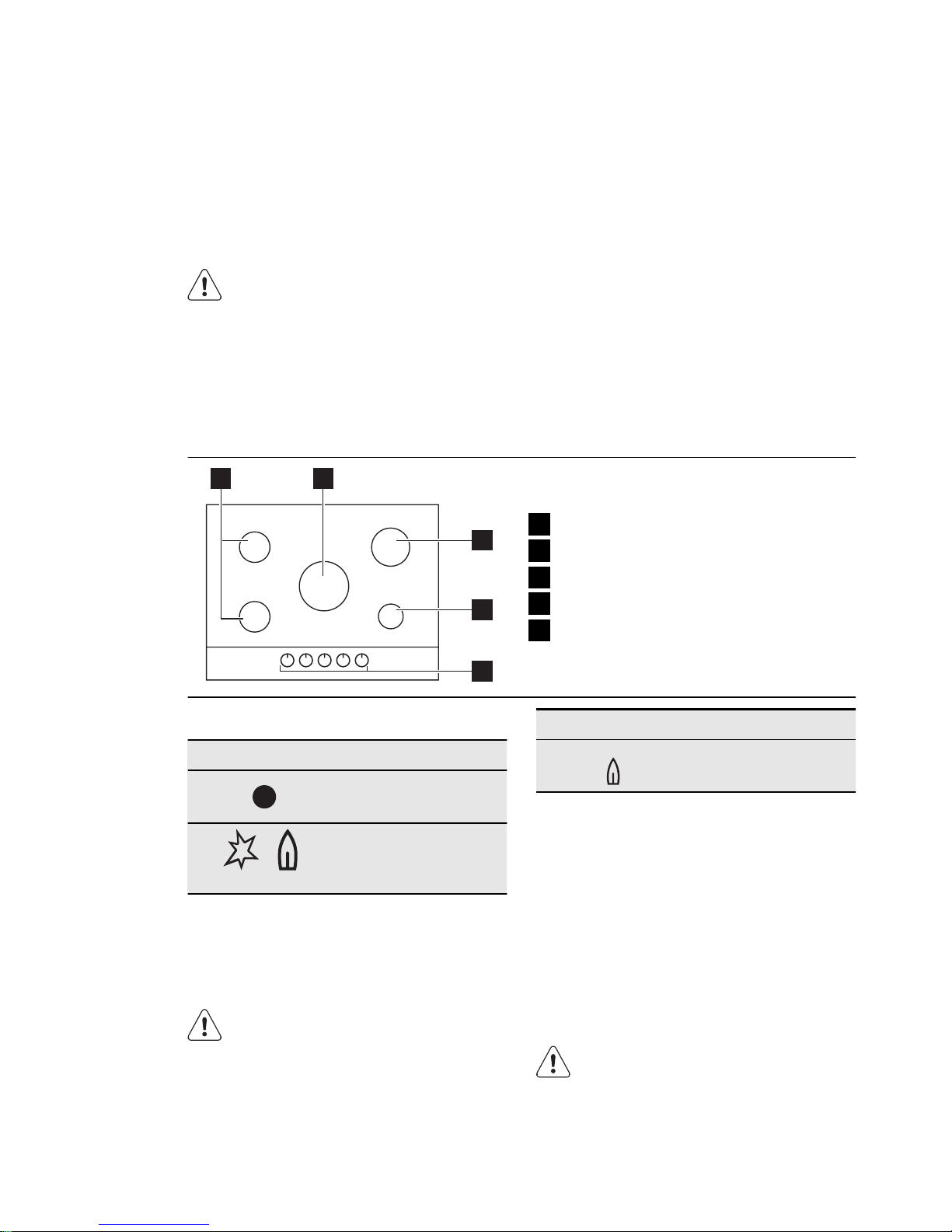

3. PRODUCT DESCRIPTION
3.1 Cooking surface layout
3
4
5
21
1
Semi-rapid burner
2
Triple Crown burner
3
Rapid burner
4
Auxiliary burner
5
Control knobs
3.2 Control knobs
Symbol Description
no gas supply /
off position
ignition position /
maximum gas
supply
Symbol Description
minimum gas
supply
4. DAILY USE
WARNING!
Refer to "Safety information"
chapter.
4.1 Ignition of the burner
WARNING!
Be very careful when you use
open fire in kitchen environment.
Manufacturer decline any responsibility in case misuse of the flame
6
www.electrolux.com
Page 7
Always light the burner before you
put cookware.
To light the burner:
1.
Turn the control knob counterclockwise to the maximum position (
) and push it down.
2.
Keep the control knob pushed for approximately 5 seconds; this will let
thermocouple to warm up. If not, the
gas supply will be interrupted.
3.
Adjust the flame after it is regular.
If after some tries the burner does
not light, check if the crown and
its cap are in correct positions.

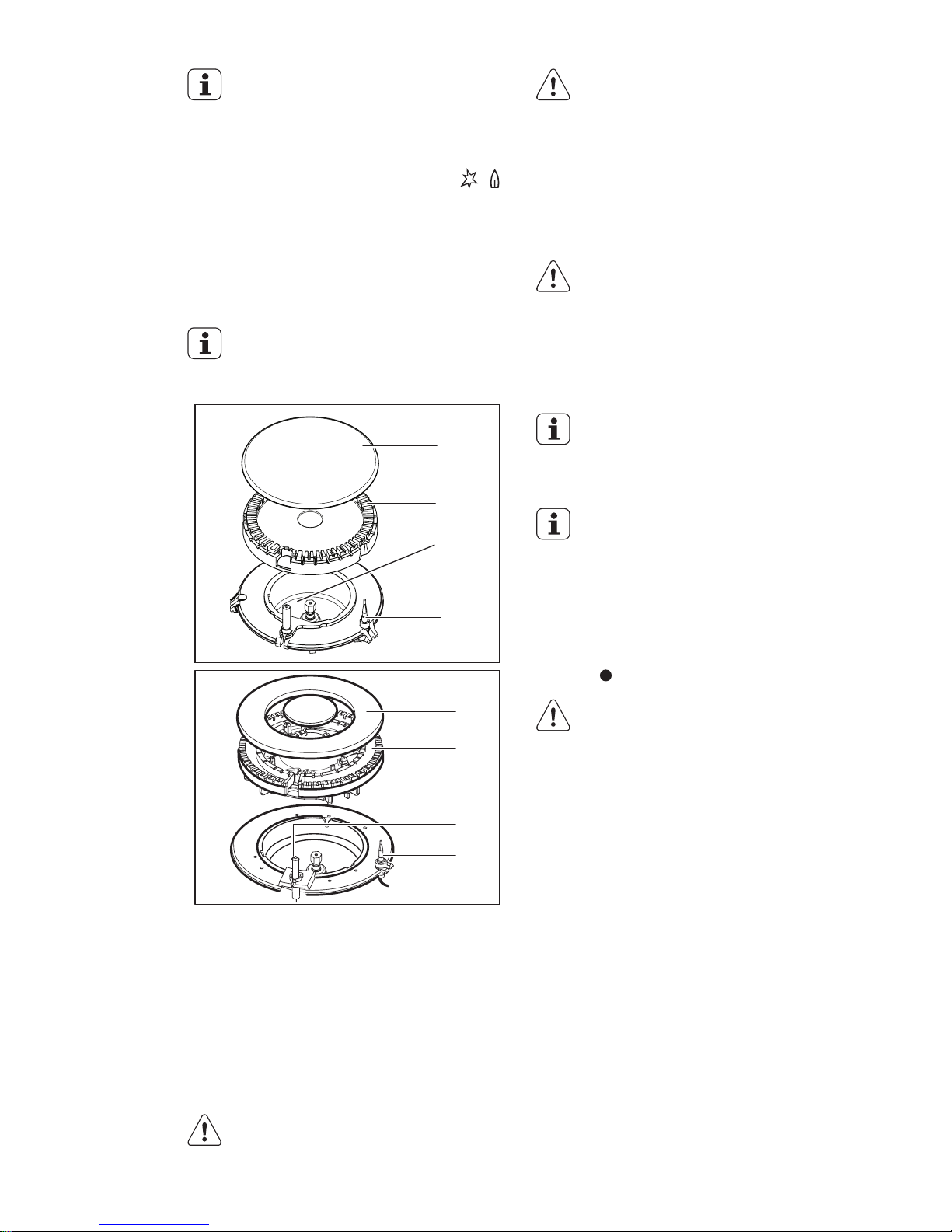

A
B
C
D
A
B
C
D
A)
Burner cap
B)
Burner crown
C)
Ignition candle
D)
Thermocouple
WARNING!
Do not keep the control knob
pushed for more than 15 seconds.
If the burner does not light after
15 seconds, release the control
knob, turn it into off position and
try to light the burner again after
minimum 1 minute.
In the absence of electricity you
can ignite the burner without electrical device; in this case approach
the burner with a flame, push the
relevant knob down and turn it
counter-clockwise to maximum
gas release position.
If the burner accidentally goes out,
turn the control knob to the off
position and try to light the burner
again after minimum 1 minute.
The spark generator can start automatically when you switch on
the mains, after installation or a
power cut. It is normal.
4.2 Turning the burner off
To put the flame out, turn the knob to the
symbol
.
WARNING!
Always turn the flame down or
switch it off before you remove the
pans from the burner.
5. HELPFUL HINTS AND TIPS
WARNING!
Refer to "Safety information"
chapter.
5.1 Energy savings
• If possible, always put the lids on the
pans.
ENGLISH 7
Page 8
• When the liquid starts to boil, turn down
the flame to barely simmer the liquid.

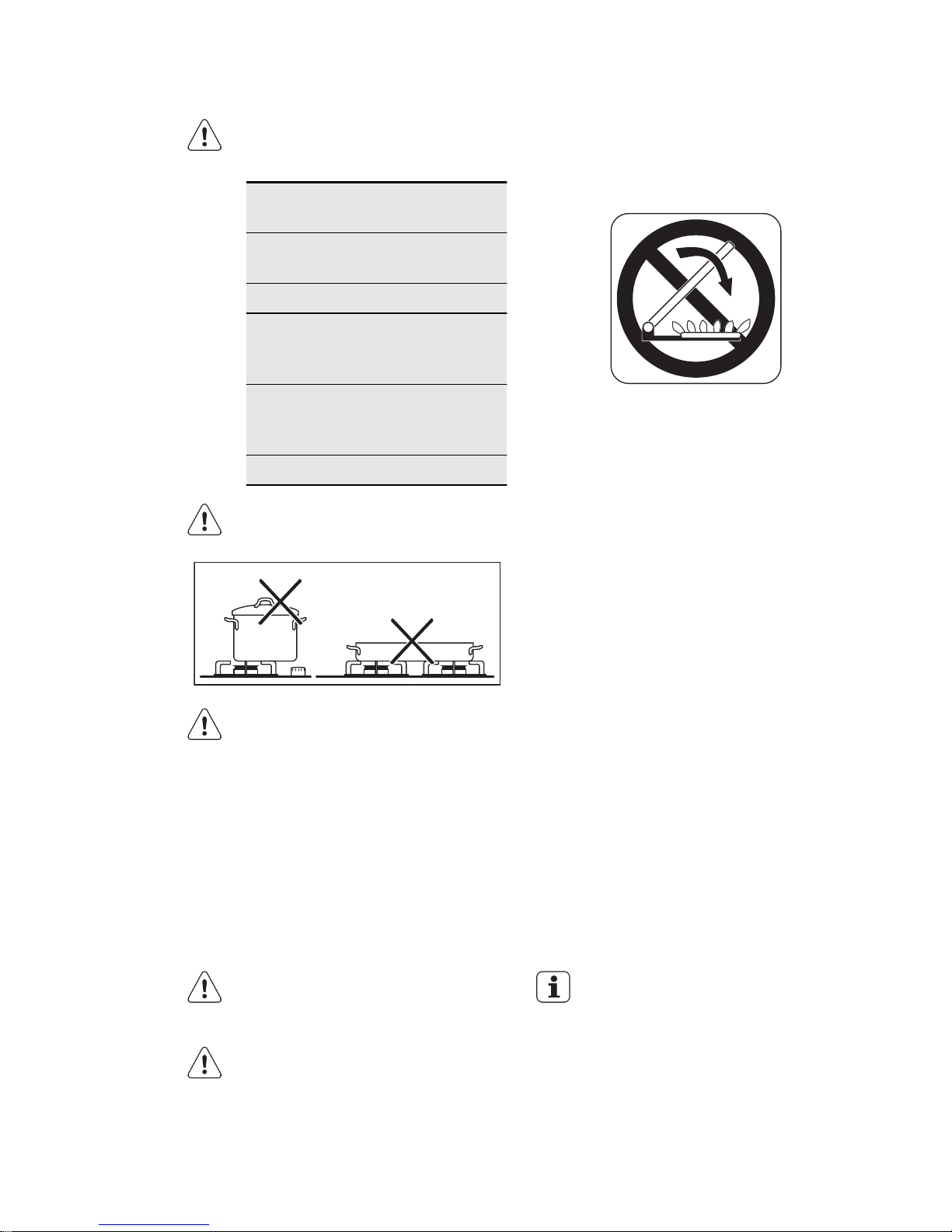

WARNING!
Use cookware with diameters applicable to the size of burners.
Burner Diameters of
cookware
Triple
Crown
180 - 260 mm
Rapid 180 - 260 mm
Front
semi-
rapid
120 - 180 mm
Rear
semi-
rapid
120 - 220 mm
Auxiliary 80 - 180 mm
WARNING!
Do not put the same pan on two
burners.
WARNING!
Make sure pot handles do not
protrude over the front edge of
the cooktop and that pots are
centrally positioned on the rings in
order to achieve maximum stability and to obtain lower gas consumption.
Do not place unstable or deformed pots
on the rings to prevent from spill and injury.
5.2 Lid (separated kit only for
predisposed hobs)
• The lid protects the appliance from dust
when closed and collects splashes of
grease when opened. Do not use it for
other functions.
• Keep the lid clean all the time.
• Make sure that the appliance is cold
before you close the lid.
• Glass lids can shatter when hot.
6. CARE AND CLEANING
WARNING!
Refer to "Safety information"
chapter.
WARNING!
Deactivate the appliance and let it
cool down before you clean it.
Disconnect the appliance from the
electrical supply before you do
cleaning or maintenance work.
Scratches or dark stains on the
surface have no effect on how the
appliance operates.
• You can remove the pan supports to
easily clean the hob.
• To clean the enamelled parts, cap and
crown, wash them with warm soapy
water and dry them carefully before you
put them back.
8
www.electrolux.com
Page 9
• Wash stainless steel parts with water,
and then dry them with a soft cloth.
• The pan supports are not dishwasher
proof. They must be washed by hand.
• When you wash the pan supports by
hand, take care when you dry them as
the enamelling process occasionally
leaves rough edges. If necessary, remove stubborn stains using a paste
cleaner.

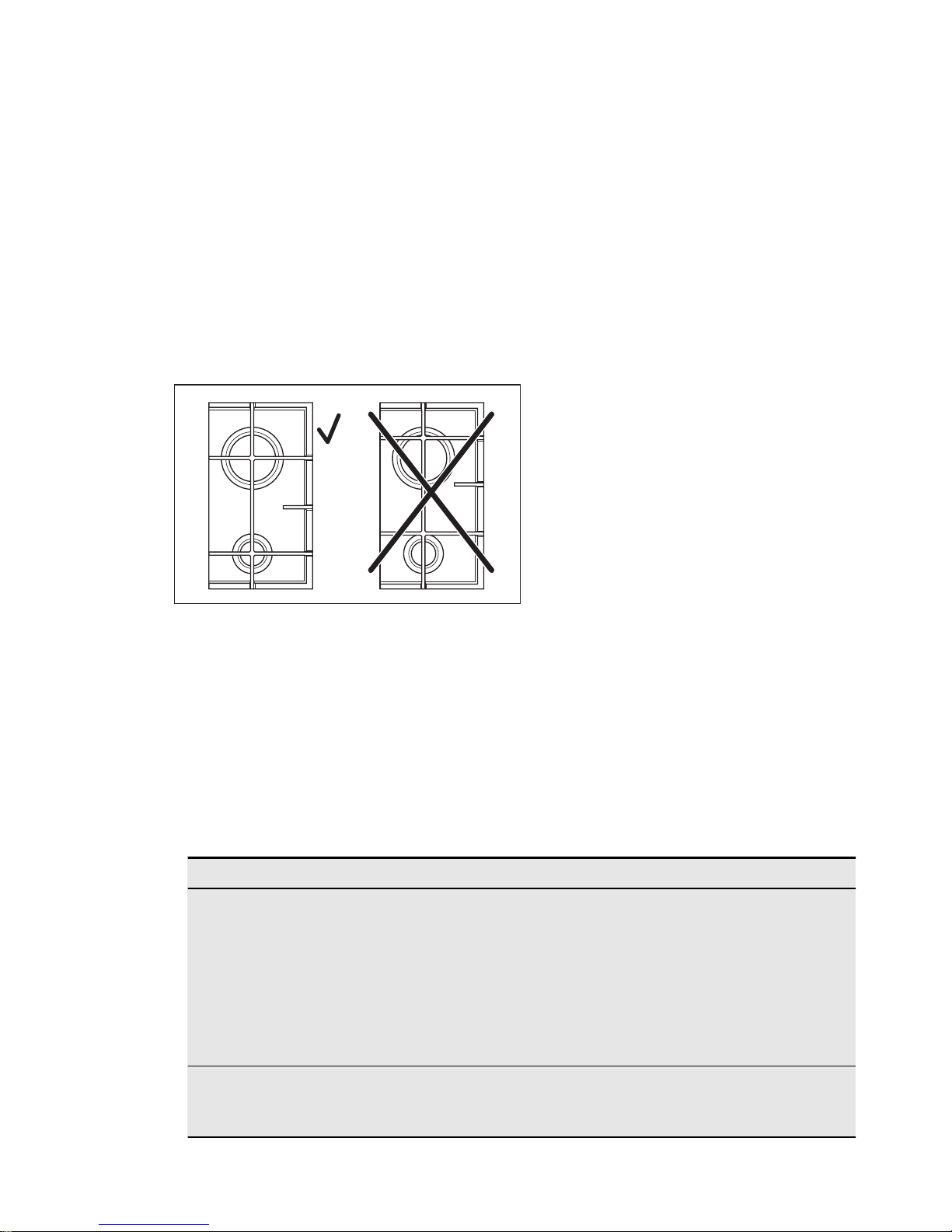

• Make sure you position the pan supports correctly after cleaning.
• To make the burners work correctly,
make sure that the arms of the pan
supports are in the centre of the burner.
•
Be very careful when you replace
the pan supports to prevent the hob
top from damage.
After cleaning, dry the appliance with a
soft cloth.
The stainless steel can become tarnished
if it is too much heated. Refer to this you
must not cook with potstones, earthenware pans or cast iron plates. Do not use
aluminium foil to prevent damage the top
during operation.
Removing the dirt:
1.
– Remove immediately: melting
plastic, plastic foil, and food containing sugar.
– Stop the appliance and let it
cool down before you clean: limescale rings, water rings, fat stains,
shiny metallic discolorations. Use a
special cleaner applicable for surface of hob.
2.
Clean the appliance with a damp
cloth and some detergent.
3.
At the end rub the appliance dry
with a clean cloth.
6.1 Cleaning of the spark plug
This feature is obtained through a ceramic
ignition candle with a metal electrode.
Keep these components well clean to
prevent difficult lighting and check that the
burner crown holes are not obstructed.
6.2 Periodic maintenance
Periodically speak your local Service
Force Centre to check the conditions of
the gas supply pipe and the pressure adjuster, if fitted.
7. TROUBLESHOOTING
Problem Possible cause Remedy
There is no spark when
lighting the gas
• There is no electrical
supply
• Make sure that the unit
is connected and the
electrical supply is
switched on.
• Control the fuse. If the
fuse is released more
than one time, refer to
a qualified electrician.
• Burner cap and crown
are placed uneven
• Make sure that the
burner cap and crown
are in correct positions.
ENGLISH 9
Page 10
Problem Possible cause Remedy
The flame is blow out immediately after ignition
• Thermocouple is not
heated sufficient
• After lightning the
flame, keep the knob
pushed for approximately 5 seconds.
The gas ring burns unevenly
• Burner crown is
blocked with food residues
• Make sure that the injector is not blocked
and the burner crown
is clear of food particles.
If there is a fault, first try to find a solution
to the problem yourself. If you cannot find
a solution to the problem yourself, speak
your dealer or the local Service Force
Centre.
If you operated the appliance incorrectly, or the installation was
not carried out by a registered engineer, the visit from the customer
service technician or dealer may
not take place free of charge,
even during the warranty period.
These data are necessary to help you
quickly and correctly. These data are
available on the supplied rating plate.
• Model description .................
• Product number (PNC) .................
• Serial Number (S.N.) .................
Use the original spare parts only. They are
available at Service Force Centre and approved spare parts shops.

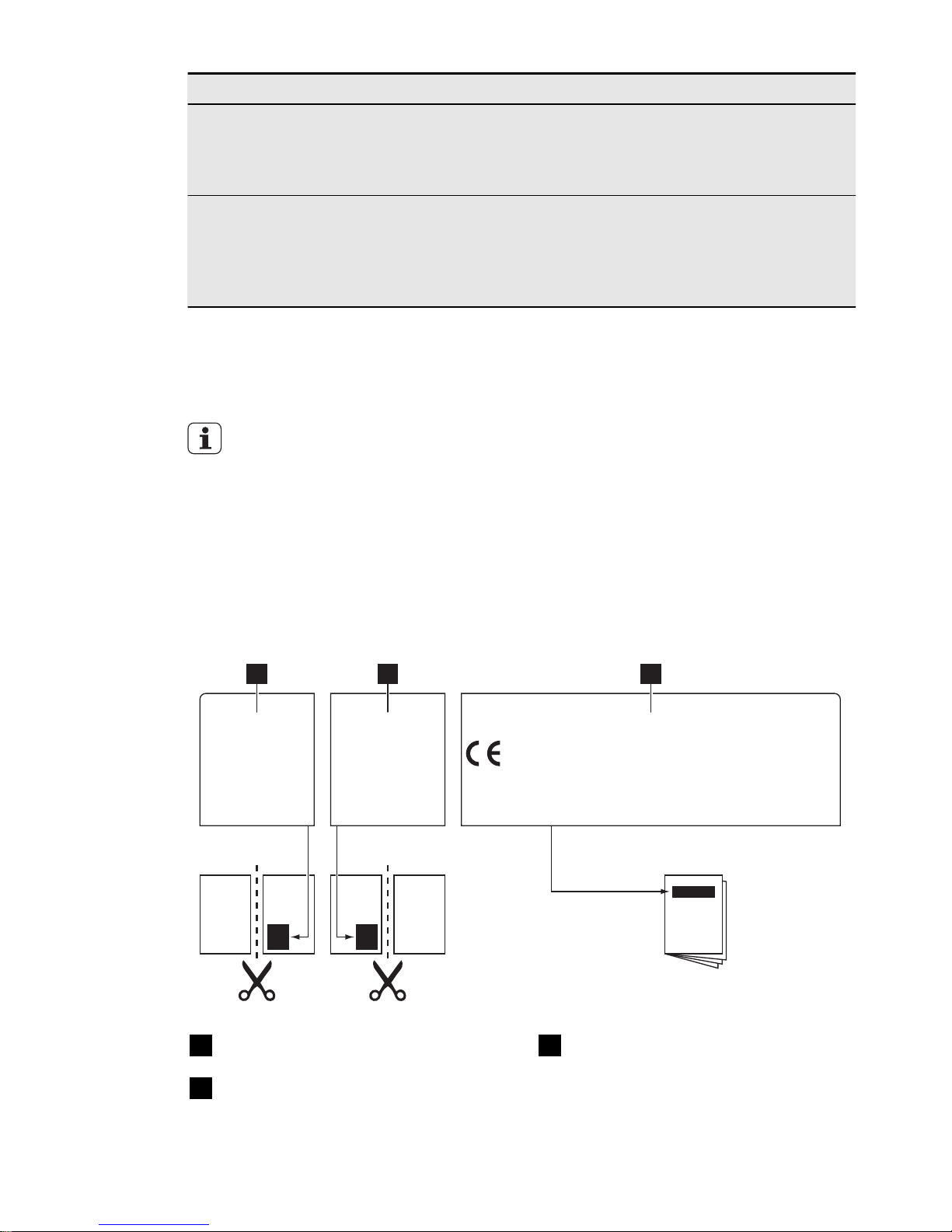

7.1 Labels supplied with the
accessories bag
Stick the adhesive labels as indicated below:
MOD.
PROD.NO.
SER.NO
DATA
MOD.
PROD.NO.
SER.NO
DATA
MODELMODEL
MOD.
PROD.NO.
SER.NO.
03 IT
MADE IN ITALY
TYPE
230V-50Hz
IP20
0049
1 2 3
1
Stick it on Guarantee Card and send
this part
2
Stick it on Guarantee Card and keep
this part
3
Stick it on instruction booklet
10
www.electrolux.com
Page 11
8. INSTALLATION
WARNING!
Refer to "Safety information"
chapter.
WARNING!
The following instructions about
installation, maintenance and ventilation must be carried out by
qualified personnel in compliance
with the regulation in force (UNICIG 7129 - 7131). Make sure that
the kitchen is well ventilated: keep
natural ventilation holes open (at
least 100 cm²) or install a mechanical extractor hood.
8.1 Gas Connection
Choose fixed connections or use a flexible
pipe in stainless steel in compliance with
the regulation in force. If you use flexible
metallic pipes, be careful they do not
come in touch with mobile parts or they
are not squeezed. Also be careful when
the hob is put together with an oven.
Make sure that the gas supply
pressure of the appliance obeys
the recommended values.
If the supplied pressure has not the specified value, it is necessary to assemble a
proper pressure regulator in compliance
with the standard UNI EN 88. For Liquid
Gas (LPG) the use of pressure regulator is
allowed only if they are in compliance with
UNI EN 12864. The adjustable connection
is fixed to the comprehensive ramp by
means of a threaded nut G 1/2". Screw
the parts without force, adjust the connection in the necessary direction and
tighten everything.

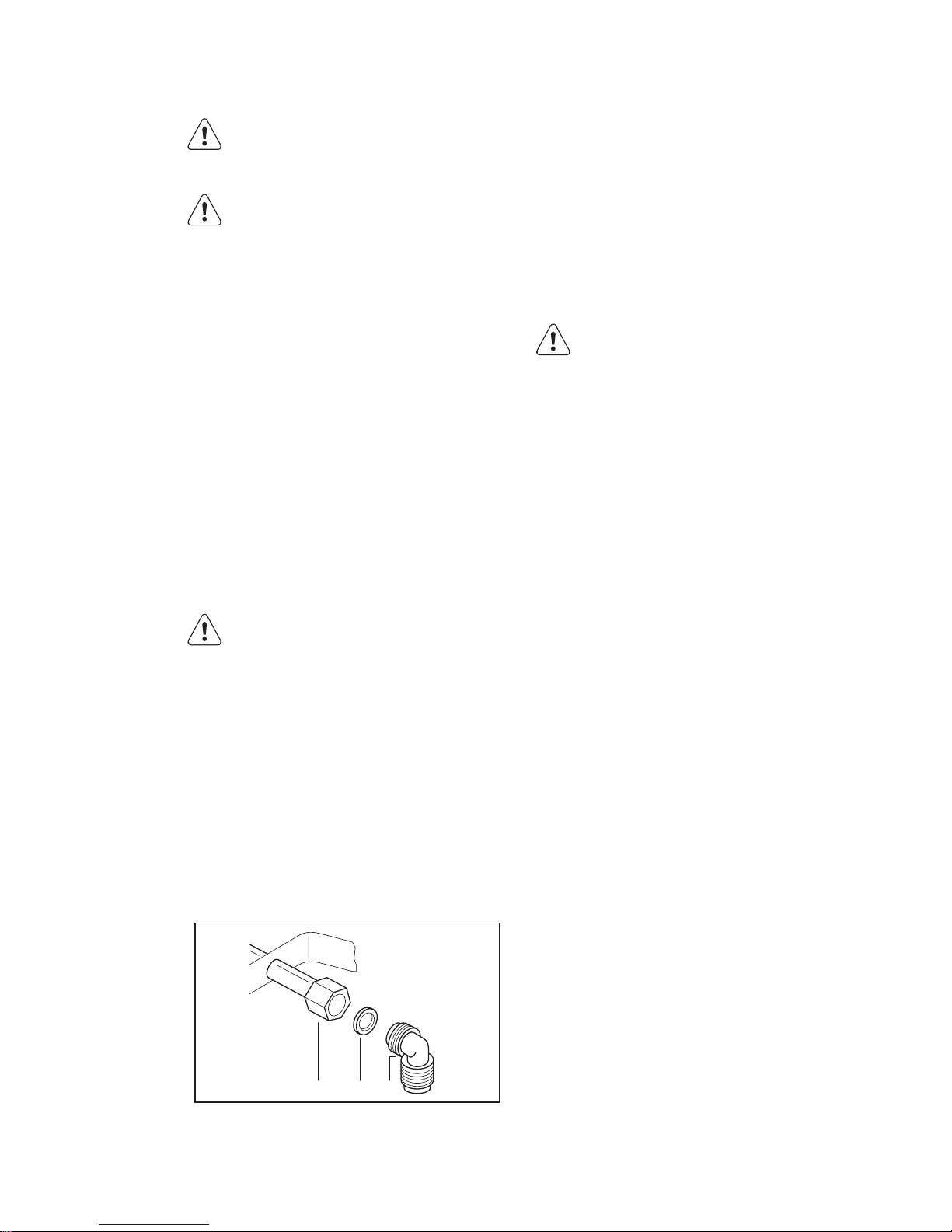

ABC
A)
End of shaft with nut
B)
Washer
C)
Elbow
Rigid connection:
Carry out connection by using metal rigid
pipes (copper with mechanical end) (UNICIG 7129).
Flexible connection:
Use a flexible pipe in stainless steel (UNICIG 9891) with a maximum length 2 m.
When installation is complete,
make sure that the seal of each
pipe fitting is correct. Use a soapy
solution, not a flame!
8.2 Injectors replacement
1.
Remove the pan supports.
2.
Remove the caps and crowns of the
burner.
3.
With a socket spanner 7 remove the
injectors and replace them with the
ones which are necessary for the type
of gas you use (see table in "Technical Information" chapter).
4.
Assemble the parts, follow the same
procedure backwards.
5.
Replace the rating plate (it is near the
gas supply pipe) with the one for the
new type of gas supply. You can find
this plate in the package supplied
with the appliance.
If the supply gas pressure is changeable
or different from the necessary pressure,
you must fit an applicable pressure adjuster on the gas supply pipe.
8.3 Adjustment of minimum level
To adjust the minimum level of the burners:
1.
Light the burner.
2.
Turn the knob on the minimum posi-
tion.
3.
Remove the knob.
4.
With a thin screwdriver, adjust the by-
pass screw position.
ENGLISH 11
Page 12

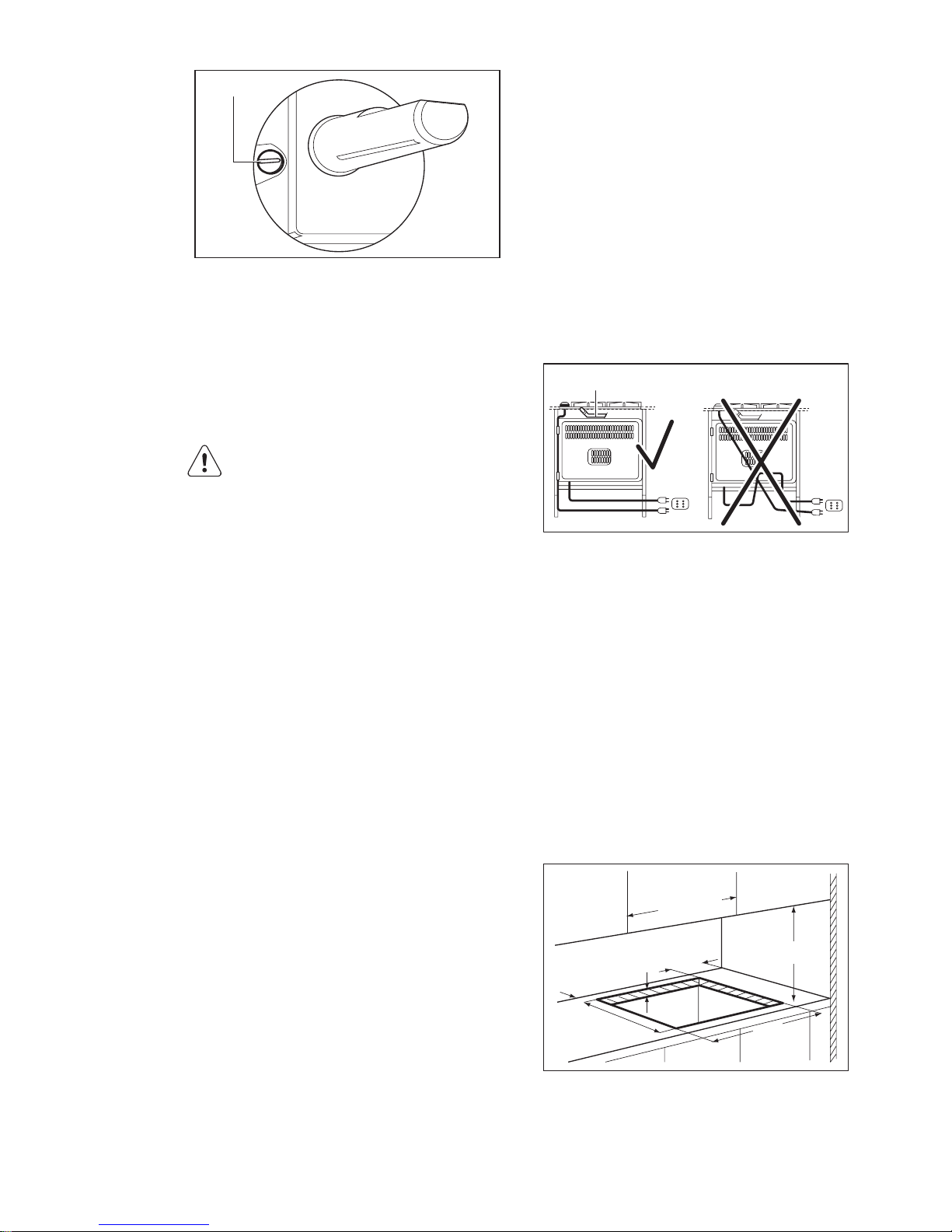

A
A)
The by-pass screw
• If you change from natural gas G20 20
mbar to liquid gas, fully tighten the bypass screw in.
• If you change from liquid gas to natural
gas G20 20 mbar, undo the by-pass
screw approximately 1/4 of a turn (1/2
of a turn for Triple Crown burner).
WARNING!
Make sure the flame does not go
out when you quickly turn the
knob from the maximum position
to the minimum position.
8.4 Electrical connection
• Ground the appliance according to
safety precautions.
• Make sure that the rated voltage and
type of power on the rating plate agree
with the voltage and the power of the
local power supply.
• This appliance is supplied with a mains
cable. It has to be supply with a correct
plug, able to support the load marked
on the rating plate. The plug has to be
fitted in a correct socket.
• Any electrical component must be installed or replaced by the Service Force
Centre technician or qualified service
personnel.
• Always use a correctly installed shockproof socket.
• Make sure that there is an access to
the mains plug after installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• The appliance must not be connected
with an extension cable, an adapter or
a multiple connection (risk of fire).
Check that the ground connection is in
conformity with the standard and regulations force.
• The power cable must be placed in
such a way that it does not touch any
hot part.
• Connect the appliance to the mains
with a device that lets to disconnect the
appliance from the mains at all poles
with a contact opening width of minimum 3 mm, eg. automatic line protecting cut-out, earth leakage trips or fuse.
No part of the power cable must heat to a
temperature of more than 90° C.
Use clamps installed on the side of the
cabinet to prevent contact with the equipment below the cooktop. See an example
of an optimal path in Figure.
A
A)
Rigid copper pipe or flexible pipe in
stainless steel
8.5 Replacement of the
connection cable
To replace the connection cable use only
H05V2V2-F T90 or equivalent type. Make
sure that the cable section is applicable to
the voltage and the working temperature.
The yellow/green earth wire must be approximately 2 cm longer than the brown
(or black) phase wire.

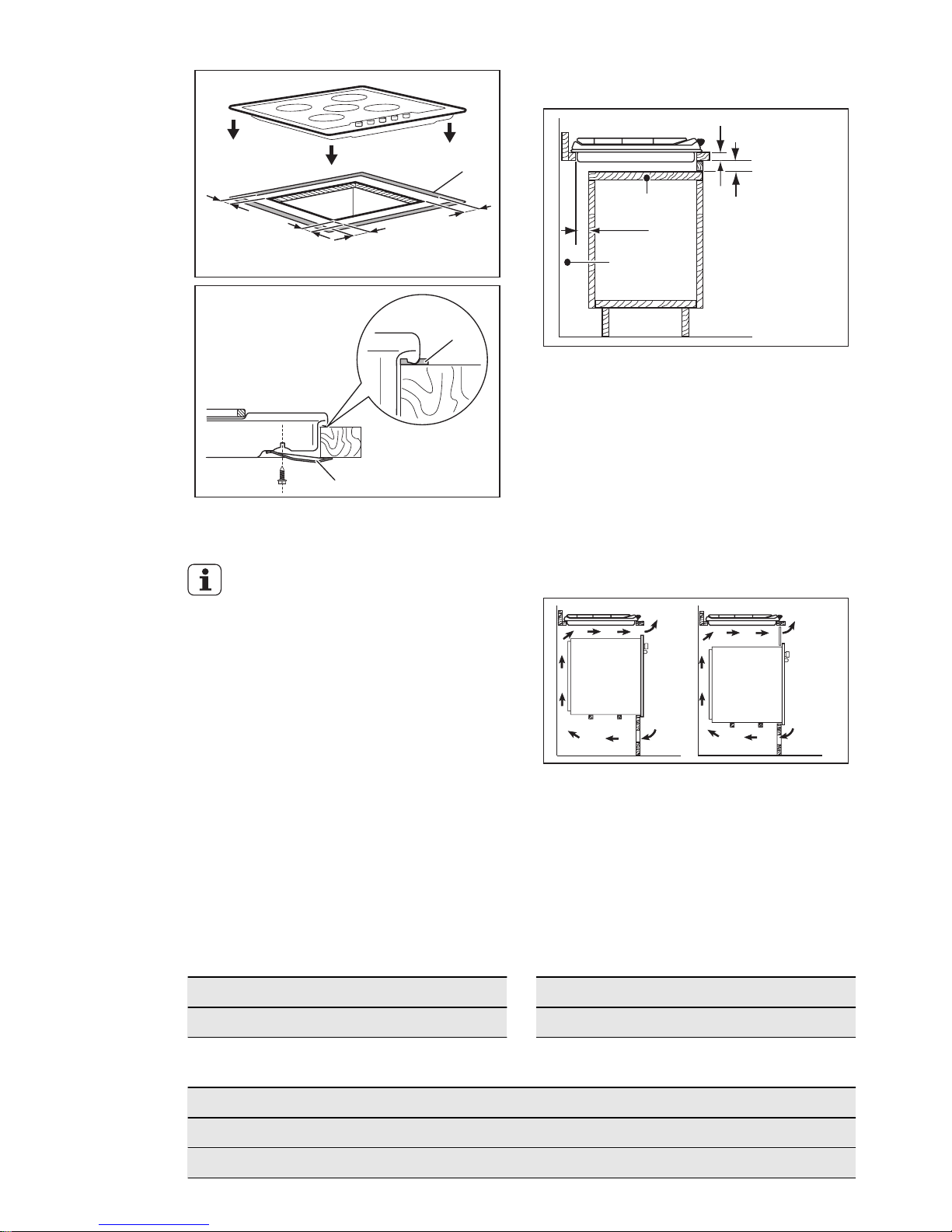

8.6 Building In
min. 600 mm
min. 55 mm
min. 650 mm
560 mm
480 mm
min. 200 mm
30 mm
12
www.electrolux.com
Page 13
10 mm
86 mm
86 mm
A
3 mm
A
B
A)
supplied seal
B)
supplied brackets
If you install the hob under a
hood, please see the installation
instructions of the hood for the
minimum distance between the
appliances.
8.7 Possibilities for insertion
Kitchen unit with door
The panel installed below the hob must
be easy to remove and let an easy access
in case a technical assistance intervention
is necessary.
min 20 mm
(max 150 mm)
30 mm
60 mm
B
A
A)
Removable panel
B)
Space for connections
Kitchen unit with oven
The hob recess dimensions must obey
the indication and the kitchen unit must
be equipped with vents to let a continuous supply of air. The electrical connection of the hob and the oven must be installed separately for safety reasons and
to let easy remove oven from the unit.
50 cm
2
360 cm
2
180 cm
2
120 cm
2
9. TECHNICAL INFORMATION
Hob dimensions
Width: 744 mm
Length: 510 mm
Hob recess dimensions
Width: 560 mm
Length: 480 mm
Heat input
Triple Crown burner: 4.0 kW
Rapid burner: 3.0 kW
Semi-rapid burner: 2.0 kW
ENGLISH 13
Page 14
Auxiliary burner: 1.0 kW
TOTAL POWER: G20 (2H) 20 mbar = 12 kW
G30 (3+) 28-30 mbar = 887 g/h
G31 (3+) 37 mbar = 871 g/h
Electric supply: 230 V ~ 50 Hz
Category: II2H3+
Gas connection: G 1/2"
Gas supply: G20 (2H) 20 mbar
Appliance class: 3
By-pass diameters
Burner Ø By-pass in
1/100 mm
Auxiliary 28
Semi-rapid 32
Burner Ø By-pass in
1/100 mm
Rapid 42
Triple Crown 56
Gas burners
BURN-
ER
NOR-
MAL
POWER
RE-
DUCED
POW-
ER
NORMAL POWER
NATURAL GAS
G20 (2H) 20
mbar
LPG (Butane/Propane)
G30/G31 (3+) 28-30/37
mbar
kW kW
inj.
1/100
mm
m³/h
inj.
1/100
mm
G30
28–30
mbar
G31
37
mbar
g/h g/h
Auxiliary 1.0 0.33 70 0.095 50 73 71
Semirapid
2.0 0.45 96 0.190 71 145 143
Rapid
3.0 (natural gas)
3.2 (LPG)
0.75 119 0.286 88 233 229
Triple
Crown
4.0 1.4 146 0.381 98 291 286
10. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
14
www.electrolux.com
Page 15
ENGLISH 15
Page 16
www.electrolux.com/shop
892953155-C-422012
Loading...
