INSTRUCTION BOOK
INSTRUCTION FOR USE
WARNING
-----------------------------------------------------------
Please ensure that the following installation
heights between the lowest part of the hood
and the hob are adhered to:
65cm above gas hobs
55cm above electric hobs
If the instructions for the installation of the
hob specify a greater distance, then this
should be taken into account.
The exhaust air must not be fed into any duct
used for electricity (central heating systems,
thermosiphons, water-heaters, etc.).
Comply with the official instructions provided
by the appropriate authorities in merit when
installing the cooker hood. In addition, exhaust
air should not be discharged into a wall cavity,
unless the cavity is designed for that purpose.
The room must be well ventilated in case a
hood and some other heat equipment fed with
an energy other than electricity (gas, oil, coal
heaters, etc) operate at the same time. In fact
the hood, disposing of air, could create a
vacuum in the room. The vacuum should not
exceed 0,04mbar. This prevents the gas
exhausted by the heat source from being
intaken again. It is therefore advisable to ensure
the room contains air taps able to ensure a
steady flow of fresh air.
Check the rating plate inside the
appliance; if the symbol (double
insulated) is printed, read the following:
this appliance has such technical
particulars that it belongs to class II
insulation, therefore it must not be
earthed.
The following warning is valid in the United
Kingdom only: in case your cable is not fitted
with with a plug, read the following instructions;
as the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
– the wire which is coloured blue must be
connected to the terminal which is marked
with the letter N or coloured black;
– the wire which is coloured brown must be
connected to the terminal which is marked
with the letter L or coloured red.
Check the rating plate inside the
appliance; if the symbol (double
insulated) is NOT printed read the
following: ATTENTION: This appliance
must be earthed. When making the electrical
connections, check that the mains socket has
an earth connection.
The following warning is valid in the United
Kingdom only: as the colours of the wires in the
mains lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your plug, proceed
as follows:
– the wire which is coloured green and yellow
must be connected to the terminal in the plug
which is marked with the letter E or by the earth
symbol [ ], or coloured green or green and
yellow;
– the wire which is coloured blue must be
connected to the terminal which is marked
with the letter N or coloured black;
– the wire which is coloured brown must be
connected to the terminal which is marked
with the letter L or coloured red.
When making the electrical connections,
check that the voltage values correspond to
those indicated on the data plate inside the
appliance itself. In case your appliance is not
fitted with a flexible cable and has no plug, or
has not got any other device ensuring double
pole isolation from the electricity supply, with
a contact opening distance of at least 3 mm,
such separating device ensuring
disconnection from the main must be included
in the fixed installation. If your unit features a
power lead and plug, position this so the plug
is accessible at all times.
Always switch off the electricity supply before
carrying out any cleaning or servicing
operations on the appliance.
USE
-----------------------------------------------------------
Never do flambé cooking beneath the hood.
When frying, take particular care to prevent oil
and grease from catching fire. Previously used
oil is especially dangerous in this respect. Do
not use uncovered electric hotplates.
To avoid possible risks of fire always comply
with the indicated instructions when cleaning
anti-grease grille and when removing grease
deposits from the appliance.
MAINTENANCE
-----------------------------------------------------------
Regular and thorough cleaning ensures
correct and long-lasting operation.
Particular care must be paid to the grease
grille which must be periodically cleaned in
relation to use (at least once every two months).
Remove the grease grille and wash them either
by hand or in the dishwasher using neutral
detergent.
Any fat deposits should be removed from the
appliance periodically depending on amount
of use (at least every 2 months). Avoid using
abrasive or corrosive products. To clean
painted appliances on the outside, use a cloth
dipped in lukewarm water and washing up
liquid. To clean steel, copper or brass
appliances on the outside, it is always best to
use specific products, following the
instructions on the products themselves. To
clean the inside of the appliance, use a cloth
(or brush) dipped in denatured ethyl alcohol.
DESCRIPTION
-----------------------------------------------------------
The appliance can be used in both the filtering and
ducting version.

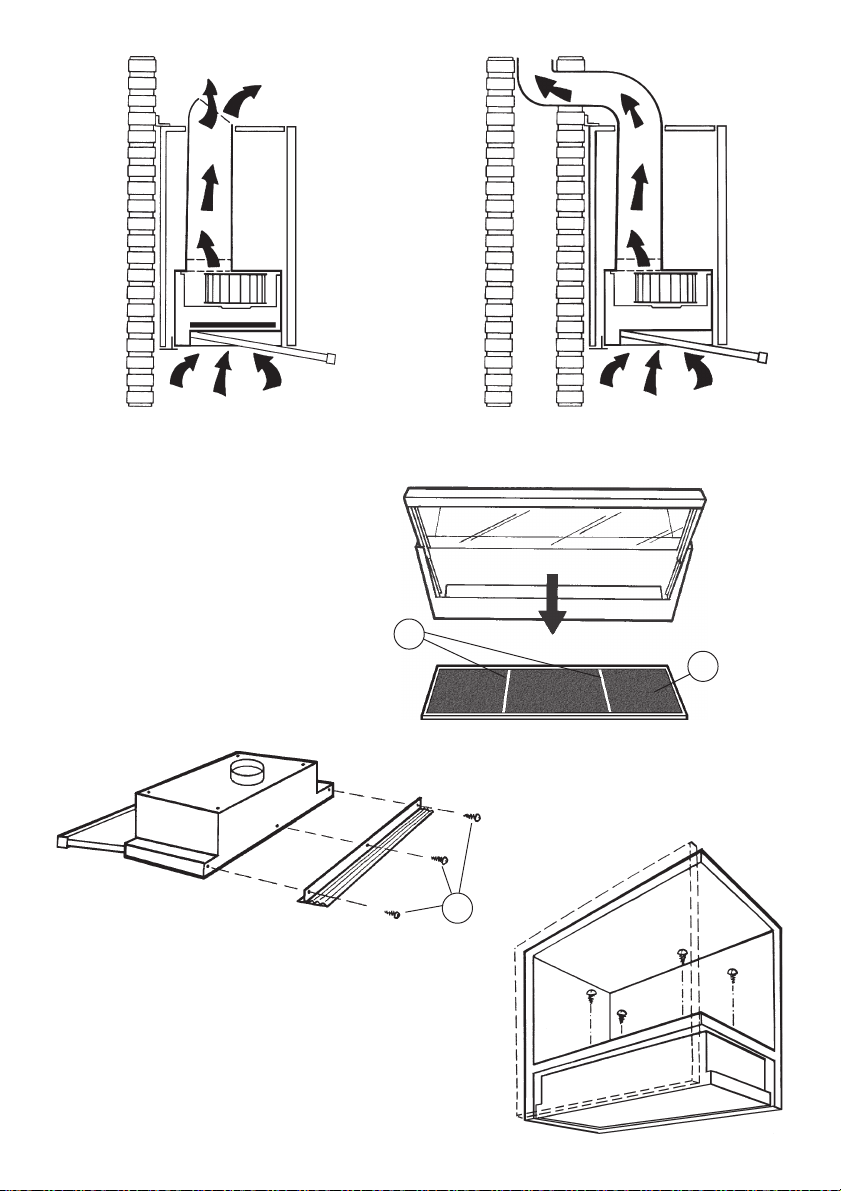

In the Filtering version (Fig. 1), the air and vapours conveyed by the appliance are depurated
by charcoal filter(s) and recirculated around the
room. ATTENTION: Using the hood as a filtering
one it is necessary to use the charcoal filter(s) that
purifies the air sent back into the room.
In the Ducting version (Fig. 2), cooking vapour
and odours are exhausted straight outside by a
disposal duct which passes through the wall/ceiling. Use of charcoal filter is therefore unnecessary.
According to the model you have bought, the appliance can include 1 or 2 motors. In the 1 motor
version the flange for the air to be exhausted has
not got a central position, but it is slightly on the left.
INSTALLATION
-----------------------------------------------------------
Before assembling, in order to move the appliance
more easily, take off the grease grille (Fig. 3): pull
the front of the grille upwards; remove the back
from its seat.
IMPORTANT: So as not to damage your
product, during installation ONLY USE THE
SCREWS PROVIDED. Make sure these are
used as shown in the following instructions.
To compensate for any uneveness between
the appliance and the wall, a plastic SPACING
BAR must be fixed at the back of the appliance
by means of the three screws A is included
(Fig.4). The 3 screws A to be used are
contained in the accessory bag attached to
the plastic spacing bar. Cut the spacing bar
according to the distance to be adjusted.
Assembly under a wall cupboard
The following operations are essential for assembly:
– Install the wiring system
– Prepare the air venting outlet if your appliance
is to be installed in the Ducting version.
Installation as indicated in Fig. 5:
Using the template make the 4 necessary
fixing holes in the bottom of the cupboard
and cut the air vent hole.
Move the hood close to the bottom of the
wall unit and then connect the two units by
means of the 4 self-tapping screws supplied together with the appliance.

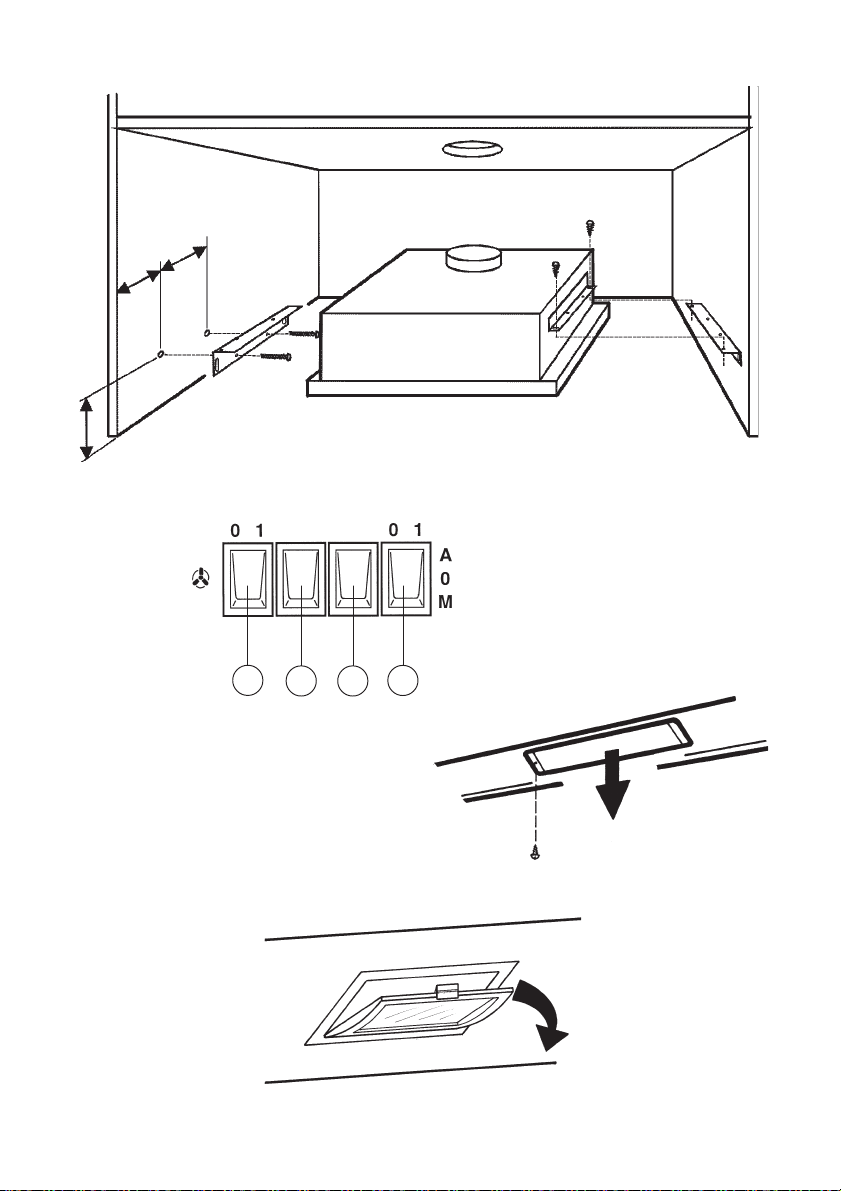

Installation with brackets as in Fig. 6 (optional):
Take the two brackets (S) out of the
accessory bag together with the 8 screws
provided. Fit the brackets to the wall unit
being careful to position these correctly; for
this operation use the 4 longer screws. At
this point, secure the appliance to the
brackets using the 4 shorter screws.
Ducting version: fit the flange of the hood with the
air vent hole made previously in the wall/ceiling by
means of an suitable tube. Connect the mains
cable to the electricity supply. Assemble the grease
grille with the hood, inserting it with the front edge
upwards.
Filtering version: fit a suitable hose to the flange of
the hood so that the air is recirculated back into the
room. Connect the mains cable to the electricity
supply. Fit the charcoal filter inside the grease grille
securing it by means of the 2 metal wires supplied
(F), as indicated in Fig. 3. Assemble the grease
grille with the hood, inserting it with the front edge
upwards.
OPERATION
-----------------------------------------------------------
Controls (Fig. 7):
A = ON/OFF 1st speed switch
B = II speed switch
C = III speed switch
The motor is automatically switched ON or
OFF by opening/closing the visor (unless
switch A is in position 0). Upon opening the
visor the previously selected speed is used.
D = Light switch. Position A (automatic), the light
is automatically switched ON or OFF by the
opening/closing of the visor. Position M
(manual), the light is on. Position 0, the light
is off.
If the hood is used in the filtering version
