Thank you for buying an Electrolux product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using the appliance and retain for future reference. If you require guidance in the use of the appliance or require further information on Electrolux Products, please contact our Customer Care Department.
Customer Care Department |
|
|
Electrolux |
|
|
PO Box 47 |
|
|
Newbury |
|
|
Berkshire |
Tel: |
01635 522799 |
RG14 5XL |
Fax: |
01635 42970 |
To register ownership, please ensure you complete and return the guarantee card supplied with the appliance.
For the User
Important Safety Information
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Recirculation
Extraction
Maintenance and Cleaning
External Cleaning
Metal Grease Filters
Charcoal Filters
To Remove/Replace the Charcoal Filters
Changing the Light Bulb
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements

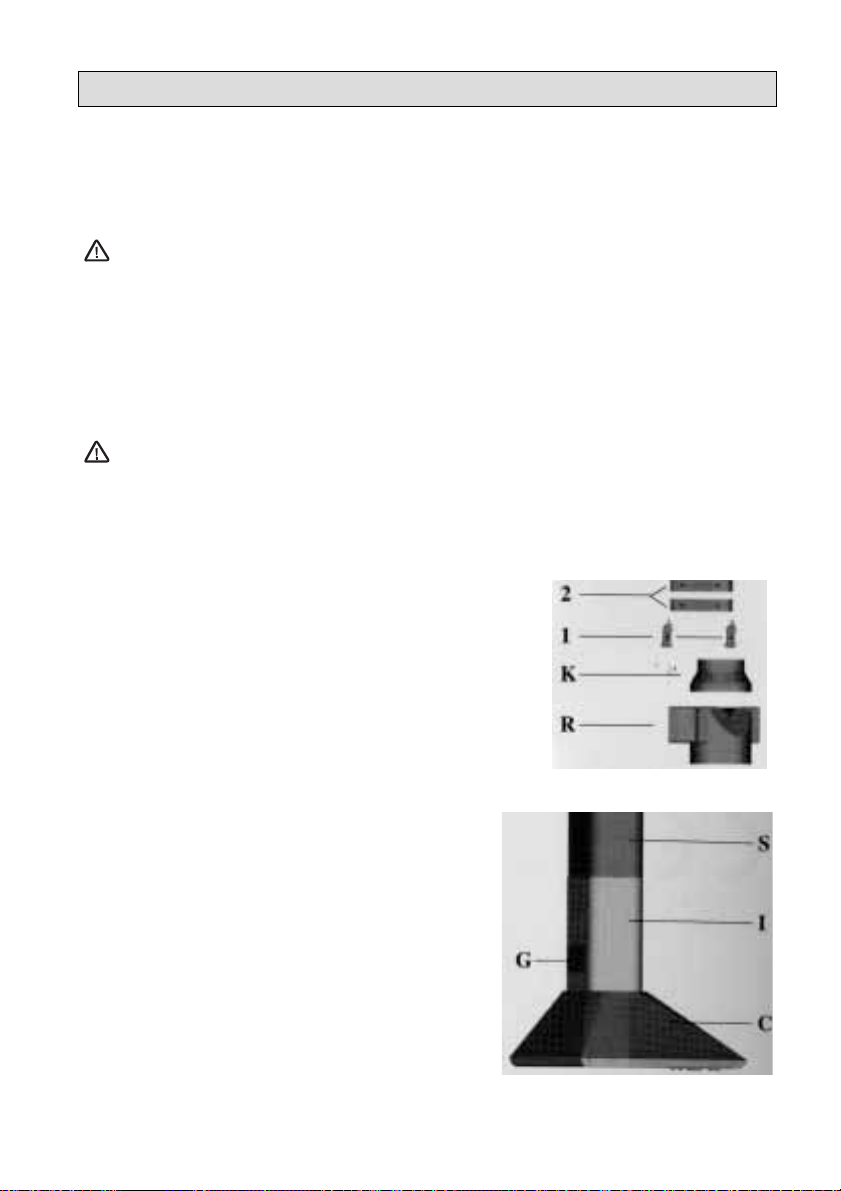

Unpacking

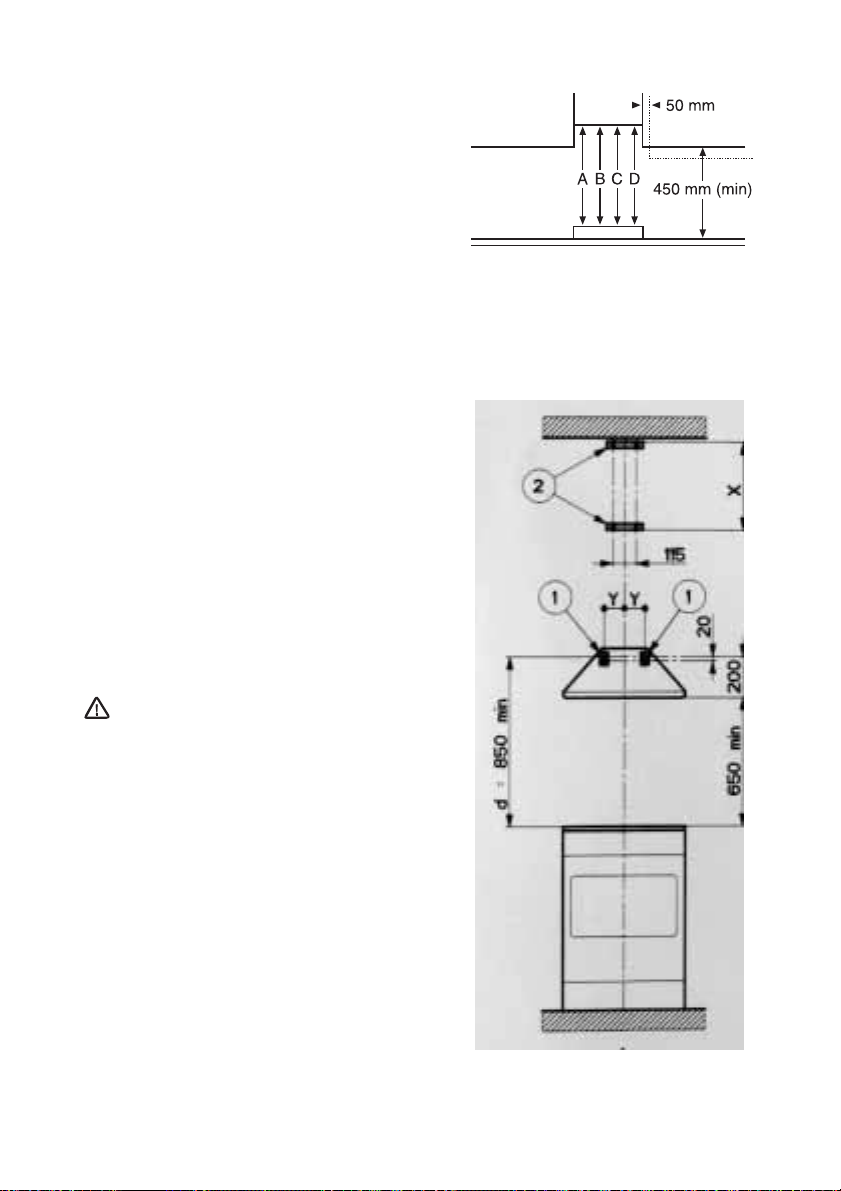

Clearance Height
Fitting the Wall Brackets
Fitting the Canopy Hood
Venting
Recirculation

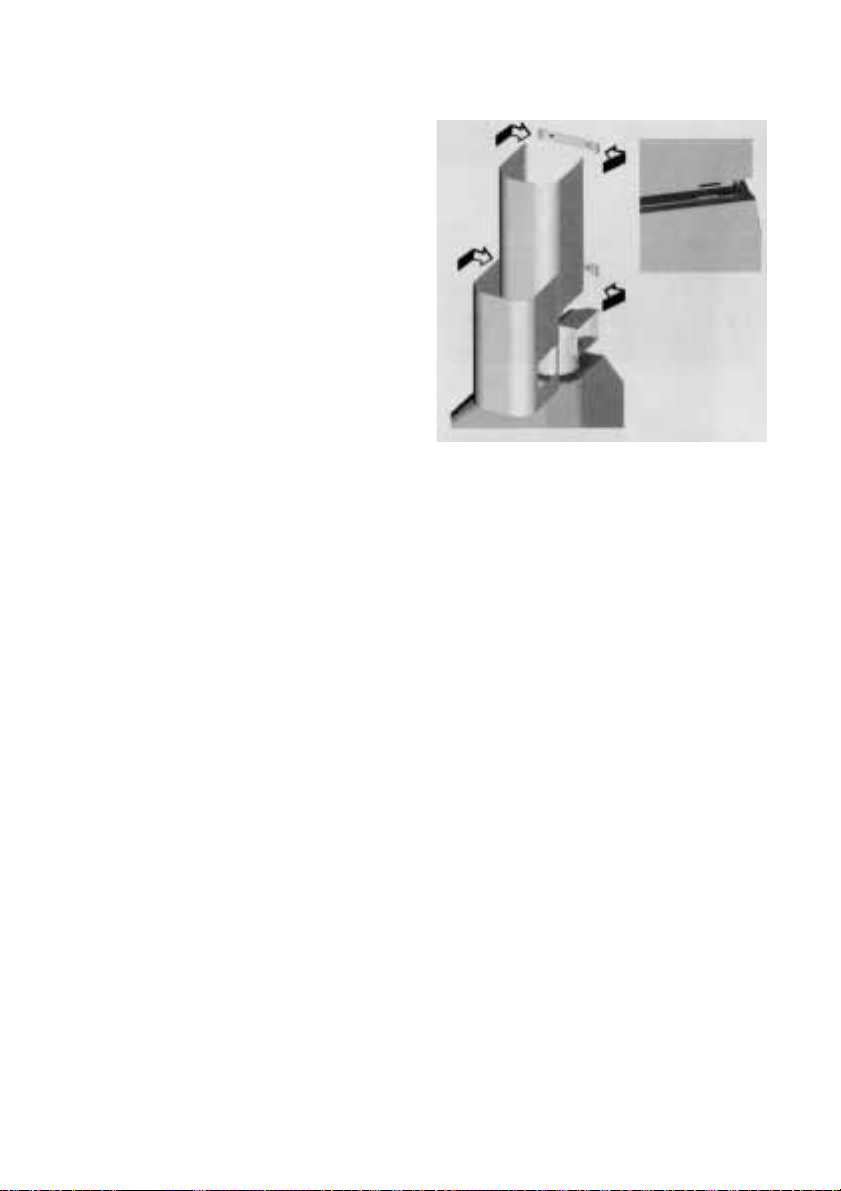

Fitting the Chimney Stack
Service Force Centres
To register ownership, please ensure you complete and return the guarantee card supplied with the appliance.
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions |
K Step by step instructions |
2
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings contact the Customer Care Department.
■ Installation
•Any installation work must be undertaken by a qualified electrician or a competent person.
•This hood must be installed in accordance with the installation instructions and all measurements must be adhered to.
•If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 and BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
•The fan motor of this cooker hood incorporates a cut-out device which will operate if the cooker hood is installed below the minimum height recommended under section ‘Clearance Height’, or if the motor becomes overheated. If the cut-out device is activated, switch off the fan motor and allow the cooker hood to cool. The cut-out device will reset itself when the fan motor has cooled significantly.
•It is dangerous to alter the specifications or modify this product in any way.
•When installed between adjoining wall cabinets the wall cabinets must not overhang the hob.
•If the room where the hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type.
•If other types of flue or appliances are fitted ensure that there is an adequate supply of air to the room.
•The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose.
•Do not install above a cooker with a high level grill.
■ Child Safety
•This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
■ During Use
•This product is for domestic use only.
•Never leave frying pans unattended during use as over-heated fats and oils might catch fire.
•Never do flambé cooking under this cooker hood.
•Do not leave naked flames under the hood.
■ Maintenance and Service
•This appliance can be a hazard if the synthetic paper and charcoal filters are not replaced as recommended.
•Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunction. Refer to your local Electrolux Service Force Centre. Always insist on genuine spare parts.
3
YOUR APPLIANCE
760 - 360 |
|
|
|
360 |
|
|
|
|
OPERATING INSTRUCTIONS
The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam. The appliance can be installed to recirculate or extract contaminated air.
Cooker Hood Controls
The hood functions are controlled by three slide switches located to the right on the underside of the hood immediately in front of the metal grease filter.
Worktop Lighting
The switch marked with lamp symbol operates the worktop lighting
L. 0 |
- |
Off |
1 |
- |
On |
Fan Control
M. Fan ON/OFF control
0 |
- |
Off |
1 |
- |
On |
V. Fan Speed Control |
||
1 |
- |
Low |
2 |
- |
Normal |
3 |
- |
Boost |
To Operate
Select the required fan speed and light if required.
4
Recirculation
The air is cleaned by passing through the filters and then back into the kitchen.
Extraction
The contaminated air enters the hood passing through the grease filter and out through the ducting into the atmosphere
To obtain the best performance it is advisable to switch on the hood a few minutes before you start cooking and leave it running for approximately 15 minutes after finishing.
When used in the ducting mode the charcoal filters are not required.
Never do flambé cooking under this cooker hood.
Never leave frying pans unattended during use as over-heated fats and oils can catch fire.
Do not leave naked flames under the cooker hood.
Ensure heating areas on your hob are covered with pots and pans when using the hob and cooker hood simultaneously.
5
MAINTENANCE AND CLEANING
Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.
The cooker hood must be kept clean, as a build up of grease or fat can be a fire hazard
External Cleaning
Wipe the cooker hood frequently with warm soapy water using a mild detergent.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when cleaning particularly around the control panel.
Metal Grease Filters
The grease filter absorbs grease and dust during cooking to help keep the appliance clean inside, and should be cleaned approximately once every month
or more often if the hood is used for more than 3 hours a day.
KRemove the metal grease filters one at a time by:
Releasing the catches on the filters, the filters can now be removed.
The metal grease filters should be washed, by hand, in mild soapy water or in a dishwasher. Allow to dry completely before replacing.
6
