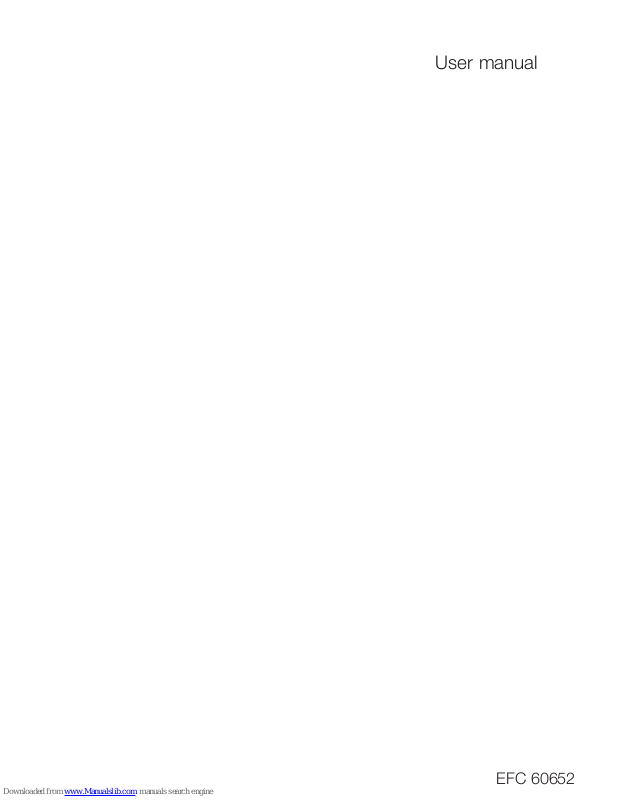

Electrolux EFC 60652 User Manual

EFC 60652

User manual

electroluxelectrolux

electrolux

safety warnings

33

3

GB

WW

W

elcome to the world of Electrelcome to the world of Electr

elcome to the world of Electr

oluxolux

olux

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good luck!

44

4

electr electr

electr

oluxolux

olux contents

GB

Contents

Safety warnings ................................. 5

Description of the Appliance .............. 7

Control Panel..................................... 8

Maintenance and Care ...................... 9

Special accessories ......................... 13

Something Not Working ................... 13

Installation ....................................... 14

The following symbols are used in this user manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance.

General information and tips.

Environmental information.

electroluxelectrolux

electrolux

safety warnings

55

5

GB

Safety warnings

For the userFor the user

For the user

• The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.

• Always cover lighted elements, to prevent excess heat from damaging the appliance. In the case of oil, gas and coal fired cookers it is essential to avoid open flames.

• Also, when frying, keep the deep frying pan on the cooker top/cooker under careful control.

• The hot oil in the frying pan might ignite due to overheating.

• The risk of self-ignition increases when the oil being used is dirty.

• It is extremely important to note that overheating can cause a fire.

•

Never carry out any flambé cookingNever carry out any flambé cooking

Never carry out any flambé cooking under the hood.under the hood.

under the hood.under the hood.

under the hood.

•

Always disconnect the unit frAlways disconnect the unit fr

Always disconnect the unit fr

om theom the

om the

power supply beforpower supply befor

power supply befor

e carrying oute carrying out

e carrying out

any work on the hood, includingany work on the hood, including

any work on the hood, including rr

rr

r

eplacing the light bulbeplacing the light bulb

eplacing the light bulb (take the cartridge fuse out of the fuse holder or switch off the automatic circuit breaker).

•

It is very important to clean the hoodIt is very important to clean the hood

It is very important to clean the hood and rand r

and rand r

and r

eplace the filter at theeplace the filter at the

eplace the filter at the

rr

r

ecommended intervals. Failurecommended intervals. Failur

ecommended intervals. Failur

e toe to

e to

do so could cause grdo so could cause gr

do so could cause gr

ease depositsease deposits

ease deposits

to build up, rto build up, r

to build up, r

esulting in a firesulting in a fir

esulting in a fir

e hazare hazar

e hazar

d.d.

d.

• The appliance is not intended for use by young children or infirm persons without supervision.

• Older children must be supervised if using the appliance.

• Young children should be supervised to ensure that they do not play with the appliance.

••

•

WW

W

ARNING - ARNING -

ARNING - Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance

may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

66

6

electr electr

electr

oluxolux

olux safety warnings

GB

For the installerFor the installer

For the installer

• When used as an extractor unit, the hood must be fitted with a hose having preferably the same diameter as the outlet hole. Attention: Attention:

Attention: Attention:

Attention: The hose is not supplied and must be purchased separately.

••

•

When installing the hood, make surWhen installing the hood, make sur

When installing the hood, make sur

ee

e

you observe the following minimumyou observe the following minimum

you observe the following minimum distance frdistance fr

distance frdistance fr

distance fr

om the top edge of theom the top edge of the

om the top edge of the

cooking hob/ring surfaces:cooking hob/ring surfaces:

cooking hob/ring surfaces: electric cookerselectric cookers

electric cookerselectric cookers

electric cookers

500 mm500 mm

500 mm

gas cookersgas cookers

gas cookers

650 mm650 mm

650 mm If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

• The national Standard on fuelburning systems specifies a maximum depression of 0.04 mbar in such rooms.

• The air outlet must not be connected to chimney flues or combustion gas ducts. The air outlet must under no circumstances be connected to ventilation ducts for rooms in which fuel-burning appliances are installed.

• The air outlet installation must comply with the regulations laid down by the relevant local authorities.

• When the unit is used in extraction mode, a sufficiently large ventilation hole must be provided, with dimensions that are approximately the same as the outlet hole.

• National and regional building regulations impose a number of restrictions on using hoods and fuelburning appliances connected to a chimney, such as coal or oil roomheaters and gas fires, in the same room.

• Hoods can only be used safely with appliances connected to a chimney if the room and/or flat (air/environment combination) is ventilated from outside using a suitable ventilation hole approximately 500-600 cm

2

large to avoid the possibility of a depression being created during operation of the hood.

• If you have any doubts, contact the relevant controlling authority or building inspector’s office.

• Since the rule for rooms with fuel burning appliances is “outlet hole of the same size as the ventilation hole”, a hole of 500-600 cm2, which is to say a larger hole, could reduce the performance of the extractor hood.

• If the hood is used in its recirculation mode, it will operate simply and safely in the above conditions without the need for any of the aforementioned measures.

• When the hood is used in its extraction mode, the following rules must be followed to obtain optimal operation:

- short and straight outlet hose

- keep bends in outlet hose to a

minimum

- never install the hoses with an

acute angle, they must always follow a gentle curve.

- keep the hose as large as possible

(preferably the same diameter as the outlet hole).

- the length should be no more than:

3 metres with one 90° bend 2 metres with two 90° bends Bends of more than 90° will reduce the efficiency of the hood and reduce the airflow.

• Failure to observe these basic instructions will drastically reduce the performance and increase the noise levels of the extractor hood.

electrolux electrolux

electrolux description of the appliance

77

7

GB

Description of the Appliance

• The cooker hood is supplied ready for use as a recirculation hood and may be used for extraction by removing the charcoal filter which has been fitted inside the cooker hood.

Extraction modeExtraction mode

Extraction mode

• In this mode fumes are extracted to the outside via a

hosehose

hose connected to

the

coupling ringcoupling ring

coupling ring.

• In order to obtain the best performance the hose should have a diameter equal to the outlet hole.

RecirRecir

Recir

culation modeculation mode

culation mode

• The air is filtered through a

charchar

char

coalcoal

coal

filterfilter

filter and returned to the kitchen.

• You will need an original charcoal filter for the recirculation mode. (See Special Accessories).

CouplingCoupling

Coupling ringring

ringring

ring

HoseHose

Hose

88

8

electr electr

electr

oluxolux

olux control panel

GB

Control Panel

• Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated. Turn the hood on a few minutes before you start cooking. The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared.

•

CorrCorr

Corr

ect ventilation:ect ventilation:

ect ventilation: If the cooker hood is to work correctly there must be an under pressure in the kitchen. It is important to keep the kitchen windows closed and have a window in an adjacent room open.

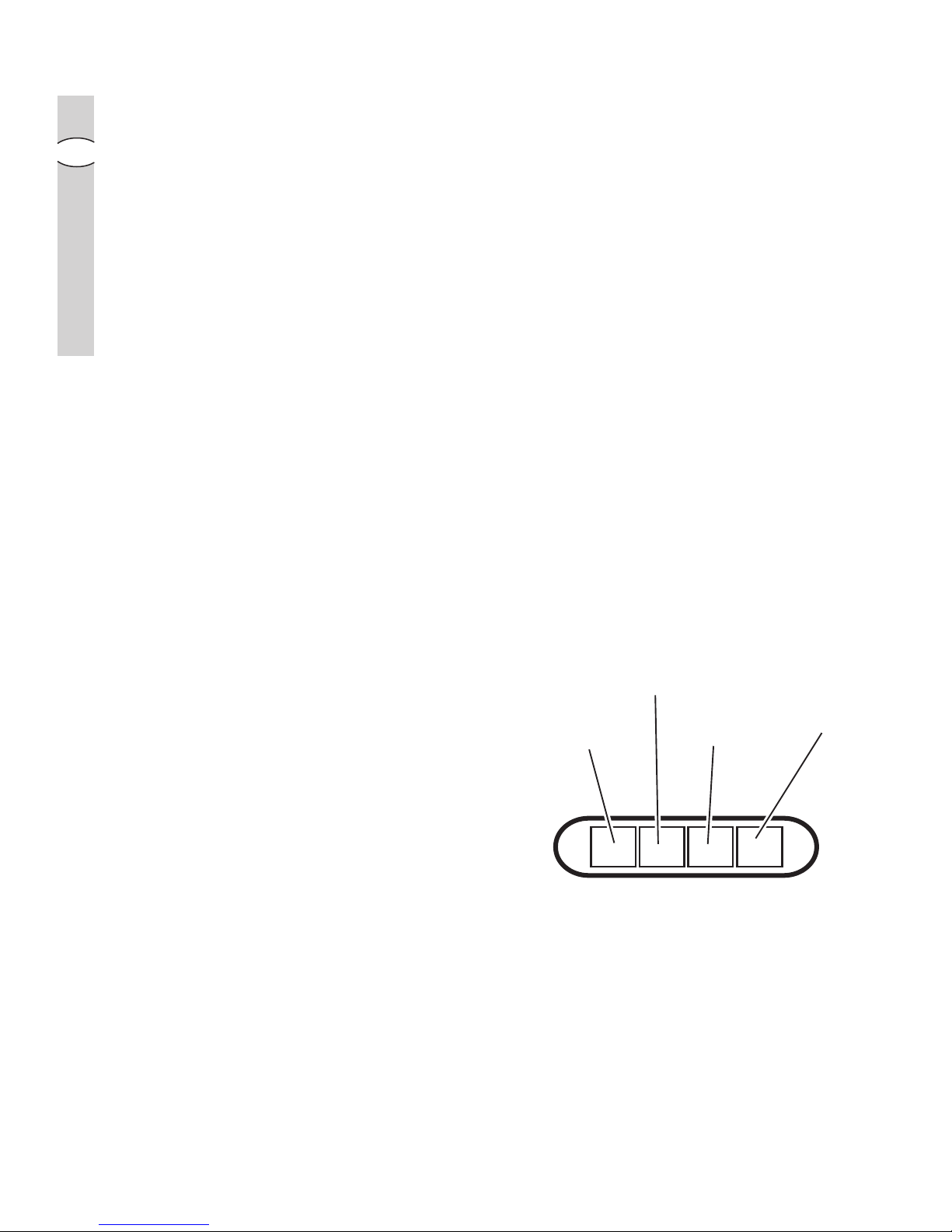

• The control switches are located on the hood’s front panel:

• the

light switchlight switch

light switch switches the hood

lamp ON and OFF;

•

ON/OFF switch Speed 1:ON/OFF switch Speed 1:

ON/OFF switch Speed 1: used to turn the fan off and to set the fan to speed 1.

•

Speed 2:Speed 2:

Speed 2: used to set the fan to speed 2.

•

Speed 3:Speed 3:

Speed 3: used to set the fan to speed 3.

Light switchLight switch

Light switch

ON/OFF switchON/OFF switch

ON/OFF switch

Speed 1Speed 1

Speed 1

Speed 2Speed 2

Speed 2

Speed 3Speed 3

Speed 3

electrolux electrolux

electrolux maintenance and care

99

9

GB

Maintenance and Care

••

•

BeforBefor

Befor

e performing any maintenance operation, isolate the hood fre performing any maintenance operation, isolate the hood fr

e performing any maintenance operation, isolate the hood fr

om theom the

om the

electrical supply by switching ofelectrical supply by switching of

electrical supply by switching of

f at the connector and rf at the connector and r

f at the connector and r

emoving theemoving the

emoving the

connector fuse.connector fuse.

connector fuse. Or if the appliance has been connected thrOr if the appliance has been connected thr

Or if the appliance has been connected thrOr if the appliance has been connected thr

Or if the appliance has been connected thr

ough a plug and socket, then theough a plug and socket, then the

ough a plug and socket, then the

plug must be rplug must be r

plug must be r

emoved fremoved fr

emoved fr

om the socket.om the socket.

om the socket.

Metal grMetal gr

Metal gr

ease filterease filter

ease filter

• The purpose of the grease filters is to absorb grease particles which form during cooking and it

mustmust

must always be used, either in the external extraction or internal re-circulation function.

Attention: the metal grease filters must be removed and washed, either by hand or in the dishwasher, every four weeks.

Removing the metal grRemoving the metal gr

Removing the metal gr

ease filterease filter

ease filter

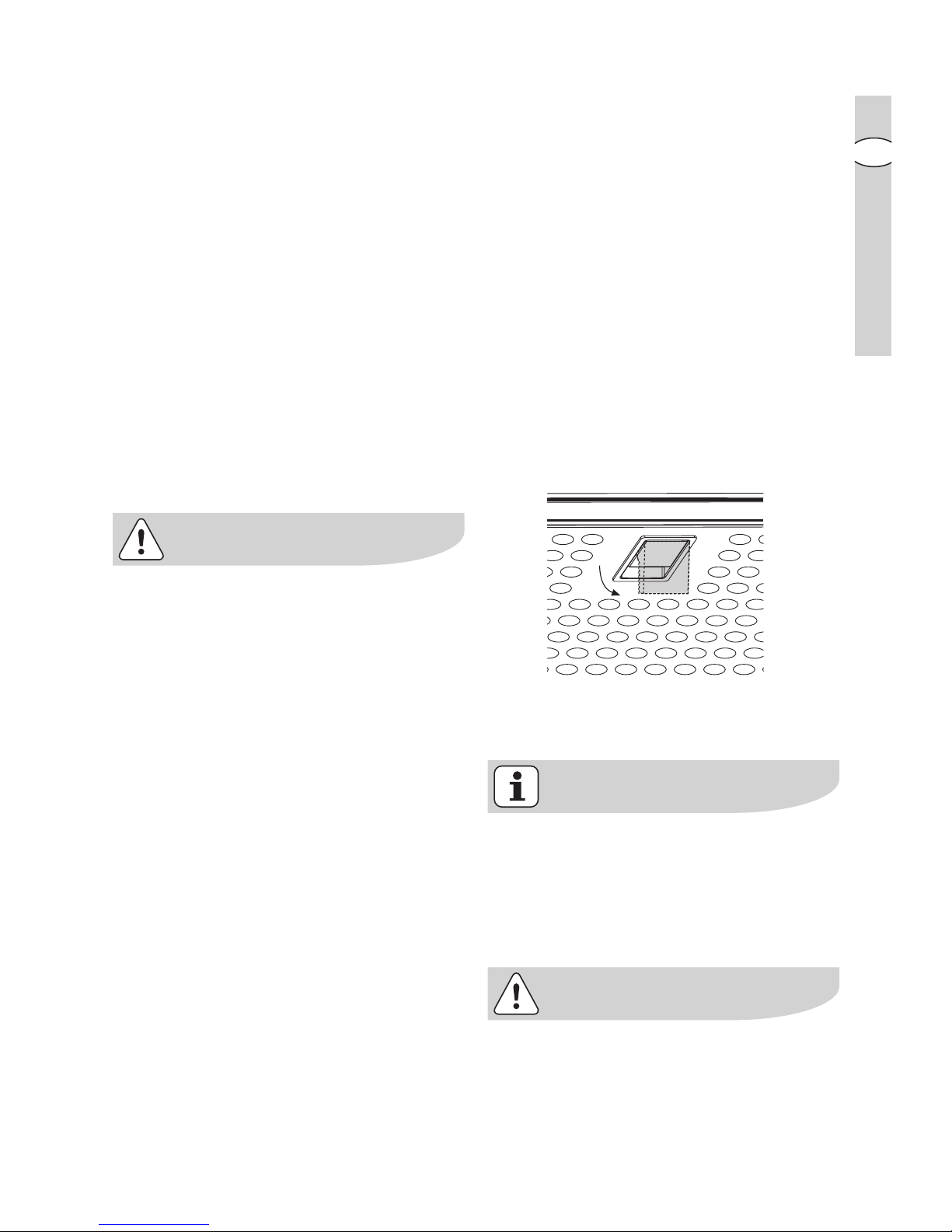

• Use the spring handle and remove the filter downwards.

Hand washingHand washing

Hand washing

Soak grease filters for about one hour in hot water with a grease-loosening cleaner, then rinse off thoroughly with hot water. Repeat the process if necessary. Refit the grease filters when they are dry.

DishwasherDishwasher

Dishwasher

Place grease filters in the dishwasher. Select most powerful washing programme and highest temperature, at least 65°C. Repeat the process. Refit the grease filters when they are dry.

When washing the metal grease filter in the dishwasher a slight discolouration of the filter can occur, this does not have any impact on its performance.

• Clean the inner housing using a hand hot solution only(never use caustic detergents, abrasive powders or brushes).

1010

10

electr electr

electr

oluxolux

olux maintenance and care

GB

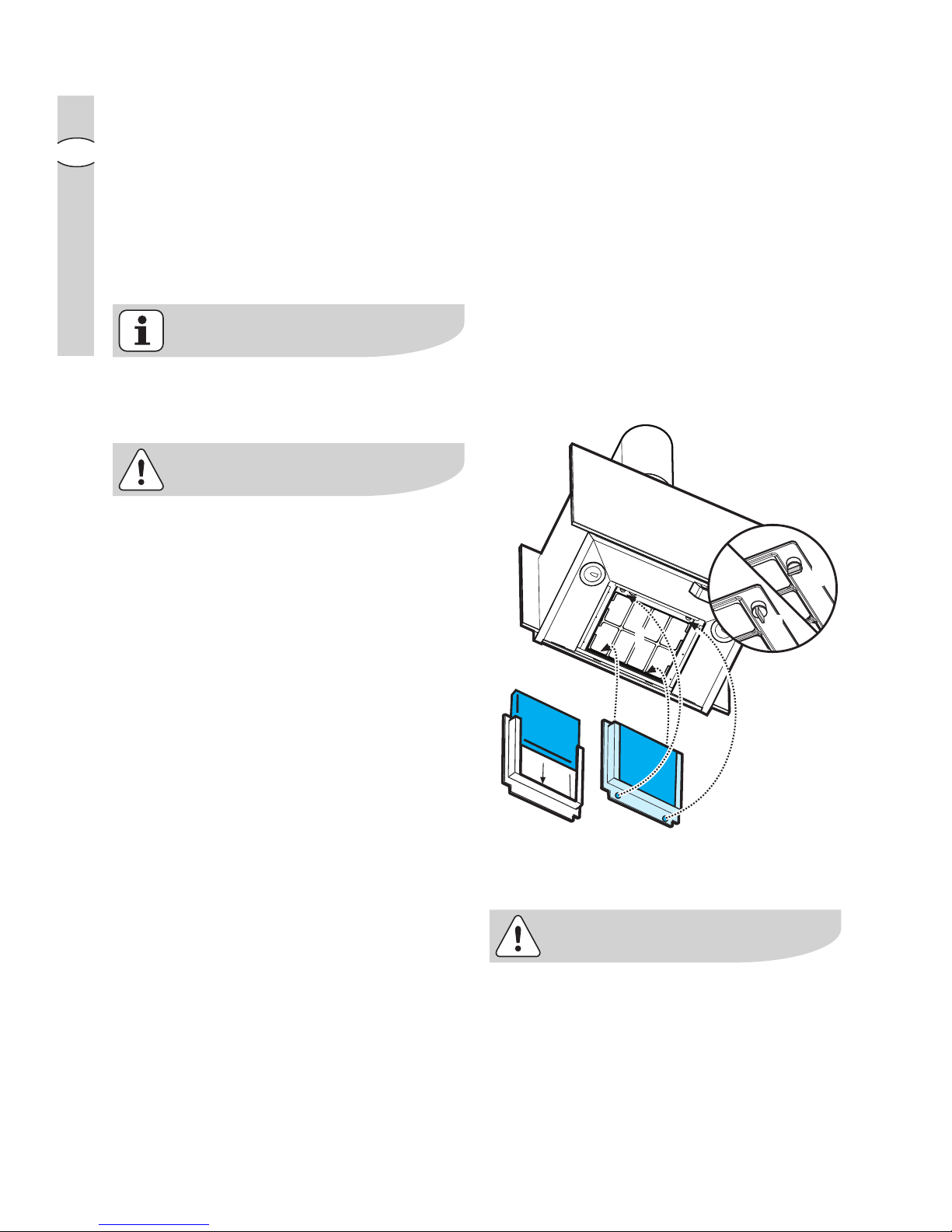

CharChar

Char

coal filtercoal filter

coal filter

• The charcoal filter should only be used if you want to use the hood in recirculation mode.

• To do this you will need an original charcoal filter (available from your local Service Force Centre).

•

Cleaning/rCleaning/r

Cleaning/r

eplacing the chareplacing the char

eplacing the char

coal filtercoal filter

coal filter

Unlike other charcoal filters, the LONGLIFE charcoal filter can be cleaned and reactivated.

With normal use the filter should be cleaned every second month (when using the hood 2.5 hours per day,on avarage). The best way to clean the filter is in the dishwasher. Use normal detergent and choose the highest temperature (65º C). Wash the filter separately so that no food parts gets stuck on the filter and later causes bad odours. To reactivate the charcoal, the filter should be dried in an oven for 10 minutes with a maximum temperature of 100º C. After approximately three years of use, the charcoal filter should be replaced with a new one, as the odour reduction capacity will be reduced.

•

FittingFitting

Fitting Remove the frame

ii

i which supports

the filter

hh

h by turning 90° the two

knobs

g.g.

g. Insert the charcoal filter inside the frame and put all parts back in their place.

•

TT

T

o ro r

o r

emoveemove

emove proceed in the reverse

order.

• Always specify the hood model code number and serial number when ordering replacement filters. This information is shown on the rating plate located on the inside of the unit.

• The charcoal filter can be ordered from your local Service Force Centre.

j

g

h

i

g

electrolux electrolux

electrolux maintenance and care

1111

11

GB

WW

W

arar

ar

ningning

ning

• Failure to observe the instructions on cleaning the unit and changing the filters will cause a fire hazard. You are therefore strongly recommended to follow these instructions.

• The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Changing the light bulb(s)Changing the light bulb(s)

Changing the light bulb(s)

•

Disconnect the cooker hood frDisconnect the cooker hood fr

Disconnect the cooker hood fr

omom

om

the mains supplythe mains supply

the mains supply

..

.

••

•

Prior to touching the light bulbsPrior to touching the light bulbs

Prior to touching the light bulbs ensurensur

ensurensur

ensur

e they are they ar

e they ar

e cooled down.e cooled down.

e cooled down.

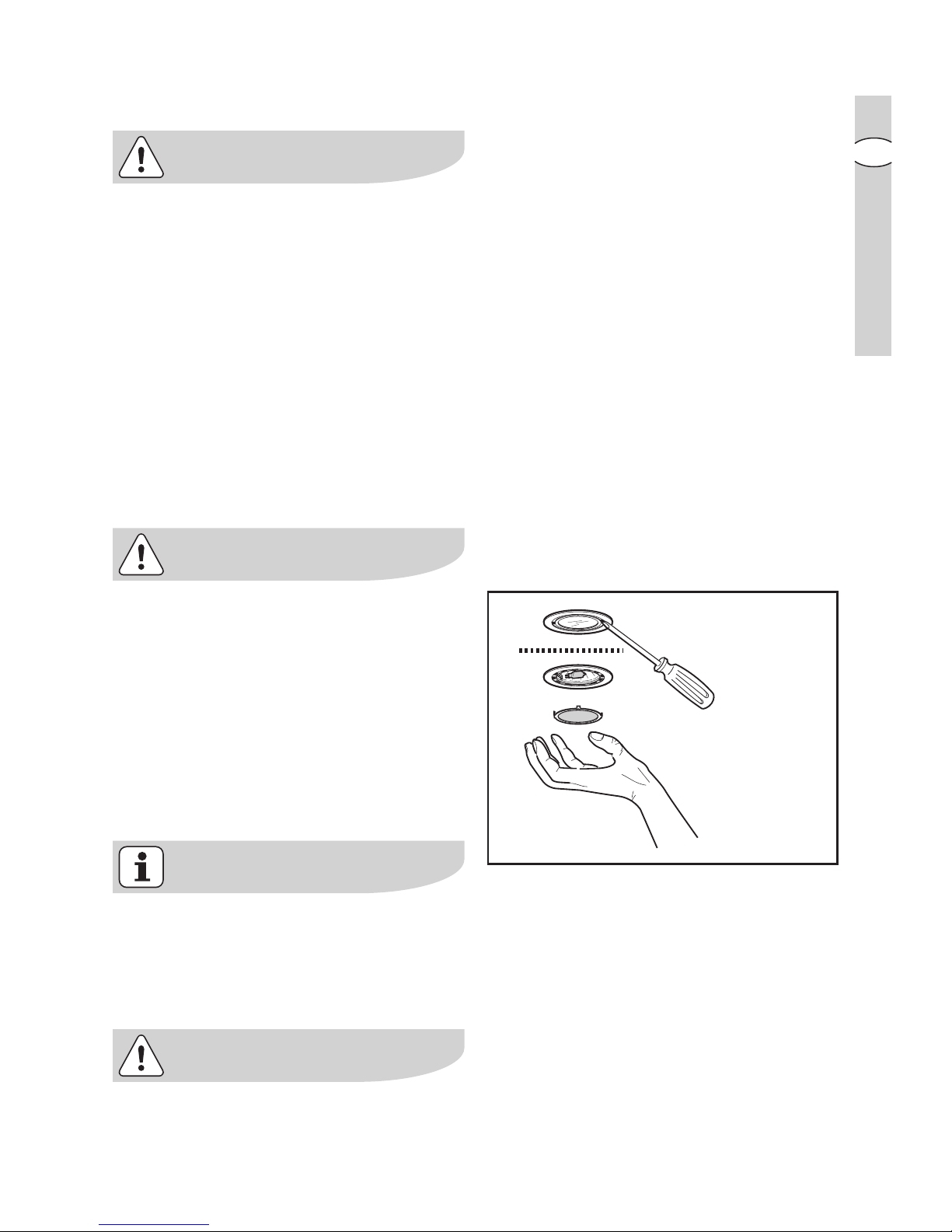

• Remove the protection glass with a screwdriver.

• Replace the bulb with a new one with the same characteristics.

• Put the protection glass back.

• If the light does not come on, make sure the bulb has been inserted in correctly before contacting your local Service Force Centre.

Side PL lamps must be replaced by your local Service Force Centre ONLY.

12V -20W max - G4

1212

12

electr electr

electr

oluxolux

olux maintenance and care

GB

Cleaning the hoodCleaning the hood

Cleaning the hood

• Clean the outside of the hood using a damp cloth and a solution of water and mild washing up liquid.

• Never use corrosive, abrasive or flammable cleaning products or products containing bleach.

• Never insert pointed objects in the motor’s protective grid.

• Only ever clean the switch panel and filter grill using a damp cloth and mild washing up liquid.

• Clean all the plastic parts with a soft cloth soaked in warm water and neutral soap.

• It is extremely important to clean the unit and change the filters at the recommended intervals. Failure to do so will cause grease deposits to build up that could constitute a fire hazard.

electrolux electrolux

electrolux special accessories

1313

13

GB

Special accessoriesSpecial accessories

Special accessories

CharChar

Char

coal filtercoal filter

coal filter Type 20

Something Not Working

If your appliance fails to work properly please carry out the following checks.

SymptomSymptom

Symptom

The cooker hood will not start...

The cooker hood is not working

The cooker hood has switched off during operation...

SolutionSolution

Solution

Check that: Check that:

Check that: The hood is connected to the electricity supply. Check that a fan speed has been selected.

Check that: Check that:

Check that: The fan speed is set high enough for the task. The grease filters are clean. The kitchen is adequately vented to allow the entry of fresh air. If set up for recirculation, check that the charcoal filter is still effective. If set up for extraction, check that the ducting and outlets are not blocked.

The safety cut-out device has been tripped. Turn off the hob and then wait for the device to reset. If the hood has been installed below the heights indicated in the installation instructions the motor will cut-out frequently which will damage the hood.

If after all these checks, the problem persists, contact your local Service Centre, quoting the model and serial number. Please note that it will be necessary to provide proof of purchase for any inguarantee service calls. In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

1414

14

electr electr

electr

oluxolux

olux installation

GB

Installation

TT

T

echnical Detailsechnical Details

echnical Details

EFC 60652EFC 60652

EFC 60652

Dimensions (in cm):Dimensions (in cm):

Dimensions (in cm):

Height (min.-max.): 100-125

Width: 60

Depth: 35

MaximumMaximum

Maximum

absorbedabsorbed

absorbed

power:power:

power: 230 W

Motor: 170 W

Lighting: 2 x 20 W (12V - G4) + 2 x 11 W (PL - G23)*

Length of the cable:Length of the cable:

Length of the cable: 150 cm

Electrical connection:Electrical connection:

Electrical connection: 220-240 V

Fuse rating:Fuse rating:

Fuse rating: 5AT

* Side PL lamps must be replaced by your local Service Force Centre ONLY.

Mounting accessories includedMounting accessories included

Mounting accessories included

1 deflector

1 allan wrench for torx screws

2 fixing brackets for motor unit

1 support bracket for flues

10 screws 5 x 45 mm

10 dowels Ø 8 mm

10 screws 3 x 9

4 washers

electrolux electrolux

electrolux installation

1515

15

GB

Electrical connection (not for UK)

Safety warSafety war

Safety war

nings for the electriciannings for the electrician

nings for the electrician Before connecting the appliance to the power supply, check that the voltage indicated on the rating plate corresponds to the mains power supply available. Appliances fitted with a plug can be connected to any standard power socket within easy access. Should it be necessary to provide a fixed connection, the hood must only be installed by an electrician authorised by the local electricity board. When installing, an omnipolar disconnector with a distance of at least 3 mm between contacts must be provided. Fixed connection of the appliance must only be carried out by an authorised electrician.

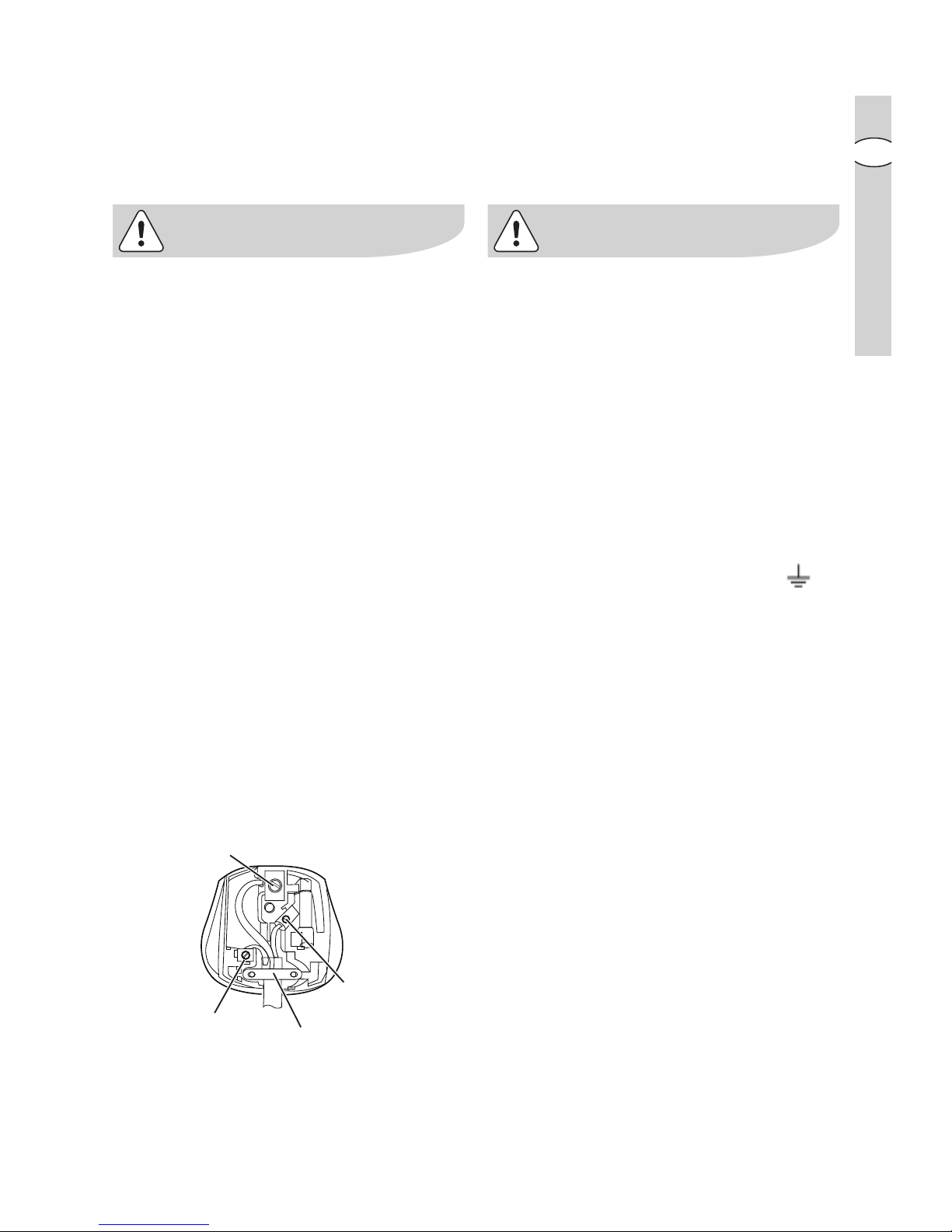

Electrical connection for UK only

Safety warSafety war

Safety war

nings for the electriciannings for the electrician

nings for the electrician Connect the hood to the mains supply via a double pole switch which has 3 mm minimum separation between the contacts. The switch must be accessible at all times. The following is valid in the United Kingdom only:

- the wire which is coloured green and

yellow must be connected to the terminal which is marked with the

letter E or by the earth symbol ( ), or coloured green or green and

yellow;

- the wire which is coloured blue must

be connected to the terminal which is marked with the letter N or coloured black, -

- the wire which is coloured brown

must be connected to the terminal which is marked with the letter L or coloured red.

BROWN

CORD CLAMP

BLUE

GREEN & YELLOW

5AT







1616

16

electr electr

electr

oluxolux

olux installation

GB

InstallationInstallation

Installation

Make surMake sur

Make sur

e that the cooker hood is disconnected fre that the cooker hood is disconnected fr

e that the cooker hood is disconnected fr

om the power supply beforom the power supply befor

om the power supply befor

ee

e

carrying out the installation.carrying out the installation.

carrying out the installation.

Remove the grease filters.

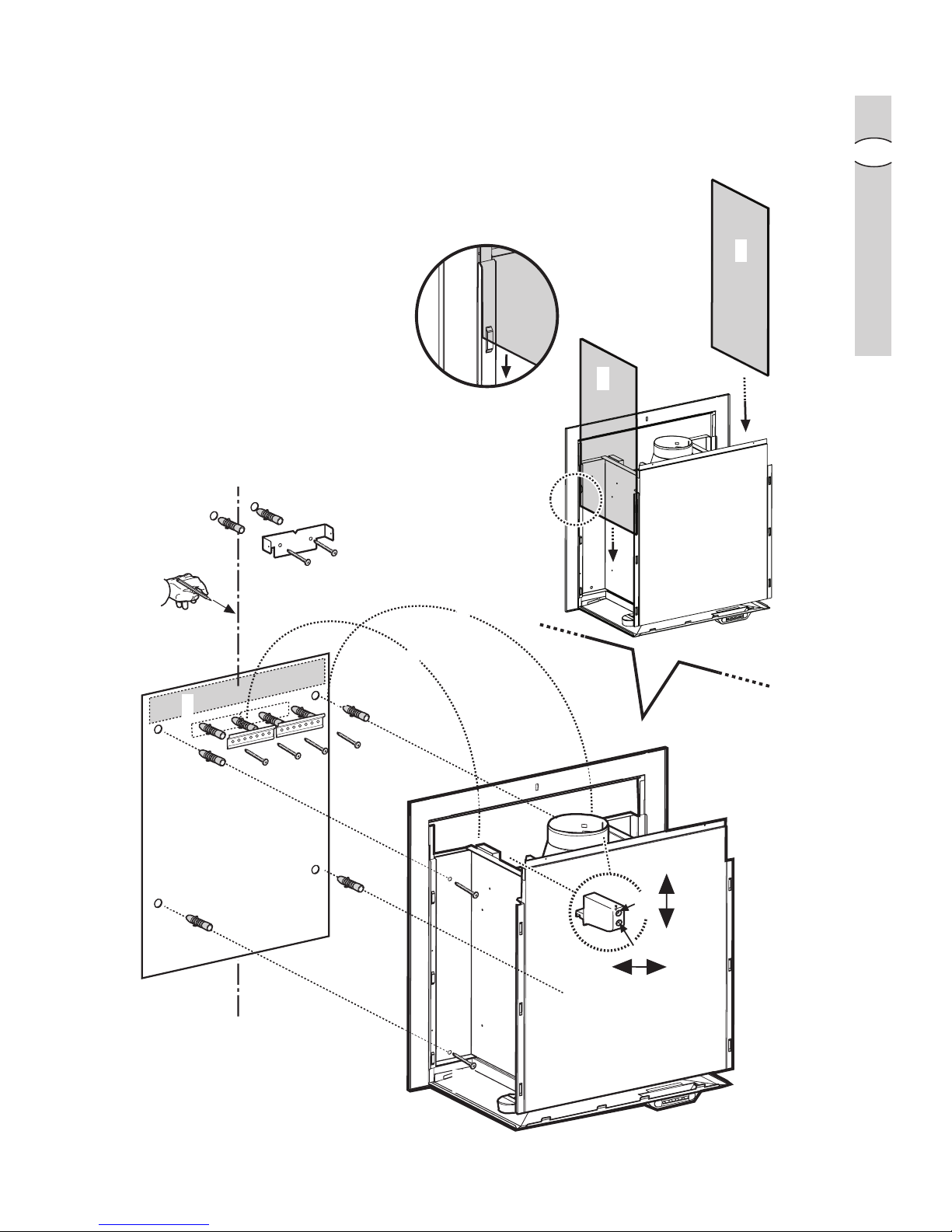

• Mark a central line on the wall to facilitate the installation procedure (

11

1). Position the drilling template so that the median line printed on it corresponds to the central line marked previously, and so that the lower side of the template corresponds to the lower part of the cooker hood once it has been fitted (

22

2).

• Rest support bracket on the drilling template allowing it to coincide with the traced rectangle, mark the two outer drill holes and drill, remove the drilling template, insert 2 wall screw anchors and affix the cooker hood support bracket using two 5x45 mm (3)(3)

(3)(3)

(3). Attention! Attention!

Attention! Attention!

Attention! 2 brackets are required to fix to the wall with a total of 4 wall screw anchors and 4 x 5x45 mm screws.

••

• Carry out 4 drill holes to permanently fix the cooker hood

(4)(4)

(4).

••

• Provide for the electrical outlet on the wall in the area immediately above the brackets

(5)(5)

(5).

••

• Place the chimney support bracket “L” “L”

“L” “L”

“L” on the wall adherent to the ceiling, use the support bracket as a drilling template (the small slit

opening on the bracket must coincide with the line previously marked on the wall see operation

11

1) and mark 2 holes with a pencil, drill 2 (Ø8mm) holes, insert the screw anchors and fix the chimney support bracket to the wall using two 5x45 mm screws (6)(6)

(6)(6)

(6).

••

• Insert the side panels from the top into the appropriate track guides. The acidified side should face inwards

(7)(7)

(7).

••

• Hang the cooker hood on the bracket (8)(8)

(8)(8)

(8).

••

• Regulate the distance of the cooker hood from the wall

(9)(9)

(9).

••

• Regulate the cooker hood’s horizontal axis

(10)(10)

(10).

••

• Permanently fix the cooker hood to the wall using four 5x45 mm screws and washers (

1111

11 - ABSOLUTELY

NECESSARY).

••

• Carry out the electrical connection (12)(12)

(12)(12)

(12).

electrolux electrolux

electrolux installation

1717

17

GB

1

9

10

2

4

6

11

3

5

7

8

11

12

1818

18

electr electr

electr

oluxolux

olux installation

GB

••

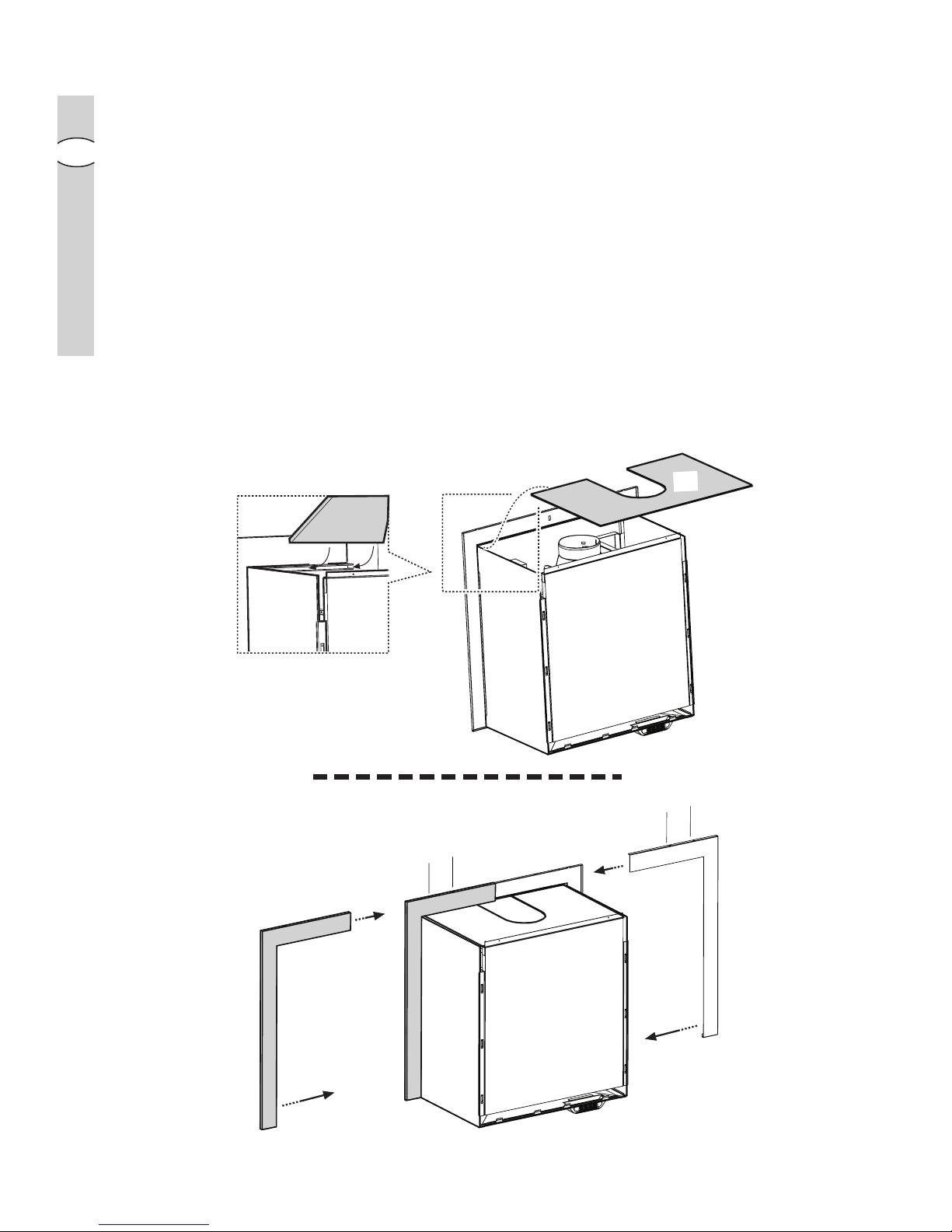

• Place the upper cover panel first on the back part on the appropriate track guides, then settle it so that it is perfectly horizontal

(13)(13)

(13).

••

• Insert the 2 cornices on the sides (14a) (14a)

(14a) (14a)

(14a) and fix them from the top using 2 screws each

(14b)(14b)

(14b).

14a

14b

13

electrolux electrolux

electrolux installation

1919

19

GB

••

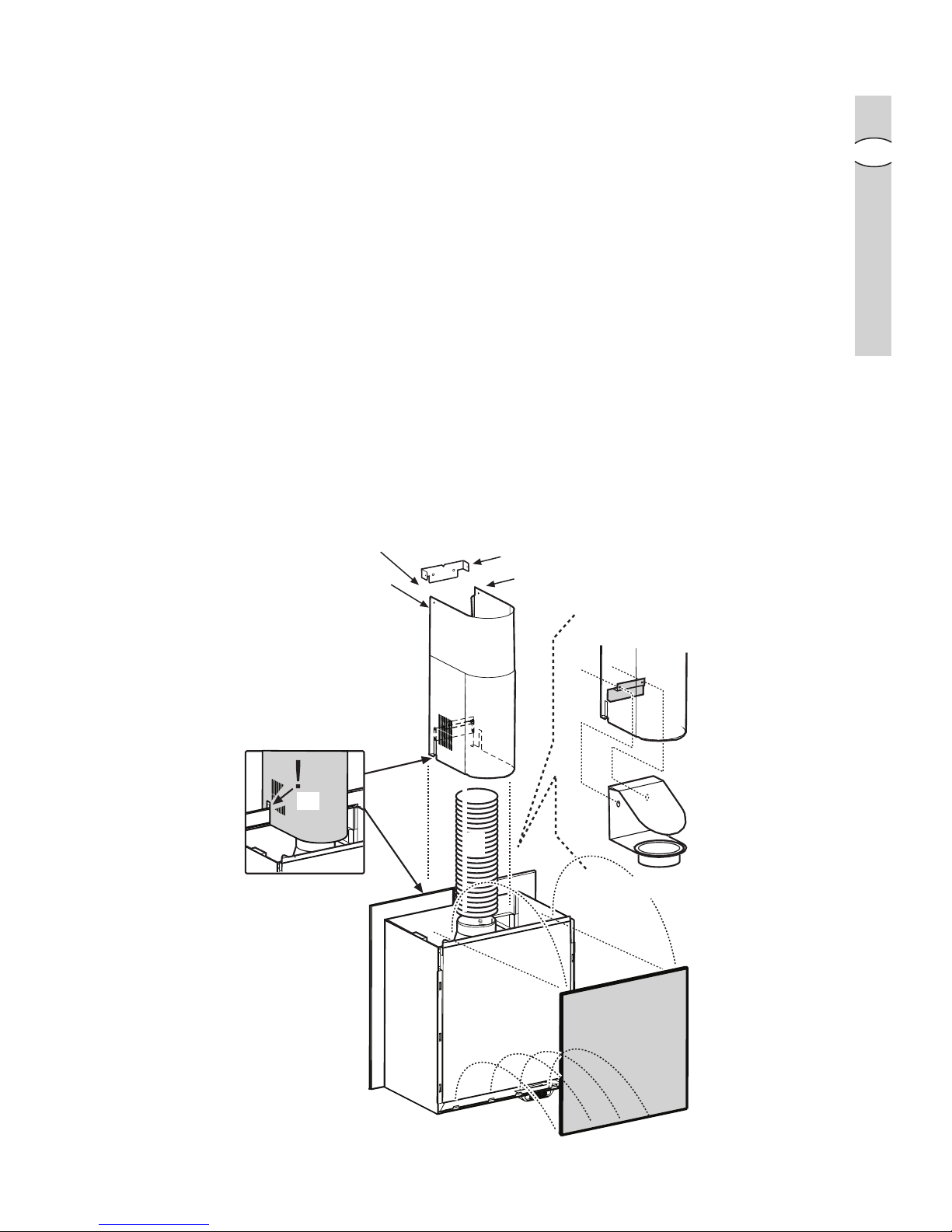

• Carry out the connection of an exhaust pipe (pipe and strips for fitting are not supplied, and should be purchased separately) for discharge of vapors and fumes to the connection ring situated on the suction motor unit

(15)(15)

(15). It is recommended to use a flexible pipe/tube at least for the first section of the pipe. Where it is required to use the cooker hood in the filter version then fix the support bracket

“G” “G”

“G” to the deflector

“F” “F”

“F” using 2 screws.

••

• Install the telescopic chimney flue above the cooker hood

(16)(16)

(16):

for extraction mode: for extraction mode:

for extraction mode: insert the flexible exhaust pipe from the inside and connect it to a vapor exhaust device for external exhaust: for rfor r

for rfor r

for r

ecirecir

ecir

culation mode: culation mode:

culation mode: check the correct fit of the cooker hood connection ring

“B”“B”

“B” to the deflector

“F”.“F”.

“F”.

••

• Fix the telescopic chimney (

17a17a

17a) on top of the chimney support

“L” “L”

“L” (

17b17b

17b) using

2 screws.

••

• Fix the front panel, hook the front panel firstly from the top

(18a)(18a)

(18a) then from the

bottom via the tabs

(18b)(18b)

(18b).

••

• Fix the front panel into place using 2 screws

(19)(19)

(19). Mount the grease filter. Connect the hood to the mains electricity and check, finally, that it is functioning well.

15

16

15

17a

17b

17a

17b

18a

18b

19

LI23QA Ed. 02/07
