Page 1

Use & Care Manual

Wall Oven

Electrolux.com\register

Page 2

For Customer Care support and webshop, or to download an extended version of this manual, visit: ElectroluxAppliances.com

Welcome to Electrolux! Thank you for choosing our appliance.

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . 3

Cooking Recommendations . . . . . . . . . . . . . . . . . . . . . 9

Before Setting Oven Controls . . . . . . . . . . . . . . . . . . . .14

Setting Oven Controls. . . . . . . . . . . . . . . . . . . . . . . . . . 22

This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn’t seem right, the troubleshooting section will help you with common issues.

Visit Owner Support on ElectroluxAppliances.com for access to FAQs, how-to videos and articles, accessories and cleaning products.

We are here for you! Visit our website, chat with an agent, or call us if you need help. If you do need service, we can get that started for you.

For Peace of Mind Protection, register you product. Locate your registration card and/or label on your product with the photo register icon.

Keep your product info here so it’s easy to ﬁ nd.

Model Number:

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Before You Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

INSTALLATION CHECKLIST

 Read all the safety instructions in the front of

your Use & Care Manual.

 Remove all packaging materials from your appli-

ance before cooking.

 Conﬁ rm that the electrical power to the appli-

ance is turned on.

 Wipe out the inside of the oven cavity with a

damp cloth.

 Apply a thin layer of cooking oil to the sides of

the oven racks to keep them gliding smoothly.

 Set the clock. See (page 16) for instructions.

 Before cooking, set the oven to bake at 350°F

(177ºC) for 30 minutes (page 24). Some noise and odors are normal on the ﬁ rst cooking cycle.

 Remember to complete your product registra-

tion!

Serial Number:

Purchase Date:

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.

Warnings and important instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised with installing, maintaining, or operating your appliance.

DEFINITIONS

This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING

Indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury.

NOTE

Indicates a short, informal reference – something written down to assist the memory or for future reference.

WARNING

Tip Over Hazard

• A child or adult can tip the oven and be killed.

• Install the anti-tip device to oven and/or structure per installation instructions.

• Ensure the anti-tip device is re-engaged when the oven is moved.

• Do not operate the oven without the anti-tip device in place and engaged.

• Failure to follow these instructions can result in death or serious burns to children and adults.

Refer to the installation instructions supplied with your appliance for proper installation.

Anti-tip mounting holes

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

Indicates installation, operation or maintenance information which is important but not hazard-related.

Check for proper installation with a visual check that the anti-tip screws are present. Test the installation with light downward pressure on the open oven door. The oven should not tip forward.

Page 4

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR UNPACKING AND INSTALLATION

IMPORTANT

Read and follow the below instructions and precautions for unpacking, installing, and servicing your appliance.

Remove all tape and packaging before using the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play with packaging material. Do not remove the wiring label and other literature attached to the appliance. Do not remove model/serial number plate.

Cold temperatures can damage the electronic control. When using this appliance for the ﬁ rst time, or when the appliance has not been used for an extended period of time, be sure the appliance has been in temperatures above 32ºF (0ºC) for at least 3 hours before turning on the power to the appliance.

All materials used in construction of cabinets, enclosures, and supports surrounding the product must have a temperature rating above 194°F (90°C).

Never modify or alter the construction of the appliance by removing the leveling legs, panels, wire covers, anti-tip brackets/screws, or any other part of the appliance.

Be sure to have an appropriate foam-type ﬁ re extinguisher available, visible, and easily accessible located near the appliance.

GROUNDING INSTRUCTIONS

WARNING

• Avoid ﬁ re hazard or electrical shock. Failure to follow this warning may cause serious injury, ﬁ re, or death.

• Avoid ﬁ re hazard or electrical shock. Do not use an adapter plug, use an extension cord, or remove grounding prong from the power cord. Failure to follow this warning may cause serious injury, ﬁ re, or death.

Proper Installation—Be sure your appliance is properly installed and grounded by a qualiﬁ ed technician. In the United States, install in accordance with the National Fuel Gas Code ANSI Z223.1/NPFA No. 54, latest edition and National Electrical Code NFPA No. 70 latest edition, and local electrical code requirements. In Canada, install in accordance with CAN/CGA B149.1 and CAN/CGA B149.2 and CSA Standard C22.1, Canadian Electrical code, Part 1-latest editions and local electrical code requirements. Install only per installation instructions provided in the literature package for this appliance.

For personal safety, this appliance must be properly grounded. For maximum safety, the power cord must be securely connected to an electrical outlet or junction box that is the correct voltage, is correctly polarized and properly grounded, and protected by a circuit breaker in accordance with local codes.

It is the personal responsibility of the consumer to have the appropriate outlet or junction box with the correct, properly grounded wall receptacle installed by a qualiﬁ ed electrician. It is the responsibility and obligation of the consumer to contact a qualiﬁ ed installer to assure that the electrical installation is adequate and is in conformance with all local codes and ordinances.

Page 5

IMPORTANT SAFETY INSTRUCTIONS

See the installation instructions packaged with this appliance for complete installation and grounding instructions.

IMPORTANT INSTRUCTIONS FOR USING THE APPLIANCE

WARNING

• Storage In or On Appliance—Flammable materials should not be stored in an oven or microwave, near surface burners or elements, or in the storage or warmer drawer (if equipped). This includes paper, plastic, and cloth items, such as cookbooks, plastic ware, and towels, as well as ﬂ ammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance.

• Do not leave children alone - Children should not be left alone or unattended in the area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance, including the storage drawer, lower broiler drawer, warmer drawer, or lower double oven.

• Do not store items of interest to children in the cabinets above the appliance or on the backguards of ranges. Children climbing on or near the appliance to reach items could be seriously injured.

• Do not allow children to climb or play around the appliance. The weight of a child on an open oven door may cause the appliance to tip, resulting in serious burns or other injury. An open drawer when hot may cause burns.

WARNING

• Stepping, leaning, or sitting on the door or drawers of this appliance can result in serious injuries and also cause damage to the appliance.

• Never cover any slots, holes or passages in the oven bottom or cover and entire rack with materials such as aluminum foil. Aluminum foil linings may also trap heat, causing a ﬁ re hazard.

• Do not use oven or warmer drawer (if equipped) for storage.

• Never use your appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the appliance.

CAUTION

• When heating fat or grease, watch it closely. Grease may catch ﬁ re if it becomes too hot.

• Do not use water or ﬂ our on grease ﬁ res. Smother ﬁ re or ﬂ ame or use dry chemical or foam-type extinguisher. Cover the ﬁ re with a pan lid or use baking soda.

• Use dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholders touch hot cooking areas. Do not use towels or other bulky cloths.

• Do not heat unopened food containers Build-up of pressure may cause container to burst and result in injury.

Page 6

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

• Wear proper apparel - Loose-ﬁ tting or hanging garments should never be worn while using the appliance. Do not let clothing or other ﬂ ammable materials contact hot surfaces.

• Do not touch surface burners or elements, areas near these burners or elements, interior surfaces of the oven, or the warmer drawer (if equipped). Surface burners and elements may be hot even though they appear cool. Areas near surface burners and elements may become hot enough to cause burns. During and after use, do not touch, or let clothing or other ﬂ ammable materials touch these areas until they are cool. These areas may include the cooktop, surfaces facing the cooktop, oven vent areas, oven door, and oven window.

• Do not attempt to operate the appliance during a power failure. If the power fails, always turn oﬀ the appliance. If the appliance is not turned oﬀ and the power resumes, electric surface elements may resume operation when power is restored. Once the power resumes, reset the clock and the oven function.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

Protective liners—Do not use aluminum foil, aftermarket oven liners, or any other materials or devices to line oven bottom, oven racks, or any other part of the appliance. Only use aluminum as recommended for baking, such as lining cookware or as a cover placed on food. Any other use of protective liners or aluminum foil may result in a risk of electric shock or ﬁ re or a short circuit.

Use care when opening oven door, lower oven door, or warmer drawer (some models). Stand to the side of the appliance when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.

Keep oven vent ducts unobstructed. Touching surfaces in this area when the oven is on may cause severe burns. Do not place plastic or heat-sensitive items on or near the oven vent. These items can melt or ignite.

Placement of oven racks - Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot burner or element in oven. Use potholders and grasp the rack with both hands to reposition. Remove all cookware and utensils before moving the rack.

Do not use a broiler pan without its insert. Broiler pans and inserts allow dripping fat to drain away from the high heat of the broiler. Do not cover the broiler insert with aluminum foil; exposed fat and grease could ignite.

Do not cook food on the oven bottom. Always cook in proper cookware and always use the oven racks.

Page 7

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR APPLIANCE

CAUTION

Before manually cleaning any part of the appliance, be sure all controls are turned oﬀ and the appliance is cool. Cleaning a hot appliance can cause burns.

Clean the appliance regularly to keep all parts free of grease that could catch ﬁ re. Do not allow grease to accumulate. Greasy deposits in the fan could catch ﬁ re.

Always follow the manufacturer’s recommended directions for use of kitchen cleaners and aerosols. Be aware that excess residue from cleaners and aerosols may ignite causing damage and injury.

Clean ventilating hoods frequently - Grease should not be allowed to accumulate on hood or ﬁ lter. Follow the manufacturer’s instructions for cleaning vent hoods.

IMPORTANT INSTRUCTIONS FOR SELF CLEANING OVENS

CAUTION

Before using self clean, remove the broiler pan, any food, utensils, and cookware from the oven, storage drawer or warming drawer (if equipped). Remove oven racks unless otherwise instructed.

Do not clean the oven door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.

Do not use a protective coating to line the oven and do not use commercial oven cleaner unless certiﬁ ed for use in a self-cleaning oven.

Use the self clean cycle to clean only the parts listed in this manual.

Some birds are extremely sensitive to the fumes given oﬀ during the self clean cycle of any oven. Move birds to another well-ventilated room.

Page 8

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR SERVICE AND MAINTENANCE

Do not repair or replace any part of the appliance unless speciﬁ cally recommended in the manuals. All other servicing should be done only by a qualiﬁ ed technician. This reduces the risk of personal injury and damage to the appliance.

Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not understand.

Ask your dealer to recommend a qualiﬁ ed technician and an authorized repair service. Know how to disconnect the power to the appliance at the circuit breaker or fuse box in case of an emergency.

Remove the oven door from any unused oven if it is to be stored or discarded.

Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break. Handle halogen lights (if equipped) with paper towels or soft gloves. Disconnect the appliance or shut oﬀ the power to the appliance before removing and replacing the bulb.

Important: This appliance has been tested and found to comply with the limits for a class B digital device, pursuant to Part 18 of the FCC rules (United States) and ICES-001 (Canada). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit oﬀ and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antennae.

• Increase distance between unit and receiver.

• Connect the unit into an outlet or a circuit diﬀ erent from that to which the receiver is connected.

WARNING

Remote Operation – This appliance is conﬁ gurable to allow remote operation at any time. Do not store any ﬂ ammable materials or temperature sensitive items inside, on top, or near surface units of the appliance.

WARNING

California Residents: for cancer and reproductive harm information, visit www.P65Warnings.ca.gov

Page 9

COOKING RECOMMENDATIONS

Special Features

Use the special features of your Electrolux oven to get the best baking and roasting results.

Goal Feature

• Steaks perfectly cooked to your preference

• Juicy pork and poultry

• Eggs just as hard or soft as you like them

• Vegetables that remain ﬁ rm and crisp

• Breads and pastries that rise higher with a crispy, golden crust and a light and ﬂ aky interior

• Moist and tender meats with a golden, crispy skin on the outside.

• Golden, crispy chicken wings

• Crunchy vegetable chips

• Juicy chicken parmesan

• Perfectly crisp tempura shrimp, samosas, and more

• Airy breads and balanced pizza dough Bread Proof

• Prepare convenience foods without delay No Preheat

• Healthy, ﬂ avorful fruit snacks

• Lean meat jerky

• Dried herbs

• Perfectly browned baked goods

• Evenly cooked roasts and braises

• Leave the guesswork out of achieving the perfect temperature

• Roast turkey that’s crispy on the outside and juicy on the inside.

Air Sous Vide

The precisely-controlled heat and airﬂ ow give you sous vide results without the water bath, preserving natural ﬂ avors and locking in moisture.

Steam Bake

Steam baking slows the formation of the crust, allowing your dough to grow longer before the crust forms.

Steam Roast

The humidity of steam roasting prevents meats from drying out during the cooking process.

Air Fry

The hot air convection makes crisp, golden fried foods without the splatter. For even heating on all sides and large capacity, use the Air Fry Tray (included).

Bread prooﬁ ng keeps your oven at the best temperature and humidity for yeast to cause your dough to rise.

Get your culinary delights on the table faster

Dehydrate

The dehydrate feature keeps the oven on low humidity and low heat to dry foods without cooking them.

Advanced Convection

Even your most challenging recipes turn out delicious with the precisely-controlled heat and air circulation of Advanced Convection

Food Probe

Cook your proteins to the exact internal temperature you desire, preventing under- or over-cooking

Turkey Option

Precisely times your convection roast for turkey that is perfectly done.

Page 10

Goal Feature

COOKING RECOMMENDATIONS

• Set, preheat, and monitor cook time remotely

• Get alerts and even switch to “keep warm” mode to ensure dishes are all ready at the same time

• Easily ﬁ nd the feature you need for your cooking task

• Move food easily in and out of the oven Luxury-Glide® Oven Racks

• See clearly what’s happening inside the oven Luxury-Design® Lighting

• Prevent build-up of burrned, spilled food in the bottom of the oven

Electrolux Connect Technology

Even your most challenging recipes turn out delicious with the precisely-controlled heat and air circulation

Full-Color Touch Controls

Operate your oven with ease with our intuitive Full-Color Touch Controls

Oven racks are so smooth they extend eﬀ ortlessly

Get full visibility into the oven’s interior with our rampup halogen Luxury-Design® Lighting

One Hour Steam Clean

Keep your oven looking its best with the one hour Steam Clean cycle that’s chemical- and odor-free

Page 11

COOKING RECOMMENDATIONS

Bakeware

The material of bakeware a ects how evenly and quickly it transfers heat from the pan to the food.

Material Attributes Recommendation

Shiny metal bakeware Shiny, aluminum, and non-coat-

ed bakeware is the best for even heating. It is suitable for all baked goods.

Recommended cooking temperatures and times are based on shiny metal bakeware.

Dark metal bakeware

Glass bakeware

Insulated bakeware Insulated bakeware cooks cooler

Dark bakeware cooks hotter than shiny bakeware.

Glass bakeware cooks hotter than shiny bakeware.

Glass is convenient, as the same piece of bakeware can be used for cooking, serving, and storing food.

than shiny bakeware.

Insulated bakeware is designed for baking in gas ovens.

Reduce the cooking temperature by 25°F

(13-14°C) when using dark bakeware.

Reduce the cooking temperature by 25°F

(13-14°C) when using glass bakeware.

When using insulated bakeware the recipe baking time may be longer than usual.

Page 12

COOKING RECOMMENDATIONS

Cooking Conditions

Conditions in your kitchen can aﬀ ect the performance of your appliance when cooking food.

Condition

Aging cookware As pans age and become

High altitude Air is drier and air pressure is

Attributes Recommendation

If food is too dark or overcooked, use the minidiscolored, cooking times may need to be reduced slightly.

lower.

Water boils at a lower temperature, and liquids evaporate faster.

Foods may take longer to bake.

Doughs may rise faster.

mum cook time in the recipe or packaging.

If food is too light or undercooked, use the

middle to maximum cook time in the recipe or

packaging.

Adjust cooking temperature, cooking time, or

recipes as needed.

Increase amount of liquid in baking recipes.

Increase cook time on cooktop. Cover dishes to

reduce evaporation.

Increase bake time or oven temperature.

Reduce amount of baking soda or baking pow-

der in recipe. Reduce rising time or punch down

dough and allow it to rise twice.

Cooking Results

Small adjustments may help you achieve the best results.

Result Recommendation

Food too light Use the middle to maximum cook time recommended on packaging or recipe.

Food too dark Use the minimum cook time recommended on packaging or recipe.

Cooking Tips

Use these additional tips to get the best results from your appliance.

Situation Recommendation

Baking

Rack placement Follow the instructions in particular oven mode starting in “Setting Oven Controls”

on page 22.

Preheat Fully preheat the oven before baking items like cookies, cakes, biscuits and breads.

Insert food immediately after the beep.

Checking food Use the window and oven light when checking food. Opening the door may re-

duce baking performance.

Bake or Convection Bake Convection bake is the best function to use for baking on multiple racks. For best

performance, see.”Convection Bake” on page 28

Steam Bake For directions, tips, and beneﬁ ts of Steam Bake see “Steam Bake” on page 39.

Food placement Allow at least 2 inches (5 cm) of space between bakeware for proper air circula-

tion.

Page 13

COOKING RECOMMENDATIONS

Material Recommendation

Broiling / Roasting

Broiling pan For best results when broiling, use a broil pan with an insert designed to drain the

fat from the food, help avoid spatter, and reduce smoking. The broiler pan will catch grease spills, and the insert helps prevent grease splatters.

Convection Cooking

Convection attributes Convection cooking uses a fan to circulate hot air around the oven and food. It browns

food more evenly and reduces hot spots in the oven.

Convection saves time when using multiple racks or cooking several food items at once.

Convection bake Reduce cooking temperature by 25° F (13-14° C) from the recipe unless the recipe is

written for convection baking.

Preheat the oven for best results.

Convection roast Convection roast is best for meats and does not require preheating for most meats and

poultry.

Reducing the cooking temperature for convection roast is not recommended. Carefully follow your recipe’s temperature and time recommendations, adjusting the cooking time if the recipe does not specify convection roasting time.

Since convection roast cooks faster, cook time may be reduced by 25% to 40% depending on food type. You can reduce cook times by 25% from the recommended time of your recipe, and check the food at this time. If needed, continue cooking until the desired doneness is obtained.

Use the meat probe included with your appliance. Meat probes are also available from most grocery and home goods stores.

Arrange oven racks so large cuts of meat and poultry are on the lowest rack of the oven.

Do not cover foods when dry roasting - covering will prevent the meat from browning properly.

When cooking meats, use the broiler pan and insert or a roasting rack. The broiler pan will catch grease spills and the insert helps prevent grease splatters.

Page 14

BEFORE SETTING OVEN CONTROLS

IMPORTANT

Your Electrolux wall oven has many features that allow you to customize the way your oven works.

Take time to read this section for important safety information and to become familiar with the many menu option settings starting on page 16.

Oven Vent Location

The oven is vented as shown below. When the oven is on, warm air is released through the vent. This venting is necessary for proper air circulation in the oven and good baking results. Do not block oven vent. Never close oﬀ the openings with aluminum foil or any other material. Steam or moisture may appear near the oven vent. This is normal.

CAUTION

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior, oven exterior, oven racks, and cooktop will become very hot which can cause burns.

Remove all oven racks before starting a self clean cycle. If oven racks are left inside the oven during a cleaning cycle, the slide ability of the oven racks may be damaged and all of the oven racks will lose their shiny ﬁ nish.

To prevent possible damage to the oven, do not attempt to close the oven door until all the oven racks are fully positioned back inside the oven cavity.

Types of Oven Rack

at oven rack

Figure 1: Oven vent

WARNING

Protective Liners — Do not use aluminum foil or any other material or liners to line the oven bottom, walls, racks or any other part of the range. Doing so will alter the heat distribution, produce poor baking results, and possibly cause permanent damage to the oven interior. Improper installation of these liners may result in risk of electric shock or ﬁ re. During self clean, temperatures in the oven will be hot enough to melt foil.

Air Fry tray

glide

rack

Figure 2: Oven rack types

• Flat oven racks may be used for most cooking needs and may be placed in most oven rack positions.

• The fully extendable glide rack makes food prepa- ration easier. This oven rack has glide tracks that allow the rack to be pulled away from the oven without rubbing the sides of the oven wall. See glide rack instructions on next page.

Page 15

BEFORE SETTING OVEN CONTROLS

IMPORTANT

Do not line the oven walls, racks, bottom or any other parts of the range with aluminum foil. Doing so will alter heat distribution, produce poor baking results and may cause permanent damage to the oven interior. During self-clean temperatures the oven will be hot enough to melt foil.

Removing and Replacing the Glide Racks

The fully extendable Glide rack makes food preparation easier. This oven rack has glide tracks that allow the rack to be pulled away from the oven without rubbing the sides of the oven wall.

To remove - Make sure the baking rack is in the closed position. Using one hand, reach through handle opening and grasp both the upper and lower bars of the glide rack.

Using both hands, lift up the front of the rack slightly and continue to pull the rack away from the oven. Be sure to grasp both upper and lower rack portions together when removing or handling the glide rack.

The rack portions move independently and are diﬃ cult to handle unless held together.

To replace - Make sure the baking rack is in the closed position. Grasp both upper and lower portions of glide rack. Lift and hold the rack level between the oven cavity walls. Tilt the front of the rack upward slightly and slide the rack completely into position.

To prevent possible damage to the oven, do not attempt to close the oven door until all the oven racks are fully positioned back inside the oven cavity.

While holding both sections, pull the glide rack out of the oven until the stop position is reached.

IMPORTANT

Remove all oven racks and clean according to instructions provided in the Care & Cleaning section of this manual. Never pick up hot oven racks or parts.

Page 16

BEFORE SETTING OVEN CONTROLS

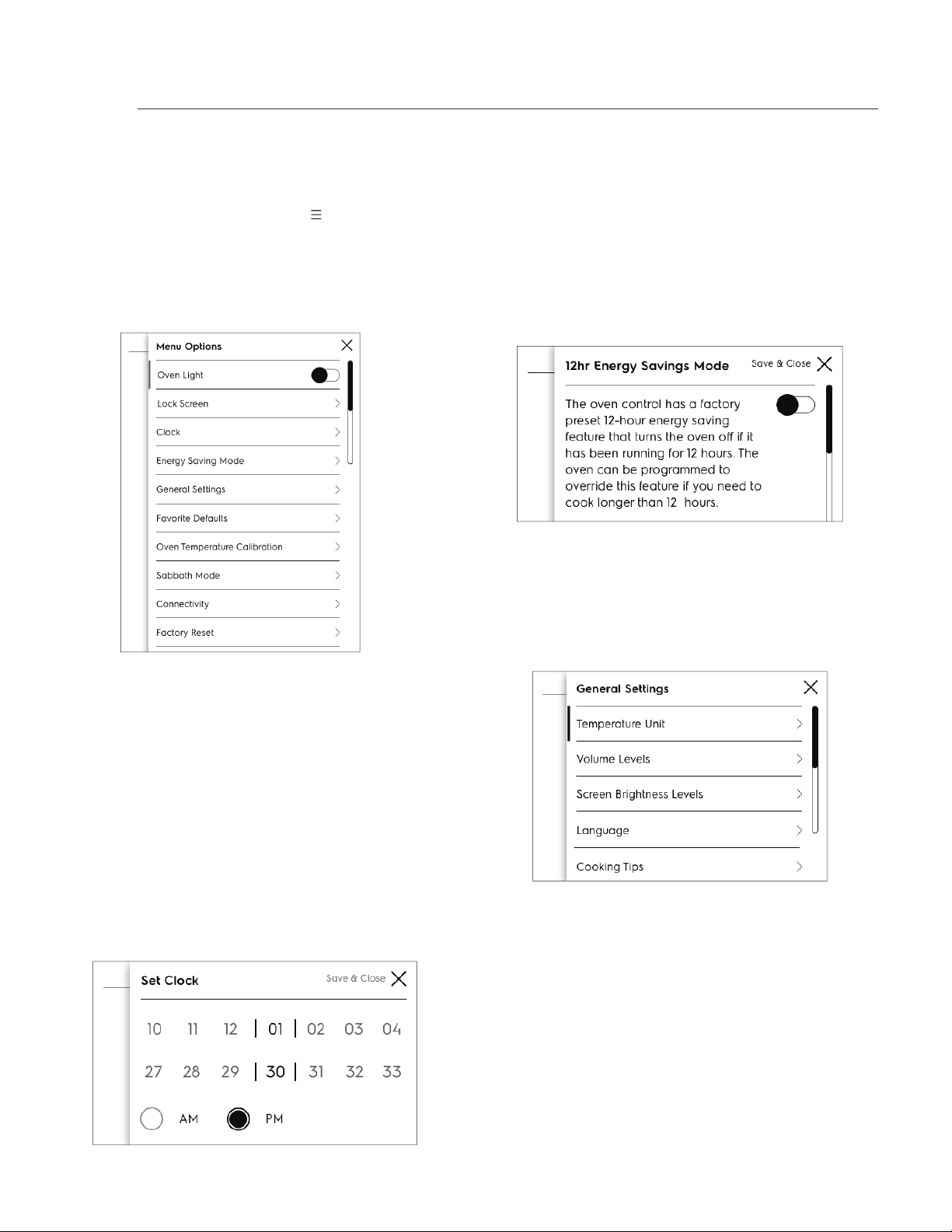

Using Menu Options to Customize Your Cooking Experience

When you ﬁ rst install your appliance, the screen will prompt you to set your preferences. You can always change them later using the menu .

1. Touch Menu Options bars and scroll to ﬁ nd the desired option.

2. Select option and set your preference.

3. Save and go back or Save & Close.

Energy Saving Mode

The oven control has a factory preset built-in 12-Hour Energy Saving feature that will turn oﬀ the oven if the oven is left on for more than 12 hours. The control may be programmed to override this feature to bake continuously.

1. Scroll to Energy Saving Mode and touch.

2. Follow the information to override the Energy Saving feature if necessary.

3. Save & Close.

General Settings

1. Scroll to General Settings and touch.

2. Diﬀ erent options will appear.

You can press the X to close without saving changes.

Clock

When the appliance is ﬁ rst plugged in or when the power supply to the appliance has been interrupted, the display will show 12:00. It is recommended to always set the clock for the correct time of day before using the appliance.

1. Touch Menu Options bars and scroll to Clock

2. Touch Set Clock and set time using graph.

3. Set 12 or 24 Hr

4. Set AM or PM

5. Save & Close

3. Select an option to see how it is set and change if desired.

• Temperature Display

The electronic oven control is set to display °F when shipped from the factory. The display may be changed to show either °F or ºC oven temperatures.

Temperature Display > O F

O C

4. Select F or C

5. Save & Close

Page 17

BEFORE SETTING OVEN CONTROLS

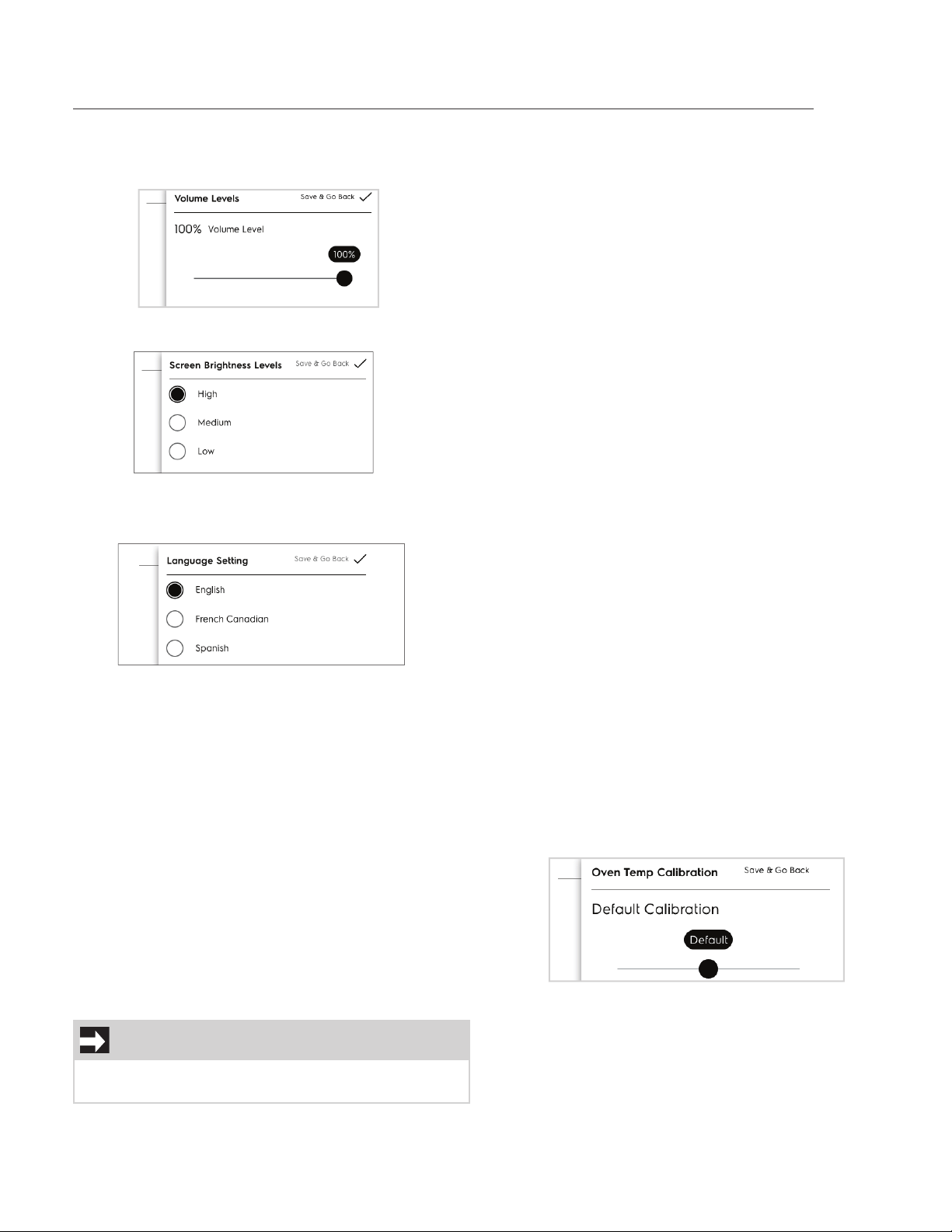

• Volume

Silent mode allows the oven control to operate without audible tones. Use the slider to set the volume.

• Screen Brightness

1. Choose brightness and Save & Close.

• Language

1. Select desired language

2. Save & Close

Favorites

Scroll to Favorites and touch.

• Quick Start Options > Oven 350°F (can change the default when Quick Start is selected.)

1. Change temperature if desired.

Smoke Shield

The Smoke Shield feature reduces smoke and odors during high-temperature cooking modes.

When selected, the Smoke Shield feature will operate on no preheat, convection roast, multi-rack, steam bake, and steam roast modes until the feature is toggled oﬀ . You may want to turn it oﬀ when cooking delicate items like pastries.

Smoke Shield is always active during self-clean, steam clean, air fry, and broil models.

Smoke Shield does not activate for bake, convection bake, air sous vide, dehydrate, or bread proof modes.

Oven Temperature Calibration

1. Scroll to Oven Temperature Calibration and touch.

2. Option to adjust is shown.

3. Use slide to increase or decrease default oven temperature.

4. Save and go back or Save & Close.

Read the important information before changing the oven temperature that was set at the factory.

Your appliance has been factory calibrated and tested to ensure an accurate baking temperature. For the ﬁ rst few uses, follow your recipe times and temperature recommendations carefully. If you think the oven is cooking too hot or too cool for your recipe times, you can adjust the control so the oven cooks hotter or cooler than the temperature displayed.

Important: Do not use oven thermometers such as those found in grocery stores to check the temperature settings inside your oven. These oven thermometers may vary as much as 20 to 40 degrees from actual temperatures.

The oven temperature may be increased as much as +35°F (+19°C) or decreased -35°F (-19°C) from the factory calibrated settings.

2. Save & Close.

• Temperature Options > Adjust Custom Preheat default.

1. 325°F / 163°C

2. 375°F / 191°C

3. 400°F / 204°C

NOTE

These temperature options are also available in Custom Preheat menu on the main screen

Page 18

BEFORE SETTING OVEN CONTROLS

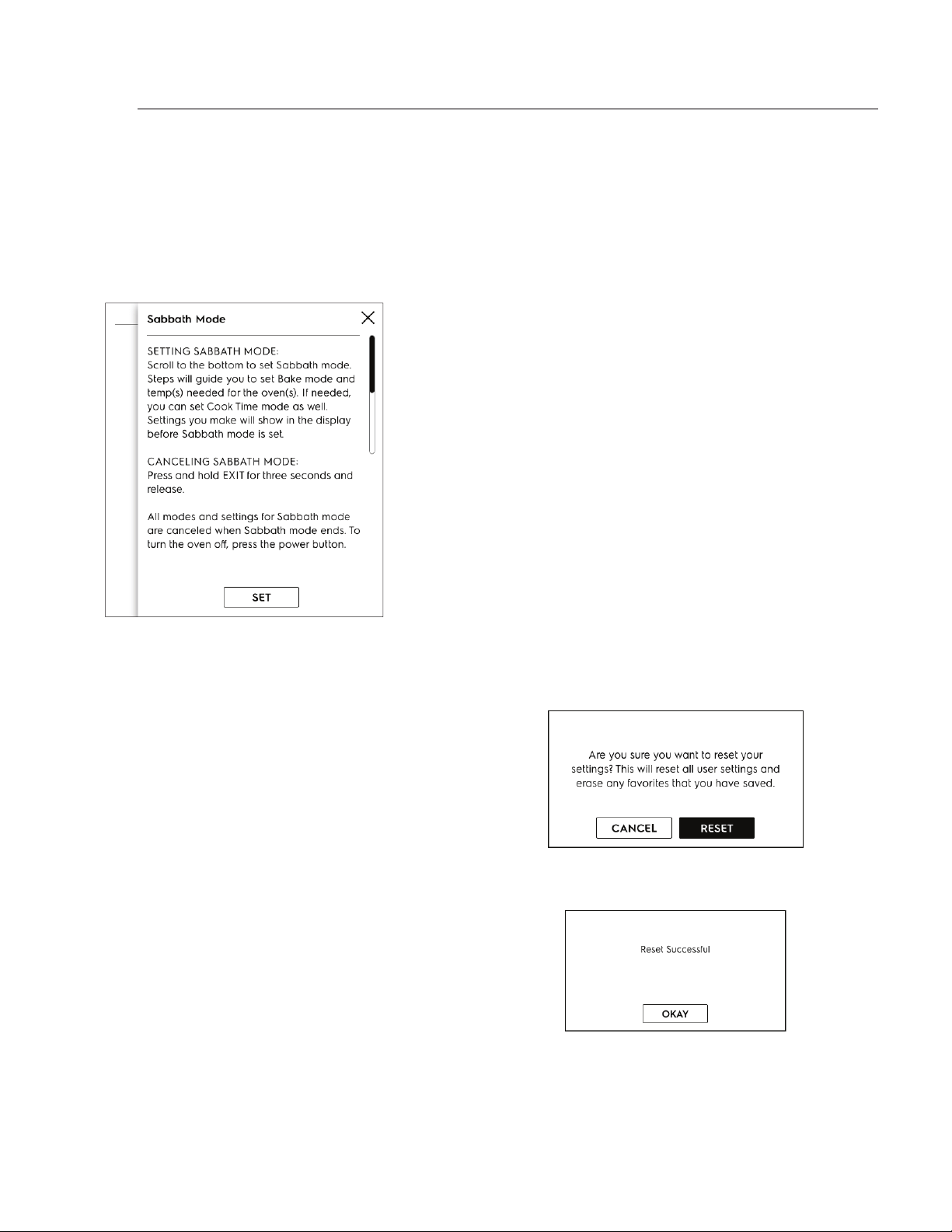

Sabbath Mode

1. Scroll to Sabbath Mode.

2. Read and follow all instructions to set and when ﬁ nished cancel. See “Setting the Sabbath Feature for the Jewish Sabbath and Holidays (some models)” on page 41 for complete details on how Sabbath mode works with your oven controls.

Factory Reset

1. Scroll to Factory Reset and touch

2. Follow screen prompts

Note: Your appliance was set with predetermined (default) oven control settings. Over time, users may have made changes to these settings. The following options may have been modiﬁ ed since the appliance was new:

• 12 or 24 hr display mode

• Screen Brightness

• Language

• Favorites

• Show Clock

• All Food Probe settings

• Continuous bake or 12 hour energy savings mode

• Silent or audible control

• Oven temperature display (Fahrenheit or Celsius)

• Oven temperature adjustments (UPO)

If Reset is touched all the settings will return to default.

3. Are you sure?

4. Reset.

5. OKAY

Page 19

BEFORE SETTING OVEN CONTROLS

Food Probe

Food probe options can be found in setting menu and the oven modes menu.

1. Scroll to Food Probe and touch.

2. Follow instructions on the display.

Door Lock and Screen Lock

As a safety measure the oven doors and controls can be locked. Follow screen directions to lock and unlock.

Touch and hold LOCK for 3 seconds. You will be shown a code to use for unlocking the doors and controls. This ensures that the oven will remain locked and safe.

When the doors and controls are locked the screen will show the time of day, a note that the oven is locked, and an UNLOCK key.

Once the controls and door is locked there is no access to any cooking functions. To unlock the oven door enter the code and press UNLOCK and follow directions on the screen.

Page 20

BEFORE SETTING OVEN CONTROLS

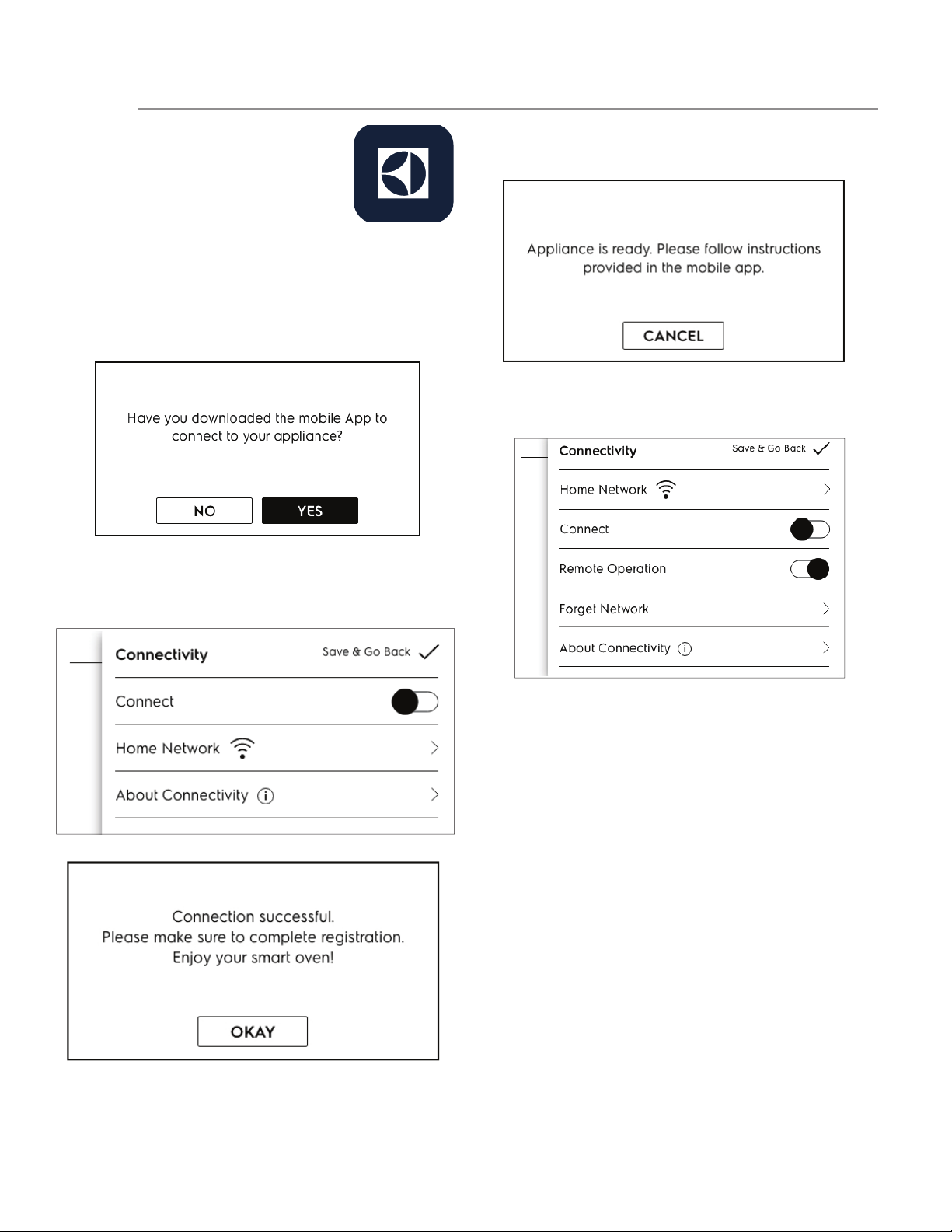

Connecting your oven to your smartphone

Download the Electrolux App to your smartphone to connect and to program your oven for remote cooking. Be sure to read the information in the Get Connected Card ﬁ rst before setting up your smartphone to connect to the oven.

In Menu Options scroll to Connectivity and select.

Follow all instructions on the display.

You can set the App to control some oven modes and functions remotely.

Once the App is downloaded you have options to connect to your home network. Be sure to read instructions and tips on using the App to set oven modes.

Using your smartphone to control some of the oven functions requires some care on your part. Be sure to follow all the Electrolux App instructions for mobile use.

Page 21

BEFORE SETTING OVEN CONTROLS

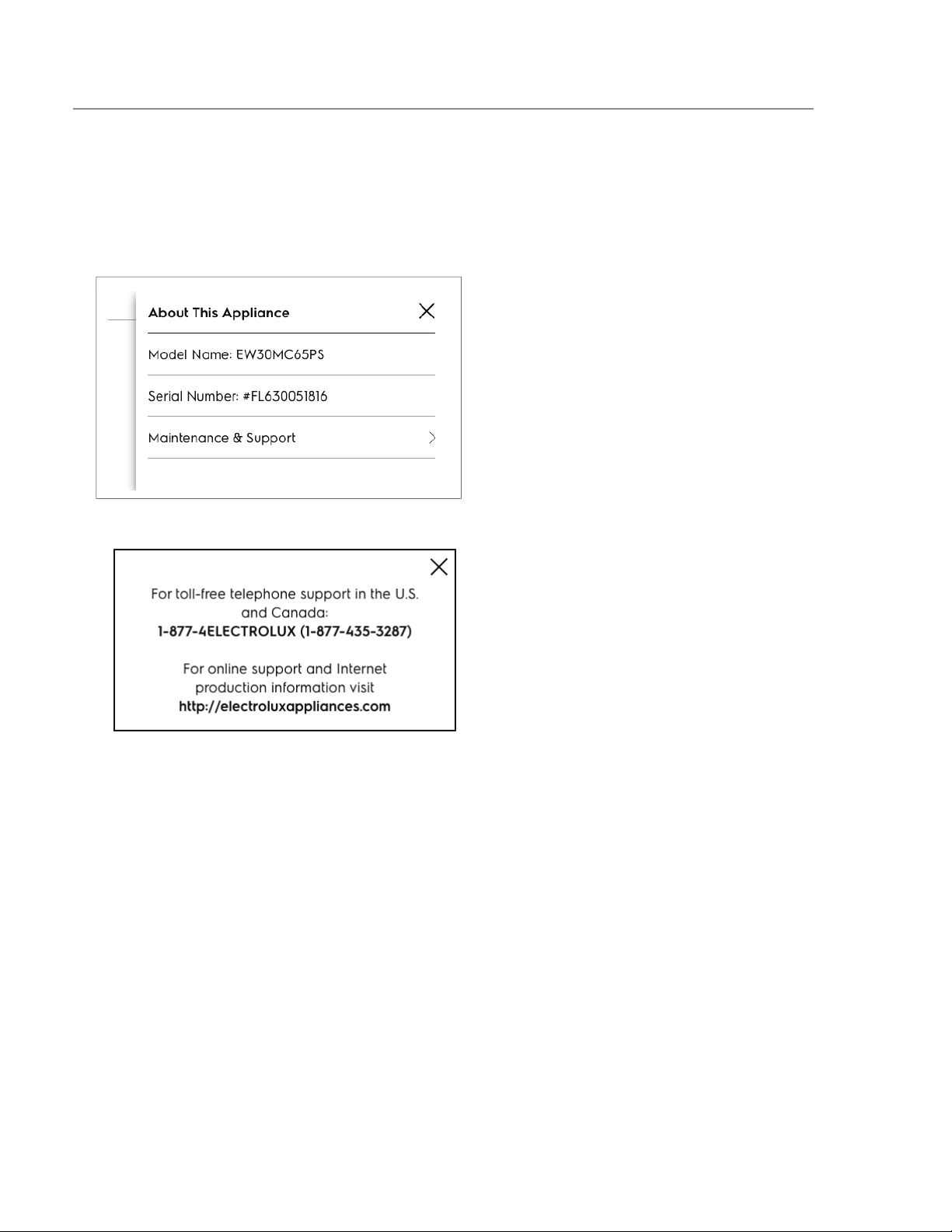

About the Appliance

1. Scroll to About the Appliance and touch.

2. Touch headings to see information.

Important information about the appliance such as the the software version number and contact information for support is listed here.

Page 22

SETTING OVEN CONTROLS

ON / OFF

When ON/OFF is pressed, the display opens to the Quick Start screen.

NOTE

In addition to ON/OFF, touching the screen will also activate the display.

If the oven is on when ON/OFF is pressed, it will turn oﬀ completely, canceling any functions that are running at the time.

BACK

Pressing the Back key will return to the previous screen without implementing any changes you may have selected.

TIMER

Pressing Timer will access the timer function. The timer will count down the amount of time you specify, and a tone will sound when the timer reaches zero. You can set a timer from 1 minute to 11 hours and 59 minutes.

Enter the desired time and press START. While the timer is running, you can pause or cancel the countdown. You can also add or subtract time by pressing + or -.

LIGHT

Press the Light key to turn the oven light on or oﬀ .

Table 1: Minimum and maximum control settings

Feature Mode Min Temp/Time Max Temp/

Time

No Preheat

Bake 170°F (77°C) 550°F (288°C)

Broil 400°F (205°C) 550°F (288°C)

Air Fry 170°F (77°C) 550°F (288°C)

Sous Vide 100°F (38°C) 205°F (94°C)

Steam Bake

Steam Roast

Conv Bake 170°F (77°C) 550°F (288°C)

Conv Roast

Food Probe

Keep Warm

Bread Proof

Dehydrate 95°F (35°C) 170°F (77°C)

Timer 0:01 Min 11:59 Hr./Min.

Clock Time 12 Hr.

24 Hr

Delay Start 0:01 Min. 1:00 Hr./Min.

Cook Time 12 Hr.

24 Hr

Self clean 2 hours 4 hours

170°F (77°C) 550°F (288°C)

140°F (60°C) 210°F (99°C)

140°F (60°C) 200°F (93°C)

100°F (38°C) 11:59 Hr./Min

1:00 Hr./Min. 0:00 Min

0:01 Min 0:01 Min

11:59 Hr./Min. 23:59 Hr./Min.

11:59 Hr./Min. 11:59 Hr./Min.

Page 23

SETTING OVEN CONTROLS

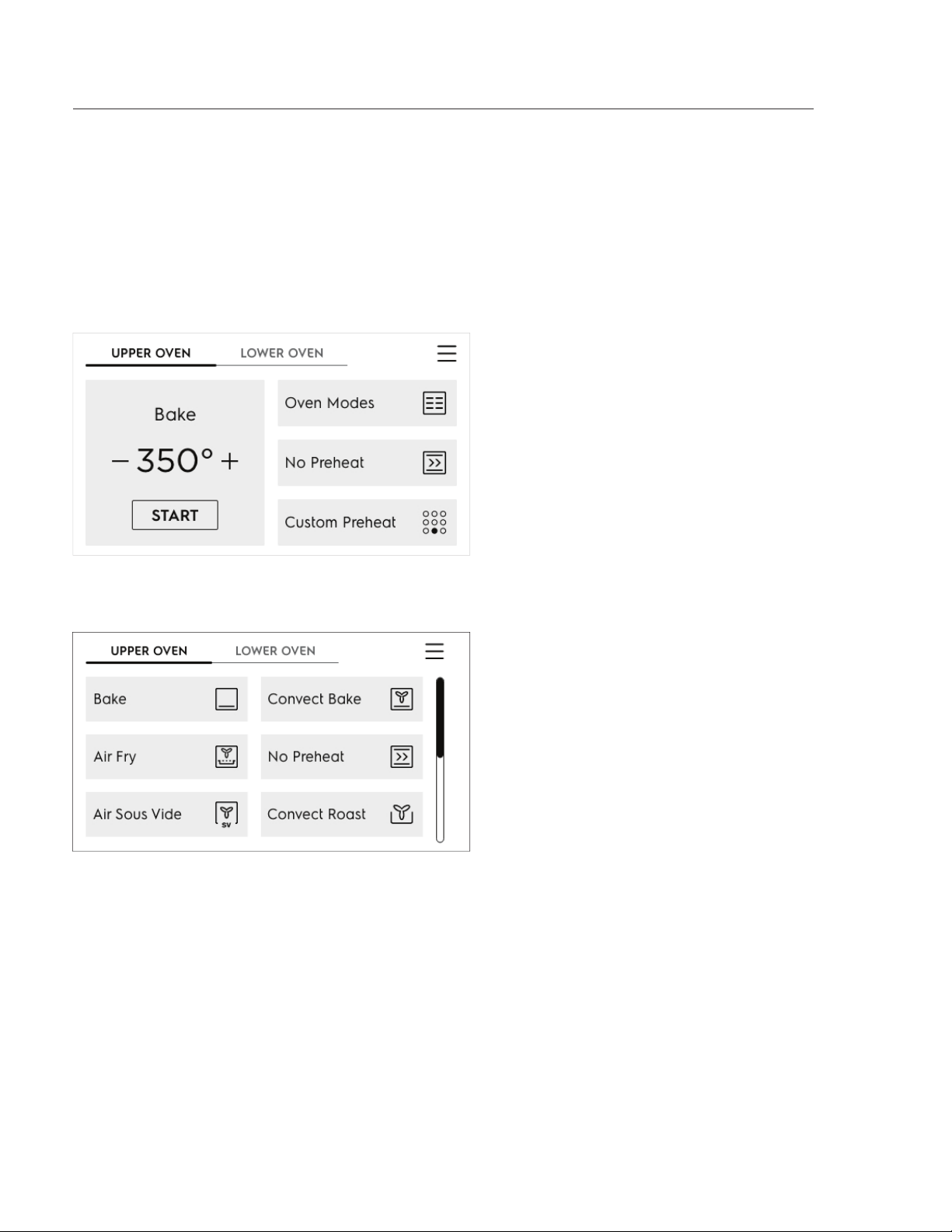

Quick Start

When ON/OFF is pressed the display opens to the Quick Start screen.

From the Quick Start screen, you can immediately start the Bake function by pressing START. You can adjust the temperature by pressing + or -.

If you have a double oven, choose which oven to set using the UPPER OVEN and LOWER OVEN tabs at the top of the screen.

To select other cooking options, touch Oven Modes and scroll to the desired feature:

Modes

• Bake (page 24)

• Convection Bake (page 28)

• Air Fry (page 27)

• No Preheat (page 26)

• Air Sous Vide (page 29)

• Convection Roast (page 34)

• Broil (page 32)

• Multi-Rack (page 38)

• Steam Bake (page 39)

• Steam Roast (page 40)

• Bread Proof (page 40)

• Keep Warm (page 41)

• Dehydrate (page 40)

• Delay Start (page 25)

• Food Probe (page 36)

• Self Clean (page 43)

• Steam Clean (page 46)

Use the scroll bar to ﬁ nd your oven mode as shown in the oven mode table on the right. When you select a cooking mode simply follow the tips for setting the particular mode.

Important: Valuable tips to help you get the best results are included in the display and also can be found in this Use & Care Manual.

Page 24

SETTING OVEN CONTROLS

Setting Bake

Bake uses heat that rises from the oven bottom for best baking results.

A reminder tone will sound indicating when the set bake temperature is reached and to place the food in the oven.

Bake may be set for any oven temperature between 170°F (77°C) to 550°F (288°C).

CAUTION

Always use pot holders or oven mitts when using the oven. When cooking the oven interior, oven racks, and cooktop will become very hot which can cause burns.

Baking Tips

• Fully preheat the oven before baking items like cookies, cakes, biscuits and breads.

• For all baking except layer cakes, pans should be pulled to the front of the rack. Place layer cake pans as shown.

• Use the convection bake function for best results when baking cookies or cakes on multiple racks.

• For best results when baking layer cakes using two oven racks, place racks in positions 1 and 4 and place pans centered on each rack.

• When using any single rack for baking cookies, cakes, biscuits, or muﬃ ns use rack position 3.

• Allow at least 2 inches (5 cm) of space between bakeware for proper air circulation.

• Leave oven lights oﬀ while baking.

To set Bake

1. Press ON/OFF key. If using a double oven, select the upper oven or lower oven tab.

2. Touch Oven Modes and touch Bake. The default temperature 350°F will show in the display. You can also use the controls on the Quick Start screen.

3. To set the temperature to 375, use the numbered keys to program the new temperature of 375 and

touch START.

4. The screen shows the current temperature and a Cook Time button.

5. Touch Cook Time to set a cooking time if needed.

NOTE: If a cook time is set, the oven will turn oﬀ automatically when the time expires.

6. Touch START.

7. Cooking has ended and Oﬀ will be in display. Press OK to return to the start screen.

Press ON/OFF to turn oﬀ the oven and show time of day in the display.

To cancel cooking anytime touch CANCEL.

2 1

Page 25

SETTING OVEN CONTROLS

Setting Cook Time

Use Cook Time to set the amount of time needed for most oven functions. The oven will turn on immediately (or after a speciﬁ ed delay) and stop automatically after the set cook time ends.

In most cases you will see a cooking tip suggesting to set Cook Time after the oven is preheated.

When the programmed cook time ends:

• Oﬀ will appear in the display window

• an alert tone will sound

• the oven will turn oﬀ automatically

The Oﬀ message and an OKAY button will display until OKAY is touched.

Setting Delay Start

Delay Start allows a delayed starting time only for Bake, Convection Bake, No Preheat, Convection Roast, Steam Clean, and Self Clean. Prior to setting a delay start, be sure the time of day is set correctly. The maximum delay for a Delay Start is one hour.

1. Press ON/OFF key and touch Oven Modes.

2. Scroll to Delay Start and touch:

3. Follow the information on the screen to set delay time, temperature, and cook time.

4. A Delay Start time of one hour or less is allowed.

NOTE: The maximum cook time setting is 11 hours and 59 minutes unless the oven is set for continuous cooking.

To change the oven temperature or cook time after baking has started:

• Touch + or - on either side of the set temperature.

• Touch TEMP to access the keypad. When the Delay Start time is reached, the oven will turn on and begin cooking. The screen will show the oven temperature.

When Cook Time ends, Cooking is over and Oﬀ and OKAY will appear in the display window, and the oven will shut oﬀ automatically.

The oven control will sound tones as a reminder until the OKAY is pressed.

WARNING

Food Poisoning Hazard. Do not let food sit for more

than one hour before or after cooking. Doing so can result in food poisoning or sickness.

Page 26

SETTING OVEN CONTROLS

No Preheat

No Preheat is available for single rack baking with packaged and convenience foods and can be used with regular recipes also. No Preheat may be used with temperatures between 170°F and 550°F. Follow the recipe or package directions for food preparation time and temperature.

During No Preheat function, the oven elements will cycle on and oﬀ . The convection fan will turn on and stay on until No Preheat is canceled. Depending on your preference for doneness cooking times may vary.

CAUTION

Always use pot holders or oven mitts when using the oven. When cooking the oven interior, oven racks, and cooktop will become very hot which can cause burns.

Watch food closely.

Important:

• Always place food on rack position 3.

• Place the food with the pan or bakeware to the front of the oven rack.

• When using No Preheat, use bakeware with low or no sides. This allows the air to circulate around the food evenly.

• Leave oven light oﬀ when baking.

To set the no preheat temperature for 350°F:

1. Arrange the interior oven racks.

2. Press ON/OFF key.

3. Touch Oven Modes and scroll to No Preheat.

4. Follow No Preheat tips and set temperature or use 350°F (default)

5. Touch START.

6. Set Cook Time if needed.

7. Touch START.

NOTE: If a cook time is set the oven will turn oﬀ automatically when the time expires.

8. Cooking has ended and Oﬀ will be in display.

9. Press ON/OFF to return display to show the time of day.

To cancel cooking anytime touch CANCEL.

• Food that comes in strips, such as ﬁ sh sticks and chicken tenders, should be placed on the pan with the ends pointing to the sides of the oven. Follow the package directions for food preparation time and temperature.

• Food may need to be removed early and should be checked at minimum recommended cook time.

• No Preheat works best when cooking foods longer than 10 minutes. If directions call for a shorter cooking time, a few extra minutes may be required for optimal cooking results.

• Do not open the oven door often. Opening the door will reduce the temperature in the oven and may increase cook time.

• Leave oven lights oﬀ while cooking.

3 2

Page 27

SETTING OVEN CONTROLS

Air Fry

The Air Fry feature works best for single rack baking with packaged and convenience foods. It works well with most recipes and can be programmed for temperatures between 170°F and 550°F. Follow the recipe or package directions for food preparation quantity, time, and temperature.

Important:

• Food should be arranged in single layers on a pan and place food near the front of a single rack on position 3 for best results.

• When using Air Fry tray, place a large cookie sheet on rack position 1 to catch any crumbs or drippings.

• Leave oven light oﬀ when baking.

• Food may need to be removed early and should be checked at minimum recommended bake time. However, frozen dense foods and items with cook times less than 15 minutes may require additional time.

To set the Air Fry function:

The Air Fry Tray is speciﬁ cally designed to deliver superior performance.

Some Beneﬁ ts of the Air Fry Tray:

• Tray optimized for oven space and large capacity air frying.

• Fits in the dishwasher for easy clean up.

• Higher yield than countertop models.

• Frees up countertop space.

1. Arrange food on rack as suggested.

2. Select Air Fry from Oven Modes.

3. Enter the suggested temperature for particular food. Touch START.

4. If setting a Cook Time, set after the oven is preheated. Cook time turns oﬀ Air Fry when time is ﬁ nished. NOTE: Setting the timer for the minimum suggested time after preheat is a good option and checking food for doneness.

5. Press START. When preheat tone sounds place the tray on rack position 3 and to prevent smoke, place a baking sheet on rack position 1 below the Air Fry Tray.

6. When cook time ends Oﬀ will be in display.

7. Press ON/OFF to return display to show the time of day.

Table 2: Air Fry Table

Food Type Quantity (oz.) Temperature Cook Time (mins)

Frozen Tater Tots 48 450°F - 232°C 29-33

Frozen Golden Fries 48 425°F - 218°C 25-35

Figure 3: Air Fry Tray

Frozen Chicken Nuggets 48 400°F - 205°C 13-15

Frozen Crispy Chicken Strips 48 400°F - 205°C 20-22

Frozen Hot Wings Bone-In 48 450°F - 232°C 25-28

Frozen Chicken Wings 48 375°F - 190°C 60-65

Fresh Chicken Wings 48 450°F - 232°C 30-40

Page 28

SETTING OVEN CONTROLS

Convection Bake

Convection Bake uses a fan to circulate the oven’s heat uniformly around the oven. This improved heat distribution allows for even cooking and browning results. Heated air ﬂ ows around the food from all sides.

Convection bake may be set for any oven temperature between 170°F (77°C) and 550°F (288°C).

Beneﬁ ts of convection cooking include:

• Multiple rack baking.

Convection baking tips:

• Use Convection Bake for best results when baking cookies and cakes on 2 racks.

• For best results it is recommended to preheat the oven before baking items like cookies, biscuits and breads and move pans to front of the racks.

• If your recipe is not written for convection baking, reduce the oven temperature by 25° or use Convection Convert option.

• No special pans or bakeware required.

• For cookies use the following racks:

• Single rack baking use 3 (ﬂ at rack).

• Two rack baking use 1 (ﬂ at) and 4 (glide).

• For baking cakes use the following rack positions and place bakeware as shown in Figure 4. In upper rack use position 4 (glide) or 5 (ﬂ at).

• Cookies and biscuits should be baked on pans with no sides or very low side to allow heated air to circulate around the food. Food items baked on pans with a dark ﬁ nish will cook faster.

• Leave oven lights oﬀ while baking.

Convection Convert

Convection Convert automatically reduces the oven temperature from what is speciﬁ ed in most baking recipes to compensate for the increased cooking eﬃ ciency of convection baking.

To set convection bake with a default oven set temperature of 325°F (163°C):

1. Select Oven Mode and scroll to Convection Bake

2. Touch Convection Bake: Default oven temp of 325° appears.

3. An option for Convection Convert is visible on the screen. Using it will lower the oven temperature 25° to account for the increased eﬃ ciency of convection. If used, Convection Convert must be selected before pressing Start.

4. Touch START:

5. Option to set Cook Time.

6. Touch START.

7. Oven will turn oﬀ when Cook Time is complete.

8. Cooking has ended and Oﬀ will be in display.

9. Press ON/OFF to return display to show the time of day.

3 2

Figure 4: Pan positions for best results when baking cakes on two racks.

Page 29

SETTING OVEN CONTROLS

Air Sous Vide

Air Sous Vide is ideal for cooking meats to achieve tenderness without overcooking.

How Sous Vide Works

Sous vide is a French phrase meaning “under vacuum”. In sous vide cooking, food is vacuum-sealed in plastic pouches, which are then placed in a cooking medium of hot water or air.

Your appliance uses hot air circulating around sealed pouches to cook food slowly at relatively low temperatures: 100°F to 205°F (38°C to 94°C). Sous vide cooking is not fast, but with a little planning, it can be very easy.

Advantages of Sous Vide

• Food does not lose ﬂ avor or aroma due to evaporation.

• Vitamins and minerals do not escape during cooking.

• The low cooking temperature leaves meat and ﬁ sh more tender.

• Less spice is needed, as food keeps more of its natural ﬂ avor.

• The low cooking temperature greatly reduces the risk of overcooking. The food never gets hotter than the intended serving temperature.

• Timing is less critical. If diﬀ erent dishes are ﬁ nishing at diﬀ erent times, food that has reached serving temperature can wait, since it stays at serving temperature in the cooking medium.

Food Safety

Because sous vide cooks at relatively low temperatures, safe food handling is especially important.:

• Always keep raw food in safe conditions before you start cooking.

• Clean the raw food before you start cooking.

• Use Table 1, “Recommended Sous Vide Cook Settings,” to ﬁ nd the recommended cooking time and temperature for the food.

• Only use temperatures below 140°F (60°C) to cook foods that can be safely eaten raw.

• Food should be between 34°F and 37°F (normal refrigerator temperatures) when preparing to place food in sous vide vacuum pouch.

• Sous vide dishes are best served immediately after cooking. If food is not served immediately, use an ice bath to chill it quickly and then keep it refrigerated for up to 3 days.

• Do not use sous vide to reheat leftovers.

• Do not allow raw food to contact cooked food during preparation. Do not use the same tools on diﬀ erent food items without washing them.

• If the recipe includes raw eggs, keep the whites and yolks from touching the outsides of the shells.

• Blanching in boiling water or searing in a pan before sous vide cooking can destroy surface bacteria to improve food safety.

• Do not use Delay Start with the Sous Vide function.

• Do not use a meat probe with the Sous Vide function. Food needs to be sealed air-tight in a pouch for sous vide cooking.

Page 30

SETTING OVEN CONTROLS

Vacuum Sealing

Sous vide cooking in your oven requires a vacuum sealer and vacuum pouches. The pouch needs to be sealed so no air or liquid can leak out. A pouch that leaks will produce poor cooking results and may produce smoke and residue that can burn during future cooking or when using self-clean. Follow the instructions that come with your sealer and pouches.

• Use pouches that are speciﬁ ed for your sealer and for sous vide cooking.

• Do not reuse vacuum pouches.

• Put food in one layer in the pouch for even cooking.

• It is recommended to use one food portion per vacuum pouch.

• For most sous vide cooking, use the highest vacuum setting for best cooking results.

• Make sure that the closure of the pouch is clean to get a good seal. If cooking at higher temperatures (above 160º F / 71º C), double-seal the pouch.

• Vacuum pouches are solely for sous vide cooking and should not be used for regular baking or broiling.

Sous Vide Cooking

1. Prepare

• Start with the freshest, highest quality food possible.

• Clean and cut the ingredients.

2. Package

• Place the ingredients in the plastic pouch for your vacuum sealer. Add seasonings for cooking.

• Note: If cooking multiple items at once, you may want to write the contents on the outside of the pouches before ﬁ lling and sealing them.

• Vacuum seal the pouch, removing as much air as possible. Verify that you have achieved an air-tight seal.

• If not cooking immediately, store the pouch in a refrigerator until ready to cook.

To cook Air Sous Vide:

1. Touch Oven Modes and scroll to Air Sous Vide.

2. Touch Air Sous Vide: display shows 130°F (54°C) setting as default.

3. Set desired temperature.

4. Touch START.

IMPORTANT: Since sous vide cooking allows for a suggested minimum cooking time and a target time, it is recommended to set the timer to at least the minimum time or to any time up to the target suggested time. With sous vide cooking there is a maximum cooking time which allows the user more ﬂ exibility when cooking with no speciﬁ c end time.

Note: Use the sous vide feature of your oven to cook the food (section reference). Use the settings recommended for the type of food in Table 1, “Recommended Sous Vide Cook Settings,”.

5. Finish

• Open the plastic pouch and remove the food.

• You may ﬁ nish the food with a ﬁ nal searing or grilling to achieve a nice crust and roast ﬂ avor.

• Add ﬁ nal seasonings or sauces if needed.

• Serve.

CAUTION

Even though sous vide cooks at relatively low temperatures, use care when handling the pouch and its contents, which will be hot to the touch.

Only use temperatures below 140°F (60°C) for cooking foods that can be safely eaten raw.

IMPORTANT

The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA) The lowest temperature recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For beef medium 160°F, well done 170°F (77°C). Visit the USDA Food Safety and Inspection website at www.fsis.usda.gov.

Page 31

SETTING OVEN CONTROLS

Table 3: Sous Vide Table

Food Doneness Temperature Cooking Time

Minimum Target Maximum

Beef

Steak Rare 130º F / 54º-55º C 2 hours 3 hours 4 hours

Steak Medium Rare 135º F / 57º-58º C 2 hours 3 hours 4 hours

Steak Medium 145º F / 62º-63º C 2 hours 3 hours 4 hours

Steak Medium Well 150º F / 65º-66º C 2 hours 3 hours 4 hours

Steak Well 160º F / 71º-72º C 2 hours 3 hours 4 hours

Roast Rare 135º F / 57º-58º C 6 hours 7 hours 16 hours

Roast Medium Rare 140º F / 60º C 6 hours 7 hours 16 hours

Roast Medium 150º F / 65º-66º C 6 hours 7 hours 16 hours

Roast Medium Well 155º F / 68º-69º C 6 hours 7 hours 16 hours

Roast Well 160º F / 71º-72º C 6 hours 7 hours 16 hours

Chuck/Brisket

Rare 140º F / 60º C 20 hours 24 hours 48 hours

Medium Rare 150º F / 65º-66º C 20 hours 24 hours 48 hours

Well 180º F / 82º-83º C 20 hours 24 hours 48 hours

Pork

Chop Medium 150º F / 65º-66º C 2 hours 3 hours 4 hours

Chop Well 160º F / 71º-72º C 2 hours 3 hours 4 hours

Roast Medium 150º F / 65º-66º C 2 hours 3 hours 4 hours

Roast Well 180º F / 82º-83º C 2 hours 3 hours 4 hours

Shoulder/Belly Medium 150º F / 65º-66º C 10 hours 24 hours 48 hours

Shoulder/Belly Well 180º F / 82º-83º C 10 hours 24 hours 48 hours

Chicken

Parts Tender 170º F / 76º-77º C 2 hours 2-

Fish

Steak Tender 105º F / 40º-41º C 1 hour 1-11/2 hours 2 hours

Steak Flaky 125º F / 51º-52º C 1 hour 1-11/2 hours 2 hours

Steak Well 145º F / 62º-63º C 1 hour 2 hours 2 hours

Fillet Tender 105º F / 40º-41º C 45 mins 1 hour 1 1/2 hours

Fillet Flaky 125º F / 51º-52º C 45 mins 1 hour 1 1/2 hours

Fillet Well 145º F / 62º-63º C 45 mins 1 hour 1 1/2 hours

Vegetables

Squash Cubes 180º F / 82º-83º C 1 hour

Roots Sliced/Cubes 180º F / 82º-83º C 1 hour 1 1/2 hours 4 hours

Potatoes Sliced/Cubes 200º F / 93º-94º C 1 hour 1 1/2 hours 4 hours

Fruits

Warm/Ripe Sliced/Cubes 155º F / 68º-69º C 45mins 105 mins 2 1/2 hours

Soft Purees 180º F / 82º-83º C 15 mins 30 mins 90 minutes

Steak thickness based on 1.5”. Thicker cuts may require longer times.

1/2 hours 4 hours

1 1/2 hours

4 hours

Page 32

SETTING OVEN CONTROLS

Setting Broil

Use the broil function to cook foods that require direct exposure to radiant heat for optimum browning results. Broiling may produce smoke. If smoke is excessive, place food further away from the heating element.

The broil feature preset to 550°F. Broil may be set at any temperature between 400°F (205°C) and 550°F (288°C).

WARNING

Should an oven ﬁ re occur, close the oven door and turn the oven oﬀ . If the ﬁ re continues, use a ﬁ re extinguisher. Do not put water or ﬂ our on the ﬁ re. Flour may be explosive and water can cause a grease ﬁ re to spread and cause personal injury.

CAUTION

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior, oven racks, and cooktop will become very hot which can cause burns.

To set broil with the default broil oven temperature of 550°F (288°C):

1. Arrange the oven racks when cool. For optimum browning results, preheat oven for 2 minutes before adding food.

2. Select Oven Mode and scroll to Broil.

3. Default 550° appears.

4. If lower broil temperature is needed use keypad to select between 400° and 550°.

5. Press START. Broil with oven door closed.

6. Broil on one side until food is browned; turn and broil other side until done to your satisfaction.

7. When ﬁ nished broiling, press ON/OFF.

Important: Broiler pans and inserts allow the grease to drain away from the high heat of the broiler. Do not use the pan without the insert. Do not cover the insert with foil – the exposed grease could ignite.

Page 33

SETTING OVEN CONTROLS

Important notes:

• Always arrange oven racks when the oven is cool.

• For best results when broiling, use a broil pan with broil pan insert designed to drain the fat from the food and help avoid spatter and reduce smoking.

• When broiling, always pull the oven rack out to the stop position before turning or removing food.

Table 4: Broil recommendations

Food item Rack

Position

Steak 1” thick 5 550°F (288°C) 4:00 4:00 140ºF (60ºC) Rare** Steak 1” thick 5 550°F (288°C) 6:00 4:00 145°F (63°C) Medium Steak 1” thick 5 550°F (288°C) 7:00 5:00 160ºF (71ºC) Medium-well Steak 1” thick 5 550°F (288°C) 8:00 6:00 170°F (77ºC) Well Pork Chops 3/4 “thick 5 550°F (288°C) 12:00 10:00 170°F (77ºC) Well Chicken - Bone In 5 450°F (232°C) 20:00 10:00 170°F (77ºC) Well Chicken Boneless 5 450°F (232°C) 8:00 6:00 170°F (77ºC) Well Fish 5 550°F (288°C) as directed 170°F (77ºC) Well Shrimp 5 550°F (288°C) as directed 170°F (77ºC) Well Hamburger 1” thick 5 550°F (288°C) 9:00 7:00 145ºF (63ºC) Medium Hamburger 1” thick 5 550°F (288°C) 10:00 8:00 170°F (77ºC) Well

The U.S. Department of Agriculture states, **Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) The lowest temperature recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC). All cook times shown are after 2 minutes of preheating.

Temp Cook time in

minutes

1st side 2nd side

Internal Temperature

Doneness

Page 34

SETTING OVEN CONTROLS

Convection Roast

Convection roast combines a cook cycle with the convection fan and elements to rapidly roast meats and poultry. Heated air circulates around the meat from all sides, sealing in juices and ﬂ avors. Meats cooked with this feature are crispy and brown on the outside while staying moist inside.

WARNING

CAUTION

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior, oven racks, and cooktop will become very hot which can cause burns.

To use convection roast at a temperature of 350°F (177°C):

1. Touch Oven Mode and scroll to Convection Roast.

2. Touch Convection Roast.

3. Set desired temperature or use default of 350°.

4. Touch START.

5. Option to set Cook Time.

6. Touch START. Preheating the oven is not neces- sary.

7. When cooking is completed or to cancel Convection Roast press ON/OFF.

Figure 5: Convection roasting on lower oven racks

Page 35

SETTING OVEN CONTROLS

Convection Roasting tips:

• Preheating for convection roast is not necessary for most meats and poultry.

• Arrange oven racks so meat and poultry are on the lowest rack of the oven.

• Since convection roast cooks faster, may be able to reduce cook times as much as 25% from the recommended time of your recipe (check the food at this time). Then if needed, increase cook time until the desired doneness is obtained.

• Do not cover foods when dry roasting - covering will prevent the meat from browning properly.

• When cooking meats use the broiler pan and insert. The broiler pan will catch grease spills and the insert helps prevent grease splatters.

Table 5: Convection Roasting recommendations

Meat Weight Oven Temp Internal Temp Mins per lb

Beef Standing rib roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30

Rib eye roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30 Tenderloin roast 2 to 3 lb. 400°F (204ºC) *160ºF (71ºC) 15-25

Poultry Turkey whole** 12 to 16 lb. 325°F (163ºC) 180°F (82ºC) 8-10

Turkey whole** 16 to 20 lb 325°F (163ºC) 180°F (82ºC) 10-15 Turkey whole** 20 to 24 lb. 325°F (163ºC) 180°F (82ºC) 12-16

Chicken 3 to 4 lb. 350°F-375°F (177ºC-

191ºC)*

Pork Ham roast, fresh 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 30-40

Shoulder blade roast 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 20-30 Loin 3 to 4 lb. 325°F (163ºC) 160°F (71ºC) 20-25 Pre-cooked ham 5 to 7 lb. 325°F (163ºC) 160°F (71ºC) 30-40

* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide) The lowest temperature recommended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC)** Stuﬀ ed turkey requires additional roasting time. Shield legs and breast with foil to prevent over browning and drying of the skin.

180°F (82ºC) 12-16

Page 36

SETTING OVEN CONTROLS

Cooking with Food Probe

Use the probe feature for best results when cooking foods such as roasts, hams, or poultry.

The Food Probe works with the following oven modes: Bake, Convection Bake, Air Fry, Convection Roast, Steam Roast, and Turkey.

The probe feature, when set correctly, will signal an alert when the internal food temperature reaches the desired set target temperature. The probe settings for how the oven behaves should be set ﬁ rst in the oven menu.

When active, the probe displays the internal food temperature which is visible in the display during the cooking process. This eliminates any guesswork or the need to open the oven door to check the thermometer.

For meats like poultry and roasts, using a probe to check internal temperature is the safest method to ensure properly cooked food.

To set Food Probe: Touch Oven Modes, scroll to Food Probe and follow directions on the display.

CAUTION

Do not use kitchen utensils to pull on the probe cable or handles. Always insert and remove the probe using the provided handles, as shown in and always use a pot holder to protect hands from possible burns.

Proper placement of probe in food.

Insert the probe so that the probe tip rests inside the center of the thickest part of meat or food. For best results, do not allow the probe temperature sensor to contact bone, fat, gristle, or the cookware.

Insert

probe tip

to center of

food

• For bone-in ham or lamb, insert the probe into the center of lowest large muscle or joint.

• For meat loaf or casseroles, insert the probe into center of food.

• When cooking ﬁ sh, insert meat probe just above the gill.

• For whole poultry or turkey, fully insert the probe sensor into the thickest part of the breast.

Page 37

SETTING OVEN CONTROLS

Using the Food Probe for Turkey

1. Select Oven Modes and scroll to Food Probe.

2. The display will remind you to insert the probe into the turkey and place in oven on rack position 1.

3. Display reminds you to connect the food probe to the receptacle before setting oven mode:

4. Touch NEXT.

5. Touch Turkey in Oven Modes.

6. Set target food temperature after pressing NEXT.

7. Set oven temperature and press START.

8. When the target temperature of the turkey (internal temperature) is reached, the oven will turn oﬀ if set for cooking to stop in the Oven Menu settings.

Table 6: USDA recommended minimum internal cooking temperatures

Food Type Internal Temp.

Ground meat and meat mixtures

Beef, Pork, Veal, Lamb 160°F (71°C)

Turkey, Chicken 165°F (74°C)

Fresh beef, veal, lamb

Medium rare +

Medium

Well Done

Chicken and Turkey, whole 165°F (74°C)

Poultry Breasts, Roasts 165°F (74°C)

Poultry Thighs, Wings 165°F (74°C)

Stuﬃ ng (cooked alone or in bird) 165°F (74°C)

Ham Fresh (raw) 160°F (71°C)

Ham Pre-cooked (to reheat) 140°F (60°C

Eggs dishes 160°F (71°C)

Leftovers and Casseroles 165°F (74°C)

145°F (63°C)

160°F (71°C)

170°F (77°C)

Keep Warm

NOTE

During cooking, the internal food temperature will display in the center of the screen. The oven temperature will be displayed at the bottom of the screen beside the cancel key. To assure accuracy, do not remove the probe from the food or receptacle until the desired internal temperature is reached.

If the probe is removed from the receptacle only, the probe feature will cancel and the oven will turn oﬀ . If the probe is removed from the food only, the probe feature will remain active and may eventually generate a probe too hot message.

To change the target (internal food) temperature or the set oven temperature touch the one you want to

change and use the + or - to adjust the temperature.

IMPORTANT

Do not store the probe inside the oven. Use only the original probe provided. Connecting any other probe or device could result in damage to the oven control, electronics, and the receptacle.

Before starting self clean, double check that the probe is removed from the oven interior. Defrost frozen foods completely before inserting the probe.

Page 38

SETTING OVEN CONTROLS

Multi-Racks

Multi-Rack is for baking on up to two racks while following recommended time and temperature. The oven will make adjustments for best results.

IMPORTANT: Be sure to use suggested rack positions before setting oven.

• Follow recipe for time and temp and the oven will make needed adjustments for best performance.

• Fully preheat the oven for best results.

• Pans and pizzas should be pulled to the front of the rack.

• Allow at least 2 inches (5 cm) of space between bakeware for proper air circulation.

• Leave oven lights oﬀ while baking.

• Use ﬂ at rack in position 1 and glide rack in position

To use Multi-Rack:

1. Arrange the oven racks when cool.

2. Select Oven Mode and scroll to Multi Racks.

3. Touch Multi Racks.

4. Default 350° appears. Set another temperature if desired.

5. Touch START.

6. Set Cook Time if needed.

7. Press START.

8. When Cook Time ends the oven turns oﬀ automatically

9. Cooking has ended and Oﬀ will be in display.

10. Press ON/OFF to return display to show the time of day.

Page 39

SETTING OVEN CONTROLS

Cooking with Steam

Note: More moisture will be present than during con-

ventional baking or roasting. Moisture could condense on handle or in the door, and depending on the conditions in your kitchen possible drip onto the ﬂ oor.

Steam Cooking Tips: Oven Positioning

• Use ﬂ at rack in the lowest position in the oven for most foods for Steam Roast.

• Lowest position for poultry.

Preparing

• Use 2-½ cups of water for steam bake and steam roast. If steam functions are frequently used, use distilled water.

• Using water container, pour water slowly onto the bottom of oven cavity while still cool.

• Never add water if the oven is warm.

• Never add water during a Steam Bake or Steam Roast cycle.

Steam Bake

Steam creates the best conditions for baking bread on a single rack. Baked goods will have improved browning and texture and is recommended for baking moist and ﬂ avorful breads and pastries such as baguettes and croissants.

Use ﬂ at rack in position 3 for best results for Steam Bake. pans should be pulled to the front of the rack.

To set Steam Bake:

1. Select Oven Modes and scroll to Steam Bake.

2. Follow the instructions on the screen and add water to oven bottom of oven as directed.

While in Use

• When using Steam, follow recipe for preheating, cook time and cook temperature.

• Always start with a cold oven.

• Preheating is not necessary when using steam roast.

Cleaning

• With a paper towel lightly soaked in distilled white vinegar, wipe out bottom of oven cavity after the oven is cooled or before each use.

• Use the self clean function to clean heavily soiled areas.

• If residue remains after self clean, pour a thin layer of distilled white vinegar onto the bottom of the oven cavity. Allow to sit for 30 minutes. Wipe out vinegar.

3. Touch NEXT and follow Steam Bake instruction for setting temperature.

4. Touch START.

5. Set Cook Time. (Suggests waiting to set Cook Time until oven preheats.)

6. When Cook Time ends oven turns oﬀ automatically.

7. Cooking has ended and Oﬀ will be in display.

8. Press ON/OFF to return to show the time of day.

Important: Stand to the side of the oven when opening to allow any steam to escape.

Page 40

SETTING OVEN CONTROLS

Steam Roast

Steam creates the best conditions for roasting proteins. Meats will be crisp outside and juicy inside.

Steam Roast is recommended for meat or poultry.

To set Steam Roast:

1. Select Oven Modes and scroll to Steam Roast.

2. Follow the instructions on the screen and add water to oven bottom of oven as directed.

3. Touch NEXT and follow Steam Roast instruction for setting temperature.

4. Touch START.

5. When Cook Time ends oven turns oﬀ automatically.

6. Cooking has ended and Oﬀ will be in display.

7. Press ON/OFF to return display to show the time of day.

Important: Stand to the side of the oven when opening to allow any steam to escape.

Bread Proof

Bread prooﬁ ng creates the best conditions for yeast to multiply and cause your dough to rise.

1. Select Oven Mode and scroll to Bread Proof.

2. Touch Bread Proof: Shows Bread Proof 100°F (38°C).

3. Touch START. Cook Time Option is oﬀ ered. If Cook Time is set touch START.

4. When Cook Time ends Bread Proof turns oﬀ automatically.

NOTE: Check often to prevent over-prooﬁ ng.

Dehydrate

For best results when dehydrating food use the Air Fry tray which allows air to circulate all around the food for faster preservation.

To set Dehydrate:

1. Arrange food in a single layer on the Air Fry tray.

2. Select Oven Modes and scroll to Dehydrate.

3. Set dehydrate temperature (between 95°F -170°F).

4. Touch START.

5. Set Cook Time if desired.

6. When Cook Time ends the oven turns oﬀ automatically.

7. Cooking has ended and Oﬀ will be in display.

8. Press ON/OFF to return display to show the time of day.

NOTE

Check food for doneness. If any moisture is present, allow food to dehydrate longer.

Page 41

SETTING OVEN CONTROLS

Keep Warm

Keep Warm should only be used with foods that are already at serving temperatures. Keep warm will keep cooked foods warm and ready for serving after cooking has ﬁ nished.

Keep warm will keep the oven temperature at 140° F 200° F (60°C - 93°C).

To set Keep Warm:

1. If needed, arrange oven racks and place cooked food in oven.

2. Press Oven Modes and scroll to Keep Warm:

3. Touch Keep Warm.

4. Set desired temperature.

5. Set desired Keep Warm time as cook time.

6. Press START.

7. Keep Warm will turn oﬀ when time expires or when canceled.

Setting the Sabbath Feature for the Jewish Sabbath and Holidays (some models)

For further assistance, guidelines for proper usage,

and a complete list of models with the Sabbath feature, please visit the web at www.star-k.org.

This appliance provides special settings for use when observing the Jewish

Sabbath/Holidays. Sabbath mode disables all audible tones or visual display changes on the oven control. Bake is the only cooking feature available while in the Sabbath mode. Most oven controls are locked during Sabbath mode.

To start Sabbath Mode, ﬁ rst select Sabbath from the settings menu. Next, select Delay (if desired), Bake temperature, and cook time (if desired) and set. Cooking will begin after any speciﬁ ed delay.

If cook time was set, once the time has elapsed, the cooking will end and the display will show Idle to indicate that the cook time has ended.

Important: The Sabbath mode will override the factory preset 12 hour energy saving mode, and the appliance will stay on until the cooking features are canceled. If cooking is canceled when the appliance is in the Sabbath mode, no audible or visual indicators will be available to verify the cancellation.

If the oven interior lights are needed, be sure to activate them prior to setting the Sabbath mode. Once the oven light is turned on and the Sabbath mode is active, the oven light will remain on until the Sabbath mode is turned oﬀ and the oven lights are turned oﬀ . The oven door will not activate the interior oven lights when the oven door is opened or closed.

It is recommended that any oven temperature modiﬁ cation made within an active Sabbath mode press the + or - key.

The temperature will increase or decrease with each press by 5°F or 1°C and the change will be accepted automatically.

Page 42

SETTING OVEN CONTROLS

WARNING

Food poisoning hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Foods that can easily spoil such as milk, eggs, ﬁ sh, meat or poultry, should be chilled in the refrigerator ﬁ rst. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when ﬁ nished cooking.

Important:

• Do not attempt to activate any other oven function except Bake while the Sabbath feature is active. When the Sabbath feature is active, only the + and - keys and OFF will function. ALL OTHER KEYS should not be used once the Sabbath feature is active.

• You may change the oven temperature once baking has started. Use the + and - keys to raise or lower the oven temperature. Each press of an arrow key will raise or lower the temperature by 5°F (1°C).

SETTING SABBATH MODE:

Sabbath Mode is set using the Menu Options.

1. Touch the Menu Options bars.

2. Scroll to Sabbath Mode.

3. Touch Sabbath Mode and follow all instructions on screen

• Remember that the oven control will no longer provide audible tones or display any further changes when the Sabbath feature is active.

• The oven will shut-oﬀ automatically after completing a bake time and therefore may only be used once during the Sabbath/Jewish Holidays.

To exit Sabbath Mode, press and hold EXIT for three seconds.

Page 43

Self Clean

A self cleaning oven cleans itself with high temperatures (well above normal cooking temperatures), which vaporizes soils or reduces them to a ﬁ ne powdered ash you can wipe away afterwards with a damp cloth. This function can be programmed for clean times between 2 and 4 hours.

Important: Before starting self clean read all following caution and important statements before starting a self clean cycle.

CAUTION

• Do not leave small children unattended near appliance. During self clean cycle, the outside of the oven can become very hot and cause burns if touched.

• Do not line the oven walls, racks, oven bottom, or any part of the range with aluminum foil. This will cause permanent damage to the oven interior and destroy heat distribution, and will melt to the oven interior.

SETTING OVEN CONTROLS

• Remove any excessive spills. Any spills on the oven bottom should be wiped up and removed before starting a self clean cycle. To clean use hot, soapy water and a cloth. Large spills can cause heavy smoke or ﬁ re when subjected to high temperatures.

• Do not allow food spills with high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit juices, or pie ﬁ llings) to remain on the surface as they may leave a dull spot even after cleaning.

• Do not clean the oven door gasket. The woven material in the gasket is essential for a good seal. Care should be taken not to rub, damage, or remove the oven door gasket. Doing so could cause damage to the door gasket and compromise the performance of the oven.

• The kitchen area should be well ventilated using an open window, ventilation fan, or exhaust hood during the ﬁ rst self clean cycle. This will help eliminate the normal odors.

• Do not attempt to open the oven door when the

• Do not force the oven door open. This will damage the automatic door locking system. Use caution when opening the oven door after the self clean cycle ends. The oven may still be very hot and cause burns. To avoid possible burns, stand to side of oven when opening door to allow steam or hot air to escape.

• The health of some birds is extremely sensitive to fumes given oﬀ during the self clean cycle of any range. Move birds to a well ventilated room.

Important notes:

• Completely remove all oven racks and any accessories from oven cavity to avoid damage to oven racks. If the oven racks are not removed they may discolor.

• Remove all items from the oven and cooktop including cookware, utensils, and any aluminum foil. Aluminum foil will not withstand high temperatures from a self clean cycle and will melt.

• Do not spray oven cleaners or oven protective coatings in or around any part of the oven interior. Clean any soil from the oven frame, the door liner outside the oven door gasket, and the small area at the front center of the oven bottom. These areas heat suﬃ ciently to burn soil on. Clean using soap and water prior to starting Self Clean.

Figure 6: Clean around the oven door gasket

OVEN LOCK indicator light is ﬂ ashing. Allow about 15 seconds for the motorized door latch mechanism to completely lock or unlock the oven door.

• When the clean time ﬁ nishes, the oven door will remain locked until the range has cooled sufﬁ ciently. In addition to the clean time that was programmed, you must allow about 1 additional hour for the oven to cool before you will be able to open the oven door.

Page 44

SETTING OVEN CONTROLS

To set a self clean cycle:

1. Be sure the oven is empty and all oven racks are removed. Remove all items from the oven. Be sure oven door is completely closed.

2. Touch Oven Modes and scroll to Self Clean.

3. Touch Self Clean and select 2 hour, 3 hour, or 4 hour clean time.

4. Press TIMER to start the self clean cycle.

When the oven is set to run a self-clean cycle, the motor door lock will begin locking the oven door. Do not open the oven door while the lock motor is running or when any locking indicators or displays are showing. The oven door is completely locked in about 15 seconds. Once the oven door has locked, CLEAN will appear in the display indicating self clean has started.

Do not force the oven door open when selfclean is active. This can damage the automatic door-locking system. Use caution when opening the door after self-clean cycle is complete; the oven may still be very hot.

When the self clean cycle has completed:

1. CLEAN message will turn oﬀ , and Hot will ap-

pear in display window. The oven door will remain locked while the oven cools.

2. Once the oven has cooled down (about 1 hour) and Hot is no longer displayed, the oven door may be opened.

3. When the oven interior has completely cooled, wipe away any residue or powdered ash with a damp cloth or paper towel.

Page 45

SETTING OVEN CONTROLS

Setting Delay Start Self Clean

To start a delay self clean with default clean time of 3 hours.

1. Press ON/OFF key and touch Oven Modes.

2. Scroll and touch Delay Start.

3. Touch NEXT and scroll Oven Modes to Self Clean. Follow the information on the screen to set delay time, self clean time.

If it becomes necessary to stop self clean when active:

• Press OFF.

• If self clean has heated the oven to a high temperature, allow enough time for the oven to cool.

• Before restarting self clean, be sure to read important notes below.

Important notes

• If self clean was active and then interrupted by a power failure or canceled before the oven was thoroughly cleaned, it may be necessary to run another self clean cycle.

• If the oven temperature was high enough when self clean was interrupted the oven control may not allow another self clean cycle to be set for up to 4 hours.

Page 46

SETTING OVEN CONTROLS

Steam Clean

The Steam Clean feature oﬀ ers a chemical free and time saving method to assist in the routine cleaning of small and light soils. For heavier baked on soils use the Self Clean feature.

CAUTION

Do not add bleach, ammonia, oven cleaner, or any other abrasive household cleaners to the water used for Steam Clean.

Before cleaning any part of the oven, be sure all controls are turned oﬀ and the oven is cool. The oven may be hot and can cause burns.

Be sure the oven is level and cool before starting Steam Clean. If the oven temperature is above room temperature a triple beep will be heard and the function will not start. Steam Clean produces best results when started with a cool oven.

To set a Steam Clean cycle:

1. Remove all racks and oven accessories.

2. Scrape or wipe loose debris and grease from the oven bottom.

3. Pour 1 cup of tap water onto the oven bottom. Close oven door.

Figure 7: Add 1 cups of tap water

4. Touch Oven Modes,scroll to and touch Steam Clean.

5. Touch START.

6. The time the Steam Clean cycle will end is shown in the display. Do not open the door during this time. If door is open while in Steam Clean (d-O) will appear in the display.

7. When the steam clean cycle is complete an alert will sound and the Oﬀ message will show in the display. Press oﬀ to return to the clock.

8. Take care opening the door when the steam clean is ﬁ nished. Stand to the side of the oven out of the way of escaping vapor.

9. Wipe oven cavity and bottom. Do not clean oven door gasket. Avoid leaning or resting on the oven door glass while cleaning cavity.

Figure 8: Clean around the oven door gasket

Notes:

• Opening the oven door during the steam clean cycle prevents the water from reaching the temperature needed to clean.

• For best results, clean oven immediately after the cycle is complete. Steam clean works best for soils on the oven bottom.

• A non-abrasive scouring pad, stainless steel sponge, plastic scraper, or eraser style cleaning pad (without cleaner) can be used for diﬃ cult soils. Moisten pads with water before use.

• Place a paper towel or cloth in front of the oven to capture any water that may spill while wiping out.

• Do not leave the residual water in the oven for any length of time.

• Some condensation or water vapor may appear close to the oven vent and the oven door glass. This is normal. The oven gasket may become damp; do not wipe dry.

• Local water sources often contain minerals (hard water). If hard water deposits occur, wipe cavity with a 50/50 solution of water and vinegar or 50/50 solution of lemon juice and water.

• Steam clean cannot be programmed with a delayed start time.

• If Steam Clean results are not satisfactory, run a Self Clean. See “Self Clean” on page 43.

Page 47

Remove spills and any heavy soiling as soon as possible. Regular cleaning will reduce the diﬃ culty of major cleaning later.

CAUTION

Before cleaning any part of the appliance, be sure all controls are turned oﬀ and the appliance is cool.

If ammonia or appliance cleaners are used, they must be removed and the appliance must be thoroughly rinsed before operating. Follow manufacturer’s instructions and provide adequate ventilation.

CARE AND CLEANING

Figure 9: Use cleaners with caution

Surface or Area Cleaning Recommendation

Aluminum and vinyl Using a soft cloth, clean with mild dish detergent and water. Rinse with clean water,

dry and polish with a soft, clean cloth.

Painted body parts

Painted decorative trims

Touch display Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

Control panel Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

Control knobs Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

Stainless Steel Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

Coated Stainless Steel Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water. Rinse with clean water, dry and polish with a soft, clean cloth. Glass cleaners may be used, but do not apply directly to surface; spray onto cloth and wipe.

vinegar and water. Do not spray liquids directly on the display area. Do not use large amounts of water on the display - excess water may cause damage to the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or paper towels - they may damage the ﬁ nish.

vinegar and water. Do not spray liquids directly on the oven control and display area. Do not use large amounts of water on the control panel - excess water on the control area may cause damage to the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or paper towels - they will damage the ﬁ nish.

vinegar and water. To remove control knobs: turn to the OFF position, grasp ﬁ rmly, and pull oﬀ the shaft. To replace knobs after cleaning, line up the OFF markings and push the knobs into place.

vinegar and water. Rinse with clean water, dry with a soft clean cloth. Do not use cleaners containing abrasives, chlorides, chlorine, or ammonia.

vinegar and water. Rinse with clean water, dry with a soft clean cloth. Do not use appliance cleaner, stainless steel cleaner, or cleaner containing abrasives, chlorides, chlorine, or ammonia. These cleaners may damage the ﬁ nish.

Page 48

Surface or Area Cleaning Recommendation

Porcelain-enameled broiler pan and insert

Porcelain door liner

Porcelain body parts

Self-cleaning oven interior Before setting a self-clean cycle, clean soils from the oven frame,

Oven door Use mild dish detergent and water or a 50/50 solution of vinegar

CARE AND CLEANING

Rinse with clean water and a damp cloth. Scrub gently with a soapy, non-abrasive scouring pad to remove most spots. Rinse with a 50/50 solution of clean water and ammonia. If necessary, cover di cult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse and wipe dry with a clean cloth. Remove all cleaners or future heating could damage the porcelain. Do not allow food spills with a high sugar or acid content (milk, tomatoes, sauerkraut, fruit juices or pie ﬁ lling) to remain on porcelain surfaces. These spills may cause a dull spot even after cleaning.

areas outside the oven door gasket, and the small area at the front center of the oven bottom. “Figure 13: Removal position” on page

52.

and water to clean the top, sides, and front of the oven door. Rinse well. Glass cleaner may be used on the outside glass of the door. Ceramic smoothtop cleaner or polish may be used on the interior door glass. Do not immerse the door in water. Do not spray or allow water or cleaners to enter the door vents. Do not use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the oven door.

Do not clean the oven door gasket. The oven door gasket is made of a woven material which is essential for a good seal. Do not rub, damage, or remove this gasket.

Page 49

CARE AND CLEANING

General Cleaning

Refer to the table at the beginning of this chapter for more information about cleaning speciﬁ c parts of the oven.

Follow these cleaning precautions:

• Allow the oven to cool before cleaning.

• Wear rubber gloves when cleaning the appliance manually.

Remove soils using hot, soapy water. Do not allow food spills with a high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie ﬁ lling) to remain on the surface as they may cause a dull spot even after cleaning. Remove spillovers and heavy soiling as soon as possible. Regular cleaning will reduce the eﬀ ort required for major cleaning later.

CAUTION

Before manually cleaning any part of the oven, be sure all controls are turned oﬀ and the oven is cool. The oven may be hot and can cause burns.

Cleaning Porcelain Enamel Oven

The oven interior is porcelain on steel, it is safe to clean using oven cleaners.

To remove heavy soil:

1. Allow a dish of ammonia to sit in the oven overnight or for several hours with the oven door closed. Clean softened dirt spots using hot, soapy water. Rinse well with water and a clean cloth.

2. If soil remains, use a nonabrasive scouring pad or a nonabrasive cleaner. If necessary, use an oven cleaner following manufacturer’s instructions. Do not mix ammonia with other cleaners.

3. Clean any soil from the oven frame, the door liner outside the oven door gasket and the small area at the front center of the oven bottom. Clean with hot, soapy water. Rinse well using clean water and a cloth.

Remove all racks and accessories from the oven before cleaning.

Ammonia must be rinsed before operating the oven. Provide adequate ventilation.

Page 50

CARE AND CLEANING

Aluminum Foil, Aluminum Utensils, and Oven Liners

WARNING

Never cover any slots, holes, or passages in the oven bottom or cover an entire oven rack with materials such as aluminum foil. Doing so blocks air ﬂ ow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may trap heat, causing a ﬁ re hazard.

• Protective liners—Do not use aluminum foil to line the oven bottom. The high heat of the oven can melt these materials to the oven cavity and ruin the oven. These types of materials can also reduce the eﬀ ectiveness of the air circulation in the oven and produce poor baking results. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock or ﬁ re.

• Aluminum utensils - The melting point of aluminum is much lower than that of other metals. Care must be taken when aluminum pots or pans are used.

• Oven racks - Do not use aluminum foil to cover the oven racks. Using a liner in the oven restricts the heat and air ﬂ ow needed to obtain the best possible cooking results for any oven.

Replacing the Oven Light

CAUTION

Be sure the oven is unplugged and all parts are cool before replacing the oven light.

The interior oven light is located at the rear of the oven cavity and is covered by a glass shield. The glass shield must be in place whenever the oven is in use.

To replace the oven interior light bulb:

1. Turn electrical power oﬀ at the main source or unplug the appliance.

2. Remove interior oven light shield by turning a quarter turn counter-clockwise.

3. Replace bulb with a new T-4 type Halogen 25 watt appliance bulb.

NOTE

Wear a cotton glove or use a paper towel when installing a new bulb. Do not touch the new bulb with your ﬁ ngers when replacing. This will shorten the life of the bulb.

4. Replace glass oven light shield by rotating clockwise.

5. Turn power back on again at the main source (or plug the appliance back in).

6. Be sure to reset the time of day on the clock.

Figure 10: Wall oven Halogen light

Page 51

CARE AND CLEANING

Caring for Your Glide Racks

Caution: Handle oven racks only when they are cool. After cooking or after the fresh-clean cycle, racks will be very hot and can cause burns.

Important Notes:

• Remove all oven racks, including ladder racks, before starting a clean cycle.

• Do not use cooking oil, cooking spray, or other oil-based lubrication products on the glide rack extension tracks. Use only the graphite lubrication in this area. To order graphite lubrication, contact your installer, servicer or dealer.

• It is important that the parts of the rack that contact the oven sides always have a light coating of vegetable oil. Apply a thin layer of vegetable oil to the sides of the rack after every fresh-clean cycle and when the rack becomes di cult to reposition in the oven.

To lubricate the glide rack:

1. Remove the rack from the oven and place the rack on a large ﬂ at surface covered with newspaper or scrap cloth. Fully extend the rack.

2. Wipe away debris and crumbs from the glide track using a cloth or sponge.

4. Extend and return the glide rack several times along the tracks to distribute the lubrication.

5. Turn the rack upside down and apply graphite lubrication to the insides of the loading guides.

6. Extend and return the glide rack several times along the tracks to distribute the lubrication.

7. Apply a thin layer of cooking oil to the bottom of the “V” and the glide channels. Keeping the frame sides lightly lubricated allows the entire rack to slide easily when changing rack positions.

3. Shake graphite lubrication very well before applying. Apply to loading guides, and rotation pin. Repeat on both sides of the glide rack.

8. Replace rack in oven right-side up.

Page 52

CARE AND CLEANING

Removing and Replacing the Oven Door

CAUTION

The door is heavy. For safe, temporary storage, lay the door ﬂ at with the inside of the door facing down.

IMPORTANT

Special door care instructions - For safe, temporary storage, lay the door ﬂ at with the

inside of the door facing down. Most oven doors contain glass that can break.

Do not hit the glass with pots, pans, or any other object. Scratching, hitting, jarring, or stressing the glass may weaken its structure, causing an increased risk of breakage at a later time. Do not close the oven door until all of the oven racks are fully in place.

To remove the oven door:

1. Open oven door completely, horizontal with ﬂ oor (Figure 11).

2. Pull up the lock located on each hinge support toward front of the oven until the lock stops. You may have to apply a little upward pressure on the lock to pull it up (Figure 12).

3. Grasp the door by the sides, and close the door until the door frame makes contact with the unlocked hinges (Figure 13).

4. Pull the bottom of the door toward you while rotating the top of the door toward the appliance to completely disengage the hinge levers (Figure 14).

Figure 11: Door hinge location

Figure 12: Door hinge lock

To replace the oven door:

1. Firmly grasp both sides of oven door along the door sides. Do not use the oven door handle (Figure 14).

2. Hold the oven door at the same angle as the removal position (Figure 13) Carefully insert the hinge levers into the oven frame until you feel the hinge levers are seated into the hinge notches. The hinge arms must be fully seated into the hinge notches before the oven door can be fully opened.

3. Fully open the oven door, horizontal with ﬂ oor (Figure 11).

4. Push the door hinge locks up toward and into the oven frame on both left and right oven door hinges to the locked position (Figure 12).

5. Close the oven door.

Figure 13: Removal position

Figure 14: Remove door

Page 53

BEFORE YOU CALL

Oven Baking

For best cooking results, preheat the oven before baking cookies, breads, cakes, pies, pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

Baking Problems and Solutions Baking Problems

Baking Problems Causes Corrections

Cookies and biscuits burn on the bottom.

Cookies and biscuits put into oven before oven is preheated.

Allow oven to preheat to desired temperature before placing food in oven.

Choose pan sizes that will permit at least 2” of air space.

Cakes too dark on top or bottom

Cakes not done in center

Cakes not level. Oven not level.

Foods not done when cooking time is over.

Cakes put in oven before oven is preheated.

Rack position too high or too low.

Oven too hot.

Incorrect pan size.

Pan not centered in oven.

Glass cookware slow heat conductor.

Pan too close to oven wall or rack overcrowded.

Pan warped.

Oven light left on while baking.

Oven too cool.

Oven overcrowded.

Oven door opened too frequently.

Allow oven to preheat to the selected temperature before placing food in the oven.

Use proper rack position for baking needs.

Set oven temperature 25°F (13°C) lower than recommended.

Use pan size suggested in recipe.

Use proper rack position and place pan so there are at least 2” (5.1 cm) of space on all sides of pan.

Reduce temperature and increase cook time or use shiny bakeware.

Place a marked glass measuring cup ﬁ lled with water on the center of the oven rack. If the water level is uneven, refer to the installation instructions for leveling the oven.

Use proper rack position and place pan so there are at least 2” (5.1 cm) of space on all sides of pan.

Do not use pans that are dented or warped.

Do not leave the oven light on while baking.

Set oven temperature 25°F (13°C) higher than suggested and bake for the recommended time.

Be sure to remove all pans from the oven except the ones to be used for baking.

Open oven door only after the shortest recommended baking time.

Page 54

Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you!

1-877-435-3287 (United States)

ElectroluxAppliances.com

Problem Cause / Solution

Entire appliance does not operate

Oven Problems

Problem Cause / Solution

Poor baking results. Many factors aﬀ ect baking results. Use proper oven rack position. Center food

Flames inside oven or smoking from oven vent.

Oven smokes excessively when broiling.

Convection fan does not rotate.

BEFORE YOU CALL

1-800-265-8352 (Canada)

ElectroluxAppliances.ca

Appliance not connected. Make sure power cord is plugged properly into outlet. Check your fuse box or breaker box to make sure the circuit is active.

Electrical power outage. Check house lights to be sure. Call your local electric company for service outage information.

in the oven and space pans to allow air to circulate. Preheat the oven to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. See “Oven Temperature Calibration” on page 17 if you feel the oven is too hot or too cool.

Excessive spills in oven. Grease or food spilled onto the oven bottom or oven cavity. Wipe up excessive spills before starting the oven. If ﬂ ames or excessive smoke are present when using broil, see “Setting Broil” on page 32.

Incorrect setting. Follow the “Setting Broil” on page 32.

Meat too close to the broil element or burner. Reposition the broil pan to provide proper clearance between the meat and broil element or burner. Remove excess fat from meat. Cut remaining fatty edges to prevent curling, but do not cut into lean.

Grease build up on oven surfaces. Regular cleaning is necessary when broiling frequently. Grease or food splatters will cause excessive smoking.

Oven door is open. The convection fan will turn oﬀ if the oven door is opened when convection is active. Close the oven door.

Wi-Fi Problems

Problem Cause / Solution

Trouble with wireless network signal. Check your wireless network and router.

Restart the router.

New router installed or router conﬁ guration changed. To conﬁ gure oven and mobile device again, refer to

“Before ﬁ rst use” chapter, Wireless connection.

The wireless network signal is weak. Move router as close to the oven as possible.

The wireless signal is disrupted by a microwave appliance placed near the oven.

Turn oﬀ the microwave appliance.

Page 55

BEFORE YOU CALL

Self-Clean Problems

Problem Cause / Solution

Self clean does not work. Oven control not set properly. See “Self Clean” on page 43.

Oven racks discolored or do not slide easily.

Soil not completely removed after self clean.
