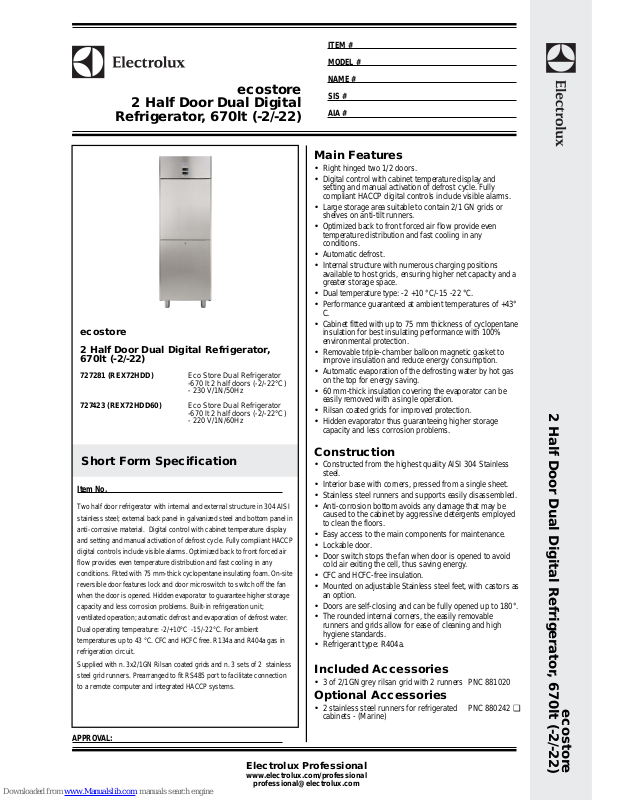

Page 1
ecostore
2 Half Door Dual Digital
Refrigerator, 670lt (-2/-22)
ITEM #
MODEL #
NAME #
SIS #
AIA #
Short Form Specification
Item No.
APPROVAL:
Electrolux Professional
www.electrolux.com/professional
ecostore
2 Half Door Dual Digital Refrigerator, 670lt (-2/-22)
ecostore
2 Half Door Dual Digital Refrigerator,
670lt (-2/-22)
727281 (REX72HDD)Eco Store Dual Refrigerator
-670 lt 2 half doors (-2/-22°C)
- 230 V/1N/50Hz
727423 (REX72HDD60)Eco Store Dual Refrigerator
-670 lt 2 half doors (-2/-22°C)
- 220 V/1N/60Hz
Two half door refrigerator with internal and external structure in 304 AISI
stainless steel; external back panel in galvanized steel and bottom panel in
anti-corrosive material. Digital control with cabinet temperature display
and setting and manual activation of defrost cycle. Fully compliant HACCP
digital controls include visible alarms. Optimized back to front forced air
flow provides even temperature distribution and fast cooling in any
conditions. Fitted with 75 mm-thick cyclopentane insulating foam. On-site
reversible door features lock and door microswitch to switch off the fan
when the door is opened. Hidden evaporator to guarantee higher storage
capacity and less corrosion problems. Built-in refrigeration unit;
ventilated operation; automatic defrost and evaporation of defrost water.
Dual operating temperature: -2/+10°C -15/-22°C. For ambient
temperatures up to 43 °C. CFC and HCFC free. R134a and R404a gas in
refrigeration circuit.
Supplied with n. 3x2/1GN Rilsan coated grids and n. 3 sets of 2 stainless
steel grid runners. Prearranged to fit RS485 port to facilitate connection
to a remote computer and integrated HACCP systems.
Main Features
•Right hinged two 1/2 doors.
•Digital control with cabinet temperature display and
setting and manual activation of defrost cycle. Fully
compliant HACCP digital controls include visible alarms.
•Large storage area suitable to contain 2/1 GN grids or
shelves on anti-tilt runners.
•Optimized back to front forced air flow provide even
temperature distribution and fast cooling in any
conditions.
•Automatic defrost.
•Internal structure with numerous charging positions
available to host grids, ensuring higher net capacity and a
greater storage space.
•Dual temperature type: -2 +10 °C/-15 -22 °C.
•Performance guaranteed at ambient temperatures of +43°
C.
•Cabinet fitted with up to 75 mm thickness of cyclopentane
insulation for best insulating performance with 100%
environmental protection.
•Removable triple-chamber balloon magnetic gasket to
improve insulation and reduce energy consumption.
•Automatic evaporation of the defrosting water by hot gas
on the top for energy saving.
•60 mm-thick insulation covering the evaporator can be
easily removed with a single operation.
•Rilsan coated grids for improved protection.
•Hidden evaporator thus guaranteeing higher storage
capacity and less corrosion problems.
Construction
•Constructed from the highest quality AISI 304 Stainless
steel.
•Interior base with corners, pressed from a single sheet.
•Stainless steel runners and supports easily disassembled.
•Anti-corrosion bottom avoids any damage that may be
caused to the cabinet by aggressive detergents employed
to clean the floors.
•Easy access to the main components for maintenance.
•Lockable door.
•Door switch stops the fan when door is opened to avoid
cold air exiting the cell, thus saving energy.
•CFC and HCFC-free insulation.
•Mounted on adjustable Stainless steel feet, with castors as
an option.
•Doors are self-closing and can be fully opened up to 180°.
•The rounded internal corners, the easily removable
runners and grids allow for ease of cleaning and high
hygiene standards.
•Refrigerant type: R404a.
Included Accessories
•3 of 2/1GN grey rilsan grid with 2 runnersPNC 881020
Optional Accessories
•2 stainless steel runners for refrigerated
cabinets - (Marine)
PNC 880242 ❑
Page 2
ecostore
2 Half Door Dual Digital
Refrigerator, 670lt (-2/-22)
ecostore
2 Half Door Dual Digital Refrigerator, 670lt (-2/-22)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.08.27
•Set of 8 GN1/1 PVC containers for fish (only for
727281)
PNC 880243 ❑
•Spacer for 670 lt and 1430 lt refrigerated
cabinets
PNC 880248 ❑
•Pedal opening for cabinetsPNC 880324 ❑
•1/1GN plastic container with false bottomPNC 880705 ❑
•4 swivelling wheels (2 with brake) for
refrigerators, diam 125 mm, NOT for Glass
Door and remote models
PNC 881002 ❑
•2/1GN grey rilsan gridPNC 881004 ❑
•2/1GN aisi 304 stainless steel gridPNC 881016 ❑
•2/1GN 304 AISI stainless steel grid with 2
runners
PNC 881018 ❑
•2/1GN grey rilsan grid with 2 runnersPNC 881020 ❑
•Set of 2 stainless steel runners for 670/1430lt
refrigerators and freezers
PNC 881021 ❑
•2/1GN pvc container with lid and 2 runners
(only for 727281)
PNC 881039 ❑
•2/1GN perforated shelfPNC 881042 ❑
•1/1GN rilsan steel wire basket h=150mmPNC 881043 ❑
•2/1GN grey rilsan basket+2 runners h=150mm
(only for 727281)
PNC 881047 ❑
•Printer for HACCP basic version (digital control)PNC 881457 ❑
Page 3
ecostore
2 Half Door Dual Digital
Refrigerator, 670lt (-2/-22)
ecostore
2 Half Door Dual Digital Refrigerator, 670lt (-2/-22)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.08.27
Front
Top
ED
=Remote electrical
connection
EI=Electrical connection
RI=Refrigerant Inlet
RO=Refrigerant Outlet
Side
Electric
Supply voltage:
727281 (REX72HDD)230 V/1 ph/50 Hz
727423 (REX72HDD60)220 V/1N ph/60 Hz
Connected load:
727281 (REX72HDD)0.58 kW
727423 (REX72HDD60)0.523 kW
Key Information:
Door hinges:2 Right
External dimensions, Height:2050 mm
External dimensions, Width:710 mm
External dimensions, Depth:837 mm
External dimensions, Depth with
Doors Open:
1480 mm
Number and type of doors:2x1/2Full
Gross capacity:670 lt
Number and type of grids
(included):3 - GN 2/1
Type of external material:304 AISI
Type of internal material:304 AISI
Internal panels material:304 AISI
Number of positions & pitch:0; 0 mm
Refrigeration Data
Control type:Digital
Refrigerant type:R404a
Refrigeration power at
evaporation temperature:-10 °C
Operating temperature - First Unit
(min-max): -2°C / 10°C
Operating temperature - Second
Unit (min-max):-15°C / -22°C
Operating mode:Ventilated
