EN STEAM OVEN USER MANUAL
Page 2
CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................4
3. PRODUCT DESCRIPTION................................................................................... 7
4. CONTROL PANEL............................................................................................... 8
5. BEFORE FIRST USE..........................................................................................10
6. DAILY USE........................................................................................................ 10
7. CLOCK FUNCTIONS......................................................................................... 16
8. AUTOMATIC PROGRAMMES............................................................................17
9. USING THE ACCESSORIES.............................................................................. 17
10. ADDITIONAL FUNCTIONS...............................................................................19
11. CARE AND CLEANING....................................................................................20
12. TROUBLESHOOTING......................................................................................23
13. INSTALLATION................................................................................................24
14. ENERGY EFFICIENCY..................................................................................... 27
15. GUARANTEE .................................................................................................. 28
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, this should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
• Always use oven gloves to remove or put in accessories
or ovenware.
ENGLISH
3
Page 4
• Before carrying out any maintenance, disconnect the
appliance from the power supply.
• Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualified persons to avoid an
electrical hazard.
• To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite
sequence.
• The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
• Use only the food sensor (core temperature sensor)
recommended for this appliance.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
www.electrolux.com4
Page 5
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance
of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
ENGLISH
5
Page 6
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
2.4 Steam Cooking
WARNING!
Risk of burns and damage to
the appliance.
• Released Steam can cause burns:
– Do not open the appliance door
during the steam cooking
operation.
– Open the appliance door with care
after the steam cooking operation.
2.5 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.6 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
2.8 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
www.electrolux.com6
Page 7
3. PRODUCT DESCRIPTION

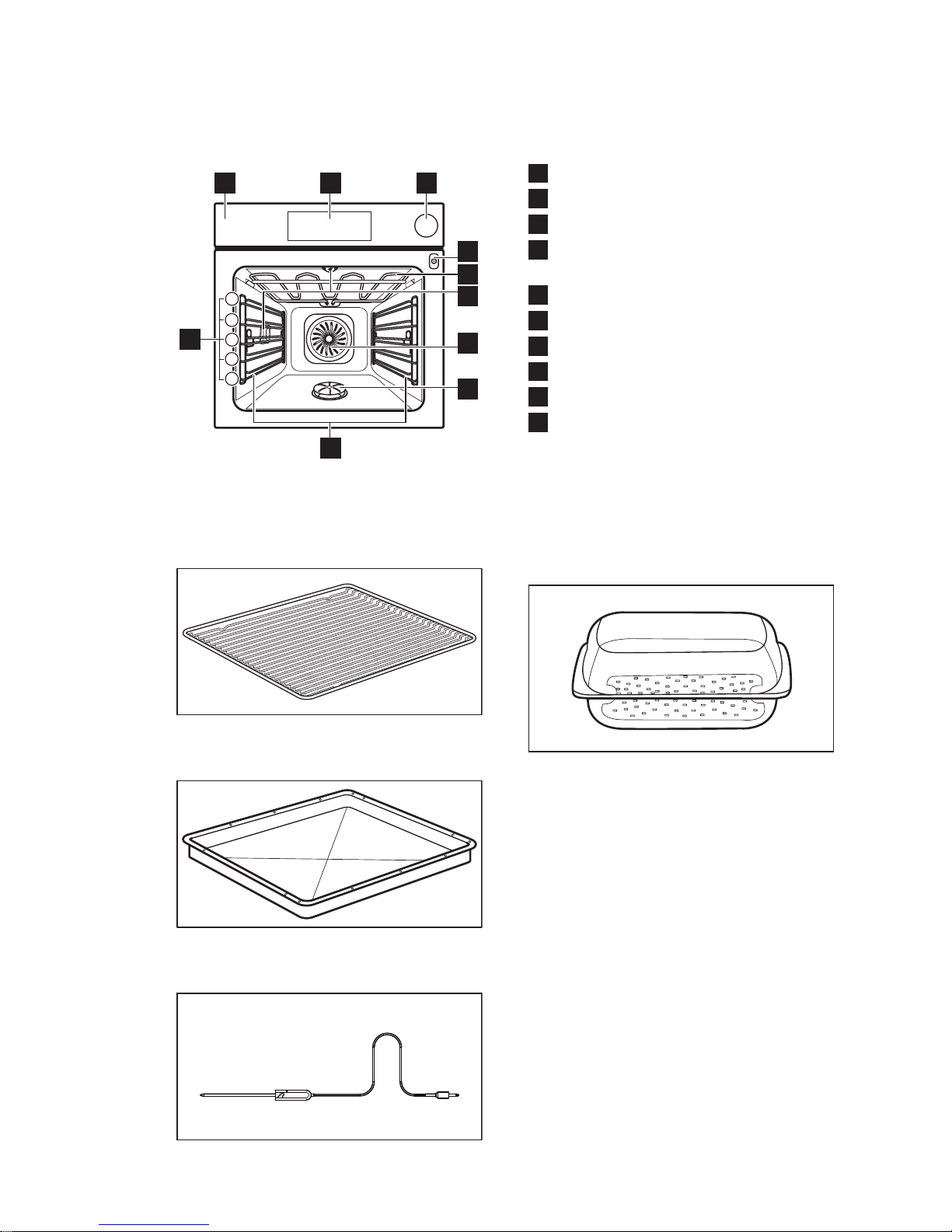

3.1 General overview
21
10
5
4
6
7
8
9
3
5
4
3
2
1
1
Control panel
2
Electronic programmer
3
Water drawer
4
Socket for the core temperature
sensor
5
Heating element
6
Lamp
7
Fan
8
Steam generator with cover
9
Shelf support, removable
10
Shelf positions
3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
Food Sensor
To measure the temperature inside the
food.
Glass dish with 2 grill inserts
Sponge
For absorbing the remaining water from
the steam generator.
ENGLISH
7
Page 8
4. CONTROL PANEL
4.1 Electronic programmer

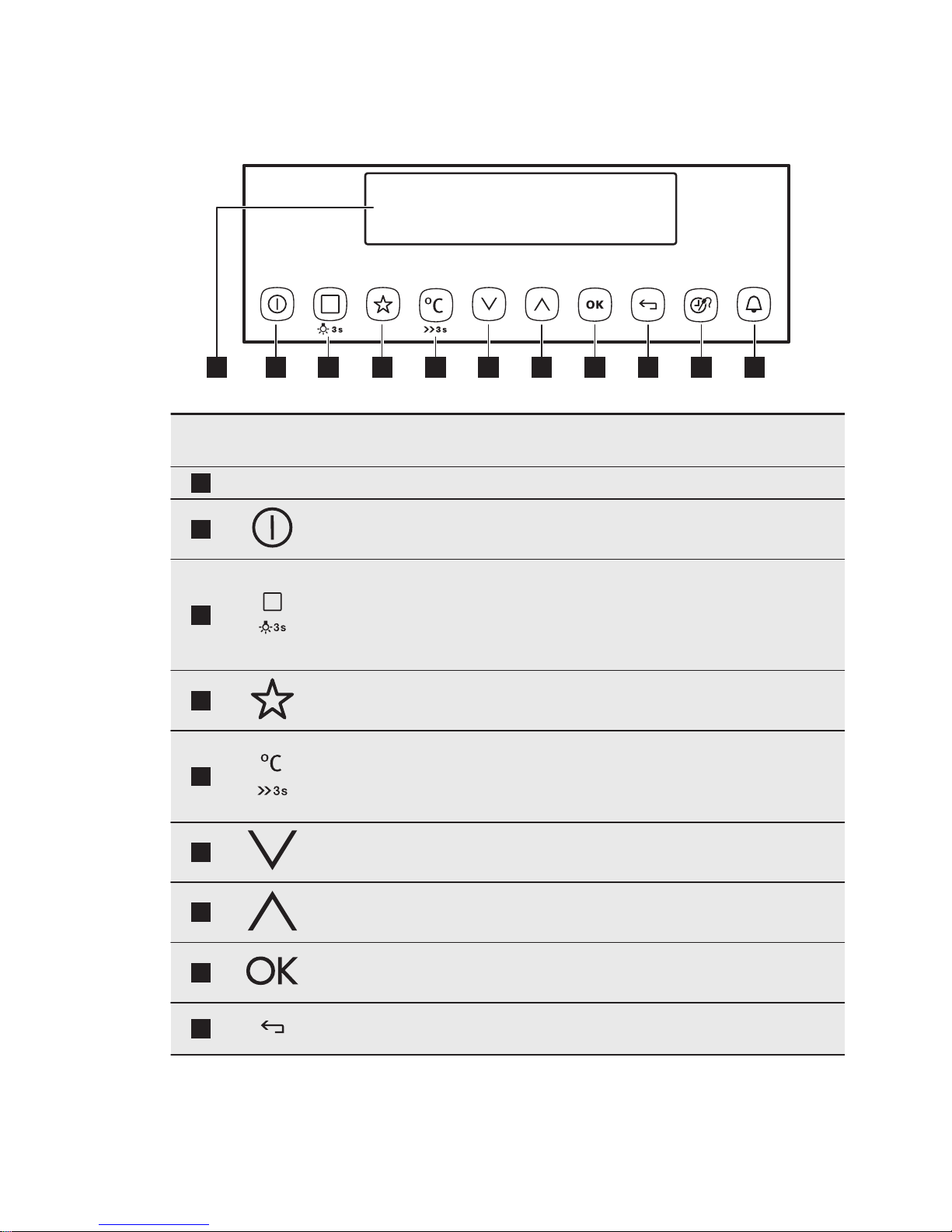

1110987654321
Use the sensor fields to operate the appliance.
Sensor
field
Function Comment
1
- Display Shows the current settings of the appliance.
2
ON / OFF To turn on and off the appliance.
3
Heating Functions or Recipes
Press the sensor field to choose the menu: Recipes or Heating Functions. To turn on or turn off
the light, press the field for 3 seconds. You can
turn on the light also when the appliance is
turned off.
4
Favourites To save and access your favourite programmes.
5
Temperature selection
To set the temperature or show the current temperature in the appliance. Press the field for 3
seconds to turn on or turn off the function: Fast
Heat Up.
6
Down key To move down in the menu.
7
Up key To move up in the menu.
8
OK To confirm the selection or setting.
9
Back key To go back one level in the menu. To show the
main menu, press the field for 3 seconds.
www.electrolux.com8
Page 9
Sensor
field
Function Comment
10
Time and additional functions
To set different functions. When a heating function operates, press the sensor field to set the
timer or the functions: Function Lock, Favourites,
Heat + Hold, Set + Go. You can also change the
settings of the core temperature sensor.
11
Minute Minder To set the function: Minute Minder.
4.2 Display

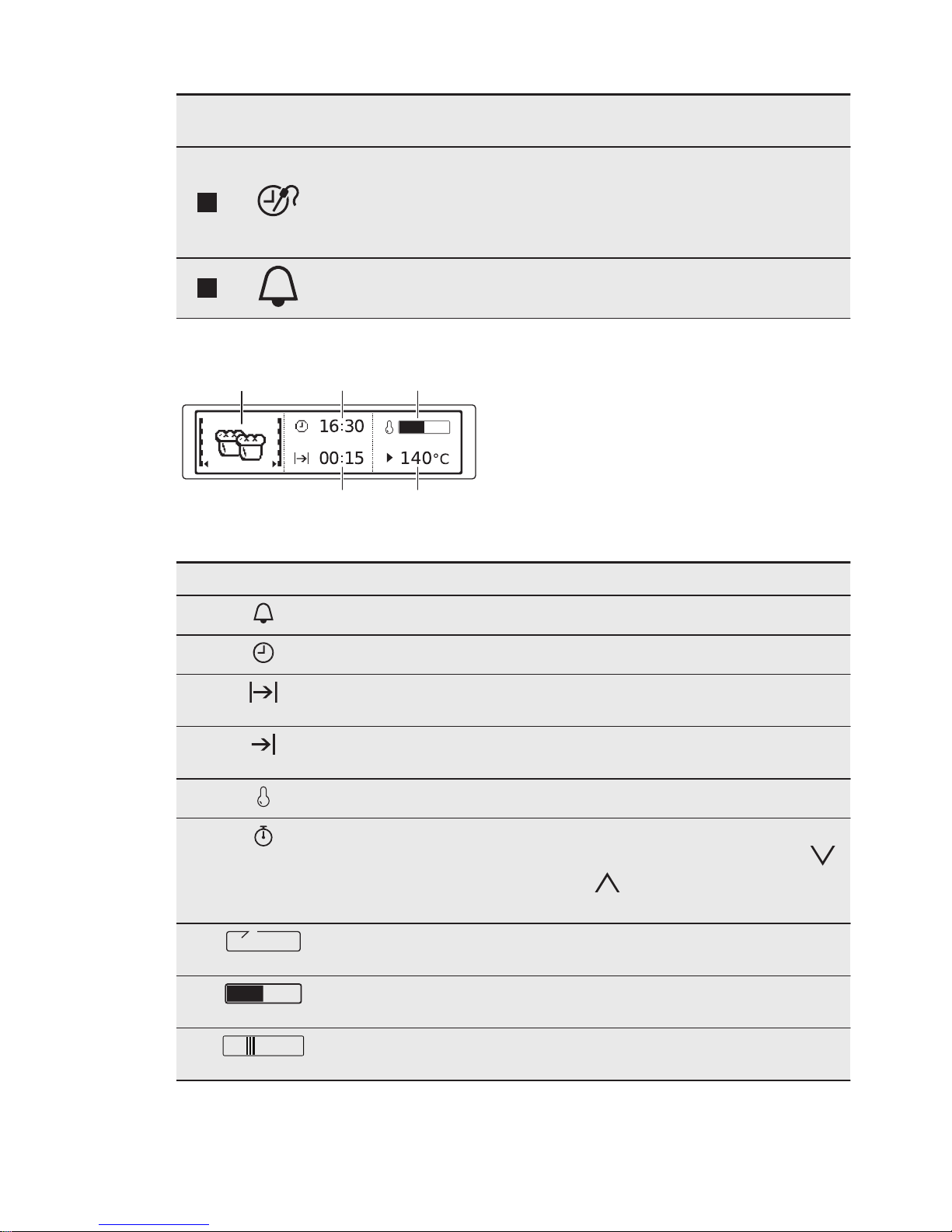

A
DE
B C
A. Heating function
B. Time of day
C. Heat-up indicator
D. Temperature
E. Duration time or end time of a function
Other indicators of the display:
Symbol Function
Minute Minder The function operates.
Time of day The display shows the current time.
Duration The display shows the necessary
time for cooking.
End Time The display shows when the cooking
time is complete.
Temperature The display shows the temperature.
Time Indication The display shows how long the
heating function operates. Press
and at the same time to reset the
time.
Calculation The appliance calculates the time for
cooking.
Heat-up Indicator The display shows the temperature in
the appliance.
Fast Heat Up Indicator The function is active. It decreases
the heat up time.
ENGLISH
9
Page 10
Symbol Function
Weight Automatic The display shows that the automatic
weight system is active or that weight
can be changed.
Heat + Hold The function is active.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial position.
5.2 First Connection
When you connect the appliance to the
mains or after the power cut, you have to
set the language, the display contrast, the
display brightness and the time of the day.
1. Press
or to set the value.
2. Press
to confirm.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Navigating the menus
1. Activate the appliance.
2. Press or to select the menu
option.
3. Press to move to the submenu or
accept the setting.
At each point you can go
back to the main menu with
.
6.2 The menus in overview
Main menu
Symbol
Menu item Application
Heating Functions Contains a list of heating functions.
SousVide Cooking Contains a heating function and a list of auto-
matic programmes.
Recipes Contains a list of automatic programmes.
Favourites Contains a list of favourite cooking programmes
created by the user.
Assisted Cleaning Contains a list of cleaning programmes.
www.electrolux.com10
Page 11
Symbol
Menu item Application
Basic Settings Used to set the appliance configuration.
Specials Contains a list of additional heating functions.
Submenu for: Basic Settings
Symbol
Submenu Description
Set Time of Day Sets the current time on the clock.
Time Indication When ON, the display shows the current time
when you deactivate the appliance.
Set + Go To set a function and activate it later with a
press of any symbol on the control panel.
Heat + Hold Keeps the prepared food warm for 30 minutes
after a cooking cycle finished.
Time Extension Activates and deactivates the time extension
function.
Display Contrast Adjusts the display contrast by degrees.
Display Brightness Adjusts the display brightness by degrees.
Set Language Sets the language for the display.
Buzzer Volume Adjusts the volume of press-tones and signals
by degrees.
Key Tones Activates and deactivates the tone of the touch
fields. It is not possible to deactivate the tone of
the ON / OFF touch field.
Alarm/Error Tones Activates and deactivates the alarm tones.
Cleaning Assistant Guides you through the cleaning procedure.
Service Shows the software version and configuration.
Factory Settings Resets all settings to factory settings.
6.3 Submenu for: SousVide
Cooking
This technique has its start in the Sousvide technology, which in French means
"under vacuum". The name refers to a
method of cooking in vacuum sealed
plastic pouches at low temperatures.
ENGLISH
11
Page 12
Symbol Menu item Description
SousVide Cooking Uses the steam for cooking meat, fish,
seafood, vegetables and fruits. Set the
temperature 50 °C - 95 °C.
SousVide Recipes Contains a list of automatic programmes.
6.4 Submenu for: Assisted Cleaning
Symbol Menu item Description
Steam Cleaning Cleaning the appliance with steam.
Decalcification Cleaning the steam generator.
6.5 Heating Functions
Heating function Application
True Fan Cooking To bake on up to three shelf positions at the
same time and to dry food. Set the temperature
20 - 40 °C lower than for the function: Conventional Cooking.
Pizza Setting To bake food on one shelf position for a more
intensive browning and a crispy bottom. Set the
temperature 20 - 40 °C lower than for the function: Conventional Cooking.
Moist Fan Baking To bake breads, cakes and cookies. To save
energy during cooking. This function must be
used in accordance with the Moist Fan Baking
table in order to achieve the desired cooking result. To get more information about the recommended settings, refer to the Hints and Tips
chapter, Moist Fan Baking table.
Conventional Cooking To bake and roast food on one shelf position.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast
bread.
Turbo Grilling To roast larger meat joints or poultry with bones
on one shelf position. Also to make gratins and
to brown.
Bottom Heat To bake cakes with crispy bottom and to pre-
serve food.
www.electrolux.com12
Page 13
Heating function Application
Slow Cooking To prepare tender, succulent roasts.
Steam Regenerating Food reheating with steam prevents surface dry-
ing. Heat is distributed in a gentle and even way,
which allows to recover taste and aroma of food
as just prepared. This function can be used to
reheat food directly on a plate. You can reheat
more than one plate at the same time, using different shelf positions.
Quarter Steam + Heat To bake bread, roast large pieces of meat or to
warm up chilled and frozen meals.
Half Steam + Heat For dishes with a high moisture content and for
poaching fish, custard royale and terrines.
Full Steam For vegetables, fish, potatoes, rice, pasta or
special side-dishes.
The lamp may automatically
deactivate at a temperature
below 60 °C during some
oven functions.
6.6 Specials
Heating function Application
Bread Baking To bake bread.
Au Gratin For dishes such as lasagna or potato gratin. Al-
so to gratinate and brown.
Dough Proving For controlled rising of yeast dough before bak-
ing.
Plate Warming To preheat plates for serving.
Preserving To make vegetable preserves such as pickles.
Keep Warm To keep food warm.
ENGLISH
13
Page 14
Heating function Application
Defrost This function can be used for defrosting frozen
foods, such as vegetables and fruits. The defrosting time depends on the amount and size of
the frozen food.
Frozen Foods To make convenience food like e.g. french fries,
potato wedges or spring rolls crispy.
6.7 Activating a heating function
1. Activate the appliance.
2. Select the menu: Heating Functions.
3. Press to confirm.
4. Select a heating function.
5. Press
to confirm.
6. Set the temperature.
7. Press
to confirm.
6.8 Steam cooking
The water drawer cover is in the control
panel.
WARNING!
Do not put water directly into
the steam generator.
Use only cold tap water. Do
not use filtered
(demineralised) or distilled
water. Do not use other
liquids. Do not put flammable
or alcoholic liquids into the
water drawer.
1. Press the cover of the water drawer to
open it.
2. Fill the water drawer with 700 ml of
water.
The water supply is sufficient for
approximately 50 minutes.
3. Push the water drawer to its initial
position.
4. Turn on the appliance.
5. Set a steam heating function and the
temperature.
6. If necessary, set the function: Duration
or: End Time .
The steam appears after
approximately 2 minutes. When the
appliance reaches the set
temperature, the signal sounds.
When the steam generator is
empty, the signal sounds.
The signal sounds at the end of the
cooking time.
7. Turn off the appliance.
CAUTION!
The appliance is hot.
There is a risk of burns.
Be careful when you
empty the water tank.
8. After Steam Cooking steam can
condensate on the bottom of the
cavity. Always dry the bottom of the
cavity when the appliance is cool.
Let the appliance dry fully with the door
open.
When the appliance cools down, soak up
all remaining water from the steam
generator with the sponge. If necessary,
clean the steam generator with some
vinegar.
6.9 SousVide Cooking
• With no evaporative losses of flavour
volatile and moisture, food keeps its full
aroma.
• Tender texture of meat and fish.
• Food keeps all minerals and vitamins.
• Less spices are necessary as food
keeps its natural flavour.
• Better workflow as it is not necessary
to prepare and serve food at the same
time and place.
• Low cooking temperature minimizes
the risk of overcooking.
• Portioning of the food makes it easy to
hold.
www.electrolux.com14
Page 15
Preparing the food
1. Clean and cut the ingredients.
2. Season the ingredients.
3. Fill the ingredients in suitable vacuum
bags.
4. Vacuum seal the bag to make sure
that you remove as much air as
possible.
5. Cold storage of the bags is mandatory
in case the cooking procedure is not
done immediately.
6. Continue with the function SousVide
Cooking following applicable cooking
table indications for the considered
type of food or the assisted cooking
recipes.
7. Open the pouch and serve.
8. Optionally finish the food with a final
searing or grilling e.g. for meat to
achieve a nice crust and the typical
roast flavour.
Activating a function: SousVide
Cooking
1. Activate the appliance.
2. Select the menu: SousVide Cooking.
3. Press
to confirm.
4. Set the function: SousVide Cooking.
5. Press
to confirm.
6. Set the temperature.
7. Press to confirm.
Cooking with this function
causes residual water on the
vacuum bags and in the
cavity. After the cooking
process open the door
carefully to avoid the water
dropping on the furniture.
Use a plate and a towel to
take out the vacuum bags.
Dry out the door, the water
drop collector in the bottom
and the cavity with a soft
cloth or a sponge. Let the
appliance dry fully with the
door open. To speed up the
drying you can heat up the
appliance with hot air at
temperature 150 °C for
approximately 15 minutes.
6.10 Heat-up indicator
When you activate a heating function, the
bar on the display comes on. The bar
shows that the temperature increases.
When temperature is reached the buzzer
sounds 3 times and the bar flashes and
then disappears.
6.11 Fast Heat Up Indicator
This function decreases the heat-up time.
Do not put food in the oven
when the Fast heat up
function operates.
To activate the function, hold for 3
seconds. The heat-up indicator alternates.
6.12 Residual heat
When you turn off the oven, the display
shows the residual heat. You can use the
heat to keep the food warm.
ENGLISH
15
Page 16
7. CLOCK FUNCTIONS
7.1 Clock functions table
Clock function Application
Minute Minder To set a countdown (max. 2 h 30 min). This
function has no effect on the operation of
the appliance. You can also activate it when
the appliance is deactivated.
Use to activate the function. Press
or to set the minutes and to start.
Duration To set the length of an operation (max. 23 h
59 min).
End Time To set the switch-off time for a heating
function (max. 23 h 59 min).
If you set the time for a clock function, the
time starts to count down after 5 seconds.
If you use the clock functions:
Duration, End Time, the
appliance deactivates the
heating elements after 90 %
of the set time. The appliance
uses the residual heat to
continue the cooking process
until the time ends (3 - 20
minutes).
7.2 Setting the clock functions
Before you use the functions:
Duration, End Time, you must
set a heating function and
temperature first. The
appliance deactivates
automatically.
You can use the functions:
Duration and End Time at the
same time if you want to
automatically activate and
deactivate the appliance on a
given time later.
The functions: Duration and
End Time do not work when
you use the core temperature
sensor.
1. Set a heating function.
2. Press again and again until the
display shows the necessary clock
function and the related symbol.
3. Press or to set the necessary
time.
4. Press to confirm.
When the time ends, an acoustic signal
sounds. The appliance deactivates. The
display shows a message.
5. Press any symbol to stop the signal.
7.3 Heat + Hold
Conditions for the function:
• The set temperature is more than 80
°C.
• The function: Duration is set.
The function: Heat + Hold keeps prepared
food warm at 80 °C for 30 minutes. It
activates after the baking or roasting
procedure ends.
You can activate or deactivate the function
in the menu: Basic Settings.
1. Activate the appliance.
2. Select the heating function.
3. Set the temperature above 80 °C.
4. Press
again and again until the
display shows: Heat + Hold.
5. Press to confirm.
When the function ends, an acoustic
signal sounds.
www.electrolux.com16
Page 17
The function stays on if you change the
heating functions.
7.4 Time Extension
The function: Time Extension makes the
heating function continue after the end of
Duration.
Applicable to all heating
functions with Duration or
Weight Automatic.
Not applicable to heating
functions with the core
temperature sensor.
1. When the cooking time ends, an
acoustic signal sounds. Press any
symbol.
The display shows the message.
2. Press to activate or to cancel.
3. Set the length of the function.
4. Press
.
8. AUTOMATIC PROGRAMMES
WARNING!
Refer to Safety chapters.
8.1 Recipes with Recipe
Automatic
This appliance has a set of recipes you
can use. The recipes are fixed and you
cannot change them.
1. Activate the appliance.
2. Select the menu: Recipes. Press
to confirm.
3. Select the category and dish. Press
to confirm.
4. Select a recipe. Press to confirm.
When you use the function:
Manual, the appliance uses
the automatic settings. You
can change them as with
other functions.
8.2 Recipes with Weight
Automatic
This function automatically calculates the
roasting time. To use it, it is necessary to
input the food weight.
1. Activate the appliance.
2. Select the menu: Recipes. Press
to confirm.
3. Select the category and dish. Press
to confirm.
4. Select the function: Weight Automatic.
Press to confirm.
5. Touch or to set the food
weight. Press to confirm.
The automatic programme starts.
6. You can change the weight at any
time. Press or to change the
weight.
7. When the time ends, an acoustic
signal sounds. Press any symbol to
deactivate the signal.
With some programmes turn
over the food after 30
minutes. The display shows a
reminder.
9. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
ENGLISH
17
Page 18

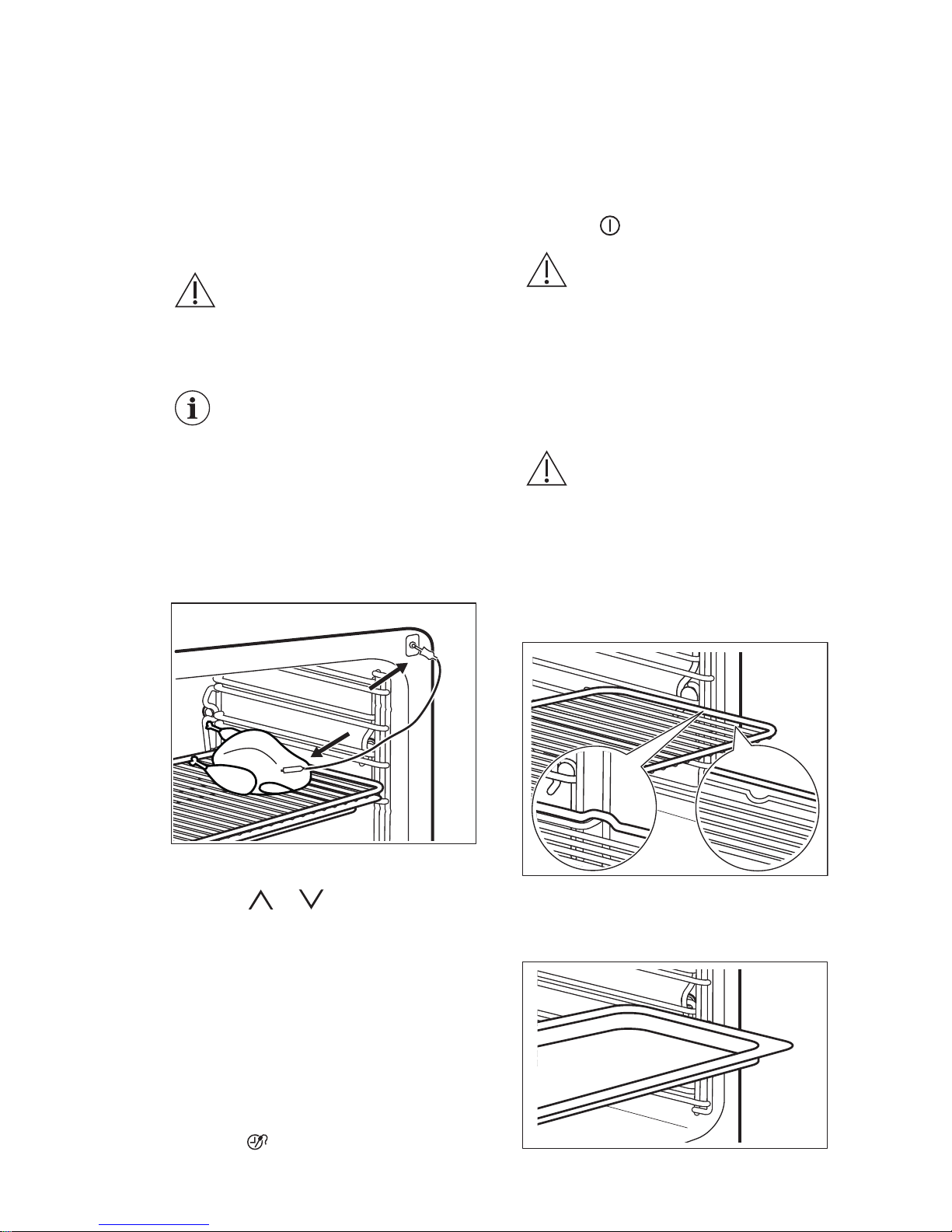

9.1 Core temperature sensor
There are two temperatures to be set: the
oven temperature and the core
temperature.
The core temperature sensor measures
the core temperature of the meat. When
the meat is at the set temperature, the
appliance deactivates.
CAUTION!
Only use the core
temperature sensor supplied
or the correct replacement
parts.
The core temperature sensor
must stay in the meat and in
the socket during the
cooking.
1. Turn on the appliance.
2. Put the tip of the core temperature
sensor into the centre of the meat.
3. Put the plug of the core temperature
sensor into the socket at the front of
the appliance.
The display shows the core temperature
sensor symbol.
4. Press or in less than 5
seconds to set the core temperature.
5. Set the heating function and, if
necessary, the oven temperature.
The appliance calculates an approximate
end time. The end time is different for the
different quantities of the food, the set
oven temperatures (minimum 120 °C) and
the operating modes. The appliance
calculates the end time in approximately
30 minutes.
6. To change the core temperature,
press .
When the meat is at the set core
temperature, an acoustic signal sounds.
The appliance turns off automatically.
7. Press any symbol to stop the signal.
8. Remove the core temperature sensor
plug from the socket and remove the
meat from the oven.
9. Press to turn off the appliance.
WARNING!
The core temperature sensor
is hot. There is a risk of
burns. Be careful when you
remove the tip and the plug
of the core temperature
sensor.
9.2 Inserting the accessories
CAUTION!
Do not use the baking tray or
deep pan with the Full Steam
function.
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Baking tray :
Push the baking tray between the guide
bars of the shelf support.
www.electrolux.com18
Page 19
Wire shelf and baking tray together:
Push the baking tray between the guide
bars of the shelf support and the wire shelf
on the guide bars above.

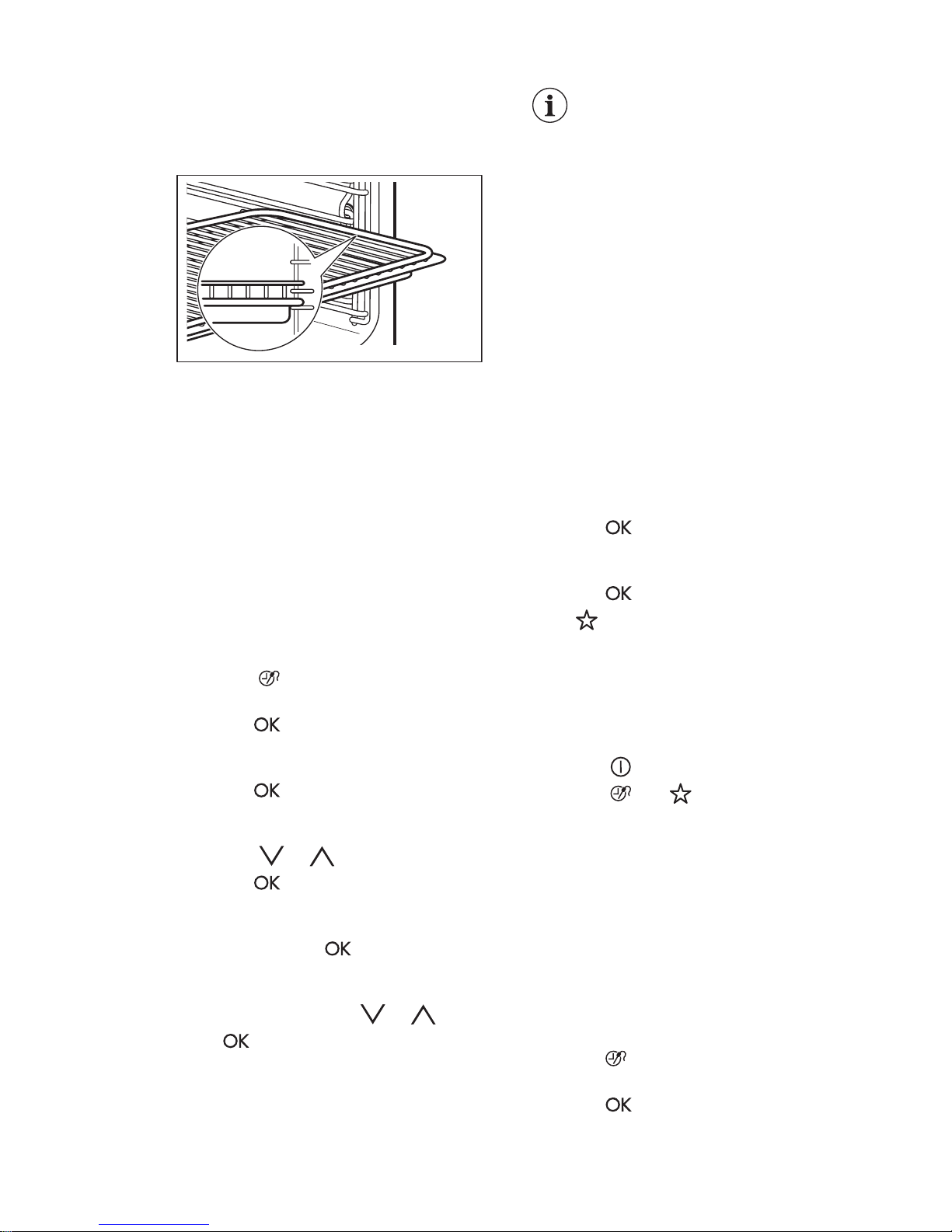

Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim around
the shelf prevents cookware
from slipping of the shelf.
10. ADDITIONAL FUNCTIONS
10.1 Favourites
You can save your favourite settings, such
as duration, temperature or heating
function. They are available in the menu:
Favourites. You can save 20 programmes.
Saving a programme
1. Activate the appliance.
2. Set a heating function or an automatic
programme.
3. Touch again and again until the
display shows: SAVE.
4. Press to confirm.
The display shows the first free memory
position.
5. Press to confirm.
6. Enter the name of the programme.
The first letter flashes.
7. Touch or to change the letter.
8. Press
.
The next letter flashes.
9. Do step 7 again as necessary.
10. Press and hold to save.
You can overwrite a memory position.
When the display shows the first free
memory position, touch or and
press to overwrite an existing
programme.
You can change the name of a
programme in the menu: Edit Programme
Name.
Activating the programme
1. Activate the appliance.
2. Select the menu: Favourites.
3. Press to confirm.
4. Select your favourite programme
name.
5. Press
to confirm.
Press
to go directly to menu:
Favourites.
10.2 Using the Child Lock
When the Child Lock is on, the appliance
cannot be activated accidentally.
1. Touch
to activate the display.
2. Touch and at the same time
until the display shows a message.
To deactivate the Child Lock function
repeat step 2.
10.3 Function Lock
This function prevents an accidental
change of the heating function. You can
activate it only when the appliance
operates.
1. Activate the appliance.
2. Set a heating function or setting.
3. Press again and again until the
display shows: Function Lock.
4. Press to confirm.
ENGLISH
19
Page 20
To deactivate the function, press . The
display shows a message. Press again
and then to confirm.
When you deactivate the
appliance, the function also
deactivates.
10.4 Set + Go
The function lets you set a heating
function (or a programme) and use it later
with one press of any symbol.
1. Activate the appliance.
2. Set a heating function.
3. Press
again and again until the
display shows: Duration.
4. Set the time.
5. Press again and again until the
display shows: Set + Go.
6. Press to confirm.
Press any symbol (except for
) to start
the function: Set + Go. The set heating
function starts.
When the heating function ends, an
acoustic signal sounds.
• Function Lock is on when
the heating function
operates.
• The menu: Basic Settings
lets you activate and
deactivate the function:
Set + Go.
10.5 Automatic Switch-off
For safety reasons the appliance turns off
automatically after some time if a heating
function operates and you do not change
any settings.
Temperature (°C) Switch-off time
(h)
30 - 115 12.5
120 - 195 8.5
200 - 230 5.5
The Automatic switch-off
does not work with the
functions: Light, Food
Sensor, Duration, End Time.
10.6 Brightness of the display
There are two modes of display
brightness:
• Night brightness - when the appliance
is deactivated, the brightness of the
display is lower between 10 PM and 6
AM.
• Day brightness:
– when the appliance is activated.
– if you touch a symbol during the
night brightness (apart from ON /
OFF), the display goes back to the
day brightness mode for the next
10 seconds.
– if the appliance is deactivated and
you set the function: Minute
Minder. When the function ends,
the display goes back to the night
brightness.
10.7 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
11. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
11.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a
dedicated cleaning agent.
www.electrolux.com20
Page 21
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
• Dry the oven when the cavity is wet
after usage.
11.2 Removing the shelf
supports
Before maintenance, make sure that the
appliance is cool. There is a risk of burns.
To clean the appliance, remove the shelf
supports.
1. Pull carefully the supports up and out
of the front catch.
2
3
1
2. Pull the front end of the shelf support
away from the side wall.
3. Pull the supports out of the rear catch.
Install the shelf supports in the opposite
sequence.
11.3 Steam Cleaning
Remove as much dirt as possible
manually.
Clean the inner door glass with a soft cloth
with warm water and a cleaning agent.
Remove the shelf support to clean the
side walls.
CAUTION!
For a better performance you
should start the cleaning
function when the appliance
is cool. Check the residual
heat.
Always use the function after cooking with
steam.
When the function is active, the lamp is
off.
1. Put 400 ml of water mixed with 3
tablespoons of vinegar (without herbs)
directly into the steam generator.
2. In the menu choose: Assisted
Cleaning.
3. Activate the function: Steam Cleaning.
The display shows the duration of the
function (33 minutes).
An acoustic signal sounds when the
programme is completed.
4. Touch a sensor field to deactivate the
signal.
5. Wipe the internal surface of the
appliance with a soft sponge.
6. Remove the remaining water from the
steam generator.
7. After cleaning keep the appliance door
open for approximately 1 hour. Wait
until the appliance is dry. To speed up
the drying you can heat up the
appliance with hot air at temperature
150 °C for approximately 15 minutes.
You can get maximum effects of the
cleaning function if you manually clean the
appliance immediately after the function
ends.
Use the function two times if the level of
dirt is high. Make sure that the appliance
is cool before you activate the second
cycle.
11.4 Decalcification of the
Steam generator
1. Put 250 ml of water mixed with 3
tablespoons of vinegar directly into the
steam generator.
2. In the menu choose: Assisted
Cleaning.
3. Activate the function: Decalcification.
The display shows the duration of the
function (15 minutes).
ENGLISH
21
Page 22
An acoustic signal sounds when the
programme is completed.
4. Touch a sensor field to deactivate the
signal.
5. Remove the remaining water from the
steam generator.
6. Keep the door open for approximately
1 hour to let the appliance dry fully. To
speed up the drying you can heat up
the appliance with hot air at
temperature 150 °C for approximately
15 minutes.
11.5 Removing and installing the
door
You can remove the door to clean it.
WARNING!
Be careful when you remove
the door from the appliance.
The door is heavy.

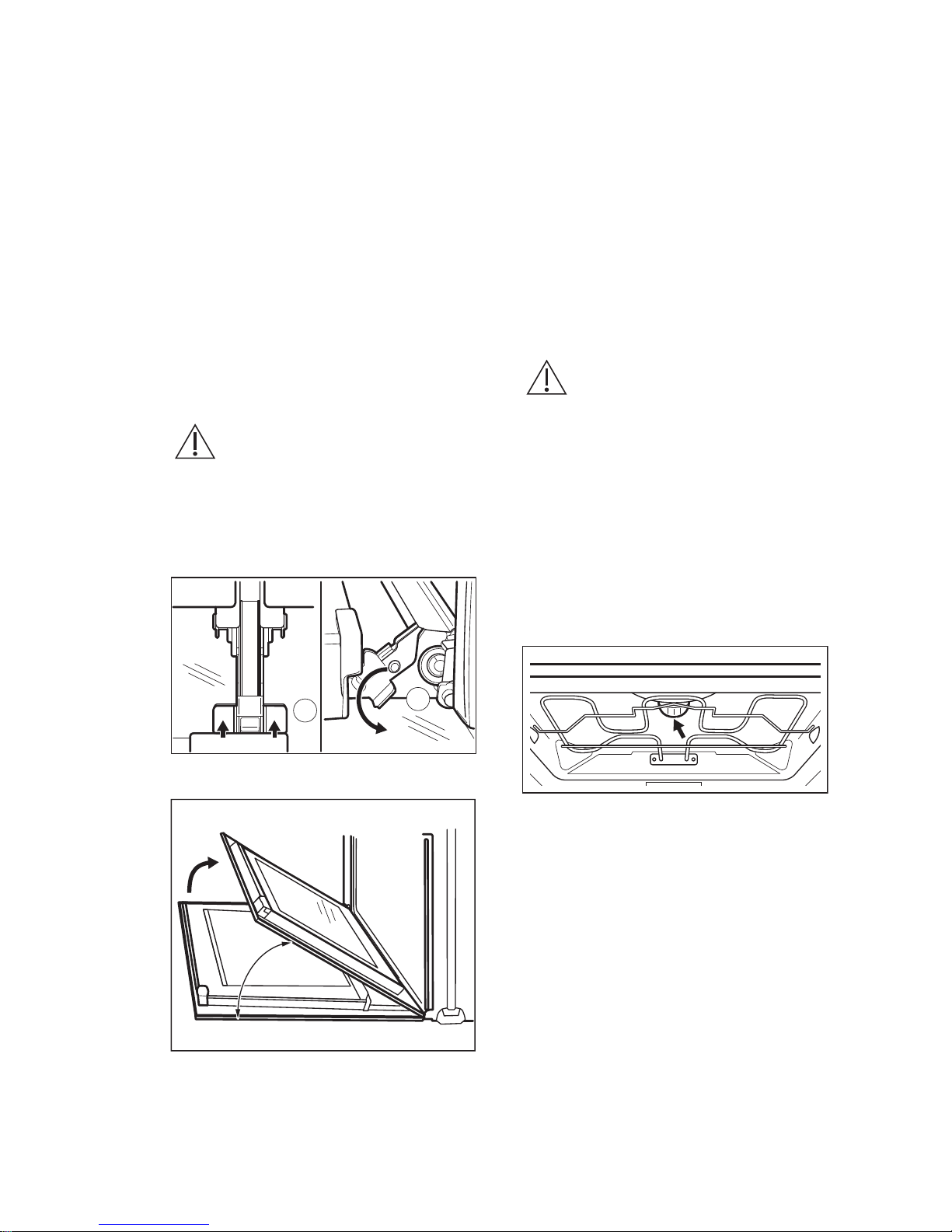

1. Open the door fully.
2. Fully press the clamping levers (A) on
the two door hinges.
A
A
3. Close the door until it is at an angle of
approximately 45°.
45°
4. Hold the door with one hand on each
side and pull it away from the
appliance at an upwards angle.
5. Put the door with the outer side down
on a soft cloth on a stable surface.
This is to prevent scratches.
6. Clean the glass panel with water and
soap. Dry the glass panel carefully.
When the cleaning is completed, install the
door. Do the above steps in the opposite
sequence.
11.6 Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp.
The lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The top lamp
1.
Turn the lamp glass cover
counterclockwise to remove it.
2. Remove the metal ring and clean the
glass cover.
3. Replace the lamp with a halogen, 230
V, 40 W, 300 °C heat resistant lamp.
4. Attach the metal ring to the glass
cover.
5. Install the glass cover.
The side lamp
1. Remove the left shelf support to get
access to the lamp.
2. Use a Torx 20 screwdriver to remove
the cover.
3. Remove and clean the metal frame
and the seal.
www.electrolux.com22
Page 23
4. Replace the lamp with a halogen, 230
V, 40 W, 300 °C heat resistant lamp.
5. Install the metal frame and the seal.
Tighten the screws.
6. Install the left shelf support.
12. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
12.1 What to do if...
Problem Possible cause Remedy
You cannot activate or operate the oven.
The oven is not connected
to an electrical supply or it
is connected incorrectly.
Check if the oven is correctly connected to the electrical supply (refer to the connection diagram if available).
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up. The automatic switch-off is
activated.
Refer to "Automatic switchoff".
The oven does not heat up. The Child Lock is on. Refer to "Using the Child
Lock".
The oven does not heat up. The door is not closed cor-
rectly.
Fully close the door.
The oven does not heat up. The fuse is blown. Make sure that the fuse is
the cause of the malfunction. If the fuse is blown
again and again, contact a
qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
The display shows F111. The plug of the core tem-
perature sensor is not correctly installed into the
socket.
Put the plug of the core
temperature sensor as far
as possible into the socket.
The display shows an error
code that is not in this table.
There is an electrical fault. • Deactivate the oven with
the house fuse or the
safety switch in the fuse
box and activate it again.
• If the display shows the
error code again, contact the Customer Care
Department.
ENGLISH
23
Page 24
Problem Possible cause Remedy
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the cooking process ends.
12.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
13. INSTALLATION
WARNING!
Refer to Safety chapters.

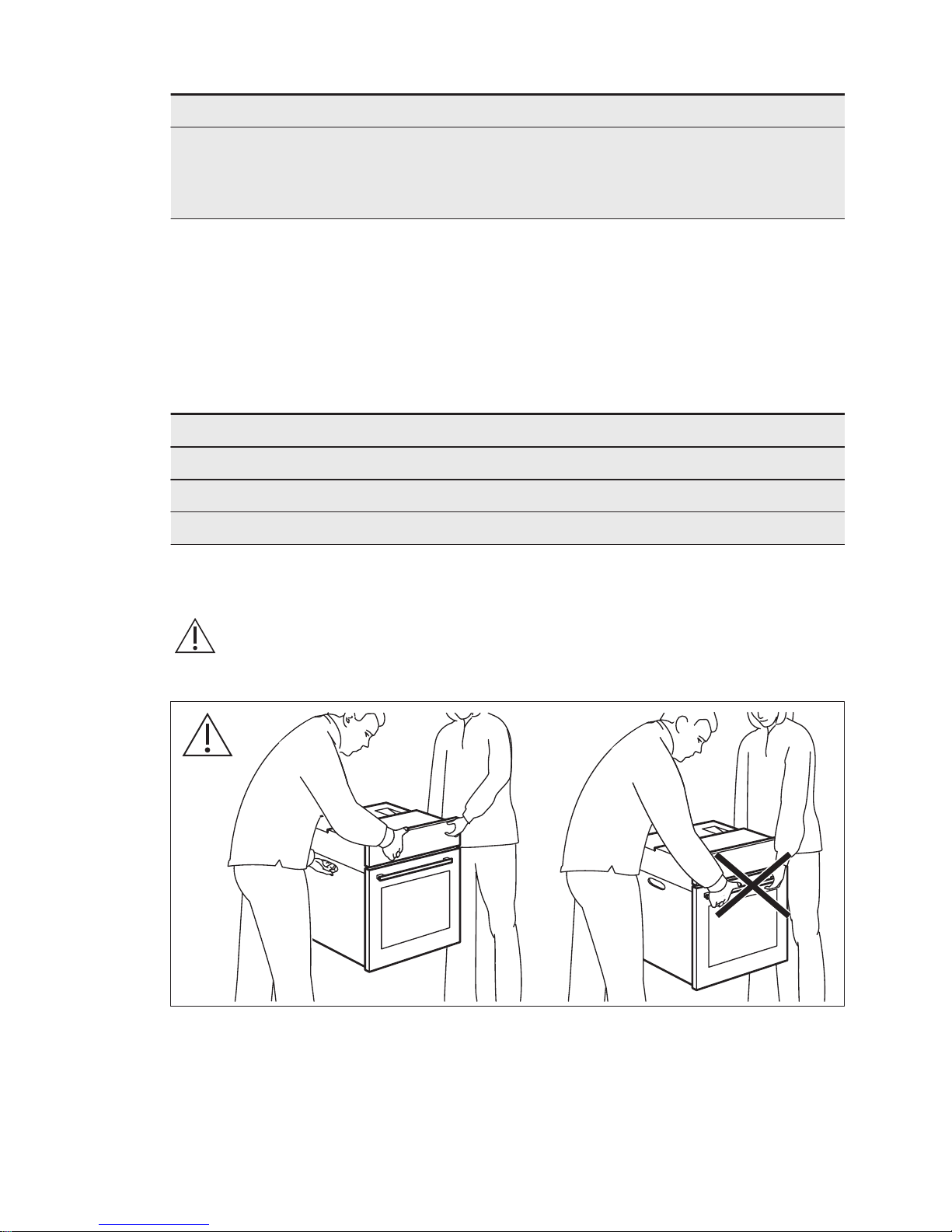

13.1 Lifting the appliance
To lift the appliance, do not use the door
handle.
www.electrolux.com24
Page 25
min.
3 mm

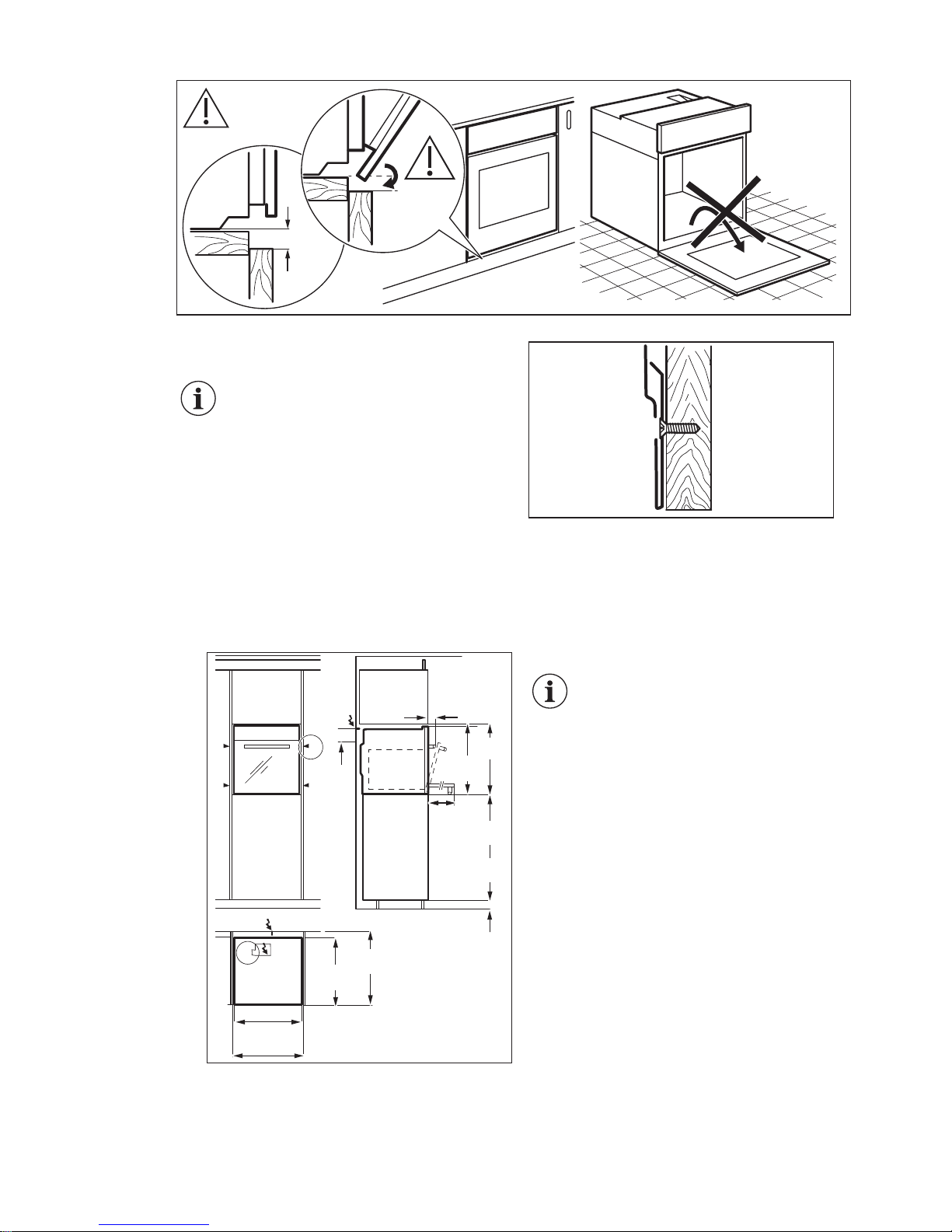

13.2 Building in
During installation in
combustible matter, NIN SEV
1000 and fire protection
guidelines and regulations of
the Association of Cantonal
Fire Insurance shall be strictly
adhered to.
1. Place the appliance in front of the
recess and connect the mains plug.
Make sure the cable is free when you
slide the appliance.
2. Push the appliance into the recess.
A = appliance, N = recess
A
A
A
A
A
D
A
435
mm
180
mm
105
mm
A 595
mm
N 600
mm
A
567 mm
N min.
580 mm
A 549 mm
N 550 (-0,+1)
mm
5 / 6 =
635 mm
6 / 6 =
762 mm
~50 mm
3. Use a minimum of 2 screws to attach
the oven on the 2 sides (A).
A
13.3 Installing the oven under a
work surface
Before the installation, connect the oven
to the electrical supply. Refer to "Electrical
connection".
During installation in
combustible matter, NIN SEV
1000 and fire protection
guidelines and regulations of
the Association of Cantonal
Fire Insurance shall be strictly
adhered to.
1.
Place the appliance in front of the
recess and connect the mains plug.
Make sure the cable is free when you
slide the appliance.
2. Push the appliance into the recess.
A = appliance, N = recess
ENGLISH
25
Page 26

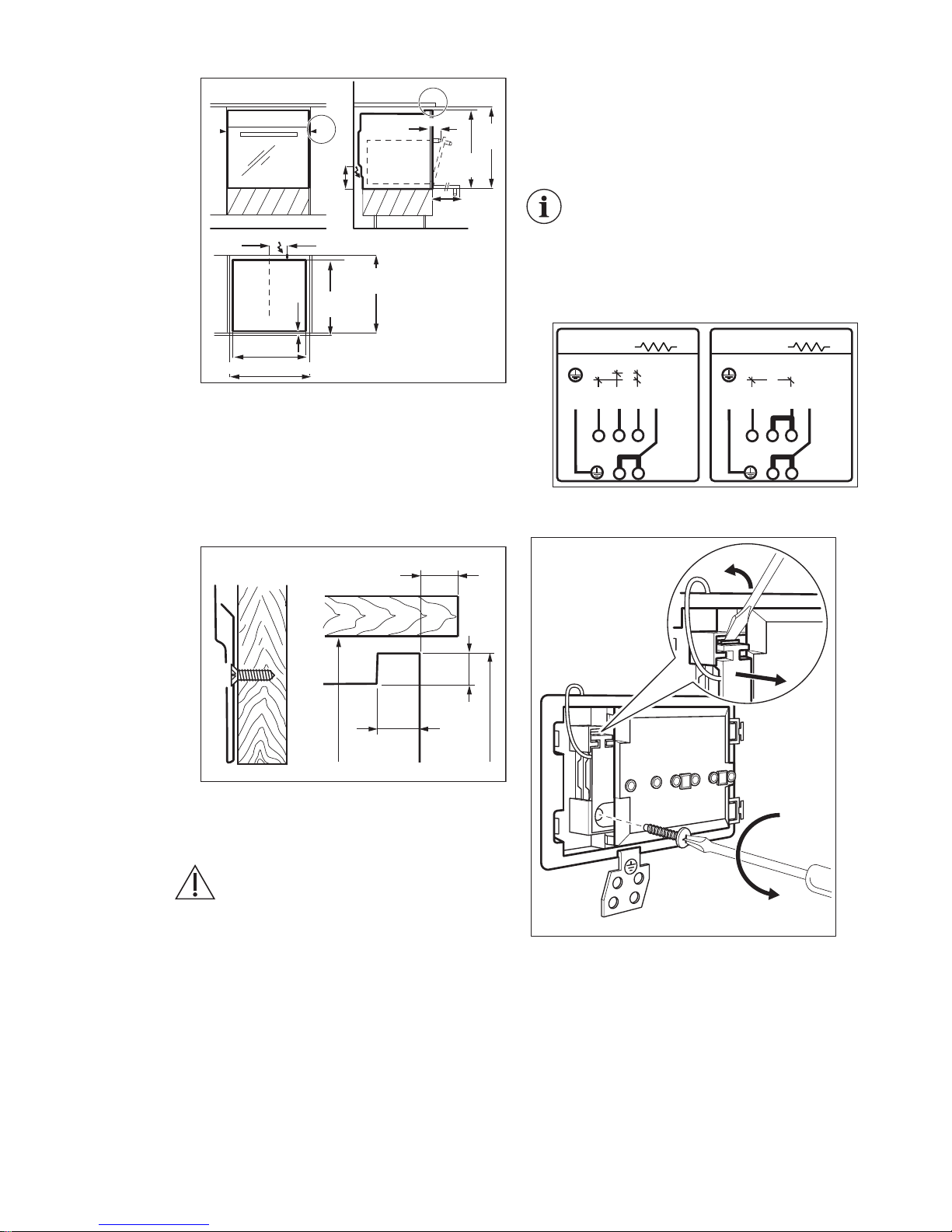

B
A A
442 mm
A 595
mm
N 600
mm
180
mm
115 mm
20
mm
A 567
mm
N min.
550 mm
N 550(-0,+1) mm
A 549 mm
~50 mm
3. Use a minimum of 2 screws to attach
the oven on the 2 sides (A).
When installing next to a wood-fuelled
boiler, a heat-proof and heat-insulating
plate must be mounted at the height
of the appliance and at least 30 cm
deep.
A B
A
min. 20 mm
10
mm
20 mm
13.4 Electrical connection
WARNING!
If service is required always
disconnect the appliance
from the power supply.
Use a power cable of H05VV-F or higher.
Install the appliance with a socket supply
line. If there is no socket supply line, the
fixed home electrical system must include
an isolating device with at least a 3 mmcontact separation to enable a
simultaneous and all-pole cut off from the
mains (according to NIN SEV 1000). The
customer must have a socket for the
electrical connection that is accessible
and outside the coordination room. The
length of the connection cable must be
approximately 120 cm with lines
connected directly to the mains.
Only a qualified person can
connect the appliance to the
electricity supply.
1. Do the electrical connections as in the
connection illustration.
Voltage: 400V
L2
L3
400V
L1PE L2
400V
L1PE
1 2 3
45
1 2 3
45
400V 2N~
400V
400V
400V 3N~
N N
2. Secure the cable grip.
1
2
www.electrolux.com26
Page 27

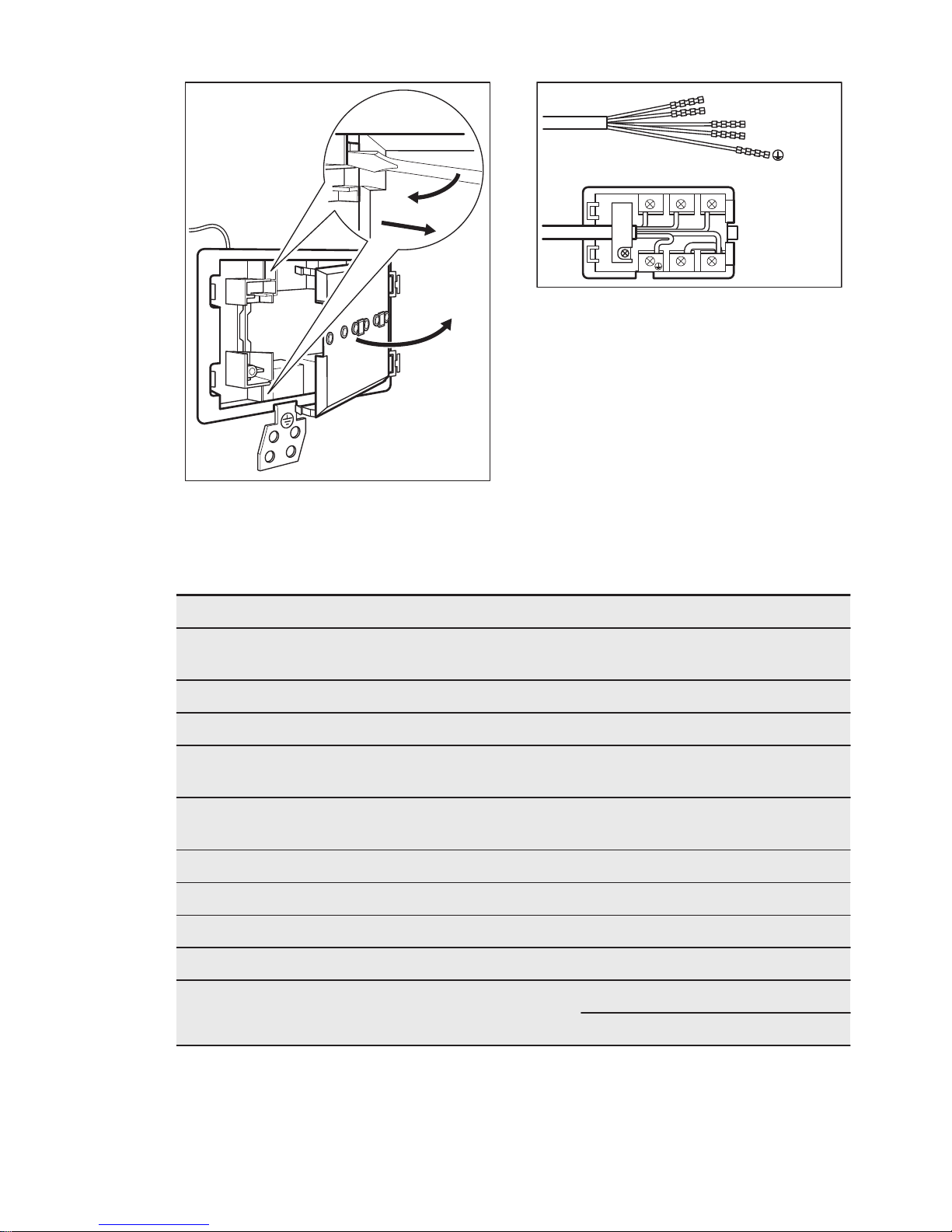

3
4
1 = 45 mm
2 = 45 mm
3 = 60 mm
4 = 60 mm
= 70 mm
1
2
3
4
14. ENERGY EFFICIENCY
14.1 Product Fiche and information according to EU 65-66/2014
Supplier's name Electrolux
Model identification
EBKGL7CN
EBKGL7SP
Energy Efficiency Index 106.0
Energy efficiency class A
Energy consumption with a standard load, conventional mode
1.09 kWh/cycle
Energy consumption with a standard load, fanforced mode
0.89 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 70 l
Type of oven Built-In Oven
Mass
EBKGL7CN 42.5 kg
EBKGL7SP 44.5 kg
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
ENGLISH
27
Page 28
14.2 Energy saving
The appliance contains
features which help you save
energy during everyday
cooking.
General hints
Make sure that the oven door is closed
properly when the appliance operates and
keep it closed as much as possible during
the cooking.
Use metal dishes to improve energy
saving.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than
30 minutes, reduce the oven temperature
to minimum 3 - 10 minutes before the end
of the cooking time, depending on the
duration of the cooking. The residual heat
inside the oven will continue to cook.
Use the residual heat to warm up other
dishes.
Cooking with fan
When possible, use the cooking functions
with fan to save energy.
Residual heat
If a programme with the Duration or End
Time selection is activated and the
cooking time is longer than 30 minutes,
the heating elements deactivate
automatically 10% faster in some oven
functions.
The fan and lamp continue to operate.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm. The display shows the
residual heat indicator or temperature.
Cooking with the lamp off
Deactivate the lamp during cooking and
activate only when you need it.
15. CH GUARANTEE
Customer Service Centres
Point of Service
Industriestrasse 10
5506 Mägenwil
Le Trési 6
1028 Préverenges
Via Violino 11
6928 Manno
Morgenstrasse 131
3018 Bern
Zürcherstrasse 204E
9000 St. Gallen
Seetalstrasse 11
6020 Emmenbrücke
Schlossstrasse 1
4133 Pratteln
Comercialstrasse 19
7000 Chur
Spare parts service Industriestrasse 10,
5506 Mägenwil, Tel. 0848 848 111
Specialist advice/Sale Badenerstrasse
587, 8048 Zürich, Tel. 044 405 81 11
Warranty For each product we provide a
two-year guarantee from the date of
purchase or delivery to the consumer (with
a guarantee certificate, invoice or sales
receipt serving as proof). The guarantee
covers the costs of materials, labour and
travel. The guarantee will lapse if the
operating instructions and conditions of
use are not adhered to, if the product is
www.electrolux.com28
Page 29
incorrectly installed, or in the event of
damage caused by external influences,
force majeure, intervention by third parties
or the use of non-genuine components.
16. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
For Switzerland:
Where should you take your
old equipment?
Anywhere that sells new
equipment or hand it in to
official SENS collection points
or official SENS recycling
firms.
The list of official SENS
collection points can be
found at www.erecycling.ch
*
ENGLISH
29
Page 30
www.electrolux.com30
Page 31
ENGLISH
31
Page 32
www.electrolux.com/shop
867326322-C-132017
Loading...
