EBGL4CN
EBGL4SP
EN OVEN USER MANUAL
Page 2
CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................4
3. PRODUCT DESCRIPTION................................................................................... 7
4. CONTROL PANEL............................................................................................... 8
5. BEFORE FIRST USE..........................................................................................10
6. DAILY USE........................................................................................................ 10
7. CLOCK FUNCTIONS......................................................................................... 11
8. AUTOMATIC PROGRAMMES............................................................................13
9. USING THE ACCESSORIES.............................................................................. 14
10. ADDITIONAL FUNCTIONS...............................................................................16
11. CARE AND CLEANING....................................................................................17
12. TROUBLESHOOTING......................................................................................19
13. INSTALLATION................................................................................................21
14. ENERGY EFFICIENCY..................................................................................... 23
15. GUARANTEE .................................................................................................. 24
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, this should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
• Always use oven gloves to remove or put in accessories
or ovenware.
ENGLISH
3
Page 4
• Before carrying out any maintenance, disconnect the
appliance from the power supply.
• Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualified persons to avoid an
electrical hazard.
• Be careful when you touch the storage drawer. It can
get hot.
• To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite
sequence.
• The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
• Use only the food sensor (core temperature sensor)
recommended for this appliance.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
www.electrolux.com4
Page 5
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance
of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
ENGLISH
5
Page 6
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
2.7 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
www.electrolux.com6
Page 7

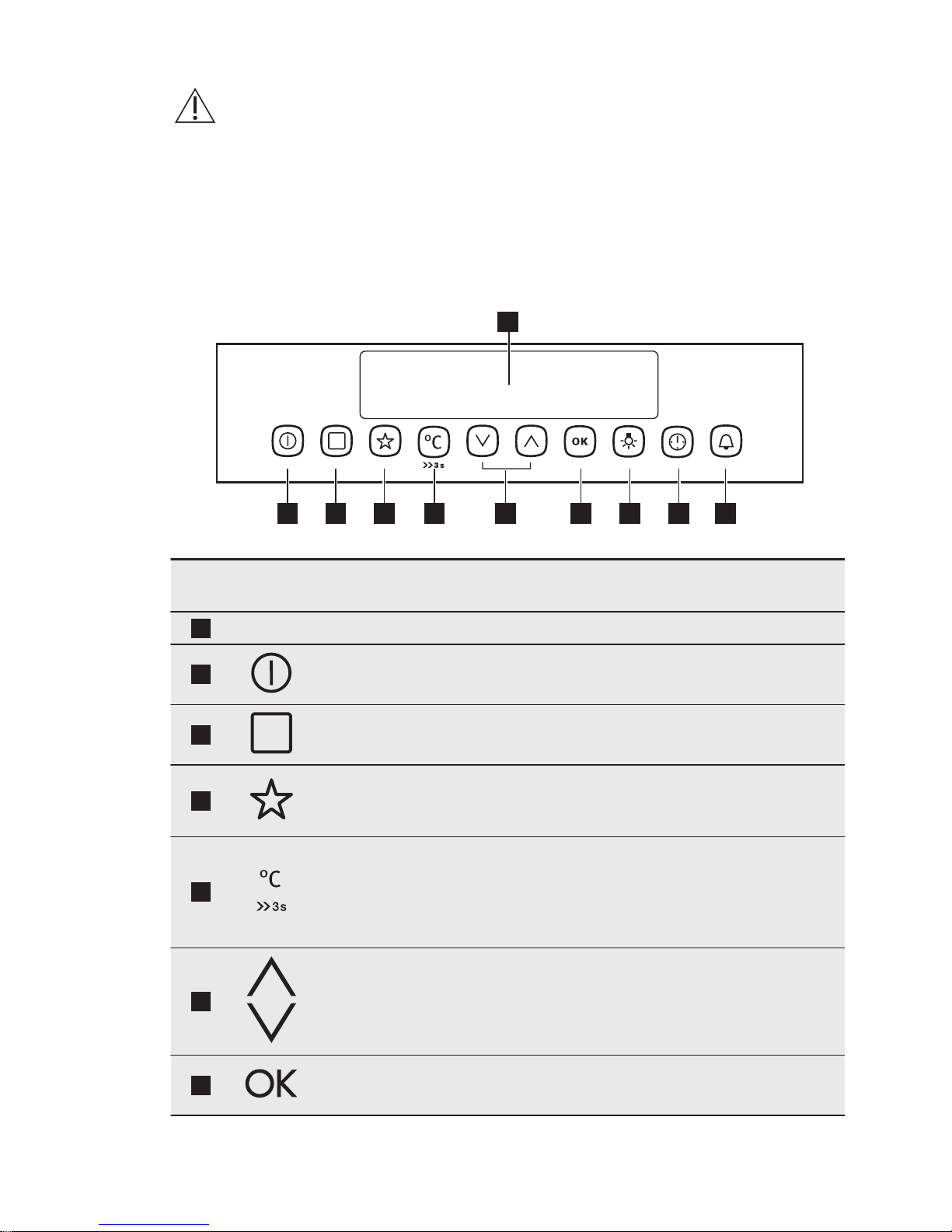

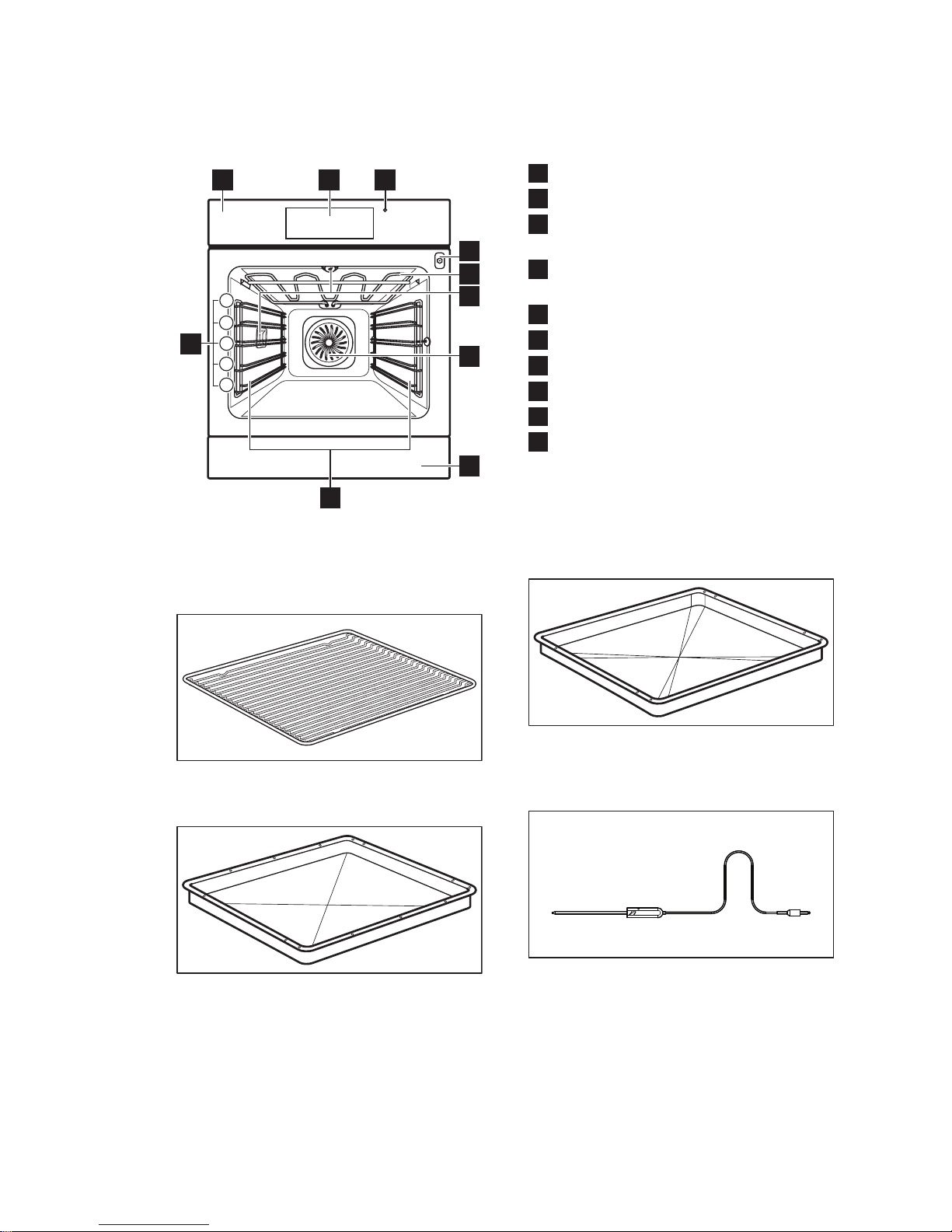

3. PRODUCT DESCRIPTION
3.1 General overview
1
10
5
4
6
8
9
2 3
7
5
4
3
2
1
1
Control panel
2
Electronic programmer
3
Heated drawer indicator (selected
models only)
4
Socket for the core temperature
sensor
5
Heating element
6
Lamp
7
Fan
8
Drawer
9
Shelf support, removable
10
Shelf positions
3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
Grill- / Roasting pan
To bake and roast or as a pan to collect
fat.
Food Sensor
To measure the temperature inside the
food.
Storage drawer
The storage drawer is below the oven
cavity.
ENGLISH
7
Page 8
WARNING!
The storage drawer can
become hot when the
appliance operates. Do not
store any flammable materials
in the drawer.
4. CONTROL PANEL
4.1 Electronic programmer
1
2 3 4 5 6 7 8 9 10
Use the sensor fields to operate the appliance.
Sensor
Field
Function Description
1
- DISPLAY Shows the current settings of the appliance.
2
ON / OFF To activate and deactivate the appliance.
Use it to access the oven functions.
3
OPTIONS To set an oven function or an automatic pro-
gramme.
4
MY FAVOURITE
PROGRAMME
To store your favourite programme. Use it to
have access to your favourite programme directly or when the appliance is deactivated.
5
TEMPERATURE /
FAST HEAT UP
To set and see the cavity temperature or the
core temperature sensor temperature (if
present). If you press and hold it for three seconds, it turns the Fast heat up function ON or
OFF.
6
UP, DOWN To move up or down in the menu.
7
OK To confirm a selection or setting.
www.electrolux.com8
Page 9
Sensor
Field
Function Description
8
OVEN LIGHT To activate or deactivate the lamp.
9
CLOCK To set the clock functions.
10
MINUTE MINDER To set the Minute Minder.

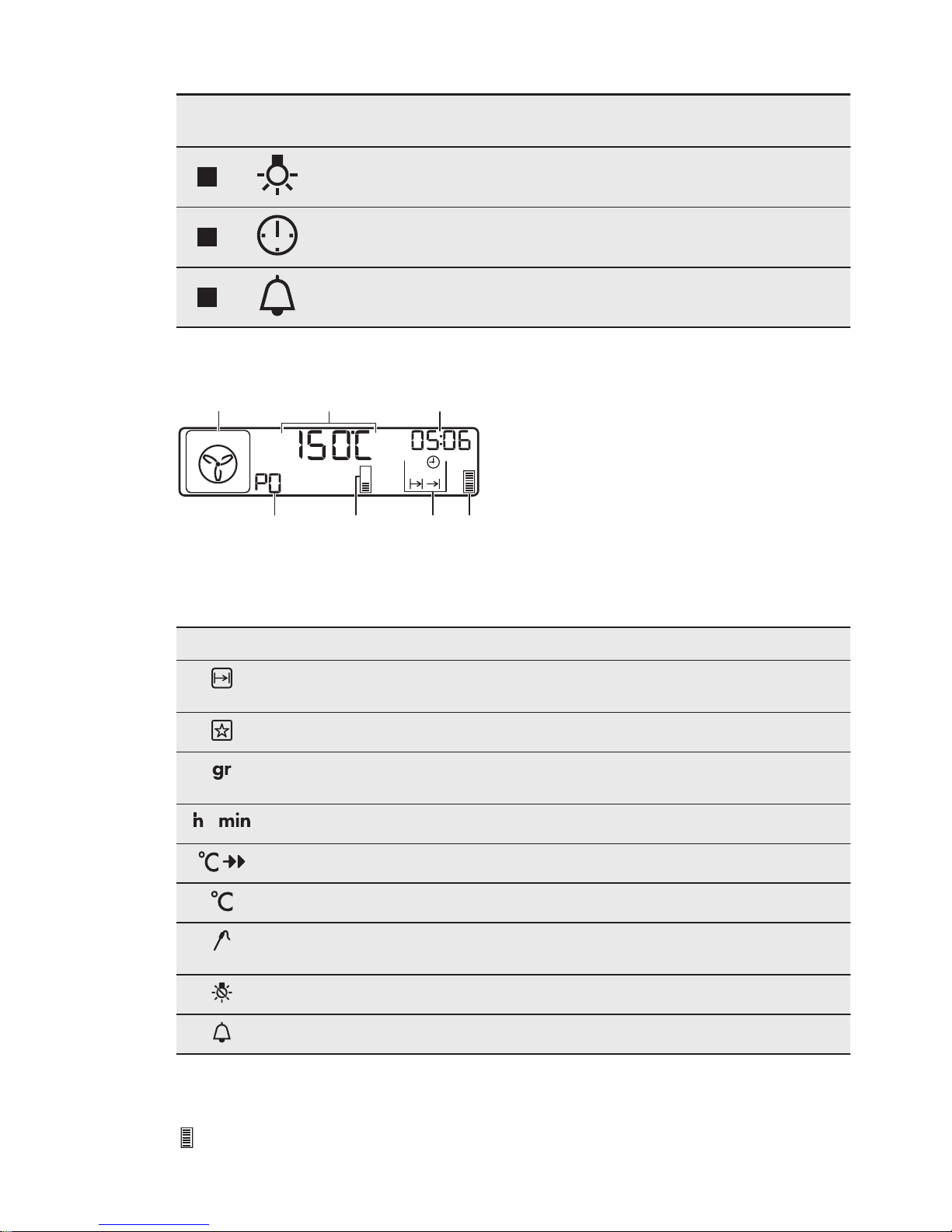

4.2 Display
A B C
DEFG
A. Oven function symbol
B. Temperature / time of day display
C. Cooking time display / Duration /
Minute Minder
D. Residual heat indicator
E. Indicators for the clock functions
F. Heat-up indicator / Fast Heat Up
indicator
G. Number of an oven function /
programme
Other indicators of the display:
Symbol Name Description
Automatic programme
You can choose an automatic programme.
My favourite programme
The favourite programme operates.
g
An automatic programme with a weight
input operates.
/
h / min
A clock function operates.
Temperature / Fast heat up
The function operates.
Temperature
The current temperature is indicated.
Core temperature sensor
The core temperature sensor is in the
core temperature sensor socket.
Light
You deactivated the light.
Minute minder
The minute minder function operates.
4.3 Heat up indicator
If you activate an oven function, the bars
come on in the display. The bars show
that the temperature in the appliance
increases or decreases.
When the appliance is at the set
temperature, the bars go off the display.
ENGLISH
9
Page 10
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
To set the Time of day refer
to "Clock functions" chapter.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial position.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Operating the appliance
To operate the appliance you can use:
• the manual mode
• automatic programmes
6.2 Oven functions
Oven function Application
True Fan Cooking
To bake on up to three shelf positions at the same
time and to dry food. Set the temperature 20 - 40 °C
lower than for Top / Bottom Heat.
Pizza Setting To bake food on one shelf position for a more inten-
sive browning and a crispy bottom. Set the temperature 20 - 40 °C lower than for Top / Bottom Heat.
Conventional
Cooking (Top /
Bottom Heat)
To bake and roast food on one shelf position.
Slow Cooking To prepare tender, succulent roasts.
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Defrost This function can be used for defrosting frozen foods,
such as vegetables and fruits. The defrosting time depends on the amount and size of the frozen food.
Keep Warm To keep food warm.
Grilling To grill flat food and to toast bread.
www.electrolux.com10
Page 11
Oven function Application
Fast Grilling To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on
one shelf position. Also to make gratins and to brown.
The lamp may automatically
deactivate at a temperature
below 60 °C during some
oven functions.
6.3 Setting the oven function
1. Activate the appliance with .
The display shows the set temperature,
the symbol and the number of the oven
function.
2. Touch or to set an oven
function.
3. Touch or the appliance starts
automatically after five seconds.
If you activate the appliance
and do not set an oven
function or programme, the
appliance deactivates
automatically after 20
seconds.
6.4 Changing the temperature
Touch or to change the
temperature in steps of 5 °C.
When the appliance is at the set
temperature, an acoustic signal sounds
three times and the Heat up indicator
goes out.
6.5 Checking the temperature
You can see the temperature in the
appliance when the function or
programme operates.
1. Touch .
The Temperature / Time display shows the
temperature in the appliance.
2. Touch to go back to the set
temperature or the display shows it
automatically after five seconds.
6.6 Fast heat up function
The Fast heat up function is not available
with every oven function. An acoustic
signal sounds if the Fast heat up function
is not available for the set function if Faulty
tone is activated in the settings menu.
Refer to "Using the settings menu".
The Fast heat up function decreases the
heat up time.
To activate the Fast heat up function
touch and hold for more than three
seconds.
If you activate the Fast heat up function,
the bars on the display
flash one by
one and comes on to show that the
function operates.
7. CLOCK FUNCTIONS
7.1 Clock functions table
Clock function Application
TIME OF DAY To show or change the time of day. You can change
the time of day only when the appliance is on.
DURATION To set how long the appliance operates.
ENGLISH
11
Page 12
Clock function Application
END To set when the appliance deactivates.
TIME DELAY To combine DURATION and END function.
MINUTE MINDER To set a countdown time. This function has no effect
on the operation of the oven. You can set the MINUTE
MINDER at any time and also when the appliance is
off.
00:00
COUNT UP TIMER To set the count up, which shows how long the appli-
ance operates. This function has no effect on the operation of the appliance. It is on immediately when the
oven starts to heat. The COUNT UP TIMER is not activated if DURATION and END are set.
7.2 Setting and changing the
time
After the first connection to the mains,
wait until the display shows and 12:00.
"12" flashes.
1. Touch or to set the hours.
2. Touch
.
3. Touch or to set the minutes.
4. Touch or .
The display shows the new time.
To change the time of day touch again
and again until starts to flash.
7.3 Setting the DURATION
1. Set an oven function and temperature.
2. Touch again and again until
starts to flash.
3. Use or to set the minutes for
DURATION time.
4. Touch or the DURATION time
starts automatically after 5 seconds.
5. Use or to set the hours for
DURATION time.
6. Touch
. The DURATION time starts
automatically after 5 seconds.
When the set time ends, an acoustic
signal sounds for 2 minutes.
and time
setting flash in the display. The appliance
deactivates.
7. Touch a sensor field to stop the
acoustic signal.
8. Turn off the appliance.
7.4 Setting the END
1. Set an oven function and temperature.
2. Touch again and again until
starts to flash.
3. Use or to set the END and
to confirm. First you set the minutes
and then the hours.
When the set time ends, an acoustic
signal sounds for 2 minutes. and the
time setting flash in the display. The
appliance deactivates automatically.
4. Touch a sensor field to stop the
acoustic signal.
5. Turn off the appliance.
7.5 Setting the TIME DELAY
function
1. Set an oven function and temperature.
2. Touch
again and again until
starts to flash.
3. Use or to set the minutes for
DURATION.
4. Touch .
5. Use or to set the hours for
DURATION.
6. Touch , the appliance switches to
the setting of the END function.
The display shows flashing .
www.electrolux.com12
Page 13
7. Use or to set the END and
to confirm. First you set the minutes
and then the hours.
Appliance turns on automatically later on,
works for the set DURATION time and
stops at the set END time. At the set time
an acoustic signal sounds for 2 minutes.
and the time setting flash in the
display. The appliance deactivates
automatically.
8. Touch a sensor field to stop the
acoustic signal.
9. Turn off the appliance.
7.6 Setting the MINUTE MINDER
1. Touch .
and "00" flash in the display.
2. Use to switch between options.
First you set the seconds, then the
minutes and the hours.
3. Use or to set the MINUTE
MINDER and to confirm.
4. Touch or the MINUTE MINDER
starts automatically after 5 seconds.
When the set time ends, an acoustic
signal sounds for 2 minutes and 00:00
and flash in the display.
5. Touch a sensor field to stop the
acoustic signal.
7.7 COUNT UP TIMER
To reset the Count Up Timer, touch
and at the same time until the display
shows "00:00" and the Count Up Timer
starts to count up again.
8. AUTOMATIC PROGRAMMES
WARNING!
Refer to Safety chapters.
There are 9 automatic programmes. The
display shows the default cooking times
for all automatic programmes. You can
find the recipes for the automatic
programmes in the "Recipe book".
8.1 Automatic programmes
1. Activate the appliance.
2. Touch .
The display shows the number of the
automatic programme (1 – 9).
3. Touch
or to choose the
automatic programme.
4. Touch or wait five seconds until
the appliance automatically starts to
work.
5. When the set time ends, an acoustic
signal sounds for two minutes. The
symbol flashes.
6. Touch a sensor field to stop the
acoustic signal.
7. Deactivate the appliance.
8.2 Automatic programmes with
weight input
If you set the weight of the meat, the
appliance calculates the roasting time.
1. Activate the appliance.
2. Touch .
3. Touch or to set the weight
programme. Refer to the "Recipe
book".
The display shows: the cooking time, the
duration symbol , a default weight, a
unit of measurement (g).
4. Touch or the settings save
automatically after five seconds.
The appliance activates.
5. You can change the default weight
value with or . Touch .
6. When the set time ends, an acoustic
signal sounds for two minutes.
flashes.
7. Touch a sensor field to stop the
acoustic signal.
8. Deactivate the appliance.
ENGLISH
13
Page 14
9. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
9.1 Core temperature sensor
There are two temperatures to be set: the
oven temperature and the core
temperature. Refer to the Recipe Book.
The core temperature sensor measures
the core temperature of the meat. When
the meat is at the set temperature, the
appliance deactivates.
CAUTION!
Only use the core
temperature sensor supplied
or the correct replacement
parts.
The core temperature sensor
must stay in the meat and in
the socket during the
cooking.

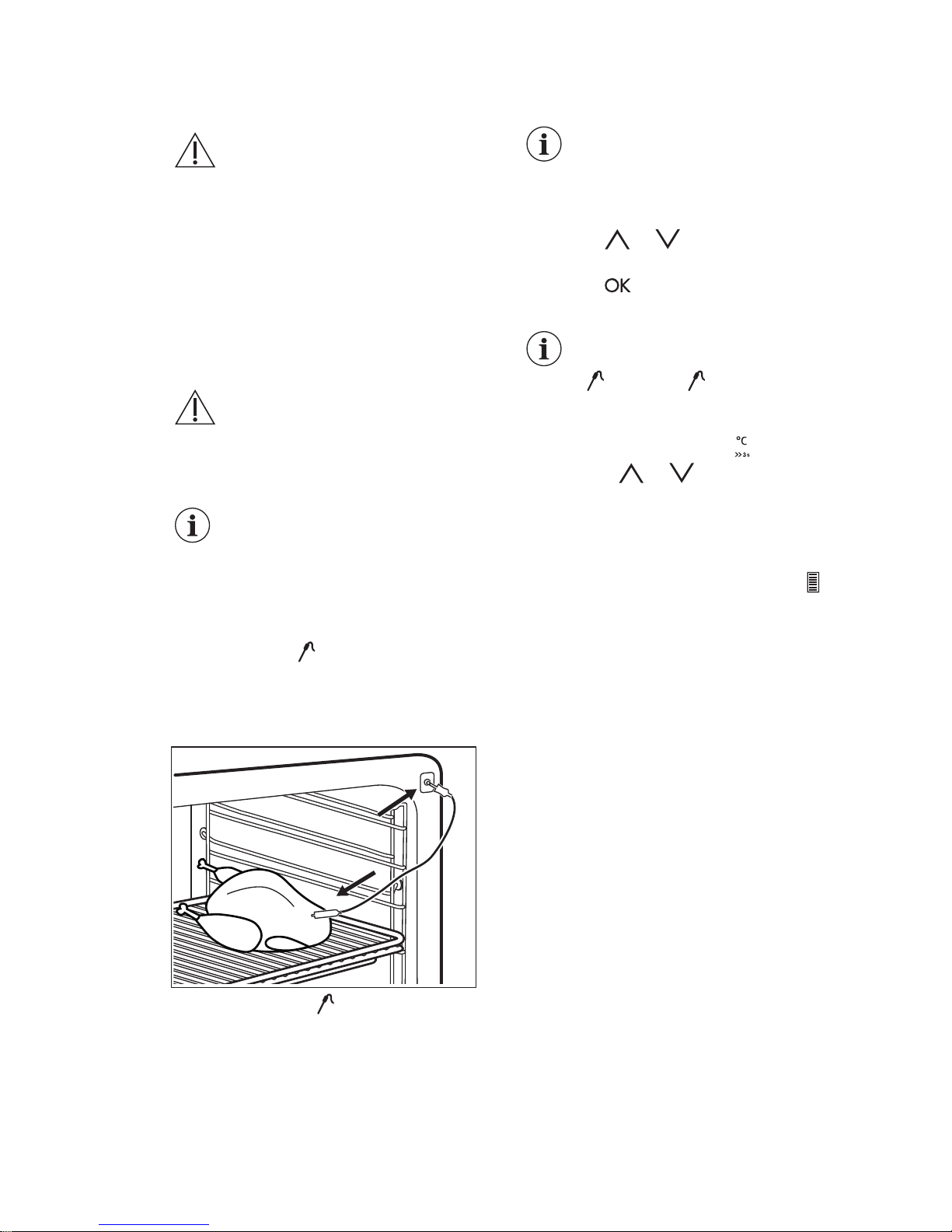

1. Activate the appliance.
2. Put the point of the core temperature
sensor (with
on the handle) into the
centre of the meat.
3. Put the plug of the core temperature
sensor into the socket at the front of
the appliance.
The display shows flashing and the
default set core temperature. The
temperature is 60 °C for the first
operation, and the last set value for each
subsequent operation.
When you put the core
temperature sensor into the
socket, you cancel the
settings for the clock
functions.
4. Touch or to set the core
temperature.
5. Touch or the settings save
automatically after 5 seconds.
You can set the core
temperature only when
flashes. If is in the
display but does not flash
before you set the core
temperature, touch
and or to set a
new value.
6. Set the oven function and the oven
temperature.
The display shows the current core
temperature and the heat up symbol .
While the appliance calculates the
approximate duration time, the display
shows the count up time. After the first
calculation the display shows the
approximate duration of the cooking time.
The appliance continues to calculate the
duration during the cooking. The display
updates at intervals with the new duration
value.
www.electrolux.com14
Page 15
When you cook with the core
temperature sensor, you can
change the temperature
shown in the display. After
you put the core temperature
sensor in the socket and set
an oven function and
temperature, the display
shows the current core
temperature.
Touch again and again to
see three other temperatures:
• the set core
temperature
• the current oven
temperature
• the current core
temperature.
When the meat is at the set core
temperature, an acoustic signal sounds for
two minutes and the value of the core
temperature and flash. The appliance
deactivates.
7. Touch a sensor field to deactivate the
acoustic signal.
8. Remove the core temperature sensor
from the socket and remove the meat
from the appliance.
WARNING!
Be careful when you remove
the core temperature sensor.
It is hot. There is a risk of
burns.

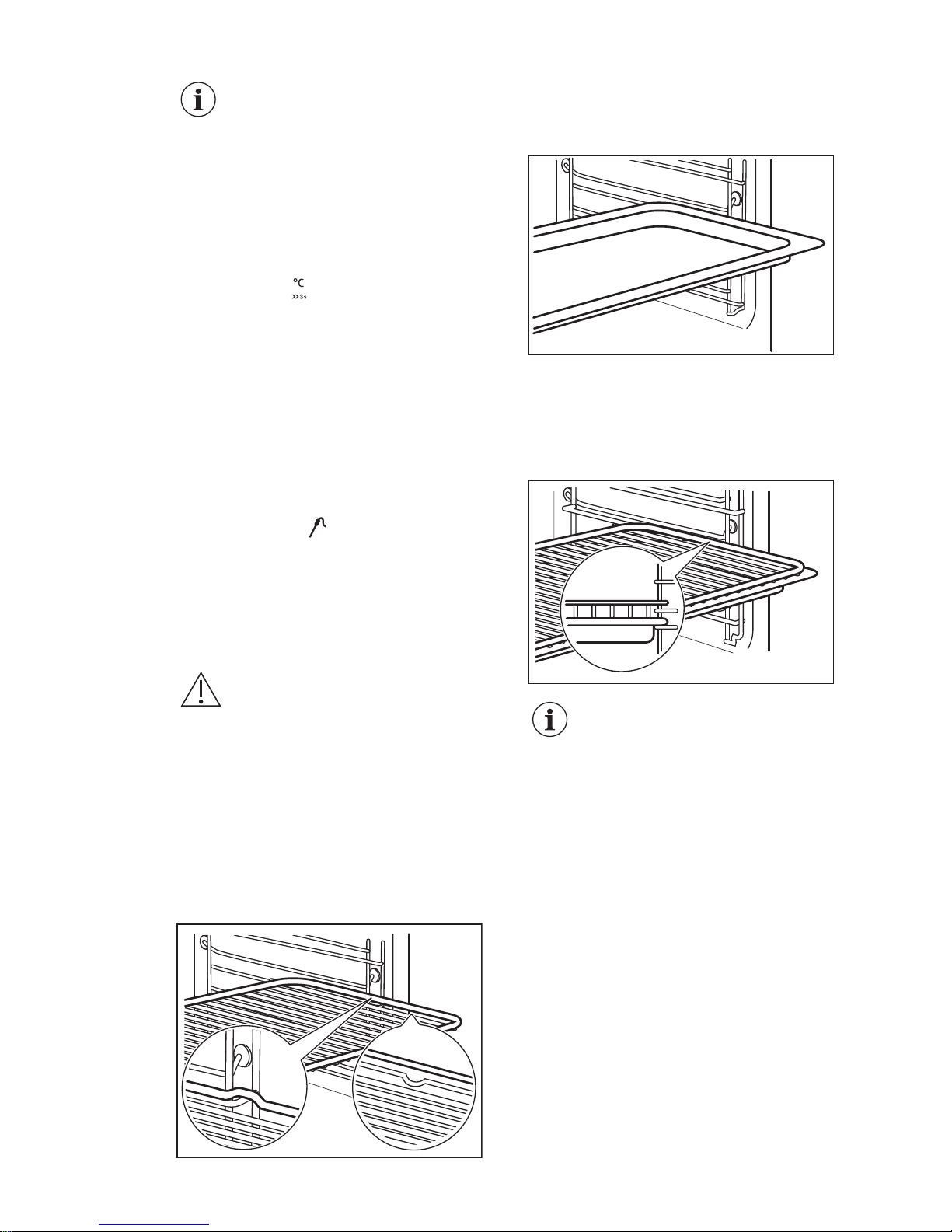

9.2 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Baking tray / Deep pan:
Push the baking tray / deep pan between
the guide bars of the shelf support.
Wire shelf and baking tray / deep pan
together:
Push the baking tray / deep pan between
the guide bars of the shelf support and the
wire shelf on the guide bars above.
Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim around
the shelf prevents cookware
from slipping of the shelf.
ENGLISH
15
Page 16
10. ADDITIONAL FUNCTIONS
10.1 Using My Favourite
Programme function
Use this function to save your favourite
temperature and time settings for an oven
function or programme.
1. Set the temperature and time for an
oven function or programme.
2. Touch and hold for more than
three seconds. An acoustic signal
sounds.
3. Deactivate the appliance.
• To activate the function touch .
The appliance activates your favourite
programme.
When the function
operates, you can change
the time and temperature.
• To deactivate the function touch .
The appliance deactivates your
favourite programme.
10.2 Using the Child Lock
The Child Lock prevents an accidental
operation of the appliance.
1. To activate the function deactivate the
appliance with . Do not set an oven
function.
2. Touch and hold and at the
same time for 2 seconds.
An acoustic signal sounds.
SAFE comes on in the display.
To deactivate the Child Lock function
repeat step 2.
10.3 Using the Function Lock
You can activate the function only when
the appliance operates.
The Function Lock prevents an accidental
change of the oven function.
1. To activate the function activate the
appliance.
2. Activate an oven function or setting.
3. Touch and hold
and at the
same time for 2 seconds.
An acoustic signal sounds.
Loc comes on in the display.
To deactivate the Function Lock repeat
step 3.
You can deactivate the
appliance when the Function
Lock is on. When you
deactivate the appliance, the
Function Lock deactivates.
10.4 Using the settings menu
You can set the settings menu when the
oven is turned off.
The settings menu lets you turn on or turn
off functions in the main menu. The
display shows SET and the number of the
setting.
Description Value to set
1 RESIDUAL HEAT INDICATOR ON / OFF
2
KEY TONE
1)
CLICK / BEEP / OFF
3 FAULTY TONE ON / OFF
4 BRIGHTNESS LOW / MEDIUM / HIGH
5 SERVICE MENU -
6 RESTORE SETTINGS YES / NO
1)
It is not possible to deactivate the tone of the ON / OFF sensor field.
www.electrolux.com16
Page 17
1. When the appliance is turned off,
touch and hold for three seconds.
The display shows SET1 and "1" flashes.
2. Touch or to set the setting.
3. Touch .
4. Touch or to change the value
of the setting.
5. Touch .
To exit the Settings menu, touch
or
touch and hold .
10.5 Automatic Switch-off
For safety reasons the appliance
deactivates automatically after some time
if an oven function operates and you do
not change any settings.
Temperature (°C) Switch-off time
(h)
30 - 115 12.5
120 - 195 8.5
200 - 245 5.5
250 - maximum 1.5
After the Automatic switch-off, touch a
sensor field to operate the appliance
again.
The Automatic switch-off
does not work with the
functions: core temperature
sensor, Light, Slow Cooking,
Duration, End, Time delay.
10.6 Brightness of the display
There are two modes of display
brightness:
• Night brightness - when the appliance
is deactivated, the brightness of the
display is lower between 10 PM and 6
AM.
• Day brightness:
– when the appliance is activated.
– if you touch a sensor field during
the night brightness (apart from
ON / OFF), the display goes back
to the day brightness mode for the
next 10 seconds.
– if the appliance is deactivated and
you set the Minute Minder. When
the Minute Minder function ends,
the display goes back to the night
brightness.
10.7 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
11. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
11.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a
dedicated cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk is
higher for the grill pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
ENGLISH
17
Page 18

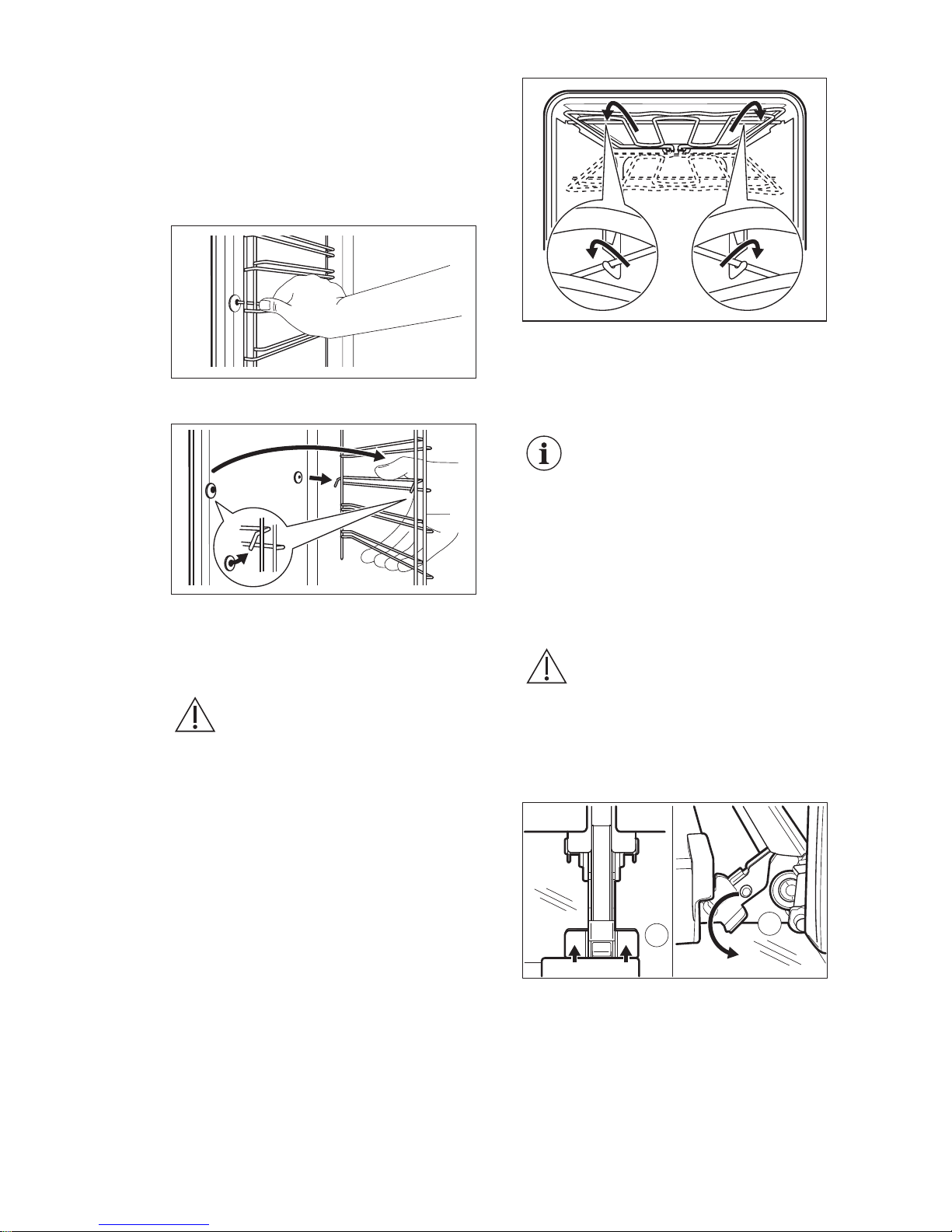

11.2 Removing the shelf
supports
To clean the oven, remove the shelf
supports.
1. Pull the front of the shelf support away
from the side wall.
2. Pull the rear end of the shelf support
away from the side wall and remove it.
2
1
Install the shelf supports in the opposite
sequence.
11.3 Oven ceiling
WARNING!
Deactivate the appliance
before you remove the
heating element. Make sure
that the appliance is cold.
There is a risk of burns.
Remove the shelf supports.
You can fold down the heating element on
the oven ceiling to clean the oven ceiling
easily.
1. Hold the heating element with two
hands at the front.
2. Pull it forwards against the spring
pressure and out of two holders.
The heating element folds down.
3. Clean the oven ceiling.
4. Install the heating element in the
opposite sequence.
Install the heating element
correctly above the supports
on the inner walls of the
appliance.
5. Install the shelf supports.
11.4 Removing and installing the
door
You can remove the door to clean it.
WARNING!
Be careful when you remove
the door from the appliance.
The door is heavy.
1. Open the door fully.
2. Fully press the clamping levers (A) on
the two door hinges.
A
A
3. Close the door until it is at an angle of
approximately 45°.
www.electrolux.com18

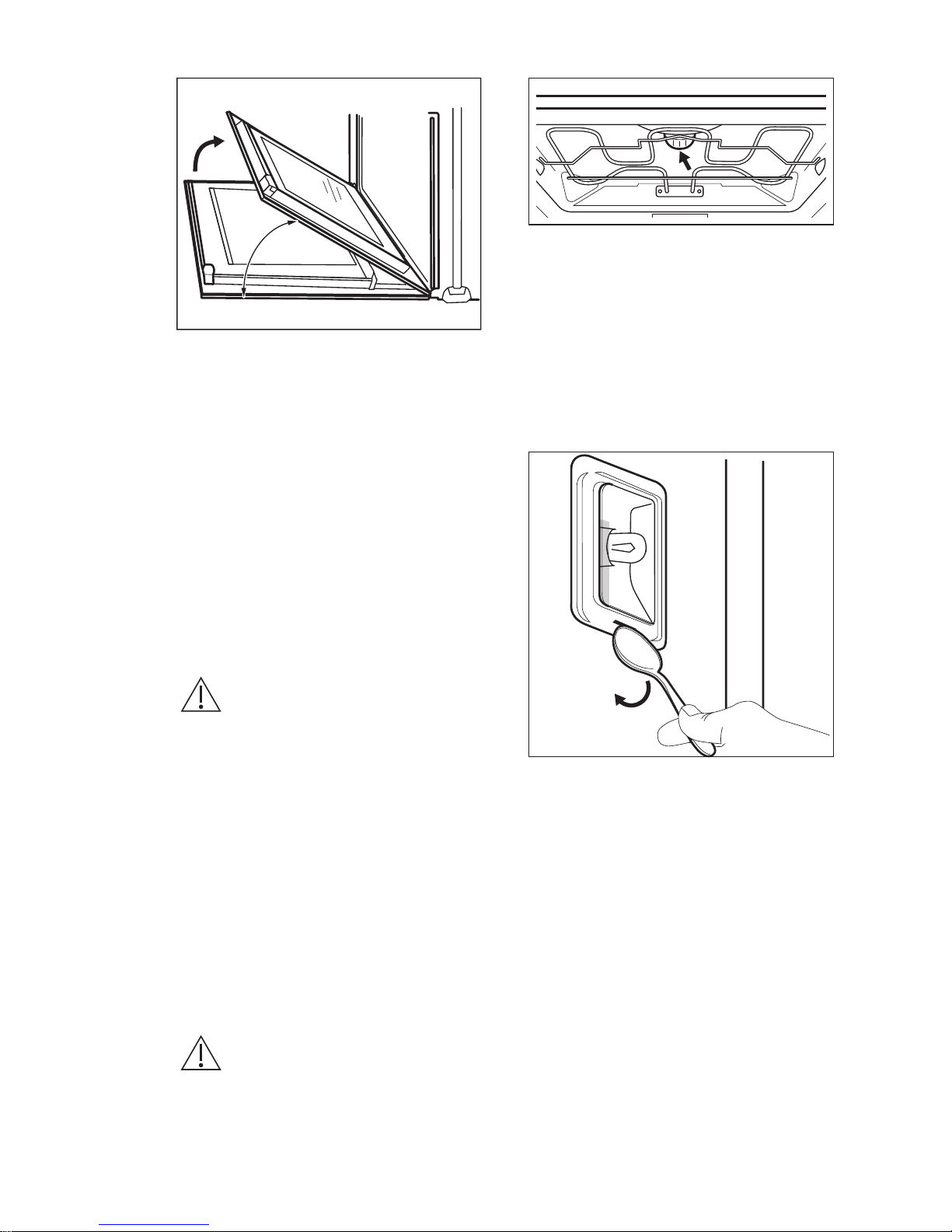

Page 19
45°
4. Hold the door with one hand on each
side and pull it away from the
appliance at an upwards angle.
5. Put the door with the outer side down
on a soft cloth on a stable surface.
This is to prevent scratches.
6. Clean the glass panel with water and
soap. Dry the glass panel carefully.
When the cleaning is completed, install the
door. Do the above steps in the opposite
sequence.
11.5 Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp.
The lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The top lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2.
Clean the glass cover.
3. Replace the lamp with a halogen, 230
V, 40 W, 300 °C heat resistant lamp.
4. Install the glass cover.
The side lamp
1. Remove the left shelf support to get
access to the lamp.
2. Use a narrow, blunt object (e.g. a
teaspoon) to remove the glass cover.
3. Clean the glass cover.
4. Replace the lamp with a halogen, 230
V, 40 W, 300 °C heat resistant lamp.
5. Install the glass cover.
6. Install the left shelf support.
12. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
ENGLISH
19
Page 20
12.1 What to do if...
Problem Possible cause Remedy
You cannot activate or operate the oven.
The oven is not connected
to an electrical supply or it
is connected incorrectly.
Check if the oven is correctly connected to the electrical supply (refer to the connection diagram if available).
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up. The automatic switch-off is
activated.
Refer to "Automatic switchoff".
The oven does not heat up. The Child Lock is on. Refer to "Using the Child
Lock".
The oven does not heat up. The fuse is blown. Make sure that the fuse is
the cause of the malfunction. If the fuse is blown
again and again, contact a
qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
The display does not show
the time during the off status.
The display is deactivated.
Touch and at the
same time to activate the
display again.
The core temperature sensor does not operate.
The plug of the core temperature sensor is not correctly installed into the
socket.
Put the plug of the core
temperature sensor as far
as possible into the socket.
It takes too long to cook the
dishes or they cook too
quickly.
The temperature is too low
or too high.
Adjust the temperature if
necessary. Follow the advice in the user manual.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the cooking process ends.
The display shows "C2". You want to start the De-
frost function, but you did
not remove the core temperature sensor plug from
the socket.
Remove the core temperature sensor plug from the
socket.
www.electrolux.com20
Page 21
Problem Possible cause Remedy
The display shows an error
code that is not in this table.
There is an electrical fault. • Deactivate the oven with
the house fuse or the
safety switch in the fuse
box and activate it again.
• If the display shows the
error code again, contact the Customer Care
Department.
The appliance is activated
and does not heat up. The
fan does not operate. The
display shows "Demo".
The demo mode is activated.
1. Deactivate the oven.
2. Touch and hold until
the oven activates and
deactivates.
3. Touch and hold and
at the same time until an acoustic signal
sounds and "Demo"
goes out.
12.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
13. INSTALLATION
WARNING!
Refer to Safety chapters.
13.1 Building in
During installation in
combustible matter, NIN SEV
1000 and fire protection
guidelines and regulations of
the Association of Cantonal
Fire Insurance shall be strictly
adhered to.

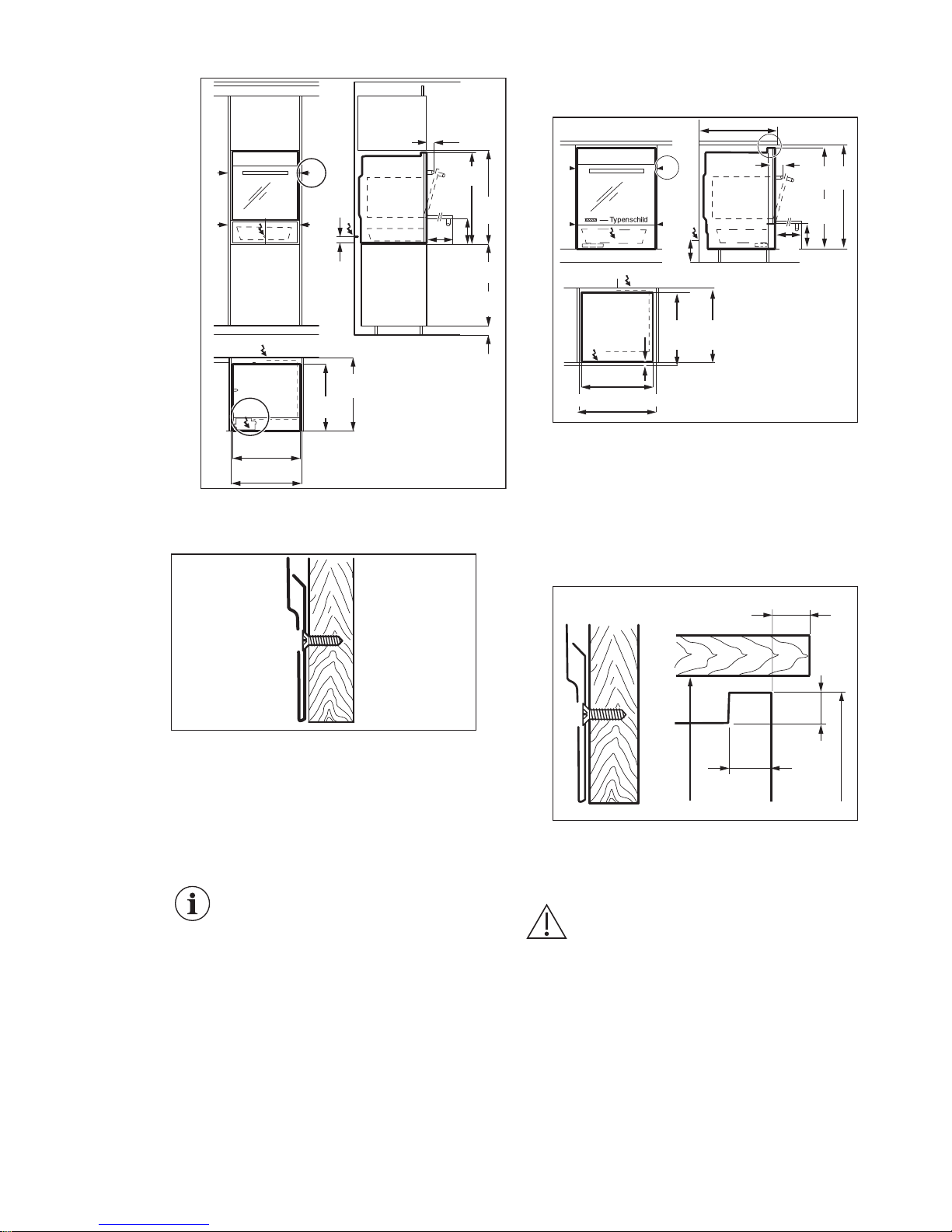

1. Pull the appliance drawer out as far as
it goes and remove it.
2. Place the appliance in front of the
recess and connect the mains plug.
Make sure the cable is free when you
slide the appliance.
3. Push the appliance into the recess.
A = appliance, N = recess
ENGLISH
21
Page 22
A
A
A
A
D
A
435
mm
60
mm
170
mm
105
mm
A
757 mm
N 762
mm
A 567
mm
N 605
mm
A 548 mm
N 550 mm
5 / 6 =
635 mm
6 / 6 =
762 mm
~50 mm
4. Use a minimum of 2 screws to attach
the oven on the 2 sides (A).
A
13.2 Installing the oven under a
work surface
Before the installation, connect the oven
to the electrical supply. Refer to "Electrical
connection".
During installation in
combustible matter, NIN SEV
1000 and fire protection
guidelines and regulations of
the Association of Cantonal
Fire Insurance shall be strictly
adhered to.
1. Pull the appliance drawer out as far as
it goes and remove it.
2. Place the appliance in front of the
recess and connect the mains plug.
Make sure the cable is free when you
slide the appliance.
3.
Push the appliance into the recess.
A = appliance, N = recess
A
A
A A
B
A
A
D
N 550 (-0,+1) mm
20
mm
A 767
mm
N 780
mm
A 549 mm
435
mm
A 757
mm
160
mm
170
mm
600 mm
N 762 + 3
mm
~50 mm
4. Use a minimum of 2 screws to attach
the oven on the 2 sides (A).
When installing next to a wood-fuelled
boiler, a heat-proof and heat-insulating
plate must be mounted at the height
of the appliance and at least 30 cm
deep.
A B
A
min. 20 mm
10
mm
20 mm
13.3 Electrical connection
WARNING!
If service is required always
disconnect the appliance
from the power supply.
Use a power cable of H05VV-F or higher.
Install the appliance with a socket supply
line. If there is no socket supply line, the
fixed home electrical system must include
an isolating device with at least a 3 mmcontact separation to enable a
simultaneous and all-pole cut off from the
www.electrolux.com22
Page 23
mains (according to NIN SEV 1000). The
customer must have a socket for the
electrical connection that is accessible
and outside the coordination room. The
length of the connection cable must be
approximately 120 cm with lines
connected directly to the mains.
Only a qualified person can
connect the appliance to the
electricity supply.

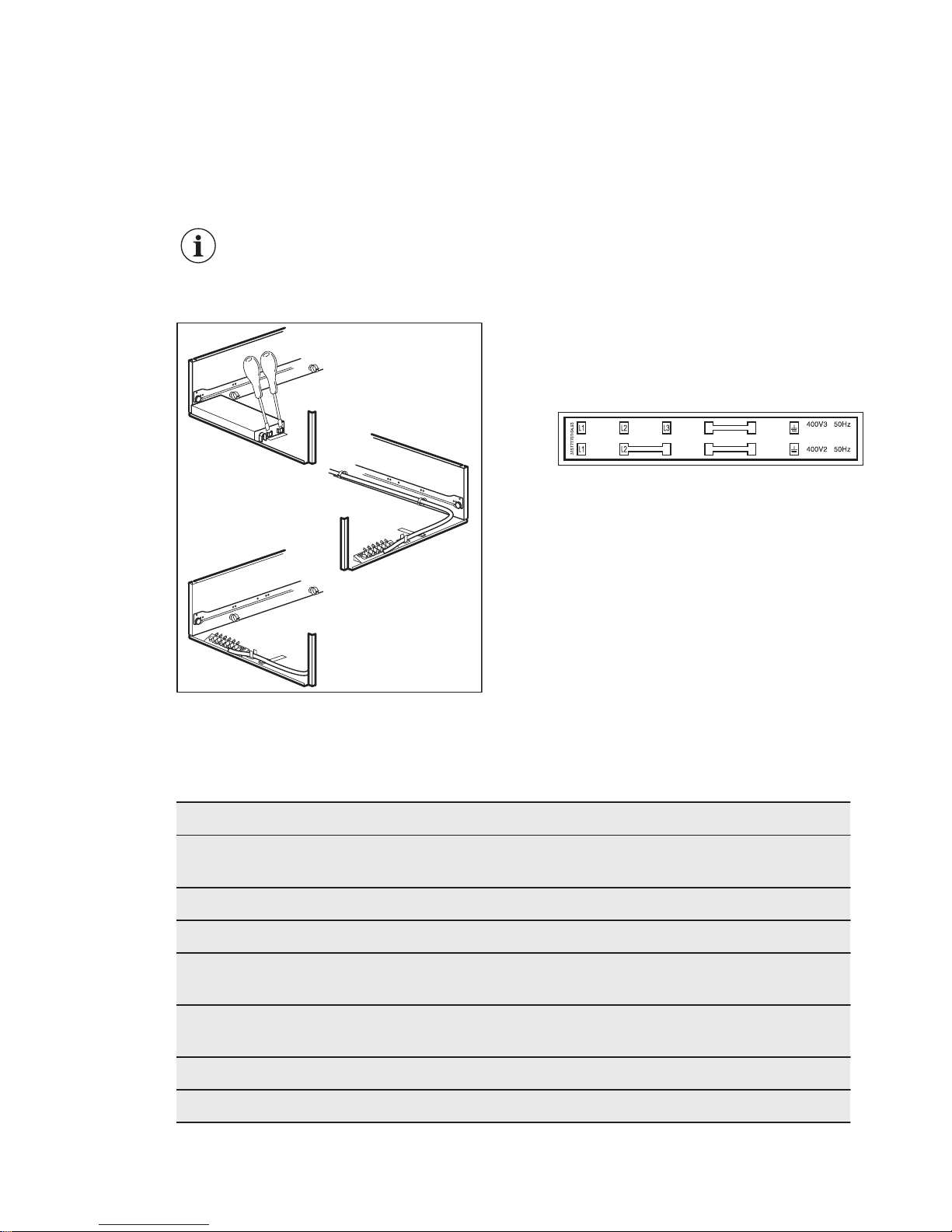

1. Open the mains terminal cover (D).
D
E
F
2. Put the connection cable into the
supplied rings (E).
This is to prevent the cable from
rubbing against the drawer. The
connection cable is on the housing
side.
3. Install the cable grip (F).
4. Connect the terminal as in the
illustration.
5. Put the cable into the strain relief
clamp.
6. Close the mains terminal cover.
7. Do the electrical connections as in the
connection illustration.
Phase definitions: L1, L2, L3 (or R, S,
T).
Voltage: 400V
8. Secure the cable grip.
14. ENERGY EFFICIENCY
14.1 Product Fiche and information according to EU 65-66/2014
Supplier's name Electrolux
Model identification
EBGL4CN
EBGL4SP
Energy Efficiency Index 103.5
Energy efficiency class A
Energy consumption with a standard load, conventional mode
0.99 kWh/cycle
Energy consumption with a standard load, fanforced mode
0.88 kWh/cycle
Number of cavities 1
Heat source Electricity
ENGLISH
23
Page 24
Volume 71 l
Type of oven Built-In Oven
Mass
EBGL4CN 47.5 kg
EBGL4SP 47.5 kg
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
14.2 Energy saving
The oven contains features
which help you save energy
during everyday cooking.
General hints
Make sure that the oven door is closed
properly when the appliance operates. Do
not open the door too often during
cooking. Keep the door gasket clean and
make sure it is well fixed in its position.
Use metal dishes to improve energy
saving.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than
30 minutes, reduce the oven temperature
to minimum 3 - 10 minutes before the end
of the cooking time, depending on the
duration of the cooking. The residual heat
inside the oven will continue to cook.
Use the residual heat to warm up other
dishes.
Keep breaks between baking as short as
possible when you prepare few dishes at
one time.
Cooking with fan
When possible, use the cooking functions
with fan to save energy.
Residual heat
If a programme with the Duration or End
Time selection is activated and the
cooking time is longer than 30 minutes,
the heating elements automatically
deactivate earlier in some oven functions.
The fan and lamp continue to operate.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm. The residual heat indicator or
temperature appears on the display.
Cooking with the lamp off
Turn off the lamp during cooking. Turn it
on only when you need it.
Deactivating the display
You can turn off the display. Press and
hold and at the same time. To turn
it on repeat this step.
15. CH GUARANTEE
Customer Service Centres
Point of Service
Industriestrasse 10
5506 Mägenwil
Le Trési 6
1028 Préverenges
Via Violino 11
6928 Manno
www.electrolux.com24
Page 25
Point of Service
Morgenstrasse 131
3018 Bern
Zürcherstrasse 204E
9000 St. Gallen
Seetalstrasse 11
6020 Emmenbrücke
Schlossstrasse 1
4133 Pratteln
Comercialstrasse 19
7000 Chur
Spare parts service Industriestrasse 10,
5506 Mägenwil, Tel. 0848 848 111
Specialist advice/Sale Badenerstrasse
587, 8048 Zürich, Tel. 044 405 81 11
Warranty For each product we provide a
two-year guarantee from the date of
purchase or delivery to the consumer (with
a guarantee certificate, invoice or sales
receipt serving as proof). The guarantee
covers the costs of materials, labour and
travel. The guarantee will lapse if the
operating instructions and conditions of
use are not adhered to, if the product is
incorrectly installed, or in the event of
damage caused by external influences,
force majeure, intervention by third parties
or the use of non-genuine components.
16. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
For Switzerland:
Where should you take your
old equipment?
Anywhere that sells new
equipment or hand it in to
official SENS collection points
or official SENS recycling
firms.
The list of official SENS
collection points can be
found at www.erecycling.ch
*
ENGLISH
25
Page 26
www.electrolux.com26
Page 27
ENGLISH
27
Page 28
www.electrolux.com/shop
867314702-C-132017
Loading...
