EB4GL90
EN MICROWAVE OVEN USER MANUAL
Page 2
CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................5
3. PRODUCT DESCRIPTION................................................................................... 7
4. CONTROL PANEL............................................................................................... 8
5. BEFORE FIRST USE..........................................................................................10
6. DAILY USE........................................................................................................ 10
7. MICROWAVE MODE......................................................................................... 12
8. CLOCK FUNCTIONS......................................................................................... 16
9. AUTOMATIC PROGRAMMES............................................................................18
10. USING THE ACCESSORIES............................................................................ 18
11. ADDITIONAL FUNCTIONS...............................................................................19
12. CARE AND CLEANING....................................................................................20
13. TROUBLESHOOTING......................................................................................21
14. INSTALLATION................................................................................................22
15. GUARANTEE .................................................................................................. 26
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged 8 years
and above and by persons with reduced capabilities
provided that they have been given instruction and/or
supervision regarding the safe use of the appliance and
understand the potential hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
•
Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, this should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
• Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
• Always use oven gloves to remove or put in accessories
or ovenware.
• Before maintenance cut the power supply.
ENGLISH
3
Page 4
• Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualified persons to avoid an
electrical hazard.
• Do not activate the appliance when it is empty. Metal
parts inside the cavity can create electric arcing.
• Metallic containers for food and beverages are not
allowed during microwave cooking. This requirement is
not applicable if the manufacturer specifies size and
shape of metallic containers suitable for microwave
cooking.
• If the door or door seals are damaged, the appliance
must not be operated until it has been repaired by a
qualified person.
• Only a qualified person can carry out any service or
repair operation that involves the removal of a cover
which gives protection against exposure to microwave
energy.
• Do not heat liquids and other foods in sealed
containers. They are liable to explode.
• Only use utensils that are suitable for use in microwave
ovens.
• When heating food in plastic or paper containers, keep
an eye on the appliance due to the possibility of ignition.
• The appliance is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
• If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
www.electrolux.com4
Page 5
• Microwave heating of beverages can result in delayed
eruptive boiling. Care must be taken when handling the
container.
• The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should
not be heated in the appliance since they may explode,
even after microwave heating has ended.
• The appliance should be cleaned regularly and any food
deposits removed.
• Failure to maintain the appliance in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.

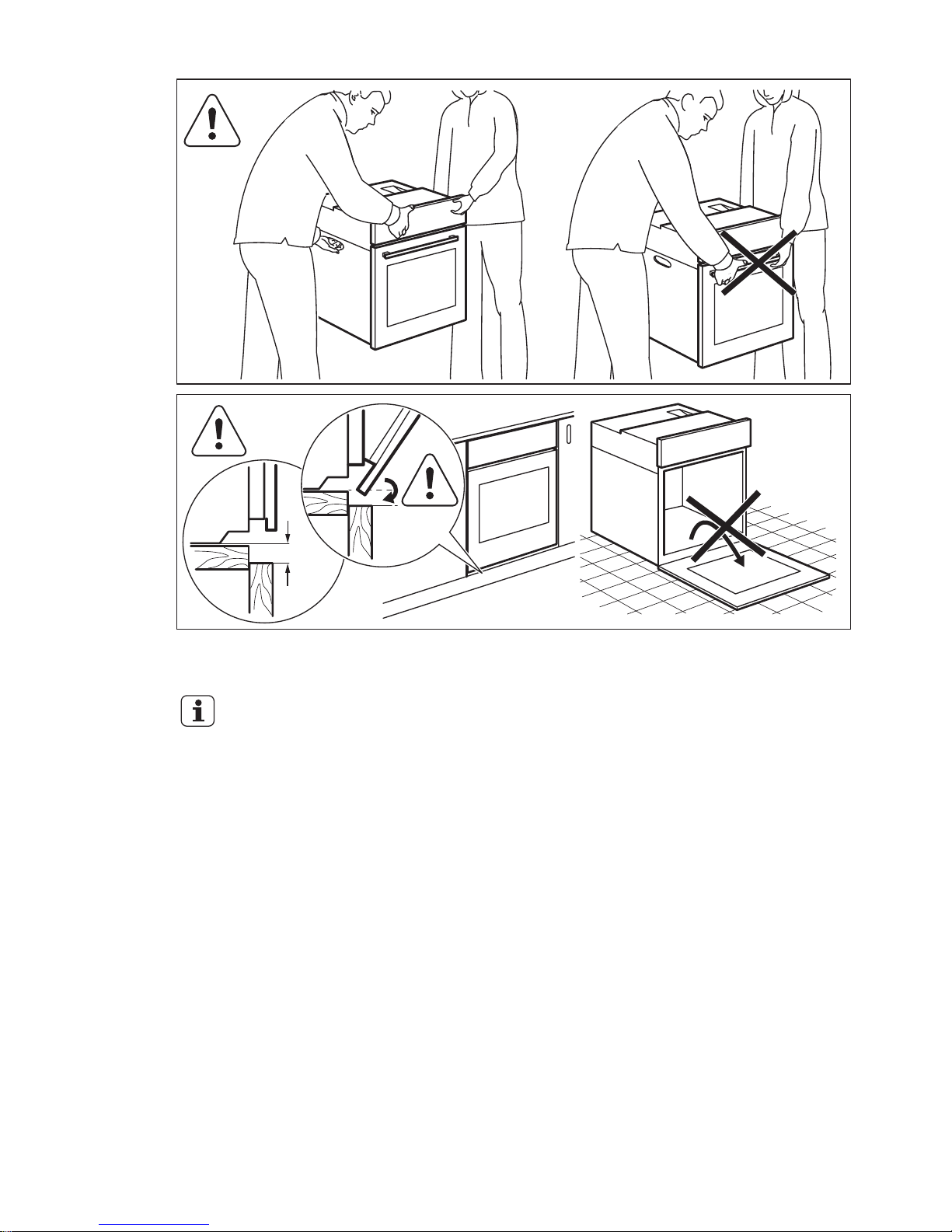

• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
ENGLISH
5
Page 6
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not use microwave function to
preheat the oven.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no
effect on the performance of the
appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service Centre.
• Make sure the cavity and the door are
wiped dry after each use. Steam
produced during the operation of the
www.electrolux.com6
Page 7
appliance condensates on cavity walls
and can cause corrosion.
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Fat and food remaining in the
appliance can cause fire and electric
arcing when the microwave function
operates.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
2.7 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
3. PRODUCT DESCRIPTION

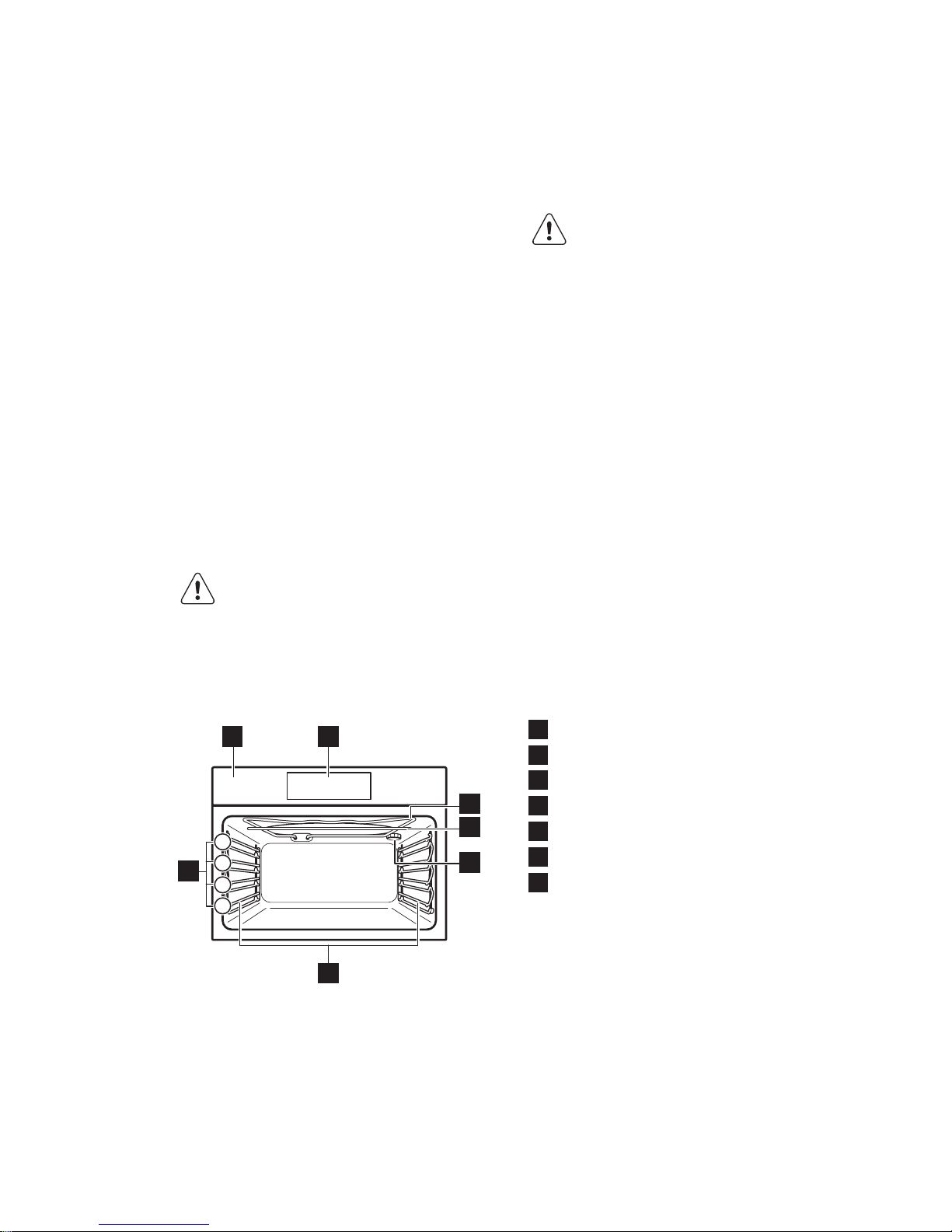

3.1 General overview
1 2
7
4
3
1
2
6
3
4
5
1
Control panel
2
Electronic programmer
3
Heating element
4
Microwave generator
5
Lamp
6
Shelf support, removable
7
Shelf positions
ENGLISH
7
Page 8

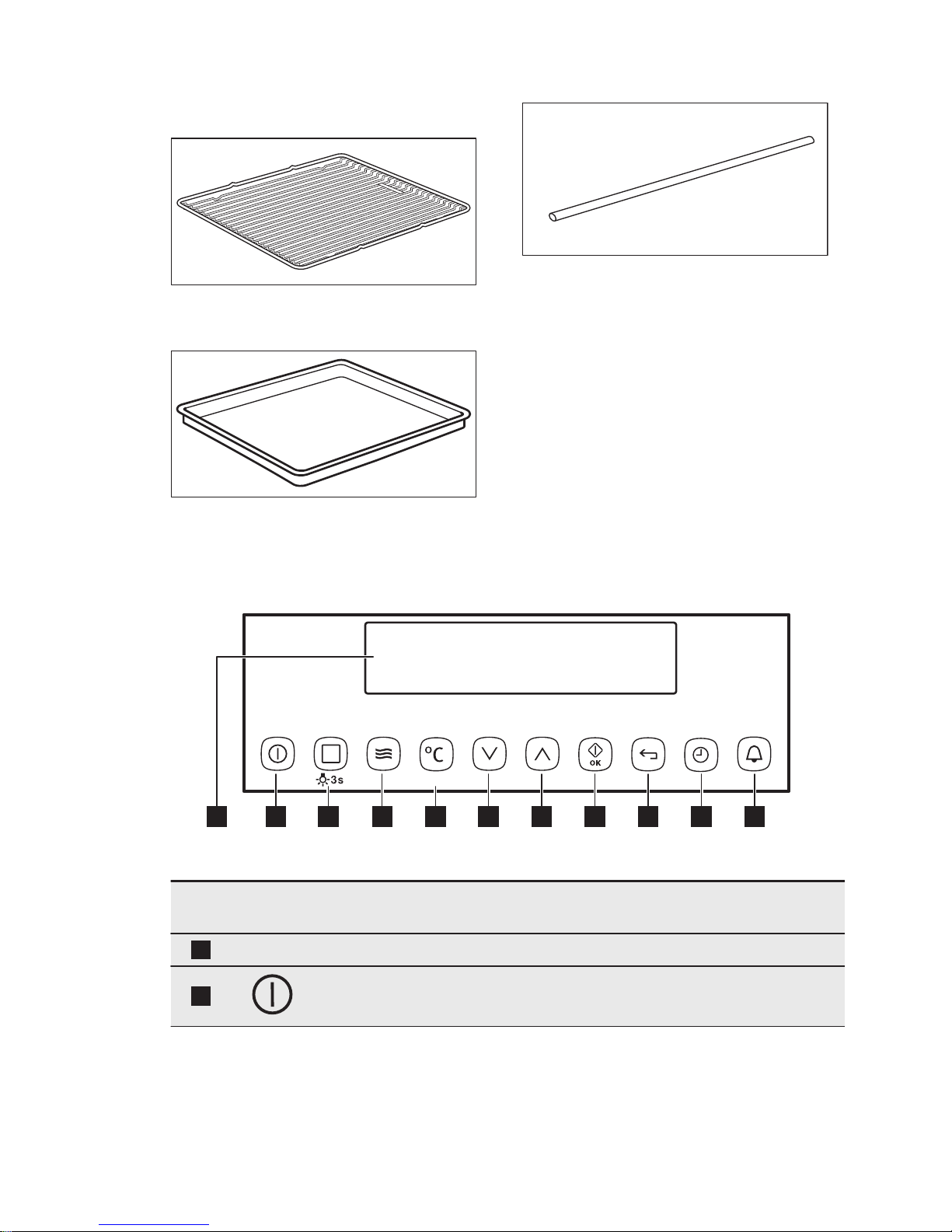

3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Glass baking tray
Glass stick
4. CONTROL PANEL

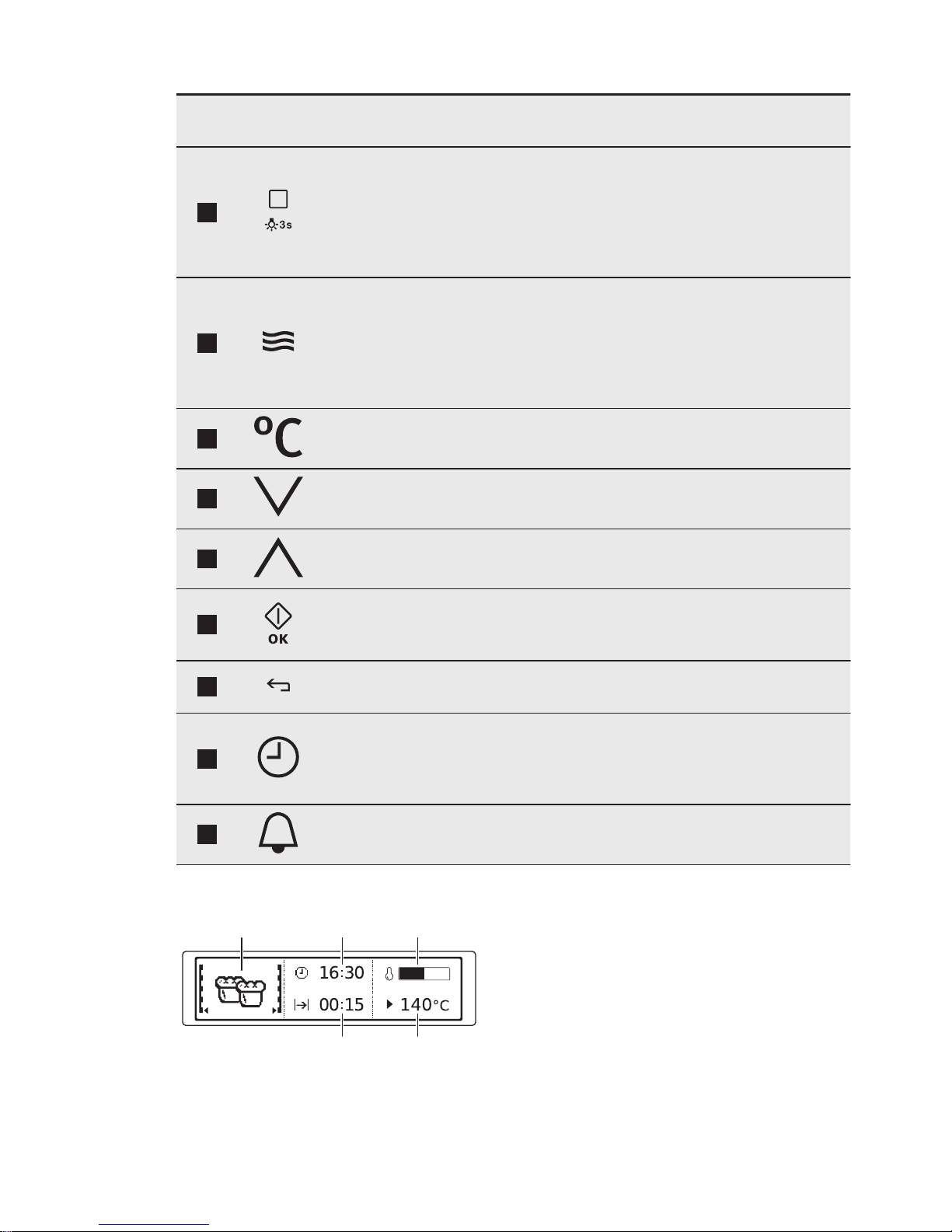

4.1 Electronic programmer
1110987654321
Use the sensor fields to operate the appliance.
Sensor
field
Function Comment
1
- Display Shows the current settings of the appliance.
2
ON / OFF To activate and deactivate the appliance.
www.electrolux.com8
Page 9
Sensor
field
Function Comment
3
Grilling or Assisted Cooking
Touch the sensor field once to choose a heating
function or the menu: Assisted Cooking. Touch
the sensor field again to switch between the
functions: Grilling, Assisted Cooking. To activate
or deactivate the light, touch the field for 3 seconds.
4
Microwave function
To activate the Microwave function. You can use
it when the appliance is deactivated. When you
use the Microwave function with the function:
Duration for more than 7 minutes and in Combi
mode, the Microwave power cannot be more
than 600 W.
5
Temperature selection
To set the temperature or show the current temperature in the appliance.
6
Down key To move down in the menu.
7
Up key To move up in the menu.
8
OK / Microwave
Quick Start
To confirm the selection or settings. To activate
the Microwave function. You can use it when the
appliance is deactivated.
9
Back key To go back one level in the menu. To show the
main menu, touch the field for 3 seconds.
10
Time and additional functions
To set different functions. When a heating function operates, touch the sensor field to set the
timer or the functions: Function Lock, Favourite
Programme, Heat + Hold, Set + Go.
11
Minute Minder To set the function: Minute Minder.
4.2 Display
A
DE
B C
A. Heating function or Microwave
function
B. Time of day
C. Heat-up indicator
D. Temperature or power of the
microwave
E. Duration time or end time of a function
ENGLISH
9
Page 10

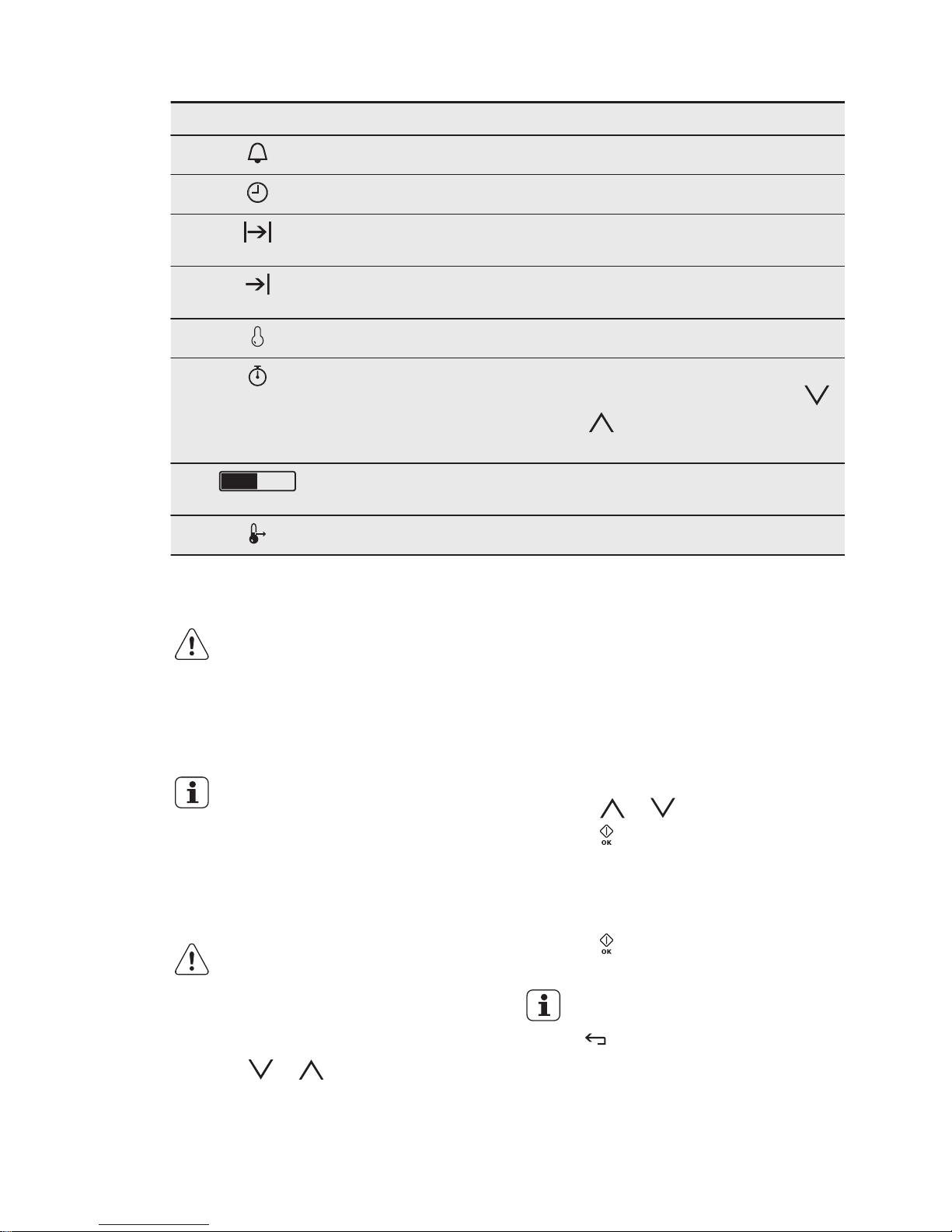

Other indicators of the display:
Symbol Function
Minute Minder The function operates.
Time of day The display shows the current time.
Duration The display shows the necessary
time for cooking.
End Time The display shows when the cooking
time is complete.
Temperature The display shows the temperature.
Time Indication The display shows how long the
heating function operates. Press
and at the same time to reset the
time.
Heat-up Indicator The display shows the temperature in
the appliance.
Heat + Hold The function is active.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial position.
5.2 First Connection
When you connect the appliance to the
mains or after the power cut, you have to
set the language, the display contrast, the
display brightness and the time of the day.
1. Press
or to set the value.
2. Press to confirm.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Navigating the menus
1. Activate the appliance.
2. Press or to select the menu
option.
3. Press to move to the submenu or
accept the setting.
At each point you can go
back to the main menu with
.
www.electrolux.com10
Page 11
6.2 The menus in overview
Main menu
Symbol
Menu item Application
Grilling A heating function to grill flat food items in the
middle of the shelf. To make toast.
Assisted Cooking Contains a list of automatic programmes.
Basic Settings Used to set other settings.
Favourite Programme Contains a list of favourite cooking programmes
created by the user.
Submenu for: Basic Settings
Symbol
Submenu Description
Set Time of Day Sets the current time on the clock.
Time Indication When ON, the display shows the current time
when you deactivate the appliance.
Set + Go To set a function and activate it later with a
press of any symbol on the control panel.
Heat + Hold Keeps the prepared food warm for 30 minutes
after a cooking cycle finished.
Extra Time Activates and deactivates the time extension
function.
Display Contrast Adjusts the display contrast by degrees.
Display Brightness Adjusts the display brightness by degrees.
Set Language Sets the language for the display.
Buzzer Volume Adjusts the volume of press-tones and signals
by degrees.
Key Tones Activates and deactivates the tone of the touch
fields. It is not possible to deactivate the tone of
the ON / OFF touch field.
Alarm/Error Tones Activates and deactivates the alarm tones.
Service Shows the software version and configuration.
Factory Settings Resets all settings to factory settings.
6.3 Activating a heating function
1. Activate the appliance.
2. Select the function: Grilling.
3. Press to confirm.
4. Set the temperature.
ENGLISH
11
Page 12
5. Press to confirm.
6.4 Heat-up indicator
When you activate a heating function, the
bar on the display comes on. The bar
shows that the temperature increases.
When temperature is reached the buzzer
sounds 3 times and the bar flashes and
then disappears.
6.5 Residual heat
When you deactivate the appliance, the
display shows the residual heat. You can
use the heat to keep the food warm.
6.6 Energy saving
The appliance contains features which
help you save energy during everyday
cooking.
General hints
Make sure that the oven door is closed
properly when the appliance operates and
keep it closed as much as possible during
the cooking.
Use metal dishes to improve the energy
saving, but only when you use a nonmicrowave function.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than
30 minutes, reduce the oven temperature
3 - 10 minutes before the end of the
cooking time, depending on the duration
of the cooking. The residual heat inside
the oven will continue to cook.
Use the residual heat to warm up other
foods.
Residual heat
In some heating functions if a programme
with time selection Duration or End Time is
activated and the cooking time is longer
than 30 minutes, the heating elements
deactivate automatically 10% earlier. The
lamp continues to operate.
Cooking with the lamp off
Deactivate the lamp during the cooking
and activate only when you need it.
Keep food warm
If you want to use the residual heat to
keep the meal warm, choose the lowest
possible temperature setting. The display
shows the residual heat temperature.
7. MICROWAVE MODE
7.1 Microwave
General:
CAUTION!
Do not let the appliance
operate when there is no
food in it.
• After you deactivate the appliance, let
the food stand for some minutes. Refer
to the microwave cooking tables:
standing time (Recipe Book).
• Remove the aluminium foil packaging,
metal containers, etc. before you
prepare the food.
• It is not recommended to use more
than one level when using the
microwave mode.
• Put the food on a plate on the bottom
of the cavity if not specified differently.
• If possible, always stir the food before
serving.
Cooking:
• If possible, cook food covered with
material suitable for use in the
microwave. Only cook food without a
cover if you want to keep a crust.
• Do not overcook the dishes by setting
the power and time too high. The food
can dry out, burn or catch fire in some
places.
• Do not use the appliance to cook eggs
in their shells and snails, because they
can burst. With fried eggs, pierce the
yolks first.
• Pierce skin or peel of potatoes,
tomatoes, sausages and similar types
of food with a fork several times before
cooking so that the food does not
burst.
• For chilled or frozen food, set a longer
cooking time.
• Dishes which contain sauce must be
stirred from time to time.
www.electrolux.com12
Page 13
• Turn larger pieces of food after half the
cooking time.
• If possible, cut vegetables into similarsized pieces.
• Use flat, wide dishes.
• Do not use cookware made of
porcelain, ceramic or earthenware with
unglazed bottoms or small holes, e.g.
on handles . Moisture going into the
holes can cause the cookware to crack
when it is heated.
• Always put the glass stick in the
container when you heat liquids, in
order to prevent overcooking or
splashing.
Defrosting meat, poultry, fish:
• Put the frozen, unwrapped food on a
small upturned plate with a container
below it, or on a defrosting rack or
plastic sieve so that the defrosting
liquid can run off.
• Turn the food after half the defrosting
time. If possible, divide and then
remove the pieces that have started to
defrost.
Defrosting butter, portions of gateau,
quark:
• Do not fully defrost in the appliance,
but let them defrost completely at a
room temperature. This gives a more
even result. Remove all metal or
aluminium packaging or parts before
defrosting.
Defrosting fruit, vegetables:
• If fruit and vegetables should remain
raw, do not defrost them fully in the
appliance but let them defrost
completely at a room temperature.
• To cook fruit and vegetables without
defrosting them first, you can use a
higher microwave power.
Ready meals:
• Ready meals in metal packaging or
plastic trays with metal covers can only
be defrosted or heated in the
microwave if they are expressively
designated as suitable for use in the
microwave.
• You must follow the manufacturer's
instructions printed on the packaging
(e.g. remove the metal cover and
pierce the plastic film).
7.2 Suitable cookware and materials
Cookware / Material Microwave Grilling
Defrosting
Heating Cooking
Ovenproof glass and porcelain with
no metal components, e.g. Pyrex,
heat-proof glass
Non-ovenproof glass and porce-
lain
1)
X X X
Grill shelf, glass and glass ceramic
made of ovenproof / frost-proof material e.g. Arcoflam
Ceramic2), earthenware
2)
X
Heat-resistant plastic up to 200 °C
3)
X
Cardboard, paper
X X X
Clingfilm
X X X
ENGLISH
13
Page 14
Cookware / Material Microwave Grilling
Defrosting
Heating Cooking
Roasting film with microwave safe
closure
3)
X
Roasting dishes made of metal, e.g.
enamel, cast iron
X X X
Baking tins, black lacquer or silicon-
coated
3)
X X X
Wire shelf
X X X
Browning cookware, e.g. crisp pan
or crunch plate
X X
Ready meals in packaging
3)
1)
With no silver, gold, platinum or metal plating / decorations.
2)
Without quartz or metal components, or glazes which contain metals
3)
You must follow the manufacturer’s instructions about the maximum temperatures.
7.3 Tips for the microwave
Result Remedy
You cannot find details for the
amount of food prepared.
Find details for similar type of food. Increase or
shorten the length of the cooking time according to the following rule: double the amount - almost double the time, half the amount - half the
time.
The food after cooking is too dry. Set shorter cooking time or select lower micro-
wave power and cover with material suitable for
use in the microwave.
The food is still not defrosted, hot or
cooked after the end of cooking
time .
Set longer cooking time or select higher microwave power. Note that taller dishes generally
need longer cooking time. Stir or turn food during cooking.
After the end of cooking time the
food is overheated at the edges but
is still not ready in the middle.
Next time select a lower power and a longer
time. Stir liquids, such as soup, halfway
through.
Other things to think about…
• Food items have different shapes and
qualities. They are prepared in different
quantities. Because of this, the
necessary time and power for
defrosting, heating or cooking can
vary. As a rough guide: double the
quantity - almost double the time.
• The microwave creates the heat
directly in the food. Because of this, all
places cannot be heated at the same
time. You must stir or turn the heated
dishes, especially when preparing
larger quantities of food.
• The standing time is given in the
tables. Let the food stand, in the
www.electrolux.com14
Page 15
appliance or outside it, so that the heat
is distributed more evenly.
• Adjust the power level according to
food quantity. Using high power level
with small amount of food can burn the
food or generate arcing when you use
the accessories.
• You get better results for rice if you use
flat, wide dishes.
7.4 Microwave functions
Functions Description
Microwave Creates the heat directly in the food. Use it to heat pre-prepared
meals and drinks, to defrost meat or fruit, and to cook vegetables
and fish.
Combi Use it to operate the heating function and the microwave mode to-
gether. Use it to cook food in a shorter time and brown it simultaneously.
Quick Start Use it to activate the Microwave function with one touch of the
symbol with the maximum microwave power. Operating time:
30 seconds.
7.5 Setting the Microwave
function
1. Activate the appliance.
2. Touch to activate the Microwave
function.
3. Touch
. The function: Duration is set
to 30 seconds and the microwaves
starts to operate.
Each touch of adds 30
seconds to the time of the
function: Duration.
If you do not touch , the
appliance deactivates after
20 seconds.
4. Touch to set the function:
Duration. Refer to "Setting the clock
functions".
When the time of the
function: Duration is longer
than 7 minutes the
Microwave power is
decreased to 600 W.
The maximum setting of the
time for the function: Duration
is 90 minutes.
You can change the
microwave power (touch
and then or ) and the
function: Duration any
time when the Microwave
function operates.
5. When the set time ends, an acoustic
signal sounds for 2 minutes. The
Microwave function deactivates
automatically. Touch any symbol to
stop the acoustic signal.
To deactivate the Microwave
function, touch .
If you touch or open the
door, the function stops. To
start it again, touch .
7.6 Setting the Combi function
1. Activate a heating function. Refer to
"Activating a heating function".
2. Touch and do the same steps as
when you set the Microwave function.
For some functions the
microwave will start as soon
as the set temperature is
reached.
ENGLISH
15
Page 16
Functions not available for the Combi
function: Favourite Programme, End Time,
Heat + Hold.
7.7 Setting the Quick Start
function
1. If necessary, touch to deactivate
the appliance.
2. Touch
to activate the Quick Start
function.
Each touch of adds 30 seconds to the
Duration time.
You can change the
microwave power (refer to
"Setting the Microwave
function").
3. Touch to set the time for the
function: Duration. Refer to "Setting
the clock functions".
7.8 Examples of cooking
applications for power settings
The data in the table is for guidance only.
Power setting Use
• 1000 Watt
• 900 Watt
• 800 Watt
• 700 Watt
Heating liquids
Searing at the start of the cooking process
Cooking vegetables
Melting gelatine and butter
• 600 Watt
• 500 Watt
Defrosting and heating frozen meals
Heating one-plate meals
Simmering stews
Cooking egg dishes
• 400 Watt
• 300 Watt
• 200 Watt
Continuing to cook meals
Cooking delicate food
Heating baby food
Simmering rice
Heating delicate food
Melting cheese
• 100 Watt Defrosting meat, fish, bread
Defrosting cheese, cream, butter
Defrosting fruit and cakes (gateaux)
Raising yeast dough
Heating up cold dishes and drinks
8. CLOCK FUNCTIONS
8.1 Clock functions table
Clock function Application
Minute Minder To set a countdown (max. 2 h 30 min). This
function has no effect on the operation of
the appliance. You can also activate it when
the appliance is deactivated.
Use to activate the function. Press
or to set the minutes and to start.
www.electrolux.com16
Page 17
Clock function Application
Duration To set the length of an operation (max. 23 h
59 min).
End Time To set the switch-off time for a heating
function (max. 23 h 59 min).
If you set the time for a clock function, the
time starts to count down after 5 seconds.
If you use the clock functions:
Duration, End Time, the
appliance deactivates the
heating elements after 90 %
of the set time. The appliance
uses the residual heat to
continue the cooking process
until the time ends (3 - 20
minutes).
8.2 Setting the clock functions
Before you use the functions:
Duration, End Time, you must
set a heating function and
temperature first. The
appliance deactivates
automatically.
You can use the functions:
Duration and End Time at the
same time if you want to
automatically activate and
deactivate the appliance on a
given time later.
1. Set a heating function.
2. Press again and again until the
display shows the necessary clock
function and the related symbol.
3. Press or to set the necessary
time.
4. Press to confirm.
When the time ends, an acoustic signal
sounds. The appliance deactivates. The
display shows a message.
5. Press any symbol to stop the signal.
8.3 Heat + Hold
Conditions for the function:
• The set temperature is more than 80
°C.
• The function: Duration is set.
The function: Heat + Hold keeps prepared
food warm at 80 °C for 30 minutes. It
activates after the baking or roasting
procedure ends.
You can activate or deactivate the function
in the menu: Basic Settings.
1. Activate the appliance.
2. Select the heating function.
3. Set the temperature above 80 °C.
4. Press
again and again until the
display shows: Heat + Hold.
5. Press
to confirm.
When the function ends, an acoustic
signal sounds.
The function stays on if you change the
heating functions.
8.4 Extra Time
The function: Extra Time makes the
heating function continue after the end of
Duration.
Applicable to all heating
functions with Duration or
Weight Automatic.
1. When the cooking time ends, an
acoustic signal sounds. Press any
symbol.
The display shows the message.
2. Press to activate or to cancel.
3. Set the length of the function.
4. Press
.
ENGLISH
17
Page 18
9. AUTOMATIC PROGRAMMES
WARNING!
Refer to Safety chapters.
9.1 Recipes online
You can find the recipes for
the automatic programmes
specified for this appliance on
our website. To find the
proper Recipe Book check
the PNC number on the
rating plate on the front frame
of the appliance cavity.
9.2 Assisted Cooking with
Recipe Automatic
This appliance has a set of recipes you
can use. The recipes are fixed and you
cannot change them.
1. Activate the appliance.
2. Select the menu: Assisted Cooking.
Press to confirm.
3. Select the category and dish. Press
to confirm.
4. Select a recipe. Press to confirm.
When you use the function:
Manual, the appliance uses
the automatic settings. You
can change them as with
other functions.
10. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
10.1 Inserting the accessories
Use only suitable cookware and material.
WARNING!
Refer to "Microwave mode"
chapter.

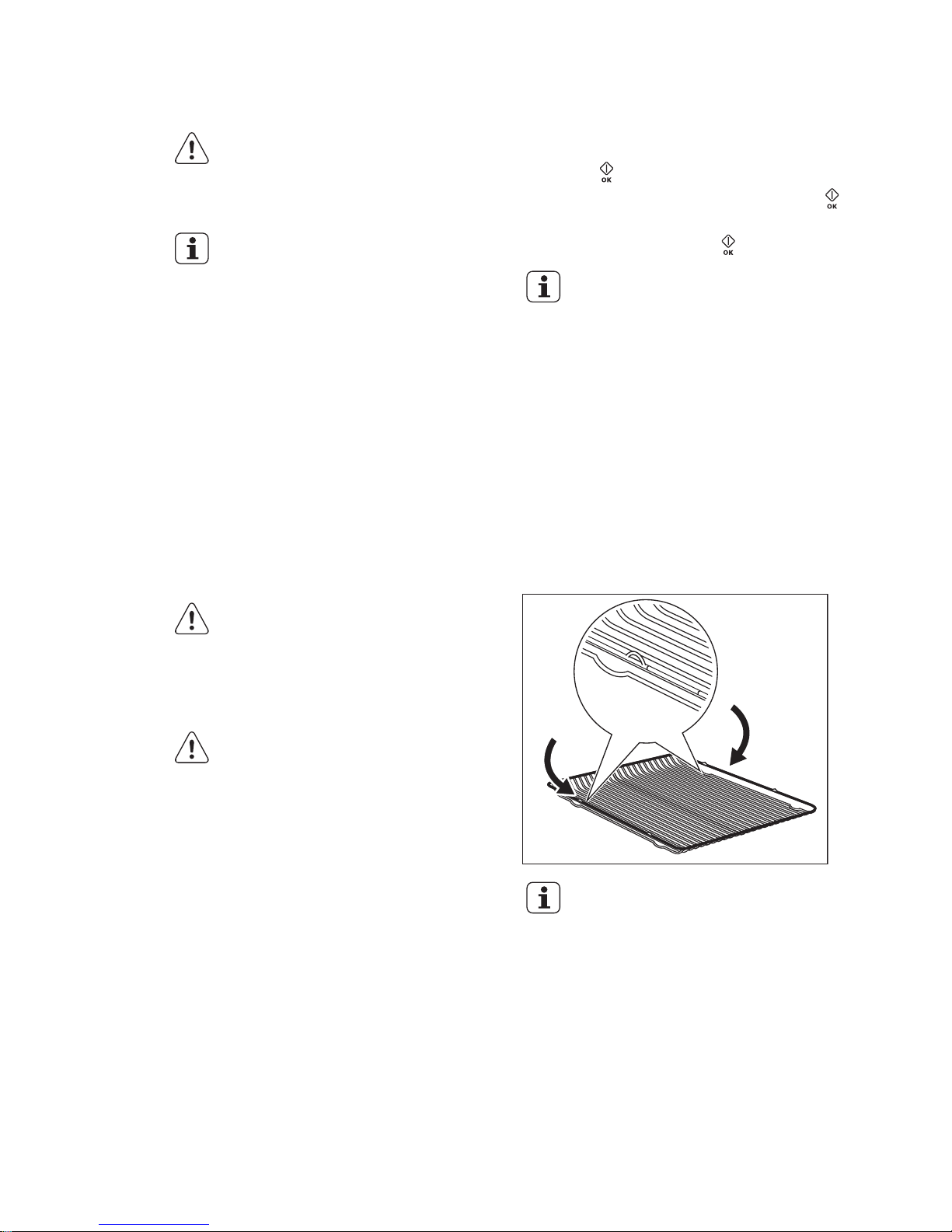

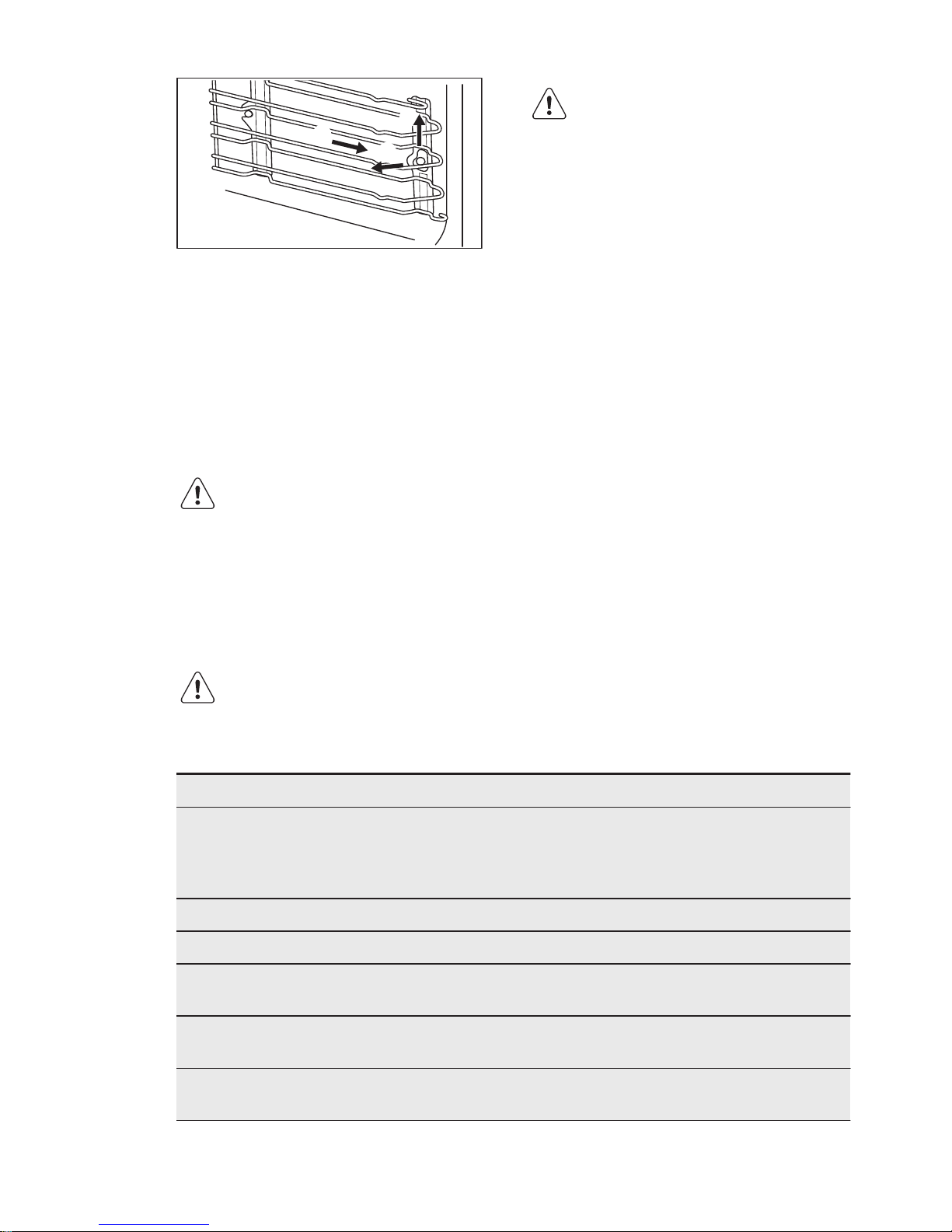

Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
All accessories have small
indentations at the top of the
right and left side to increase
safety. The indentations are
also anti-tip devices.
The high rim around the shelf
is a device which prevents
cookware from slipping.
www.electrolux.com18
Page 19
11. ADDITIONAL FUNCTIONS
11.1 Favourite Programme
You can save your favourite settings, such
as duration, temperature or heating
function. They are available in the menu:
Favourite Programme. You can save 20
programmes.
You cannot save Microwave
and microwave combi
functions as favourite
programmes.
Saving a programme
1. Activate the appliance.
2. Set a heating function or an automatic
programme.
3. Touch
again and again until the
display shows: SAVE.
4. Press
to confirm.
The display shows the first free memory
position.
5. Press to confirm.
6. Enter the name of the programme.
The first letter flashes.
7.
Touch
or to change the letter.
8. Press .
The next letter flashes.
9. Do step 7 again as necessary.
10. Press and hold to save.
You can overwrite a memory position.
When the display shows the first free
memory position, touch or and
press to overwrite an existing
programme.
You can change the name of a
programme in the menu: Edit Programme
Name.
Activating the programme
1. Activate the appliance.
2. Select the menu: Favourite
Programme.
3. Press to confirm.
4. Select your favourite programme
name.
5. Press to confirm.
11.2 Using the Child Lock
The Child Lock prevents an accidental
operation of the appliance.
1. Activate the appliance.
2. Touch and at the same time
until the display shows a message.
To deactivate the Child Lock function
repeat step 2.
11.3 Function Lock
This function prevents an accidental
change of the heating function. You can
activate it only when the appliance
operates.
1. Activate the appliance.
2. Set a heating function or setting.
3. Press
again and again until the
display shows: Function Lock.
4. Press to confirm.
To deactivate the function, press . The
display shows a message. Press again
and then to confirm.
When you deactivate the
appliance, the function also
deactivates.
11.4 Set + Go
The function lets you set a heating
function (or a programme) and use it later
with one press of any symbol.
1. Activate the appliance.
2. Set a heating function.
3. Press again and again until the
display shows: Duration.
4. Set the time.
5. Press again and again until the
display shows: Set + Go.
6. Press to confirm.
Press any symbol (except for ) to start
the function: Set + Go. The set heating
function starts.
When the heating function ends, an
acoustic signal sounds.
ENGLISH
19
Page 20
• Function Lock is on when
the heating function
operates.
• The menu: Basic Settings
lets you activate and
deactivate the function:
Set + Go.
11.5 Automatic Switch-off
For safety reasons the appliance
deactivates automatically after some time
if a heating function operates and you do
not change any settings.
Temperature (°C) Switch-off time
(h)
30 - 115 12.5
120 - 195 8.5
200 - 230 5.5
The Automatic switch-off
does not work with the
functions: Light, End Time,
Duration.
11.6 Brightness of the display
There are two modes of display
brightness:
• Night brightness - when the appliance
is deactivated, the brightness of the
display is lower between 10 PM and 6
AM.
• Day brightness:
– when the appliance is activated.
– if you touch a symbol during the
night brightness (apart from ON /
OFF), the display goes back to the
day brightness mode for the next
10 seconds.
– if the appliance is deactivated and
you set the function: Minute
Minder. When the function ends,
the display goes back to the night
brightness.
11.7 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
12. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
12.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a
dedicated cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire.
• Clean the cavity roof carefully from
food residuals and fat.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
• Dry the oven when the cavity is wet
after usage.
12.2 Removing the shelf
supports
Before maintenance, make sure that the
appliance is cool. There is a risk of burns.
To clean the appliance, remove the shelf
supports.
1. Pull carefully the supports up and out
of the front catch.
www.electrolux.com20
Page 21
2
3
1
2. Pull the front end of the shelf support
away from the side wall.
3. Pull the supports out of the rear catch.
Install the shelf supports in the opposite
sequence.
12.3 Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp.
The lamp and the lamp glass
cover can be hot.
CAUTION!
Always hold the halogen lamp
with a cloth to prevent grease
residue from burning on the
lamp.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The top lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the lamp with a halogen, 230
V, 40 W, 300 °C heat resistant lamp.
4. Install the glass cover.
13. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
13.1 What to do if...
Problem Possible cause Remedy
You cannot activate or operate the oven.
The oven is not connected
to an electrical supply or it
is connected incorrectly.
Check if the oven is correctly connected to the electrical supply (refer to the connection diagram if available).
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up. The automatic switch-off is
activated.
Refer to "Automatic switchoff".
The oven does not heat up. The Child Lock is on. Refer to "Using the Child
Lock".
ENGLISH
21
Page 22
Problem Possible cause Remedy
The oven does not heat up. The door is not closed cor-
rectly.
Fully close the door.
The oven does not heat up. The fuse is blown. Make sure that the fuse is
the cause of the malfunction. If the fuse is blown
again and again, contact a
qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
The display shows an error
code that is not in this table.
There is an electrical fault. • Deactivate the oven with
the house fuse or the
safety switch in the fuse
box and activate it again.
• If the display shows the
error code again, contact the Customer Care
Department.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the cook-
ing process ends.
13.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
14. INSTALLATION
WARNING!
Refer to Safety chapters.
14.1 Lifting the appliance
To lift the appliance, do not use the door
handle.
www.electrolux.com22
Page 23
min.
3 mm
14.2 Building in
During installation in
combustible matter, NIN SEV
1000 and fire protection
guidelines and regulations of
the Association of Cantonal
Fire Insurance shall be strictly
adhered to.
ENGLISH
23

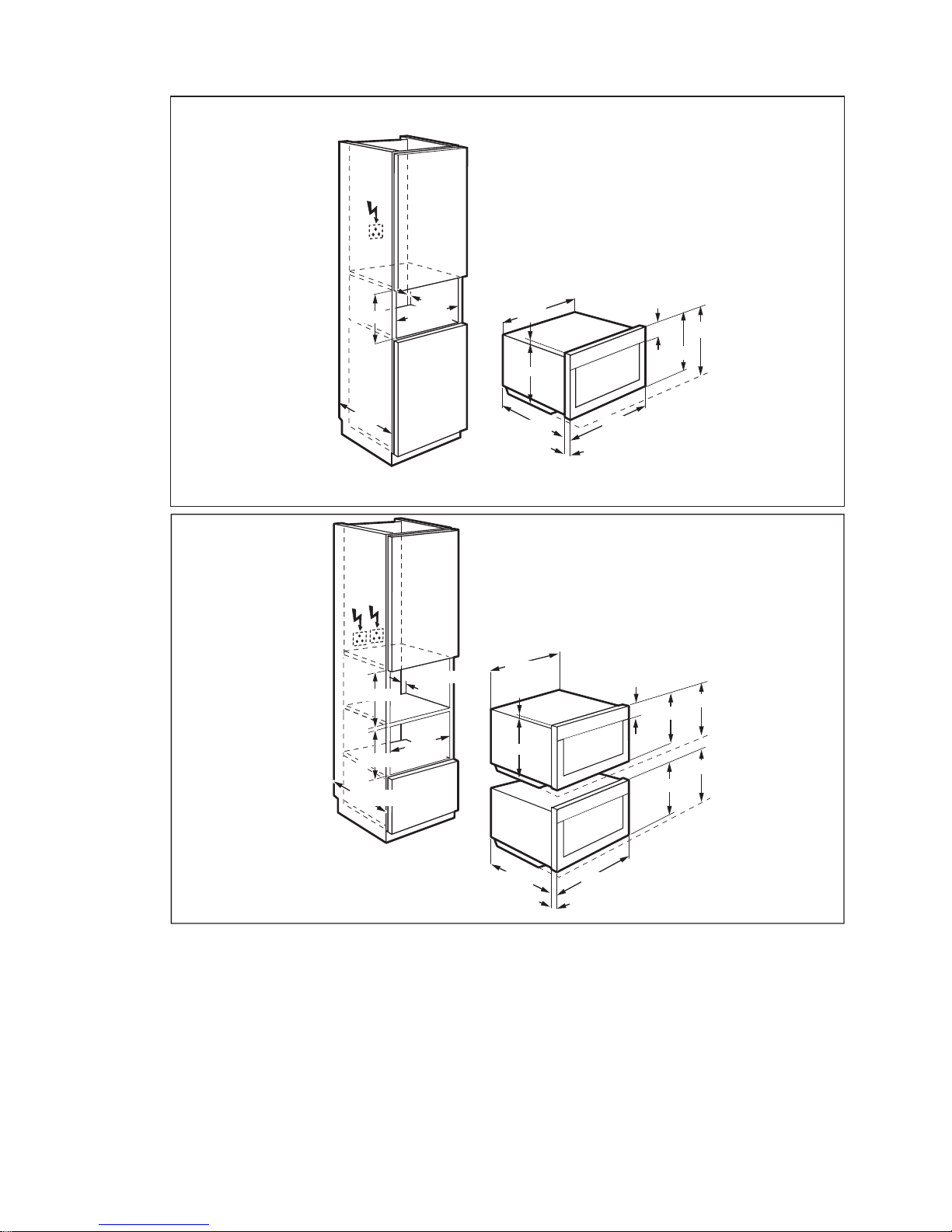

Page 24
440mm
548mm
546mm
594mm
455mm
21mm
450mm
min.
550mm
min.
20mm
min.
560mm
15mm
114
mm
450mm
440mm
546mm
594mm
455mm
450mm
455mm
450mm
450mm
548mm
min.
550mm
450mm
min.
560mm
21mm
114
mm
15mm
min. 20mm
www.electrolux.com24

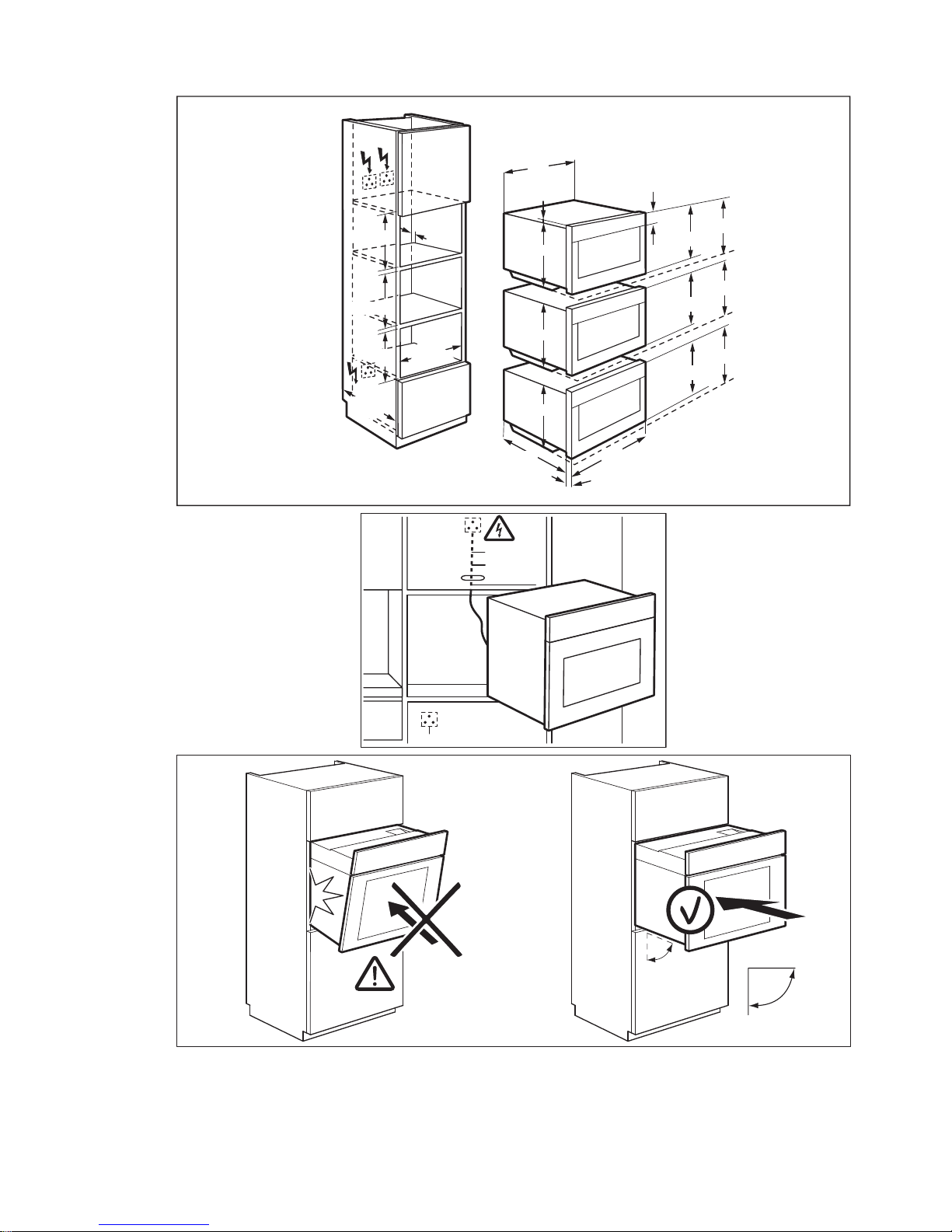

Page 25
440mm
450mm
450mm
450mm
455mm
450mm
450mm
450mm
455mm
455mm
546mm
594mm
548mm
21mm
min.
550mm
min.
560mm
min.
20mm
114
mm
15mm
440 mm
440mm
alternativ
H05VV-F
H05RR-F
min.1,60 m
90°
ENGLISH
25
Page 26
13mm
20
mm
2x3,5x25
14.3 Electrical connection
WARNING!
If service is required always
disconnect the appliance
from the power supply.
Use a power cable of H05VV-F or higher.
Install the appliance with a socket supply
line. If there is no socket supply line, the
fixed home electrical system must include
an isolating device with at least a 3 mmcontact separation to enable a
simultaneous and all-pole cut off from the
mains (according to NIN SEV 1000). The
customer must have a socket for the
electrical connection that is accessible
and outside the coordination room. The
length of the connection cable must be
approximately 120 cm with lines
connected directly to the mains.
Only a qualified person can
connect the appliance to the
electricity supply.

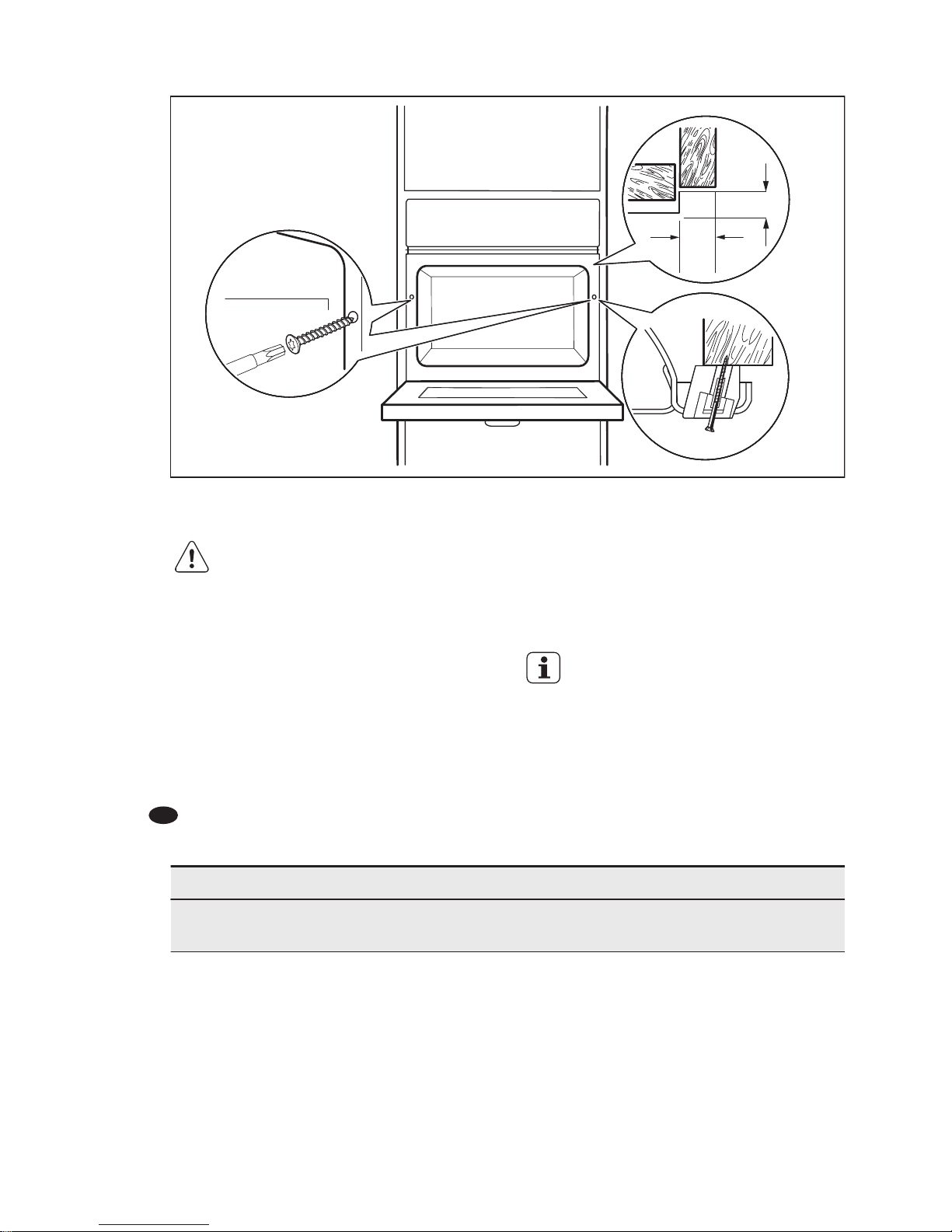

1. Do the electrical connections as in the
connection illustration.
2.
Secure the cable grip.
15. CH GUARANTEE
Customer Service Centres
Point of Service
Industriestrasse 10
5506 Mägenwil
Le Trési 6
1028 Préverenges
Via Violino 11
6928 Manno
www.electrolux.com26
Page 27
Point of Service
Morgenstrasse 131
3018 Bern
Zürcherstrasse 204E
9000 St. Gallen
Seetalstrasse 11
6020 Emmenbrücke
St. Jakob-Turm Birsstrasse 320B
4052 Basel
Comercialstrasse 19
7000 Chur
Spare parts service Industriestrasse 10,
5506 Mägenwil, Tel. 0848 848 111
Specialist advice/Sale Badenerstrasse
587, 8048 Zürich, Tel. 044 405 81 11
Warranty For each product we provide a
two-year guarantee from the date of
purchase or delivery to the consumer (with
a guarantee certificate, invoice or sales
receipt serving as proof). The guarantee
covers the costs of materials, labour and
travel. The guarantee will lapse if the
operating instructions and conditions of
use are not adhered to, if the product is
incorrectly installed, or in the event of
damage caused by external influences,
force majeure, intervention by third parties
or the use of non-genuine components.
16. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
For Switzerland:
Where should you take your
old equipment?
Anywhere that sells new
equipment or hand it in to
official SENS collection points
or official SENS recycling
firms.
The list of official SENS
collection points can be
found at www.erecycling.ch
*
ENGLISH
27
Page 28
www.electrolux.com/shop
