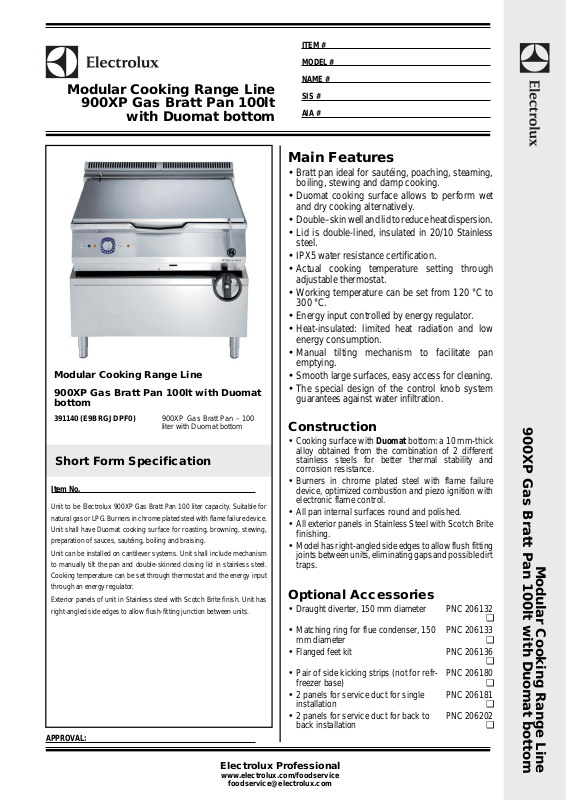

Electrolux E9BRGJDPF0 User Manual
Modular Cooking Range Line
900XP Gas Bratt Pan 100lt
with Duomat bottom
Modular Cooking Range Line
900XP Gas Bratt Pan 100lt with Duomat
bottom
391140 (E9BRGJDPF0)900XP Gas Bratt Pan – 100
Short Form Specification
Item No.
Unit to be Electrolux 900XP Gas Bratt Pan 100 liter capacity. Suitable for
natural gas or LPG. Burners in chrome plated steel with flame failure device.
Unit shall have Duomat cooking surface for roasting, browning, stewing,
preparation of sauces, sautéing, boiling and braising.
Unit can be installed on cantilever systems. Unit shall include mechanism
to manually tilt the pan and double-skinned closing lid in stainless steel.
Cooking temperature can be set through thermostat and the energy input
through an energy regulator.
Exterior panels of unit in Stainless steel with Scotch Brite finish. Unit has
right-angled side edges to allow flush-fitting junction between units.
APPROVAL:
liter with Duomat bottom
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Bratt pan ideal for sautéing, poaching, steaming,
boiling, stewing and damp cooking.
•Duomat cooking surface allows to perform wet
and dry cooking alternatively.
•Double–skin well and lid to reduce heat dispersion.
•Lid is double-lined, insulated in 20/10 Stainless
steel.
•IPX5 water resistance certification.
•Actual cooking temperature setting through
adjustable thermostat.
•Working temperature can be set from 120 °C to
300 °C.
•Energy input controlled by energy regulator.
•Heat-insulated: limited heat radiation and low
energy consumption.
•Manual tilting mechanism to facilitate pan
emptying.
•Smooth large surfaces, easy access for cleaning.
•The special design of the control knob system
guarantees against water infiltration.
Construction
•Cooking surface with Duomat bottom: a 10 mm-thick
alloy obtained from the combination of 2 different
stainless steels for better thermal stability and
corrosion resistance.
•Burners in chrome plated steel with flame failure
device, optimized combustion and piezo ignition with
electronic flame control.
•All pan internal surfaces round and polished.
•All exterior panels in Stainless Steel with Scotch Brite
finishing.
•Model has right-angled side edges to allow flush fitting
joints between units, eliminating gaps and possible dirt
traps.
Optional Accessories
•Draught diverter, 150 mm diameterPNC 206132
•Matching ring for flue condenser, 150
mm diameter
•Flanged feet kitPNC 206136
•Pair of side kicking strips (not for refr-
freezer base)
•2 panels for service duct for single
installation
•2 panels for service duct for back to
back installation
PNC 206133
PNC 206180
PNC 206181
PNC 206202
900XP Gas Bratt Pan 100lt with Duomat bottom
Modular Cooking Range Line
❑
❑
❑
❑
❑
❑
Electrolux Professional
www.electrolux.com/foodservice
foodservice@electrolux.com
•Pressure regulator for gas unitsPNC 927225 ❑
Modular Cooking Range Line
900XP Gas Bratt Pan 100lt
with Duomat bottom
900XP Gas Bratt Pan 100lt with Duomat bottom
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Modular Cooking Range Line
2012.09.28
