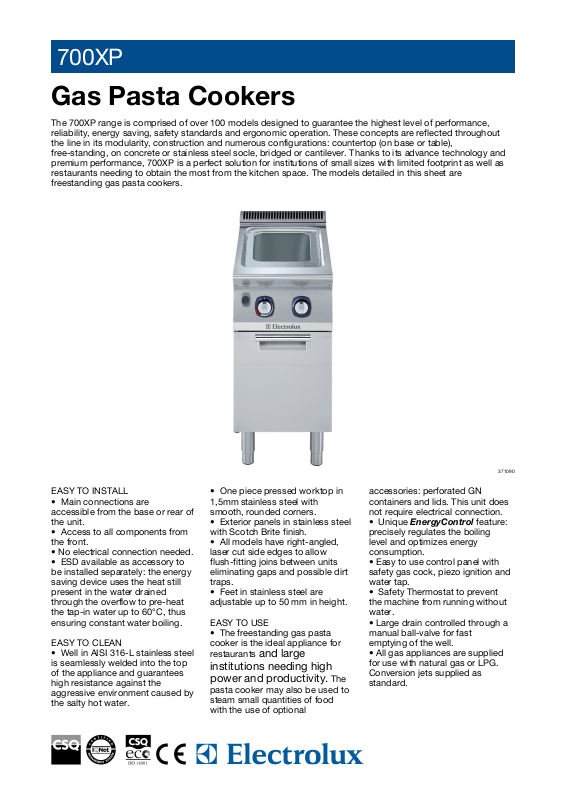

Page 1
700XP
Gas Pasta Cookers
The 700XP range is comprised of over 100 models designed to guarantee the highest level of performance,
reliability, energy saving, safety standards and ergonomic operation. These concepts are reflected throughout
the line in its modularity, construction and numerous configurations: countertop (on base or table),
free-standing, on concrete or stainless steel socle, bridged or cantilever. Thanks to its advance technology and
premium performance, 700XP is a perfect solution for institutions of small sizes with limited footprint as well as
restaurants needing to obtain the most from the kitchen space. The models detailed in this sheet are
freestanding gas pasta cookers.
EASY TO INSTALL
• Main connections are
accessible from the base or rear of
the unit.
• Access to all components from
the front.
• No electrical connection needed.
• ESD available as accessory to
be installed separately: the energy
saving device uses the heat still
present in the water drained
through the overflow to pre-heat
the tap-in water up to 60°C, thus
ensuring constant water boiling.
EASY TO CLEAN
• Well in AISI 316-L stainless steel
is seamlessly welded into the top
of the appliance and guarantees
high resistance against the
aggressive environment caused by
the salty hot water.
• One piece pressed worktop in
1,5mm stainless steel with
smooth, rounded corners.
• Exterior panels in stainless steel
with Scotch Brite finish.
• All models have right-angled,
laser cut side edges to allow
flush-fitting joins between units
eliminating gaps and possible dirt
traps.
• Feet in stainless steel are
adjustable up to 50 mm in height.
EASY TO USE
• The freestanding gas pasta
cooker is the ideal appliance for
restaurants and large
institutions needing high
power and productivity. The
pasta cooker may also be used to
steam small quantities of food
with the use of optional
371090
accessories: perforated GN
containers and lids. This unit does
not require electrical connection.
• Unique EnergyControl feature:
precisely regulates the boiling
level and optimizes energy
consumption.
• Easy to use control panel with
safety gas cock, piezo ignition and
water tap.
• Safety Thermostat to prevent
the machine from running without
water.
• Large drain controlled through a
manual ball-valve for fast
emptying of the well.
• All gas appliances are supplied
for use with natural gas or LPG.
Conversion jets supplied as
standard.
Page 2
700XP
Gas Pasta Cookers
• The overflow guarantees the
skimming of the foam and
starches through the continuous
water filling which is regulated
through the manual water tap.
• Optional accessory: automatic
lifting system allowing to transform
a regular gas or electric pasta
cooker into one with automatic
basket lifting. The electronic
programmability and automatic
lifting of the baskets make this unit
a must for any kitchen wanting to
standardize their cooking
procedures. Possibility to
memorize nine cooking times
through digital control. Automatic
basket lifting through push button
function. Two stainless steel
basket supports, each capable of
holding one 170x220mm basket.
The unit may either be placed
individually on either side of the
pasta cooker, or two units may be
installed (one on each side of the
pasta cooker) to provide lifting for
four single portion baskets
(optional baskets to be ordered
separately).
EASY TO MAINTAIN
• IPX4 water protection.
• The special design of the
control knobs and bezels
guarantees against water
infiltration.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
*In accordance with H regulations for
gas models belonging to Class B11
(power over 14 kW), it is necessary to
install a chimney (if installed under a
hood) or chimney and draft diverter if the
waste gases are vented directly outside.
E7PCGD1KF0
371090
TECHNICAL DATA
Power supply Gas Gas
External dimensions - mm
width 400 800
depth 730 730
height 850 850
height adjustment 50 50
N° of wells 1 2
Usable well dimensions - mm
width 250 250
depth 400 400
height 300 300
Thermocople safety valve ● ●
Temperature limiter ● ●
Maximum Well Capacity -lt 18, 24.5 18, 24.5
Power - kW
gas 11.5 23
Net weight - kg. 50 50
E7PCGH2KF0
371091
CHGA0102011-11-11Subject to change without notice
Internet: http://www.electrolux.com/foodservice
Page 3
700XP
Gas Pasta Cookers
E7PCGD1KF0
371090
E7PCGH2KF0
371091
INCLUDED ACCESSORIES
DOOR FOR OPEN BASE CUPBOARD-ELUX 1 2
ACCESSORIES
2 BASKETS 105X350 FOR PASTA COOKERS 921619 921619
2 BASKETS 170X220 FOR PASTA COOKERS 921610 921610
2 SIDE COVERING PANELS H=700 D=700-ELUX 216000 216000
2 SIDE KICKING STRIPS - 700 LINE 206249 206249
2 SIDE KICKING STRIPS-CONCRETE INST-700 206265 206265
4 BASKETS 105X160 FOR PASTA COOKERS 921618 921618
4 FEET FOR CONCRETE INSTALLATION 206210 206210
4 WHEELS (2 WITH BRAKE) 206188
AUTO.LIFTING(200MM)PASTA COOKER 700 ELUX 206352 206352
BASKET 350X220 FOR PASTA COOKERS 921611 921611
CHIMNEY COVER 400MM OPEN 206284
CHIMNEY UPSTAND 400MM 206303
CHIMNEY UPSTAND 800MM 206304
DOOR FOR OPEN BASE CUPBOARD-ELUX 206350 206350
DRAUGHT DIVERTER WITH 120 MM DIAMETER 206126
DRAUGHT DIVERTER WITH 150 MM DIAMETER 206132
ENERGY SAVING DEVICE-PASTA COOK. 700/900 206344 206344
FLANGED FEET KIT 206136 206136
FLUE CONDENSER FOR 1 MODULE DIAM.150MM 206246
FLUE CONDENSER FOR 1/2 MOD. DIAM.120MM 206310
FRONT.KICK.STRIP F.CONCRETE INST.1000 MM 206150 206150
FRONT.KICK.STRIP F.CONCRETE INST.1200 MM 206151 206151
FRONT.KICK.STRIP F.CONCRETE INST.1600 MM 206152 206152
FRONT.KICK.STRIP F.CONCRETE INST.200 MM 206146 206146
FRONT.KICK.STRIP F.CONCRETE INST.400 MM 206147 206147
FRONT.KICK.STRIP F.CONCRETE INST.800 MM 206148 206148
FRONTAL HANDRAIL 1200 MM 216049 216049
FRONTAL HANDRAIL 1600 MM 216050 216050
FRONTAL HANDRAIL 400 MM 216046
FRONTAL HANDRAIL 800 MM 216047 216047
FRONTAL KICKING STRIP 1000 MM 206177 206177
FRONTAL KICKING STRIP 1200 MM 206178 206178
FRONTAL KICKING STRIP 1600 MM 206179 206179
FRONTAL KICKING STRIP 200 MM 206174 206174
FRONTAL KICKING STRIP 400 MM 206175 206175
FRONTAL KICKING STRIP 800 MM 206176 206176
LARGE HANDRAIL(PORTIONING SHELF)400 MM 216185 216185
LARGE HANDRAIL(PORTIONING SHELF)800 MM 216186 216186
LID FOR PASTA COOKERS 921607 921607
MATCHING RING FOR FLUE CONDENSER 150DIAM 206133
MATCHING RING-FLUE CONDENSER 120-130DIAM 206127
PRESSURE REGULATOR FOR GAS UNITS 927225 927225
SIDE HANDRAIL-RIGHT/LEFT HAND-700 LINE 206307 206307
SUPPORT FOR 4 PASTA COOKER BASKETS 921606 921606
WATER COLUMN EXTENSION FOR 700 LINE 206291 206291
WATER COLUMN WITH SWIVEL ARM 206289 206289
CHGA0102011-11-11Subject to change without notice
Internet: http://www.electrolux.com/foodservice
Page 4
371090
700XP
Gas Pasta Cookers

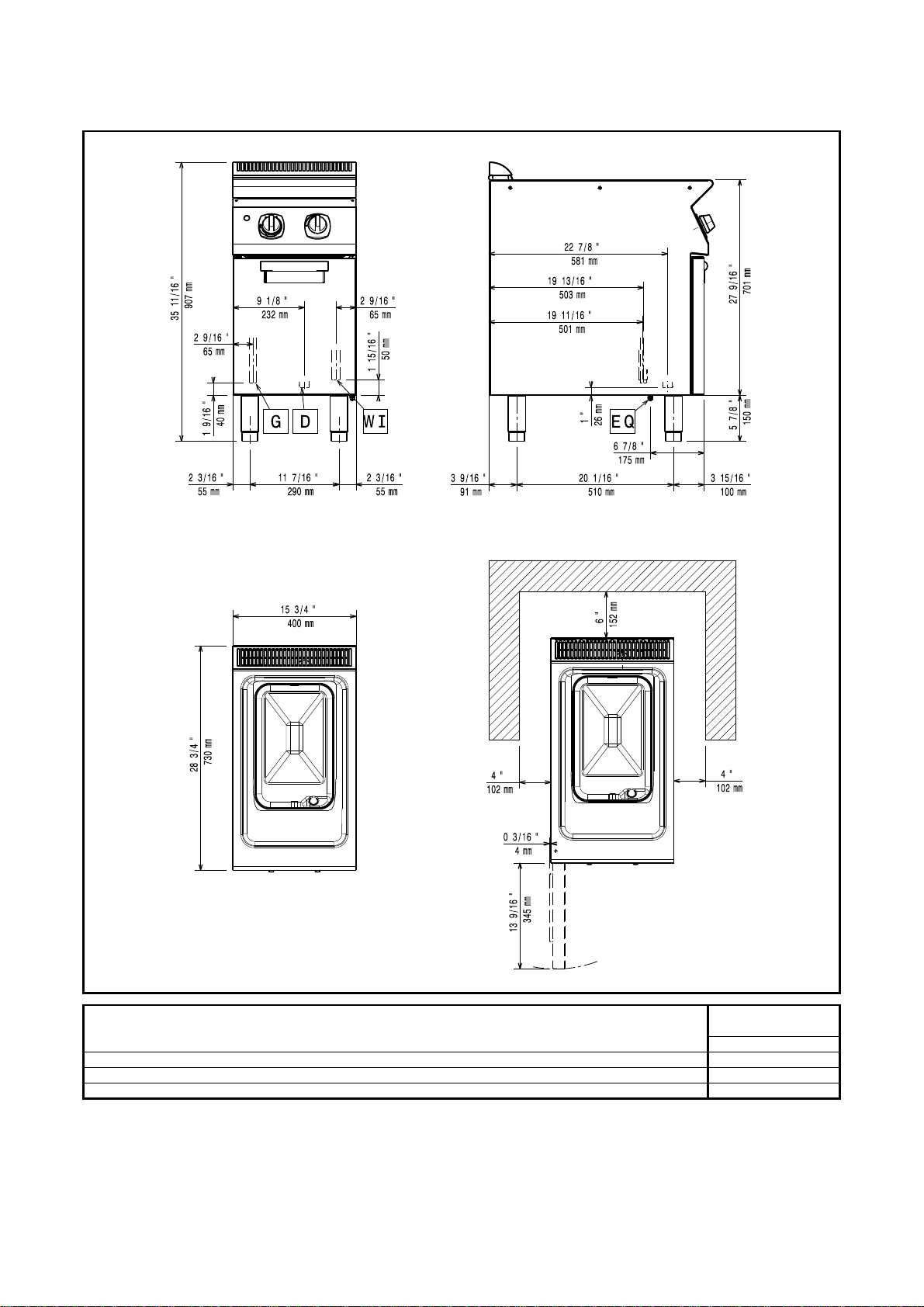

E7PCGD1KF0
371090
LEGEND
CWI - Cold water inlet 1/2"
D - Water drain 1"
G - Gas connection 1/2"
CHGA0102011-11-11Subject to change without notice
Internet: http://www.electrolux.com/foodservice
Page 5
371091
700XP
Gas Pasta Cookers

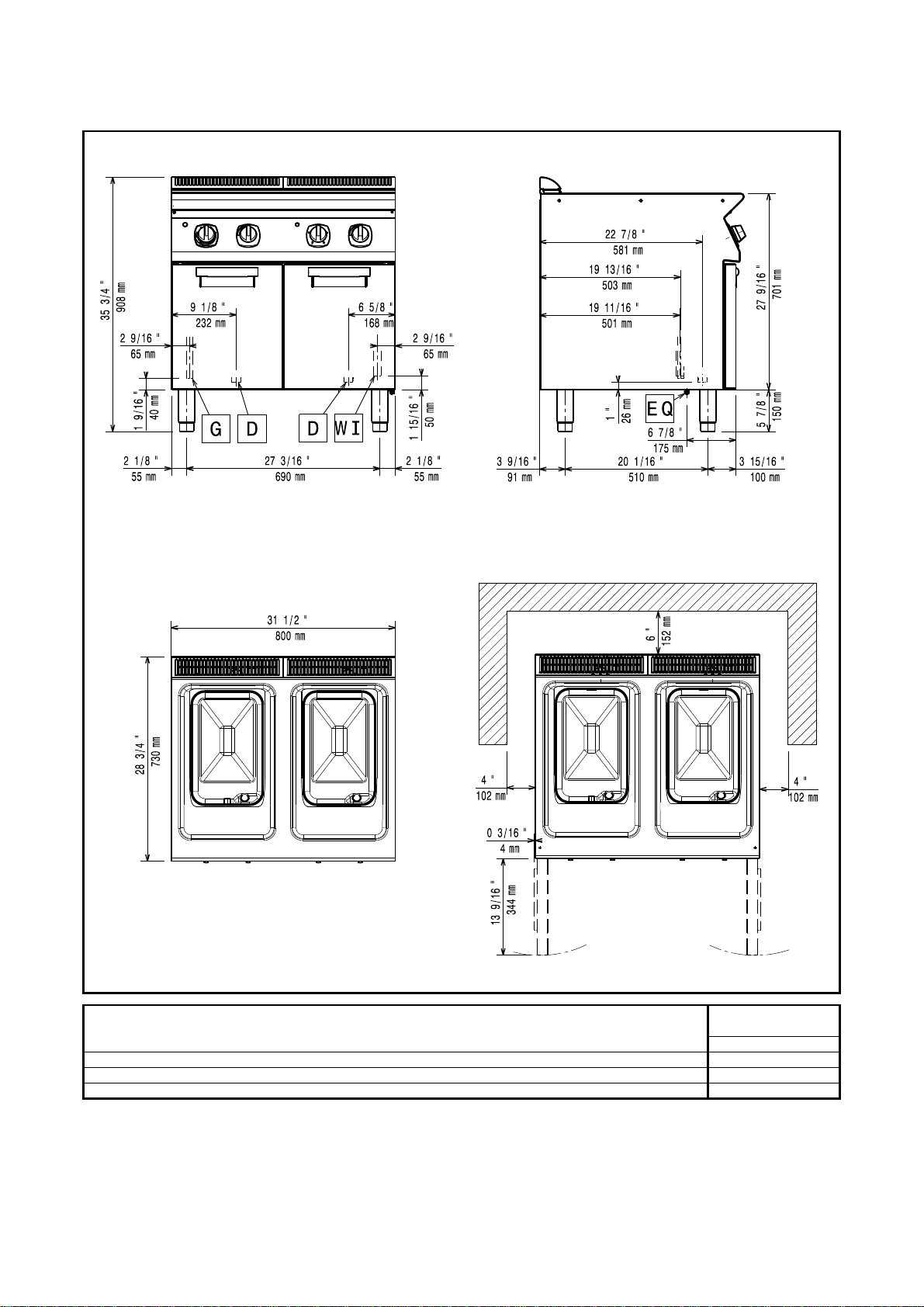

E7PCGH2KF0
371091
LEGEND
CWI - Cold water inlet 1/2"
D - Water drain 1"
G - Gas connection 1/2"
CHGA0102011-11-11Subject to change without notice
Internet: http://www.electrolux.com/foodservice
