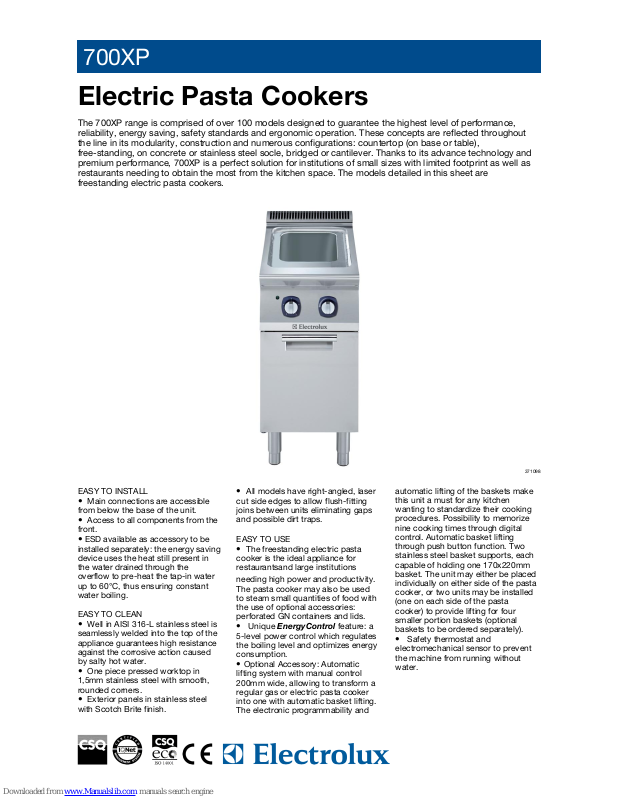

700XP
Electric Pasta Cookers
The 700XP range is comprised of over 100 models designed to guarantee the highest level of performance,
reliability, energy saving, safety standards and ergonomic operation. These concepts are reflected throughout
the line in its modularity, construction and numerous configurations: countertop (on base or table),
free-standing, on concrete or stainless steel socle, bridged or cantilever. Thanks to its advance technology and
premium performance, 700XP is a perfect solution for institutions of small sizes with limited footprint as well as
restaurants needing to obtain the most from the kitchen space. The models detailed in this sheet are
freestanding electric pasta cookers.
371098
EASY TO INSTALL
• Main connections are accessible
from below the base of the unit.
• Access to all components from the
front.
• ESD available as accessory to be
installed separately: the energy saving
device uses the heat still present in
the water drained through the
overflow to pre-heat the tap-in water
up to 60°C, thus ensuring constant
water boiling.
EASY TO CLEAN
• Well in AISI 316-L stainless steel is
seamlessly welded into the top of the
appliance guarantees high resistance
against the corrosive action caused
by salty hot water.
• One piece pressed worktop in
1,5mm stainless steel with smooth,
rounded corners.
• Exterior panels in stainless steel
with Scotch Brite finish.
• All models have right-angled, laser
cut side edges to allow flush-fitting
joins between units eliminating gaps
and possible dirt traps.
EASY TO USE
• The freestanding electric pasta
cooker is the ideal appliance for
restaurantsand large institutions
needing high power and productivity.
The pasta cooker may also be used
to steam small quantities of food with
the use of optional accessories:
perforated GN containers and lids.
• Unique EnergyControl feature: a
5-level power control which regulates
the boiling level and optimizes energy
consumption.
• Optional Accessory: Automatic
lifting system with manual control
200mm wide, allowing to transform a
regular gas or electric pasta cooker
into one with automatic basket lifting.
The electronic programmability and
automatic lifting of the baskets make
this unit a must for any kitchen
wanting to standardize their cooking
procedures. Possibility to memorize
nine cooking times through digital
control. Automatic basket lifting
through push button function. Two
stainless steel basket supports, each
capable of holding one 170x220mm
basket. The unit may either be placed
individually on either side of the pasta
cooker, or two units may be installed
(one on each side of the pasta
cooker) to provide lifting for four
smaller portion baskets (optional
baskets to be ordered separately).
• Safety thermostat and
electromechanical sensor to prevent
the machine from running without
water.
Page 2
700XP
Electric Pasta Cookers
Internet: http://www.electrolux.com/foodservice
CHGB0102011-11-11Subject to change without notice
Supply voltage 400 V, 3N, 50/60 400 V, 3N, 50/60
Net weight - kg. 50 50
installed-electric 6 12
Power - kW
Maximum Well Capacity -lt 18, 24.5 18, 24.5
Temperature limiter ● ●
height 300 300
depth 400 400
width 250 250
Usable well dimensions - mm
N° of wells 1 2
height adjustment 50 50
height 850 850
depth 730 730
width 400 800
External dimensions - mm
Power supply Electric Electric
TECHNICAL DATA
E7PCED1KF0
371098
E7PCEH2KF0
371099
• Large drain controlled through a
manual ball-valve for fast
emptying of the well.
• Infrared heating system
positioned below the base of the
well to ensure high performances.
• The overflow guarantees the
skimming of the foam and
starches through the continuous
water filling which is regulated
through the manual water tap.
EASY TO MAINTAIN
• IPX4 water protection.
• The special design of the
control knobs and bezels
guarantees against water
infiltration.
• Feet in stainless steel are
adjustable up to 50mm in height.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
Page 3
700XP
Electric Pasta Cookers
Internet: http://www.electrolux.com/foodservice
CHGB0102011-11-11Subject to change without notice
WATER COLUMN WITH SWIVEL ARM 206289 206289
WATER COLUMN EXTENSION FOR 700 LINE 206291 206291
SUPPORT FOR 4 PASTA COOKER BASKETS 921606 921606
SIDE HANDRAIL-RIGHT/LEFT HAND-700 LINE 206307 206307
LID FOR PASTA COOKERS 921607 921607
LARGE HANDRAIL(PORTIONING SHELF)800 MM 216186 216186
LARGE HANDRAIL(PORTIONING SHELF)400 MM 216185 216185
FRONTAL KICKING STRIP 800 MM 206176 206176
FRONTAL KICKING STRIP 400 MM 206175 206175
FRONTAL KICKING STRIP 200 MM 206174 206174
FRONTAL KICKING STRIP 1600 MM 206179 206179
FRONTAL KICKING STRIP 1200 MM 206178 206178
FRONTAL KICKING STRIP 1000 MM 206177 206177
FRONTAL HANDRAIL 800 MM 216047 216047
FRONTAL HANDRAIL 400 MM 216046
FRONTAL HANDRAIL 1600 MM 216050 216050
FRONTAL HANDRAIL 1200 MM 216049 216049
FRONT.KICK.STRIP F.CONCRETE INST.800 MM 206148 206148
FRONT.KICK.STRIP F.CONCRETE INST.400 MM 206147 206147
FRONT.KICK.STRIP F.CONCRETE INST.200 MM 206146 206146
FRONT.KICK.STRIP F.CONCRETE INST.1600 MM 206152 206152
FRONT.KICK.STRIP F.CONCRETE INST.1200 MM 206151 206151
FRONT.KICK.STRIP F.CONCRETE INST.1000 MM 206150 206150
FLANGED FEET KIT 206136 206136
ENERGY SAVING DEVICE-PASTA COOK. 700/900 206344 206344
DOOR FOR OPEN BASE CUPBOARD-ELUX 206350 206350
CHIMNEY UPSTAND 800MM 206304
CHIMNEY UPSTAND 400MM 206303
CHIMNEY COVER 400MM OPEN 206284
BASKET 350X220 FOR PASTA COOKERS 921611 921611
AUTO.LIFTING(200MM)PASTA COOKER 700 ELUX 206352 206352
4 WHEELS (2 WITH BRAKE) 206188
4 FEET FOR CONCRETE INSTALLATION 206210 206210
4 BASKETS 105X160 FOR PASTA COOKERS 921618 921618
2 SIDE KICKING STRIPS-CONCRETE INST-700 206265 206265
2 SIDE KICKING STRIPS - 700 LINE 206249 206249
2 SIDE COVERING PANELS H=700 D=700-ELUX 216000 216000
2 BASKETS 170X220 FOR PASTA COOKERS 921610 921610
2 BASKETS 105X350 FOR PASTA COOKERS 921619 921619
ACCESSORIES
DOOR FOR OPEN BASE CUPBOARD-ELUX 1 2
INCLUDED ACCESSORIES
E7PCED1KF0
371098
E7PCEH2KF0
371099
Page 4
700XP
Electric Pasta Cookers
Internet: http://www.electrolux.com/foodservice
CHGB0102011-11-11Subject to change without notice
EI - Electrical connection 400 V, 3N, 50/60
D - Water drain 1"
CWI - Cold water inlet 1/2"
LEGEND
E7PCED1KF0
371098
371098
Page 5
700XP
Electric Pasta Cookers
Internet: http://www.electrolux.com/foodservice
CHGB0102011-11-11Subject to change without notice
EI - Electrical connection 400 V, 3N, 50/60
D - Water drain 1"
CWI - Cold water inlet 1/2"
LEGEND
E7PCEH2KF0
371099
371099
