Electrolux E48DF76EPS - 48"" Pro-Style Dual-Fuel Range, Icon E48DF76EPS Specification Sheet

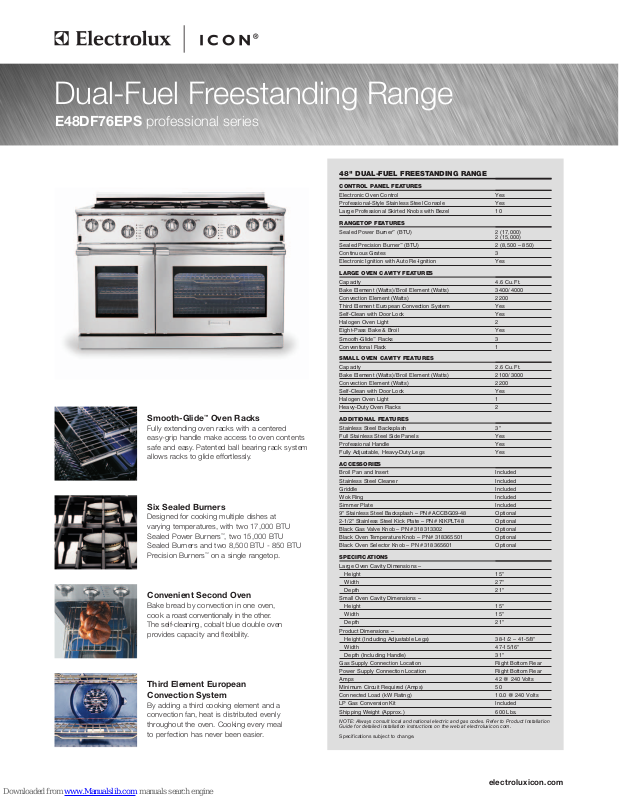

Page 1
48" DUAL-FUEL FREESTANDING RANGE
CONTROL PANEL FEATURES
Electronic Oven Control
Professional-Style Stainless Steel Console
Large Professional Skirted Knobs with Bezel
RANGETOP FEATURES
Sealed Power Burner
™
(BTU)
Sealed Precision Burner™(BTU)
Continuous Grates
Electronic Ignition with Auto Re-Ignition
LARGE OVEN CAVITY FEATURES
Capacity
Bake Element (Watts)/ Broil Element (Watts)
Convection Element (Watts)
Third Element European Convection System
Self-Clean with Door Lock
Halogen Oven Light
Eight-Pass Bake & Broil
Smooth-Glide™Racks
Conventional Rack
SMALL OVEN CAVITY FEATURES
Capacity
Bake Element (Watts)/ Broil Element (Watts)
Convection Element (Watts)
Self-Clean with Door Lock
Halogen Oven Light
Heavy-Duty Oven Racks
ADDITIONAL FEATURES
Stainless Steel Backsplash
Full Stainless Steel Side Panels
Professional Handle
Fully Adjustable, Heavy-Duty Legs
ACCESSORIES
Broil Pan and Insert
Stainless Steel Cleaner
Griddle
Wok Ring
Simmer Plate
9" Stainless Steel Backsplash – PN# ACCBG09-48
2-1/2" Stainless Steel Kick Plate – PN# KIKPLT48
Black Gas Valve Knob – PN# 318313302
Black Oven Temperature Knob – PN# 318365501
Black Oven Selector Knob – PN# 318365601
SPECIFICATIONS
Large Oven Cavity Dimensions –
Height
Width
Depth
Small Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height (Including Adjustable Legs)
Width
Depth (Including Handle)
Gas Supply Connection Location
Power Supply Connection Location
Amps
Minimum Circuit Required (Amps)
Connected Load (kW Rating)
LP Gas Conversion Kit
Shipping Weight (Approx.)
NOTE: Always consult local and national electric and gas codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
Yes
Yes
10
2 (17,000)
2 (15,000)
2 (8,500 – 850)
3
Yes
4.6 Cu.Ft.
3400/ 4000
2200
Yes
Yes
2
Yes
3
1
2.6 Cu.Ft.
2100/ 3000
2200
Yes
1
2
3"
Yes
Yes
Yes
Included
Included
Included
Included
Included
Optional
Optional
Optional
Optional
Optional
15"
27"
21"
15"
15"
21"
38-1/2 – 41-5/8"
47-15/16"
31"
Right Bottom Rear
Right Bottom Rear
42 @ 240 Volts
50
10.0 @ 240 Volts
Included
600 Lbs.
electroluxicon.com
Smooth-Glide™Oven Racks
Fully extending oven racks with a centered
easy-grip handle make access to oven contents
safe and easy. Patented ball bearing rack system
allows racks to glide effortlessly.
Six Sealed Burners
Designed for cooking multiple dishes at
varying temperatures, with two 17,000 BTU
Sealed Power Burners
™
, two 15,000 BTU
Sealed Burners and two 8,500 BTU - 850 BTU
Precision Burners
™
on a single rangetop.
Convenient Second Oven
Bake bread by convection in one oven,
cook a roast conventionally in the other.
The self-cleaning, cobalt blue double oven
provides capacity and flexibility.
Third Element European
Convection System
By adding a third cooking element and a
convection fan, heat is distributed evenly
throughout the oven. Cooking every meal
to perfection has never been easier.
Dual-Fuel Freestanding Range
E48DF76EPS professional series
Page 2
Dual-Fuel Freestanding Range
E48DF76EPS professional series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
E48DF76EPS 03/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
48" Dual-Fuel Freestanding Range Specifications
•
Product Weight – 540 Lbs.
•
Electrical Requirements – 240 Volts, 4-wire, 60 Hertz, 50-Amp
Dedicated Circuit
•
Connected Load (kW Rating) @ 240 Volts =10.0 kW
•
Amps @ 240 Volts = 42 Amps
•
Always consult local and national electric and gas codes.
•
Range ships with 3/4" factory regulator.
•
LP Gas conversion kit supplied.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of rangetop and bottom
of unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Allow10" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
•
Allow 24" minimum clearance when bottom of wood or metal
overhead cabinet is protected by not less than 1/8" flame-retardant
millboard covered with not less than No.28 MGS sheet steel, 0.015"
stainless steel, 0.024" aluminum or 0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install vent hood
that projects horizontally a recommended minimum of 5" beyond
bottom of cabinets.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
9" Stainless Steel Backsplash – (PN # ACCBG09-48).
•
2-1/2" Stainless Steel Kick Plate – (PN # KIKPLT48).
•
Black Gas Valve Knob – (PN # 318313302).
•
Black Oven Temperature Knob – (PN # 318365501).
•
Black Oven Selector Knob – (PN # 318365601).
48"min.
13 "
max.
25"
24"
12"
8"
10"min.
to nearest
combustible
wall (either
side of unit)
18"min.
48
1
/8"
Vertical
noncombustible
surface
Opening to route
power supply and
gas hookup
30"
min.
353/4"
min.
36"
stand.
Front
4715/16"
355/8"
Side
19/16"
3"
31"
295/16"
281/8"
Optional 9"
27/8"- 6"
adjustable legs
Standard 3"
backsplash
32
5
/8"
61/4"
Gas inlet/power
supply location
(right bottom rear)
