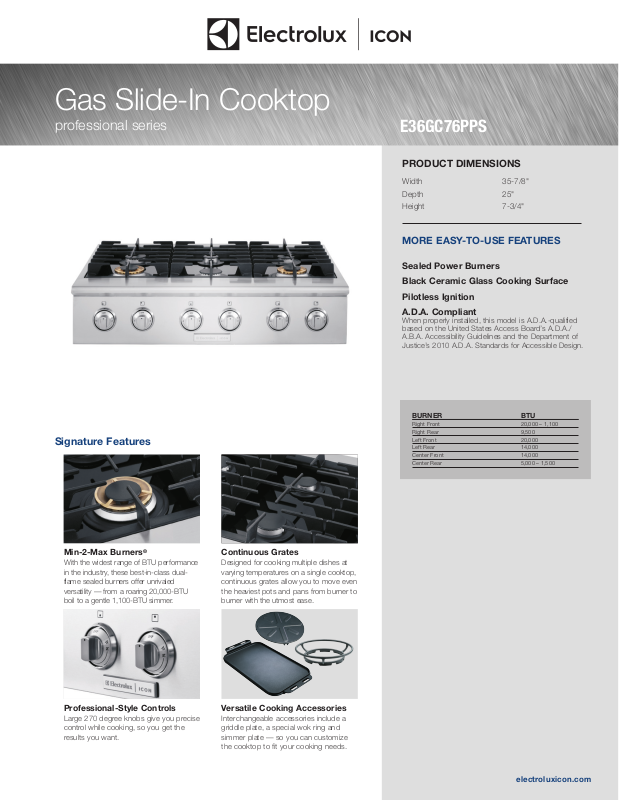

Gas Slide-In Cooktop
professional series
Signature Features
E36GC76PPS
PRODUCT DIMENSIONS
Width 35-7/8"
Depth 25"
Height 7-3/4"
MORE EASY-TO-USE FEATURES
Sealed Power Burners
Black Ceramic Glass Cooking Surface
Pilotless Ignition
A.D.A. Compliant
When properly installed, this model is A.D.A.-qualified
based on the United States Access Board’s A.D.A./
A.B.A. Accessibility Guidelines and the Department of
Justice’s 2010 A.D.A. Standards for Accessible Design.
BURNER
Right Front
Right Rear
Left Front
Left Rear
Center Front
Center Rear
BTU
20,000 – 1,100
9,500
20,000
14,000
14,000
5,000 – 1,500
Min-2-Max Burners
With the widest range of BTU performance
in the industry, these best-in-class dualflame sealed burners offer unrivaled
versatility — from a roaring 20,000-BTU
boil to a gentle 1,100-BTU simmer.
®
Professional-Style Controls
Large 270 degree knobs give you precise
control while cooking, so you get the
results you want.
Continuous Grates
Designed for cooking multiple dishes at
varying temperatures on a single cooktop,
continuous grates allow you to move even
the heaviest pots and pans from burner to
burner with the utmost ease.
Versatile Cooking Accessories
Interchangeable accessories include a
griddle plate, a special wok ring and
simmer plate — so you can customize
the cooktop to fit your cooking needs.
electroluxicon.com
Gas Slide-In Cooktop
E36GC76PPS professional series
36" GAS SLIDE-IN COOKTOP
Configuration
FEATURES
Formed Stainless Steel Platform
Professional-Style Controls
Min-2-Max Burners
Sealed Power Burner™ (BTU)
Sealed Burner (BTU)
Sealed Precision Burner™ (BTU)
Linear Flow Burner Valves
Electronic Pilotless Ignition
Continuous Grates
A.D.A. Compliant*
ACCESSORIES
Griddle
Wok Ring
Simmer Plate
LP Gas Conversion Kit
9" Stainless Steel Backguard – PN # 903048-9010
Depth Adjustment Filler Kit** – PN # 903051-9010
SPECIFICATIONS
Gas Inlet / Power Supply Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Electrical Cable
Approved for Single Oven Combination Installation***
Shipping Weight (Approx.)
* When properly installed, this model is A.D.A.-qualified based on the United States
Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s
2010 A.D.A. Standards for Accessible Design.
** When replacing an existing cooktop with countertop cutout deeper than 7-1/4"
and less than 8-1/2", order free Depth Adjustment Filler Kit.
*** Not approved to be used over any Electrolux ICON® Single Wall Oven.
‡
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric and gas codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
®
(BTU)
‡
6 Sealed Burners
Yes
Yes
2 (20,000 – 1,100)
2 (14,000)
1 (9,500)
1 (5,000 – 1,500)
Yes
Yes
3
Yes
Included
Included
Included
Included
Optional
Optional
Right Rear
120V / 60 Hz
0.12
Included
No
120 Lbs.
NOTE: Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation
instructions on the web at electroluxicon.com.
PRODUCT DIMENSIONS
Width
Depth
Height
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E36GC76PPS 06/15 © 2015 Electrolux Home Products, Inc.
35-7/8"
25"
7-3/4"
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Gas Slide-In Cooktop – E36GC76PSS
Gas Slide-In Cooktop
E36GC76PPS professional series
13"
max.
cabinet
depth
2"
35 7/8"
36" min.
25"
unprotected cabinet
18"
min.
30" min. for
24" min. with
protected
bottomsurface
Optional 9" stainless
steel backguard
(attaches to wall)
2" min. recommended distance between
rear edge of cutout and nearest combustible
surface above countertop
3"
2" dia.
opening to route
22"
power cable
35
15/16" * *
21/2"
2"
35
1/8"
11/8"
max.
24"
1" countertop
4" x 4" opening to
route gas supply
overhang
36" Gas Slide-In Cooktop Specifications
•
Product Weight – 115 Lbs.
•
Voltage Rating – 120V / 60 Hz
•
Connected Load (kW Rating) @ 120 Volts = 0.12 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 0.008 A
•
Always consult local and national electric and gas codes.
•
Cooktop ships with 3/4" factory regulator.
•
LP Gas conversion kit supplied.
•
Plan installation to have electrical connection, gas shutoff valve, and
pressure regulator accessible from front of cabinet. Locate 120V
grounded outlet in a 4"W x 5"H area on rear wall, 16" above floor,
aligned center with cooktop.
•
Cabinet and/or countertop must completely enclose recessed portion
of cooktop. Respect cutout dimensions and clearances and ensure that
all contact surfaces are solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of cooktop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No.28 MSG sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
•
Allow 2" minimum clearance between rear edge of cooktop and nearest
combustible surface above countertop. If required clearance can not be
maintained, then optional stainless steel backguard or noncombustible
backguard material must be used — otherwise installation will require
custom cabinet and countertop dimensions.
•
Allow 9" minimum clearance from edge of cooktop to nearest combustible
wall on either side of unit.
•
It is recommended that drawers not be used beneath cooktop.
•
To reduce risk of fire when using overhead cabinetry, install vent hood
that projects horizontally a recommended minimum of 7" beyond bottom
of cabinets.
•
Gas Slide-In Cooktop model E36GC76PPS is NOT approved to be used
over any Electrolux ICON® Single Wall Oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
When replacing an existing cooktop with countertop cutout deeper
than 7-1/4" and less than 8-1/2", order free Depth Adjustment
Filler Kit – (PN# 903051-9010).
•
9" Stainless Steel Backguard – (PN# 903048-9010).
71/2"
73/4"
**Applies only in case of
countertop backwall
9" min. to nearest
combustible wall
(either side of unit)
3
35
/16" *
15/16" *
35
*Both cutout dimensions are
critical to proper cooktop installation.
Due to variations in countertop materials it is
recommended to undercut finished dimension
35
15/16" and adjust upon installation of cooktop.
71/4"
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E36GC76PPS 06/15 © 2015 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
