Electrolux E30DF74TPSA, E36DF76TPSA, E36DF76TPSB Installation Guide

30" & 36" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
30" & 36" DUAL FUEL RANGE
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Canada
FOR YOUR SAFETY: Do not store or use gasoline or
other ammable vapors and liquids in the vicinity of this or any other appliance.
Table of Contents
Important Safety Instructions .......................................2-4
Product Dimensions ....................................................... 5
Cabinet Dimensions ....................................................... 6
Cabinet Construction ...................................................... 7

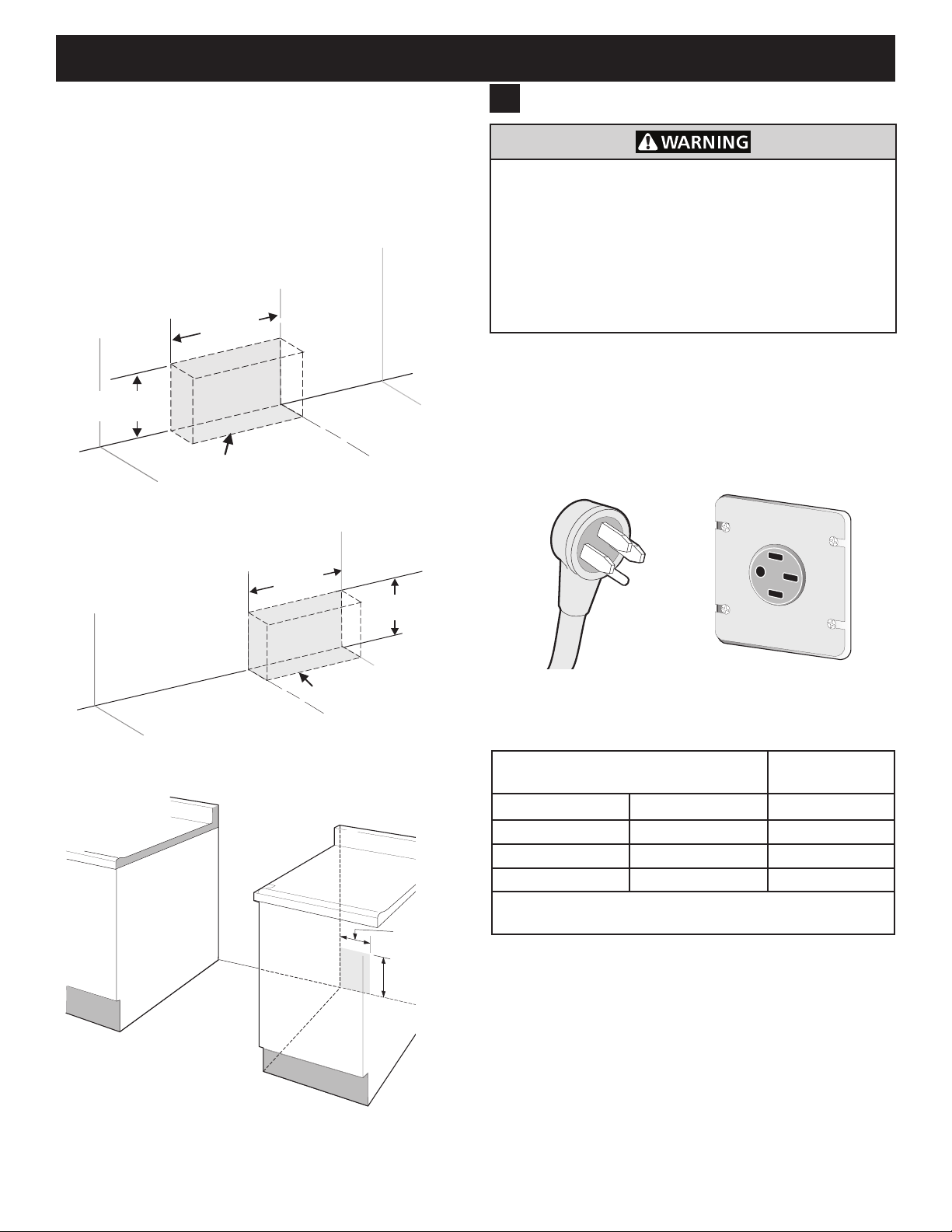

Electrical Requirements...............................................7-8
Power Supply Cord......................................................... 8
Fuel Supply Requirements ............................................. 9
Important Notes to the Installer
1. Read all instructions contained in these installation instructions before installing range.
2. Remove all packing material from the oven and the drawer compartments before connecting the electrical supply to the range.
3. The anti-tip bracket supplied with the appliance must be installed.
4. Observe all governing codes and ordinances.
5. Be sure to leave these instructions with the consumer.

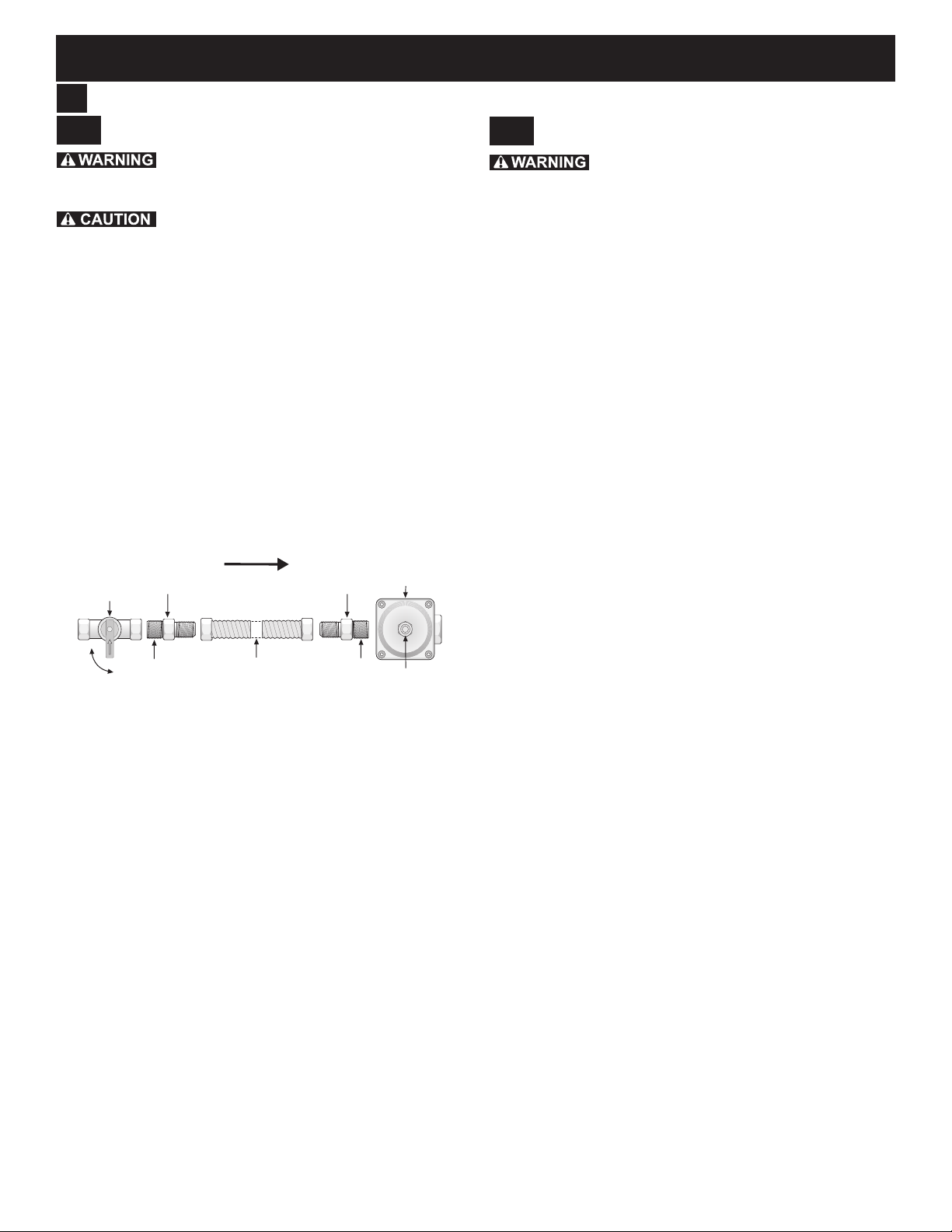

Connect Fuel Supply .................................................... 10
Install Oven Racks................................................... 11-12
Level the Range ........................................................... 13
Install Anti-Tip Bracket ............................................. 14-15
Install Burner Assemblies ........................................ 16-17
Check Oven Operation ................................................. 18
After Installation ............................................................ 18
Serial Plate Location (Model & Serial Number) ............ 18
Important Note to the Consumer
1. Keep these instructions with your owner's guide for future reference.
2. When using any appliance generating heat, there are safety precautions you must follow. These precautions are explained in your Use and Care manual. Read your manual carefully.
3. Be sure your appliance is installed and grounded by a
qualied installer or service technician.
P/N 809018701 (1611) Rev.A
English – pages 1-18
Español – pages 19-36
Français – pages 37-54
1
30" & 36" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
This appliance must be installed, grounded, and serviced by a qualied installer or service technician.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.
Warnings and important instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised with installing, maintaining, or operating your appliance.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
IMPORTANT: Indicates installation, operation, maintenance, or valuable information that is not hazard related.
Tip Over Hazard
• A child or adult can tip the range and be killed.
• Verify the anti-tip device has been installed to floor or wall.
• Ensure the anti-tip device is re-engaged to floor or wall when the range is moved.
• Do not operate the range without the anti-tip device in place and engaged.
• Failure to follow these instructions can result in death or serious burns to children and adults.
Range leveling leg
Anti-tip bracket
To check if the anti-tip bracket is installed properly, use both arms to grasp the rear edge of the range back. Carefully attempt to tilt range forward. When properly installed, the range should not tilt forward.
Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.
If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.
FOR YOUR SAFETY:
—Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
—WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
•If you cannot reach your gas supplier, call the fire department.
—Installation and service must be
performed by a qualified installer, servicer or the gas supplier.
2
30" & 36" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS
Excessive Weight Hazard--Use two or more
people to move and install range. Failure to follow this instruction can result in back or other injury.
Storage In or On Appliance—Flammable
materials should not be stored in an oven or microwave, near surface burners or elements, or in the storage or warmer drawer (if equipped). This includes paper, plastic, and cloth items, such as cookbooks, plastic ware, and towels, as well as
ammable liquids. Do not store explosives, such as
aerosol cans, on or near the appliance.
Do not leave children alone - Children should
not be left alone or unattended in the area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance, including the storage drawer, lower broiler drawer, warmer drawer, or lower double oven.
Do not store items of interest to children in the cabinets above the appliance or on the backguards of ranges. Children climbing on or near the appliance to reach items could be seriously injured.
Stepping, leaning, or sitting on the door or drawers of this appliance can result in serious injuries and also cause damage to the appliance.
Do not use oven or warmer drawer (if equipped) for storage.
Never use your appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the appliance.
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance.
Air curtain or other overhead range hoods which
operate by blowing a downward air ow onto a
range or cooktop, shall not be used in conjunction with gas ranges or cooktops other than when the range or cooktop and hood have been designed, tested, and listed by an independent test laboratory for use in combination with each other.
IMPORTANT INSTRUCTIONS FOR UNPACKING AND INSTALLATION
Read and follow the below instructions and precautions for unpacking, installing, and servicing your appliance:
Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play with packaging material. Do not remove the wiring label and other literature attached to the appliance. Do not remove model/serial number plate.
Cold temperatures can damage the electronic control.
When using this appliance for the rst time, or when the
appliance has not been used for an extended period of time, be sure the appliance has been in temperatures above 32ºF (0ºC) for at least 3 hours before turning on the power to the appliance.
Never modify or alter the construction of the appliance by removing the leveling legs, panels, wire covers, anti­tip brackets/screws, or any other part of the appliance.
Proper Installation—Be sure your appliance is properly
installed and grounded by a qualied technician. In the
United States, install in accordance with the National Fuel Gas Code ANSI Z223.1/NPFA No. 54, latest edition and National Electrical Code NFPA No. 70 latest edition, and local electrical code requirements. In Canada, install in accordance with CAN/CGA B149.1 and CAN/CGA B149.2 and CSA Standard C22.1, Canadian Electrical code, Part 1-latest editions and local electrical code requirements. Install only per installation instructions provided in the literature package for this appliance.
The installation of appliances designed for manufactured (mobile) home installation must conform with Manufactured Home Construction and Safety Standard, title 24CFR, part 3280 [Formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD (part 280)] or when such standard is not applicable, the Standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups), ANSI Z225.1/ NFPA 501A-latest edition, or with local codes in United States and with CAN/CSA-Z240 MH in Canada.
Before installing the range in an area covered with
linoleum or any other synthetic oor covering, make sure the oor covering can withstand heat at least
90°F (32.2°C) above room temperature without shrinking, warping or discoloring. Do not install the range over carpeting unless you place an insulating pad or sheet of ¼" (0,64 cm) thick plywood between the range and carpeting.
Make sure the wall coverings and cabinet materials around the range can withstand the heat generated by the appliance.
To eliminate the risk of burns or re by reaching over heated surface units, cabinet storage space above the surface unit should be avoided. If cabinet storage is to be provided the risk can be reduce by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinet.
Do not obstruct airow at the oven vent, around the base, or beneath the lower front panel of the appliance. This appliance requires fresh air for proper operation.
Be sure to have an appropriate foam-type re extinguisher available, visible, and easily accessible located near the appliance.
3
30" & 36" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS
SPECIAL INSTRUCTIONS FOR APPLIANCES INSTALLED IN THE STATE OF MASSACHUSETTS
This appliance can only be installed in the State of Massachusetts by a Massachusetts licensed plumber or
gas tter. When using a exible gas connector, it must
not exceed 3 feet (36 inches) in length. A "T" handle type manual gas valve must be installed in the gas supply line to this appliance.
CONVERSION TO L.P. GAS
This appliance allows for conversion to Liqueed
Petroleum (L.P.) Gas.
Personal injury or death from electrical
shock may occur if the conversion to L.P. gas is not
made by a qualied installer or electrician. Any additions,
changes or conversions required in order for this appliance to satisfactorily meet the application needs
must be made by a qualied technician.
If L.P. conversion is needed, contact your local L.P. Gas provider for assistance. The L.P. conversion kit is provided with this appliance and is located on the lower REAR (back side) panel of the range. Before installing the kit be sure to read the L.P. Installation Instructions and follow them carefully when making the installation.
IMPORTANT INSTRUCTIONS FOR SERVICE AND MAINTENANCE
Do not repair or replace any part of the appliance
unless specically recommended in the manuals. All other servicing should be done only by a qualied
technician. This reduces the risk of personal injury and damage to the appliance.
Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not understand.
Ask your dealer to recommend a qualied technician and an authorized repair service. Know how to disconnect the power to the appliance at the circuit breaker or fuse box in case of an emergency.
Remove the oven door from any unused oven if it is to be stored or discarded.
Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break. Handle halogen lights (if equipped) with paper towels or soft gloves. Disconnect the appliance or shut off the power to the appliance before removing and replacing the bulb.
4
30" & 36" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS
Product Dimensions
Do not install the unit in the cabinet before reading next two pages.
D
C
B
A
E
Figure 1: Product Dimensions
C. DEPTH TO
MODEL A. HEIGHT B. WIDTH
30" 36" 35 7/8" (91.1 cm) 48 3/8" (122.9 cm)
41 5/8" (105.7 cm) Min.
42 5/8" (108.3 cm) Max.
29 7/8" (75.9 cm)
FRONT OF
RANGE
27 1/2" (69.9cm)
D. HEIGHT OF
COOKTOP
35 3/4" (90.8 cm) Min.
36 3/4" (93.3 cm) Max.
E. DEPTH WITH
DOOR OPEN
46 1/4" (117.5 cm)
5
30" & 36" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS
Cabinet Dimensions
Clearances and Dimensions
Provide adequate clearances between the appliance and adjacent combustible surfaces.
Location - Check location where the appliance will be installed. Check for proper electrical supply and oor stability.
Dimensions shown must be used. Given dimensions provide minimum clearance. Contact surface must be solid and level.
J
H
G
I
F
Figure 2: Cabinet Dimensions
13" Max.
(33 cm Max.)
18" Min.
(45.7 cm Min.)
24" Min.
(61 cm Min.)
24½" max.
(62.2 cm Max.)
MODEL
30" 30 1/16" (76.4 cm)
36" 36 1/16" (91.6 cm) 7" (17.8 cm) Min. 36" (91.4 cm) Min. 36" (91.4 cm) Min.
NOTES:
1. Do not seal the range to the side cabinets.
2. Clearance from adjacent walls or other vertical surfaces or structures such as cabinets.
3. Measurements listed are minimum clearances between the cooktop and the bottom of the cabinet.
4. 0" clearance between range and cabinets or vertical surfaces that are below the cooktop height.
5. 0" clearance between range back and rear wall or cabinet.
F. MINIMUM
CUTOUT WIDTH
G. HEIGHT OF
COUNTERTOP
36" (91.4 cm) Standard
35 3/4" (90.8 cm) Min.
H. CLEARANCE
FROM SIDE
WALLS
5" (12.7 cm) Min. 30" (76.2 cm) Min. 30" (76.2 cm) Min.
6
2
I. CLEARNACE
FROM COOKTOP
AND CABINET
BOTTOM
3
J. CLEARANCE
WIDTH OF
OVERHEAD
CABINETS
