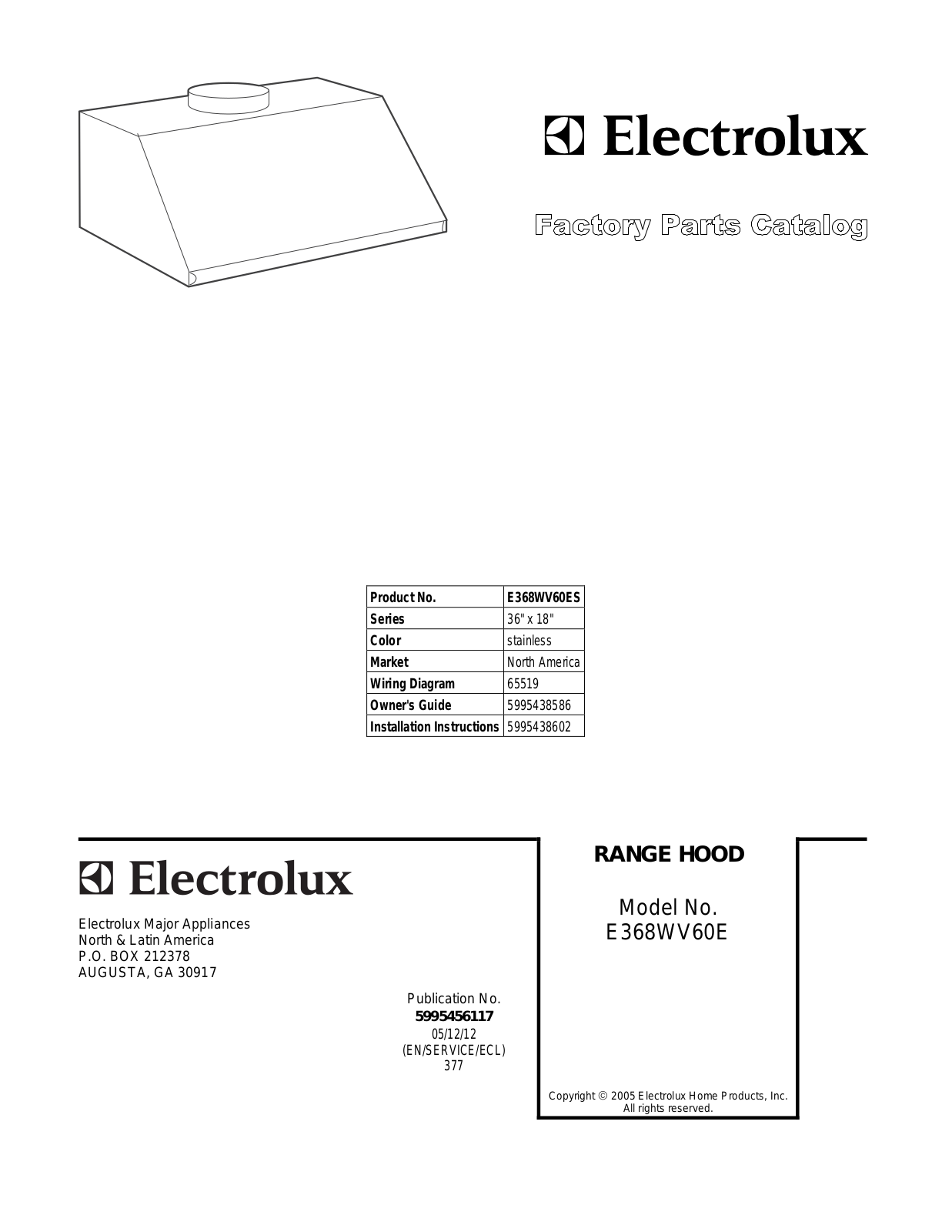

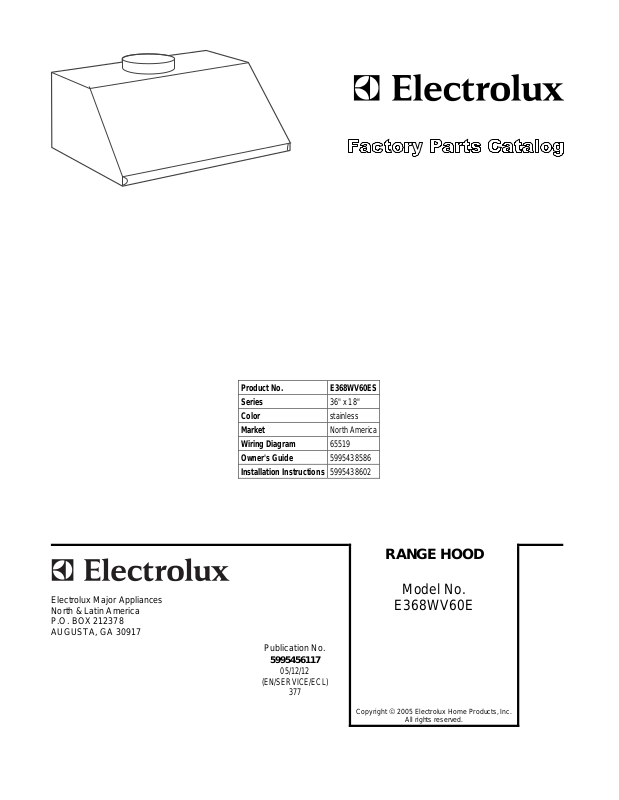

Page 1
Product No. E368WV60ES
Series 36" x 18"
Color stainless
Market North America
Wiring Diagram 65519
Owner's Guide 5995438586
Installation Instructions 5995438602
E368WV60ES.eps CE368WV60ES.eps DE30WD75EPS1.eps 65519.tif
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995456117
05/12/12
(EN/SERVICE/ECL)
377
RANGE HOOD
Model No.
E368WV60E
Copyright © 2005 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995456117 E368WV60ES

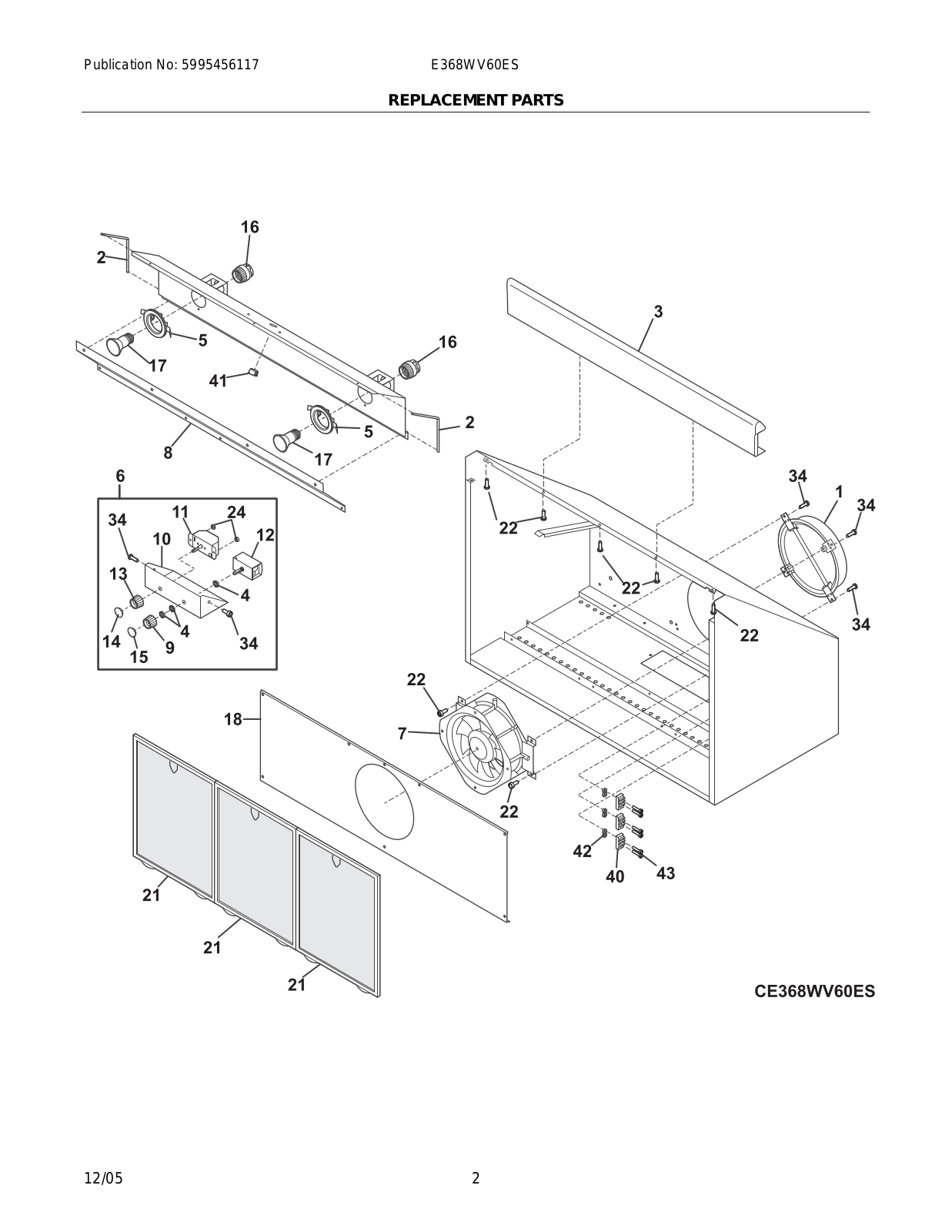

REPLACEMENT PARTS
12/05 2
Page 3
E368WV60ES Publication No: 5995456117
REPLACEMENT PARTS

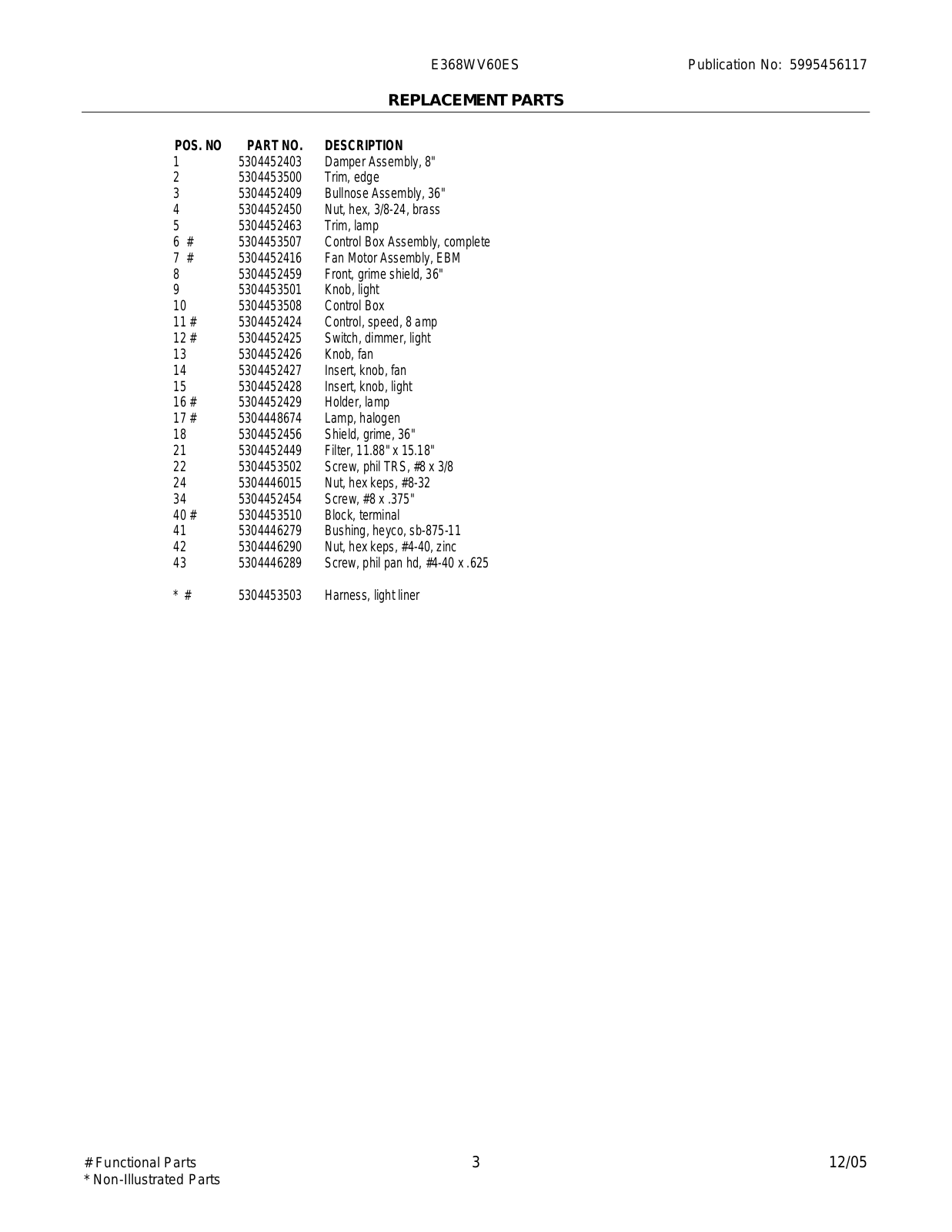

POS. NO PART NO. DESCRIPTION
1 5304452403 Damper Assembly, 8"
2 5304453500 Trim, edge
3 5304452409 Bullnose Assembly, 36"
4 5304452450 Nut, hex, 3/8-24, brass
5 5304452463 Trim, lamp
6 # 5304453507 Control Box Assembly, complete
7 # 5304452416 Fan Motor Assembly, EBM
8 5304452459 Front, grime shield, 36"
9 5304453501 Knob, light
10 5304453508 Control Box
11 # 5304452424 Control, speed, 8 amp
12 # 5304452425 Switch, dimmer, light
13 5304452426 Knob, fan
14 5304452427 Insert, knob, fan
15 5304452428 Insert, knob, light
16 # 5304452429 Holder, lamp
17 # 5304448674 Lamp, halogen
18 5304452456 Shield, grime, 36"
21 5304452449 Filter, 11.88" x 15.18"
22 5304453502 Screw, phil TRS, #8 x 3/8
24 5304446015 Nut, hex keps, #8-32
34 5304452454 Screw, #8 x .375"
40 # 5304453510 Block, terminal
41 5304446279 Bushing, heyco, sb-875-11
42 5304446290 Nut, hex keps, #4-40, zinc
43 5304446289 Screw, phil pan hd, #4-40 x .625
* # 5304453503 Harness, light liner
# Functional Parts
3 12/05
* Non-Illustrated Parts
Page 4
Publication No: 5995456117 E368WV60ES

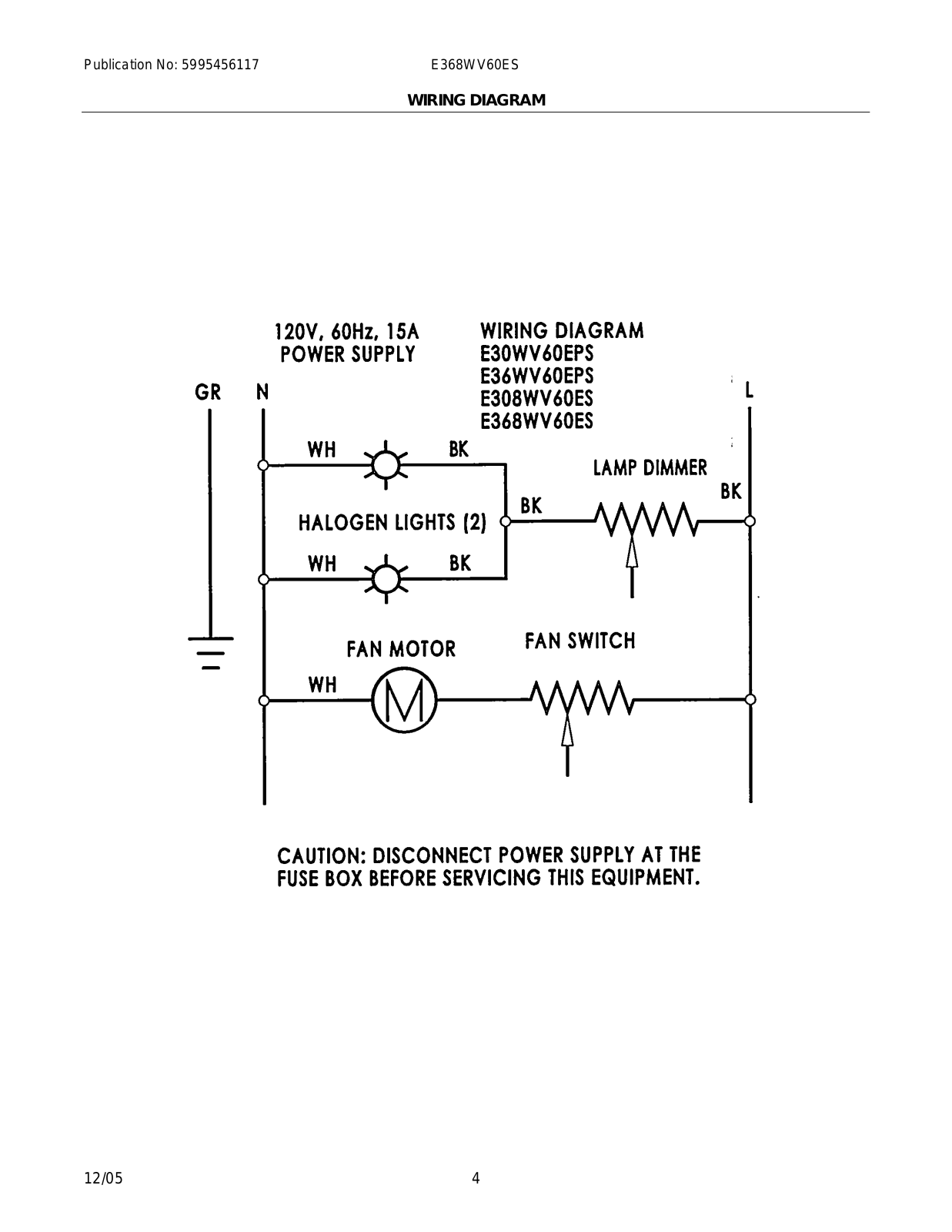

WIRING DIAGRAM
12/05 4
