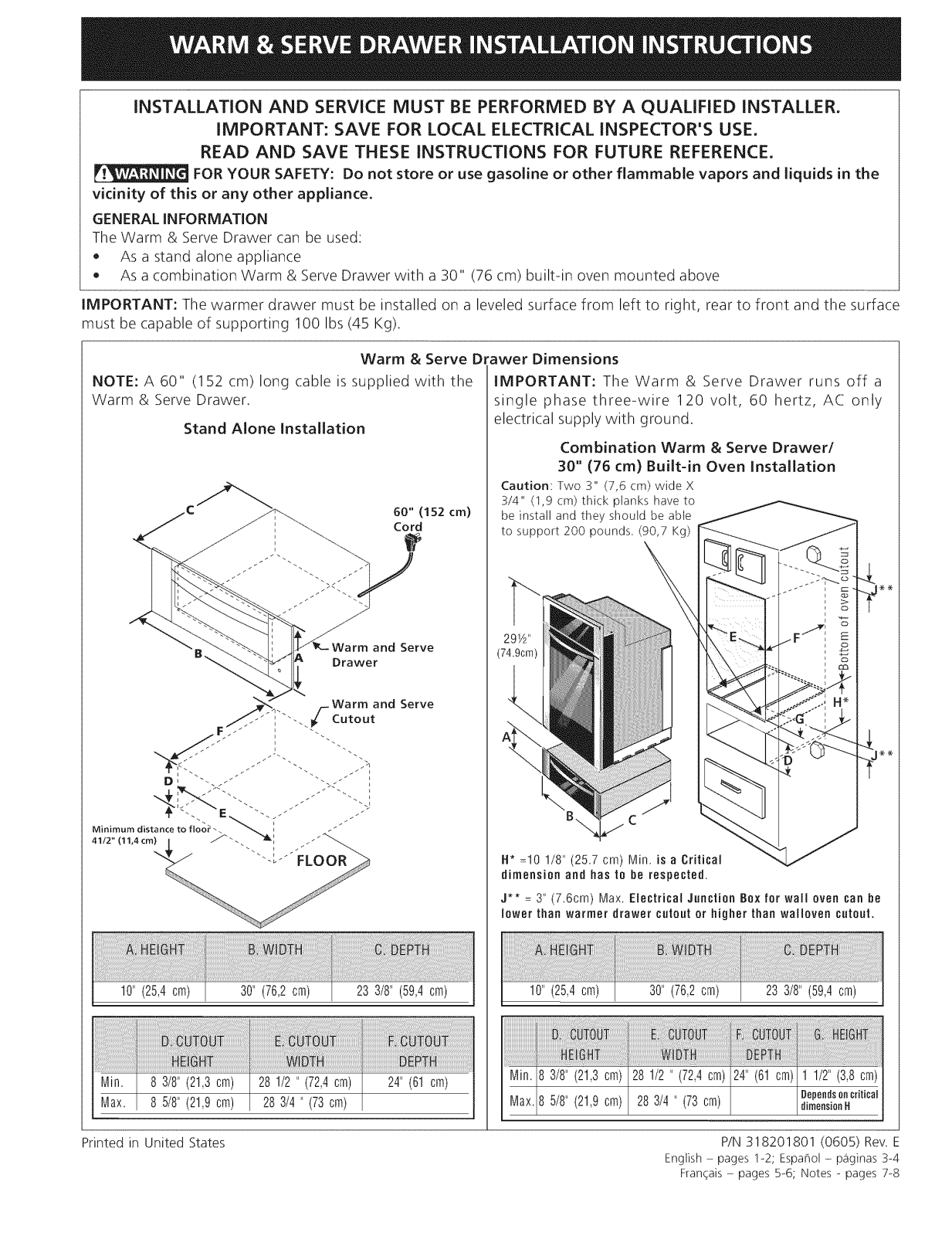

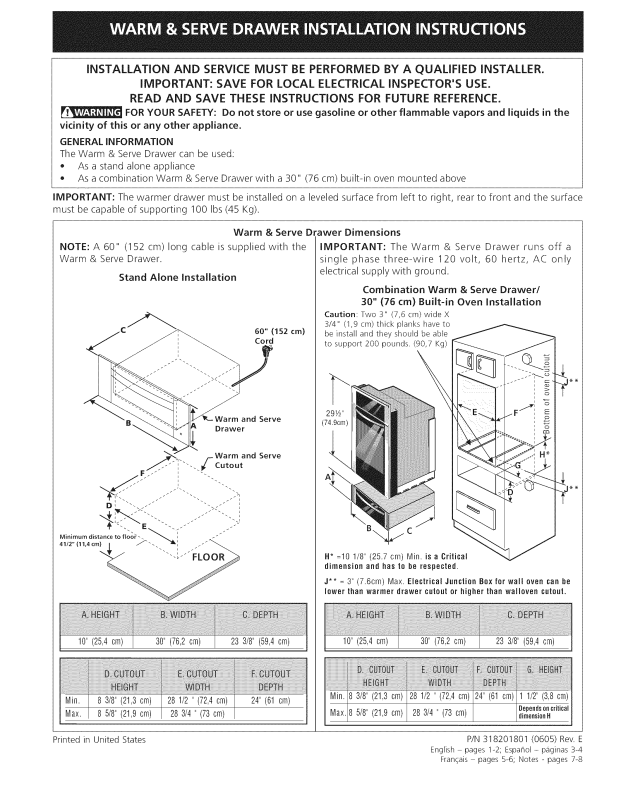

Electrolux E30WD75ESS1, E30WD75ESS2 Installation Guide

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.

iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
GENERALiNFORMATiON

The Warm & Serve Drawer can be used:

• As a stand alone appliance

As a combination Warm & Serve Drawer with a 30" (76 cm) built-in oven mounted above

IMPORTANT: The warmer drawer must be installed on a leveled surface from left to right, rear to front and the surface
must be capable of supporting 100 Ibs (45 Kg).

Warm & Serve Drawer Dimensions

NOTE: A 60" (152 cm) long cable is supplied with the

Warm & Serve Drawer.

Stand Alone installation

IMPORTANT: The Warm & Serve Drawer runs off a
single phase three-wire 120 volt, 60 hertz, AC only

electrical supply with ground.

Combination Warm & Serve Drawer/

30" (76 cm) Built-in Oven Installation
Caution: Two 3" (7,6 cm) wide X
3/4" (1,9 cm)thick planks haveto

be install and they should be able
to support 200 pounds. (90,7 Kg)

B\

H* =10 1/8" (25.7 cm) Min. is a Critical
dimension and has to be respected.

J** = 3" (7.6cm) Max. Electrical ,Junction Box for wall oven can he
lower than warmer drawer cutout or higher than walloven cutout.

10"(25,4 cm) 301'(76,2cm) 23 3/8"(59,4 cm)

8 3/8"(21,3 cm) 28 1/2 " (72,4crn) 24"(61 cm)
8 6/8"(21,9 cm) 283/4 " (73 cm)

Printed in United States P!N 318201801 (0605) Rev.

101'(25,4cm) 30"(76,2cm) 233/8"(59,4cm)

281/2" (72,4crn)24' (61cm) 1 1/2"(3,8crn)

283/4" (73cm) dimensionN

English pages 1_2; Espanol - p_iginas 3-4

Francais pages 5%; Notes _ pages 7_8

Dependson critical

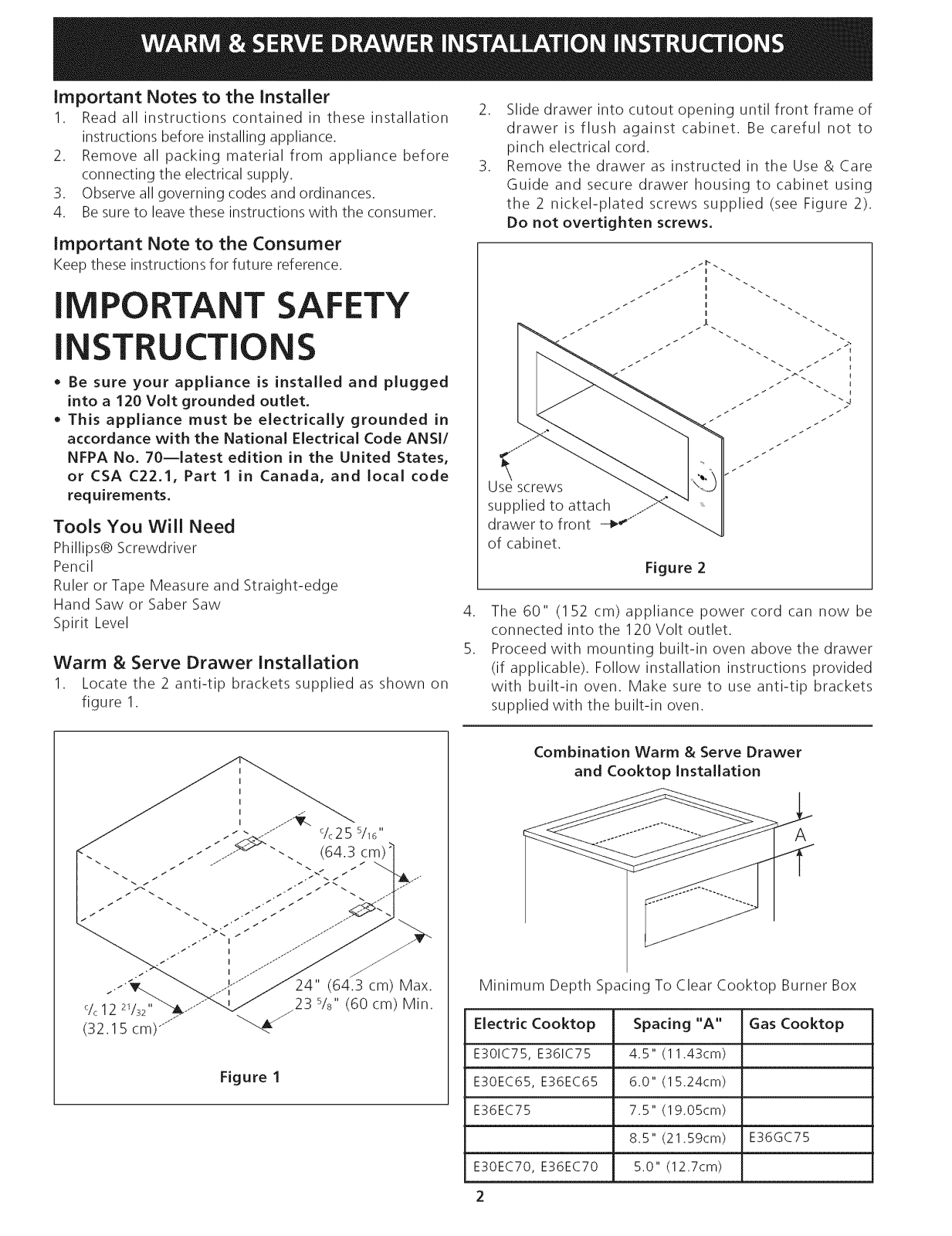

Important Notes to the Installer

I. Read all instructions contained in these installation

instructions before installing appliance.

2. Remove all packing material from appliance before
connecting the electrical supply.

3. Observe all governing codes and ordinances.

4. Be sure to leavethese instructions with the consumer.

Important Note to the Consumer

Keep these instructions for future reference.

IMPORTANT SAFETY

INSTRUCTIONS

• Be sure your appliance is installed and plugged

into a 120 Volt grounded outlet.

• This appliance must be electrically grounded in

accordance with the National Electrical Code ANSI/
NFPA No. 70--latest edition in the United States,

or CSA C22.1, Part 1 in Canada, and local code
requirements.

Tools You Will Need

Phillips@ Screwdriver
Pencil

Ruler or Tape Measure and Straight-edge
Hand Saw or Saber Saw

Spirit Level

Warm & Serve Drawer Installation

1. Locate the 2 anti-tip brackets supplied as shown on
figure I.

2. Slide drawer into cutout opening until front frame of
drawer is flush against cabinet. Be careful not to

pinch electrical cord.

3. Remove the drawer as instructed in the Use & Care
Guide and secure drawer housing to cabinet using
the 2 nickel-plated screws supplied (see Figure 2).

Do not overtighten screws.

Use screws
supplied to attach

drawer to front -_"
of cabinet,

Figure 2

.

The 60" (152 cm) appliance power cord can now be
connected into the 120 Volt outlet.

5.

Proceed with mounting built-in oven above the drawer
(if applicable). Follow installation instructions provided
with built-in oven. Make sure to use anti-tip brackets
supplied with the built-in oven.

Figure 1

Combination Warm & Serve Drawer

and Cooktop installation

A

Minimum Depth Spacing To Clear Cooktop Burner Box

Electric Cooktop Spacing "A" Gas Cooktop

E301C75, E361C75 4.5" (11.43cm)

E30EC65, E36EC65 6.0" (15.24cm)

E36EC75 7.5" (19.05cm)

8.5" (21.59cm) E36GC75

E30EC70, E36EC70 5.0" (12.7cm)

2

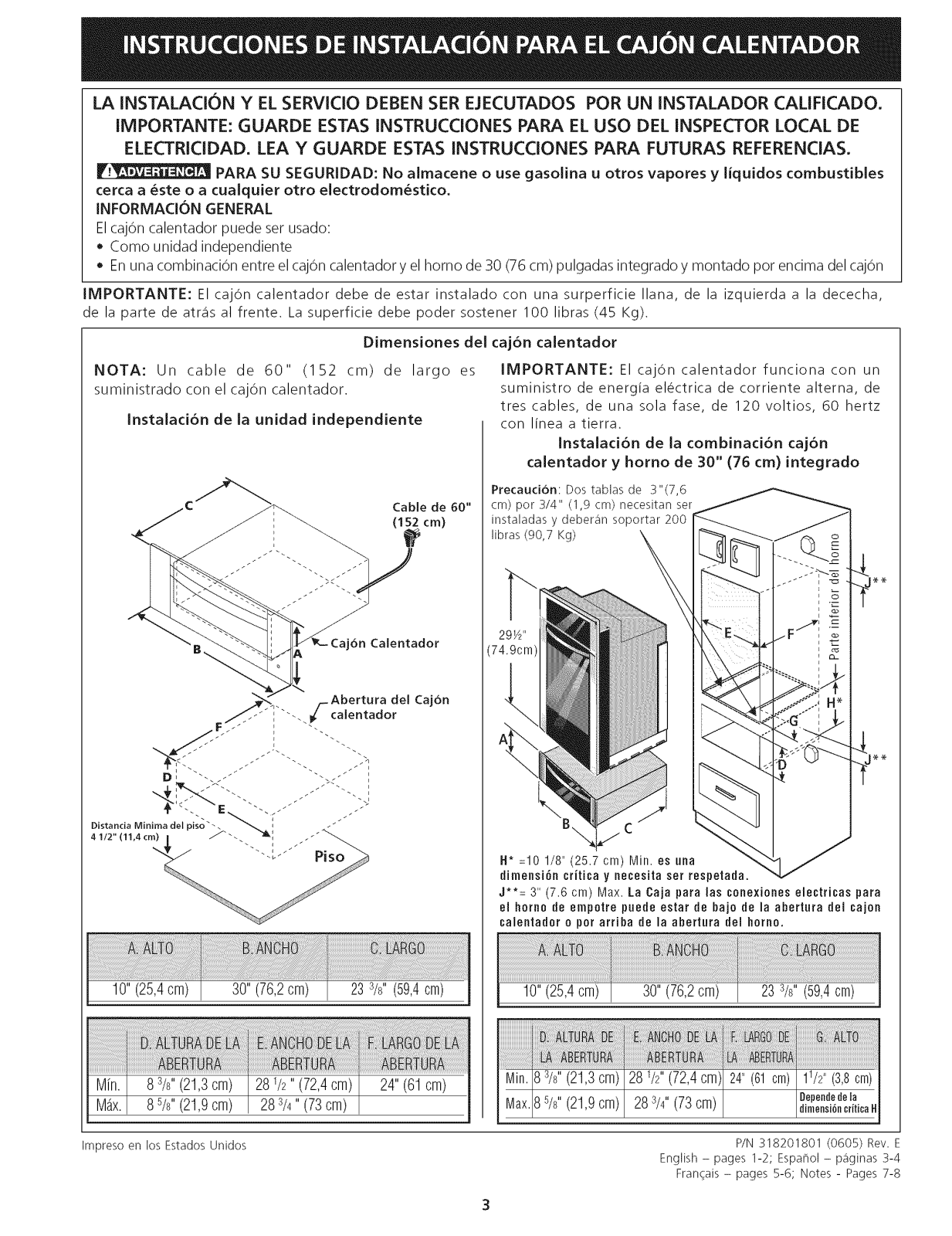

LA INSTALACK)N Y EL SERVICIO Di=BEN SER EJECUTADOS POR UN INSTALADOR CALIFICADO.

IMPORTANTE: GUARDE ESTAS INSTRUCCIONES PAPA EL USO DEL INSPECTOR LOCAL DE

ELECTRICIDAD. LEA Y GUARDE ESTAS INSTRUCCIONES PAPA FUTURAS REFERENCIAS.

F.v_ PARA SU SEGURJDAD: No almacene o use gasoJina u otros vapores y Jiquidos combustibJes
cerca a 6ste o a cualquier otto eJectrodom&stico.

INFORMACJ6N GENERAL
ElcajOncalentador puede ser usado:

Como unidad independiente
En una combinaciOnentre el cajOncalentador y el homo de 30 (76 cm) pulgadas integrado y montado por encimadel cajOn

IMPORTANTE: El caj6n calentador debe de estar instalado con una surperficie liana, de la izquierda a la dececha,
de la parte de atr_is al frente. La superficie debe poder sostener 100 libras (45 Kg).

Dimensiones del caj6n calentador

NOTA: Un cable de 60" (152 cm) de largo es
suministrado con el cajOn calentador.

Instalad6n de la unidad independiente

_ Cable de 60"

IMPORTANTE: El cajOn calentador funciona con un
suministro de energia electrica de corriente alterna, de

tres cables, de una sola fase, de 120 voltios, 60 hertz
con linea a tierra.

Instalaci6n de la combinaci6n caj6n

calentador y homo de 30" (76 cm) integrado

Precaud6n: Dos tablas de 3"(7,6
cm) pot 3/4" (1,9 cm) necesitan ser
instaladas y deberan soportar 200

libras (90,7 Kg)

6n Calentador

10"(25,4cm) 30" (76,2cm) 233/8"(59,4cm)

8 3/8"(21,3cm) 281/2"(72,4cm) 24"(61cm)
8 5/8"(21,9cm) 283/4"(73cm)

(7

H* =10 1/8" (25.7 crn) Min. es una
dimensi6n critica y necesita ser respetada.

J**= 3" (7.6 crn) Max. La Caja para las ¢onexiones electricas para
el homo de empolre puede estar de bajo de la abertura del cajon

¢alentador 0 p0r arriba de la abertura del h0rn0.

10"(25,4cm) 30"(76,2cm) 23 3/5"(59,4crn)

Min.B3/5"(21,3cm) 281/5"(72,4cm) 241'(61cm) 11/5`'(3,8cm)
Max.B8/8"(21,9cm) 283/4"(73cm) 0ependedela

dimensi6nci'itica_

Impreso en los Estados Unidos

P/N 318201801 (0605) Rev.

English - pages 1-2; Espanol - paginas 3-4

Fran¢ais - pages 5-6; Notes - Pages 7-8
