Product No. E30MO75HPSA E30MO75HSSA
Market North America North America
Color stainless steel stainless steel
Volts 120 120
Watts 900 900
Wiring Diagram 5995535084 5995535084
Owner's Guide TINSEB493MRR1 TINSEB493MRR1
Installation Instructions TINSEB504MRR0 TINSEB504MRR0
E30MO75HSS Cover.eps E30M075HSS cabinet.eps E30M075HSS controls.eps
E30MO75HSS Wiring.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995535084
09/03/13
(EN/SERVICE/KC)
099
COUNTER-TOP
MICROWAVE
Model No.
E30MO75HP /
E30MO75HS
Copyright © 2009 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995535084 E30MO75HP / E30MO75HS
OVEN,CABINET
E30MO75HSS cabinet
03/09 2
E30MO75HP / E30MO75HS Publication No: 5995535084
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
1 # 75304470537 A B Power Cord, electric
2 # 75304461109 A B Assembly, fuse & switch, monitor
3 # 75304461110 A B Filter, noise
4 # 75304440026 A B Switch, interlock, door sensor
5 # 75304461113 A B Thermal Cut-Out, magnetron
6 # 75304461114 A B Thermal Cut-Out, convection/oven, (2)
7 75304464198 A B Lamp, oven light
8 # 75304463785 A B Lampholder, socket
9 # 75304461119 A B Motor, fan
10 # 75304470538 A B Transformer, power
11 # 75304470539 A B Capacitor, high voltage
12 # 75304461122 A B Rectifier, high voltage
13 # 75304470540 A B Magnetron
14 # 75304461124 A B Motor, turntable
15 # 75304470541 A B Transformer, low voltage
16 # 75304461125 A B Sensor Assembly, AH
17 # 75304461112 A B Thermistor
18 # 75304461115 A B Motor, damper
19 # 75304471782 A B Motor, convection fan
20 75304470542 A B Cabinet, outer casing
21 75304470734 A B Base, chassis, w/motor cover
22 75304461127 A B Foot, cabinet, (4)
23 75304470544 A B Panel, cabinet back
24 75304461129 A B Holder, capacitor
25 75304470545 A B Hinge, oven door, left
26 75304470546 A B Hinge, oven door, right
27 75304470547 A B Latch Hook, right side
28 75304470548 A B Latch Hook, left side
29 75304470549 A B Cam, door, left
30 75304470550 A B Cam, door, right
32 75304470552 A B Cover, front
33 75304470553 A B Duct, B
34 75304470554 A B Duct, C
43 75304470562 A B Support, turntable, with rollers
44 75304470563 A B Tray, turntable, glass
45 75304461155 A B Frame, light lens
46 75304470564 A B Bracket, mounting, transformer
47 75304461157 A B Cushion
48 75304461158 A B Duct Assembly, steam release
49 75304451450 A B Coupler, turntable/motor
50 75304461165 A B Cover, waveguide
51 75304461167 A B Lens, light
52 # 75304461173 A B Blade, fan
53 75304461174 A B Duct, cooling fan
54 75304461175 A B Support, chassis
55 75304461178 A B Angle, noise filter
56 75304461156 A B Cushion
57 75304461181 A B Guide, air, magnetron
58 75304461182 A B Sheet, thermal, protection
Model Index: A E30MO75HP (E30MO75HPSA)
B E30MO75HS (E30MO75HSSA)
# Functional Parts
3 03/09
* Non-Illustrated Parts
Publication No: 5995535084 E30MO75HP / E30MO75HS
OVEN,CABINET
E30MO75HSS cabinet
03/09 4
E30MO75HP / E30MO75HS Publication No: 5995535084
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
59 75304461183 A B Cover, thermal sheet, panel
60 # 75304461196 A B Wiring Harness, thermistor
61 75304470565 A B Trim, left side
62 75304470566 A B Trim, right side
63 75304470569 A B Duct, exhaust
64 75304470570 A B Angle, bottom
65 75304470571 A B Louver, inlet
66 75304470572 A B Angle, shipping
67 75304451459 A B Bracket, turntable mount
68 75304470573 A B Spring, door, right side
69 75304470575 A B Spring, door, left side
70 75304470576 A B Insulator, thermal barrier
71 75304461146 A B Bearing Assembly
72 75304461147 A B Plate, thermal protect, LH
73 75304461148 A B Plate, bearing mtg
74 75304461149 A B Holder, element
75 75304461150 A B Plate, bearing holder
76 # 75304461151 A B Fan Blade, convection
77 # 75304471508 A B Pulley, convection fan
78 75304471509 A B Duct Assembly, heater
79 75304461154 A B Sheet, thermal protect, LH
80 75304461159 A B Cam, damper
81 75304461160 A B Shaft, damper
82 75304461161 A B Door Assembly, damper
83 75304461162 A B Duct, damper
84 75304461163 A B Cushion
87 75304461172 A B Plate, motor mtg, convection
88 # 75304461152 A B Pulley, motor, convection fan
89 # 75304461177 A B Belt, convection fan
90 75304461179 A B Cushion, damper duct
102 75304440334 A B Label, Caution-monitor
103 75304465314 A B Label, NHW caution
105 75304451534 A B Label, User Caution, French
106 75304470585 A B Label, height caution
107 75304440333 A B Label, Caution-DHHS
109 75304471514 A B Label, menu
110 75303319636 A B Screw
111 75304451550 A B Screw, 4 mm x 8 mm
112 75304451552 A B Screw, 4 mm x 8 mm, white
113 75304451553 A B Screw, 4 mm x 12 mm
114 75304461203 A B Screw, 4mm x 10mm, (14)
115 75303319641 A B Screw
116 75304461209 A B Screw, 4mm x 25mm, (2)
117 75304470587 A B Screw
118 75304461215 A B Screw, 4mm x 8mm, (6)
119 75304470588 A B Screw
120 75304461221 A B Screw, 6mm x 14mm, (2)
121 75304470589 A B Screw
122 75304470590 A B Nut, special
123 75304450253 A B Screw, 4 mm x 8 mm
124 75304461210 A B Screw, 4mm x 6mm, (7)
Model Index: A E30MO75HP (E30MO75HPSA)
B E30MO75HS (E30MO75HSSA)
# Functional Parts
5 03/09
* Non-Illustrated Parts
Publication No: 5995535084 E30MO75HP / E30MO75HS
OVEN,CABINET
E30MO75HSS cabinet
03/09 6
E30MO75HP / E30MO75HS Publication No: 5995535084
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
126 75304461204 A B Screw, 4mm x 8mm, (2)
127 75304461208 A B Screw, 3mm x 14mm
128 75304471515 A B Screw
129 75304461216 A B Screw, 3mm x 6mm
130 75304451547 A B Nut, element, 4 mm x 3.2 mm, (4)
131 75304461214 A B Washer
132 75304470591 A B Lever, switch actuator, left
133 75304470592 A B Lever, switch actuator, right
134 75304461171 A B Guide, air, RH
135 75304451470 A B Packing, silicon
136 75304461166 A B Cushion, (4)
137 75304470593 A B Trim, decorative, left side
138 75304470594 A B Trim, decorative, right side
139 75304470735 A B Holder, power board
140# 75304470596 A B Power Board, printed circuit
141# 75304461120 A B Element, heating, convection
142 75304471516 A B Label, height caution
Model Index: A E30MO75HP (E30MO75HPSA)
B E30MO75HS (E30MO75HSSA)
# Functional Parts
7 03/09
* Non-Illustrated Parts
Publication No: 5995535084 E30MO75HP / E30MO75HS

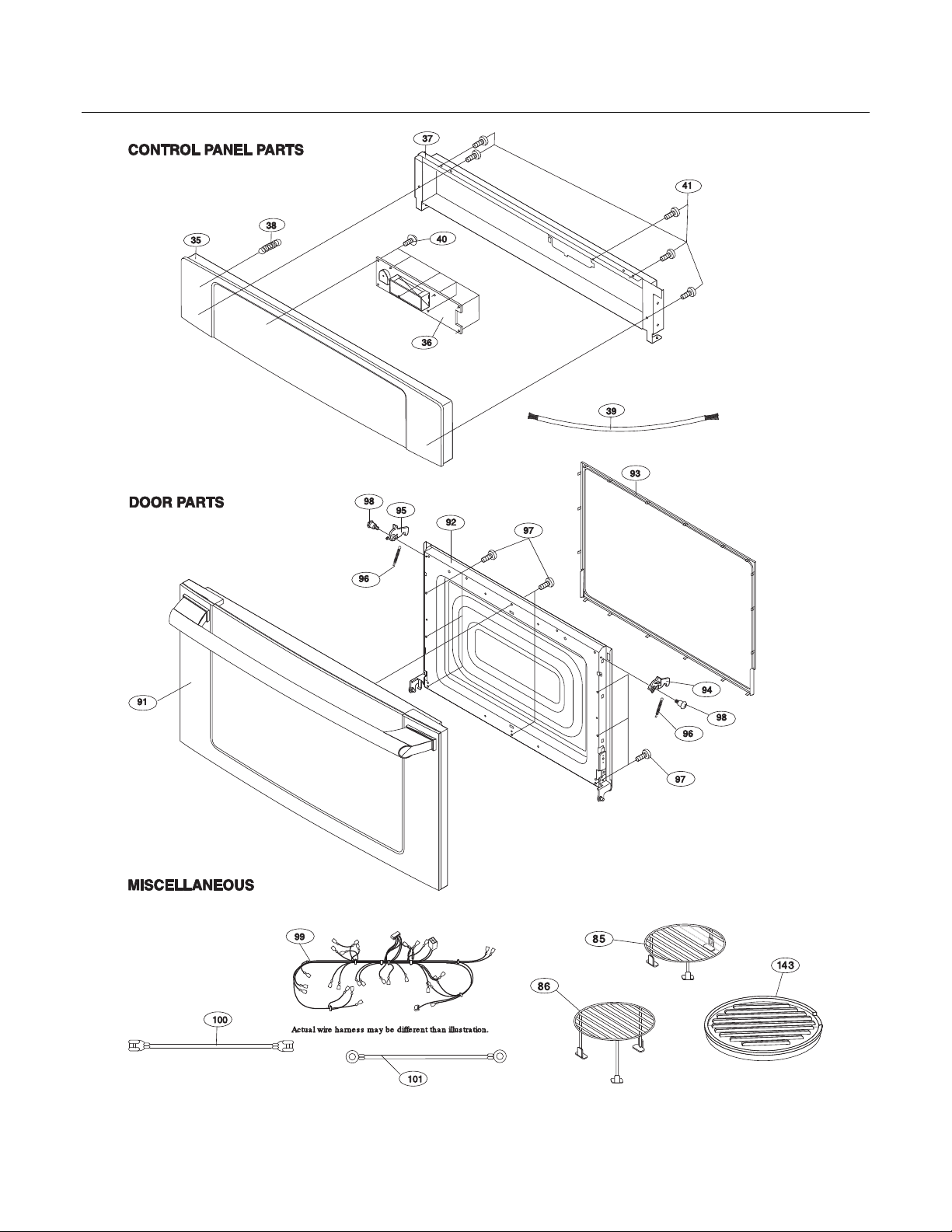

CONTROL PANEL,DOOR,MISC.
E30MO75HSS controls
03/09 8
E30MO75HP / E30MO75HS Publication No: 5995535084
CONTROL PANEL,DOOR,MISC.
POS. NO PART NO. DESCRIPTION
35 # 75304471507 A - Touch Control, Professional
35 # 75304471506 - B Touch Control, Designer
36 # 75304470557 A B Display Board, CPU
37 75304470558 A B Bracket, control mount
38 75304470560 A B Spring, grounding
39 # 75304470561 A B Wiring Harness, power supply
40 75304456930 A B Screw, 3 mm x 10 mm
41 75304451517 A B Screw, 4 mm x 8 mm
85 75304461194 A B Rack Assembly, broiling trivit, low
86 75304461195 A B Rack Assembly, baking, high
91 75304471511 A - Door, outer, Pro handle
91 75304471510 - B Door, outer, Designer handle
92 75304471512 A B Panel, inner door
93 75304470579 A B Frame, inner door, choke cover
94 75304470580 A B Latch Head, right side
95 75304470581 A B Latch Head, left side
96 75304470582 A B Spring, latch head
97 75304451561 A B Screw, 4 mm x 8 mm
98 75304470583 A B Screw
99 # 75304471513 A B Wiring Harness, main
100# 75304461198 A B Wire, high voltage, B
101# 75304461 199 A B Wire, ground, cooling fan
143 75304461261 A B Rack, bacon
Model Index: A E30MO75HP (E30MO75HPSA)
B E30MO75HS (E30MO75HSSA)
# Functional Parts
9 03/09
* Non-Illustrated Parts
Publication No: 5995535084 E30MO75HP / E30MO75HS

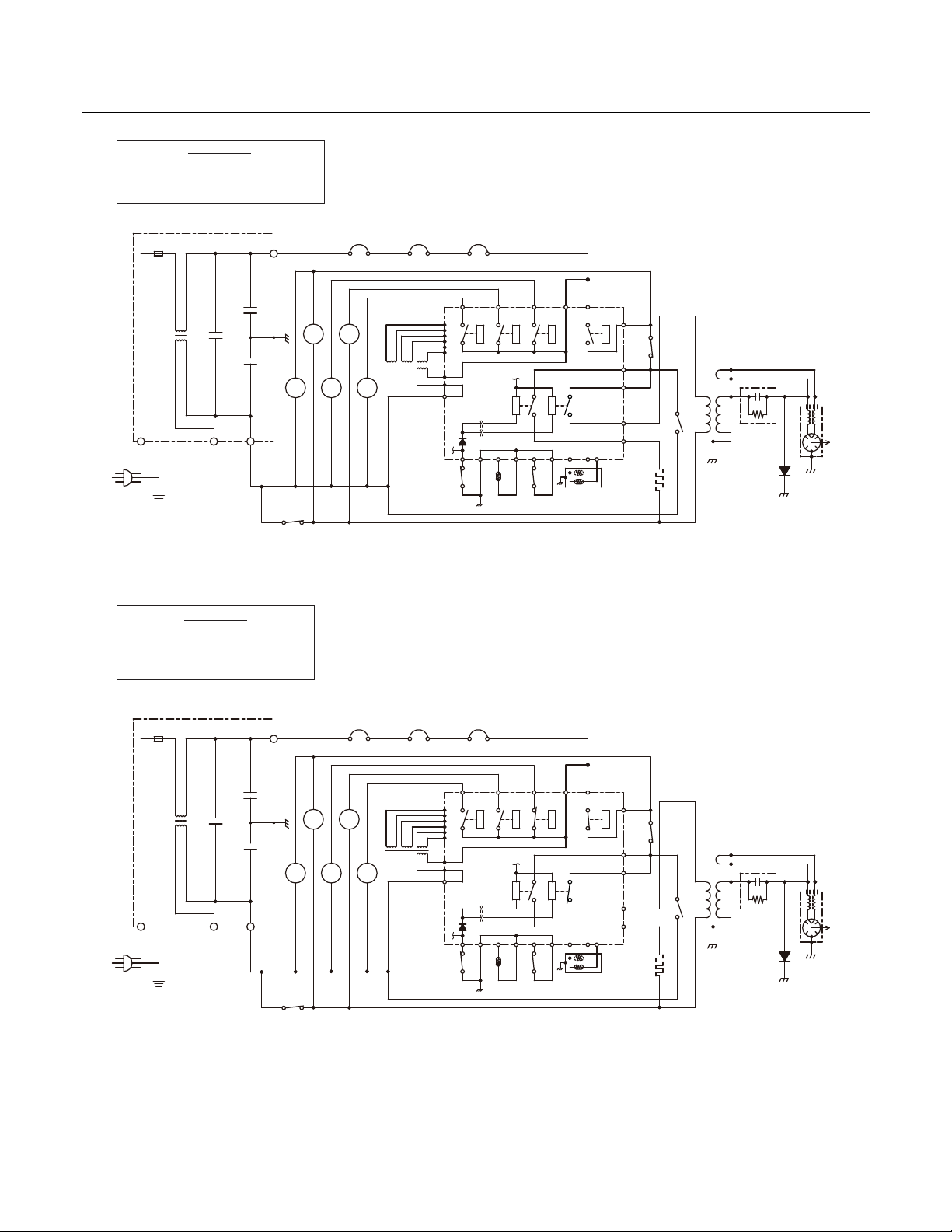

WIRING SCHEMATIC
NOTE: CONDITION OF OVEN
. DOOR CLOSED.
1
2. CLOCK APPEARS ON DISPLAY.
NOISE FILTER UNIT
120V
60Hz
SCHEMATIC
FUSE
20A
0.22 "F AC250V
NOISE SUPPRESSION COIL
SCHEMATIC DIAGRAM (DOOR CLOSED,COOK OFF CONDITION)
CONV.
THERMAL
CUT-OUT
RED EPNK
PNK
PPL
BRN
0.0033 "F AC125V
TTM
*
0.0033 "F AC125V
TURNTABLE MOTOR
OVEN LAMP
3RD
DOOR
SWITCH
NOTE: 1.
CIRCUITS SUBJECT TO CHANGE WITHOUT NOTICE
WIRE COLOR CODES ARE APPLICABLE TO PRIMARY CIRCUIT ONLY AND NOT
2.
APPLICABLE TO LOW VOLTAGE CIRCUIT AND SECONDARY CIRCUIT.
*3.
HOT WIRE(S) MUST BE CONNECTED TOTHE TERMINAL WITH BLUE MARK
ON THE LAMP SOCKET AND "H" MARK ON THE POWER SUPPLY CORD.
ORG
CM
DMFMOL
CONVECTION MOTOR
FAN MOTOR
DAMPER MOTOR
L.V.
TRANSFORMER
CUT-OUT
Figure O-1. Oven Schematic-OFF Condition
OVENMAGNETRON
THERMALTHERMAL
CUT-OUT
A7A9
B1
B2
B3
B4
B5
RY4 RY5 RY6
B6
B8
B10
CONTROL
UNIT
A1
E1 E2 E3 E4 E5 F3
DOOR
SENSING
SWITCH
THERMISTOR
A5 (RY1)
E6
DAMPER
SWITCH
A3
RY2RY3
AH SENSOR
RY1
SECONDARY
INTERLOCK
RELAY
F2 F1
(RY1)
(RY3)
(RY2)
(RY2)
(RY3)
HEATING
PRIMARY INTERLOCK SWITCH
MONITOR SWITCH
ELEMENT
POWER
TRANSFORMER
CAPACITOR
0.94 "
H.V.
RECTIFIER
MAGNETRON
NOTE: CONDITION OF OVEN
SCHEMATIC
1
. DOOR CLOSED.
2. COOKING TIME PROGRAMMED.
3. “START” PAD TOUCHED.
NOISE FILTER UNIT
FUSE
20A
0.22 "F AC250V
NOISE SUPPRESSION COIL
120V
60Hz
CONV.
THERMAL
CUT-OUT
RED EPNK
PNK
PPL
BRN
0.0033 "F AC125V
TTM
*
0.0033 "F AC125V
TURNTABLE MOTOR
OVEN LAMP
3RD
DOOR
SWITCH
NOTE: 1.
CIRCUITS SUBJECT TO CHANGE WITHOUT NOTICE
WIRE COLOR CODES ARE APPLICABLE TO PRIMARY CIRCUIT ONLY AND NOT
2.
APPLICABLE TO LOW VOLTAGE CIRCUIT AND SECONDARY CIRCUIT.
*3.
HOT WIRE(S) MUST BE CONNECTED TOTHE TERMINAL WITH BLUE MARK
ON THE LAMP SOCKET AND "H" MARK ON THE POWER SUPPLY CORD.
ORG
CM
DMFMOL
CONVECTION MOTOR
FAN MOTOR
DAMPER MOTOR
L.V.
TRANSFORMER
CUT-OUT
OVENMAGNETRON
THERMALTHERMAL
CUT-OUT
A7A9
B1
B2
B3
B4
B5
RY4 RY5 RY6
B6
B8
B10
CONTROL
UNIT
A1
E1 E2 E3 E4 E5 F3
DOOR
SENSING
SWITCH
THERMISTOR
A5 (RY1)
A3
SECONDARY
INTERLOCK
RELAY
RY2RY3
F2 F1
E6
AH SENSOR
DAMPER
SWITCH
RY1
Figure O-2. Oven Schematic-Microwave Cooking Condition
(RY1)
(RY3)
(RY2)
(RY2)
(RY3)
HEATING
PRIMARY INTERLOCK SWITCH
MONITOR SWITCH
ELEMENT
POWER
TRANSFORMER
CAPACITOR
0.94 "
H.V.
RECTIFIER
MAGNETRON
03/09 10
