Electrolux E30MO65GSSA Installation Guide

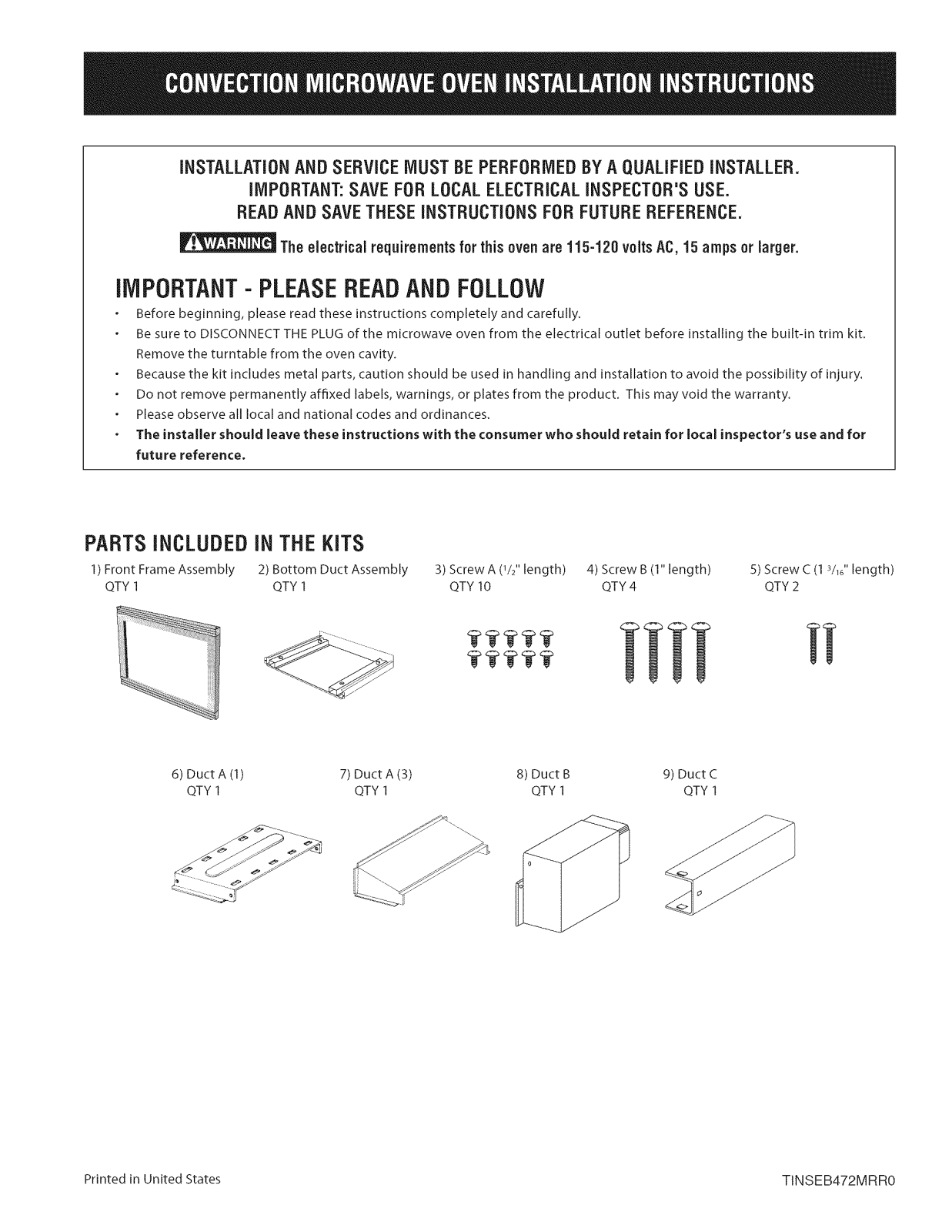

iNSTALLATiONANDSERVICEMUSTBEPERFORMEDBYAQUALiFiEDiNSTALLER.
iMPORTANT:SAVEFORLOCALELECTRICALiNSPECTOR'SUSE.
READANDSAVETHESEiNSTRUCTiONSFORFUTUREREFERENCE.
The electrical requirementsfer this evenare 115-120 voltsAC,15 amps or larger.
iMPORTANT-PLEASEREADANDFOLLOW
Before beginning, please read these instructions completely and carefully.
Be sure to DISCONNECT THE PLUG of the microwave oven from the electrical outlet before installing the built-in trim kit.
Remove the turntable from the oven cavity.
Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
Please observe all local and national codes and ordinances.
The installer should leave these instructions with the consumer who should retain for local inspector's use and for
future reference.
PARTS INCLUDED IN THE KITS
1) Front Frame Assembly 2) Bottom Duct Assembly
QTY 1 QTY 1
3) Screw A (V2" length) 4) Screw B (1" length) 5) Screw C (1 V_6" length)
QTY lO QTY 4 QTY 2
6) Duct A (1) 7) Duct A (3) 8) Duct B 9) Duct C
QTY 1 QTY 1 QTY 1 QTY 1
Printed in United States TINSEB472MRRO

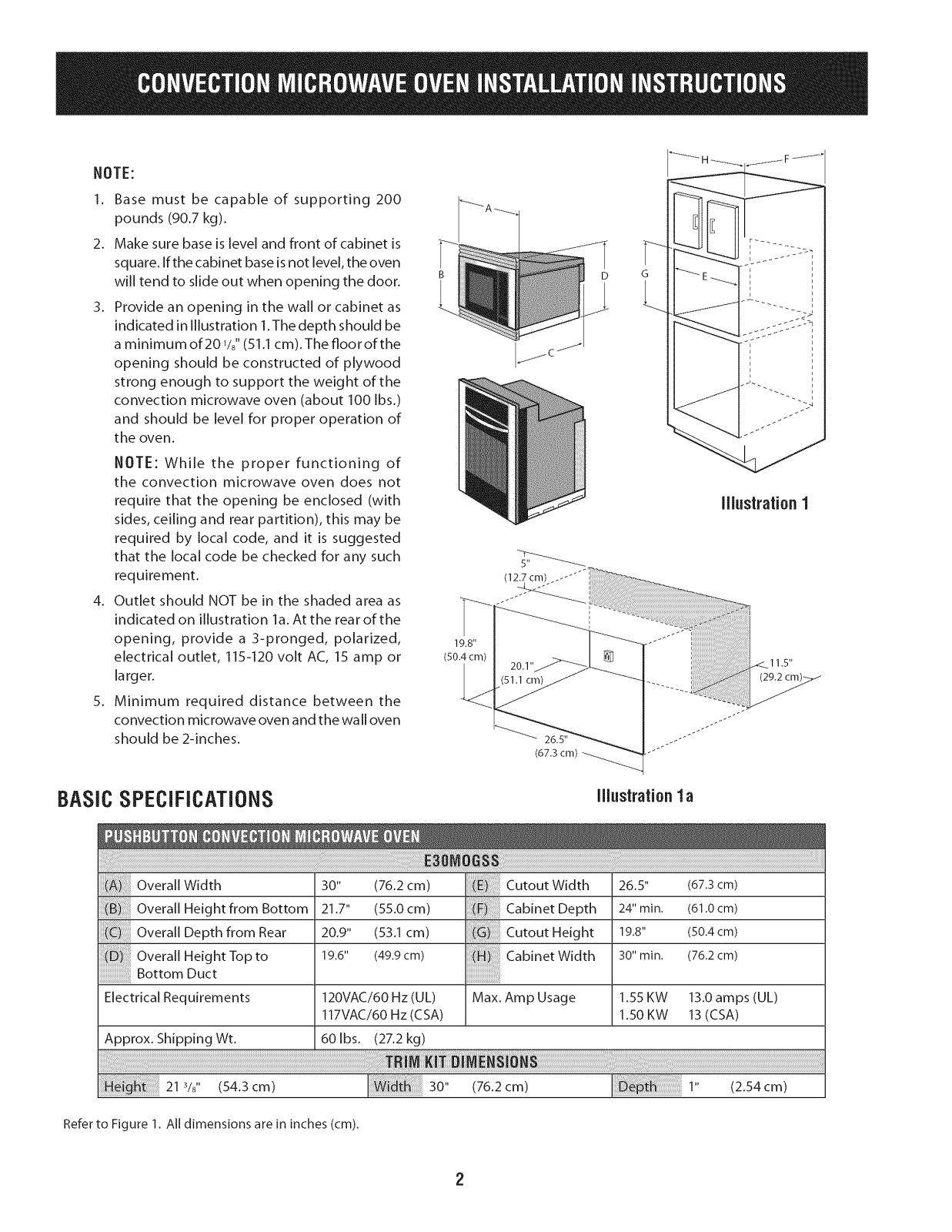

NOTE:
1. Base must be capable of supporting 200
pounds (90.7 kg).
2. Make sure base is level and front of cabinet is
square. If the cabinet base isnot level, the oven
will tend to slide out when opening the door.
3. Provide an opening in the wall or cabinet as
indicated in Illustration 1.The depth should be
a minimum of 20 VB"(51.1 cm).The floorofthe
opening should be constructed of plywood
strong enough to support the weight of the
convection microwave oven (about 100 Ibs.)
and should be level for proper operation of
the oven.
NOTE: While the proper functioning of
the convection microwave oven does not
require that the opening be enclosed (with
sides, ceiling and rear partition), this may be
required by local code, and it is suggested
that the local code be checked for any such
requirement.
4. Outlet should NOT be in the shaded area as
indicated on illustration la. At the rear of the
opening, provide a 3-pronged, polarized,
electrical outlet, 115-120 volt AC, 15 amp or
larger.
5. Minimum required distance between the
convection microwave oven and the wa IIoven
should be 2-inches.
D
J
Illustration 1
5"
19.8"
(50.4 cm)
J
BASIC SPECIFICATIONS
Overall Width
Overall Height from Bottom
Overall Depth from Rear
Overall Height Top to
30" (76.2 cm)
21.7" (55.0 cm)
20.9" (53.1 cm)
19.6" (49.9cm)
BottomDuct
Electdca[ Requirements
Approx. Shipping Wt. 60 Ibs. (27.2 kg)
21%" (54.3 cm) ': 30" (76.2 cm)
Referto Figure 1. All dimensions are in inches (cm).
120VAC/60 Hz (UL) 1.55 KW 13.0amps (UL)
117VAC/60 Hz (CSA) 1.50 KW 13(CSA)
CutoutWidth
CabinetDepth
CutoutHe ght
CabinetWidth
Max. Amp Usage
Illustration 1a
26.5" (67.3 cm)
24" min. (61.0 cm)
19.8" (50.4 cm)
30" min. (76.2 cm)
J 1" (2.54cm)
