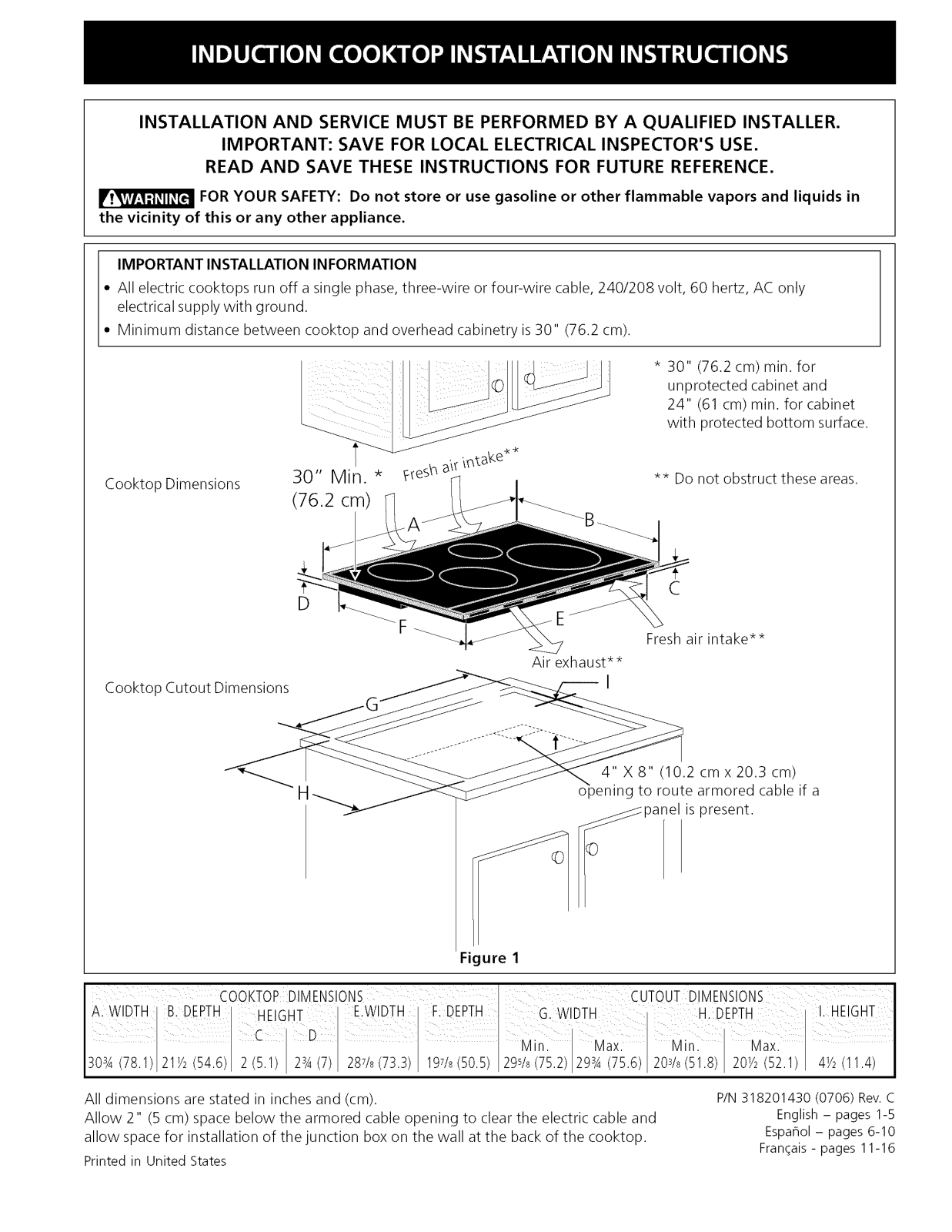

Electrolux E30IC75FSS1, E30IC75FSS3, E30IC75FSS4, E30IC75FSS5 Installation Guide

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

IMPORTANT INSTALLATION INFORMATION

• All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC only electrical supply with ground.

• Minimum distance between cooktop and overhead cabinetry is30" (76.2 cm).

* 30" (76.2 cm) rain. for

unprotected cabinet and 24" (61 cm) rain. for cabinet with protected bottom surface.

Cooktop Dimensions

Cooktop Cutout Dimensions

30" Min. * (76.2 cm)

** Do not obstruct these areas.

Fresh air intake**

Air exhaust**

--I

4" X 8" (10.2 cmx 20.3 cm)

opening to route armored cable if a

rei eert

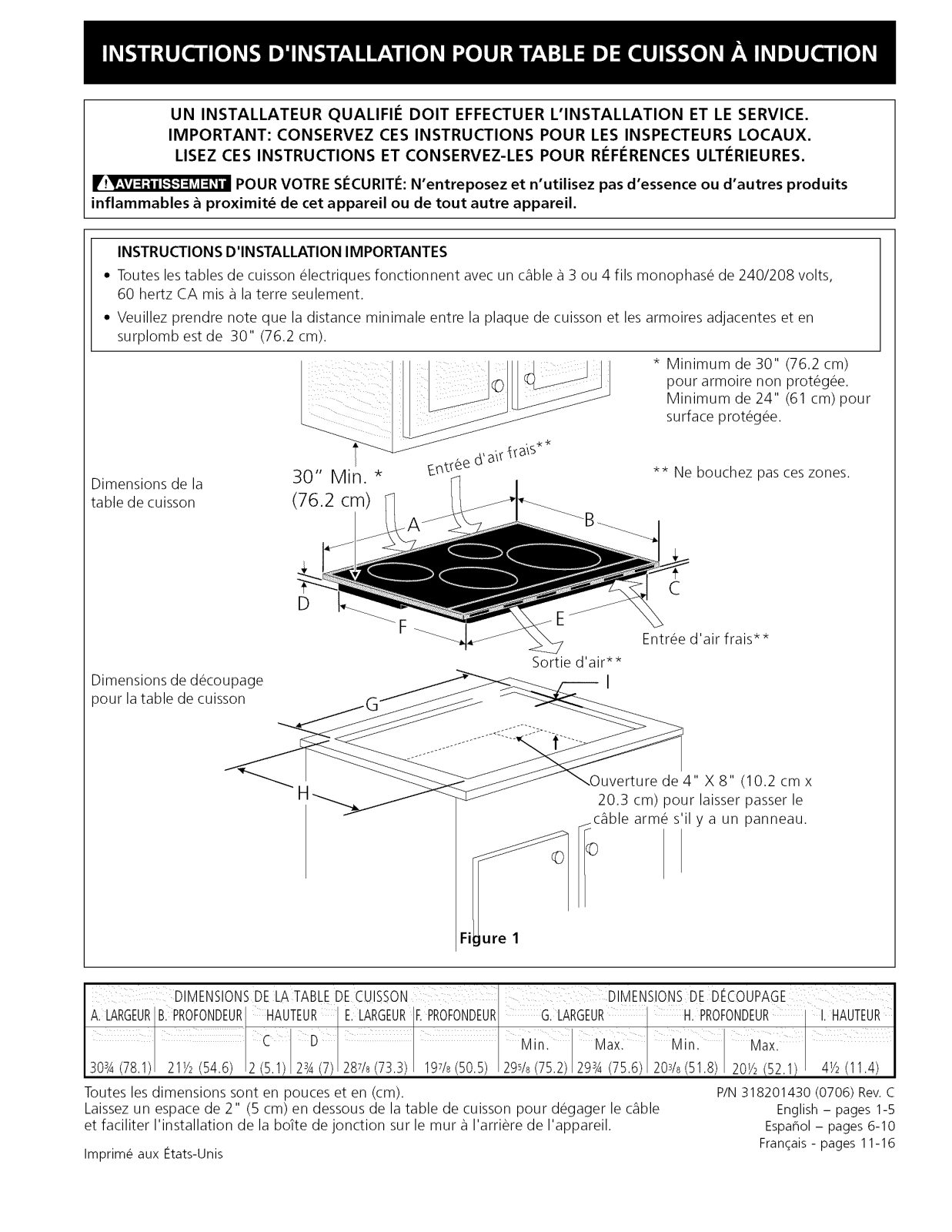

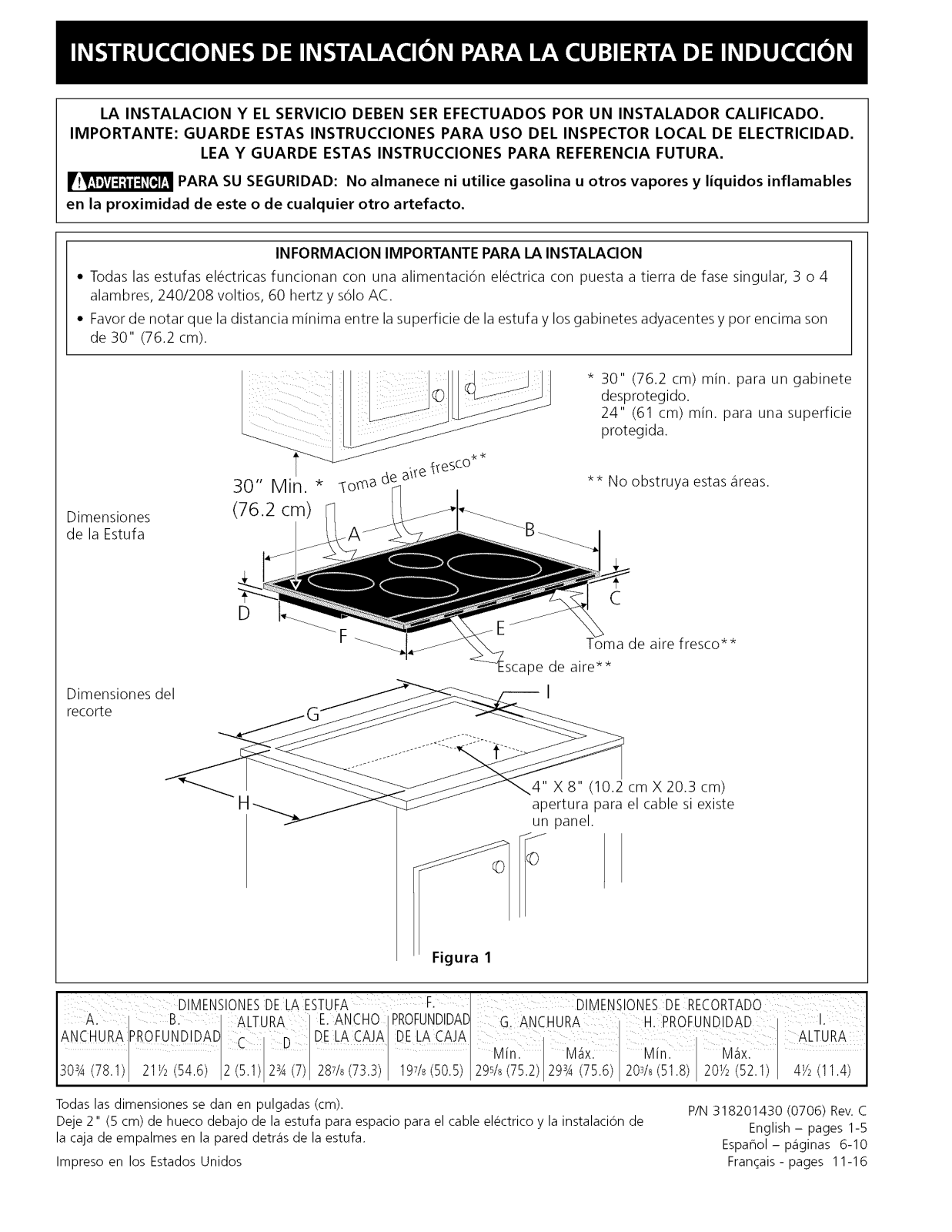

Figure 1

I COOKTOPDIMENSIONS I CUTOUT DIMENSIONS I

A. WlDTH B. DEPTH HEIGHT E.WlDTH F:DEPTH G.WlDTH H. DEPTH I. HE!GHT I

C D Min. MaX: Min. Max:

1303A(78.1)121Y2(54.6)1 2 (5.1) I 23A(7) 1287/8(73.3)I 197/8(50.5)129s/8(75.2)1293A(75.6)1203/8(51.8)I 20Y2(52.1) I 4Y2(11.4) I

All dimensions are stated in inches and (cm). Allow 2" (5 cm) space below the armored cable opening to clear the electric cable and allow space for installation of the junction box on the wall at the back of the cooktop.

Printedin United States

P/N 318201430 (0706) Rev. C

English - pages 1-5

Espahol - pages 6-10

Fran_ais - pages 11-16

OverheadCabinetShouldNotExceeda

MaximumDepthof13"(33cm)

30"(76.2cm)Min.Cl_m'l<_ed_ I

BetoWkeeg_a_fT°p°fth__<_c_ r ""--,L_----- J

Bottom of an Unprotected Nearest Combustible 10"

Wood or Metal Cabinet t, Surface Above ,( 25.4 cm)

Countertop

24" (61 cm) Min. when

Bottom of Wood or Metal

Cabinet is Protected by Not

Less Than 1/8" (0.3 cm) Flame Retardant Millboard Covered

With Not Less Than No. 28

MGS Sheet Steel, 0.015"

(0.4 mm) Stainless Steel,

0.024" (0.6 mm) Aluminum or 0.020" (0.5 mm) Copper.

J Min. From Edge of

• Cooktop to Nearest Combustible Wall

(Either Side of Unit).

2 1/2" (6.4 cm) Min. From Edge of Cutout to

* Letters on this figure refer to chart

on front page except for Jand K

Front Edge of Countertop

_To eliminate the risk of burns or fire by reaching over heated surfaces, cabinet storage space located above the cooktop should be avoided. If cabinet storage is provided, risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (12.7 cm) beyond the bottom

of the cabinets.

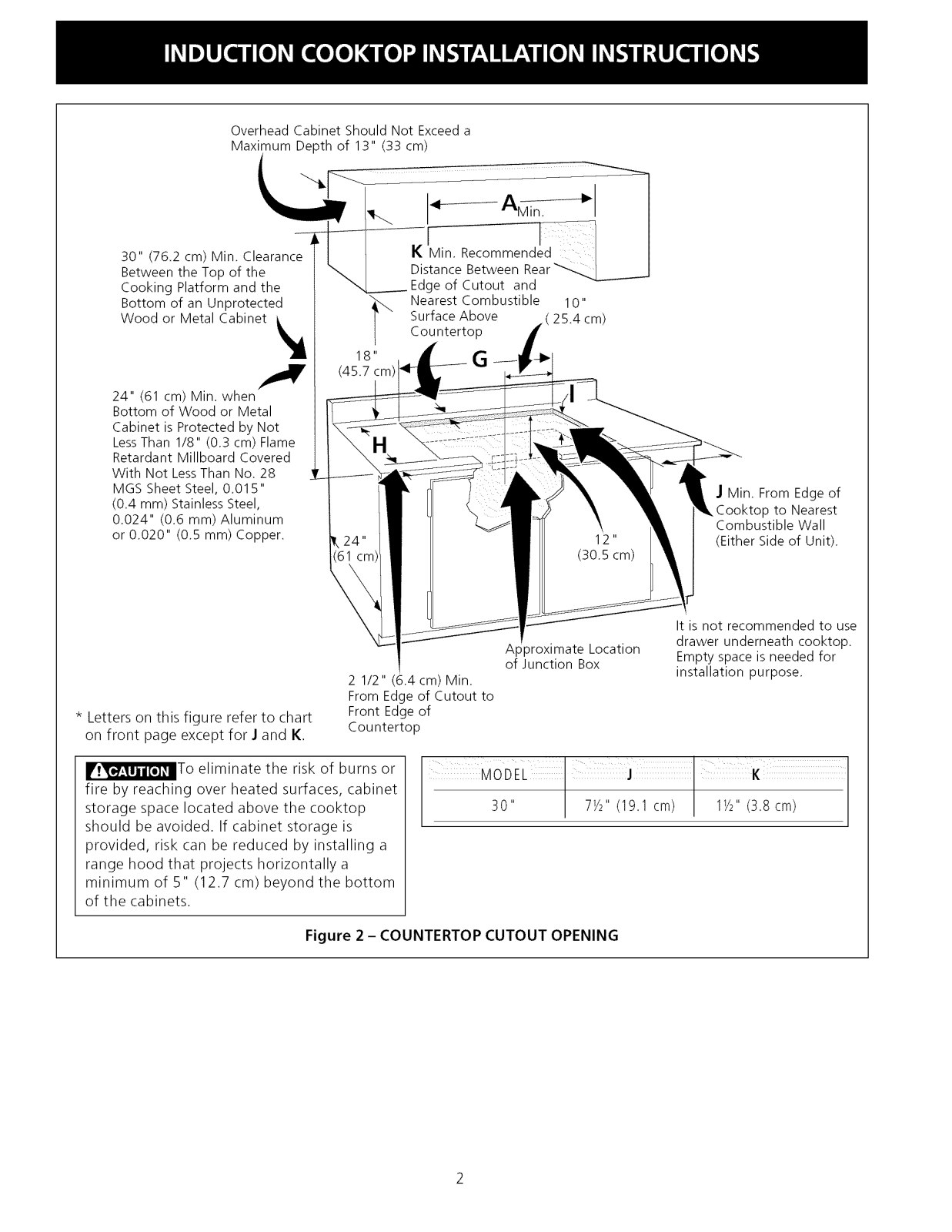

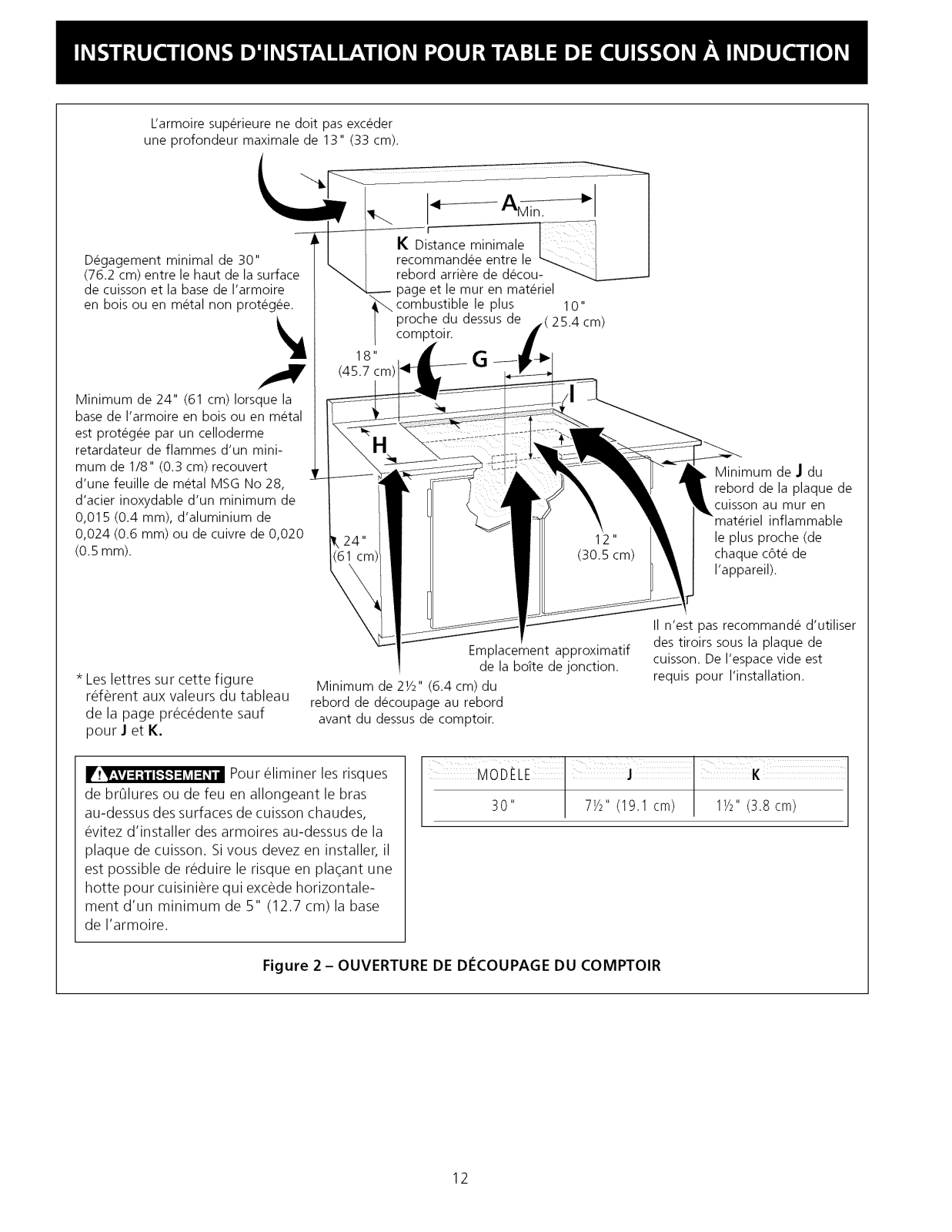

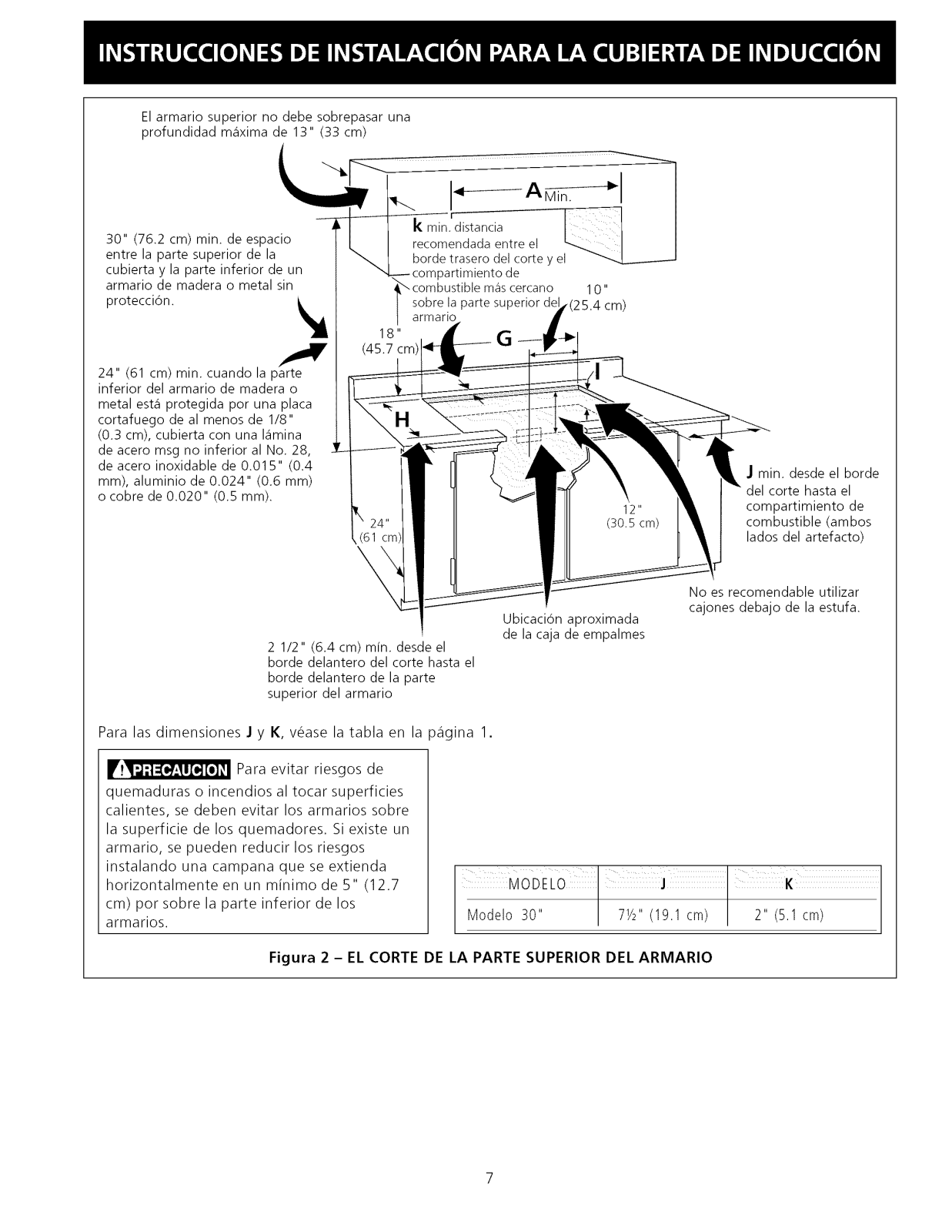

Figure 2 - COUNTERTOP CUTOUT OPENING

Approximate Location of Junction Box

3o" / 7y "<19.1

It is not recommended to use drawer underneath cooktop.

Empty space is needed for installation purpose.

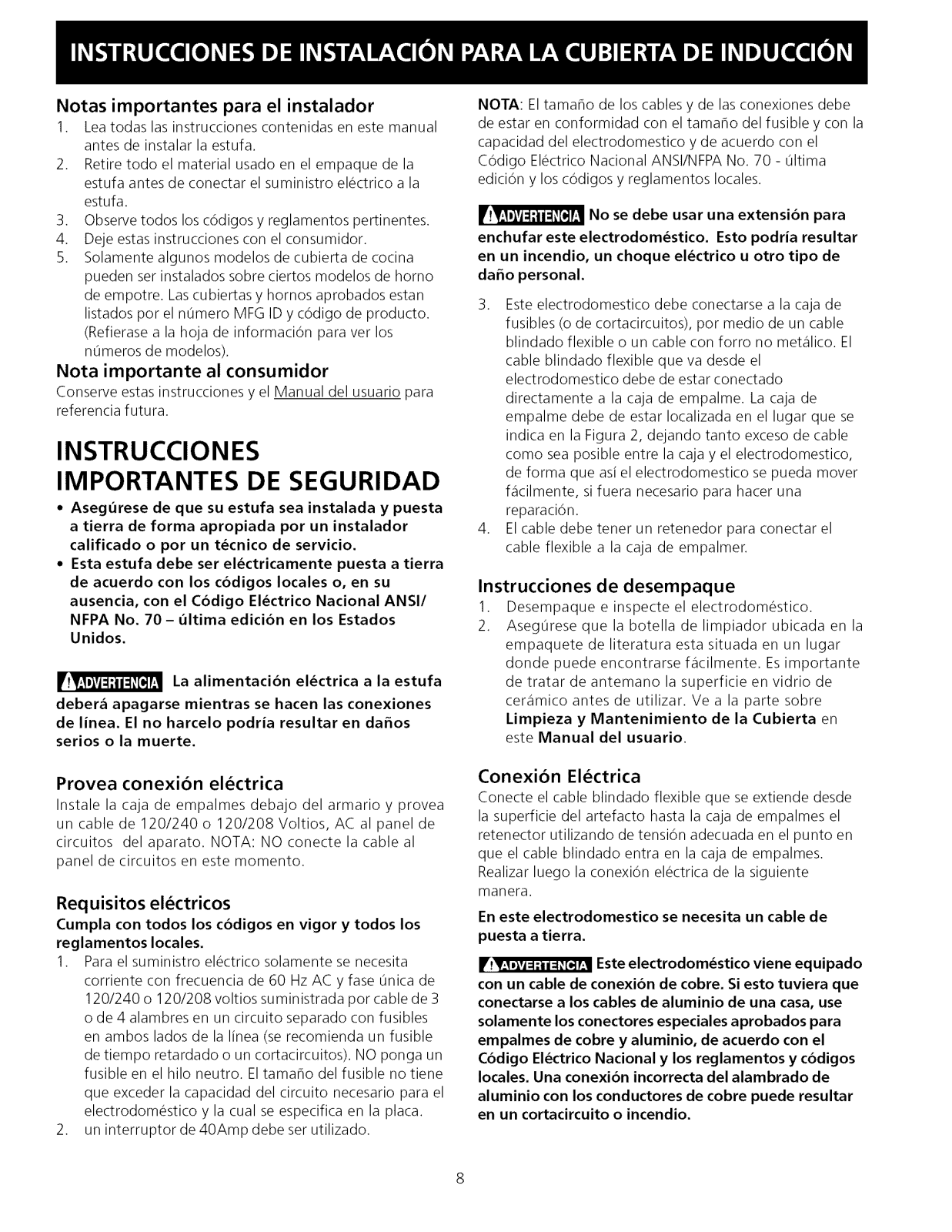

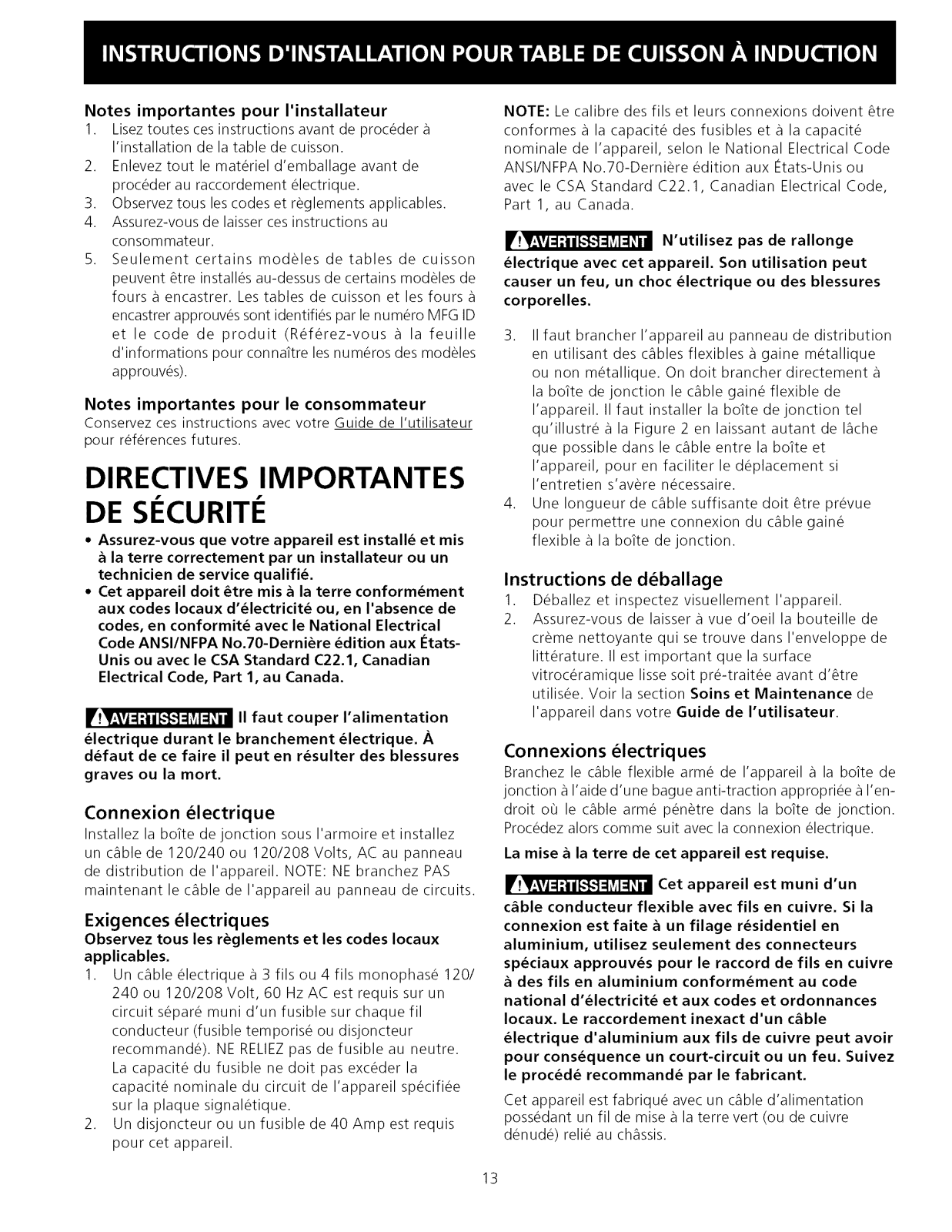

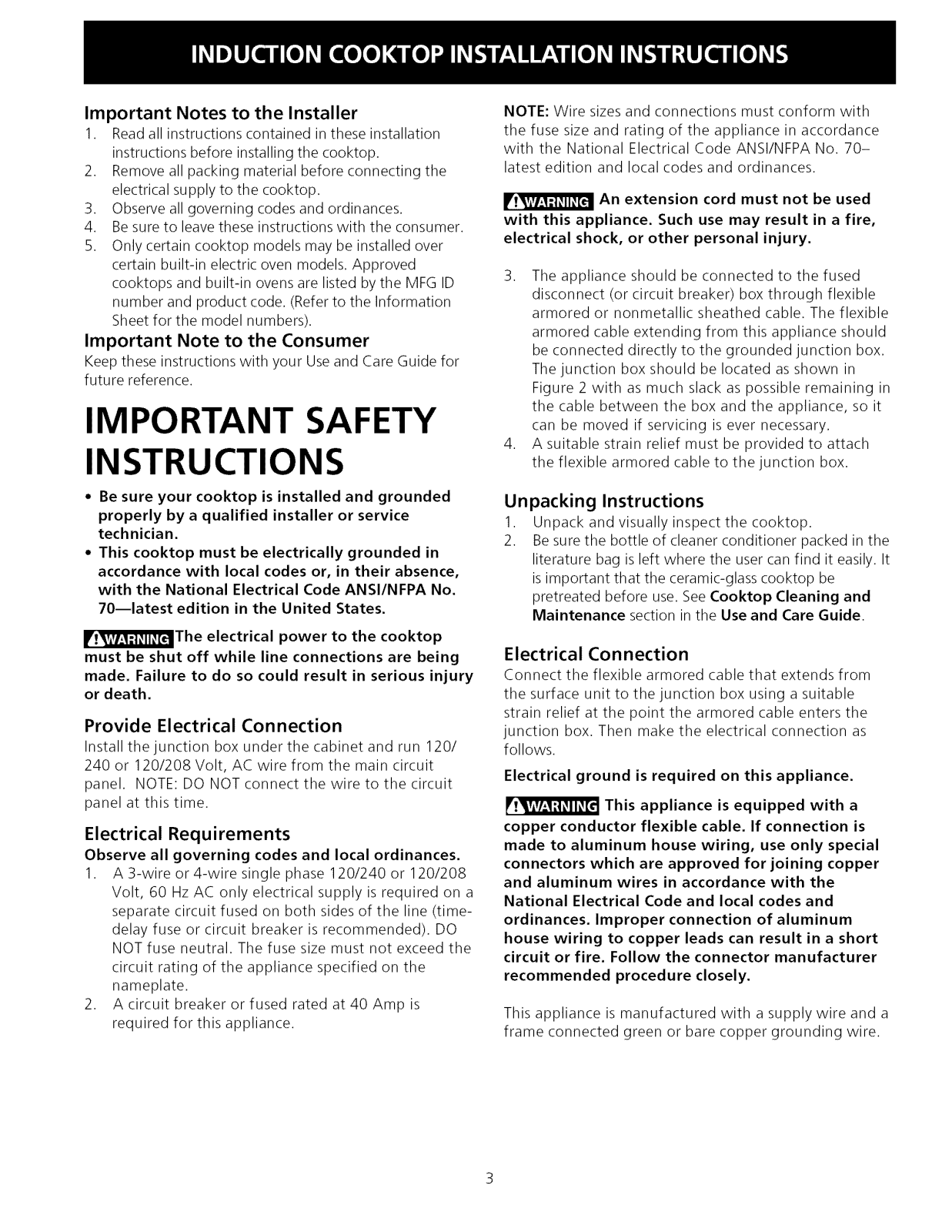

Important Notes to the Installer

1. Readallinstructionscontainedintheseinstallation instructionsbeforeinstallingthecooktop.

2. Removeallpackingmaterialbeforeconnectingthe electricalsupplytothecooktop.

3. Observeallgoverningcodesandordinances.

4. Besuretoleavetheseinstructionswiththeconsumer.

5. Onlycertaincooktopmodelsmaybeinstalledover certainbuilt-inelectricovenmodels.Approved

cooktopsandbuilt-inovensarelistedbytheMFGID numberandproductcode.(RefertotheInformation Sheetforthemodelnumbers).

Important Note to the Consumer KeeptheseinstructionswithyourUseandCare Guide for

future reference.

IMPORTANT SAFETY

INSTRUCTIONS

NOTE: Wire sizes and connections must conform with the fuse size and rating of the appliance in accordance

with the National Electrical Code ANSI/NFPA No. 70- latest edition and local codes and ordinances.

An extension cord must not be used with this appliance. Such use may result in a fire, electrical shock, or other personal injury.

3. The appliance should be connected to the fused

disconnect (or circuit breaker) box through flexible armored or nonmetallic sheathed cable. The flexible

armored cable extending from this appliance should

be connected directly to the grounded junction box.

The junction box should be located as shown in

Figure 2 with as much slack as possible remaining in the cable between the box and the appliance, so it can be moved if servicing is ever necessary.

4. A suitable strain relief must be provided to attach the flexible armored cable to the junction box.

• Be sure your cooktop is installed and grounded properly by a qualified installer or service

technician.

• This cooktop must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No.

70--latest edition in the United States.

f!,,,vl,__=t_ll_t_The electrical power to the cooktop

must be shut off while line connections are being made. Failure to do so could result in serious injury

or death.

Provide Electrical Connection

Install the junction box under the cabinet and run 120/

240 or 120/208 Volt, AC wire from the main circuit

panel. NOTE: DO NOT connect the wire to the circuit panel at this time.

Electrical Requirements

Observe all governing codes and local ordinances.

1. A 3-wire or 4-wire single phase 120/240 or 120/208

Volt, 60 Hz AC only electrical supply is required on a separate circuit fused on both sides of the line (time- delay fuse or circuit breaker is recommended). DO

NOT fuse neutral. The fuse size must not exceed the circuit rating of the appliance specified on the

nameplate.

2. A circuit breaker or fused rated at 40 Amp is required for this appliance.

Unpacking Instructions

1. Unpack and visually inspect the cooktop.

2. Be sure the bottle of cleaner conditioner packed in the literature bag is left where the user can find it easily. It isimportant that the ceramic-glass cooktop be pretreated before use.See Cooktop Cleaning and

Maintenance section in the Use and Care Guide.

Electrical Connection

Connect the flexible armored cable that extends from the surface unit to the junction box using a suitable strain relief at the point the armored cable enters the

junction box. Then make the electrical connection as

follows. Electrical ground is required on this appliance.

This appliance is equipped with a

copper conductor flexible cable. If connection is made to aluminum house wiring, use only special connectors which are approved for joining copper

and aluminum wires in accordance with the National Electrical Code and local codes and

ordinances. Improper connection of aluminum house wiring to copper leads can result in a short

circuit or fire. Follow the connector manufacturer recommended procedure closely.

This appliance is manufactured with a supply wire and a frame connected green or bare copper grounding wire.

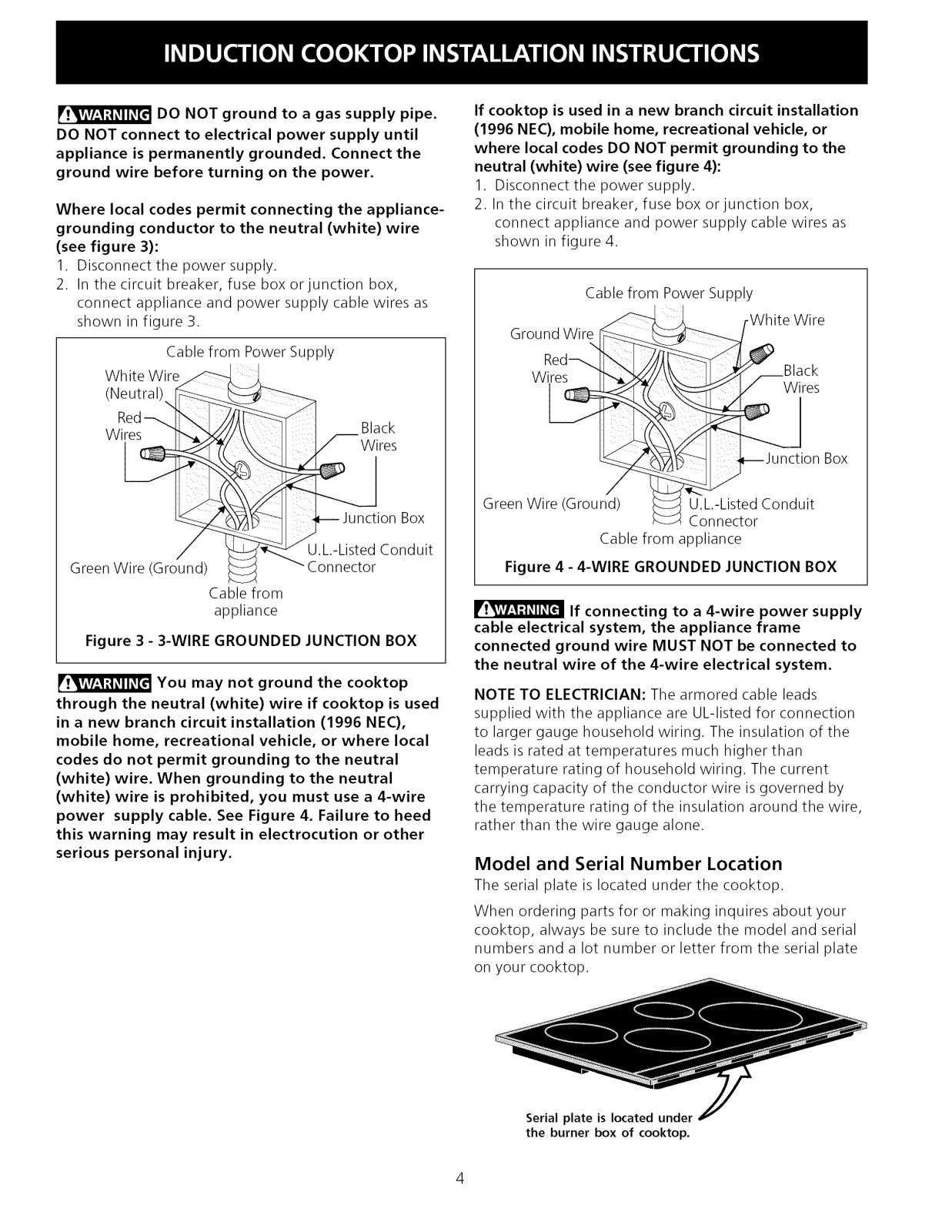

DO NOT ground to a gas supply pipe.

DO NOT connect to electrical power supply until appliance is permanently grounded. Connect the ground wire before turning on the power.

Where local codes permit connecting the appliance- grounding conductor to the neutral (white) wire

(see figure 3):

1. Disconnect the power supply.

2. In the circuit breaker, fuse box or junction box, connect appliance and power supply cable wires as shown in figure 3.

If cooktop is used in a new branch circuit installation (1996 NEC), mobile home, recreational vehicle, or

where local codes DO NOT permit grounding to the neutral (white) wire (see figure 4):

1. Disconnect the power supply.

2. In the circuit breaker, fuse box or junction box, connect appliance and power supply cable wires as shown in figure 4.

Cable from Power Supply

White Wire

(Neutral)

Red

Wires

Black Wires

Box

U.L-Listed Conduit

Green Wire (Ground)

Cable from

appliance

Connector

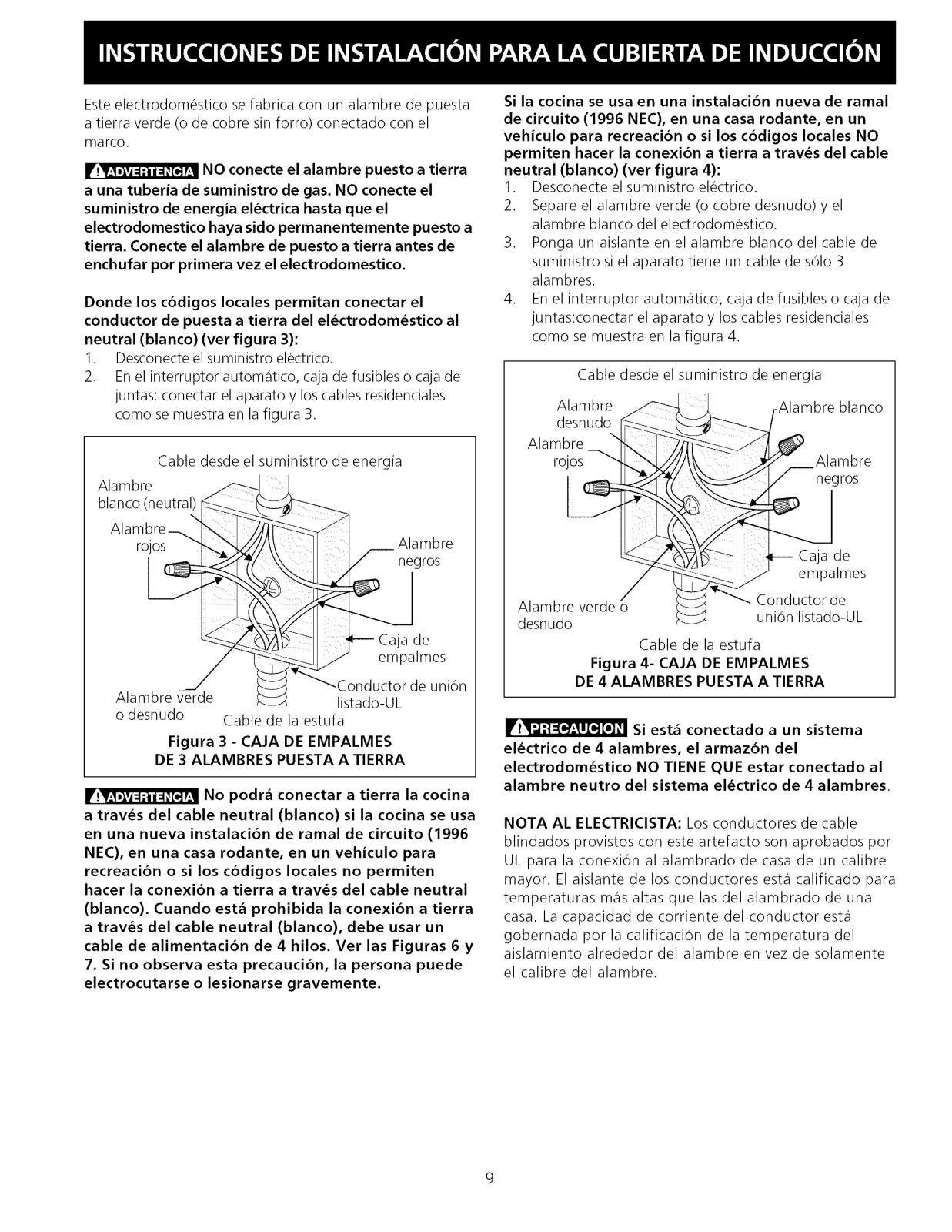

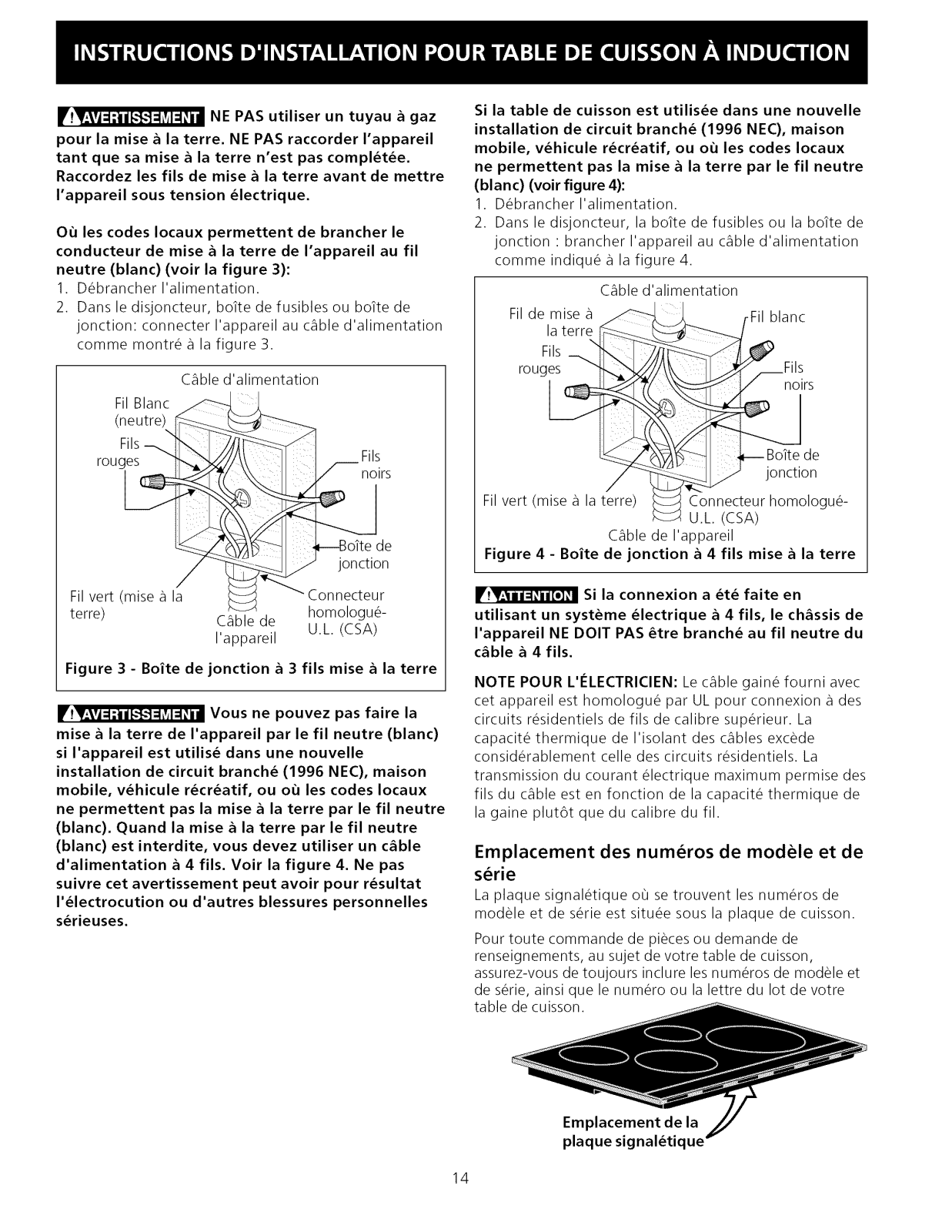

Figure 3 - 3-WIRE GROUNDED JUNCTION BOX

You may not ground the cooktop

through the neutral (white) wire if cooktop is used

in a new branch circuit installation (1996 NEC), mobile home, recreational vehicle, or where local

codes do not permit grounding to the neutral (white) wire. When grounding to the neutral (white) wire is prohibited, you must use a 4-wire power supply cable. See Figure 4. Failure to heed this warning may result in electrocution or other serious personal injury.

GroundWire,,,_ _ _WhiteWire

½_edi''_" 1 _) Black

Box

Cable from appliance

Figure 4 - 4-WIRE GROUNDED JUNCTION BOX

r!,,,,u_,_:t,,ll,,[_If connecting to a 4-wire power supply

cable electrical system, the appliance frame connected ground wire MUST NOT be connected to the neutral wire of the 4-wire electrical system.

NOTE TO ELECTRICIAN: The armored cable leads supplied with the appliance are UL-listed for connection

to larger gauge household wiring. The insulation of the leads is rated at temperatures much higher than temperature rating of household wiring. The current carrying capacity of the conductor wire is governed by the temperature rating of the insulation around the wire, rather than the wire gauge alone.

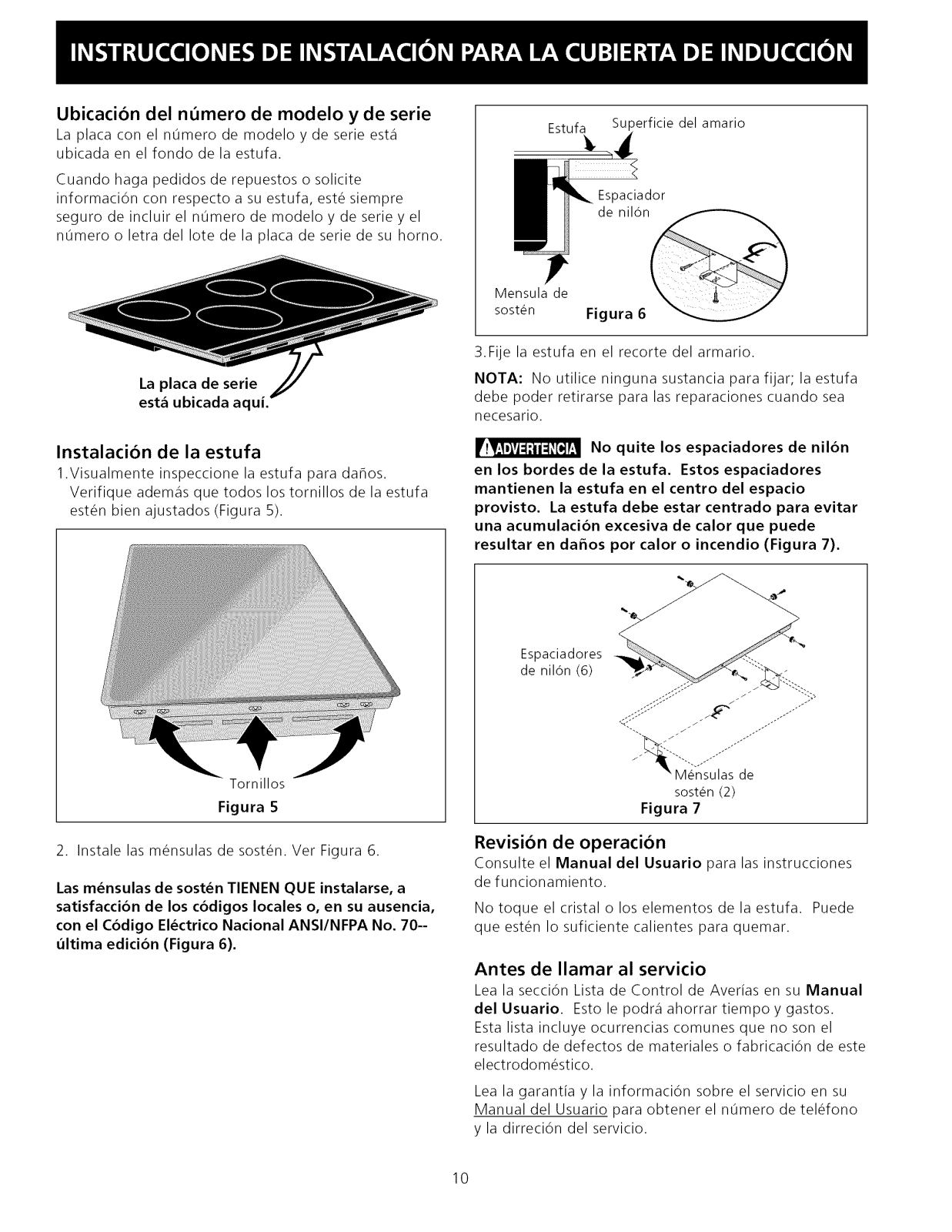

Model and Serial Number Location

The serial plate is located under the cooktop.

When ordering parts for or making inquires about your

cooktop, always be sure to include the model and serial numbers and a lot number or letter from the serial plate on your cooktop.

Serial plate is located under the burner box of cooktop.

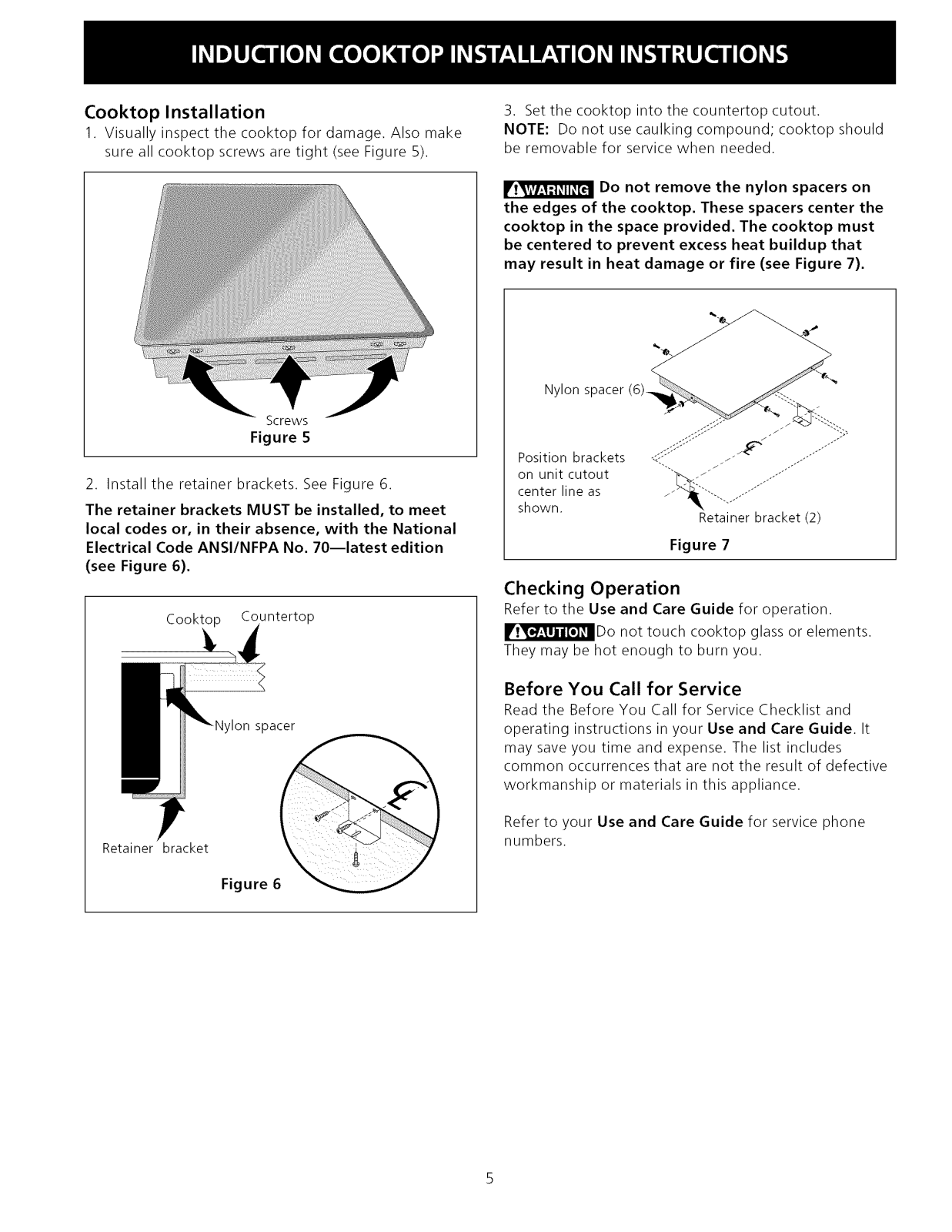

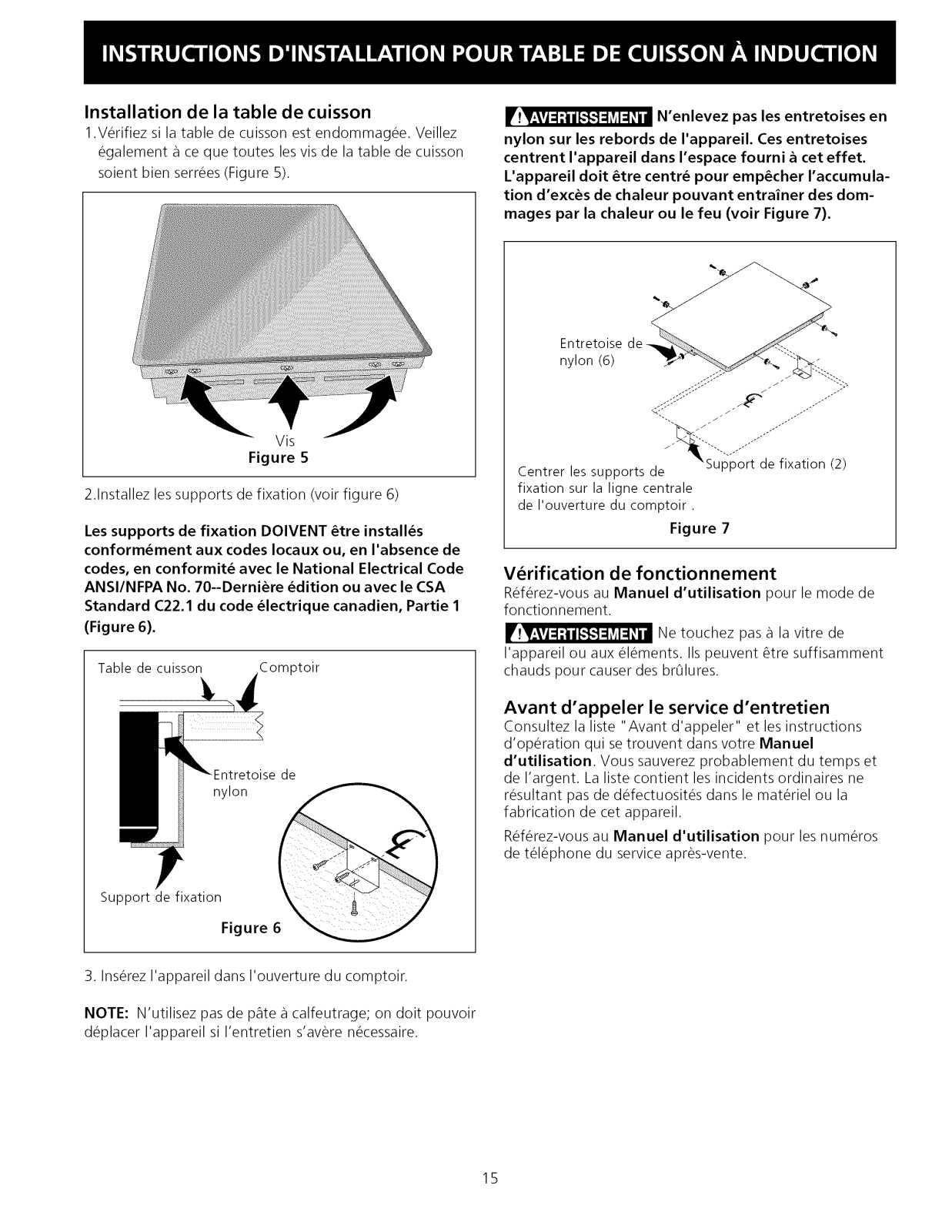

Cooktop Installation

1. Visually inspect the cooktop for damage. Also make sure all cooktop screws are tight (see Figure 5).

Screws

Figure S

2. Install the retainer brackets. See Figure 6.

The retainer brackets MUST be installed, to meet local codes or, in their absence, with the National

Electrical Code ANSI/NFPA No. 70--latest edition (see Figure 6).

Cooktop Countertop

3. Setthe cooktop into the countertop cutout. NOTE: Do not use caulking compound; cooktop should

be removable for service when needed.

Do not remove the nylon spacers on

the edges of the cooktop. These spacers center the

cooktop in the space provided. The cooktop must be centered to prevent excess heat buildup that may result in heat damage or fire (see Figure 7).

Nylon sF

Position brackets on unit cutout center line as

shown.

Retainer bracket (2)

Figure 7

Checking Operation

Refer to the Use and Care Guide for operation. I[V_l_i_Do not touch cooktop glass or elements.

They may be hot enough to burn you.

Retainer bracket

spacer

Figure 6

Before You Call for Service

Read the Before You Call for Service Checklist and operating instructions in your Use and Care Guide. It

may save you time and expense. The list includes common occurrences that are not the result of defective

workmanship or materials in this appliance.

Refer to your Use and Care Guide for service phone numbers.
