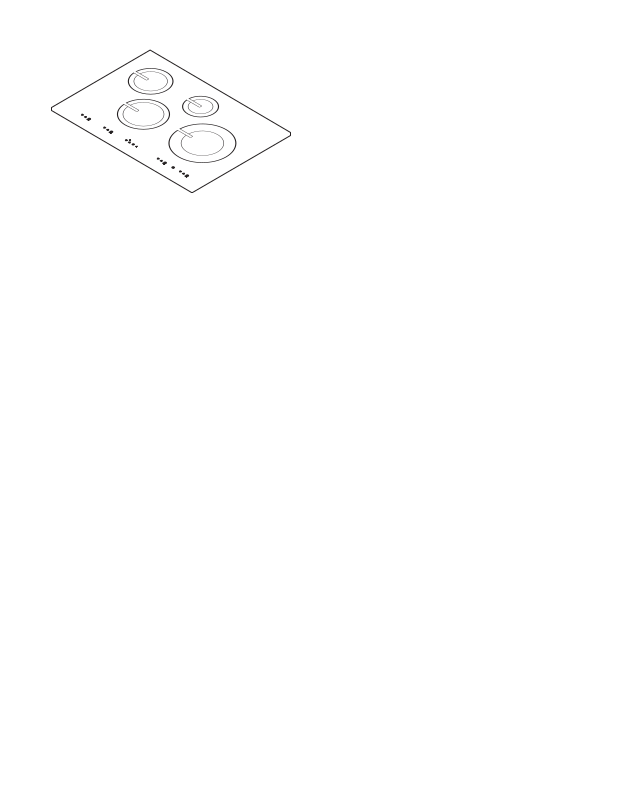

Page 1
E30IC75FSS1.eps CE30IC75FSS1.eps ME30IC75FSS1.eps 318046815.eps
Page 2
Publication No: 5995470167 E30IC75FSS1
CONTROL PANEL
07/06 2
Page 3
E30IC75FSS1 Publication No: 5995470167
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
1 318348100 Housing, plastic carrier
2 318347100 Generator, circuit board, (2)
4 318347000 Filter, circuit board
5 318346900 Cooling Fan Assembly
6 318348001 Communication Cable, generator, 18", to filter
7 318348000 Communication Cable, generator, 6", to filter
8 318052581 Power Cable Set, generator, 18", black, to filter
9 318052580 Power Cable Set, generator, 6", blue, to filter
10 318052582 Power Cable Set, generator, 18", blue, to filter
11 318052579 Power Cable Set, generator, 6", black, to filter
12 318052578 Groung Wire
20 # 318330811 Touch Control, electronic, main
20A# 318330711 Touch Control, cook zone, (2), electronic
21 318083044 Interface Cable, zone, main, (2)
22 318083045 Communication Cable, control, main, to filter
23 318368900 Frame, display, (4)
23A 318368910 Frame, display
24 318349900 Thermistor
* 5304457268 Washer, flat, nylon, (4)
* 5304457269 Palnut, #8-32, (6)
* 5304457271 Tape, foam, 1/4"x1"x1", (6)
# Functional Parts
3 07/06
* Non-Illustrated Parts
Page 4
Publication No: 5995470167 E30IC75FSS1
MAIN TOP/SURFACE UNITS
07/06 4
Page 5
E30IC75FSS1 Publication No: 5995470167
MAIN TOP/SURFACE UNITS
POS. NO PART NO. DESCRIPTION
1 318329004 Panel, CARRIER
* 08016432 Screw, truss head, 8-18 x 0.375
2 318344500 Insulation, elements
10 5304450850 Screw, 7-19 x 1/2", (11), housing ring
15 # 318329200 Element, induction coil, 145MM, right rear
15A# 318329201 Element, induction coil, 180MM, left rear
15B# 318329202 Element, induction coil, 210MM, left front
15C# 318329203 Element, induction coil, 260MM, right front
16 318282519 Main Top Assy, glass/steel, black/stainless
20 318121906 Bracket, retainer
34 318526700 Pan, skilet, induction
46 318328917 Box, burner
47 318345113 Deflector, air
50 318356803 Panel, spacer
57 318330911 Panel, access
58 318346000 Insulation, housing, RH
58A 318346002 Insulation, housing, rear
58B 318346001 Insulation, housing, LH
59 318346201 Insualtion, housing, lower
60 318346101 Deflector, air
61 5304424462 Foam Tape, 1/2" x 14"
163 318 014110 Spacer, (6)
* # 318078552 Box & wires assy
* 318341500 Clamp, power cord
* 5303323140 Screw, ground, 10-32 x 0.375
* 316459400 Pad, cleaning
* 5303307980 Screw, 8-32 x 0.437, (4)
# Functional Parts
5 07/06
* Non-Illustrated Parts
Page 6
Publication No: 5995470167 E30IC75FSS1

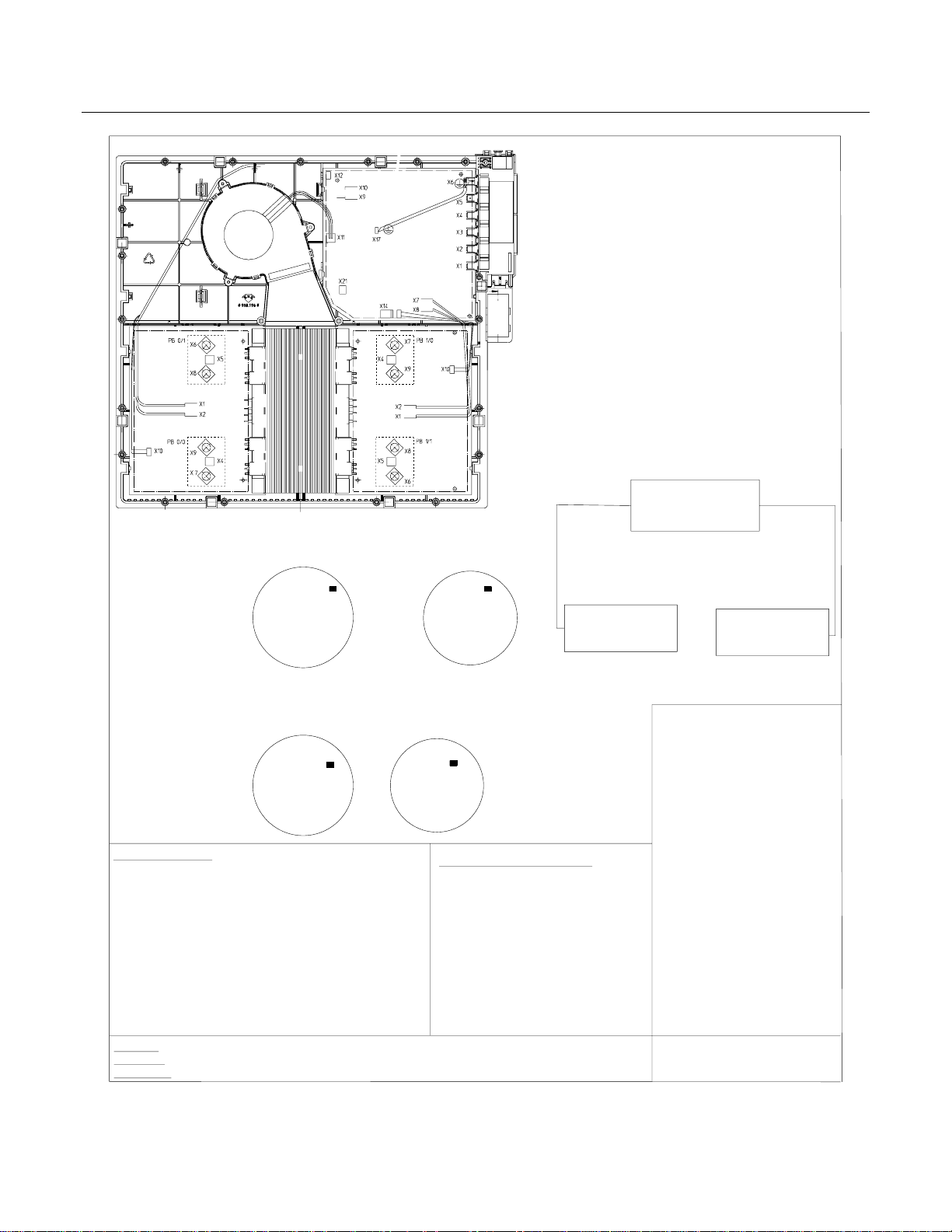

WIRING DIAGRAM
07/06 6
