Page 1
30"
52
1
/8"
521/8"
503/4"
Allow at least 23
1
/4"
clearance for door
depth when it is open.
24
1
/2"
7
/8"
Allow at least 231/4"
clearance for door
depth when it is open.

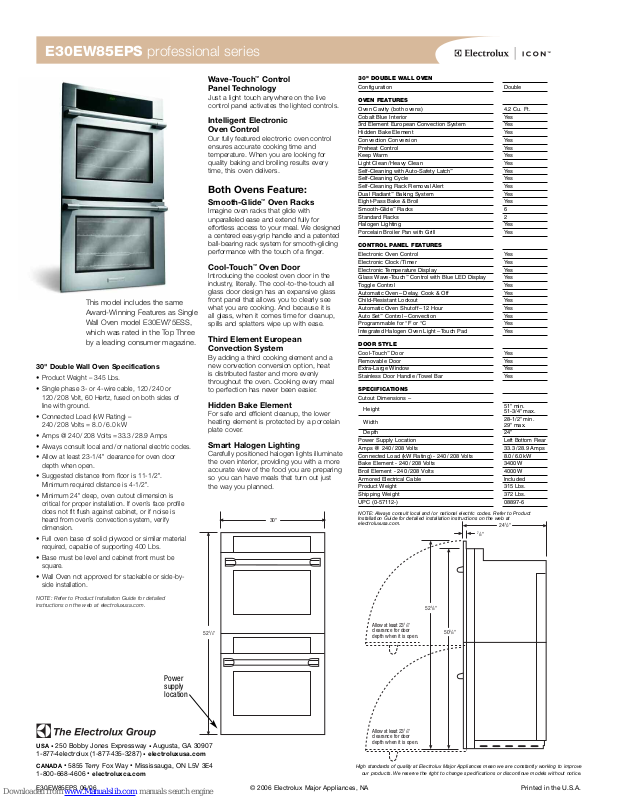

E30EW85EPS professional series
This model includes the same
Award-Winning Features as Single
Wall Oven model E30EW75ESS,
which was rated in the Top Three
by a leading consumer magazine.
30" Double Wall Oven Specifications
• Product Weight – 345 Lbs.
• Single phase 3- or 4-wire cable, 120/ 240 or
120 / 208 Volt, 60 Hertz, fused on both sides of
line with ground.
• Connected Load (kW Rating) –
240 / 208 Volts = 8.0/6.0 kW
• Amps @ 240 / 208 Volts =33.3/ 28.9 Amps
• Always consult local and /or national electric codes.
• Allow at least 23-1/4" clearance for oven door
depth when open.
• Suggested distance from floor is 11-1/2".
Minimum required distance is 4-1/2".
• Minimum 24" deep, oven cutout dimension is
critical for proper installation. If oven’s face profile
does not fit flush against cabinet, or if noise is
heard from oven’s convection system, verify
dimension.
• Full oven base of solid plywood or similar material
required, capable of supporting 400 Lbs.
• Base must be level and cabinet front must be
square.
• Wall Oven not approved for stackable or side-byside installation.
NOTE: Refer to Product Installation Guide for detailed
instructions on the web at electroluxusa.com.
Wave-Touch™Control
Panel Technology
Just a light touch anywhere on the live
control panel activates the lighted controls.
Intelligent Electronic
Oven Control
Our fully featured electronic oven control
ensures accurate cooking time and
temperature. When you are looking for
quality baking and broiling results every
time, this oven delivers.
Both Ovens Feature:
Smooth-Glide™Oven Racks
Imagine oven racks that glide with
unparalleled ease and extend fully for
effortless access to your meal. We designed
a centered easy-grip handle and a patented
ball-bearing rack system for smooth-gliding
performance with the touch of a finger.
Cool-Touch™Oven Door
Introducing the coolest oven door in the
industry, literally. The cool-to-the-touch all
glass door design has an expansive glass
front panel that allows you to clearly see
what you are cooking. And because it is
all glass, when it comes time for cleanup,
spills and splatters wipe up with ease.
Third Element European
Convection System
By adding a third cooking element and a
new convection conversion option, heat
is distributed faster and more evenly
throughout the oven. Cooking every meal
to perfection has never been easier.
Hidden Bake Element
For safe and efficient cleanup, the lower
heating element is protected by a porcelain
plate cover.
Smart Halogen Lighting
Carefully positioned halogen lights illuminate
the oven interior, providing you with a more
accurate view of the food you are preparing
so you can have meals that turn out just
the way you planned.
30" DOUBLE WALL OVEN
Configuration Double
OVEN FEATURES
Oven Cavity (both ovens) 4.2 Cu. Ft.
Cobalt Blue Interior Yes
3rd Element European Convection System Yes
Hidden Bake Element Yes
Convection Conversion Yes
Preheat Control Yes
Keep Warm Yes
Light Clean /Heavy Clean Yes
Self-Cleaning with Auto-Safety Latch
Self-Cleaning Cycle Yes
Self-Cleaning Rack Removal Alert Yes
Dual Radiant™Baking System Yes
Eight-Pass Bake & Broil Yes
Smooth-Glide™Racks 6
Standard Racks 2
Halogen Lighting Yes
Porcelain Broiler Pan with Grill Yes
CONTROL PANEL FEATURES
Electronic Oven Control Yes
Electronic Clock /Timer Yes
Electronic Temperature Display Yes
Glass Wave-Touch™Control with Blue LED Display Yes
Toggle Control Yes
Automatic Oven –Delay, Cook & Off Yes
Child-Resistant Lockout Yes
Automatic Oven Shutoff–12 Hour Yes
Auto Set™Control –Convection Yes
Programmable for °F or °C Yes
Integrated Halogen Oven Light –Touch Pad Yes
DOOR STYLE
Cool-Touch™Door Yes
Removable Door Yes
Extra-Large Window Yes
Stainless Door Handle /Towel Bar Yes
SPECIFICATIONS
Cutout Dimensions –
Height
Width
Depth 24"
Power Supply Location Left Bottom Rear
Amps @ 240 /208 Volts 33.3 / 28.9 Amps
Connected Load (kW Rating) - 240 /208 Volts 8.0 /6.0kW
Bake Element - 240 /208 Volts 3400 W
Broil Element - 240 /208 Volts 4000W
Armored Electrical Cable Included
Product Weight
Shipping Weight 372 Lbs.
UPC (0-57112-) 08897-6
NOTE: Always consult local and /or national electric codes. Refer to Product
Installation Guide for detailed installation instructions on the web at
electroluxusa.com.
™
Yes
51" min.
51-3/4" max.
28-1/2" min.
29" max.
315 Lbs.
Power
supply
location
•
USA
250 Bobby Jones Expressway •Augusta, GA 30907
1-877-4electrolux (1-877-435-3287)
•
CANADA
1-800-668-4606
E30EW85EPS 06/06 © 2006 Electrolux Major Appliances, NA Printed in the U.S.A.
5855 Terry Fox Way •Mississauga, ON L5V 3E4
•
electroluxca.com
•
electroluxusa.com
High standards of quality at Electrolux Major Appliances mean we are constantly working to improve
our products. We reserve the right to change specifications or discontinue models without notice.
