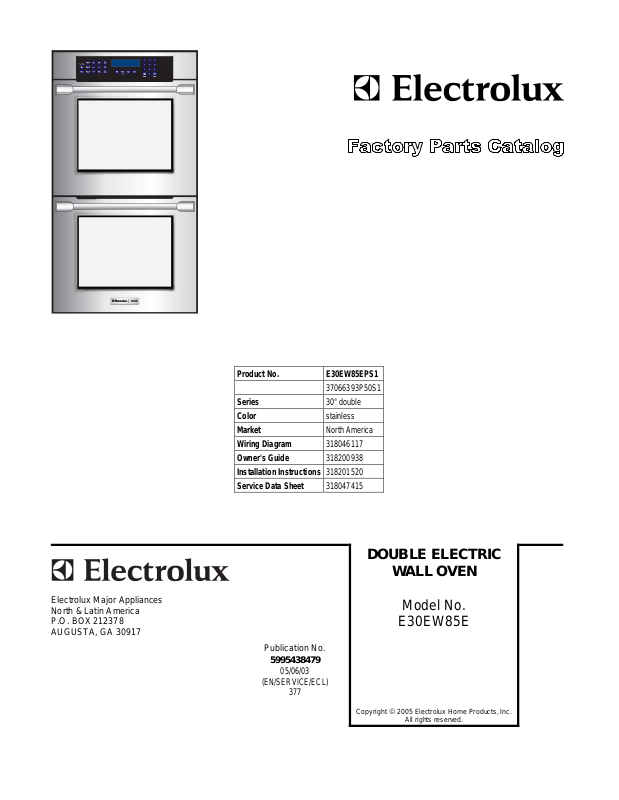

Page 1
E30EW85EPS.tif CE30EW85ESS1.eps BUE30EW85ESS1.eps BLE30EW85ESS1.eps
DE30EW75EPS1.eps 318046117.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No. E30EW85EPS1
37066393P50S1
Series 30" double
Color stainless
Market North America
Wiring Diagram 318046117
Owner's Guide 318200938
Installation Instructions 318201520
Service Data Sheet 318047415
Publication No.
5995438479
05/06/03
(EN/SERVICE/ECL)
377
DOUBLE ELECTRIC
WALL OVEN
Model No.
E30EW85E
Copyright © 2005 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995438479 E30EW85EPS1
CONTROL PANEL
69
19
78
20
100
97
77
100
77A
77
77A
77A
54
100
77
99
78
68
77A
77
CE30EW85ESS1
06/05 2
Page 3
E30EW85EPS1 Publication No: 5995438479
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
19 318244812 Control Panel, assembly, w/stainless trm
20 # 316434700 Oven control, electronic, ES600
54 5303308456 Screw, 8-18 x 0.531, black
68 318237200 Housing, top/control
69 318237310 Shield, control
77 316247900 Spacer, power board, (4)
77A 316114100 Spacer, (2)
78 318293700 Spacer, control panel, (4)
97 # 316434800 Relay Board
99 316435700 Board, power supply
100 5303297477 Screw, 6-20 x 1 1/4
* 318231731 Harness, communication
* 318231729 Harness, switch input
* 318231730 Harness, probe
* 5303211311 Screw, 8 x 0.500
# Functional Parts
3 06/05
* Non-Illustrated Parts
Page 4
Publication No: 5995438479 E30EW85EPS1

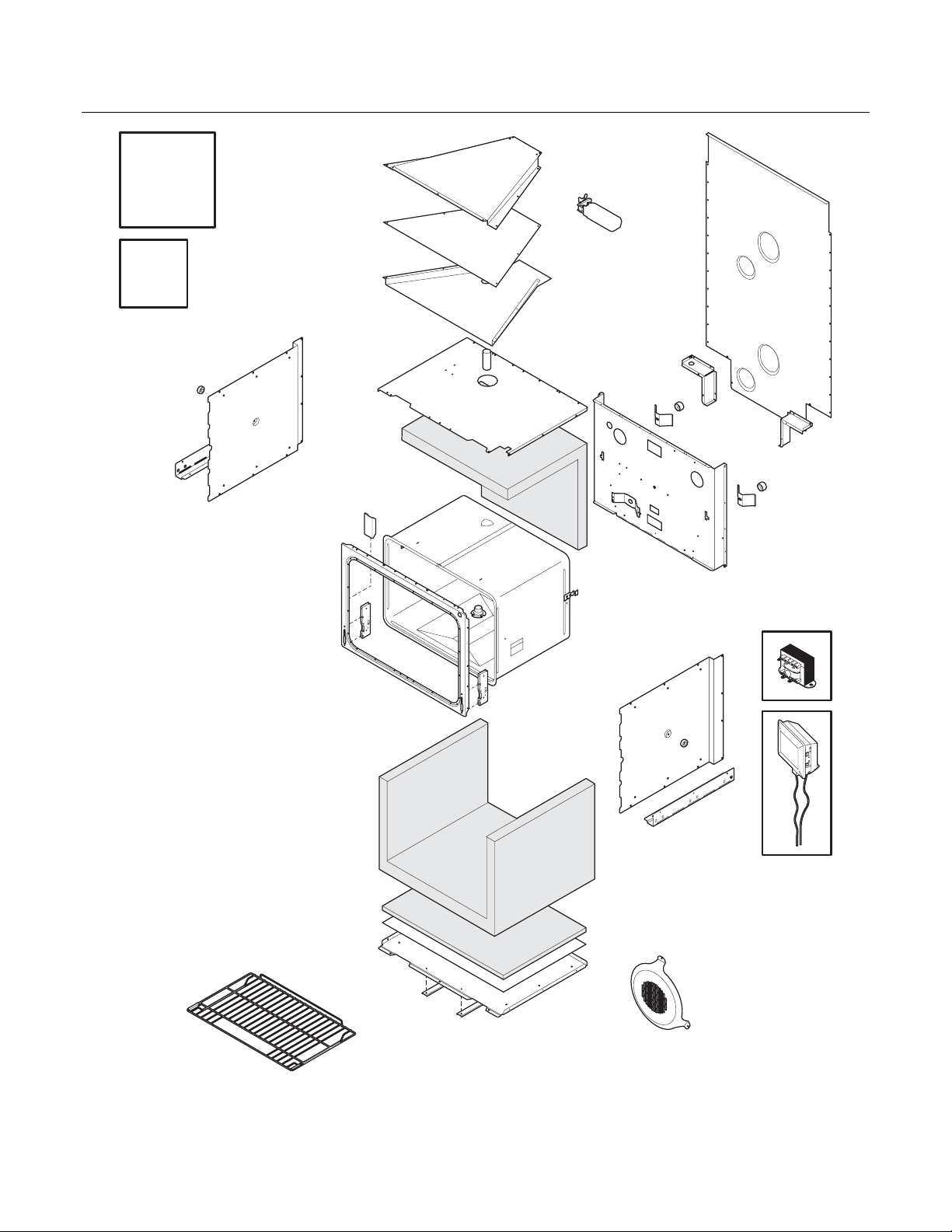

UPPER OVEN
06/05 4
Page 5
E30EW85EPS1 Publication No: 5995438479
UPPER OVEN
POS. NO PART NO. DESCRIPTION
1 318066413 Panel, main back
2 318236400 Shield, oven top
6 318240100 Shelf, oven, fixed
6A 318219500 Rack, broiler pan
6B 318240200 Shelf, oven, extendable
7 318240002 Glide & Support assy, oven shelves, RH
7A 318240003 Glide & Support assy, oven shelves, LH
8 318262002 Cover, element
8A 318318600 Bracket, element, hidden bake
9 318138801 Pan, broiler
10 318126401 Insert, broiler pan
12 # 318089917 Switch, light
15 318241000 Lamp, oven, (2), halogen
15* 318052197 Harness, wiring, halogen lamp
16 318283500 Bushing, halogen lamp, (8)
20 318239000 Gasket, oven door
37 # 316217002 Probe, oven temp
37* 5304435874 Plate, covering, probe
58A 318133788 Insulation, oven wrapper, bottom/sides
58B 318133787 Insulation, oven back/top
58D 318133789 Insulation, 1/2" thick, 26.75 x 19
58E 318235701 Panel, insulation, 26.75 x 18, aluminum
59 318072561 Tube, vent, oven
66 # 318255800 Element, broil, 4000W
67 318254901 Element, bake, 3400W, 8 pass
68 5304403015 Support, hanger, (2), broil element
70 318236 30 0 Shield, insulation, (2)
74 5304435878 Bumper
76 318056211 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
82 318072 310 Shield, oven bottom
83 318236003 Liner, oven assy
86 318241405 Receptacle, hinge, (2)
* 5304437044 Screw, 10-32 x 1/4, black
88 318250202 Rod, latch, w/bushing
88* 318167300 Clip, rod
89 318095950 Motor, latch assy, w/brkt & switch
89* 3201861 Screw, 6 x 0.375, (4)
89* 318120711 Switch
99 318278000 Bracket, oven, (2)
107 318 219402 Cover, fan
108# 318073019 Motor, blower
* 5304436875 Screw, 8-18 X 1/2, black
109 316136400 Blade, fan
111 316 136600 Nut, fan retainer
119# 318004900 Switch, thermal
125* 318142100 Washer, motor, RH, convection
125* 5303316994 Insulation, 3.81 x 3.13
125# 316136300 Motor, fan
127 318072802 Adaptor assy
# Functional Parts
5 06/05
* Non-Illustrated Parts
Page 6
Publication No: 5995438479 E30EW85EPS1
UPPER OVEN
06/05 6
Page 7
E30EW85EPS1 Publication No: 5995438479
UPPER OVEN
POS. NO PART NO. DESCRIPTION
129 5303311164 Spring
131 318 237401 Channel, air, upper
132 318 237600 Divider, air channel
133 318 237 500 Channel, air, lower
143 318 172904 Support, wire/glass
* 08016432 Screw, truss head, 8-18 x 0.375
161# 318255502 Element, convection, 2500 W
185 318 014700 Spacer, oven shield, (4)
186 318 236900 Bracket, oven, lower
186A 318237000 Bracket, oven, upper
186B 318237100 Bracket, oven, side, (2)
188 318 014110 Spacer, (4)
188* 3131048 Screw, 8 x 5/8
263 316136500 Washer, fan motor
264 318 278601 Trim, vent
* 5303320422 Screw, 6-20 x 5/16, black, (6)
272 318 249400 Tube, protector
284 318 244500 Transformer
284* 318302000 Spacer, cork & rubber, (2)
300 318 089801 Switch, door, oven light
* 3015722 Clip, wire retainer
301 318234600 Support, tongue mtg
302 318278200 Tongue, door switch, w/plate
303 318 228400 Pin, cotter
* 5303211311 Screw, 8 x 0.500
* 5303323277 Screw, 8-18 X 13/32
# Functional Parts
7 06/05
* Non-Illustrated Parts
Page 8
Publication No: 5995438479 E30EW85EPS1
LOWER OVEN
06/05 8
Page 9
E30EW85EPS1 Publication No: 5995438479
LOWER OVEN
POS. NO PART NO. DESCRIPTION
1 318066412 Panel, main back
2 318236400 Shield, oven top
6 318240100 Shelf, oven, fixed
6B 318240200 Shelf, oven, extendable
7 318240002 Glide & Support assy, oven shelves, RH
7A 318240003 Glide & Support assy, oven shelves, LH
8 318262002 Cover, element
8A 318318600 Bracket, element, hidden bake
12 # 318089917 Switch, light
15 318241000 Lamp, oven, (2), halogen
15* 318052197 Harness, wiring, halogen lamp
16 318283500 Bushing, halogen lamp, (8)
20 318239000 Gasket, oven door
37 # 316217002 Probe, oven temp
37* 5304435874 Plate, covering, probe
56 318283102 Trim, side, black, RH
56A 318283103 Trim, side, black, LH
58A 318133788 Insulation, oven wrapper, bottom/sides
58B 318133787 Insulation, oven back/top
58D 318133789 Insulation, 1/2" thick, 26.75 x 19
58E 318235701 Panel, insulation, 26.75 x 18, aluminum
59 318072561 Tube, vent, oven
62 316056000 Terminal Block
62* 5303323139 Screw, 10-24 x 0.906
62* 5303323144 Nut, 10-32
66 # 318255800 Element, broil, 4000W
67 318254901 Element, bake, 3400W, 8 pass
68 5304403015 Support, hanger, (2), broil element
70 318236 30 0 Shield, insulation, (2)
71 318236710 Panel, wire shield
74 318283600 Bumper
76 318056211 Front, oven
77 318243600 Bracket, stopping
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
82 318072 310 Shield, oven bottom
83 318236003 Liner, oven assy
86 318241405 Receptacle, hinge, (2)
* 5304437044 Screw, 10-32 x 1/4, black
88 318250202 Rod, latch, w/bushing
88* 318167300 Clip, rod
89 318095950 Motor, latch assy, w/brkt & switch
89* 3201861 • Screw, 6 x 0.375, (4)
89* 318120711 • Switch
90 318236601 Gutter
99 318055425 Support, adjustable, (2)
107 318 219402 Cover, fan
107* 5304415832 Screw, 8-18 x 0.406
108# 318073019 Motor, blower
* 5304400192 retainer wire
* 5304436875 Screw, 8-18 X 1/2, black
# Functional Parts
9 06/05
* Non-Illustrated Parts
Page 10
Publication No: 5995438479 E30EW85EPS1
LOWER OVEN
06/05 10
Page 11
E30EW85EPS1 Publication No: 5995438479
LOWER OVEN
POS. NO PART NO. DESCRIPTION
109 316136400 Blade, fan
111 316 136600 Nut, fan retainer
119# 318004900 Switch, thermal
125* 318142100 Washer, motor, RH, convection
125* 5303316994 Insulation, 3.81 x 3.13
125# 316136300 Motor, fan
127 318072802 Adaptor assy
129 5303311164 Spring
131 318 237401 Channel, air, upper
132 318 237600 Divider, air channel
133 318 237 500 Channel, air, lower
143 318 172904 Support, wire/glass
* 08016432 Screw, truss head, 8-18 x 0.375
150 318 072 21 2 Brack et, supp ort, RH, acces s cover
150A 318072213 Bracket, support, LH, access cover
161# 318255502 Element, convection, 2500 W
185 318 014700 Spacer, oven shield, (4)
186 318 236900 Bracket, oven, lower
186A 318237000 Bracket, oven, upper
186B 318237100 Bracket, oven, side, (2)
188 318 014110 Spacer, (4)
188* 3131048 Screw, 8 x 5/8
227 318 240 702 Bracket, reinforcement, (2)
263 316136500 Washer, fan motor
264 318 278501 Trim, vent
272 318 249400 Tube, protector
284 318 244500 Transformer
284* 318302000 Spacer, cork & rubber, (2)
300 318 089801 Switch, door, oven light
* 3015722 Clip, wire retainer
301 318234600 Support, tongue mtg
302 318278200 Tongue, door switch, w/plate
303 318 228400 Pin, cotter
310 5304435864 Kit, cabinet mtg, w/instructions
311 318246000 • Bracket, cabinet mtg
311* 5304438005 • Screw, 6 x 1, black
312 318246702 • Tool, cabinet bracket, RH
312 318246703 • Tool, cabinet bracket, LH
* # 318078548 Box & wires assy
* 318231726 Harness, wiring, main
* 5303211311 Screw, 8 x 0.500
* 5303323136 Screw ground
* 5303323277 Screw, 8-18 X 13/32
# Functional Parts
11 06/05
* Non-Illustrated Parts
Page 12
Publication No: 5995438479 E30EW85EPS1
DOORS
06/05 12
Page 13
E30EW85EPS1 Publication No: 5995438479
DOORS
POS. NO PART NO. DESCRIPTION
3 318280201 Door Assembly, glass, w/framing
4 318299210 Exterior Door Panel, assembly, stainless, w/nameplate, lower oven
4 318335000 Exterior Door Panel, assembly, stainless, upper oven
8 318238000 Glass, door, middle, (2)
10 5304447555 Screw & Washer, 6-32 x 3/4, (2)
10* 5304447556 Washer, flat, (2)
11 5303320422 Screw, 6-20 x 5/16, black, (6)
16 318237900 Glass, oven interior
18 318240900 Seal, middle glass, (2)
23 318244304 Hinge Assy, (2)
29 5304436441 Bumper, base, (4)
39 241637906 Handle Assembly, stainless, w/endcaps
41 318238500 Bracket, glass holder, RH bottom
42 318238501 Bracket, glass holder, LH bottom
54 5304436875 Screw, 8-18 X 1/2, black
193 316210800 Plug, button
* 318163602 Cleaner, stainless steel
* 316221001 Label, anti-tip
* 5303211311 Screw, 8 x 0.500
* 5303323277 Screw, 8-18 X 13/32
* 5304437044 Screw, 10-32 x 1/4, black
* 5304443263 Screw, glass holder, 6-20 x 3/8, black, (3)
# Functional Parts
13 06/05
* Non-Illustrated Parts
Page 14
Publication No: 5995438479 E30EW85EPS1

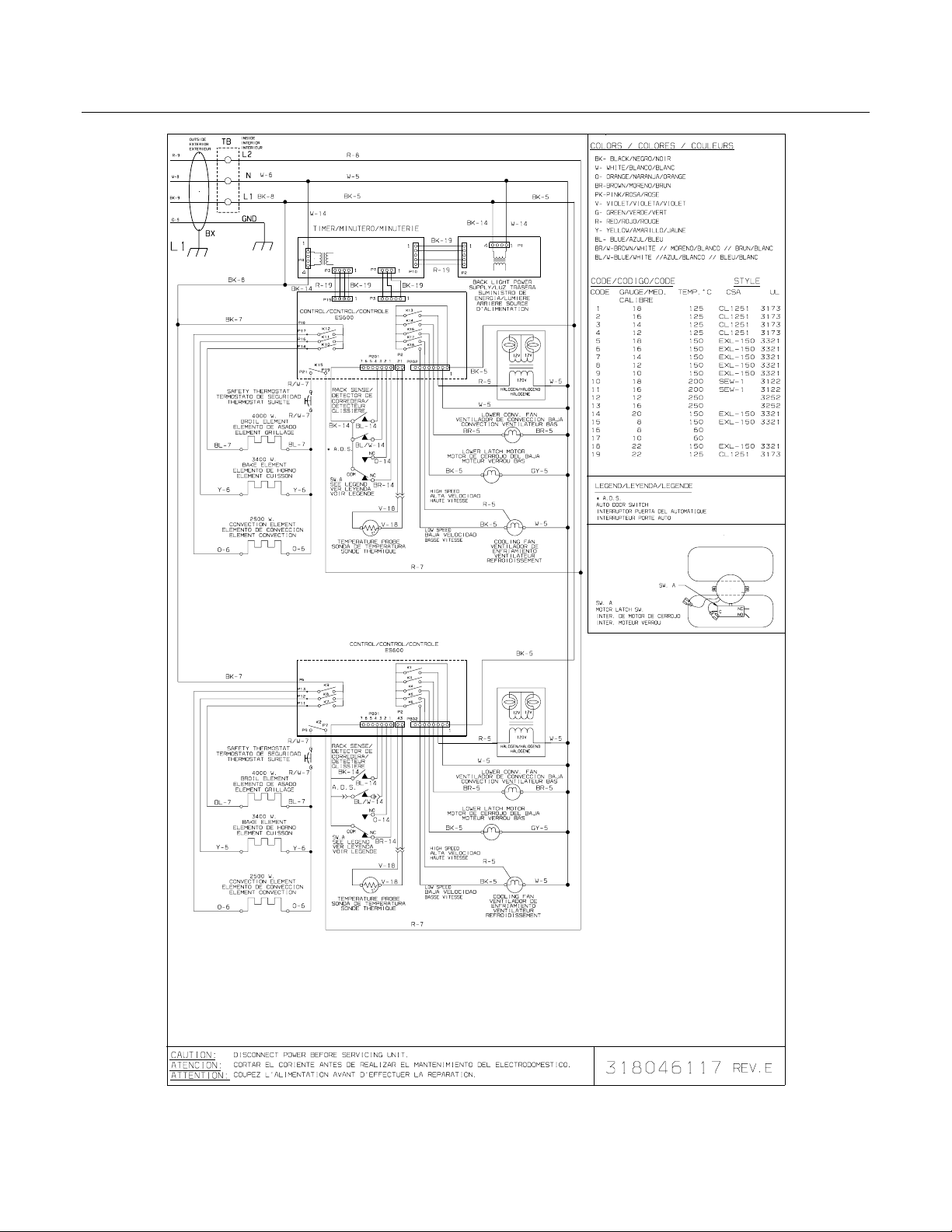

WIRING DIAGRAM
06/05 14
