Page 1

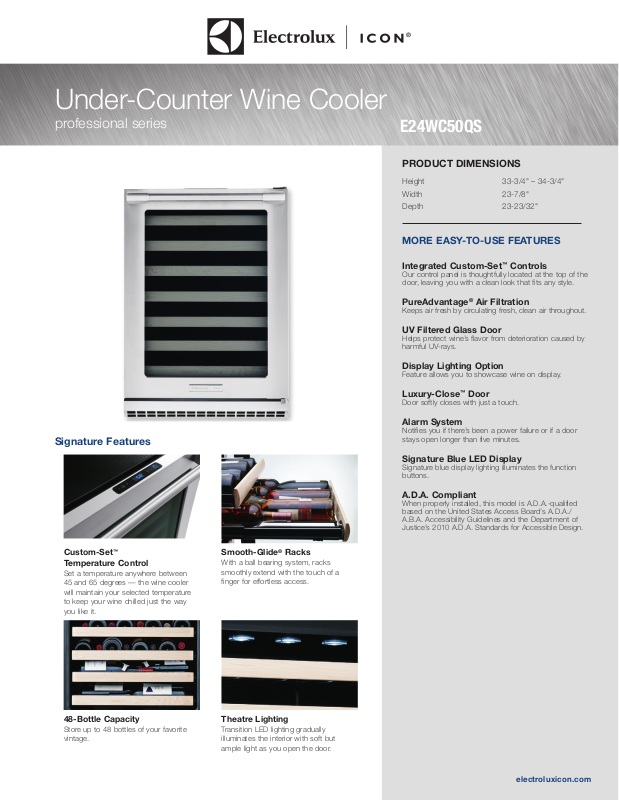

Under-Counter Wine Cooler
professional series
E24WC50QS
PRODUCT DIMENSIONS
Height 33-3/4" – 34-3/4"
Width 23-7/8"
Depth 23-23/32"
MORE EASY-TO-USE FEATURES
Integrated Custom-Set™ Controls
Our control panel is thoughtfully located at the top of the
door, leaving you with a clean look that fits any style.
PureAdvantage® Air Filtration
Keeps air fresh by circulating fresh, clean air throughout.
UV Filtered Glass Door
Helps protect wine’s flavor from deterioration caused by
harmful UV-rays.
Display Lighting Option
Feature allows you to showcase wine on display.
Luxury-Close™ Door
Door softly closes with just a touch.
Signature Features
Custom-Set™
Temperature Control
Set a temperature anywhere between
45 and 65 degrees — the wine cooler
will maintain your selected temperature
to keep your wine chilled just the way
you like it.
Smooth-Glide® Racks
With a ball bearing system, racks
smoothly extend with the touch of a
finger for effortless access.
Alarm System
Notifies you if there’s been a power failure or if a door
stays open longer than five minutes.
Signature Blue LED Display
Signature blue display lighting illuminates the function
buttons.
A.D.A. Compliant
When properly installed, this model is A.D.A.-qualified
based on the United States Access Board’s A.D.A./
A.B.A. Accessibility Guidelines and the Department of
Justice’s 2010 A.D.A. Standards for Accessible Design.
48-Bottle Capacity
Store up to 48 bottles of your favorite
vintage.
Theatre Lighting
Transition LED lighting gradually
illuminates the interior with soft but
ample light as you open the door.
electroluxicon.com
Page 2
Under-Counter Wine Cooler
E24WC50QS professional series
UNDER-COUNTER WINE COOLER
Sabbath Mode (Star-K® Certified)
Capacity
Maximum Storage
Door Swing
Installation Type
FEATURES
Integrated Custom-Set™ Temperature Control
Electronic Control Lock
Signature Blue LED Display
Frost-Free Performance
Dynamic Condenser
PureAdvantage
Display Temp Mode (°C or °F)
Door Ajar Acoustic Alarm
Power Failure Acoustic Alarm
High-Temperature Acoustic Alarm
Mute Sound Control
Theatre-Style Lighting
Exhibit Lighting with Manual Control
Power-On / Off Control
Vacation Mode
Sabbath Mode (Star-K
Smooth-Glide
Black Soft Coat Wireform Racks
Maple Wood Front on Racks
®
Air Filtration
®
Certified)
®
Full-Extension Racks
ADDITIONAL FEATURES
Professional Series Door and Handle Design
UV Filtered, Tinted Glass Door
Luxury-Close
Adjustable Leveling Legs
A.D.A. Compliant *
™
Door
SPECIFICATIONS
Temperature Range
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Minimum Circuit Required (Amps)
Approved for Under Counter Installation
Shipping Weight (Approx.)
* When properly installed, this model is A.D.A.-qualified based on the United States Access
Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A.
Standards for Accessible Design.
‡
For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
‡
Yes
5.34 Cu. Ft.
48 Bottles
Right
Built-In
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
7
Yes
Yes
Yes
Yes
Yes
4
Yes
41°F – 64°F
Right Bottom Rear
120V / 60 Hz
0.15
15
Yes
125 Lbs.
PRODUCT DIMENSIONS
Height
Width
Depth (To Handle)
(With Door 90° Open)
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E24WC50QS 07/14 © 2014 Electrolux Home Products, Inc.
33-3/4" – 34-3/4"
23-7/8"
26-3/8"
46-13/32"
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Page 3
Under-Counter Wine Cooler
E24WC50QS professional series
237/8"
Door in 90°
open position
211/2"
Left
2323/32"
26
3/8"
FrontTop
237/8"
46
13/32"
1
2
/2"
3
33
/4"
Adjustable
3/4"
to 34
Power cord
location (right
bottom rear)
23/4" 311/32"
Top
90°
90°
237/8"
24"
min.
3/8"
26
34"
min.
Recessed
electrical
outlet*
Under-Counter Wine Cooler Specifications
•
Product Weight – 115 Lbs.
•
Voltage Rating –120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 0.15 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 1.5 Amps
•
Electrical cable supplied.
•
Always consult local and national electric codes.
•
Unit is designed for either freestanding or built-in, under-counter
installation.
•
Built-in, under-counter installation does not require additional airspace for
top, sides or rear of unit.
•
Proper built-in, under-counter installation requires that both electrical
outlet and plug be completely recessed to ensure unit will fit flush
against rear wall.
•
To allow for ease of installation and removal, it is recommended that
cabinet rough opening dimensions be increased by at least 1/4" over
product’s dimensions.
*Proper built-in,
under-counter
installation requires that
both electrical outlet & plug
be completely recessed to ensure
unit will fit flush against rear wall
241/8"
•
For proper ventilation, unit can NOT be installed behind closed doors;
front grille MUST remain unobstructed.
•
Must be positioned on flat, level surface, capable of supporting entire
weight when fully loaded.
•
Leveling legs supplied to adjust height and level unit.
•
Do not position unit near any heat source to ensure optimum performance.
•
Unit requires zero clearance when installing flush with cabinet or wall.
•
When installing against cabinet or wall that extends beyond front edge
of unit, 2-1/2" minimum handle clearance required to allow for 90° door
swing, providing sliding shelves with necessary clearance.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E24WC50QS 07/14 © 2014 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Page 4
U
se these dimensions and clearance instructions for planning purposes only. For detailed installation
i
nstructions, refer to installation guide, packed with product, or on the web at electroluxicon.com.
Top
Front
Top
Front
General Installation Guidelines

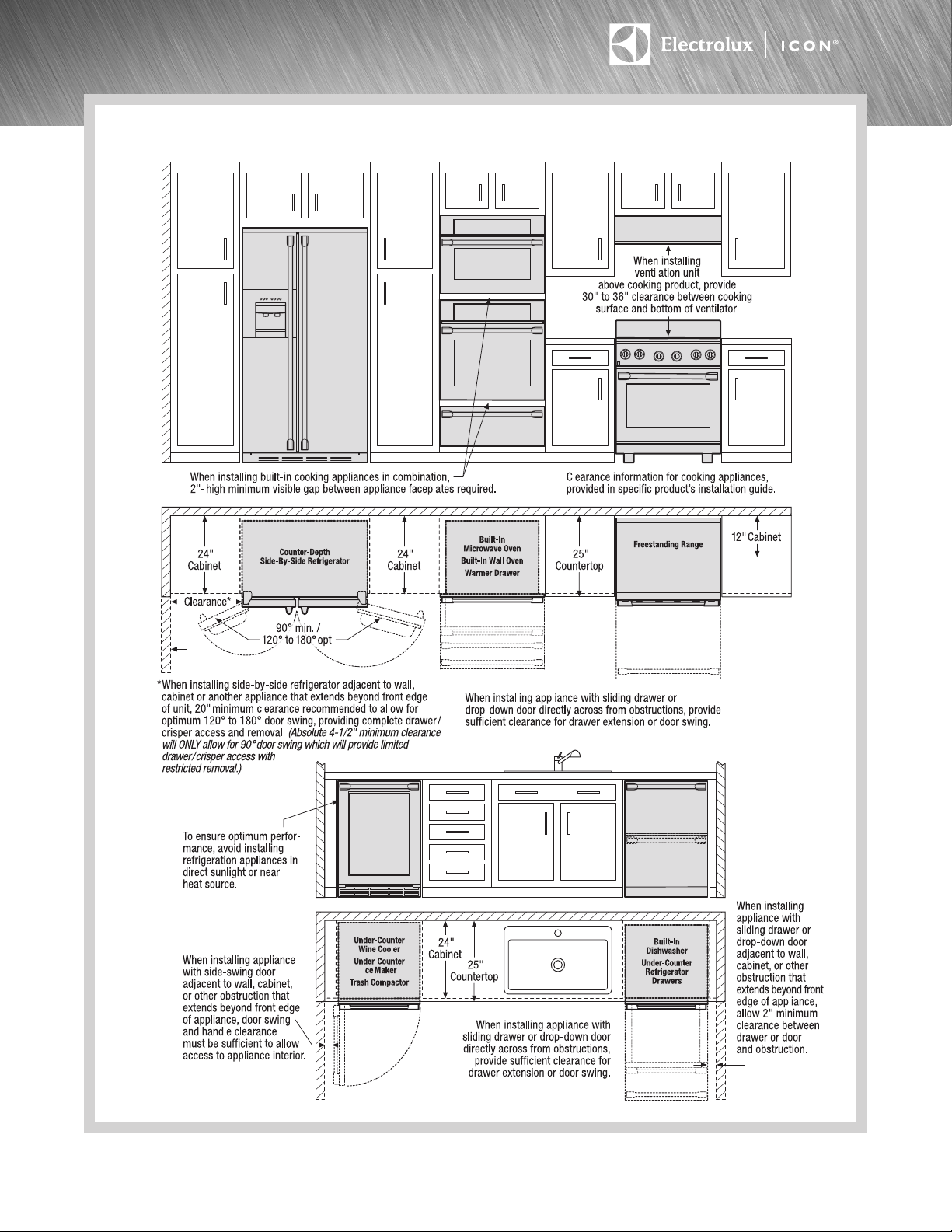

For Installation with Counter-Depth Side-by-Side Refrigerator
Electrolux Major Appliances, N.A.
•
USA
10200 David Taylor Drive•Charlotte, NC 28262•1-877-4electrolux (1-877-435-3287)
•
CANADA
INSTGDLNS_SSR EI 04/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way•Mississauga, ON L5V 3E4•1-800-265-8352
•
electroluxic on.ca
•
electroluxic on.com
High standards of quality at Electrolux Home Products, Inc. mean we ar e
constantly working to improve our products. We reser ve the right to change
specifications or discontinue models without notice.
Page 5
U
se these dimensions and clearance instructions for planning purposes only. For detailed installation
i
nstructions, refer to installation guide, packed with product, or on the web at electroluxicon.com.
Top
Front
Top
Front
General Installation Guidelines

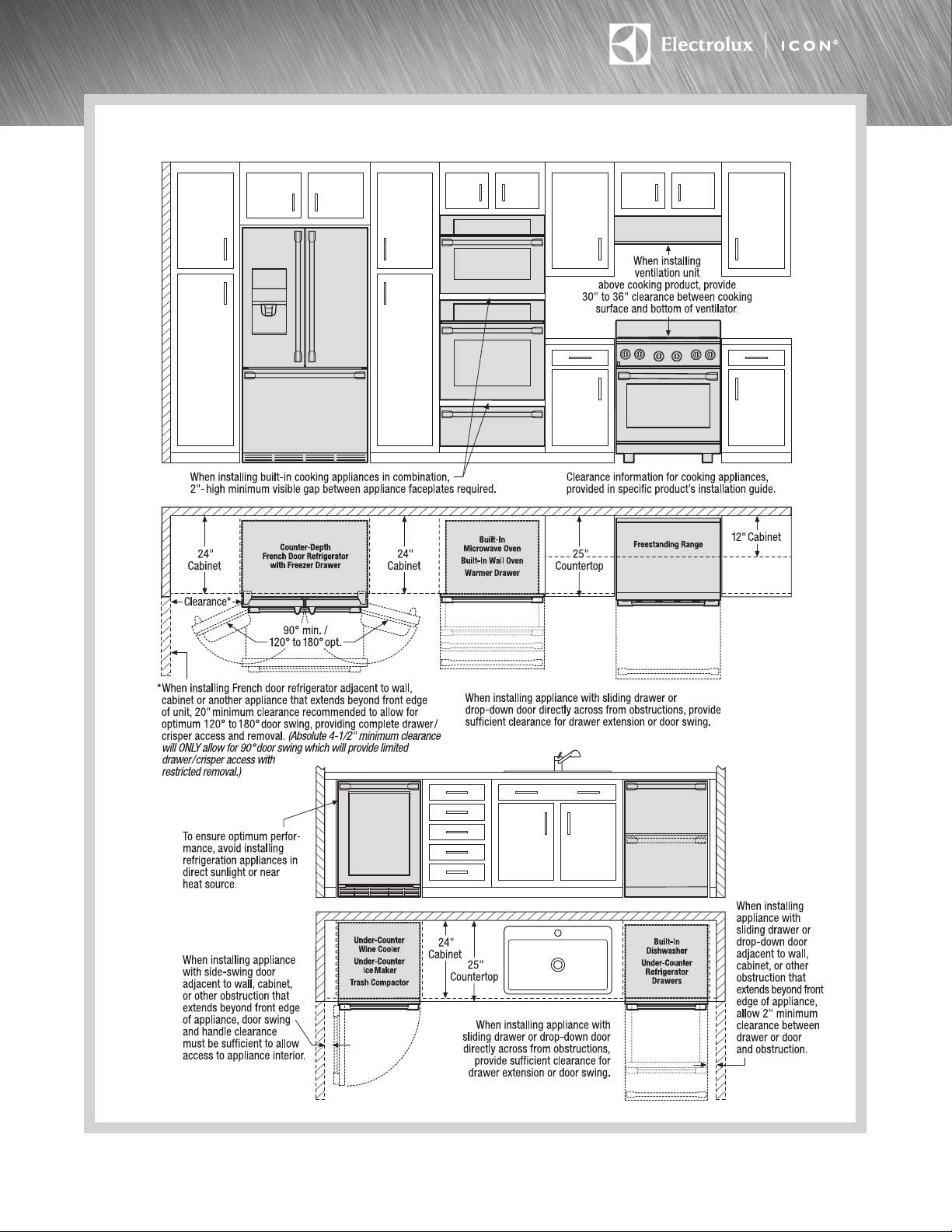

For Installation with Counter-Depth French Door Refrigerator
Electrolux Major Appliances, N.A.
•
USA
10200 David Taylor Drive•Charlotte, NC 28262•1-877-4electrolux (1-877-435-3287)
•
CANADA
INSTGDLNS_FDR EI 04/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way•Mississauga, ON L5V 3E4•1-800-265-8352
•
electroluxic on.ca
•
electroluxic on.com
High standards of quality at Electrolux Home Products, Inc. mean we ar e
constantly working to improve our products. We reser ve the right to change
specifications or discontinue models without notice.
Page 6
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
i
nstructions, refer to installation guide, packed with product, or on the web at electroluxicon.com.
Front
Top
Front
Top
General Installation Guidelines

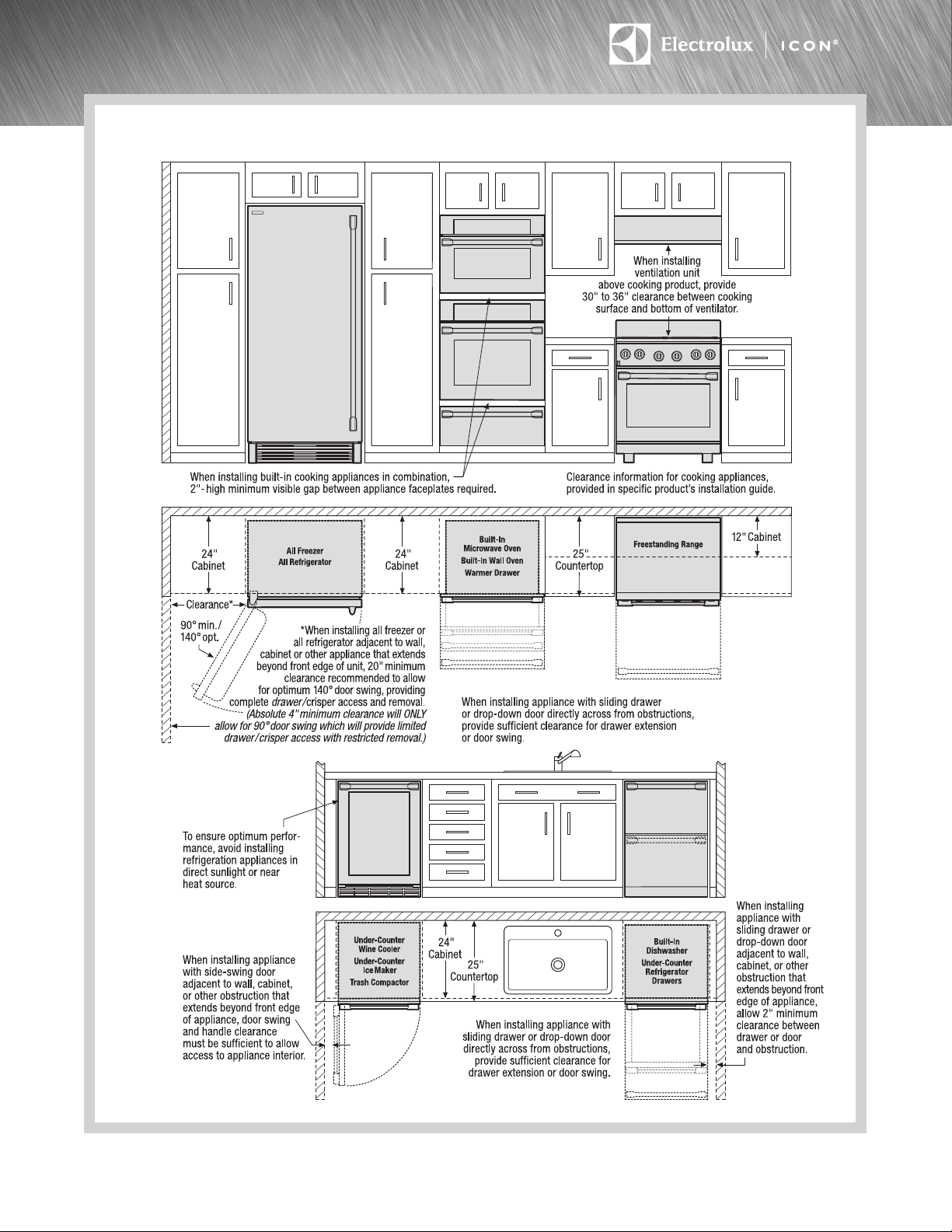

For Installation with All Refrigerator or All Freezer
Electrolux Major Appliances, N.A.
•
USA
10200 David Taylor Drive•Charlotte, NC 28262•1-877-4electrolux (1-877-435-3287)
•
CANADA
INSTGDLNS_ARAF EI 04/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way•Mississauga, ON L5V 3E4•1-800-265-8352
•
electroluxic on.ca
•
electroluxic on.com
High standards of quality at Electrolux Home Products, Inc. mean we ar e
constantly working to improve our products. We reser ve the right to change
specifications or discontinue models without notice.
