Large Capacity
Offering the largest storage space available in
drawer-style refrigeration. Each drawer is tall
enough to store wine bottles and wide enough
for large platters.
Smooth-Glide®Drawers
With a ball bearing system, drawers smoothly
extend with the touch of a finger for effortless
access.
Custom-Set™Temperature Control
Set a temperature anywhere between 34 and 45
degrees — the drawer will maintain your selected
temperature to keep the contents chilled to your
ideal temperature.
Integrated Electronic Control Panel
Our control panel is thoughtfully located at the
top of the drawer, leaving you with a clean look
that fits any style.

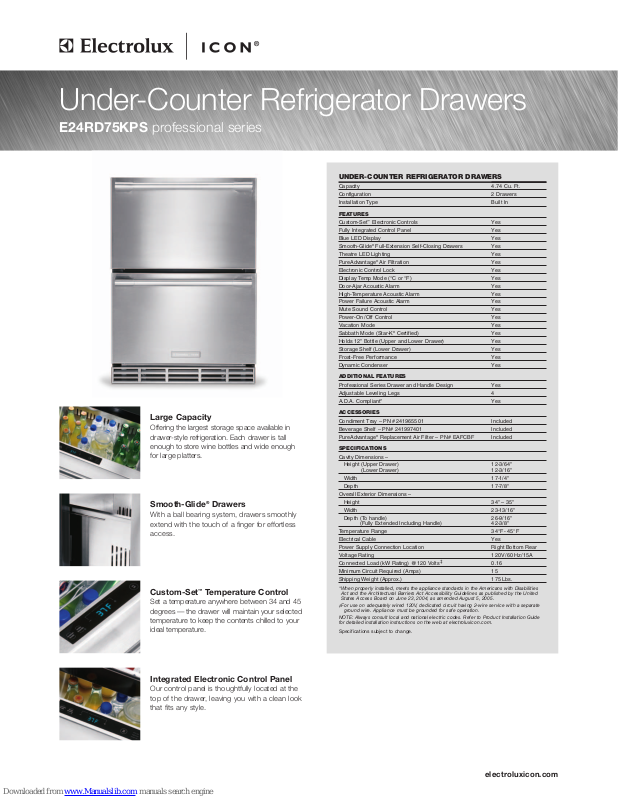

Under-Counter Refrigerator Drawers
E24RD75KPS professional series
UNDER-COUNTER REFRIGERATOR DRAWERS
Capacity
Configuration
Installation Type
FEATURES
Custom-Set™Electronic Controls
Fully Integrated Control Panel
Blue LED Display
Smooth-Glide®Full-Extension Self-Closing Drawers
Theatre LED Lighting
PureAdvantage®Air Filtration
Electronic Control Lock
Display Temp Mode (°C or °F)
Door-Ajar Acoustic Alarm
High-Temperature Acoustic Alarm
Power Failure Acoustic Alarm
Mute Sound Control
Power-On/ Off Control
Vacation Mode
Sabbath Mode (Star-K®Certified)
Holds 12" Bottle (Upper and Lower Drawer)
Storage Shelf (Lower Drawer)
Frost-Free Performance
Dynamic Condenser
ADDITIONAL FEATURES
Professional Series Drawer and Handle Design
Adjustable Leveling Legs
A.D.A. Compliant*
ACCESSORIES
Condiment Tray – PN# 241965501
Beverage Shelf – PN# 241997401
PureAdvantage®Replacement Air Filter – PN# EAFCBF
SPECIFICATIONS
Cavity Dimensions –
Height (Upper Drawer)
(Lower Drawer)
Width
Depth
Overall Exterior Dimensions –
Height
Width
Depth (To handle)
(Fully Extended Including Handle)
Temperature Range
Electrical Cable
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @120 Volts
‡
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
*When properly installed, meets the appliance standards in the Americans with Disabilities
Act and the Architectural Barriers Act Accessibility Guidelines as published by the United
States Access Board on June 23, 2004, as amended August 5, 2005.
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
4.74 Cu. Ft.
2 Drawers
Built In
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
4
Yes
Included
Included
Included
12-3/64"
12-3/16"
17-1/4"
17-7/8"
34" – 35"
23-13/16"
26-9/16"
42-3/8"
34°F -45° F
Yes
Right Bottom Rear
120V/ 60Hz /15A
0.16
15
175 Lbs.
Page 2

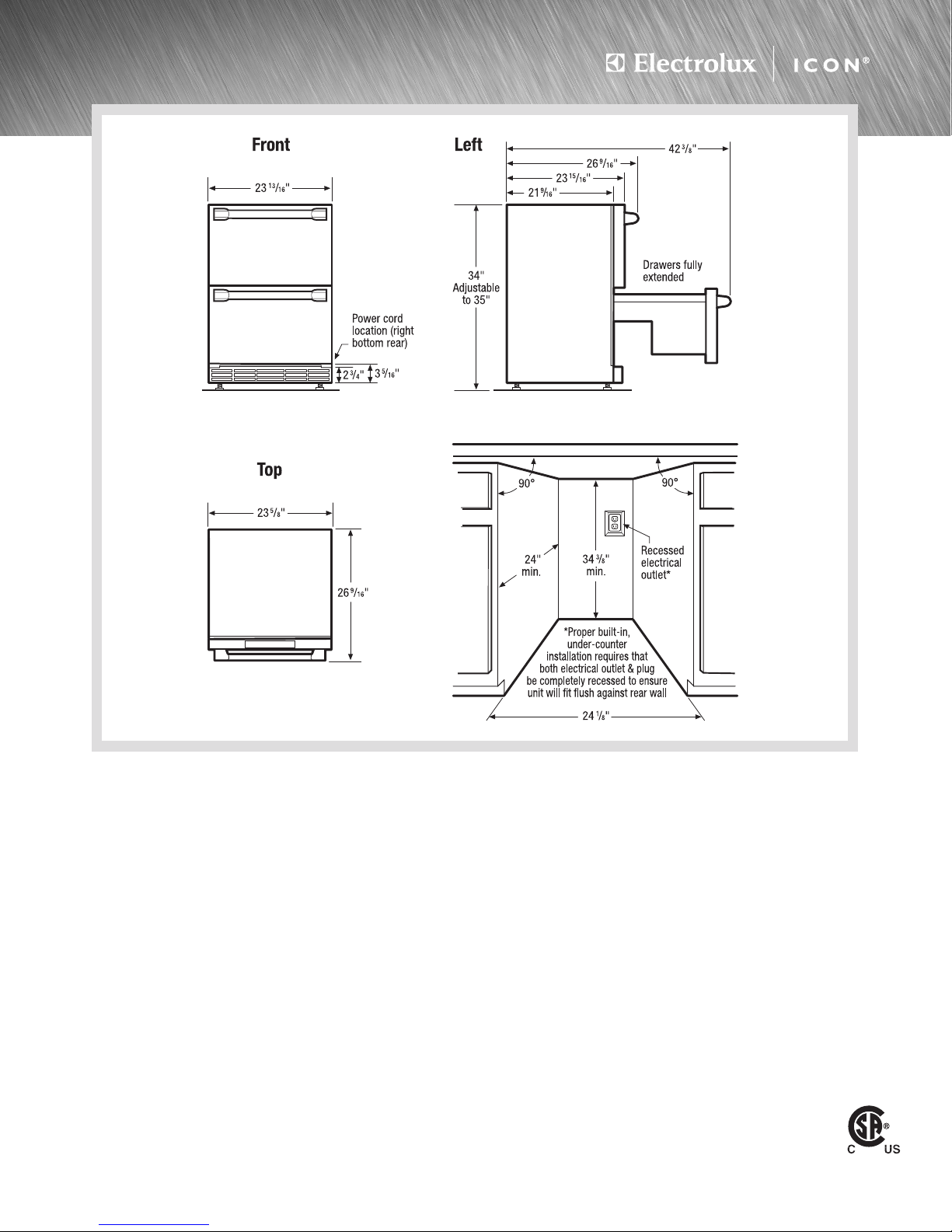

Under-Counter Refrigerator Drawers Specifications
•
Product Weight – 165 Lbs.
•
Voltage Rating –120V /60 Hz/ 15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.16kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =1.5 Amps
•
Electrical cable supplied.
•
Always consult local and national electric codes.
•
Unit is designed for built-in, under-counter installation only with use
of Anti-Tip Kit and can NOT be used in freestanding installation.
•
Built-in, under-counter installation does not require additional airspace
for top, sides or rear of unit.
•
Proper built-in, under-counter installation requires that both electrical
outlet and plug be completely recessed to ensure unit will fit flush
against rear wall.
•
To allow for ease of installation and removal, it is recommended that
cabinet rough opening dimensions be increased by at least 1/4" over
product’s dimensions.
•
For proper ventilation, unit can NOT be installed behind closed doors;
front grille MUST remain unobstructed.
•
Must be positioned on flat, level surface, capable of supporting entire
weight when fully loaded.
•
Leveling legs supplied to adjust height and level unit.
•
Do not position unit near any heat source to ensure optimum
performance.
•
Allow 17" minimum for handle clearance with drawers fully extended.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Under-Counter Refrigerator Drawers
E24RD75KPS professional series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
E24RD75KPS 10/11 © 2011 Electrolux Home Products, Inc.
Page 3

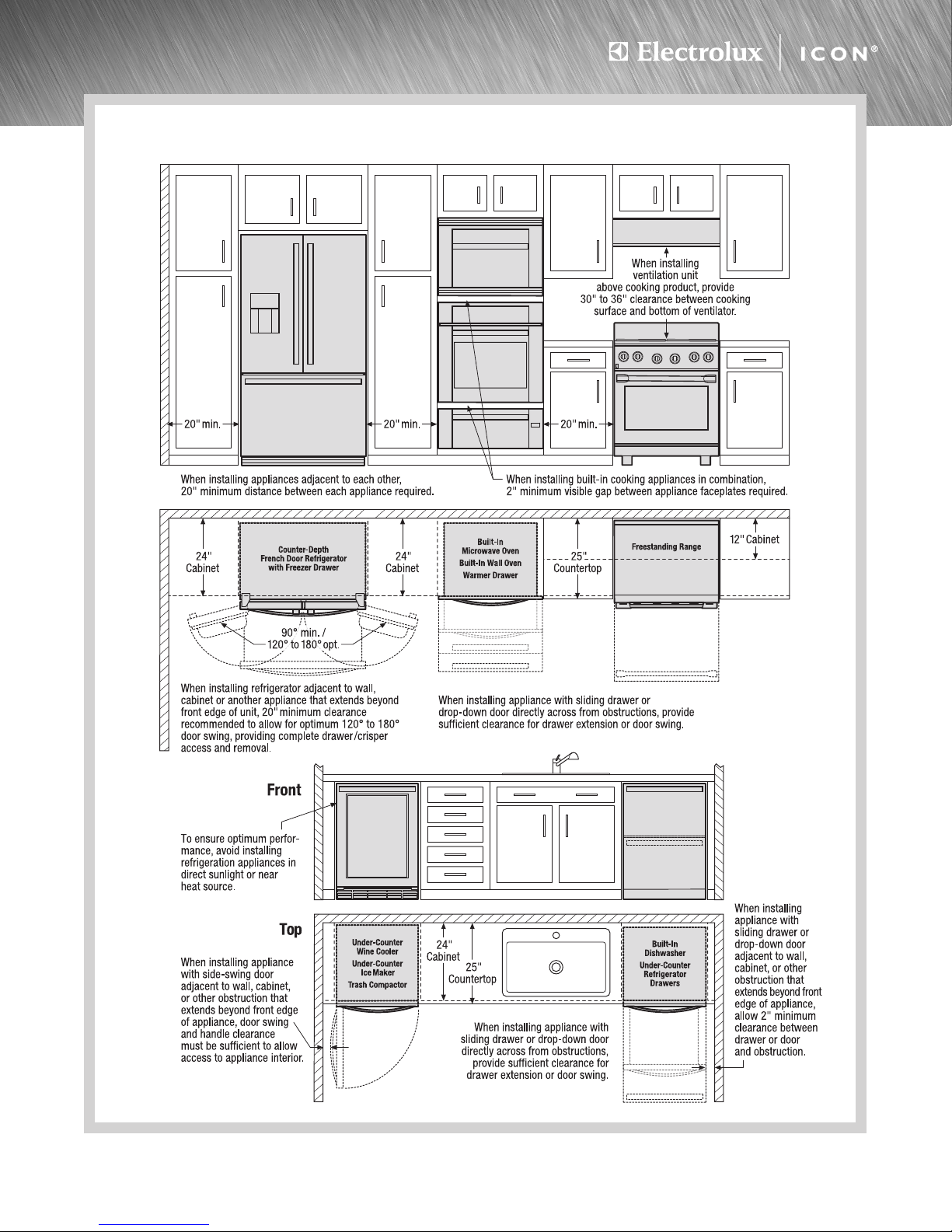

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxicon.com.
Front
Top
General Installation Guidelines
with Counter-Depth French Door Refrigerator
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
INSTGDLNS_FDR EI 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Page 4

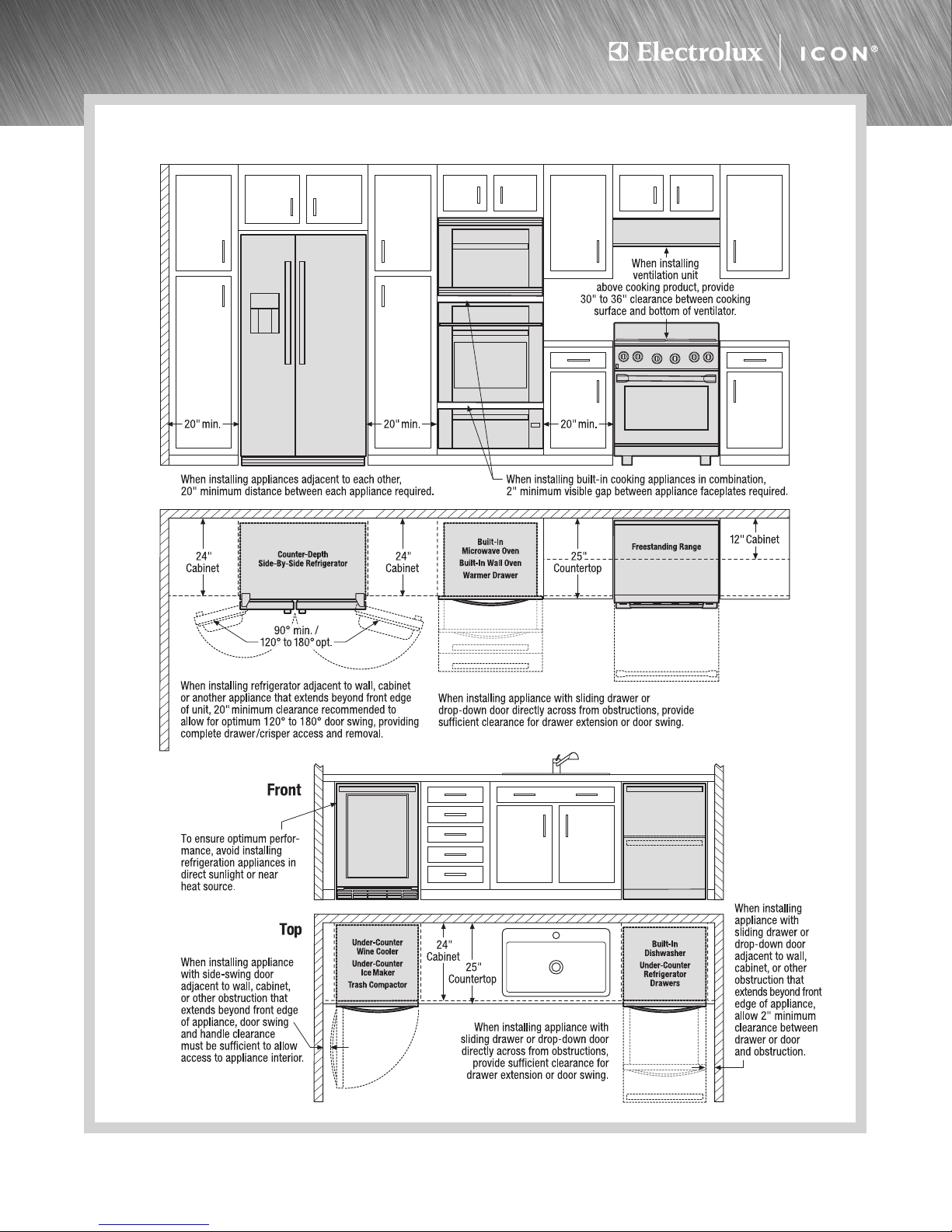

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
