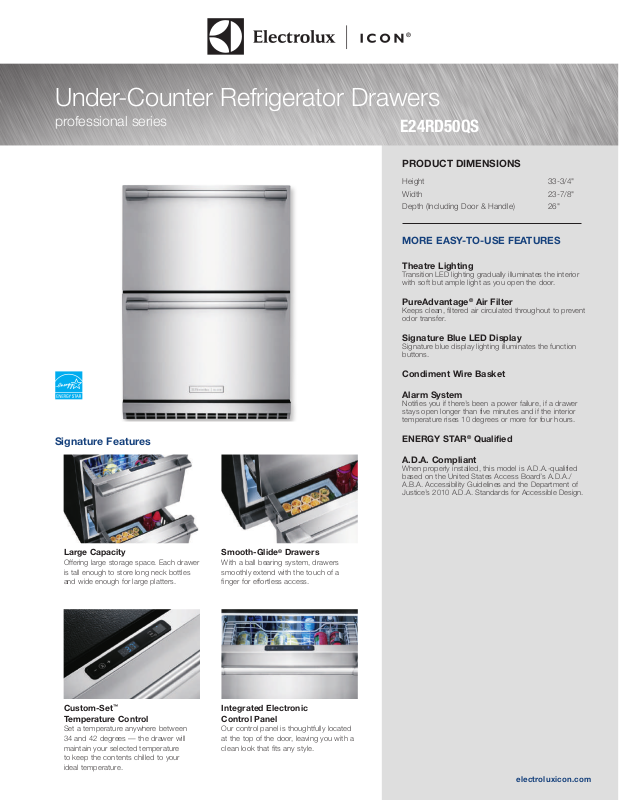

Under-Counter Refrigerator Drawers
professional series
E24RD50QS
PRODUCT DIMENSIONS
Height 33-3/4"
Width 23-7/8"
Depth (Including Door & Handle) 26"
MORE EASY-TO-USE FEATURES
Theatre Lighting
Transition LED lighting gradually illuminates the interior
with soft but ample light as you open the door.
PureAdvantage® Air Filter
Keeps clean, filtered air circulated throughout to prevent
odor transfer.
Signature Blue LED Display
Signature blue display lighting illuminates the function
buttons.
Condiment Wire Basket
Alarm System
Notifies you if there’s been a power failure, if a drawer
stays open longer than five minutes and if the interior
temperature rises 10 degrees or more for four hours.
Signature Features
Large Capacity
Offering large storage space. Each drawer
is tall enough to store long neck bottles
and wide enough for large platters.
Custom-Set™
Temperature Control
Set a temperature anywhere between
34 and 42 degrees — the drawer will
maintain your selected temperature
to keep the contents chilled to your
ideal temperature.
Smooth-Glide® Drawers
With a ball bearing system, drawers
smoothly extend with the touch of a
finger for effortless access.
Integrated Electronic
Control Panel
Our control panel is thoughtfully located
at the top of the door, leaving you with a
clean look that fits any style.
ENERGY STAR® Qualified
A.D.A. Compliant
When properly installed, this model is A.D.A.-qualified
based on the United States Access Board’s A.D.A./
A.B.A. Accessibility Guidelines and the Department of
Justice’s 2010 A.D.A. Standards for Accessible Design.
electroluxicon.com
Page 2
Under-Counter Refrigerator Drawers
E24RD50QS professional series
UNDER-COUNTER REFRIGERATOR DRAWERS
Capacity
Configuration
Installation Type
FEATURES
Custom-Set™ Electronic Controls
Fully Integrated Control Panel
Blue LED Display
Smooth-Glide
Theatre LED Lighting
PureAdvantage
Electronic Control Lock
Display Temp Mode (°C or °F)
Door-Ajar Acoustic Alarm
High-Temperature Acoustic Alarm
Power Failure Acoustic Alarm
Power-On / Off Control
Vacation Mode
Sabbath Mode (Star-K
ENERGY STAR® Qualified
Storage Shelf (Lower Drawer)
Frost-Free Performance
Dynamic Condenser
®
Full-Extension Self-Closing Drawers
®
Air Filtration
®
Certified)
ACCESSORIES
Beverage Shelf
ADDITIONAL FEATURES
Professional Series Drawer and Handle Design
Adjustable Leveling Legs
A.D.A. Compliant*
SPECIFICATIONS
Temperature Range
Electrical Cable
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 115 Volts
Amps @ 115 Volts
Minimum Circuit Required (Amps)
Approved for Under Counter Installation
Shipping Weight (Approx.)
* When properly installed, this model is A.D.A.-qualified based on the United States Access
Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A.
Standards for Accessible Design.
‡
For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
‡
5.0 Cu. Ft.
2 Drawers
Built-In
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Included
Yes
4
Yes
34°F – 42°F
Yes
Right Bottom Rear
115V / 60 Hz
0.16
1.5
15
Yes
146 Lbs.
PRODUCT DIMENSIONS
Height
Width
Depth (Including Handle)
(With Drawer Fully Extended Including Handle)
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E24RD50QS 11/14 © 2014 Electrolux Home Products, Inc.
33-3/4"
23-7/8"
26"
41-3/8"
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Page 3
Under-Counter Refrigerator Drawers
E24RD50QS professional series

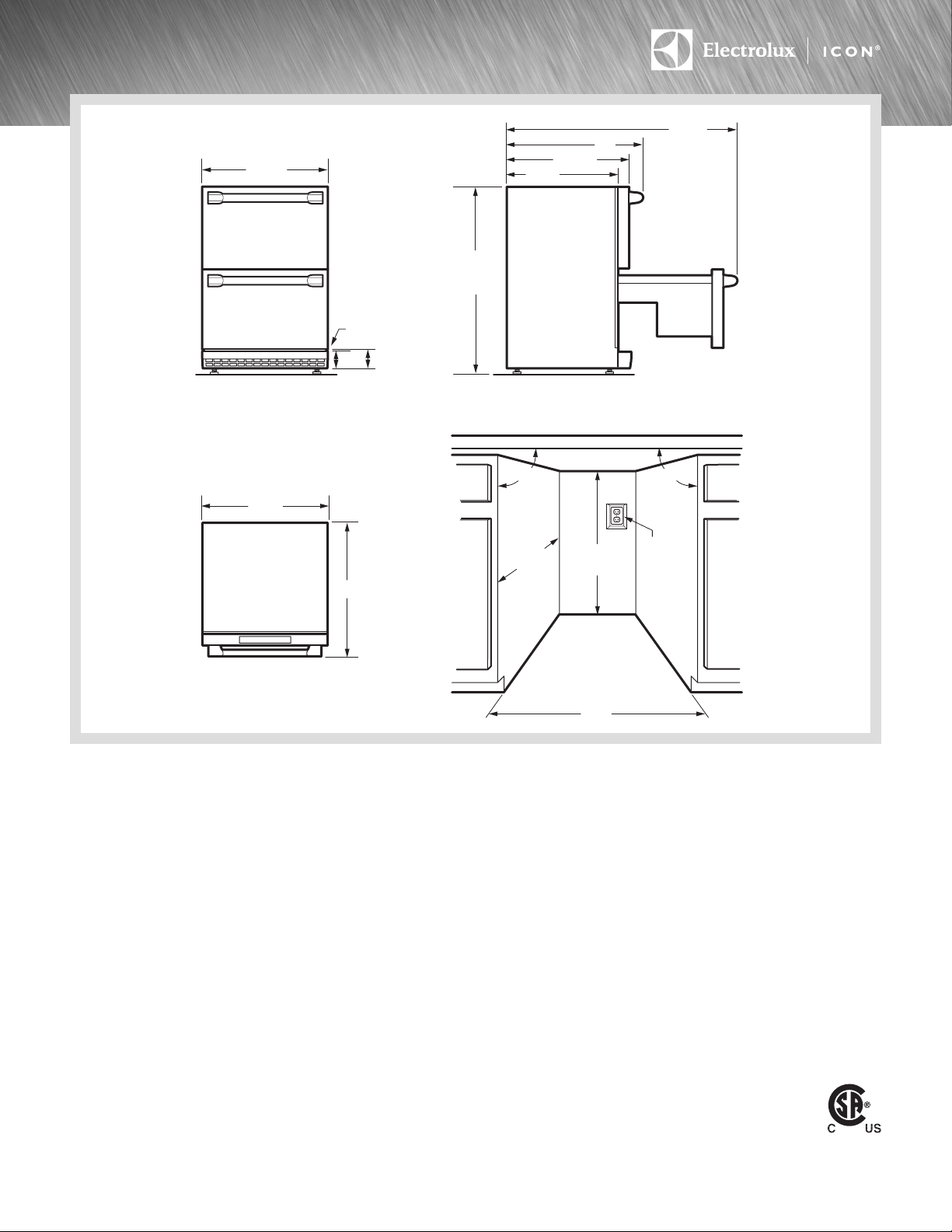

Front
237/8"
Top
237/8"
Power cord
location (right
bottom rear)
23/4"
311/32"
26"
Left
33
3/4"
Adjustable
3/4"
to 34
211/2"
90°
213/4"
min.
41
3/8"
26"
23
23/32"
Drawers fully
extended
90°
34"
min.
Recessed
electrical
outlet*
Under-Counter Refrigerator Drawers Specifications
•
Product Weight – 135 Lbs.
•
Voltage Rating –115V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 115 Volts = 0.16 kW
(For use on adequately wired 115V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 115 Volts = 1.5 Amps
•
Electrical cable supplied.
•
Always consult local and national electric codes.
•
Unit is designed for built-in, under-counter installation only with use of
Anti-Tip Kit and can NOT be used in freestanding installation.
•
Built-in, under-counter installation does not require additional airspace
for top, sides or rear of unit.
•
Proper built-in, under-counter installation requires that both electrical
outlet and plug be completely recessed to ensure unit will fit flush
against rear wall.
*Proper built-in,
under-counter
installation requires that
both electrical outlet & plug
be completely recessed to ensure
unit will fit flush against rear wall
241/8"
•
To allow for ease of installation and removal, it is recommended that
cabinet rough opening dimensions be increased by at least 1/4" over
product’s dimensions.
•
For proper ventilation, unit can NOT be installed behind closed doors; front
grille MUST remain unobstructed.
•
Must be positioned on flat, level surface, capable of supporting entire
weight when fully loaded.
•
Leveling legs supplied to adjust height and level unit.
•
Do not position unit near any heat source to ensure optimum performance.
•
Allow 14" minimum for handle clearance with drawers fully extended.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E24RD50QS 11/14 © 2014 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Page 4
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxicon.com.
Top
Front
Top
Front

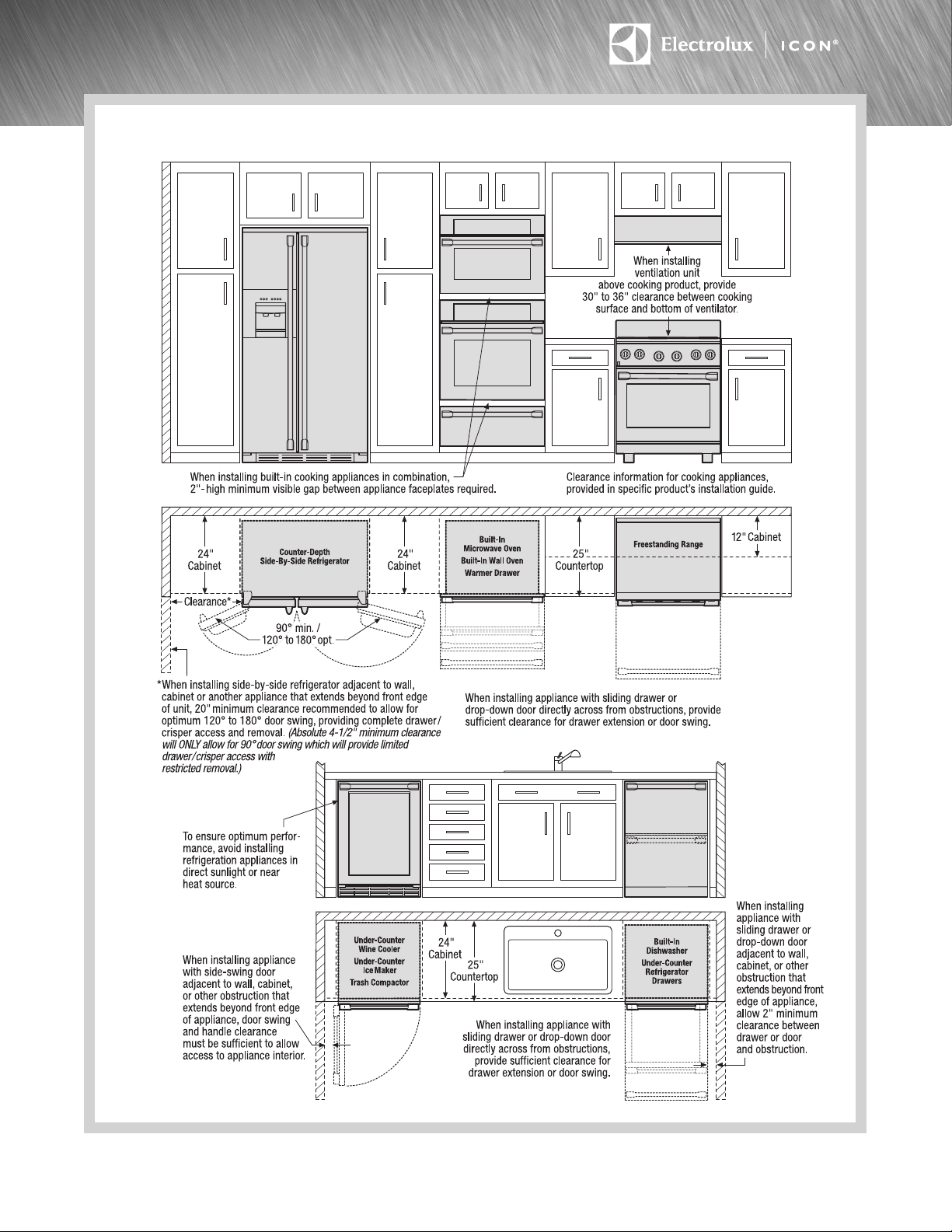

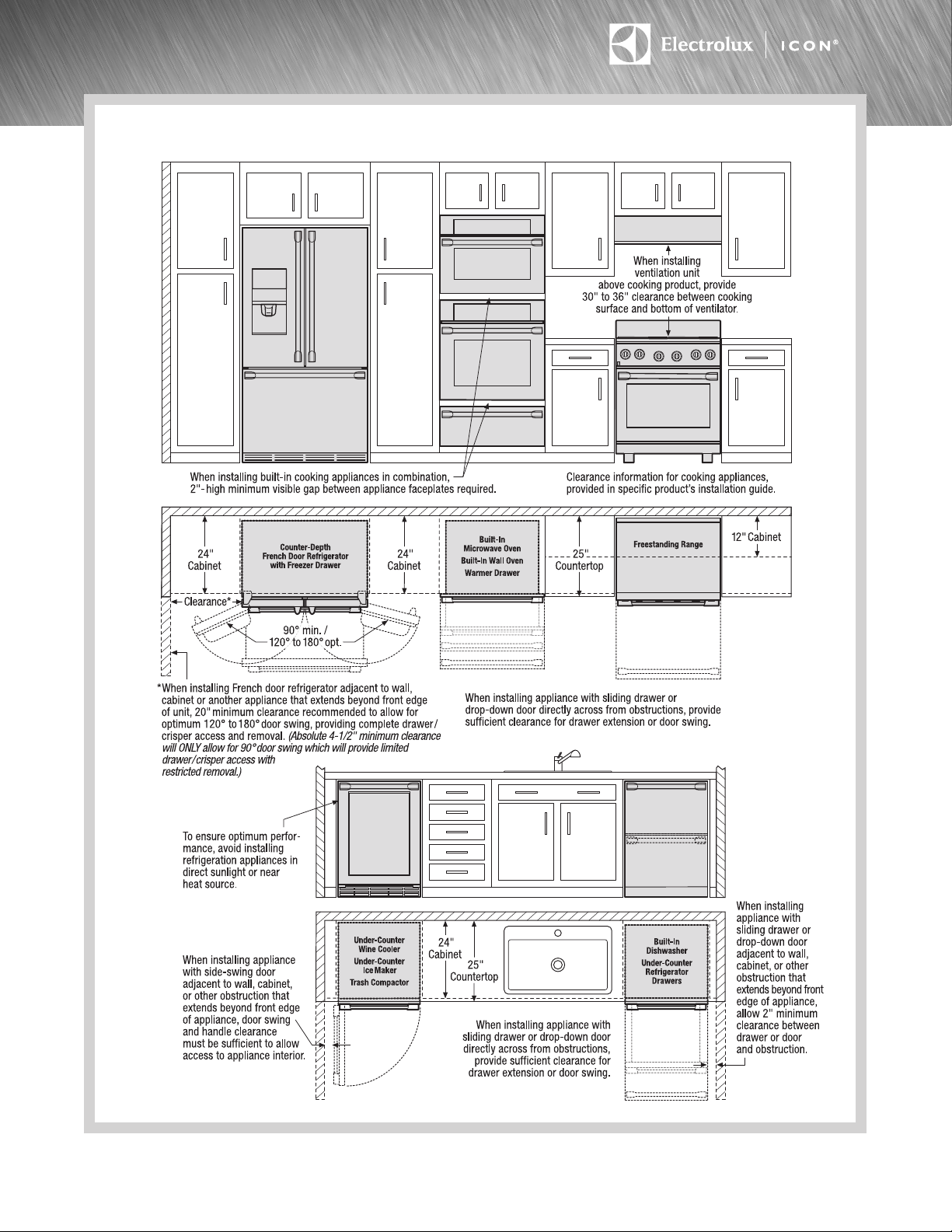

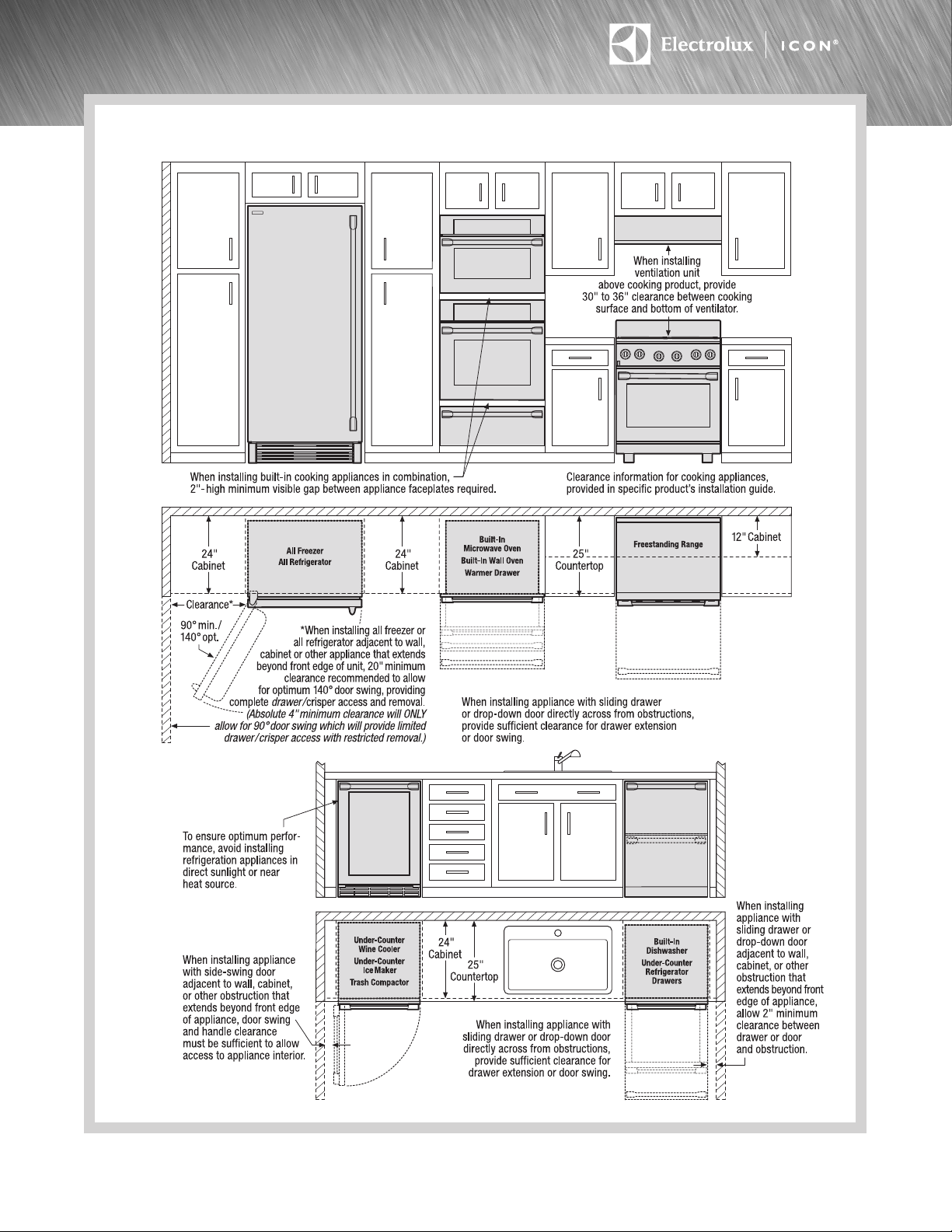

General Installation Guidelines
