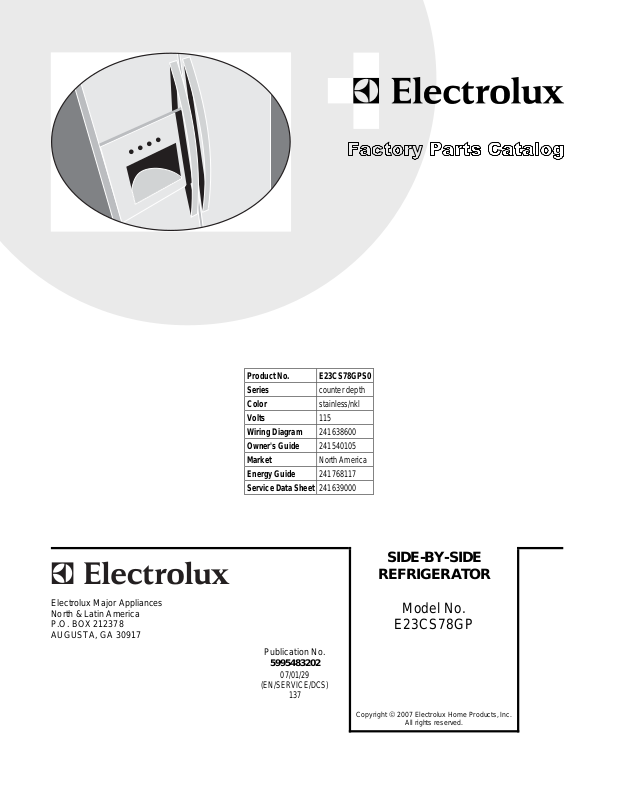

Page 1
Product No. E23CS78GPS0
Series counter depth
Color stainless/nkl
Volts 115

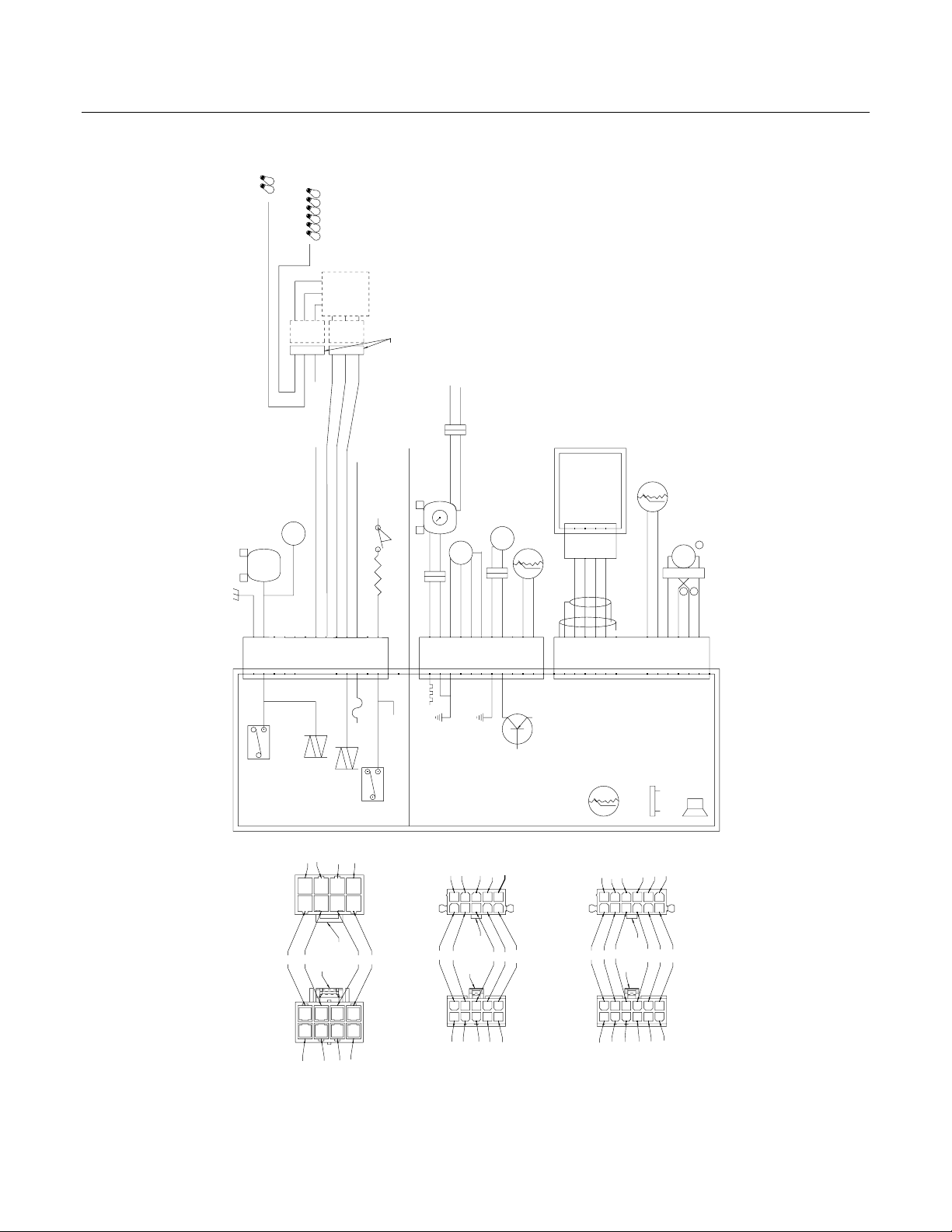

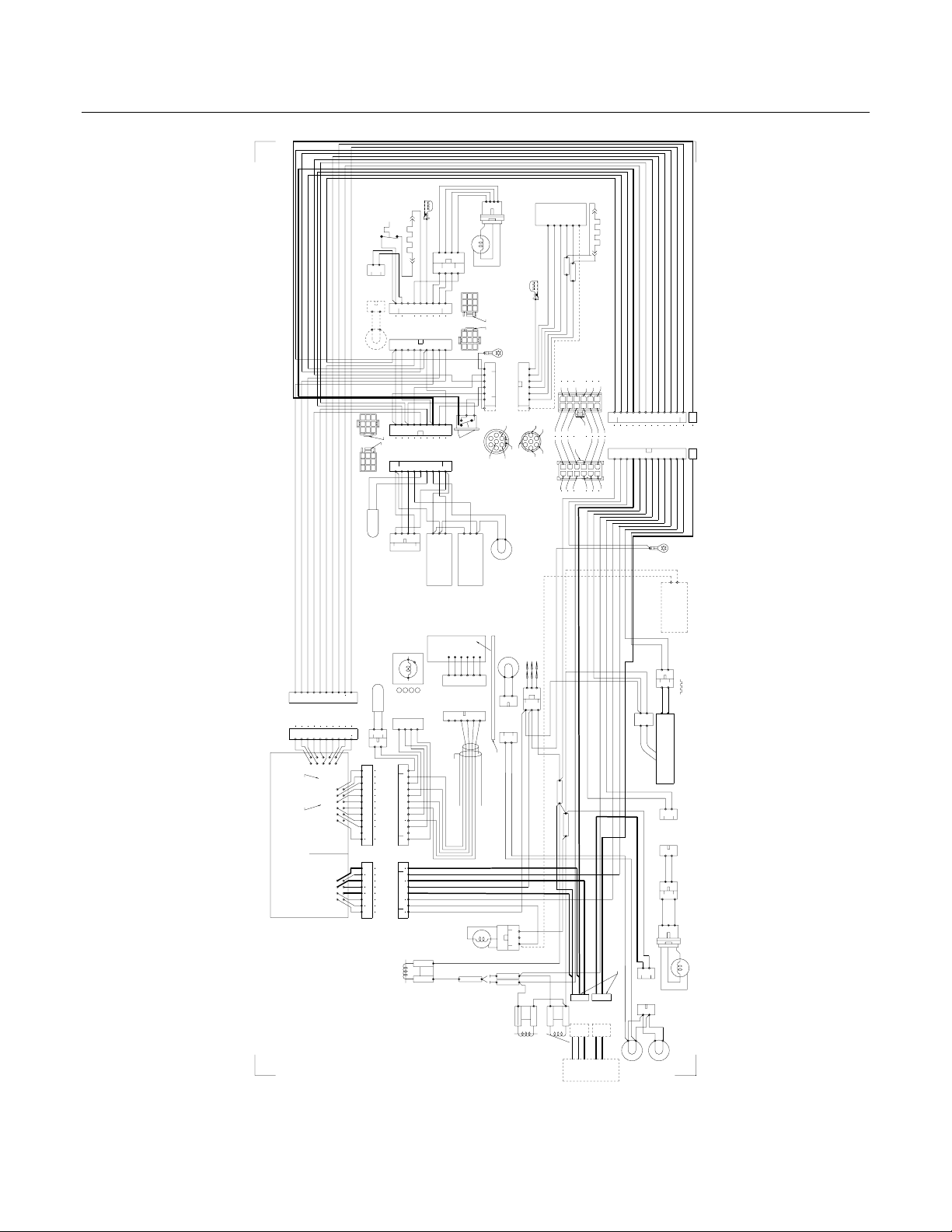

Wiring Diagram 241638600
Owner's Guide 241540105
Market North America
Energy Guide 241768117
Service Data Sheet 241639000
E23CS75DSS0.eps N58FMDEEA0.eps N58RMDCHA0.eps N58BECDAA1.eps
N58SDDKEI10.eps N58TBBAAB5.eps N58CACBAA3.eps N58XECAAA0.eps
N58YDAAAC4.eps n58I115T1.eps W241638600.eps S241638600.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995483202
07/01/29
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
E23CS78GP
Copyright © 2007 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995483202 E23CS78GPS0
FREEZER DOOR
01/07 2
Page 3
E23CS78GPS0 Publication No: 5995483202
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241510202 Gasket-frzr door, white, magnetic
4B 241511604 Bin-door
5 241545006 Bin-tilt out, tilt-out
11 241615165 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 241637909 Handle Assembly, stainless, w/endcaps
18* 241601001 Wrench, allen
21A 240598402 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755401 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240352102 Connector-water, straight
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit
# Functional Parts
3 01/07
* Non-Illustrated Parts
Page 4
Publication No: 5995483202 E23CS78GPS0
REFRIGERATOR DOOR
22B
12
50
15
79
80
2
80
79
70
6
18
7
27A
49
49A
79
80
13
80
79
5
22
21A
48
N58RMDCHA0
01/07 4
Page 5
E23CS78GPS0 Publication No: 5995483202
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241510201 Gasket-refr door, white, magnetic
5 241516102 Rack-can
6 241515901 Lug-dairy compartment
7 241515601 Door-dairy
12 241603101 Label-nameplate
13 240581905 Door Stop, black, ref
15 241629338 Door-refr, stainless, complete assy
18 241637909 Handle Assembly, stainless, w/endcaps
18* 241601001 Wrench, allen
21A 240598402 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
27A 240396102 Retainer, tall bottle
48 241511705 Bin-door, ref
49 241505505 Bin-door, gallon
49A 241505305 Bin-door, 2-liter
50 241508401 Cover-magnet
70 241515801 Compartment-dairy, removable
79 218755401 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
# Functional Parts
5 01/07
* Non-Illustrated Parts
Page 6
Publication No: 5995483202 E23CS78GPS0
CABINET
58
92
38
37
14A
41
58
81
47
81
40
92
38
66
37
45
45
45
10
45
45
100
11
90
45
89
45
23
22
30
10A
42
21C
73
23
83
82
43
42
22
72
54
30A
28
73
N58BECDAA1
21C
50
01/07 6
Page 7
E23CS78GPS0 Publication No: 5995483202
CABINET
POS. NO PART NO. DESCRIPTION
10 241509804 Cover-air duct
10A 240475912 Cover-evap coil, lower
11 241529301 Plug-hole, factory test
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457701 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337605 Trim-cabinet corner, silver, (2)
38 240327207 Bracket-upper hinge
40 241551304 Cover-upper hinge, nickeloid
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 241513001 Channel-shelf mtg, side, (2)
50 241511102 Board-main power
50* 241524802 Seal, housing
50* 241532501 Clip-harness
54 241532401 Channel
58 241595402 Screw-#10-32 X 3/4
66 241513602 Damper-meat keeper
72 241554708 Grille/Kickplate
73 241732101 Screw, 10-32 x 1/2
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 Cover-access, w/label
90 218249808 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 241591701 Louver
# Functional Parts
7 01/07
* Non-Illustrated Parts
Page 8
Publication No: 5995483202 E23CS78GPS0

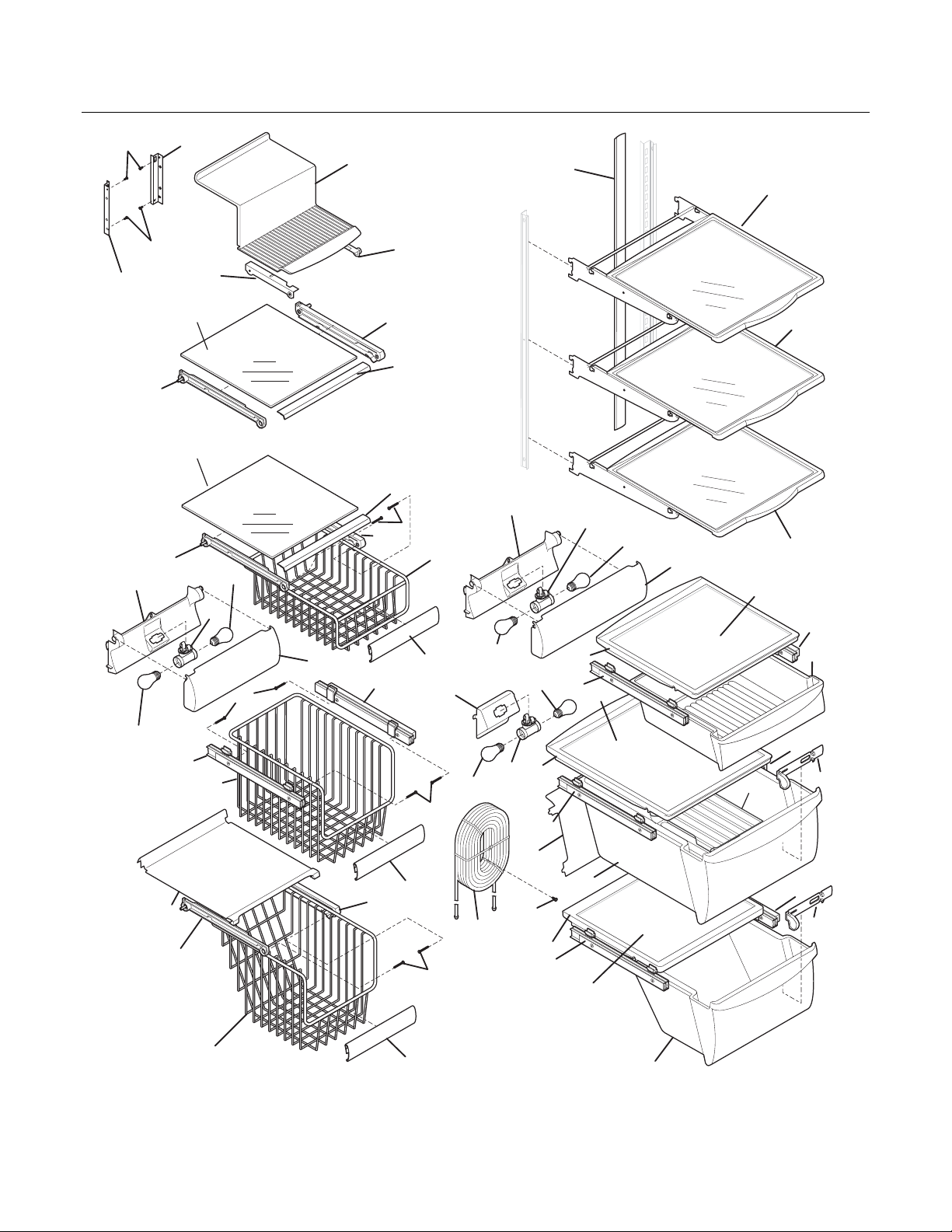

SHELVES
81
126
120
140
24
126
108
52A
81
52
121
11A
11
16
15
81
107A
51A
39
51
51B
122
39
101
49A
2
109
15
108
15
25B
52D
16
47
15
24
24
107
47B
51D
62
15
52B
49B
60
15
16
25
52C
51C
143
100
26
51D
27A
41
51
2A
21
97
25A
52
101
52D
47A
49
01/07 8
2
27
N58SDDKEI10
26A
Page 9
E23CS78GPS0 Publication No: 5995483202
SHELVES
POS. NO PART NO. DESCRIPTION
2 241539502 Trim-basket
2A 241539501 Trim-basket
11 240443357 Shelf-freezer, glass, lower
11A 240443358 Shelf-freezer, glass, upper
15 241552801 Light Bulb
16 241622802 Socket-light
16* 241510802 Harness-wiring, control box
16* 241513102 Harness-wiring
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 241753102 Shelf-"Spill-Safe", cantilever, sliding
25 241565002 Cover-crisper pan, upper
25A 241564301 Cover-crisper pan, lower
25B 241565701 Cover-meat pan
26 240351037 Pan-crisper, upper
26A 241638201 Control-humidity
26A* 241638101 Frame-humidity control
27 240351225 Pan-crisper, lower
27A 240362201 Control-humidity
39 240367604 Trim-shelf, front
41 241637601 Baffle-air
47 240350649 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
47B 240443356 Insert-pan cover, glass
49 241541802 Basket-sliding
49A 241541902 Basket-sliding, upper, half
49B 241541702 Basket-sliding, mid
51 241514501 Hanger-basket, RH
51A 241514701 Hanger-shelf glass, RH
51B 240579803 Hanger-basket, RH
51C 240579807 Hanger-basket, RH
51D 240579808 Hanger-basket, RH
52 241514601 Hanger-basket, LH
52A 241514801 Hanger-shelf glass, LH
52B 240579804 Hanger-basket, LH
52C 240579 80 5 Hanger- bas k et, L H
52D 240579 80 6 Hanger- bas k et, L H
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 240599706 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 241532002 Water Tank
100 241 549901 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
107 241513402 Shield-light, meat pan
107A 241521802 Shield-light, frzr
108 241 513301 Cover-wiring, crisper light
109 241 513202 Base-crisper light socket
120 241691701 Shelf-ice cream
121 241504701 Rail-ice cream shelf, LH
122 241504702 Rail-ice cream shelf, RH
126 241 674401 Channel, auger mtg, LH
126 241 674402 Channel, auger mtg, RH
140 240 430 505 Channel, wtr tube cover
143 240 423 305 Divider-crisper pan
* 241768117 Energy Guide
# Functional Parts
9 01/07
* Non-Illustrated Parts
Page 10
Publication No: 5995483202 E23CS78GPS0

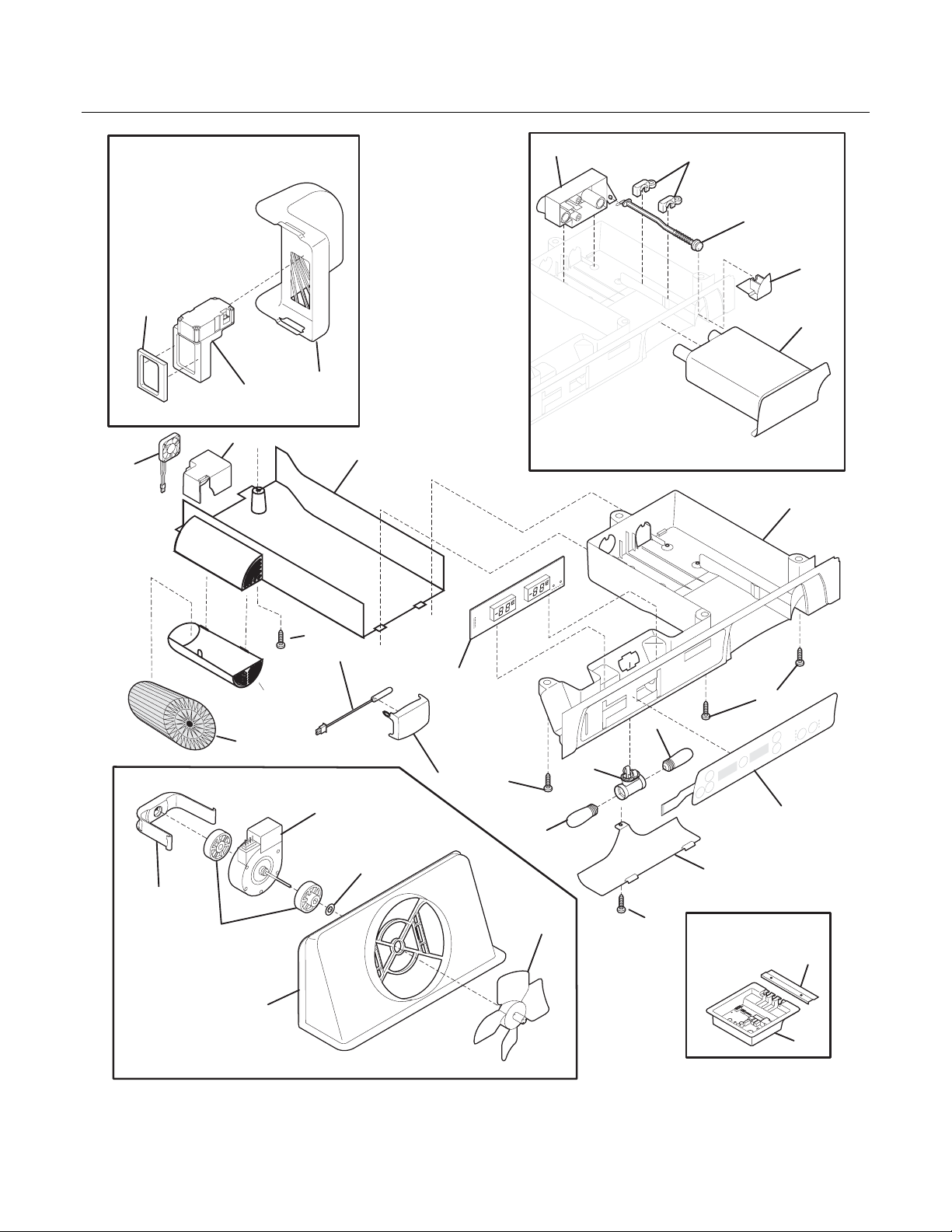

CONTROLS
139
198
199
138
155
116
115
154
206
205
81
60
13
22
151
21
23
137
17
81
15
16
81
201
15
8
75
14
9
5
75A
54
149
50
01/07 10
N58TBBAAB5
Page 11
E23CS78GPS0 Publication No: 5995483202
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241518301 Bushing, motor mounting
13 241509402 Motor, evaporator fan
13* 241510501 Seal-diffuser
14 241517701 Clip, evap fan motor
15 241552801 Light Bulb
16 241622802 Socket-light
17 241516202 Box-control, front
17* 241510801 Harness-wiring
21# 241528201 Control-temperature
22 240597201 Sensor
23 241512901 Cover-sensor
23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
50 241511102 Board-main power
50* 241524802 Seal, housing
50* 241532501 Clip-harness
54 241532401 Channel
60 241510301 Diffuser-air
75 241517802 Shield-light
75A 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
81 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625, 21
115 241518501 Damper, motorized
116 241518601 Seal-damper, foam
137# 240396405 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240 397301 Button-filter release
139 240 396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241517601 Shroud-evap fan mtg
149* 241528304 Seal, foam, evap fan assy
151 241526001 Filter housing
154 241 525801 Duct-air
155 241 526102 Motor-air filter
155* 241527202 Harness-wiring, filter fan
198 240 397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
201 240 596910 Switch-membrane
205 241 525 90 1 Air Filter Door
206 241 504902 Filter-air
# Functional Parts
11 01/07
* Non-Illustrated Parts
Page 12
Publication No: 5995483202 E23CS78GPS0

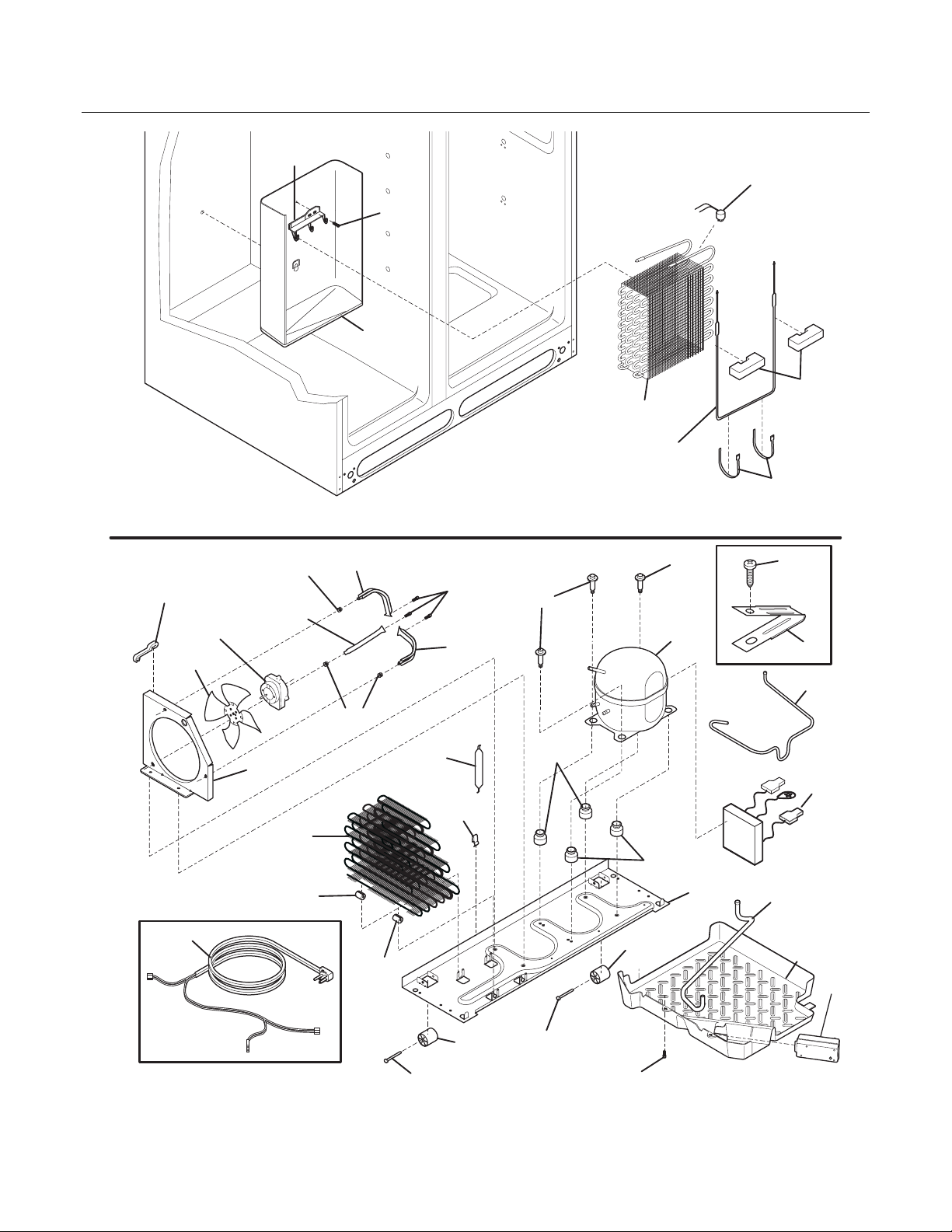

SYSTEM
70
45
62
21
3
15
14
16
86
61
6
60
59
59B
59A
1
34
59A
59B
34
25
41
58
25
59A
29
44
85
4
23
30
57
23
22
84
82
26
50
82
01/07 12
83
83
45
N58CACBAA3
Page 13
E23CS78GPS0 Publication No: 5995483202
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 241516901 Cord-service
6* 241510802 Harness-wiring, control box
6* 241510801 Harness-wiring
6* 241520403 Harness-wiring
6* # 241636203 Harness-wiring, machine compt
6* 241527201 Harness-wiring, filter fan
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697501 Pan-defrost drain
29 # 241547601 Compressor, w/electricals
30 241577501 Invertor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 Housing-control, apollo lighting
50* 241641501 Screw
57 240542601 Clip-wiring harness
58 240433203 Screw, hex washer head, 8-18 x 3/8
59 240315502 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 241719501 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* 5303918222 Hot Tube Repair Kit, service
* # 5303918327 Heat Exchanger Kit, suction line
# Functional Parts
13 01/07
* Non-Illustrated Parts
Page 14
Publication No: 5995483202 E23CS78GPS0

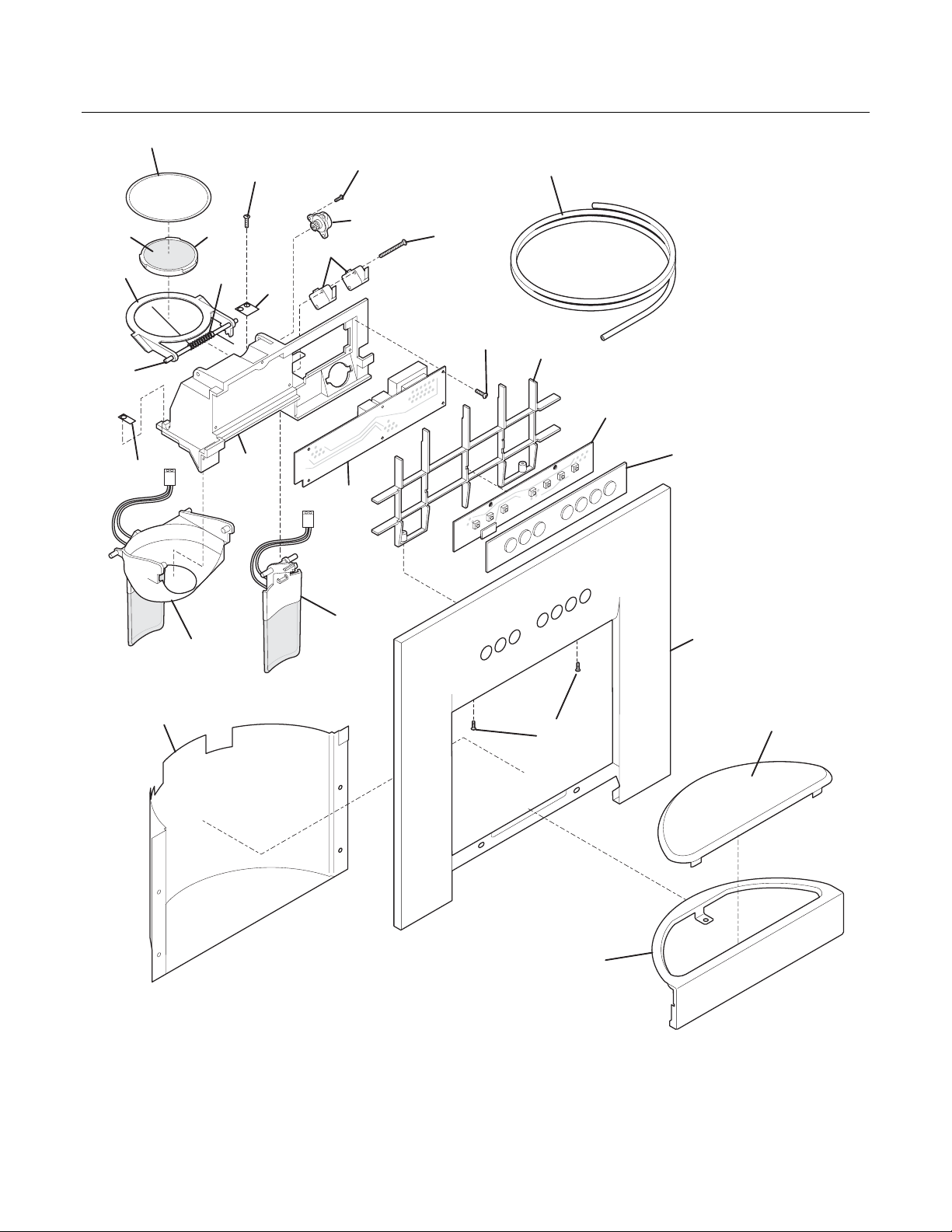

ICE & WATER DISPENSER
30C
43
17
1
30B
30
39
87A
30A
24A
10
35
56
38A
87
17
94
38C
36
8
38
24
4
100
74
23A
23
N58XECAAA0
01/07 14
Page 15
E23CS78GPS0 Publication No: 5995483202
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976901 Tube, water inlet, valve to IM
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976917 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 241533207 Cover-module, stainless
4* 241533401 Seal, foam
8 241680504 Module-dispenser
10 241688901 Spring-torsion
17 241679801 Screw
23 241531102 Drip Tray, stainless
23* 240363402 Screw-#8-18 X 1/2, #6 hd plask
23A 241531601 Drip Tray Insert
24 241685704 Actuator, stainless
24A 241682304 Actuator-ice, stainless
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
36 241533501 Button Module, stainless
38 241527601 Board-power
38A# 241689101 Switch-micro, single pole, double throw
38C# 241527501 Board-control
38C* 241680001 Harness-ribbon cable
39 241688801 Pin-hinge
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
74 241720001 Screw, #4 hilo, (2)
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
94 241533301 Support, control board
100 241530402 Liner, dispen housing, stainless
* 218515403 Clip-grille
* 241510902 Harness-dispenser
* 241686201 Insulator-electrical
* 5303918256 Dispenser heater kit
# Functional Parts
15 01/07
* Non-Illustrated Parts
Page 16
Publication No: 5995483202 E23CS78GPS0

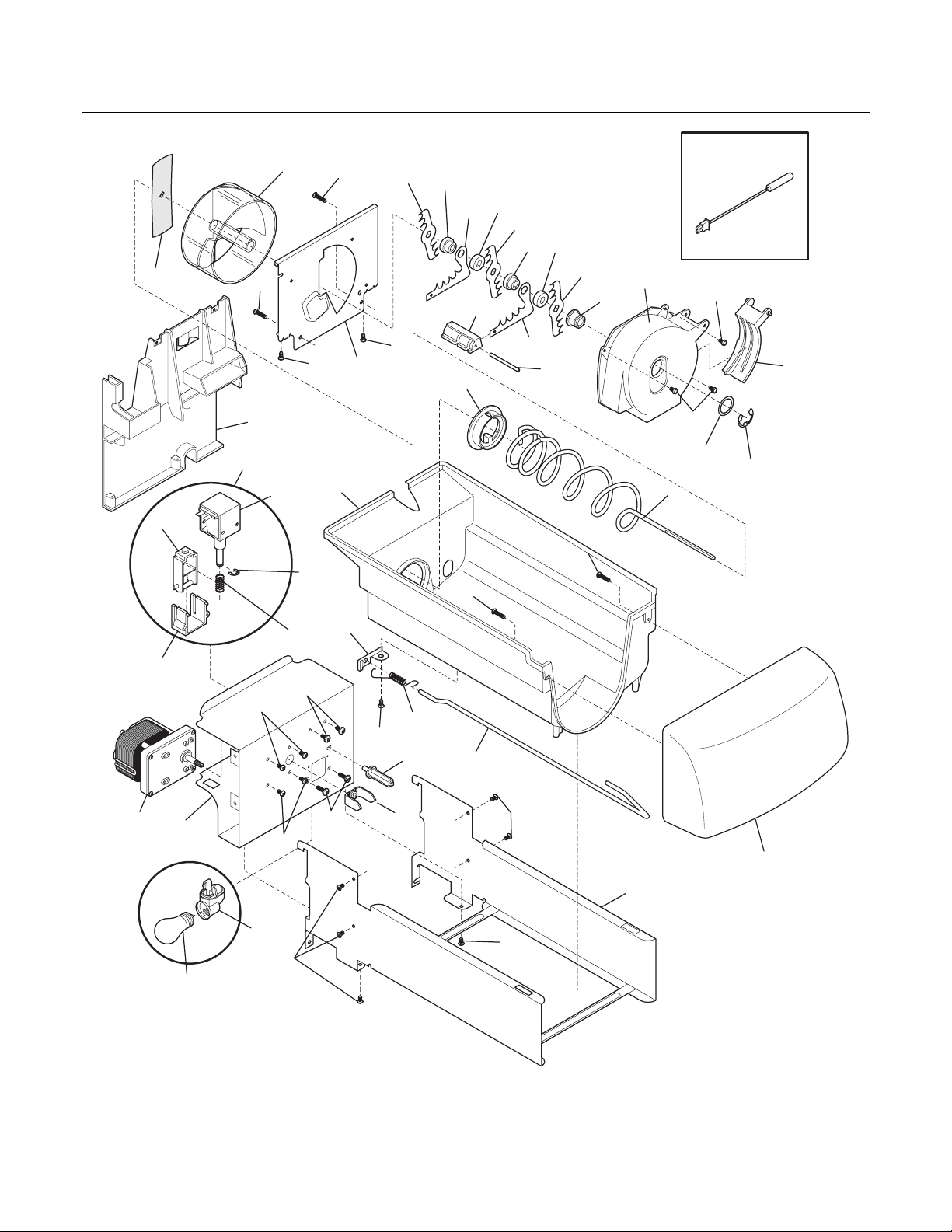

ICE CONTAINER
17
45C
45
26
70
6
45D
39
45B
22
26
37A
34
35A
33
37B
34
33
37C
54
41
25
52
39
23
35B
53
13
3
25
55
56
4
2
26
26
18
50
20
15
44
16
44
43
45A
44
26
48
39
10
47
51
46
43
7
49
43
N58YDAAAC4
01/07 16
Page 17
E23CS78GPS0 Publication No: 5995483202
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241684701 Auger-ice
3 241685201 Cam-drive
4 241515201 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241515301 Front-ice container
10 241624801 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 # 241 676202 Motor-auger, 115V
18* 241522901 Harness-wiring, icmkr/container
20 241675502 Cover-motor
22 240597203 Sensor
22* 241519401 Clip, sensor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503205 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
44 218359202 Screw, pan head, 8-32 x 0.250
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241684402 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241676501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
70 241504601 Plate-mounting
70* 241551601 Screw, hex head, 8-18B x 0.875
70* 241716801 Clip
* 240562101 Insulator
* 241504303 Ice Container Assy, w/moving parts
# Functional Parts
17 01/07
* Non-Illustrated Parts
Page 18
Publication No: 5995483202 E23CS78GPS0

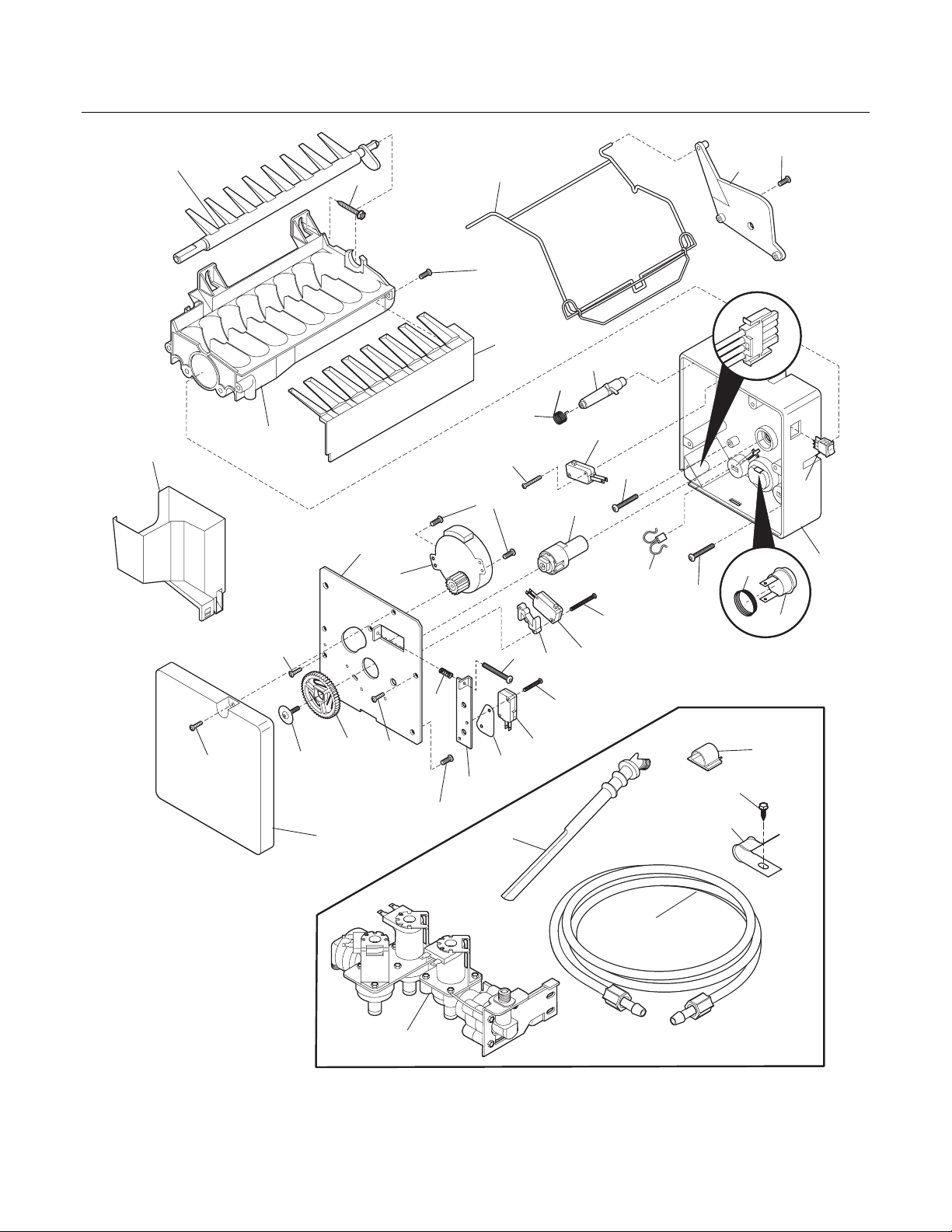

ICE MAKER
18
60
22
20
21
17
19
14
6
6
66
12
3
2
15
23
67
9
34
34
35
36
5
7
11
33
16
23
27
30
37
4
34
15
15
8
29
13
42
31
32
6
45
64
51
1
55
01/07 18
INSTALLATION PARTS
N58I115T1
Page 19
E23CS78GPS0 Publication No: 5995483202
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976901 Tube, water inlet, valve to IM
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976917 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304436616 Spring, torsion
3 5304436610 Detent
4 3206301 Gear
5 5304436604 Plate-mounting
6 5304455670 Screw, taptite, 8-32 x 1/4
7 # 5304436619 Motor-ice maker
8 3206312 Spacer-hold switch
9 3206313 Cam
11 # 5304436618 Thermal Cutoff, ICE MAKER, complete assy
12 5304436614 Harness-wiring
13 5304436613 Thermostat, ICE MAKER
14 5304455676 Screw, plask, 4-14 x 3/4
15 # 3206324 Switch, (3)
16 5304436609 Housing, control
17 # 5304436617 Mold-ice maker, with heater
18 5304436607 Ejector-ice
18* 5304455843 Harness-wiring
19 5304436606 Cup-water inlet
20 5304455677 Screw, 8-32 x 3/8
21 5304436608 Ice Stripper
22 5304436602 Shut-off Arm
23 5304455678 Screw, 8-32 x 7/8, mold-to-support
27 5304455681 Screw, taptite, 4-40 x 1.000, hold switch mtg, (2)
29 5304455845 Screw, 4-24 x 0.750, (6)
30 5304455682 Screw, type 23, 8-32 x 1.00
31 3206342 Insulator
32 5304455683 Plate-valve switch
33 5304436615 Spring-thermostat
34 5304455684 Screw, plazscrew, 8-10 x 1/2, (3)
35 5304455685 Screw
36 5304436605 Cover-ice maker
37 5304408583 Spring-timing adj
42 218515403 Clip-grille
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241523502 Tube-water fill, extension
55 # 240531101 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
64 5303001549 Clamp, 0.31 ID, steel, copper wtr line
66 5304436611 Bracket-ice maker
67 5304436612 Switch, on/off
* 218888001 Adapter, water line, w/fittings
* 240352102 Connector-water, straight
* 241583301 Deflector-air, ICE MAKER
* # 241696501 Ice Maker, radius cube, 115 V, no instl parts
# Functional Parts
19 01/07
* Non-Illustrated Parts
Page 20
Publication No: 5995483202 E23CS78GPS0
WIRING SCHEMATIC
FZ LIGHTS
FF LIGHTS
YEL/RED
YEL/BLK
APOLLO
LIGHTING
CONTROL
J2-3
J2-2
J2-1
J1-3
J1-2
J1-1
J1
2
1
3
YEL/RED
YEL/BLK
CONDENSER FAN
STANDARD COMPRESSOR
M
RED
GRN/YEL
OPEN
FROM IWD. FAST ICE/FREEZE
ORG/WHT
J2
CONNECT THESE TOGETHER
1
2
3
YEL/GRY
YEL/PNK
LT. BLU
N
FREEZER LIGHT SENSE
DEFROST HEATER
L1
YEL/GRY
LT. BLU
YEL/PNK
BRN
BLK
WHEN APOLLO NOT PRESENT
DTT
HI-VOLT AC
COMPRESSOR
VARIBLE SPEED
DC CONTROLLEDLO-VOLT DC
INPUT
VCC
RED
BLK
RED/BLK
BLK
(L) PUR
(N) WHT
BLK
LT.BLU
M
COM
VS
YEL/WHT
BRN/WHT
VCC+12V
RED/WHT
A/C
AIR FILTER FAN
EVAPORATOR FAN
M
FG
BLK
RED
DK. BLU/WHT
BLK/RED
WHT/RED
NTC-FREEZER
GRY
GRY
+5
J1-4
NATURAL
BARE
GRAY CABLE
U.I
DISPLAY
RD1
COM
J1-1
J1-3
GRN
BLK
TDO
J1-2
RED
NTC-FF
GRY
GRY
DC DAMPER MOTOR
M
4
3
2
A
A
BLK/YEL
BRN/YEL
WHT/YEL
A
1
RED/YEL
J1-5
3
LATCH
3
CATCH
4
J1-4
J1-6
J1
DEFROST JUMPER
OPEN=ADC
SHORT-TIMER
6
5
4
10
12
11
6
5
J1-3
J1-2
J1-1
ALARM
J1-12
J1-8
J1-9
J1-11
J1-10
+5
TDO
COM
7
J1-7
RD1
NTC-AMBIENT
1
2
9
8
2
1
J3-4
J3-2
STANDARD
COMPRESSOR
ONLY
4
J3-1
VCC
COMPRESSOR
ONLY
7
8
LATCH
3
8
7
J3-3
J3
J3-5
6
CATCH
6
J3-6
J3-7
J3-8
3A
5
1
2
5
J2-3
J2-1
J2-4
J2-2
HI-VOLT AC
+5
DEFROST CURRENT SENSE
LO-VOLT DC
1
2
6
7
2
1
J2-5
J2
LATCH
3
J2-10
3
CATCH
4
J2-6
4
8
J2-7
5
9
5
J2-8
J2-9
SHEILD
10
01/07 20
Page 21
E23CS78GPS0 Publication No: 5995483202
WIRING DIAGRAM
DRAIN
TROUGH
DEFROST
FRZR MID MOUNT
LIGHT
6
3
3
6
9
THERMISTOR
5
2
2
5
8
LT. BLU
789
4
1
1
4
7
GRY
YEL/RED
LATCH
GRY
THERM.
DEFROST HEATER
YEL
RED
BRN
BLU
BLU
9
7
8
4
5
RED/WHT
7
YEL/RED
YEL/WHT
8
BLU/WHT
DK.BLU/WHT
9
YEL/PNK
987
GRN/YEL
1
1
456
7
(FRZR)
6
2
3
2
3
8
9
LIGHT SWITCH
LATCH
CATCH
7
4
6
5
GRN/YEL
BRN
BRN/WHT
YEL/RED
LT. BLU
2
3
1
CATCH
1
3
2
GRY
LT. BLU
GRY
BLK
PUR
YEL
6
5
4
GRN/YEL
PUR
TAN
BLU/WHT
LT. BLU
RED/BLK
ORG/WHT
FRZR
FAN
(DC)
FROM DOOR
TO PORKCHOP
6
LATCH
1
SEE
DISPENSER ASSY
WIRING
FRZR DOOR
GROUND
5
4
12
CATCH
3
2
DISPENSER HOUSING HEATER
SPLICE
SPLICE
1
456
2
3
4
6
1
5
2
3
LATCH
10
11
CATCH
4
5
6
YEL/PNK
LT. BLU
GRN/YEL
YEL
789
12
10
11
9
1
3
2
BLK/RED
8
RED/BLK
ORG/WHT
YEL/RED
WHT/RED
BRN
TAN
BLK
BLK
7
COMPRESSOR
LINE VAC
BLK
YEL/BLK
LT. BLU
LT. BLU
RED/BLK
RED
SPEED
COMPRESSOR/ INV.
BLK/RED
BLK
GROUND
WIRING
BLK
BLK
VARIABLE
COMPRESSOR
WHT/RED
RED
FAN
(DC)
MID MOUNT
LIGHT
SEE
5 VDC
AIR
FILTER
AUGER MTOR
SOLENDIDO
2416386
RED/WHT
5
MOTHER BOARD
10
9
DK.BLU/WHT
YEL/WHT
GRY
4
10
9
4
5
5 OR 12 VDC
AC LINE VOLTAGE
8
BRN/WHT
GRY
3
3
J2
J1 J3
(2x6)
(2x4)
7
6
RED/BLK
WHT/RED
BLK/RED
2
678
1
2
(2x5)
MARKED BY "o" SYMBOL.
THERMISTOR
GRY
BLK
1
6
GRY
BARE
5
GRY
NATURAL
4
WHT/YEL
BLK
TDO
RED
3
BRN/YEL
RD1
GRN
2
BLK/YEL
1
RED/YEL
YEL/PNK
1
ORG/WHT
YEL/GRY
2
GRN/YEL
3
LT. BLU
BRN
4
RED
BLK
ALL WIRE CONNECTIONS
ICE MAKER
DAMPER
MOTOR
A
A
A
A
BLK/YEL
BRN/YEL
WHT/YEL
RED/YEL
GRY
4
3
12
11
10
9
78
5
6
7
8
WATER
VALVE
ONE
ENDS AT
SLEEVE
1
2
GREY JACKETED
SHEILDED CABLE
TAN/YEL
5 VDC
NATURAL
BLK
COND. FAN
SPLICE
U1
TDO
RD1
GRN
RED
DIODE
DIODE
DIODES MUST BE
POLARIZED IN
SAME DIRECTION
TO U.I. (SHEILDS LIGHT WIRES)
LIGHT
FOAM BACKED MYLAR SHEILD ATTACHED
FRZR
LIGHT
LT. BLU
SPLICE
SPLICE
CONTROL BOX
NON-RIBBED
YEL/BLK
WATER
VALVE
RIBBED
SPLICE
SPLICE
WHEN APOLLO NOT PRESENT
CONNECT THESE TOGETHER
TAN
YEL
VALVE
TWO
I/M
WATER
DISPENSER
SUPPLY
J2
1
LT. BLU
J2-1
2
YEL/PNK
J2-2
3
YEL/GRY
J2-3
CONTROL
1
YEL/BLK
J1-1
APOLLO
LIGHTING
2
YEL/RED
J1-2
LIGHTS
3
OPEN
J1-3
J1
CRISPER
LIGHT
# Functional Parts
21 01/07
* Non-Illustrated Parts
Loading...
