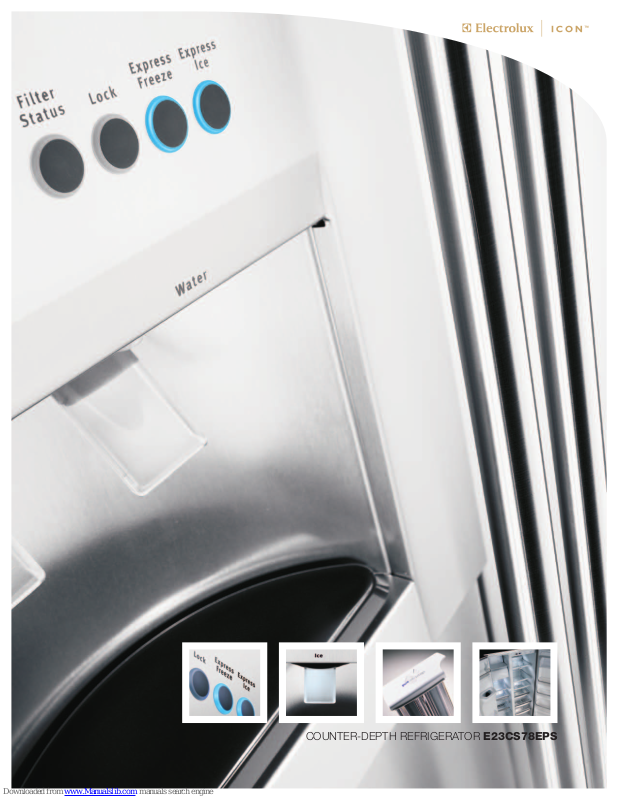

COUNTER-DEPTH REFRIGERA

TOR

E23CS78EPS

Page 2

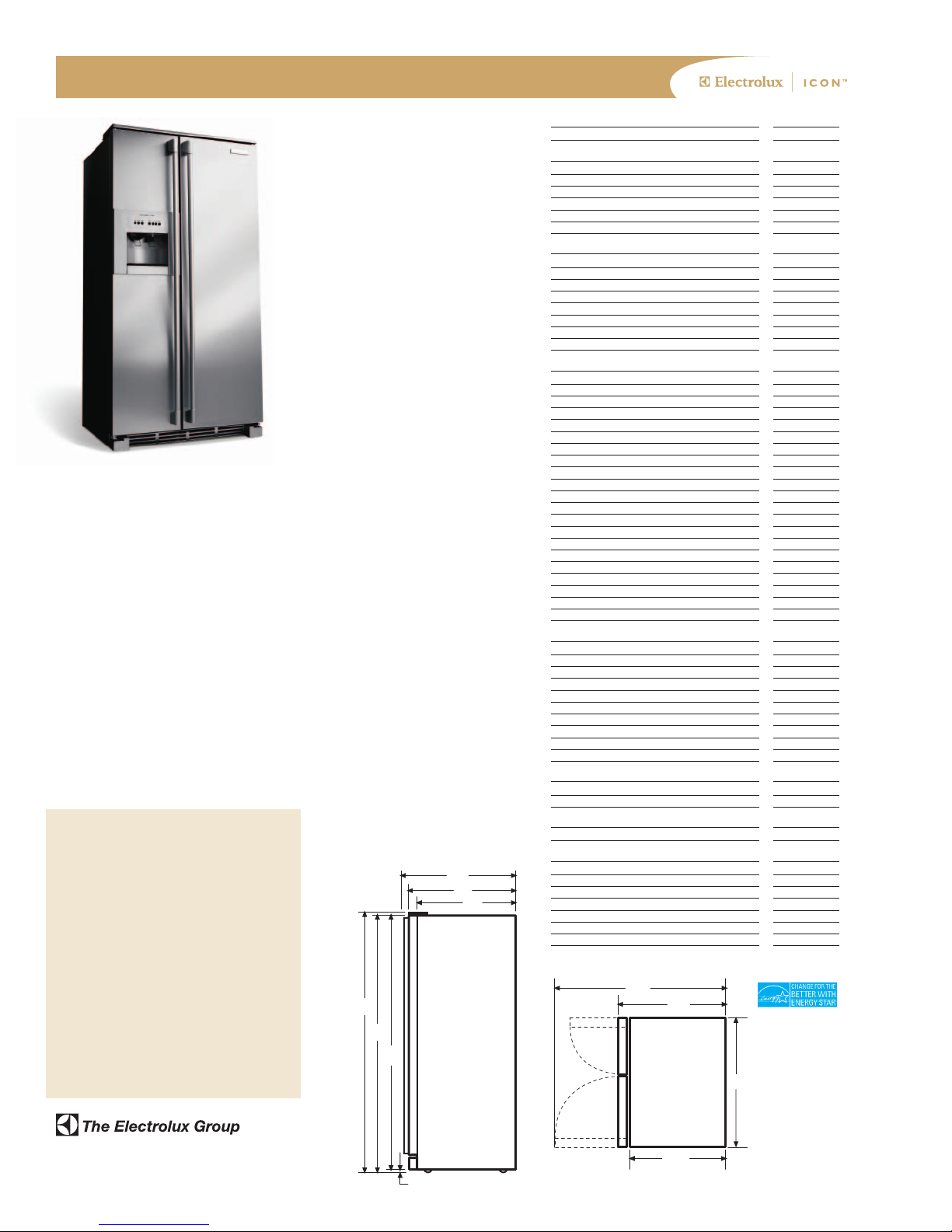

E23CS78EPS professional series

6915/16"

/8" (rollers)

683/16"

/16"

/2"

/8"

451/4"

267/8"

355/8"

/8"

Counter-Depth Refrigerator Specifications

• Product Weight – 300 Lbs.

• When installing next to wall where handle may make

contact, allow 3" clearance on side of refrigerator.

Standard “Built-In Look” Specifications

• For standard “Built-In Look,” enclosure around

refrigerator must have minimum opening of 70-1/4" H x 36" W x 24" D.

• The height dimension of 70-1/4" is minimum, and is

to be measured from finished floor to underside of soffit or overhead cabinet.

• All wall / floor molding should be removed prior to

installation.

• Water recess on rear wall recommended to prevent

water line damage. Water line tubing recommended is 48" minimum length by 1/4" diameter.

• When possible, recess both copper water line and

electrical outlet (See Local Electrical Codes.)

• Front rollers are adjustable for“Built-In Look.”

• If optional Collar Trim Kit (ECK23CDS) is to be used

or anticipated, r and drawings for dif

efer to Collar T

rim Kit Specifications

ough-in dimensions.

ent r

fer

OPTIONAL – Collar Trim Kit Specifications

o use optional Collar Trim Kit, an enclosure is

•

required around refrigerator having a minimum opening of 70-1/4" H x 36-1/8" W x 24-1/2" D with 1/2" minimum side panels.

• Add maximum of 1/4" to 70-1/4" opening height

when installed with frameless-style over cabinets, to allow for door opening clearance.

• The cabinet or soffit above refrigerator must extend

out to same depth as side panels.

• To provide additional clearance for overhead cabinet

doors when in open position, allow 1" between bottom of cabinet door and top of collar trim piece.

A minimum width of 36-1/8" is r

•

efrigerator installation with an additional 1/2"

r or 3/4" added for each side panel.

• If 1/2" side panels are used, then side collar trim

piece and panel will be even. If 3/4" side panels are used, then 1/4" of side panel will extend beyond collar trim and must be finished.

equir

head

ed for

Smudge-Resistant

™

Real Stainless Steel

Real stainless steel exterior with a coating resistant to fingerprints, smudges and smears. Finish covers the cabinet, dispenser fascia, toe kick and hinge cover.

PureAdvantage™Filtration System

The most advanced water filtration system available offers cleaner, fresher ice and water. And it is simple to operate, providing a light that alerts when the filter needs to be changed. With one touch, the drip-free cartridge is replaced.

Dynamic Cool™with Easy Set

™

Digital Temperature Control System

Amazingly consistent interior temperature will keep your food fresher longer.

Illumination Solutions

Transition lighting that is so thoughtfully designed that it gradually illuminates the interior of the refrigerator with soft but ample light.

Smooth-Glide

™

Full-Extension System

Crispers, deli drawer and freezer basket slide in and out with ease, extending completely for convenient access to stored food.

Express Ice™/ Express Freeze

Creates ice according to your family’s needs and quickly freezes food to lock in flavors and nutrients, with the touch of a button.

SmartFit™/ SpillSafe™Shelf

Top shelf height can be raised or lowered without removing your foods. Stores tall items easily. Shelf depth will contain a spill of up to 24 ounces.

ENERGY STAR

UltraQuiet variable-speed, energy-efficient compressor conserves energy.

Note: Refer to Pr instr

uctions on the web at www.electroluxusa.com.

oduct Installation Guide for detailed

COUNTER-DEPTH REFRIGERATOR

ENERGY STAR

CAPACITIES

Total Capacity 22.6 Cu. Ft. Fresh Food Volume 14.06 Cu. Ft. Freezer Volume 8.50 Cu. Ft. Total Shelf Area 23.70 Sq. Ft. Fresh Food Shelf Area 17.26 Sq. Ft. Freezer Shelf Area 6.40 Sq. Ft.

ICE /WATER DISPENSER

Control Panel Buttons 7 Lighted Actuators Yes Night Light Yes Crushed /Cubes /Water Yes Express Ice Express Freeze Lock Yes Filter Reset Yes

FRESH FOOD CONVENIENCES

Filtration System PureAdvantage Filter Location Temperature Alarm Yes Door Ajar Alarm Yes Power Failure Sliding SpillSafe™Glass Shelf 2 Smooth-Glide™Full-Extension Crispers 2 Smooth-Glide™Full-Extension Deli Drawer SmartFit™Sliding SpillSafe™Glass Shelf 1 Clear 1-Gallon Removable Door Bin 1 Clear 2-Liter Adjustable Door Bin 2 Removable Dairy Compartment with Clear Door 1 Clear

™

Condiment Bottle Door Storage 1 Dual Humidity-Controlled Clear Crisper 1 Lower Humidity-Controlled Clear Crisper 1 Clear Can /Wine Rack 1 Clear In-Door Can Rack Illumination Solutions Lighting Dynamic Cool™Digital Temperature Control System Yes

FREEZER CONVENIENCES

Automatic Ice Maker with Ice Server Ice Maker On Glass Shelf Smooth-Glide™Full-Extension Freezer Basket Full Basket Half Basket 1 Fixed Door Bin 1 Tilt-Out Wire Door Rack 3 Ice Cream Shelf Dual-Level Lighting

INSTALLATION

Adjustable Rollers Yes Door Stops Yes

ACCESSORIES

Collar Trim Kit – ECK23CDS Optional

SPECIFICATIONS

Rough-In Dimensions –

Height 70-1/4" W

Depth 24" Product Weight 300 Lbs. Shipping Weight 325 Lbs. UPC (0-12505-) 69143-0

NOTE: Always consult local and /or national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at www.electroluxusa.com.

™

Alarm

Meat Drawer

emperature-Controlled Deli

Tall Bottle Retainer 1

/ Off Switch Yes

idth

Yes

Yes Yes

Front

Factory Installed

2 1 1

36"

™

•

USA

250 Bobby Jones Expressway •Augusta, GA 30907

1-877-4electrolux (1-877-435-3287)

•

CANADA

1-800-668-4606

E23CS78EPS 04/05

5855 Terry Fox Way •Mississauga, ON L5V 3E4

•

.electr

www

•

www.electroluxusa.com

oluxca.com

ds of quality at Electr

High standar

our products. We reserve the right to change specifications or discontinue models without notice.
