Electrolux E23CS78EP User Manual

Product No. E23CS78EPS1
Series R134a
Color stainless
Volts 115

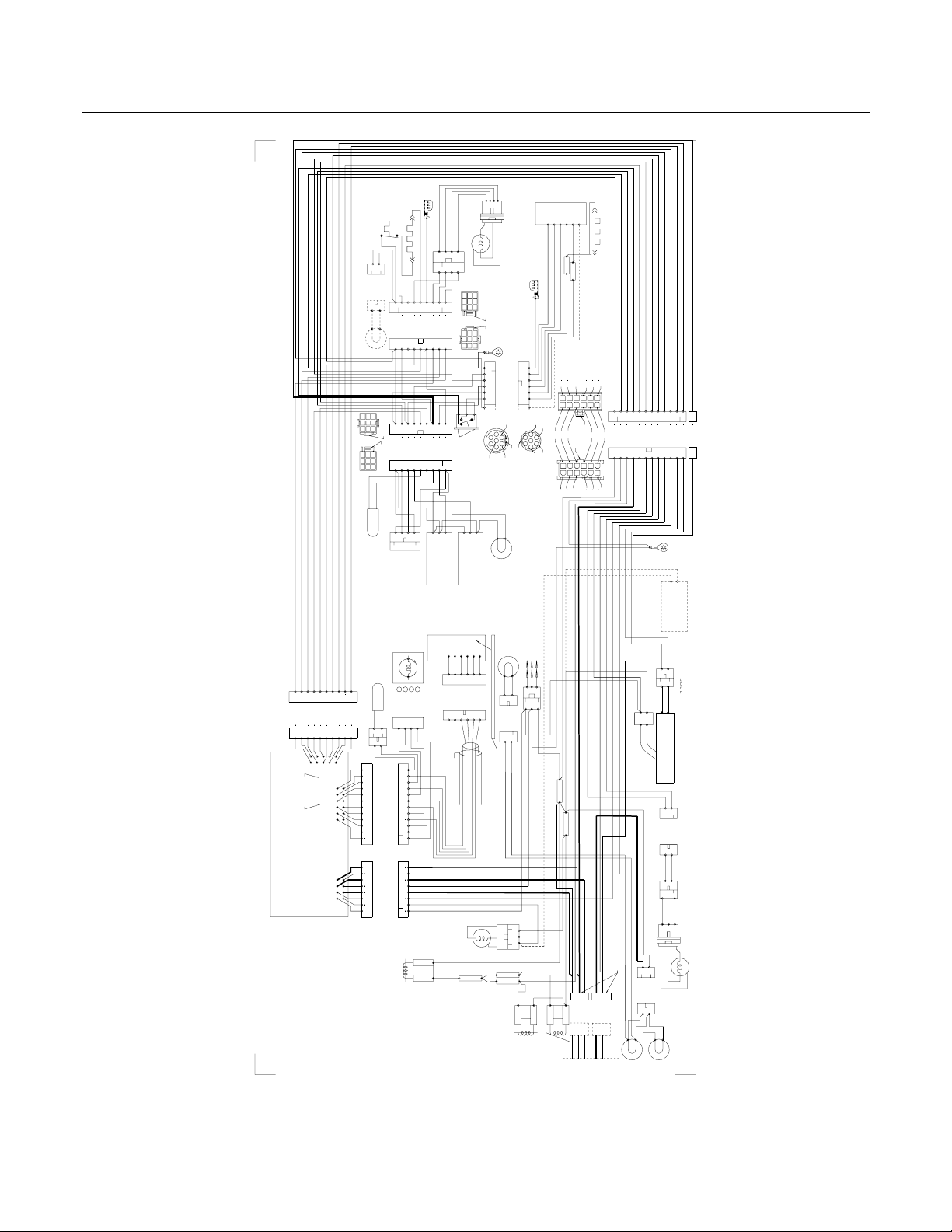

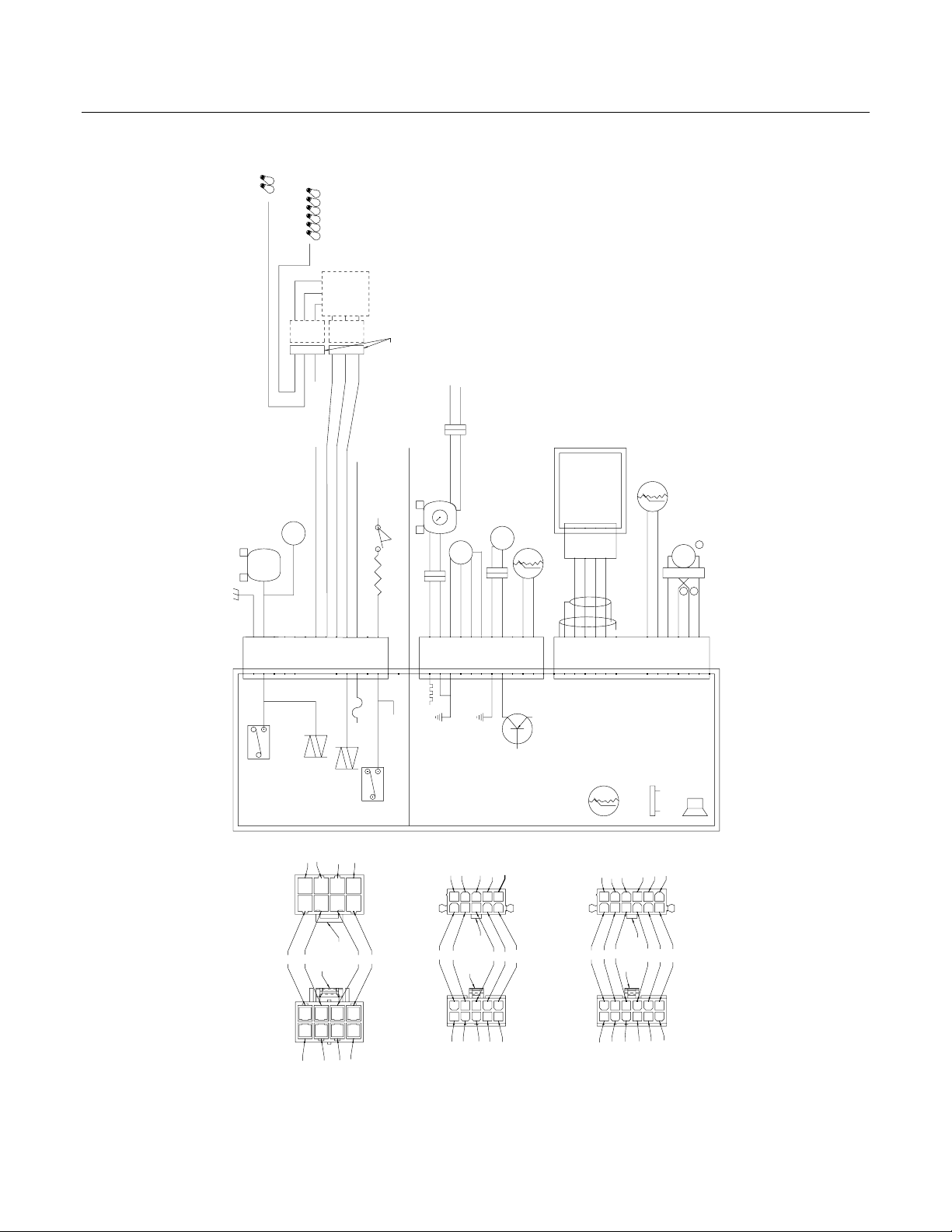

Wiring Diagram 241638600
Owner's Guide 241540102
Market North America
Energy Guide 241607576
Service Data Sheet 241639000

E23CS75DSS0.eps N58FMDEEA0.eps N58RMDCHA0.eps N58BABAAC2.eps
N58SDGLBH12.eps N58TBAAAB2.eps N58CACBAA3.eps N58XECAAA0.eps
N58YDAAACO.eps N58I115T.eps W241638600.eps S241638600.eps

Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917

Publication No.

5995444899

05/08/16

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

E23CS78EP

Copyright © 2005 Electrolux Home Products, Inc.

All rights reserved.

Publication No: 5995444899 E23CS78EPS1

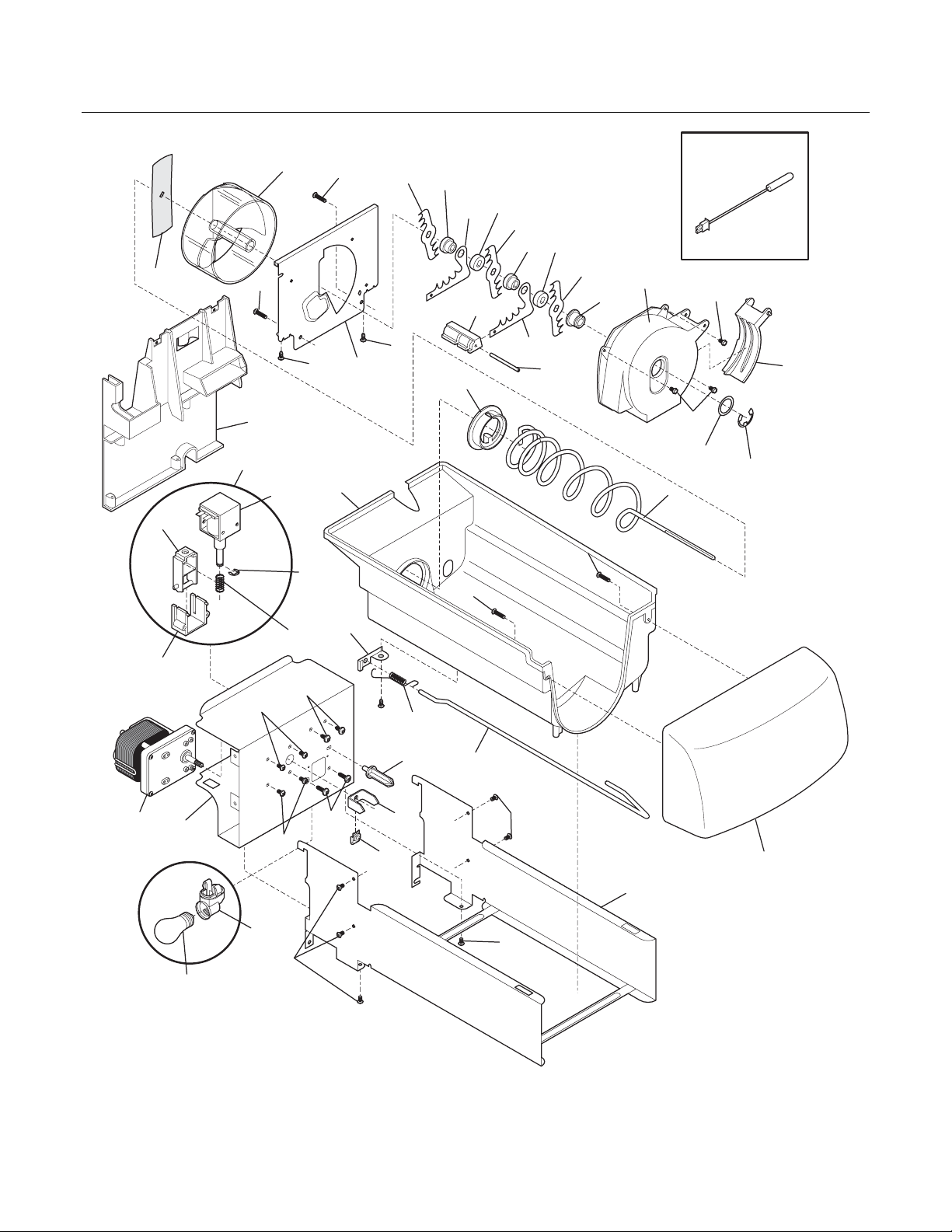

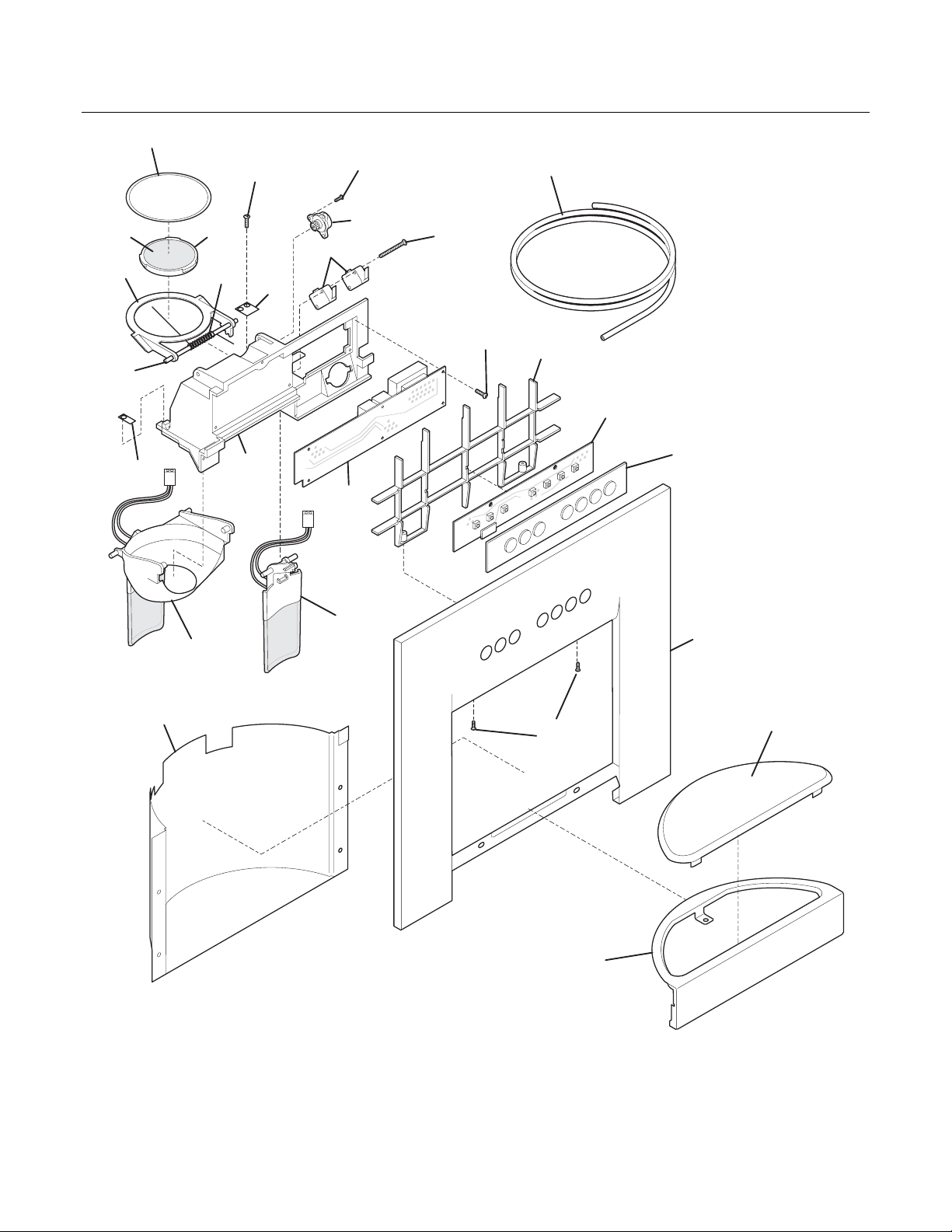

FREEZER DOOR

08/05 2

E23CS78EPS1 Publication No: 5995444899

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241510202 Gasket-frzr door, white, magnetic
4B 241511604 Bin-door
5 241545001 Bin-tilt out, tilt-out
11 241526767 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 241637909 Handle Assembly, stainless, w/endcaps
18* 241601001 Wrench, allen
21A 240598401 Screw, 10-32 x 1/2
22A 240328202 Bearing-hinge(frz), closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755401 Screw-set, 10-32 x 0.375
80 218755503 Screw-shoulder, #10 AB, handle mounting

* 240352102 Connector-water, straight
* 240388601 Elbow-water tube
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit

# Functional Parts

3 08/05

* Non-Illustrated Parts

Publication No: 5995444899 E23CS78EPS1

REFRIGERATOR DOOR

08/05 4

E23CS78EPS1 Publication No: 5995444899

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241510201 Gasket-refr door, white, magnetic
5 241516102 Rack-can
6 241515901 Lug-dairy compartment
7 241515601 Door-dairy
12 241603101 Label-nameplate
13 240581905 Door Stop, black, ref
15 240345269 Door-refr, stainless steel, complete assy
18 241637909 Handle Assembly, stainless, w/endcaps
18* 241601001 Wrench, allen
21A 240598401 Screw, 10-32 x 1/2
22 240328201 Bearing-hinge(ref), closer
22B 240328404 Bearing-hinge, black, upper
27A 240396102 Retainer, tall bottle
48 241511705 Bin-door, ref
49 241505505 Bin-door, gallon
49A 241505305 Bin-door, gallon
50 241508401 Cover-magnet
70 241515801 Compartment-dairy, removable
79 218755401 Screw-set, 10-32 x 0.375
80 218755503 Screw-shoulder, #10 AB, handle mounting

# Functional Parts

5 08/05

* Non-Illustrated Parts

Publication No: 5995444899 E23CS78EPS1

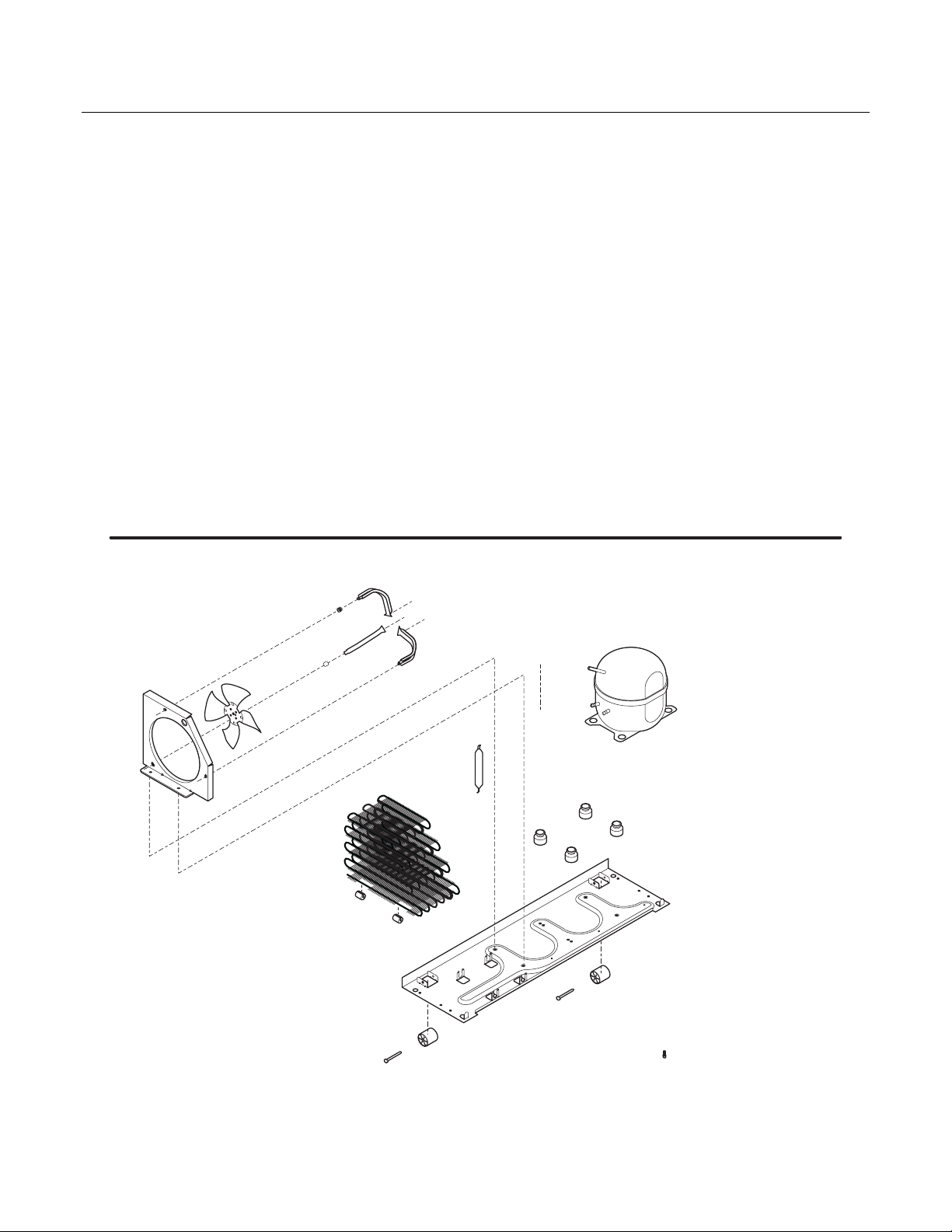

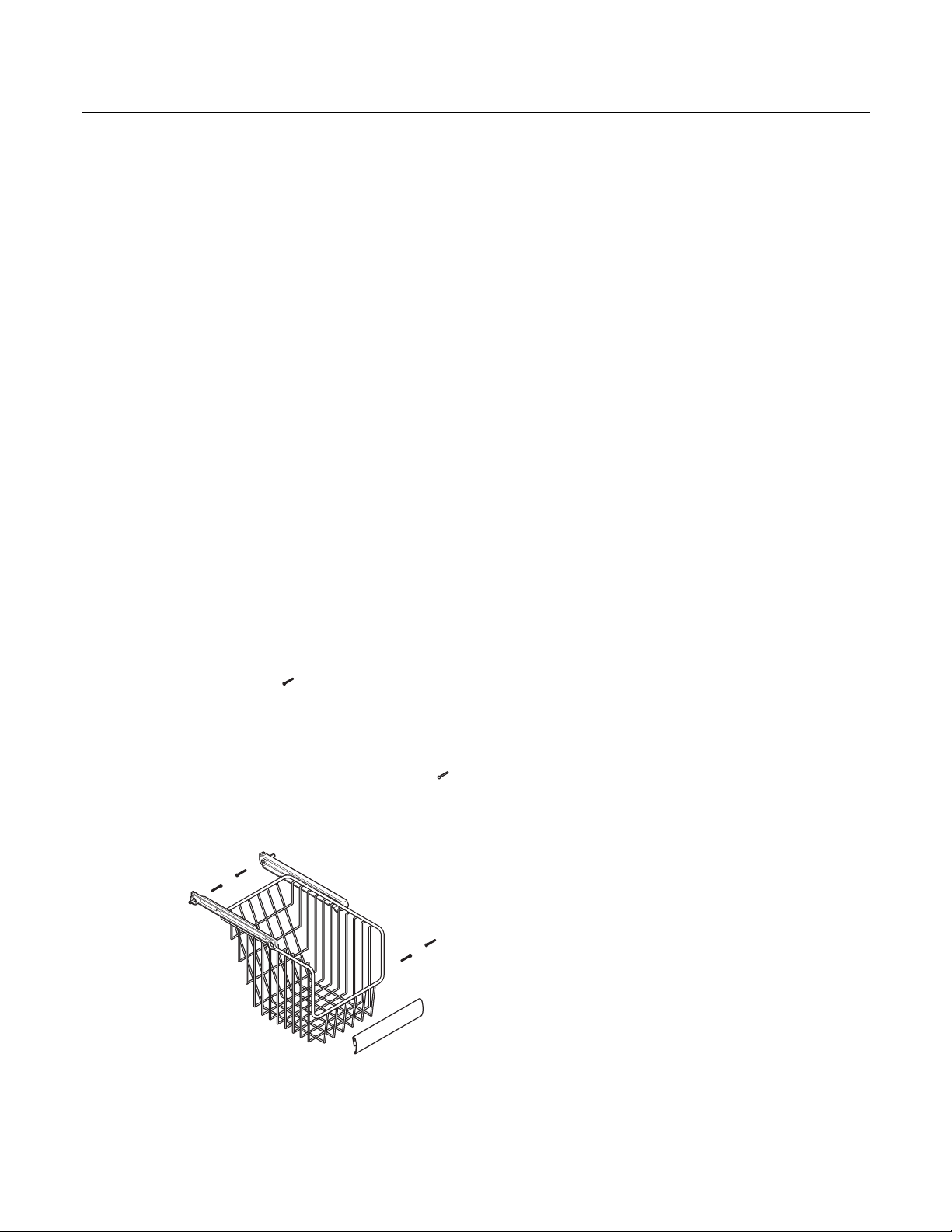

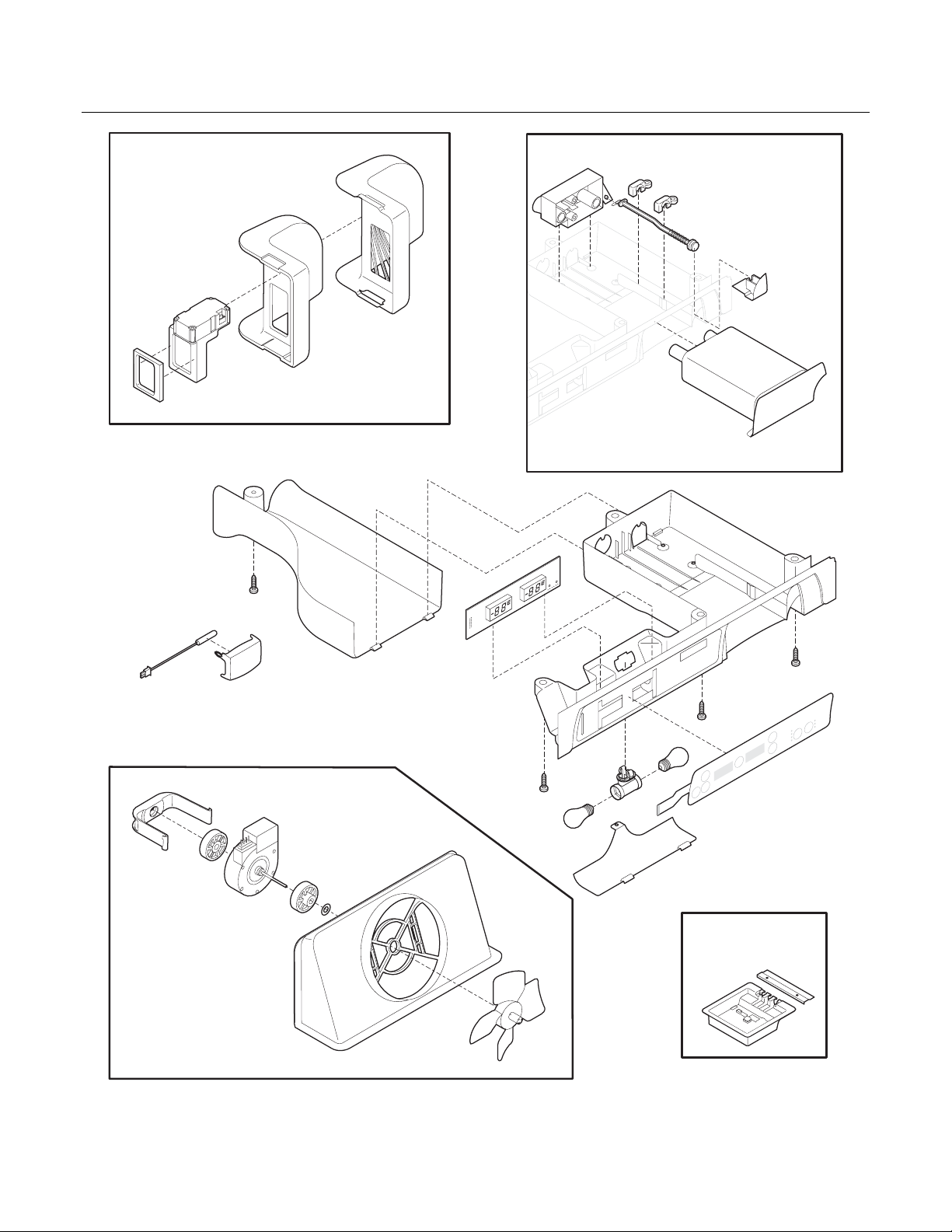

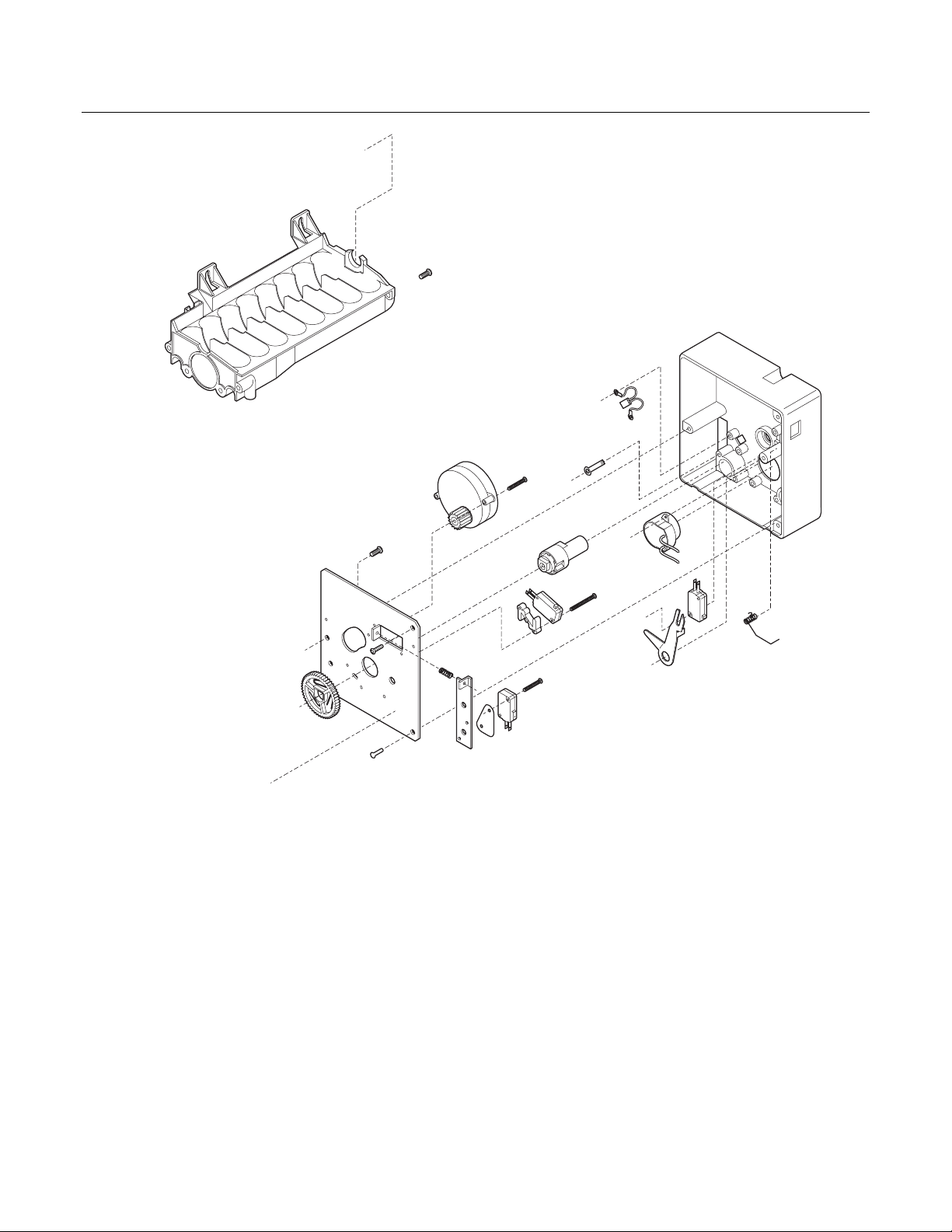

CABINET

08/05 6

E23CS78EPS1 Publication No: 5995444899

CABINET

POS. NO PART NO. DESCRIPTION

10 241509802 Cover-air duct
10A 240475908 Cover-evap coil, lower
11 241529301 Plug-hole, factory test
14A 241547901 Switch-light/lamp, frzr door
21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500
22 240457701 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603701 Bracket-lower hinge, ref
30A 241603702 Bracket-lower hinge
37 240337605 Trim-cabinet corner, silver, (2)
38 240327201 Bracket-upper hinge
40 241551301 Cover-upper hinge, stainless steel
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 Roller Assy, adjustable, front, (2)
45 241500301 Screw, hex washer head, 8-18AB x 0.500
47 241513001 Channel-shelf mtg, side, (2)
50 241511102 Board-main power
50* 241532501 Clip-harness
54 241532401 Channel
58 241595401 Screw-#10-32 X 3/4
66 241513602 Damper-meat keeper
72 241554701 Grille/Kickplate
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 Cover access
90 218249808 Seal-coil cover
92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)

* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes, (2)
* 241581801 Paint-pen
* 241591701 Louver

# Functional Parts

7 08/05

* Non-Illustrated Parts
