Electrolux E23BC68JPS User Manual
electroluxicon.com
French Door Refrigerator
E23BC68JPS professional series
23 CU.FT. COUNTER-DEPTH
FRENCH DOOR REFRIGERATOR
CAPACITIES
Total Capacity
Fresh Food Volume
Freezer Volume
Total Shelf Area
Fresh Food Shelf Area
Freezer Shelf Area
EXTERIOR
Professional Doors and Handle Design
Custom-Set™Electronic Controls
Door Hinge Covers
FRESH FOOD CONVENIENCES
PureAdvantage®Water & Ice / Air Filtration
Water Filter Location
TempAlarm System / Door AjarAlarm / Power Failure Alarm
Custom-Design™Glass Shelves
Smooth-Glide®Humidity-Controlled Left Crisper
Smooth-Glide®Humidity-Controlled Right Crisper
Custom Temp Drawer
™
Wine Rack
Clear Gallon Adjustable Door Bins
Clear 1/2-Gallon Adjustable Door Bins
Locking Clear Utility Bin
Tilt-Out Can Racks
Theatre Ramp-Up Multilevel Lighting – LED
FREEZER CONVENIENCES
Automatic Ice Maker
Ice Maker On/ Off
Fast Ice
™
Self-Closing Drawer
Sliding Freezer Baskets
Plastic Basket Tray
Tilt-Out Wire Door Racks
Theatre Ramp-Up Multilevel Lighting – LED
ADDITIONAL FEATURES
ENERGY STAR
®
Sabbath Mode (Star-K®Certified)
ACCESSORIES
Collar Kit – PN# ECK23CDS*
Louvered Trim Kit – PN# 241723001*
Water Filter Replacement Cartridge – PN# EWF01
Air Filter Replacement Cartridge – PN# EAFCBF
SPECIFICATIONS
Product Dimensions –
Height (with Hinges and 3/8" Rollers)
Cabinet Width/ Door Width
Depth (Including Handle)
(with 90° Doors Open)
(with Drawer Fully Extended)
Power Supply Connection Location
Water Inlet Location
Voltage Rating
Connected Load (kW Rating)@ 120 Volts
‡
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
* For detailed Louvered Trim Kit and Collar Kit installation instructions, refer to Product
Installation Guides on the web at electroluxicon.com.
‡An electrical supply with grounded three-prong receptacle is required. The power supply
circuit must be installed in accordance with current edition of National Electrical Code
(NFPA 70) and local codes & ordinances.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
22.6 Cu.Ft.
15.7 Cu.Ft.
6.9 Cu.Ft.
26.45 Sq.Ft.
18.72 Sq.Ft.
7.7 Sq.Ft.
Yes
Yes
Yes
Yes
Bottom Left
Yes
4 Half Width
Yes
Yes
Yes
Yes
2
3
Yes
2
Yes
Yes
Yes
Yes
Yes
2 Full-Width Smooth-
Glide
®
(with Dividers)
1 Half-Width
1
1
Yes
Yes
Yes
Optional
Optional
Optional
Optional
69-1/2"
35-5/8"/ 36"
29-1/2"
42-9/16"
44-1/2"
Right Bottom Rear
Left Bottom Rear
120V/ 60Hz/15 or 20A
1.02
15
348 Lbs.
Custom Temp Drawer
™
Enjoy the ultimate in versatility with 9 preset
selections including White/Sparkling Wine,
Fish/Shellfish, Cheese plus three customizable
settings that ensure foods stay at the ideal
temperature for serving and maintaining freshness.
Custom-Design™Organization System
With our flexible Tri-Level freezer organization
system you can keep your freezer well organized.
The three Smooth-Glide
®
baskets with removable
dividers and top removable baskets allow you
to configure the space to neatly fit large and
small items.
Theatre Lighting
Transition LED lighting gradually illuminates the
interior with soft but ample light as you open
the door.
PureAdvantage®Filtration Systems
Our filtration system keeps clean, filtered air
circulated throughout to prevent odor transfer
and keeps fresh, clean water and ice at
your fingertips.
French Door Refrigerator
E23BC68JPS professional series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
E23BC68JPS 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Counter-Depth French Door Refrigerator Specifications
•
Product Weight – 338 Lbs.
•
An electrical supply with grounded three-prong receptacle is required.The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.
•
Voltage Rating –120V / 60 Hz /15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.02kW
•
Amps @120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer/crisper access and removal. (Absolute 4-1/2" minimum
clearance will ONLY allow for 90°door swing which will provide
drawer/crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line with
length equal to distance from rear of unit to household water supply line
plus 7 additional feet. Optional Water Supply Installation Kits available.
•
Adjustable front rollers to assist with door alignment.
•
If optional Collar Kit (PN# ECK23CDS) is to be used, different cutout
dimensions are required. (Refer to Collar Kit ECK23CDS Installation
Specifications page on web.)
•
If optional Louvered Trim Kit (PN # 241723001) is to be used, different
cutout dimensions are required. (Refer to Louvered Trim Kit 241723001
Installation Specifications page on web.)

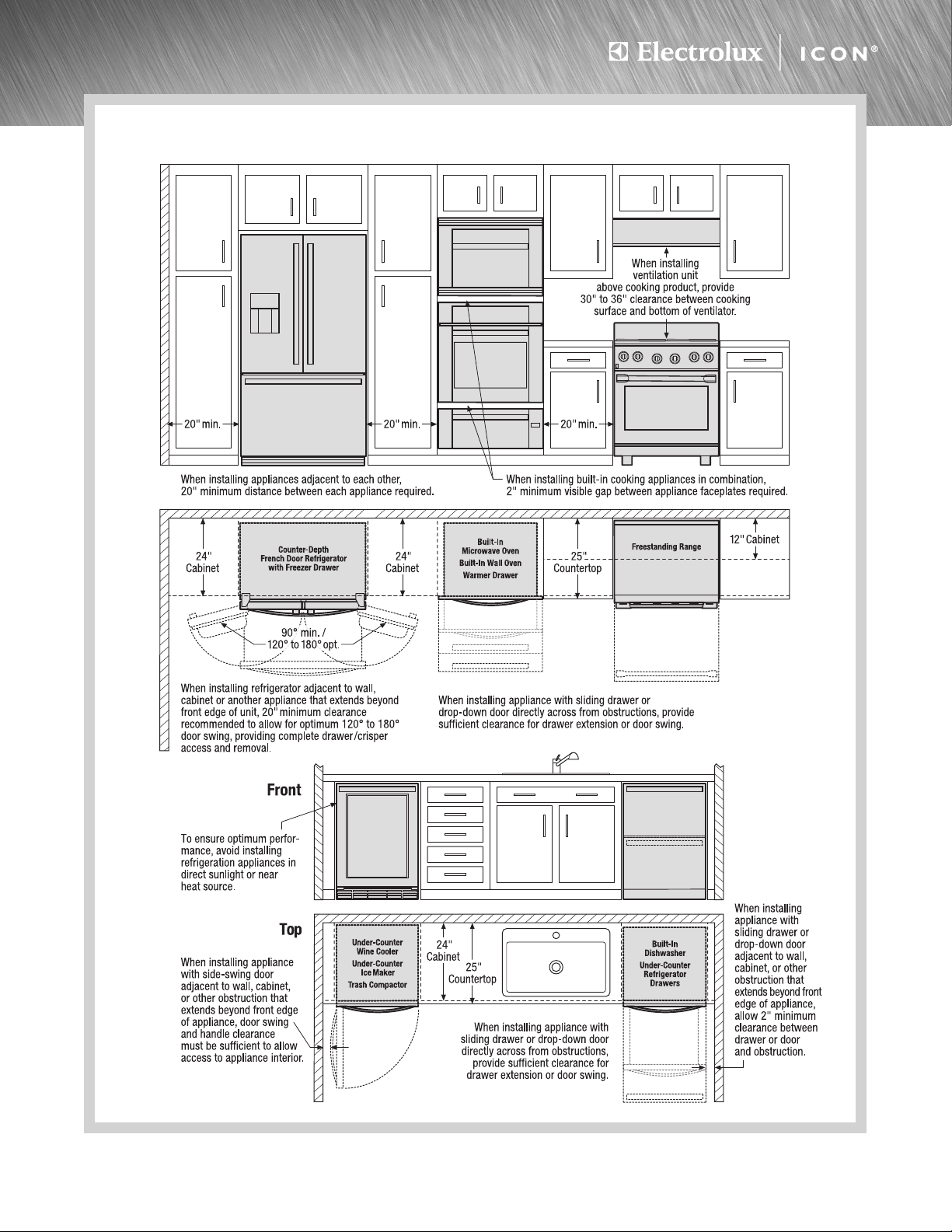

“Built-In Look” Specifications
•
Minimum opening of 70-1/4"H x 36"W x 25"D required to allow for ease
of installation, proper air circulation, and plumbing/ electrical connections.
•
Remove all wall/floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•

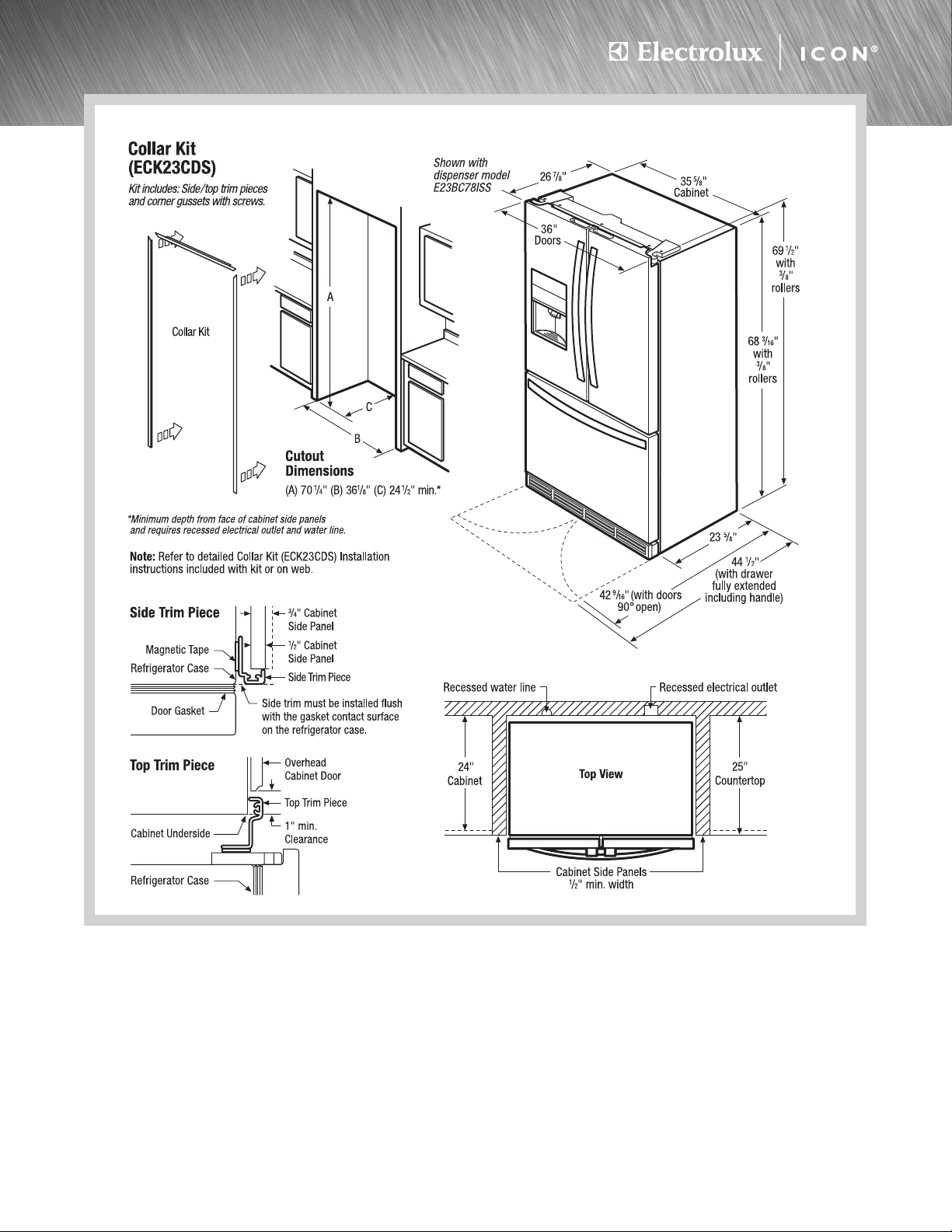

Collar Kit – (PN# ECK23CDS).
•

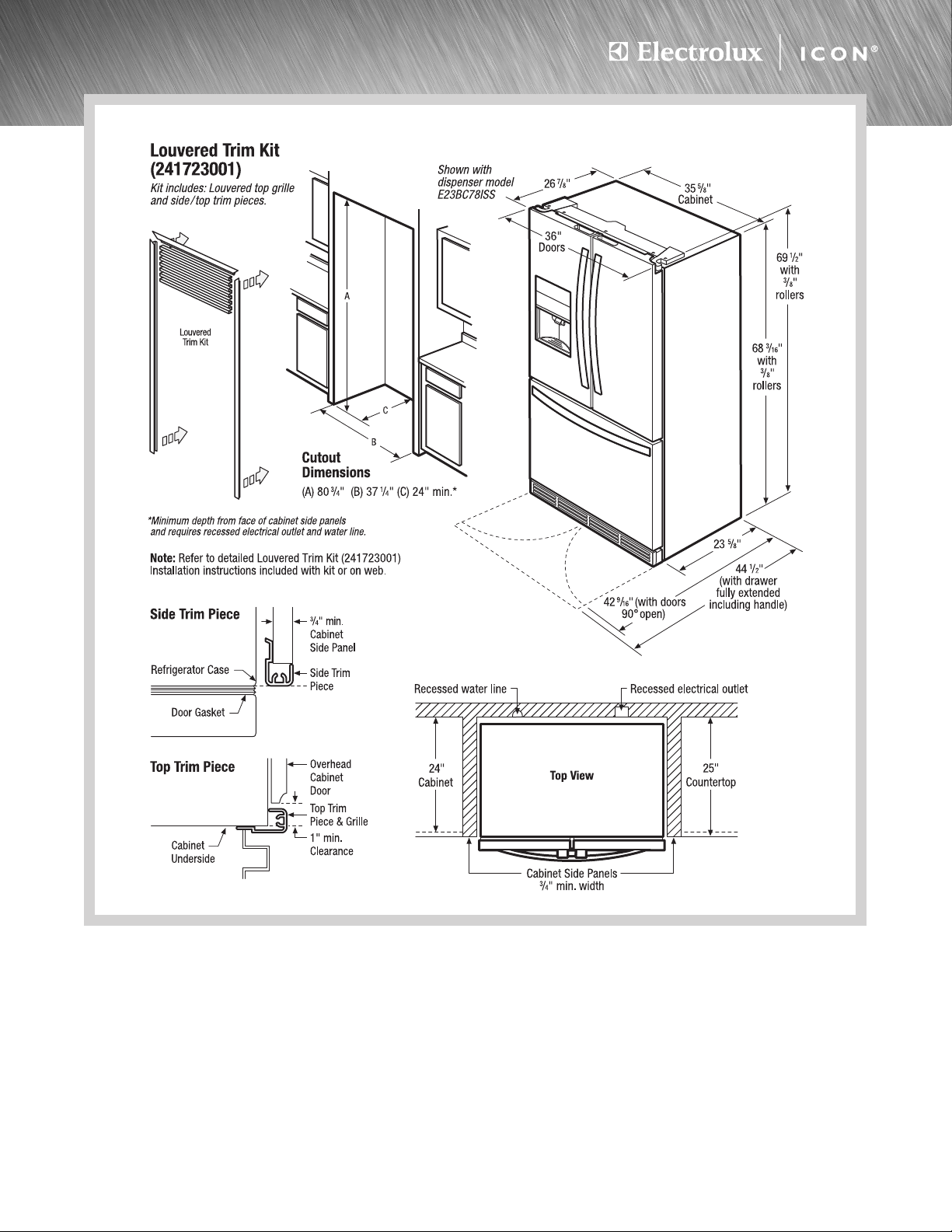

Louvered Trim Kit – (PN # 241723001).
•
PureAdvantage®Water Filter Replacement Cartridge – (PN# EWF01).
•
PureAdvantage®Air Filter Replacement Cartridge – (PN# EAFCBF).
Note: Optional Louvered Trim Kit and Collar Kit available
for French Door Counter-Depth Refrigerator. For
specifications, refer to Louvered Trim Kit (241723001)
Installation page or Collar Kit (ECK23CDS) Installation
page on web.
