Page 1
Item
Model
ProjectName
Planetary mixers
603383

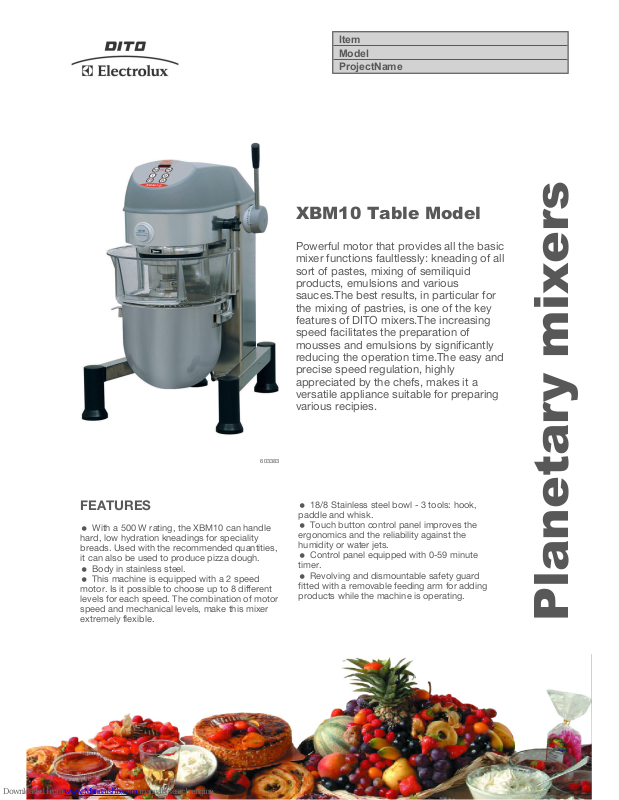

XBM10 Table Model
Powerful motor that provides all the basic
mixer functions faultlessly: kneading of all
sort of pastes, mixing of semiliquid
products, emulsions and various
sauces.The best results, in particular for
the mixing of pastries, is one of the key
features of DITO mixers.The increasing
speed facilitates the preparation of
mousses and emulsions by significantly
reducing the operation time.The easy and
precise speed regulation, highly
appreciated by the chefs, makes it a
versatile appliance suitable for preparing
various recipies.
FEATURES
V With a 500 W rating, the XBM10 can handle
hard, low hydration kneadings for speciality
breads. Used with the recommended quantities,
it can also be used to produce pizza dough.
V Body in stainless steel.
V This machine is equipped with a 2 speed
motor. Is it possible to choose up to 8 different
levels for each speed. The combination of motor
speed and mechanical levels, make this mixer
extremely flexible.
V 18/8 Stainless steel bowl - 3 tools: hook,
paddle and whisk.
V Touch button control panel improves the
ergonomics and the reliability against the
humidity or water jets.
V Control panel equipped with 0-59 minute
timer.
V Revolving and dismountable safety guard
fitted with a removable feeding arm for adding
products while the machine is operating.
Page 2
Specifications
MODEL
XBM10S
603383
Bowl Capacity lt 10
External dimensions - mm
width 454
depth 606
height 700
Working capacity - kg of flour
Choux pastry 2.5
Shortcrust pastry 3
Cold water paste 3.5
Sweet pastry 3
Croissant 3
Brioche 3
Meat kg 5
Puree - kg of potatoes 5
Power - kW
installed-electric 0.5
Net weight - kg. 45
Supply voltage 380...415 V, 3, 50
V The XBM10 is constructed in compliance with EN
454 European regulation on Beater-mixers safety
and hygiene.
Page 3
Included accessories
CODE DESCRIPTION
653276 BOWL FOR 10LT MIXER 1
653268 DOUGH HOOK FOR 10LT MIXER 1
653267 PADDLE FOR 10LT MIXER 1
653269 WHISK FOR 10LT MIXER 1
Optional accessories
CODE DESCRIPTION
653276 BOWL FOR 10LT MIXER ✓
653268 DOUGH HOOK FOR 10LT MIXER ✓
653267 PADDLE FOR 10LT MIXER ✓
653269 WHISK FOR 10LT MIXER ✓
Page 4
ADAA010
www.dito-electrolux.com
Planetary mixers
The manufacturer reserves the right to modify and make improvements to the products without
giving prior warning. Dimensions, illustrations, technical data, weights, etc. are given as an
indication only.
Installation drawings
XXX
I - Electrical connection 380...415 V, 3, 50
MODEL
XBM10S
603383
603383
I
700
100
824
606
514
